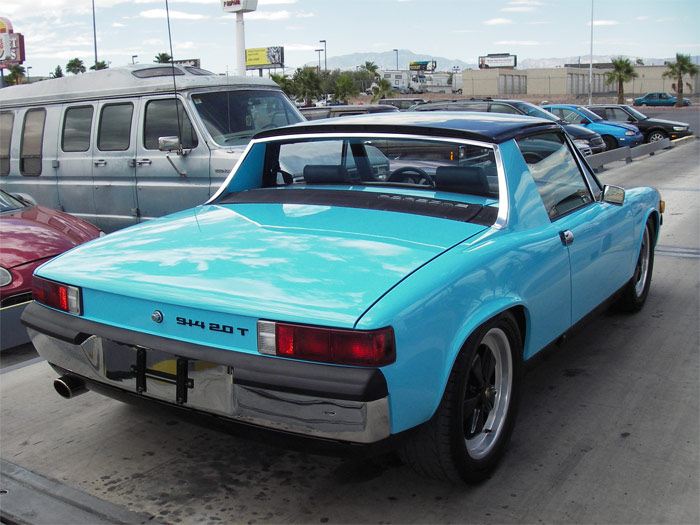

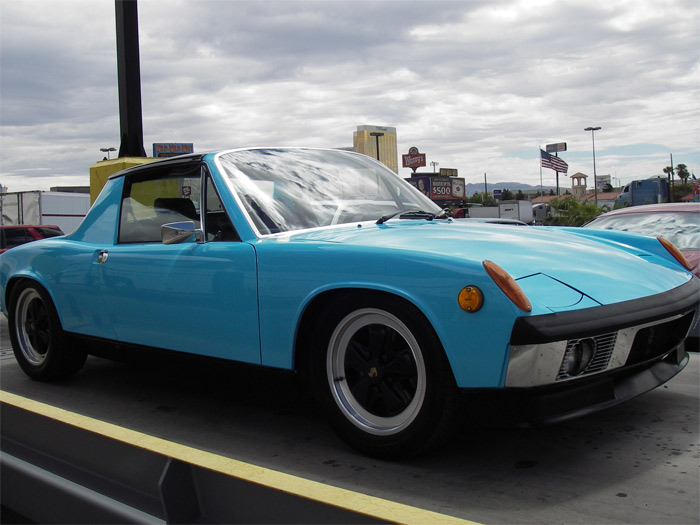

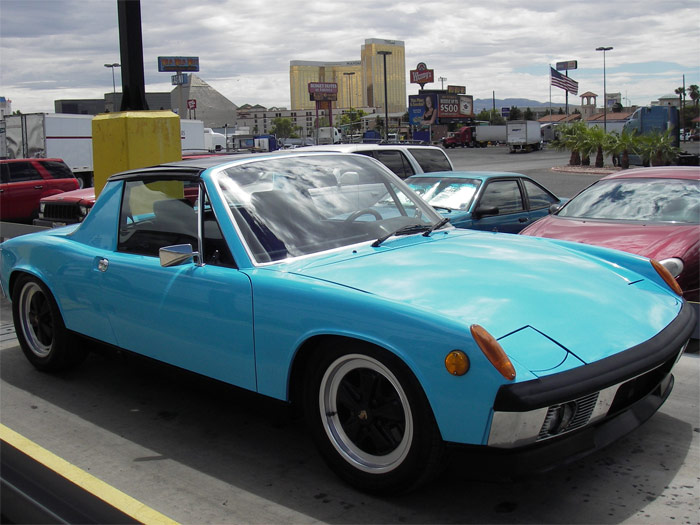

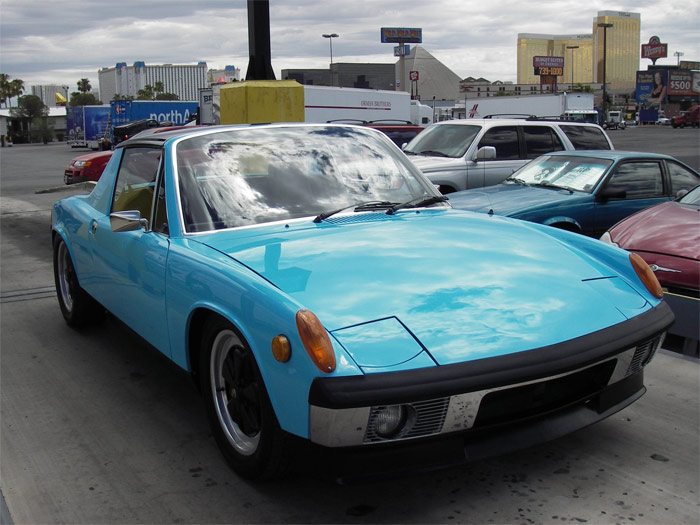

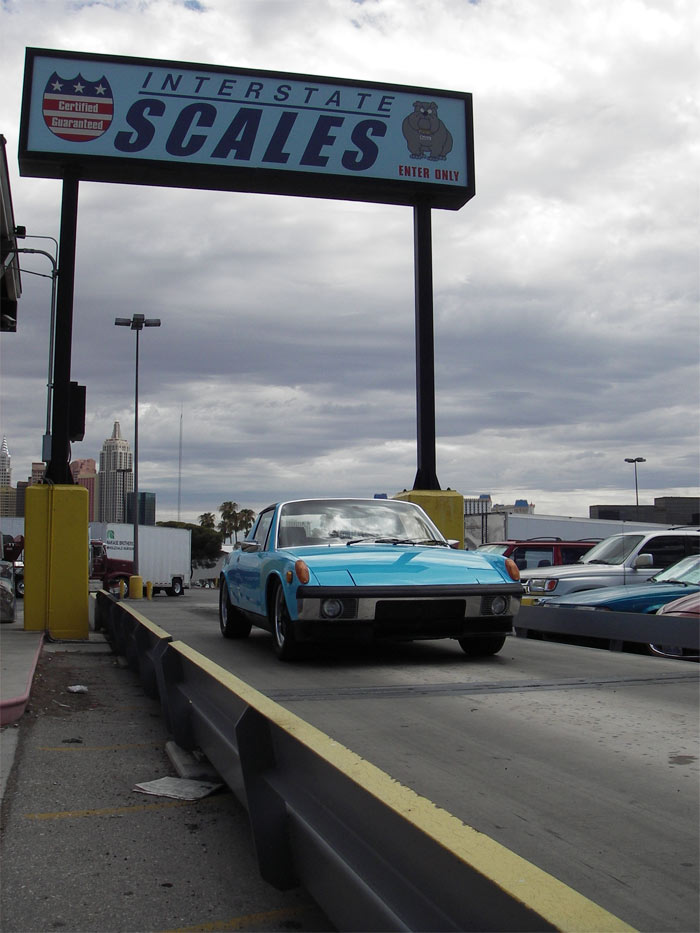

Picked up the car in LV from Renegade on 8/4/06. First stop was the scales; came in at 2,260lbs. Spent a couple of days in LV with the wife and had a great (hot) time! As usual, the shortest distance between any two points in LV is under construction! We left early Sunday afternoon; I had intended to leave much earlier since I wanted to avoid the heat but we had too much fun the night before and got in kinda late. The temp when we left at 12:45pm was well over 100 and the car handled it with aplomb, ususally 180-185 on the temp guage (that is water temp of course). Going through Baker (the "Gateway to Death Valley") at 2:30 it was 106 and the car was totally cool at all times even though we weren't. Since everyone knows turbos work better in cooler air, I was surprised how well the car pulled in the very hot conditions. Oh well, that's enough for now - some pics follow.

Attached thumbnail(s)

1974 P0RSCHE 914
SUBARU 2.0L WRX TURBO CONVERSION
BY RENEGADE HYBRIDS AND JERRY WOODS ENTERPRISES

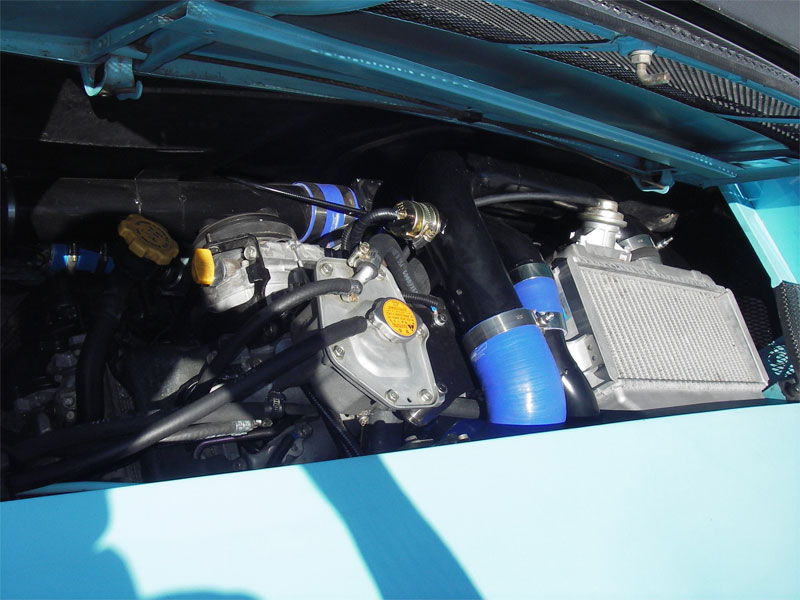

Engine

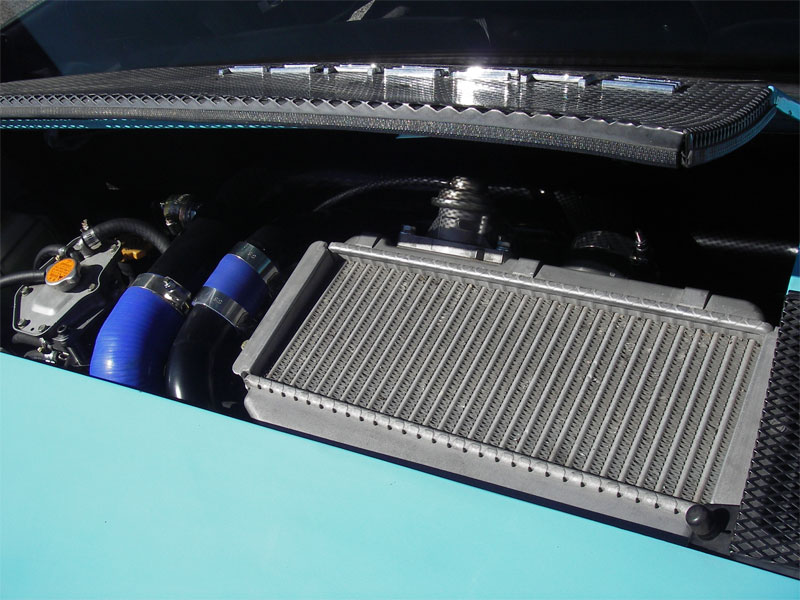

-2004 SUBARU WRX EJ20 TURBO ENGINE

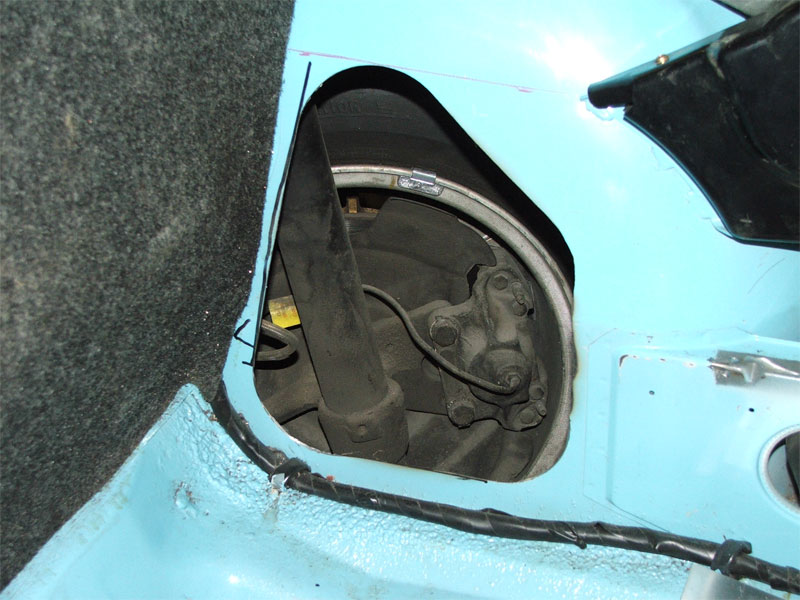

-ALL CUSTOM: ENGINE CRADLE, RADIATOR SHROUD, FRONT WHEEL WELL CUTOUTS AND BATTERY MOUNT
Suspension/Handling
-2,260LBS TOTAL WEIGHT (WITHOUT DRIVER)
-911SC FRONT SUSPENSION WITH 22MM SWAY BAR
-BILSTEIN FRONT STRUT INSERTS AND REAR PERCH-ADJUSTABLE SPORT SHOCKS
-TURBO TIE RODS
-200LB REAR SPRINGS

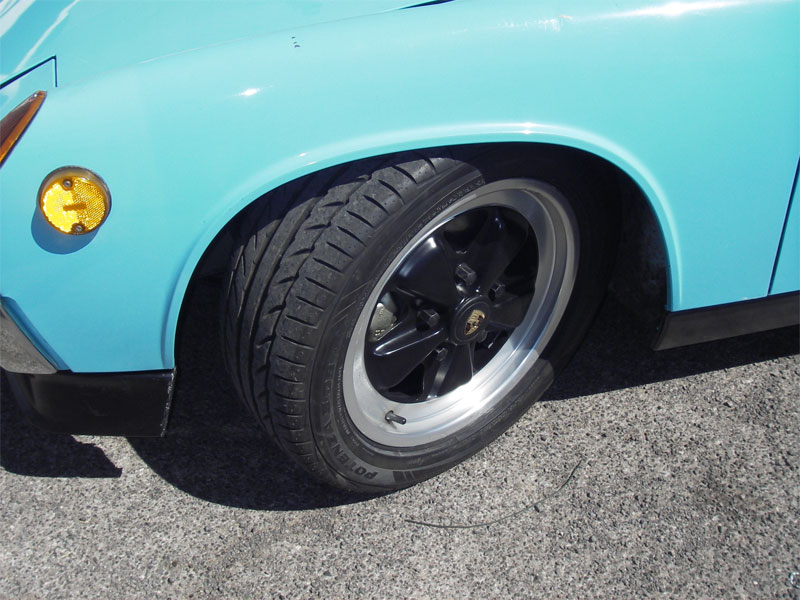

-FUCHS 6x16 (911) and 7x16 (951) WITH 205/55 and 225/50 DUNLOP Z1 STAR SPEC TIRES
Transmission
-STOCK REBUILT 914 (TYPE 901) SIDE SHIFT TRANSMISSION
-9" FLYWHEEL WITH KEVLAR SEGMENTED CLUTCH DISC
-CUSTOM TRANSAXLE UPGRADE
-"RENNSHIFTER" SHIFT LINKAGE
Brakes
-911SC CALIPERS WITH 911SC ROTORS FRONT, 914-6 ROTORS REAR
-19MM MASTER CYLINDER
-BRAIDED STAINLESS STEEL HOSES
Exterior
-CUSTOM MODIFIED FRONT BUMPER AND SPOILER
-"964" CHASSIS TUNNEL MODIFICATION BY JERRY WOODS
-REPAINTED IN ORIGINAL "OLYMPIC BLUE"
-ROOF SMOOTHED AND REPAINTED IN GLOSS BLACK
-STRETCHED REAR FENDERS
-GT-STYLE ENGINE COVER
-"CAMP914" HALOGEN FOG LAMPS
-REVERSE-STYLE ORANGE "PORSCHE" GRAPHICS ON BOTH SIDES
Interior

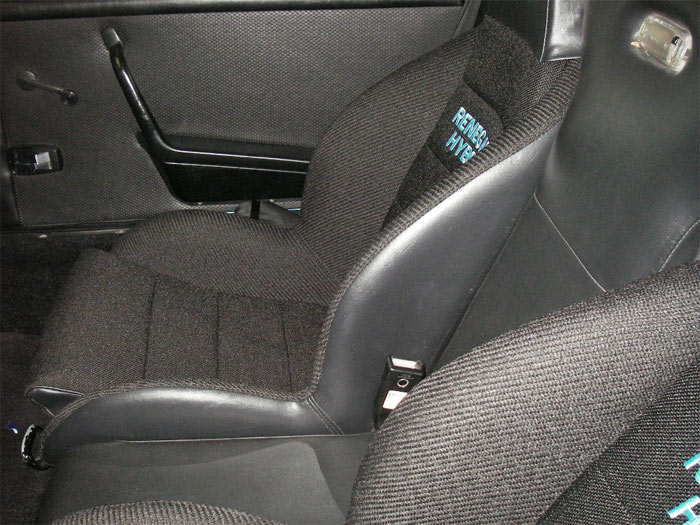

-CUSTOM GT SEATS

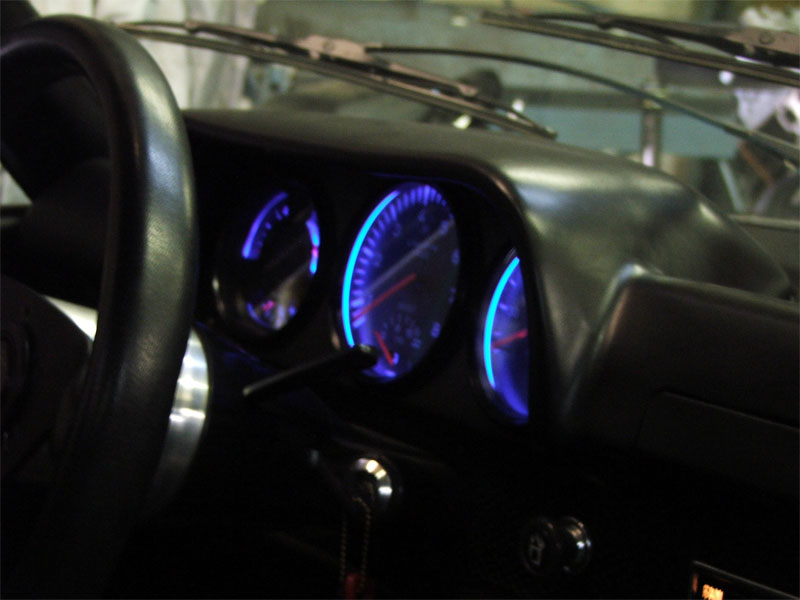

-THREE GAUGE BLUE LED LIGHTING

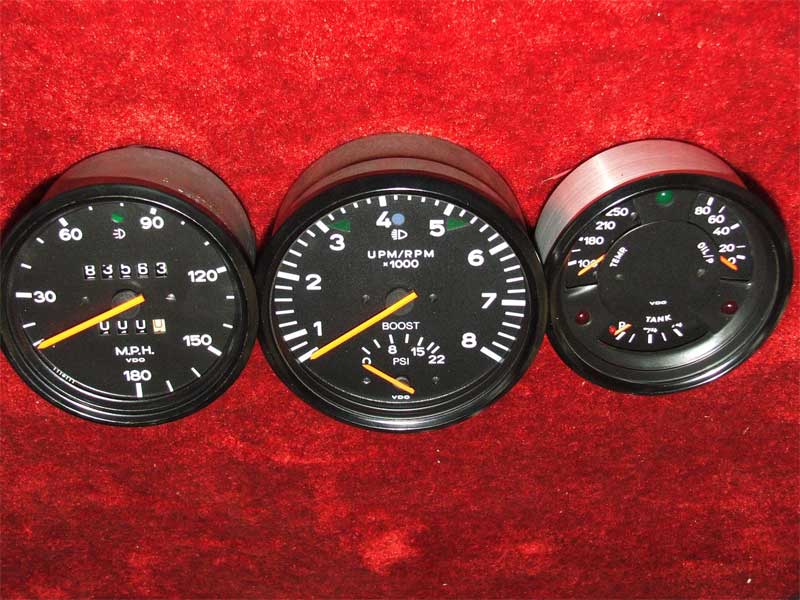

-CUSTOM TRIPLE GAUGE WITH BOOST GAUGE BUILT INTO TACHOMETER
-POWDER-COATED INSTRUMENT BEZEL RING
-MOMO STEERING WHEEL
-BILLET STEERING WHEEL ADAPTER
-CUSTOM REAR STORAGE CARPETING

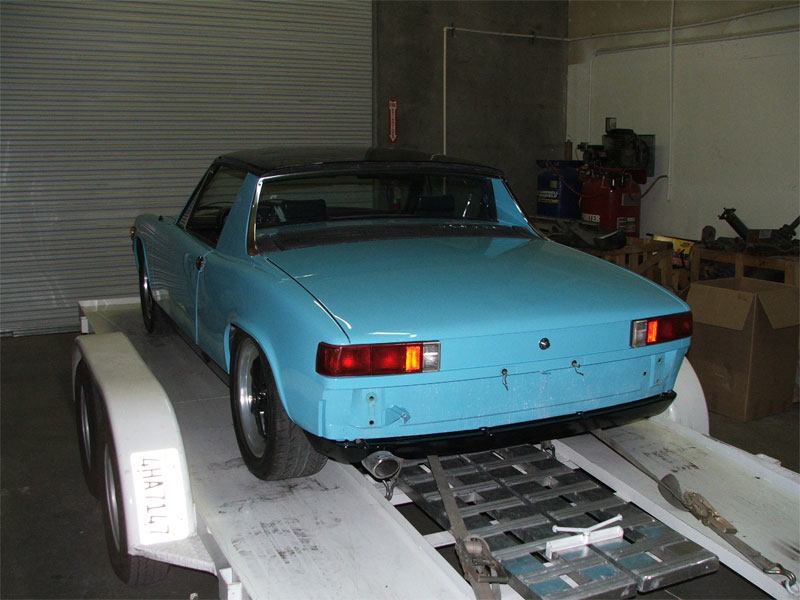

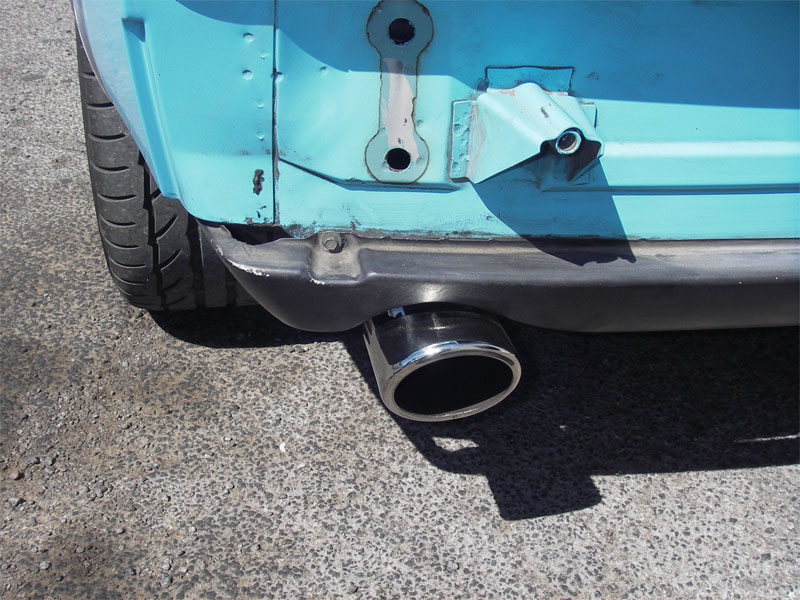

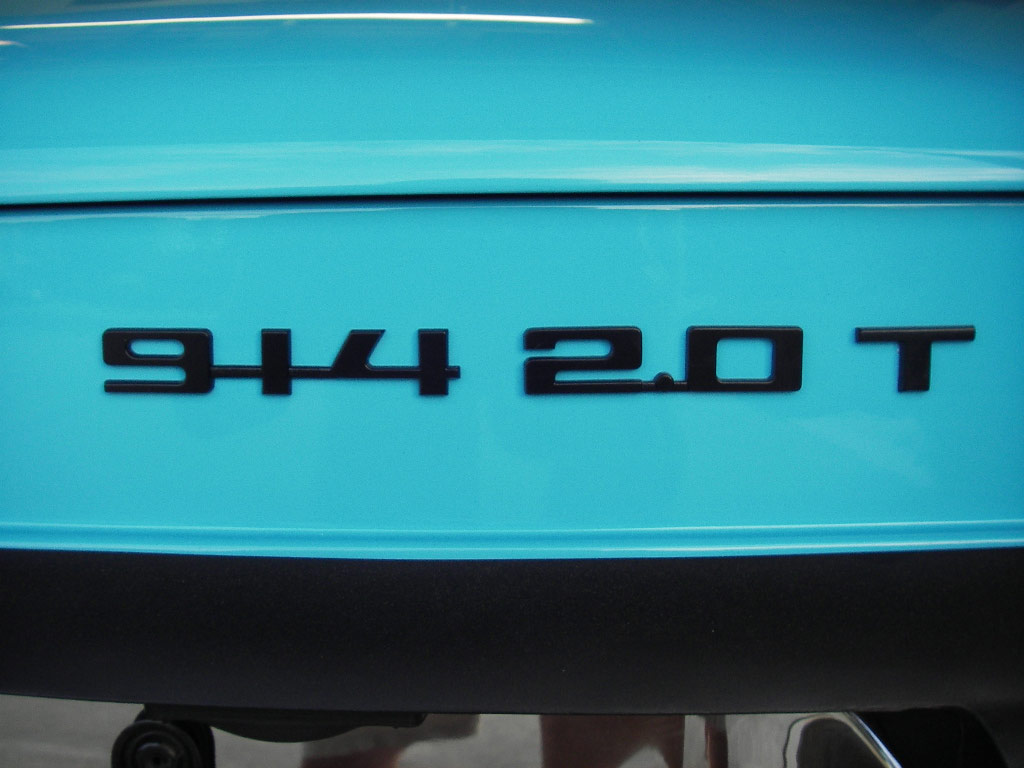

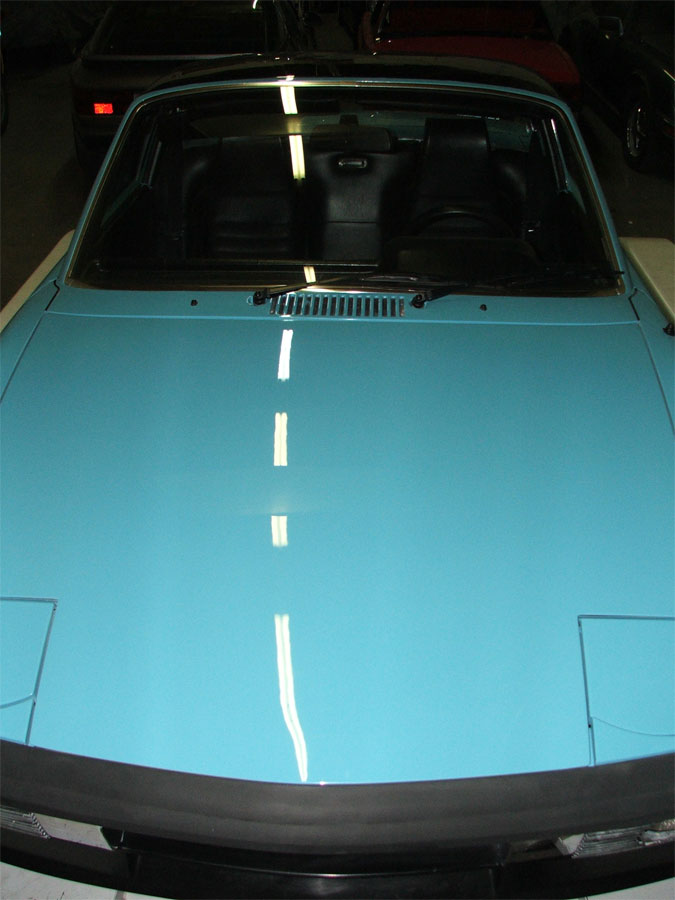

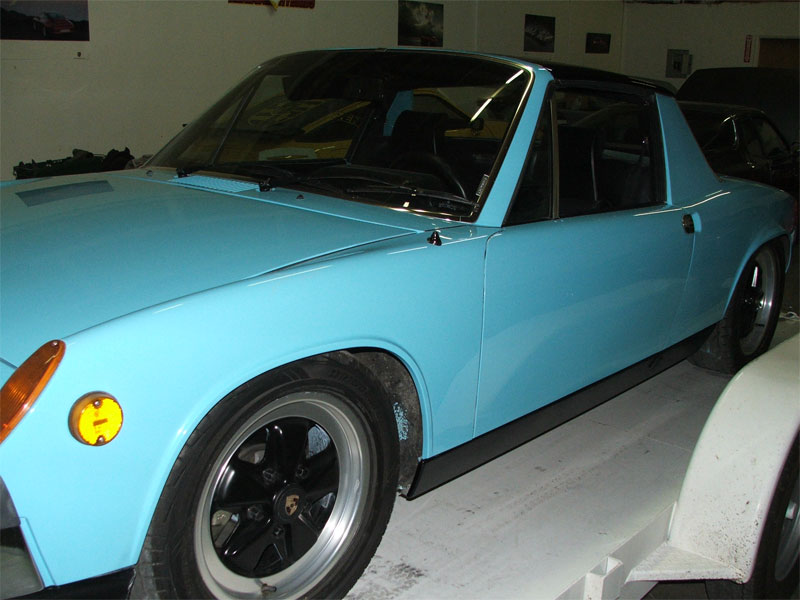

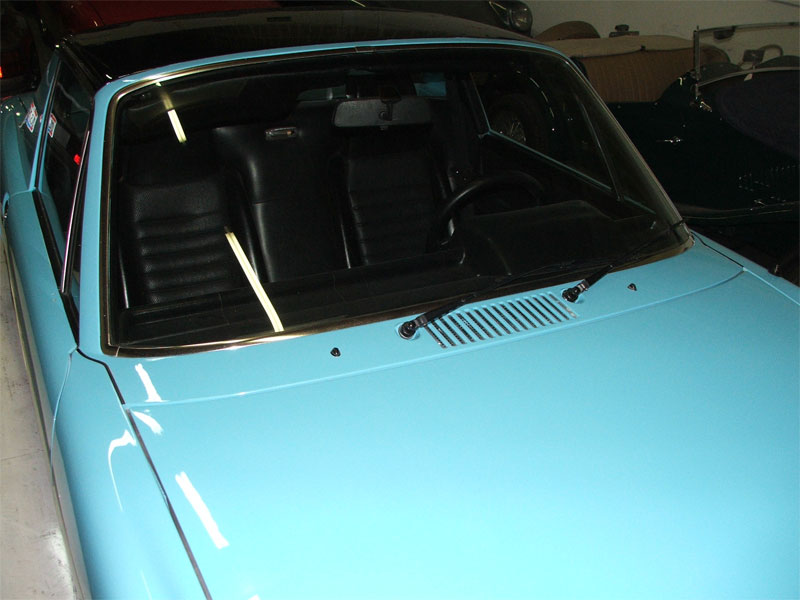

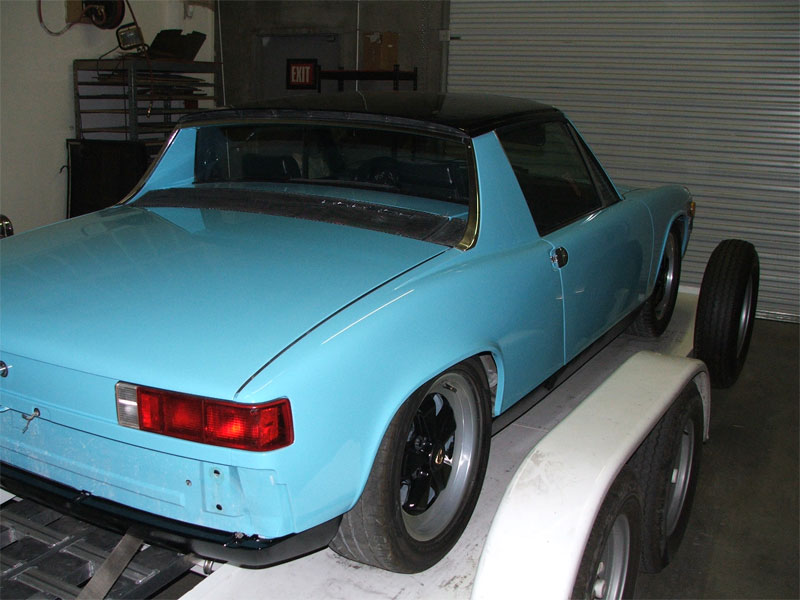

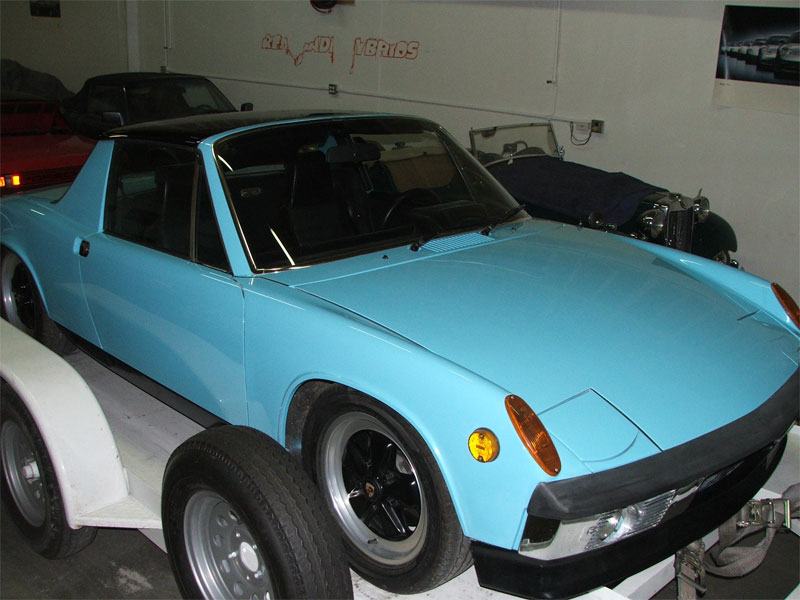

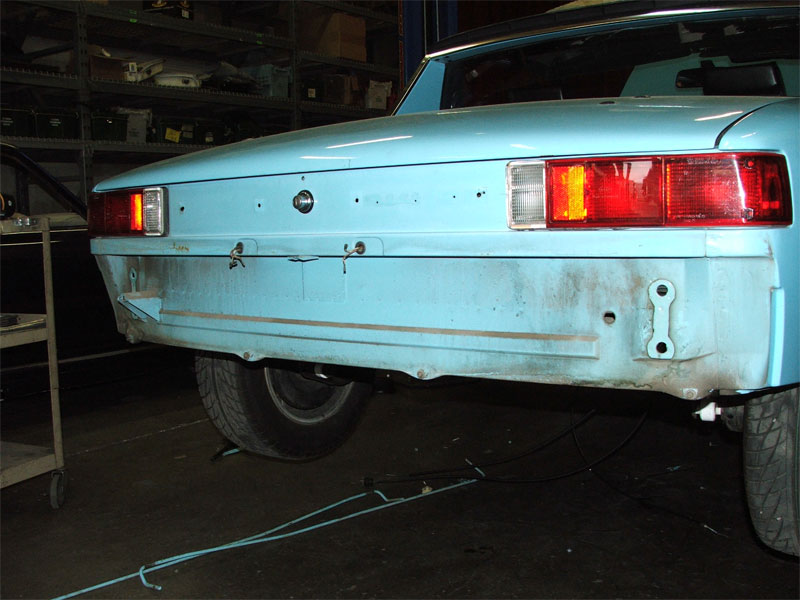

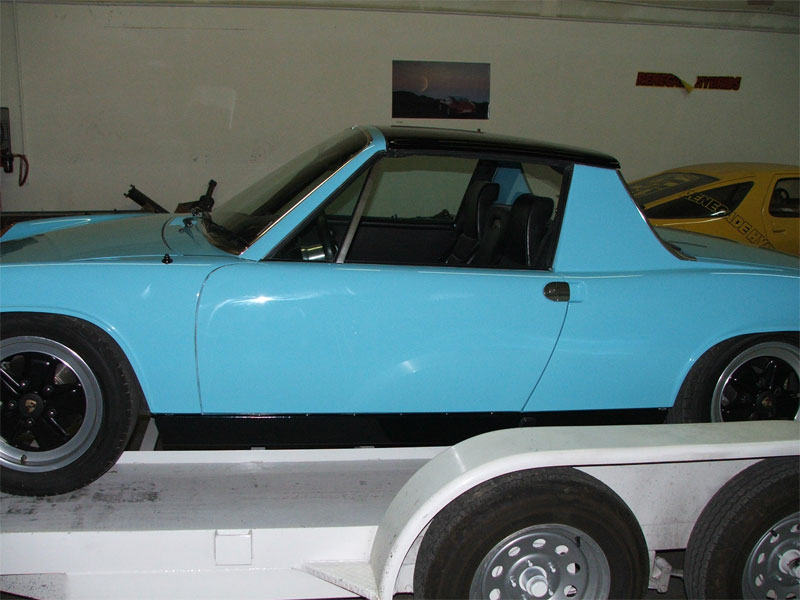

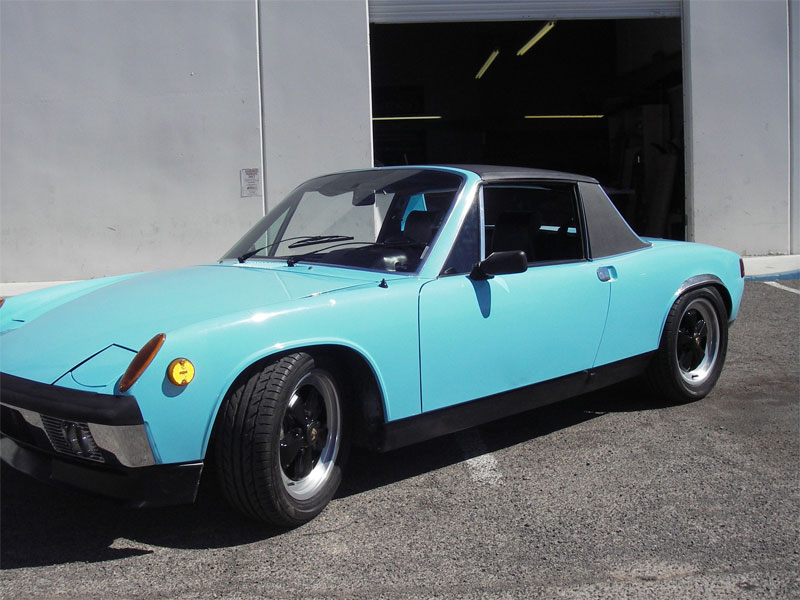

Fresh out of the paint shop on 6/16! Beeyooteefull paint job with modern clear coat - no more faded blue!! Filled in rear deck holes and mounting holes for tail logos. Need rear bumper install, two stock rear view mirrors and new rear end 914 logo. Note shiny top too.

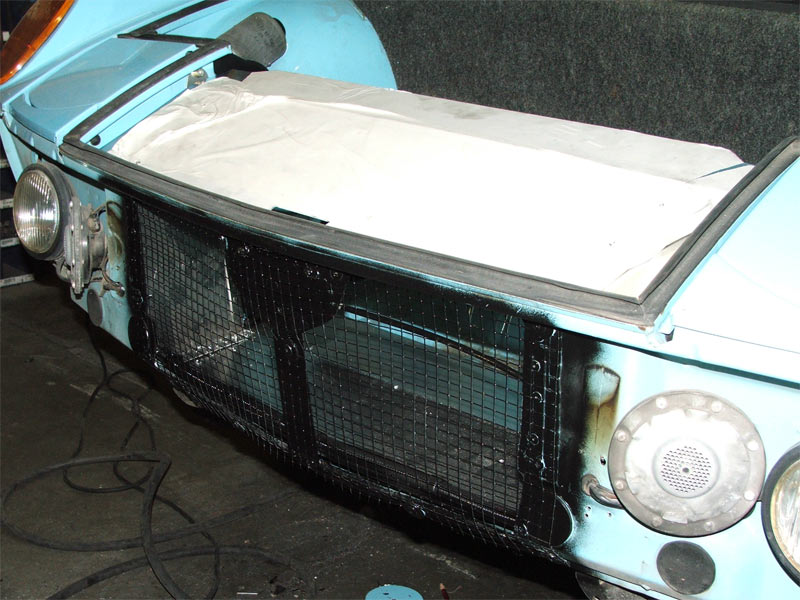

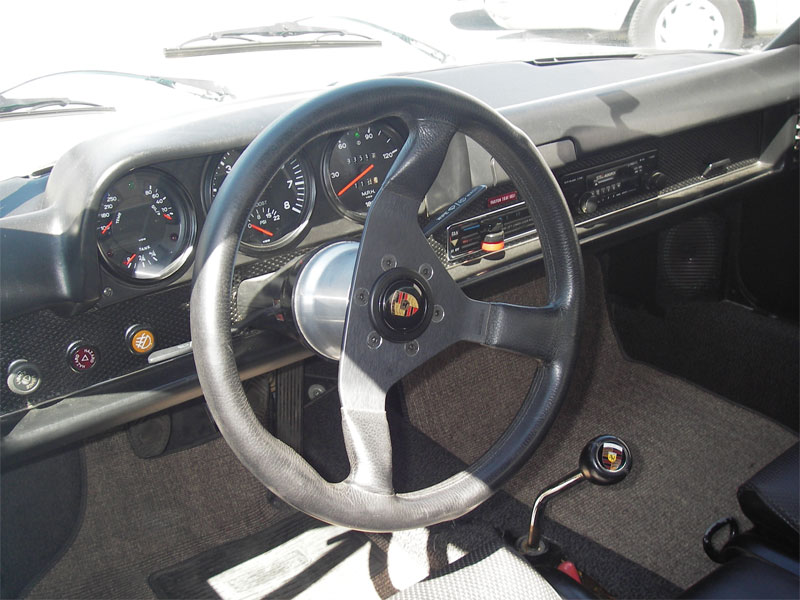

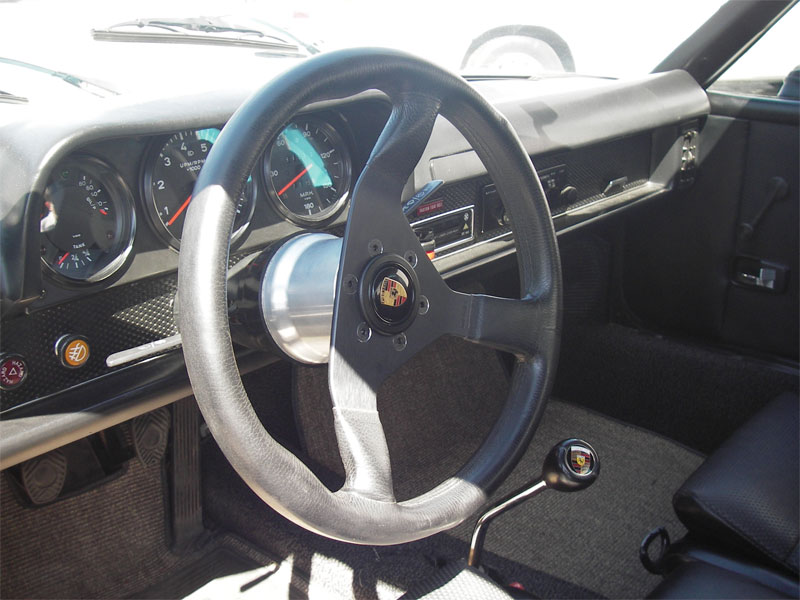

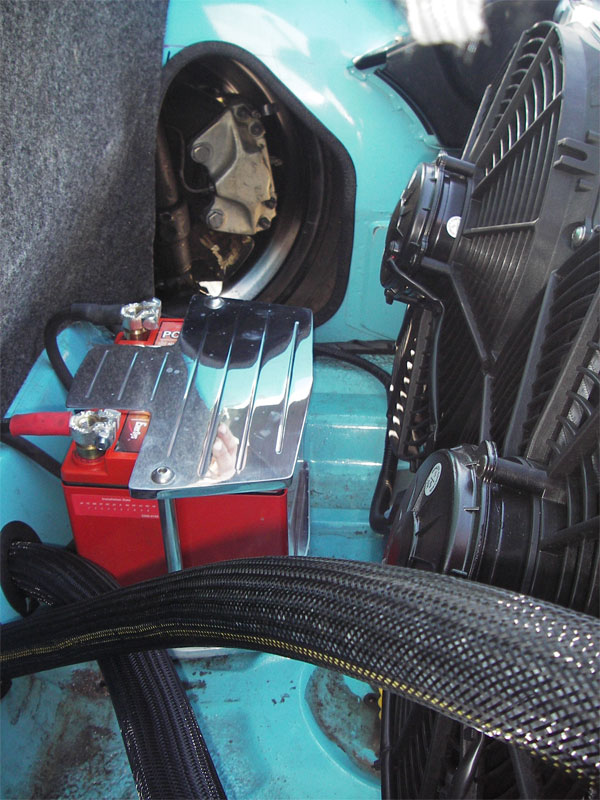

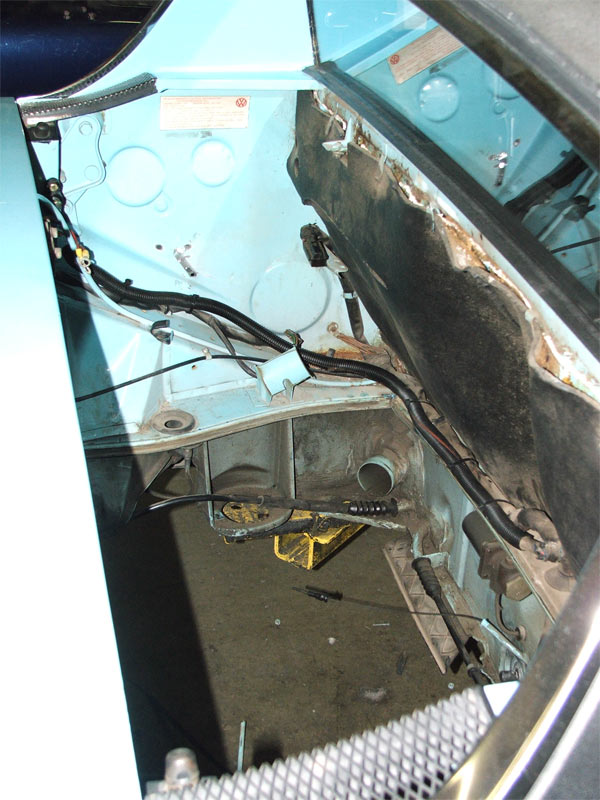

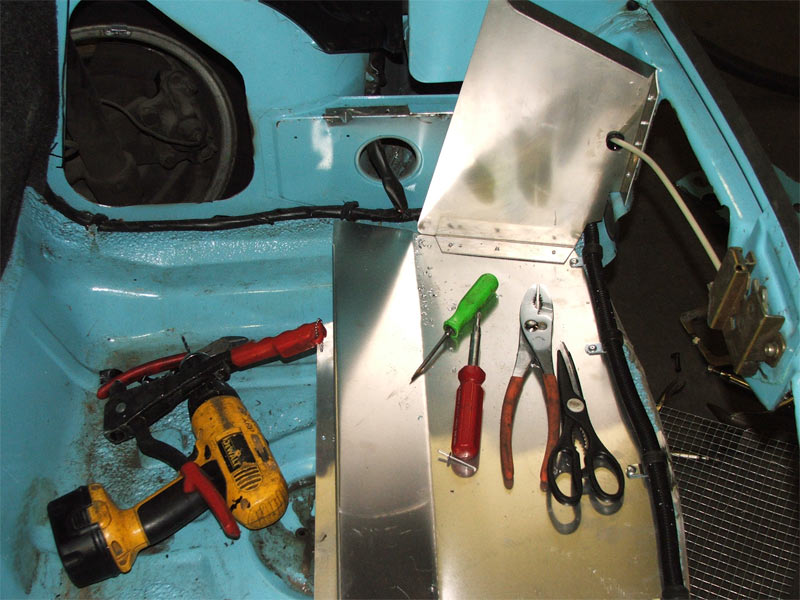

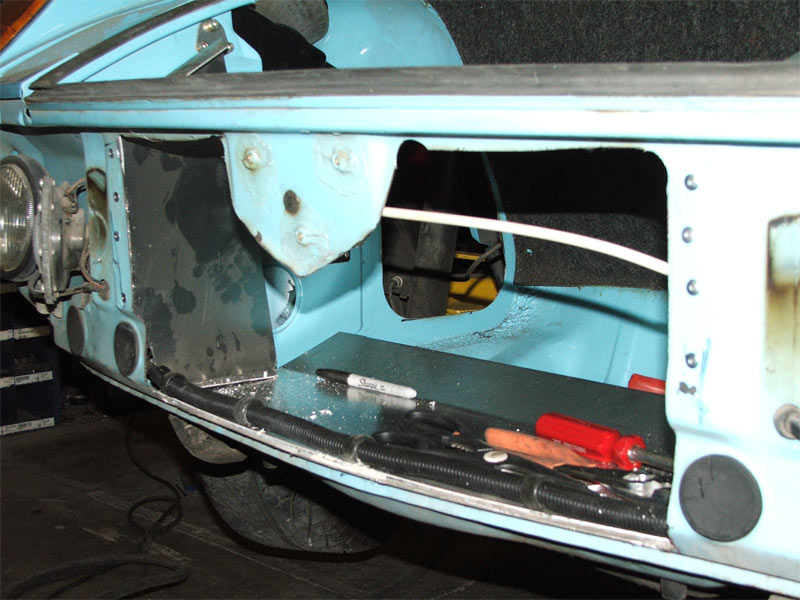

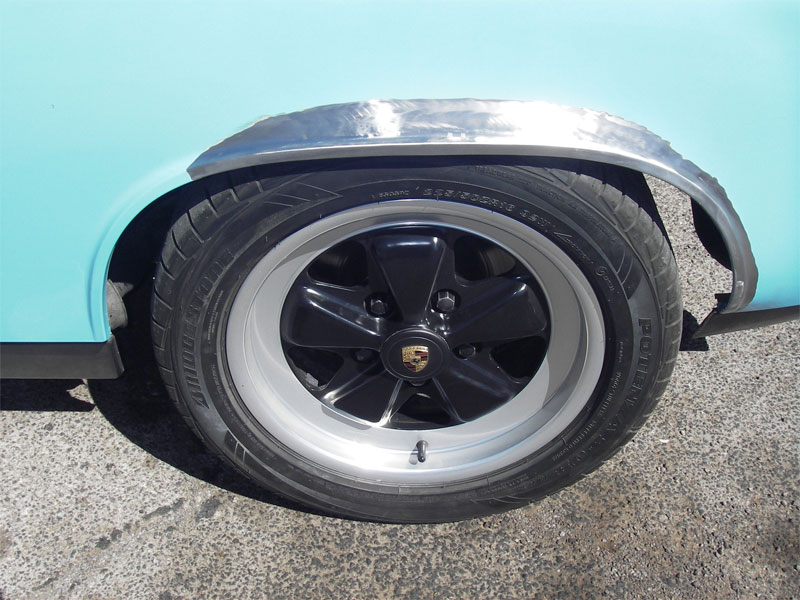

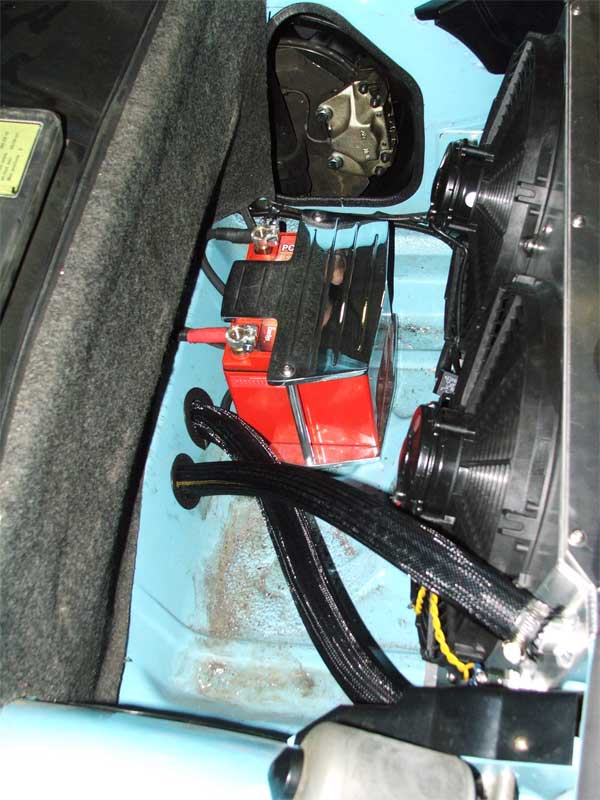

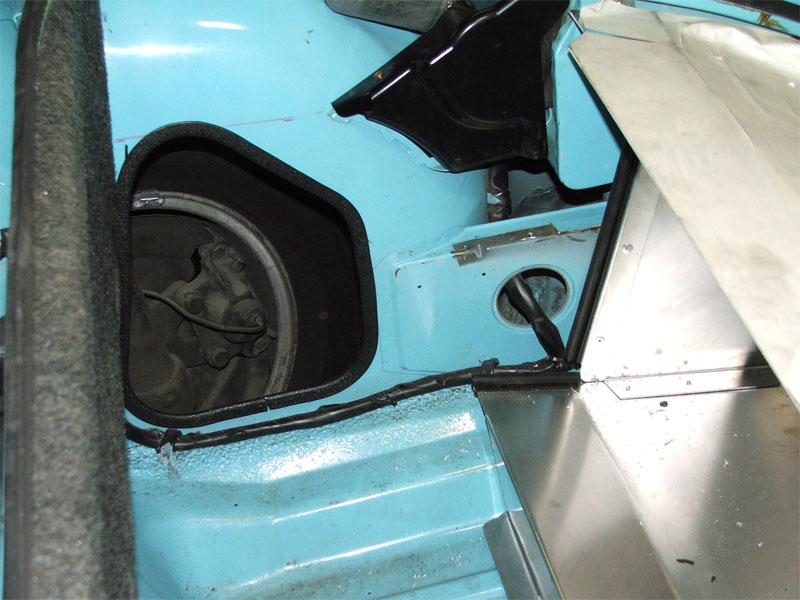

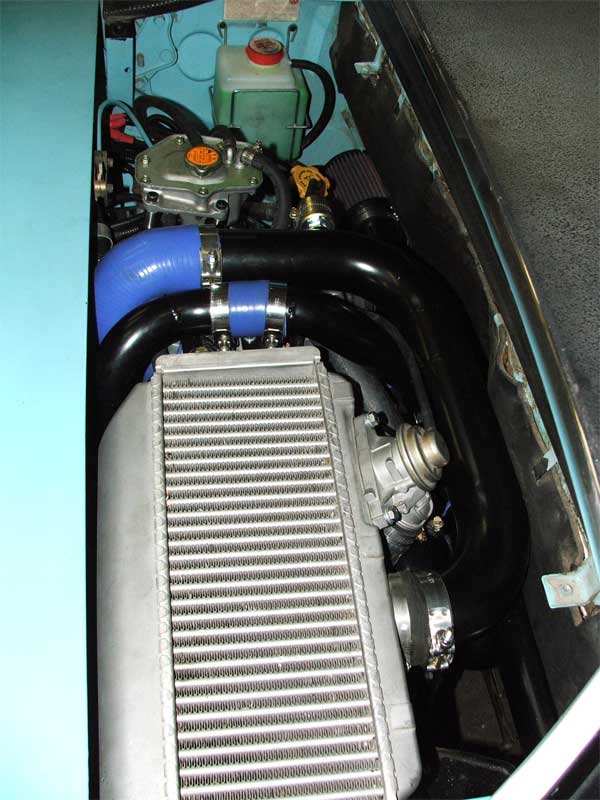

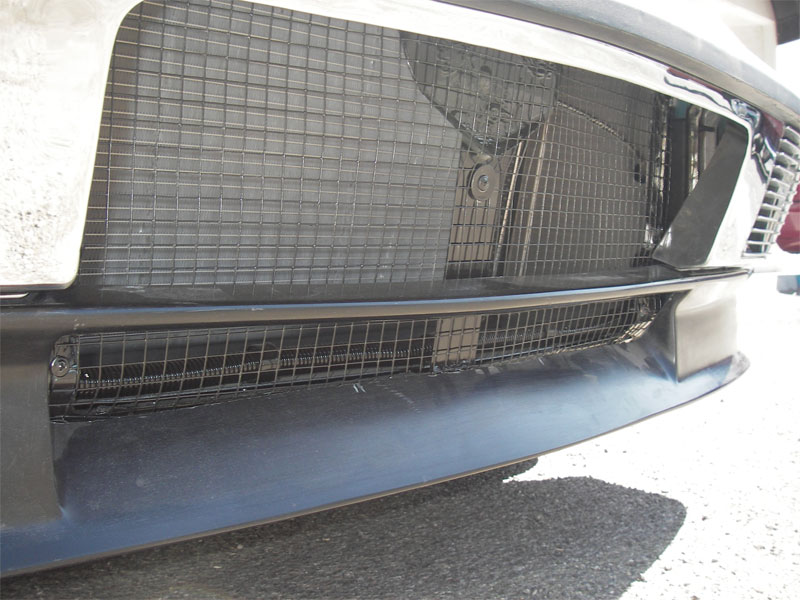

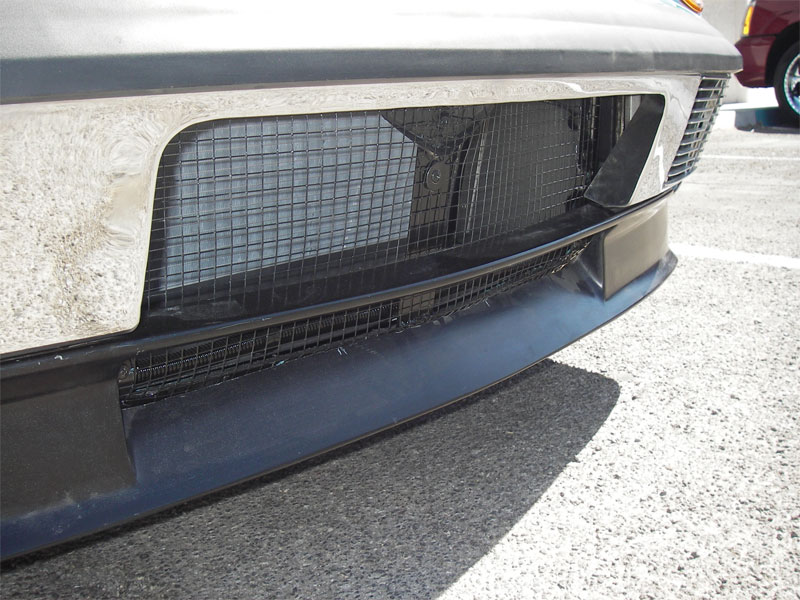

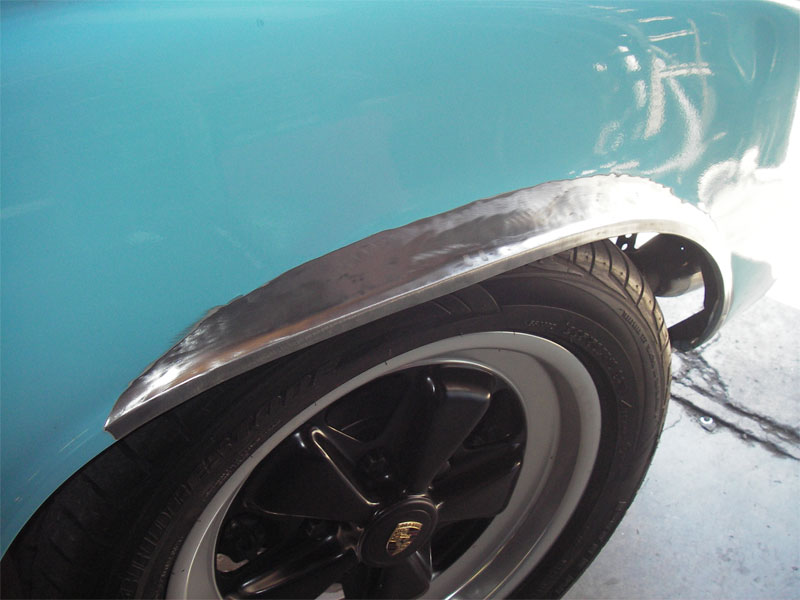

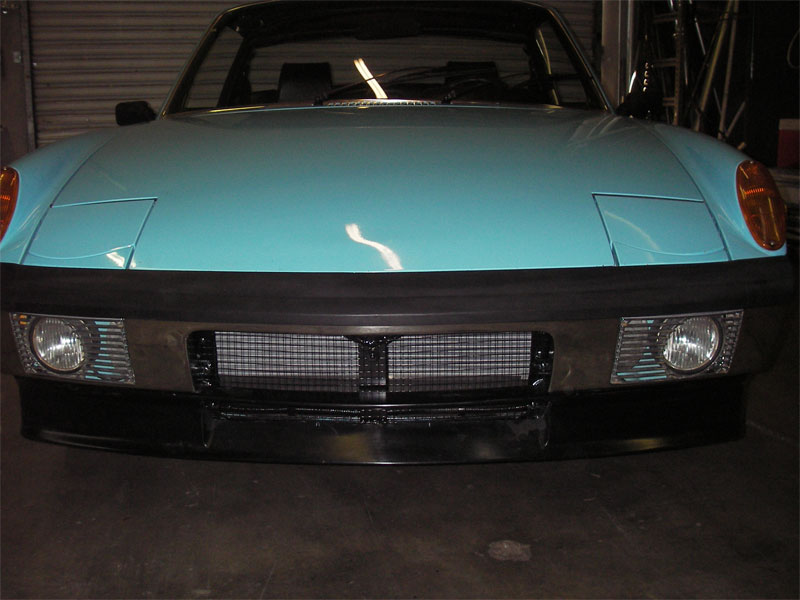

Progress pics showing blue instrument LEDs, front storage cooling fans and battery, bumper mod for radiator, cockpit and rough-in of the rear flares for the 7x16 Fuchs. For a sound clip, check out: http://www.youtube.com/watch?v=L1EN8-SC7VM



Attached thumbnail(s)

Now in the hands of Renegade Hybrids in Las Vegas. Installation of engine, radiator fans and cooling vents in front storage area and custom guages. Here's the build progress thread: http://www.914world.com/bbs2/index.php?show...460&hl

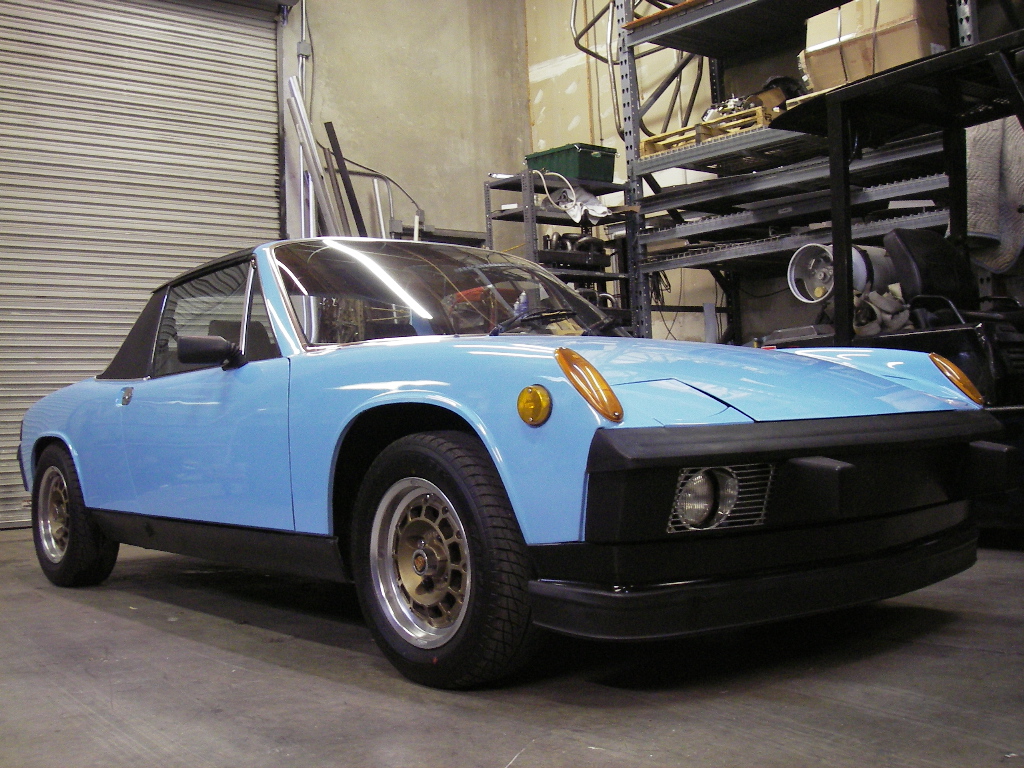

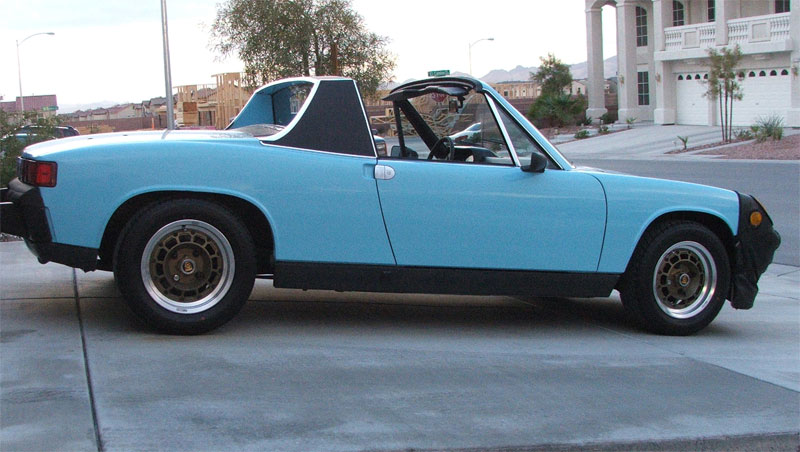

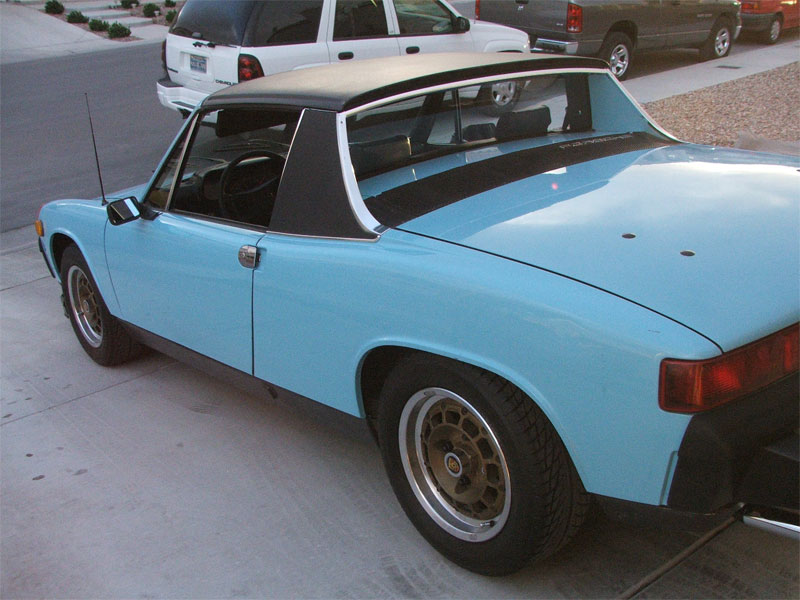

Pre-conversion; period two-piece Gotti wheels and the 2.0 Dellorto-carbed engine were sold.
