When I first saw the JWest shift linkage upgrade (NLA), I though it was a very elegant way to handle the support of the ball sleeve mechanism in the side shift gearbox console. I assume cost was the reason Porsche didn't do it that way.

I've always wanted to do something similar (IMG:style_emoticons/default/stirthepot.gif) . Being on a budget, I decided to modify/fabricated all of the components myself but pretty much all of this upgrade can be done with parts available through our member vendors here in one form or another.

Here we go! (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/driving.gif)


Shift Console Preparation

All of this started when I got a spare gearbox with a broken shift console. I though this was the perfect candidate to play with since it can't be used in its current form. I cut the remaining part of the bushing tab and file the casting flush.

Attached Image

Attached Image

Then I prepared what would be the two new supporting tabs in which there would be oil impregnated bronze bushings. These tabs are made from a 1 1/4" x 3/8" aluminum flat bar. The 7/8" hole was machined in the right location (center 15mm from the console reference surface) to maintain the stock position of the shift rod.

Attached Image



The bronze bushings (McMaster Carr 6338K426) were grooved to accept a snap ring (McMaster Carr 98585A115) to secure them to the tabs.

Attached Image

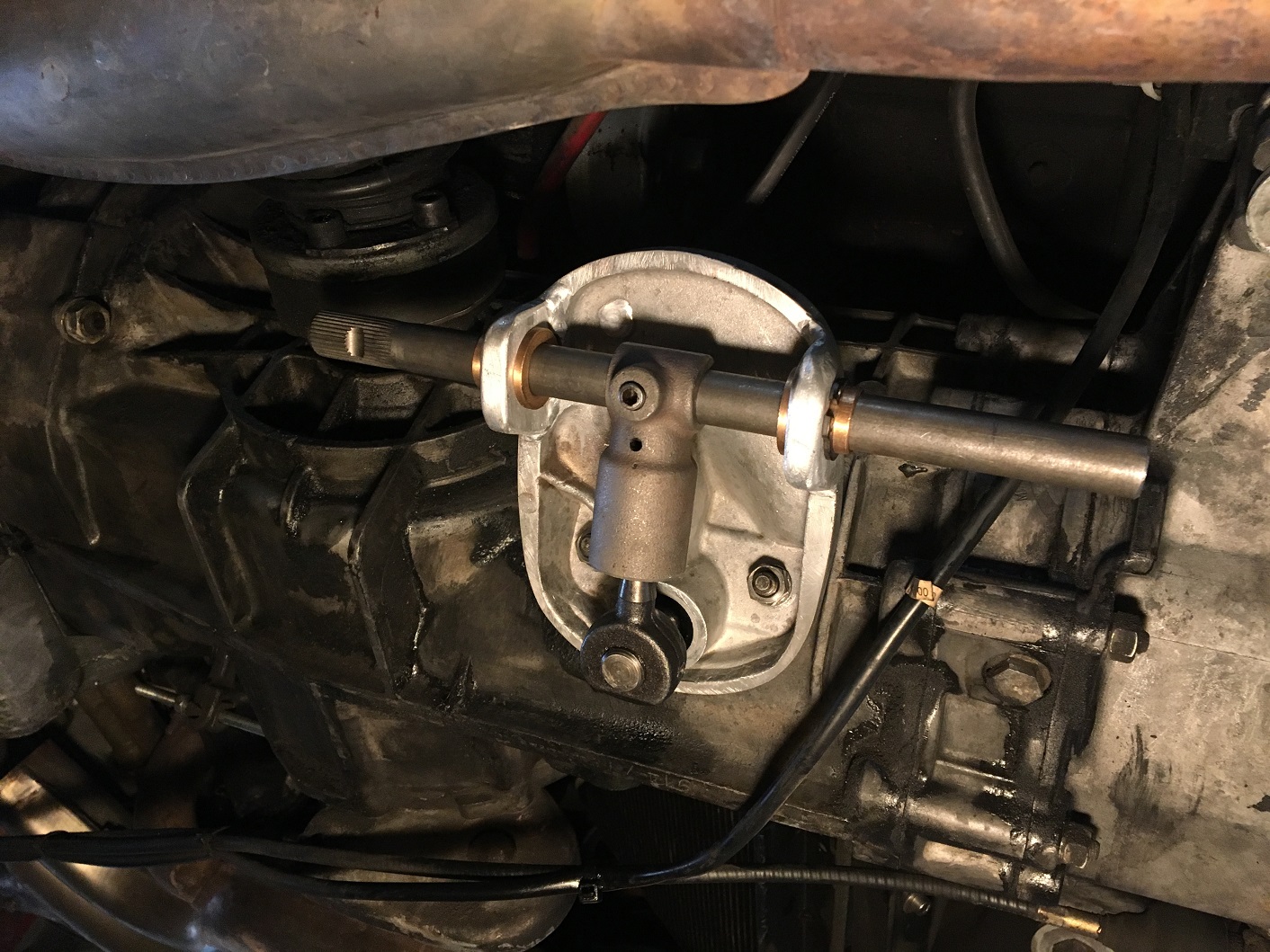

Using a piece of 5/8" shaft, I do the first layout of the assembly.

Attached Image


Then, with a file (aluminum is a beautiful material), I did the weld preparation of the various surfaces as per recommendations from my welder.

Attached Image

Attached Image

Attached Image


Then my welder did his magic while taking his time and extra care to make sure the material didn't pull which would have resulted with bent tabs where bushings wouldn't have lined up and ruined the whole thing. Yes the preferred way of doing this would have been to weld first and machine after but that would have made the machining of the tabs more expensive due to an elaborate setup to hold the console. I would probably do it this way if I was doing it again, but since I had a good welder, he pulled it off nicely (IMG:style_emoticons/default/sunglasses.gif)

Attached Image

Attached Image


Then I used my trusted hack saw and files to smooth it out and bring it to a shape that could ressemble somewhat a stock casting form. (IMG:style_emoticons/default/w00t.gif)

Attached Image

Attached Image


Last, I reassembled the rest of the components with a fresh seal and the console assembly was ready to be installed on the gearbox. (IMG:style_emoticons/default/beer3.gif)

Attached Image

Attached Image








User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 27 2018, 03:54 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Next step was to start working on the front rod of the shift linkage, the one hidden in the tunnel.

My plan was to use two steering shaft U-joint which requires 4 spline stub shafts to connect to each side of both joint. So two joints and two shaft were needed for this project.

Front shift Rod Modification

The first thing I did was to take some measurement on the car to make sure I was keeping the same overall geometry. Then I drilled the four plug welds that are holding the rod end that connects to the stock joint by the firewall in the engine bay.

Attached Image


I ended up cutting the tube leaving four little tabs for the new rod end installation.

Attached Image


Then I cut the first steering shaft to get the splined end that would go at the end of the shift rod.

Attached Image

Attached Image



Measure twice for proper location. You can see where the four tabs were pinched a little to close the little gap between the tube ID and the steering shaft OD.

Attached Image


Welding...

Attached Image


File the welds and sand smooth. Verification of the new 20mm firewall spherical bushing fit. That completes the preparation of the front shifter rod. (IMG:style_emoticons/default/beer3.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 27 2018, 04:06 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Firewall Bushing

I lucked out on this one as I had aluminum rings that I had designed in metric for another project and were left over. They happened to be a perfect match for the installation of the 20mm Igus spherical bushing. The only thing I needed was a thin spacer which I 3D printed at work. Done.

The real thing can be purchased from Tangerine Racing, but since I already had parts, I just used them.

Attached Image

Attached Image

Attached Image

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 27 2018, 04:21 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Shift Console Installation

Before installing the shift console onto the gearbox, I prepared the console shaft. The stock shaft is 15mm diameter.
After thinking about the various parts and machining steps to be done, I had established that I would use the steering shaft as the shaft that would be in the console. The steering shaft is 16mm diameter, so the pivoting sleeve in the console had to be bored out from 15mm to 16mm which a nearby machine shop easily did for me.

Attached Image


Then, the bronze bushings in the tabs were 5/8" diameter which is just under 16mm so a quick run on the lathe and they were matching with the shaft. The last thing left was the hole for the cone screw which was easily handled on the milling. Now the console is really completed and ready to be installed on the gearbox (provided it has been emptied from its oil...)

Attached Image




Console Cover

For the cover, I used a couple of hole saws and made a hole for the rear end of the shaft, and another one to have access to the cone screw. With the rear bushing tab protruding a little, the cover fits tight and is locked so it doesn't need the strap anymore.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post May 27 2018, 04:26 PM
Post #5


Advanced Member
****

Group: Members
Posts: 4,729
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



[quote name='Montreal914' date='May 28 2018, 09:35 AM' post='2613230']
When I first saw the JWest shift linkage upgrade (NLA), I though it was a very elegant way to handle the support of the ball sleeve mechanism in the side shift gearbox console. I assume cost was the reason Porsche didn't do it that way.

I've always wanted to do something similar (IMG:style_emoticons/default/stirthepot.gif) . Being on a budget, I decided to modify/fabricated all of the components myself but pretty much all of this upgrade can be done with parts available through our member vendors here in one form or another.

Here we go! (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/driving.gif)


Shift Console Preparation

All of this started when I got a spare gearbox with a broken shift console. I though this was the perfect candidate to play with since it can't be used in its current form. I cut the remaining part of the bushing tab and file the casting flush.

Attached Image





Nice job,how did you work out the placement off the weld on tabs ?,when I did mine I found it was rather critical so you get full engagement of all gears.

I placed uni-joints 1 @ the console and another near the firewall ,I purchased these from a buggy parts supply vender and choose non splined ones so I had the ease of fine adjustment,once setup I cut grooves in the shafts for the correct 8mm clamp bolts.
Attached Image
The above pic was while I was setting up placement of the rod.
Attached Image

You will like how this setup works,with everything else correct this makes shifting very positive and much more accurate,interested to here your results and good luck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 27 2018, 04:51 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Rear Shift Rod

Again, before cutting anything, I took a lot of reference dimensions as I wanted to ensure the bend in the rear rod was exactly in the same location to prevent any interference with the engine cross bar port.

I first cut out the stock joint off the rod and established where the steering shaft end should be located to keep the geometry.

Attached Image

Then I prepared the tube to properly align the steering shaft spline

Attached Image


Final check of position, axis, and length of the spline.

Attached Image



With the stub cut and held with only a couple of tacks, I began to assemble the rear part of the linkage onto the car.

Attached Image


As we can see the position of the rear rod is the same as stock as the cone screw hole is lining up. That confirmed that the front part of the rod was good. It also allowed me to now establish how to cut the rear part of the rod to properly fit into the rear steering U-joint.

Attached Image



Attached Image


Detail of the rear cut of the tube and the steering shaft spline. Ready for tack welding and final check on the car.

Attached Image


After welding grinding and paint, the rear rod is ready to be installed on the car.

Attached Image



And the finished result of the shifter linkage.

Attached Image

Attached Image

Attached Image


What I want to do next is to improve the protection of the U-joint. (IMG:style_emoticons/default/idea.gif) I was thinking about steering rack boot but I don't have any handy to check measurement. It would be great to find one that can snap onto the firewall like the original one. I was also thinking about printing a split part that could mount on the front of the rear shifter rod and connect to the stock boot attached to the firewall. Different ways to tackle this issue but I'm not too concerned for now, just happy with the result and shift feel. Now I need to work on the last part, the shifter itself... (IMG:style_emoticons/default/rolleyes.gif)

Thank you for reading. (IMG:style_emoticons/default/beerchug.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 27 2018, 05:03 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Porschetub; I measured everything before modifying the console to make sure I was duplicating the original positioning of the shaft.

The only adjustment I have is at the shifter just like stock. The whole linkage can only go in one position due to the splines and grooves for the bolts in the U-joint. That's why I constantly double checked as I was building to keep the original positioning of the shift rods, or what's left of them to ensure no interference.

It's now fully welded and works accordingly. Can completely be taken apart and rebuilt only one way without adjustment except final at the shifter (IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
troth
post May 27 2018, 08:58 PM
Post #8


Member
**

Group: Members
Posts: 155
Joined: 17-August 16
From: CT/WA
Member No.: 20,305
Region Association: None



I remember seeing something similar on Chris foley’s site.

http://www.tangerineracing.com/shiftlinkage.htm

Your solution looks similar, but probably a bit less pricy.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Blue6
post May 27 2018, 09:07 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,049
Joined: 3-October 13
From: SoCal
Member No.: 16,470
Region Association: Southern California



Nice work. Thank you for documenting and posting (IMG:style_emoticons/default/cheer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 27 2018, 09:42 PM
Post #10


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



QUOTE(troth @ May 27 2018, 10:58 PM) *

I remember seeing something similar on Chris foley’s site.

http://www.tangerineracing.com/shiftlinkage.htm

Your solution looks similar, but probably a bit less pricy.


Just depends on how you value your time and what are your abilities. Montreal obviously put some hours into this and made a really nice set up. I was lucky enough to get the whole enchilada from JWest before they stopped production.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 28 2018, 11:11 AM
Post #11


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



Yep, didn't invent anything here, just made my own version of this setup while on a budget.

What I wanted was a welded rear console vs the bolt on conversion.

I was inspired by Brant and Bigkat 83 who have also done it that way. Big thank to them for sharing of info. (IMG:style_emoticons/default/beerchug.gif)

Next I would like to improve the shifter (use a cheap Mustang ?) and move it backward à la 914-8! (IMG:style_emoticons/default/chowtime.gif)

Screenshot from PBase website:
Attached Image

Attached Image





User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post May 28 2018, 12:22 PM
Post #12


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None



QUOTE(troth @ May 27 2018, 08:58 PM) *

I remember seeing something similar on Chris foley’s site.

http://www.tangerineracing.com/shiftlinkage.htm

Your solution looks similar, but probably a bit less pricy.


I can attest to the quality and operation of the unit above (TangerineRacing).
My car has never shifted so cleanly - ever.
But I have a Renn-shifter, TR firewall bushing, & TR shift linkage all fitted to a 71 chassis.

The OPs solution looks perfectly executed and should be equivalent to the TR solution if not superior in the end (no chance for the console to shift, ever)
But I also agree with the OP that welding those bushings perfectly without distorting the alignment of the bushings is to be left to only the most skiilled welders and even THEN requires some luck.
Now welding the tabs and having a shop punch both holes all the way through is the perfect solution.

Otherwise - Very well done! You will be happy with the effort.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post May 28 2018, 12:31 PM
Post #13


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



QUOTE(mepstein @ May 27 2018, 11:42 PM) *

QUOTE(troth @ May 27 2018, 10:58 PM) *

I remember seeing something similar on Chris foley’s site.

http://www.tangerineracing.com/shiftlinkage.htm

Your solution looks similar, but probably a bit less pricy.


Just depends on how you value your time and what are your abilities. Montreal obviously put some hours into this and made a really nice set up.


(IMG:style_emoticons/default/agree.gif)

Chris' setup is cheaper than the hours I have into mine, I did simular out of mild steel and made it bolt on for my /6 conversion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post May 28 2018, 07:07 PM
Post #14


Get that VIN ?
*****

Group: Members
Posts: 9,512
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



Fantastic DIY project , Thanks for sharing the pics (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post May 29 2018, 06:41 AM
Post #15


Advanced Member
****

Group: Members
Posts: 2,397
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States



You are clearly a man of fab talent and motivation!

Me, I did Chris' complete setup, soup to nuts. With beer. (I avoid power and machine tools that way...)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post May 29 2018, 07:15 AM
Post #16


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None



Excellent thread, Montreal914. Thanks for posting.

How are the results? How does it shift? We need details! (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
UROpartsman
post May 29 2018, 11:00 AM
Post #17


Member
**

Group: Members
Posts: 292
Joined: 22-October 15
From: Simi Valley, CA
Member No.: 19,288
Region Association: None



QUOTE(Montreal914 @ May 27 2018, 02:35 PM) *

Then my welder did his magic while taking his time and extra care to make sure the material didn't pull which would have resulted with bent tabs where bushings wouldn't have lined up and ruined the whole thing. Yes the preferred way of doing this would have been to weld first and machine after but that would have made the machining of the tabs more expensive due to an elaborate setup to hold the console. I would probably do it this way if I was doing it again, but since I had a good welder, he pulled it off nicely (IMG:style_emoticons/default/sunglasses.gif)

Nicely done! Another way would be to use bushings with a slightly undersized ID, and then ream to final ID through both bushings at once to ensure bore alignment.
King pin reamer
Or with an adjustable reamer: King pin bushes reamed to a perfect fit
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post May 29 2018, 01:35 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,700
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California



QUOTE(maf914 @ May 29 2018, 06:15 AM) *

Excellent thread, Montreal914. Thanks for posting.

How are the results? How does it shift? We need details! (IMG:style_emoticons/default/laugh.gif)



It shifts very nice and smooth. (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/driving.gif)

I'm very happy with it. Actually, it's so easy to move that the spring plate in the stock shifter that you press to be in the R-1 plane actually pushes the lever to the 4-5 plane when disengaging from 1st. I have to "catch it" to place it in the 2-3 plane when going from 1st to 2nd. This means I need something spring loaded on both sides like the Rennshift to keep the lever nominal in the 2-3 plane.

More thinking ahead (IMG:style_emoticons/default/stirthepot.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post May 29 2018, 11:50 PM
Post #19


Advanced Member
****

Group: Members
Posts: 4,729
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



QUOTE(Montreal914 @ May 30 2018, 07:35 AM) *

QUOTE(maf914 @ May 29 2018, 06:15 AM) *

Excellent thread, Montreal914. Thanks for posting.

How are the results? How does it shift? We need details! (IMG:style_emoticons/default/laugh.gif)



It shifts very nice and smooth. (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/driving.gif)

I'm very happy with it. Actually, it's so easy to move that the spring plate in the stock shifter that you press to be in the R-1 plane actually pushes the lever to the 4-5 plane when disengaging from 1st. I have to "catch it" to place it in the 2-3 plane when going from 1st to 2nd. This means I need something spring loaded on both sides like the Rennshift to keep the lever nominal in the 2-3 plane.

More thinking ahead (IMG:style_emoticons/default/stirthepot.gif)


Wow great skills,love to have all that machinery so envious,hope it all works for out well .....should be cause you have done a great job (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/beerchug.gif) .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jun 1 2018, 01:47 PM
Post #20


Send me your transmission!
***************

Group: Members
Posts: 23,032
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region



Very nice. Thanks for the pics and write up.
