 Water Cooled Question, Fan sequencing / works great! |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| 76-914 |
  Dec 6 2013, 11:18 AM
Post
#1
|
|
Repeat Offender & Resident Subaru Antagonist  Group: Members Posts: 13,634 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
 |
For my Suby 6 conversion I've installed a twin fan system (from a Dodge) on my radiator. One is single speed (3 wire) and the other is 2 speed (4 wire). Which one of these 2 fans comes on first? Do they both run at times? Will I use the 2nd speed of the 2 speed motor?
|
   |

|
  |
Replies
| 76-914 |
Sep 1 2014, 10:06 AM
Post
#2
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,634 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|

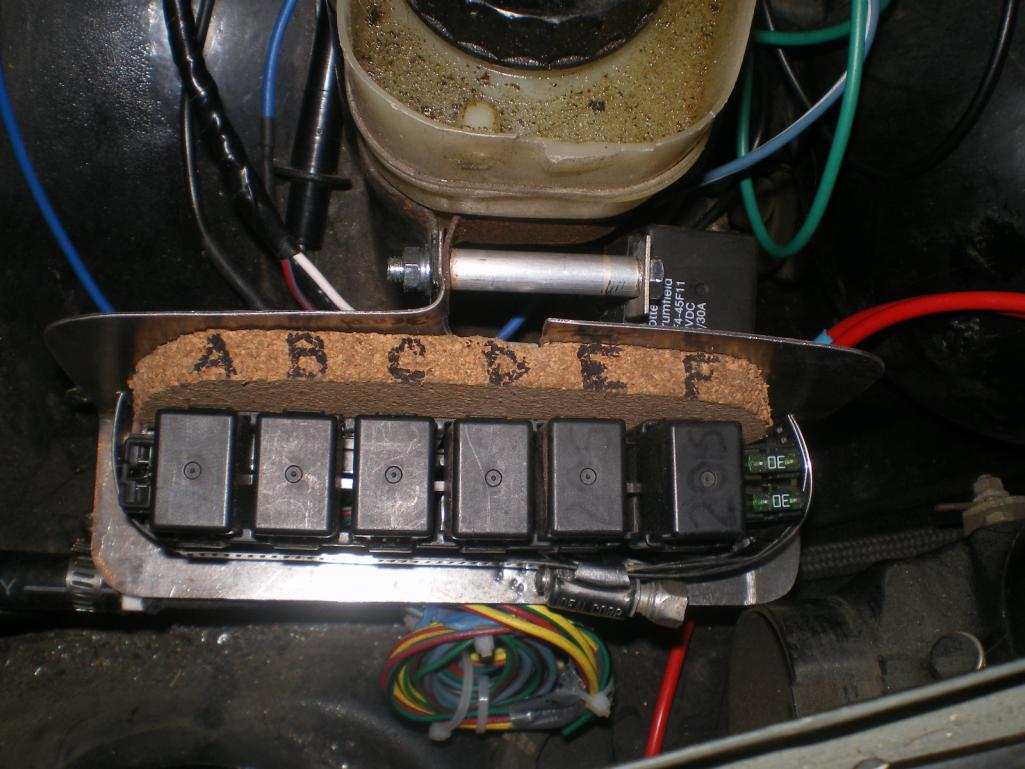

Thought I'd add this bit of info re: this style system. Last week I noticed that my fans were working on low but when switched to high (yeah, I was chasing a cooling issue) it dropped to Fan #2, only. Following the chart I was able to determine that relay F, in my case, (relay 3 in the diagram) was at fault. I was quite proud of my diagnostic abilities and proceeded to remove said relay to bench test and verify what I knew to be the problem. But the relay tested good. (IMG:style_emoticons/default/WTF.gif) If it had been a snake it would have bitten me. And it's not like I didn't know it was there; I built the damned thing. I just forgot they were there. The fuses are now labeled for my benefit in case I blow another one. So if this one blows I get the above described scenario, however if the other one blew I think none of the fans would operate but you might want to double check me on that one. (IMG:style_emoticons/default/biggrin.gif)
 |
|
|
|
| messix |
Sep 1 2014, 10:54 AM
Post
#3
|
|
AKA "CLUTCH KILLER"! Group: Members Posts: 6,995 Joined: 14-April 05 From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada Member No.: 3,931 Region Association: Pacific Northwest |
QUOTE(76-914 @ Sep 1 2014, 09:06 AM)  Thought I'd add this bit of info re: this style system. Last week I noticed that my fans were working on low but when switched to high (yeah, I was chasing a cooling issue) it dropped to Fan #2, only. Following the chart I was able to determine that relay F, in my case, (relay 3 in the diagram) was at fault. I was quite proud of my diagnostic abilities and proceeded to remove said relay to bench test and verify what I knew to be the problem. But the relay tested good. (IMG:style_emoticons/default/WTF.gif) If it had been a snake it would have bitten me. And it's not like I didn't know it was there; I built the damned thing. I just forgot they were there. The fuses are now labeled for my benefit in case I blow another one. So if this one blows I get the above described scenario, however if the other one blew I think none of the fans would operate but you might want to double check me on that one. (IMG:style_emoticons/default/biggrin.gif) you are correct. I think if I built that circuit I would have activated the high speed on relay #2 from the 87 pole on relay #3. if the relay switching speed is not the same it would "buck" power. so to do so you would run 2 wires off the 87 pole on relay #3, one to the fan and the other to the relay#2 at pole #85. only one high speed wire from the harness. |
|
|
|
Posts in this topic
76-914 Water Cooled Question Dec 6 2013, 11:18 AM
mikesmith
For my Suby 6 conversion I've installed a twi... Dec 6 2013, 11:29 AM 76-914 I'm using the stock OEM Suby ECU. Dec 6 2013, 12:30 PM mikesmith Based on a quick Google search, it looks like ther... Dec 6 2013, 02:40 PM BIGKAT_83 I would turn the two speed on first at low speed a... Dec 6 2013, 04:58 PM
mgp4591
I would turn the two speed on first at low speed ... Dec 6 2013, 06:28 PM 76-914
I would turn the two speed on first at low speed ... Dec 7 2013, 08:41 PM
andys
I would turn the two speed on first at low speed ... Dec 9 2013, 01:21 PM BIGKAT_83
I would turn the two speed on first at low speed... Dec 9 2013, 01:45 PM BIGKAT_83 Started with a EG 3.3 and have since changed to a ... Dec 6 2013, 06:34 PM mgp4591
Started with a EG 3.3 and have since changed to a... Dec 6 2013, 06:50 PM Tom Old engineering principle , KISS. The more complic... Dec 6 2013, 07:17 PM mgp4591
Old engineering principle , KISS. The more compli... Dec 6 2013, 09:06 PM Mike Bellis I have mine on a dual thermostatic relays. They al... Dec 6 2013, 09:33 PM 76-914
I have mine on a dual thermostatic relays. They a... Dec 7 2013, 08:43 PM 76-914 Help :blink: I'm trying to figure this schema... Dec 8 2013, 08:41 PM Mike Bellis
Help :blink: I'm trying to figure this schem... Dec 8 2013, 09:22 PM Tom Kent,
It looks like both pins 33 and 42 would n... Dec 9 2013, 02:16 AM Chris H. Kent,
Don't want to throw a wrench into thin... Dec 9 2013, 09:48 AM BIGKAT_83 You can cool these subarus with almost anything. T... Dec 9 2013, 10:24 AM Chris H. What the... Bob you have one of every motorized th... Dec 9 2013, 10:31 AM CptTripps That is an awesome setup! Lots less intrusive ... Dec 9 2013, 12:29 PM CptTripps I'm having one hell of a time locating a radia... Dec 9 2013, 07:12 PM Mike Bellis
I'm having one hell of a time locating a radi... Dec 9 2013, 08:02 PM skeates
I'm having one hell of a time locating a rad... Dec 10 2013, 01:08 PM Mike Bellis
A little "confection" goes a long way i... Dec 10 2013, 07:39 PM BIGKAT_83
I'm having one hell of a time locating a radi... Dec 10 2013, 05:49 AM 76-914 Mike & Tom, Thanks for explaining things to me... Dec 9 2013, 07:27 PM BIGKAT_83
Mike & Tom, Thanks for explaining things to m... Dec 9 2013, 07:34 PM 76-914 Spoke too soon. I see relay 2 powering Fan #1 @ hi... Dec 9 2013, 07:44 PM CptTripps That got me thinking...what about the front radiat... Dec 10 2013, 10:07 AM Mike Bellis
That got me thinking...what about the front radia... Dec 10 2013, 10:27 AM CptTripps YeH, that's what I'm thinking too. Looks a... Dec 10 2013, 12:35 PM 76-914 Got my fans & relays wired in tonite :Qarl: I... Dec 12 2013, 10:12 PM Chris H. Gotta bump this great thread...Just a quick questi... Aug 25 2014, 11:22 AM 76-914 Es verdad, Christo. Looks funny but think of stack... Aug 25 2014, 05:20 PM Chris H. Cool thanks Kent! Just seemed weird not groun... Aug 25 2014, 05:22 PM |
