LED Front Turnsignal And Rear Brake/Taillight/Turnsignals Options

[Spoke]

This is a group buy for front turnsignal bucket LED boards, rear tail/brake light LED boards, and rear turnsignal LED boards.

Please respond to this thread if you are interested. Purchase requests will be handled in order as they are recieved in this thread.

The only thing group buy of these boards are the bare PCBs. The boards are hand assembled one by one, tested and delivered as they are finished. I will not request payment until your PCBs are to be assembled. Time between payment and shipping should be about 2 weeks. This group buy will last several months so please be patient.

I will PM you when I am prepared to assemble your boards. If I PM you and your plans have changed, please let me know.

Front LED and rear LED boards will be shipped separately. Shipping for CONUS for front or rear LED boards is $10.

@@@@@@@@@

Now is a good time to seal up the front and rear buckets to protect your LED board investments.

I am very pleased to be able to offer bundle pricing for front and rear bucket and rear lens seals by 914Rubber for anyone purchasing front or rear LED boards.

Prices:
Front bucket seals: $12.50 savings of 24% over retail
Rear housing seals: $16.00 savings of 33% over retail
Rear lens beads: $5.00 savings of $28% over retail

Front Bucket Seal

Rear Housing Seal

Rear Lens Bead

[Spoke]

The front bucket LED board is available in 3 different configurations:

1) US Version: All AMBER LEDs: $120/pair
2) Euro Version - No Blanking: WHITE LEDs in clear of lens; Rest AMBER LEDs: Price: $130/pair
3) Euro Version - w/Blanking: WHITE LEDs in clear of lens; Rest AMBER LEDs: Price: $140/pair

Shipping:
CONUS: $10
Outside CONUS: Determined at purchase.

CONUS payment examples:
US Version: $120 + $10 = $130
Euro Version - No Blanking: $130 + $10 = $140
Euro Version - w/Blanking: $140 + $10 = $150

Each pair includes:
o 2 PCBs
o US Version: 69 AMBER LEDs.
o Euro Versions: 21 WHITE LEDS (Running lights) and 48 AMBER LEDs (Turnsignal).

Euro Version with optional blanking will turn off WHITE LEDs when turnsignal is engaged.

Pigtail with 1157 base to plug directly into existing bulb socket.

4 clips for each pair to mount the boards to existing front bucket housing for plug-n-play installation.

4 screws for clips + 1 extra

1 piggyback spade connector if existing turnsignal flasher is replaced by EP36 LED flasher from your FLAPS.

1 year guarantee

Electrical Characteristics US version:
Turnsignal: 0.39A @ 14V (5 Watt) each PCB
Running light: 0.07A @ 14V (1 Watt) each PCB

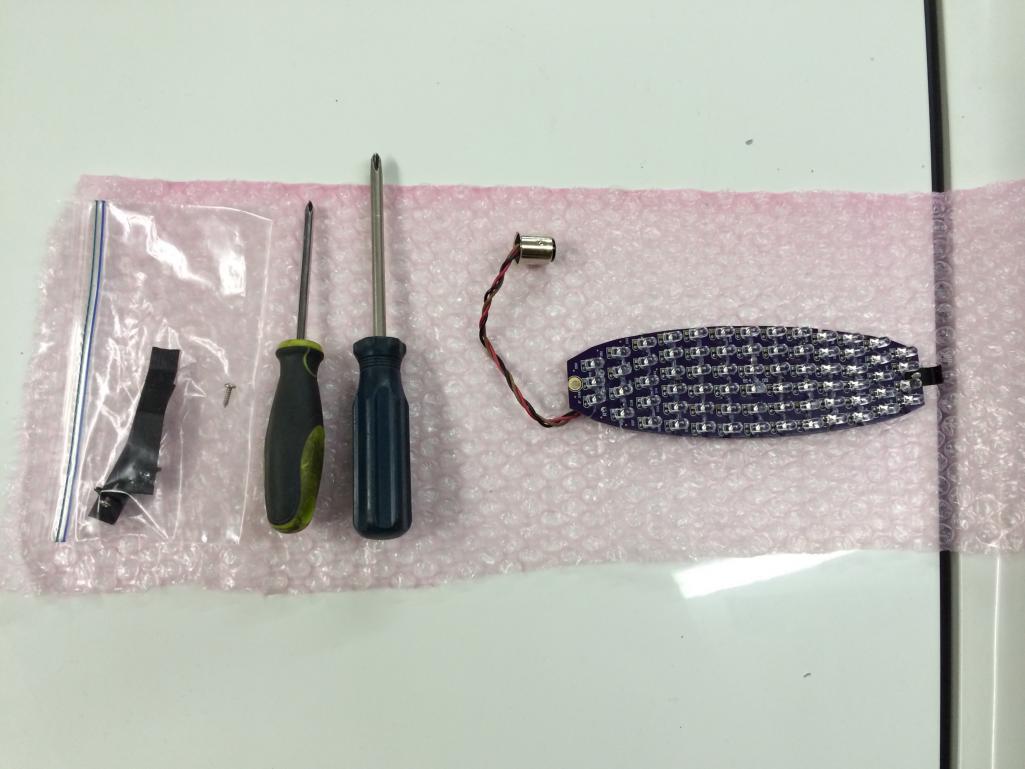

Example front LED board shown with only tools needed: large Philips screwdriver for lens screws and smaller Philips screwdriver for PCB mounting screw.
