I am in the process of converting to 911 ebrakes. I have done a search and there is lot's of good info and pics. I have done the grinding to get the ebrake hardware to fit the 914 hub. I have it all mounted. I have fabbed and welded the stationary piece that the ebrakes have to stop against. However what I can't figure out from the pics is what are the rough dimensions of the transition/bell crank piece? I have moved the OEM cable mounts so I know where the cable will end and I have left room for the swing arm to do its thing but my head is stuck on this bellcrank. Can anyone give me the dimensions of the pieces they fabbed? And what did you use for raw stock? I am brain dead on figuring this out (IMG:style_emoticons/default/dry.gif)
|
   |

|
  |
Replies
| John |
Oct 2 2007, 11:51 PM
Post
#2
|
|
member? what's a member? Group: Members Posts: 3,393 Joined: 30-January 04 From: Evansville, IN (SIRPCA) Member No.: 1,615 Region Association: None |
I too use oillite bronze bushing and washer in my design.

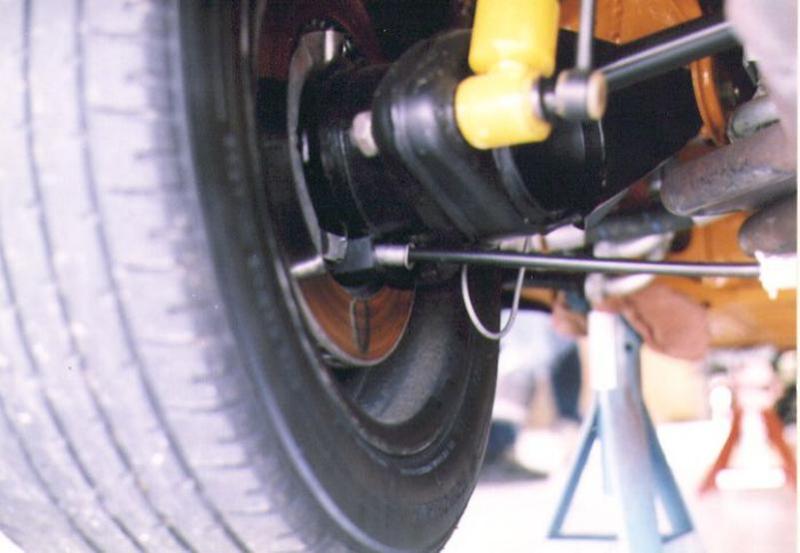

The GT car Miles Collier used to own also used only cables to actuate the e-brakes. The e-brake lever in that car was centrally located as well. The cables seemed to dangle quite low and run very close to the hot exhaust. I saw the Collier car at Mid Ohio in the 80's and looked very carefully at the unique things that were on that car. That's when I really started learning about the unique features of certain 914s. What were you saying about backing plates? (The pic is from the 80's) Got any pictures? Attached image(s)
|
|
|
|
Posts in this topic
rfuerst911sc for those that have done 911 ebrake conversion question Oct 1 2007, 05:04 PM
Aaron Cox you can go 1:1 (arms are same distance from pivot)... Oct 1 2007, 05:24 PM
rfuerst911sc
you can go 1:1 (arms are same distance from pivot... Oct 1 2007, 06:06 PM Chuck You may be far enough along in your fab work that ... Oct 1 2007, 05:30 PM ClayPerrine Why use a bellcrank? Cables are cheap from the lo... Oct 1 2007, 07:19 PM John
Why use a bellcrank? Cables are cheap from the l... Oct 1 2007, 07:35 PM iamchappy I traced all of the parts i made and was going to ... Oct 1 2007, 07:34 PM rfuerst911sc Iamchappy and John thanks for the pics. Iamchappy ... Oct 1 2007, 08:17 PM John I used forged clevises from McMaster Carr and 1/4-... Oct 1 2007, 09:15 PM iamchappy I used i believe a 6mm threaded rod or whatever t... Oct 1 2007, 09:28 PM Aaron Cox chappy - find your templates LOL
ill be doing thi... Oct 1 2007, 09:29 PM John Here are a couple other pictures Oct 1 2007, 09:29 PM John Here is the sketch that I made before changing the... Oct 1 2007, 10:54 PM PRS914-6 I did mine similar to John's. I moved the lef... Oct 2 2007, 12:04 AM ClayPerrine The problem i have with a bellcrank is that you on... Oct 2 2007, 07:43 AM John
The problem i have with a bellcrank is that you o... Oct 2 2007, 03:04 PM ClayPerrine
The problem i have with a bellcrank is that you ... Oct 2 2007, 07:09 PM jim912928 Clay...count me in for a kit when you guys finish ... Oct 2 2007, 02:55 PM iamchappy I use an oil bronze bushing as my pivot. I think d... Oct 2 2007, 07:34 PM ClayPerrine
I use an oil bronze bushing as my pivot. I think ... Oct 2 2007, 10:05 PM Larry Hubby If you don't like the bell crank approach, you... Oct 3 2007, 01:38 AM iamchappy That looks like a nice clean cable install. Good w... Oct 3 2007, 07:29 AM |
