> for those that have done 911 ebrake conversion question
rfuerst911sc
post Oct 1 2007, 05:04 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States



I am in the process of converting to 911 ebrakes. I have done a search and there is lot's of good info and pics. I have done the grinding to get the ebrake hardware to fit the 914 hub. I have it all mounted. I have fabbed and welded the stationary piece that the ebrakes have to stop against. However what I can't figure out from the pics is what are the rough dimensions of the transition/bell crank piece? I have moved the OEM cable mounts so I know where the cable will end and I have left room for the swing arm to do its thing but my head is stuck on this bellcrank. Can anyone give me the dimensions of the pieces they fabbed? And what did you use for raw stock? I am brain dead on figuring this out (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Reply to this topicStart new topic
Replies
Larry.Hubby
post Oct 3 2007, 01:38 AM
Post #2


Member who doesn't post much, but has a long time in 914s
**

Group: Members
Posts: 186
Joined: 24-November 04
From: Palo Alto, CA
Member No.: 3,172
Region Association: Northern California

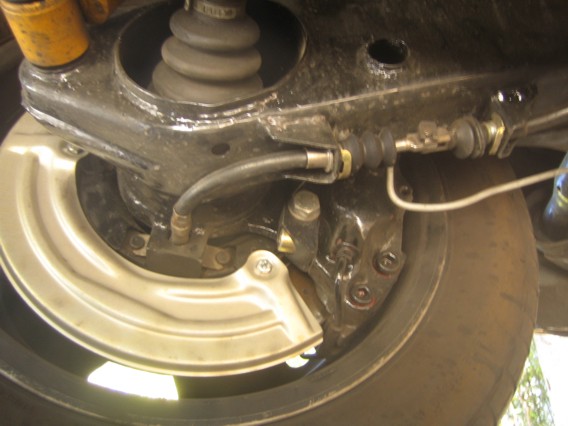

If you don't like the bell crank approach, you might be interested in the way I did it. I cut down two 911 parking brake cables, made special end fittings for them, and attached the outer ends to the stock 914 cables externally with the same clevis and pin that used to grab the caliper lever. You wind up with stock 914 cables, and stock 911 parking brakes (both bow-ties functional). The only special parts are the cut-down 911 cables, the end fittings for them, and the extra weld bracket to hold the outer end of the cut-down cables - five parts total per side, counting the cables. I've had it working on my car for a year and a half now, and it seems to work really well.

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Posts in this topic
rfuerst911sc   for those that have done 911 ebrake conversion question   Oct 1 2007, 05:04 PM
Aaron Cox   you can go 1:1 (arms are same distance from pivot)...   Oct 1 2007, 05:24 PM
rfuerst911sc   you can go 1:1 (arms are same distance from pivot...   Oct 1 2007, 06:06 PM
Chuck   You may be far enough along in your fab work that ...   Oct 1 2007, 05:30 PM
ClayPerrine   Why use a bellcrank? Cables are cheap from the lo...   Oct 1 2007, 07:19 PM
John   Why use a bellcrank? Cables are cheap from the l...   Oct 1 2007, 07:35 PM
iamchappy   I traced all of the parts i made and was going to ...   Oct 1 2007, 07:34 PM
rfuerst911sc   Iamchappy and John thanks for the pics. Iamchappy ...   Oct 1 2007, 08:17 PM
John   I used forged clevises from McMaster Carr and 1/4-...   Oct 1 2007, 09:15 PM
iamchappy   I used i believe a 6mm threaded rod or whatever t...   Oct 1 2007, 09:28 PM
Aaron Cox   chappy - find your templates LOL ill be doing thi...   Oct 1 2007, 09:29 PM
John   Here are a couple other pictures   Oct 1 2007, 09:29 PM
John   Here is the sketch that I made before changing the...   Oct 1 2007, 10:54 PM
PRS914-6   I did mine similar to John's. I moved the lef...   Oct 2 2007, 12:04 AM
ClayPerrine   The problem i have with a bellcrank is that you on...   Oct 2 2007, 07:43 AM
John   The problem i have with a bellcrank is that you o...   Oct 2 2007, 03:04 PM
ClayPerrine   The problem i have with a bellcrank is that you ...   Oct 2 2007, 07:09 PM
jim912928   Clay...count me in for a kit when you guys finish ...   Oct 2 2007, 02:55 PM
iamchappy   I use an oil bronze bushing as my pivot. I think d...   Oct 2 2007, 07:34 PM
ClayPerrine   I use an oil bronze bushing as my pivot. I think ...   Oct 2 2007, 10:05 PM
John   I too use oillite bronze bushing and washer in my ...   Oct 2 2007, 11:51 PM
Larry Hubby   If you don't like the bell crank approach, you...   Oct 3 2007, 01:38 AM
iamchappy   That looks like a nice clean cable install. Good w...   Oct 3 2007, 07:29 AM
