 Wanna make your own Euro Turn Signal Set Up, My backyard set up |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| SLITS |
 Jan 23 2012, 12:58 PM
Post
#1
|
|
"This Utah shit is HARSH!"  Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None   |
Tools required:

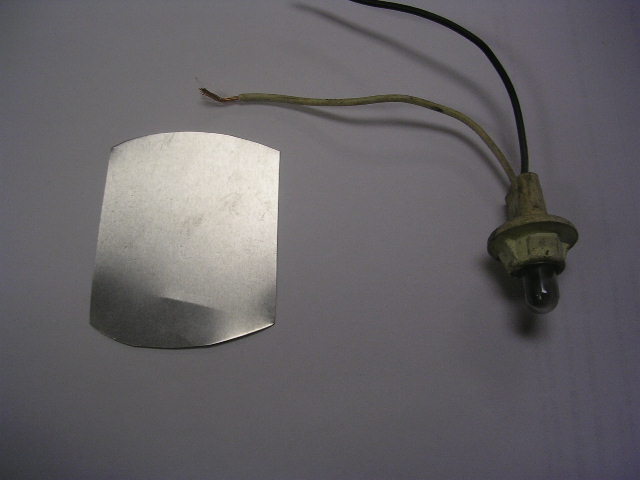

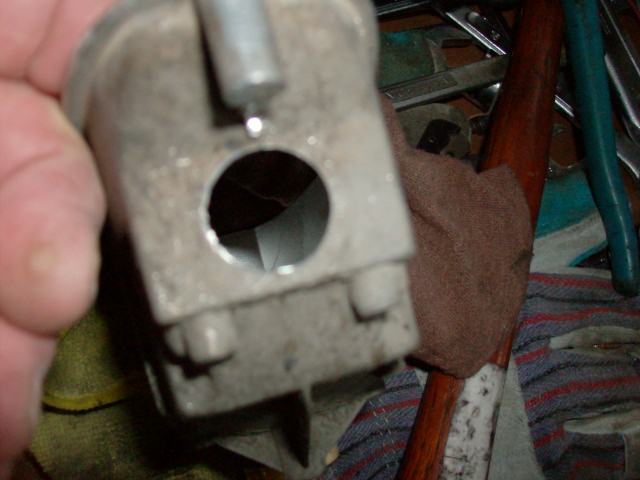

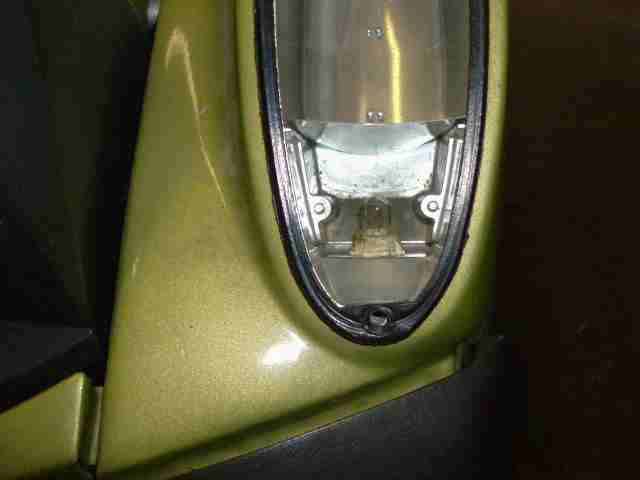

1.) Pair of scissors 2.) Harbor Freight Step Drill & Hand Drill Drill a 0.750" (mine came our to be 0.715" in the base of the turn signal bucket! (IMG:http://www.914world.com/bbs2/uploads_offsite/i239.photobucket.com-1696-1327345096.1.jpg) Acquire a marker light bulb holder from a GM car or anything like the one shown: (IMG:http://www.914world.com/bbs2/uploads_offsite/i239.photobucket.com-1696-1327345096.2.jpg) I used 0.010 thickness aluminum sheet for the reflector ( shown as above) Push bulb holder into hole with a little gasket sealer or RTV to seal it Put reflector in Put lens on, install bucket, wire & wella Ok, so I'm cheap and cut the bulb holders out of wrecked cars. Finished: (IMG:http://www.914world.com/bbs2/uploads_offsite/i239.photobucket.com-1696-1327345096.3.jpg) |
   |

|
| mrbubblehead |
Jan 23 2012, 01:03 PM
Post
#2
|
|
Twodollardoug Group: Members Posts: 1,155 Joined: 17-December 10 From: calimesa ca. Member No.: 12,492 Region Association: Southern California |
so slits, your added lamp is the turn signal or the running light?
|
|
|
|
| Dr Evil |
Jan 23 2012, 01:49 PM
Post
#3
|
|
Send me your transmission! Group: Members Posts: 23,032 Joined: 21-November 03 From: Loveland, OH 45140 Member No.: 1,372 Region Association: MidAtlantic Region
|
I like it (IMG:style_emoticons/default/wink.gif)
|
|
|
|
| Eric_Shea |
Jan 23 2012, 01:56 PM
Post
#4
|
|
PMB Performance Group: Admin Posts: 19,289 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains  |
What's this doing in the garage? (IMG:style_emoticons/default/hide.gif)
|
|
|
|
| 914werke |
Jan 23 2012, 02:10 PM
Post
#5
|
|
"I got blisters on me fingers" Group: Members Posts: 10,542 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
OK smart guy so how do you wire it? (IMG:style_emoticons/default/biggrin.gif)
|
|
|
|
| SLITS |
Jan 23 2012, 02:27 PM
Post
#6
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None |
1.) It's the Euro running light
2.) I wire it to the side marker wires with a soldering gun and shrink tube ... :duh: 3.) My bad ... I thought I put it in the Sandbox. What more could you ask? |
|
|
|
| Eric_Shea |
Jan 23 2012, 03:05 PM
Post
#7
|
|
PMB Performance Group: Admin Posts: 19,289 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains |
QUOTE 3.) My bad ... I thought I put it in the Sandbox. Zach should be along later this afternoon... |
|
|
|
| Dave_Darling |
Jan 23 2012, 06:04 PM
Post
#8
|
|
914 Idiot Group: Members Posts: 15,048 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
I wonder if this could be done by disassembling the US side marker "warts"? For those who are doing away with those.
--DD |
|
|
|
| SirAndy |
Jan 23 2012, 06:09 PM
Post
#9
|
|
Resident German Group: Admin Posts: 41,815 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
QUOTE(Dave_Darling @ Jan 23 2012, 04:04 PM)  I wonder if this could be done by disassembling the US side marker "warts"? For those who are doing away with those. (IMG:style_emoticons/default/agree.gif) Move the warts to the running light portion of the signal bucket ... (IMG:style_emoticons/default/idea.gif) |
|
|
|
| majkos |
Jan 23 2012, 06:15 PM
Post
#10
|
|
Senior Member Group: Members Posts: 1,370 Joined: 29-February 04 From: Mile High 914 Member No.: 1,729 Region Association: Rocky Mountains |
QUOTE(Dave_Darling @ Jan 23 2012, 05:04 PM) I wonder if this could be done by disassembling the US side marker "warts"? For those who are doing away with those. --DD Well Duh! (IMG:style_emoticons/default/agree.gif) such a GREAT (IMG:style_emoticons/default/aktion035.gif) simple idea (IMG:style_emoticons/default/idea.gif) another item to add to the list of stuff to do on the Green Machine. (IMG:style_emoticons/default/smash.gif) |
|
|
|
| John |
Jan 23 2012, 11:33 PM
Post
#11
|
|
member? what's a member? Group: Members Posts: 3,393 Joined: 30-January 04 From: Evansville, IN (SIRPCA) Member No.: 1,615 Region Association: None |
That's easier than what I did.
I created tiny seats with 2 small holes that fastened to the cast in place pegs of the turn signal bucket. My holders fit into my seats and hold 5W bayonet bulbs. My wires feed up the bucket and are held in place with the cast in place pegs running along the bottom of the buckets. My wires feed down to the plastic plug on the back of the turn signal bucket and I did my wiring inside the rubber boots. |
|
|
|
| Mr.242 |
Feb 20 2012, 08:44 PM
Post
#12
|
|
May your glass be smaller so it's always FULL! Group: Members Posts: 1,079 Joined: 10-June 08 From: Seattle Member No.: 9,160 Region Association: Pacific Northwest |
Any pics of it operational..... (IMG:style_emoticons/default/poke.gif)
|
|
|
|
|
