> Porsche 914 - 8 GTT, November '24 Update
Maltese Falcon
post Mar 3 2024, 08:19 PM
Post #781


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
My truck / so my music choice; they had to put up with my Country station The Bakersfield Beat...as Dwight Yoakam says " Music from the Dust bowl to the Hollywood bowl" (IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/marty914.jpg)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Moparboy72
post Mar 8 2024, 02:45 PM
Post #782


Newbie
*

Group: Members
Posts: 4
Joined: 5-March 08
From: Naperville, IL
Member No.: 8,778
Region Association: Upper MidWest
Marty,

Thanks for showing us around your shop and the wicked 914 - 8 GTT! It was great spending time with you and I even enjoyed the country music too (IMG:style_emoticons/default/aktion035.gif)

Thanks again!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 16 2024, 12:42 PM
Post #783


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

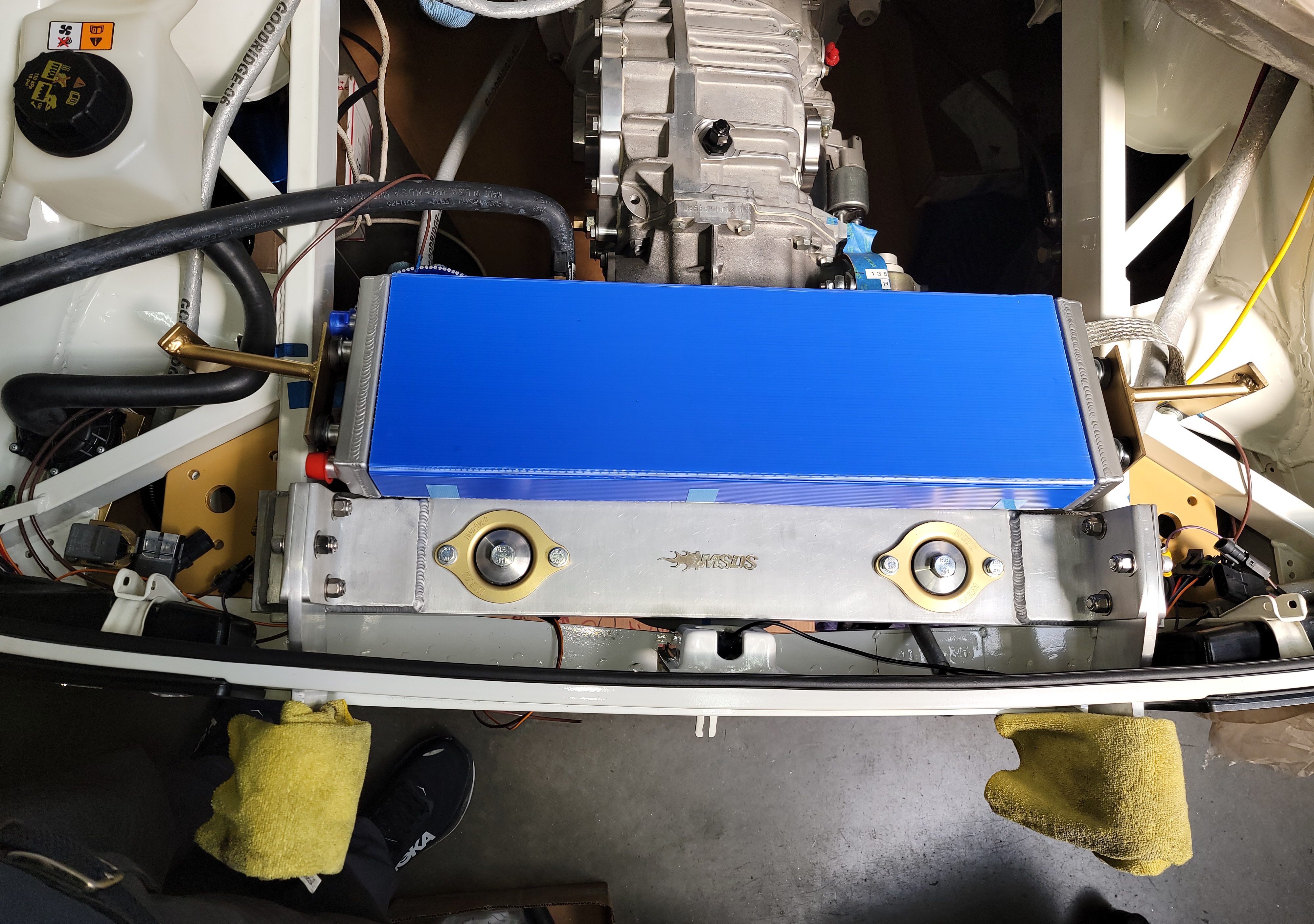

Transaxle heat exchanger (CSF) in place with rubber isolation pads; more ¾" coolant hose to run, but going to place the Aviaid dry sump oil tank first.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 16 2024, 12:46 PM
Post #784


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

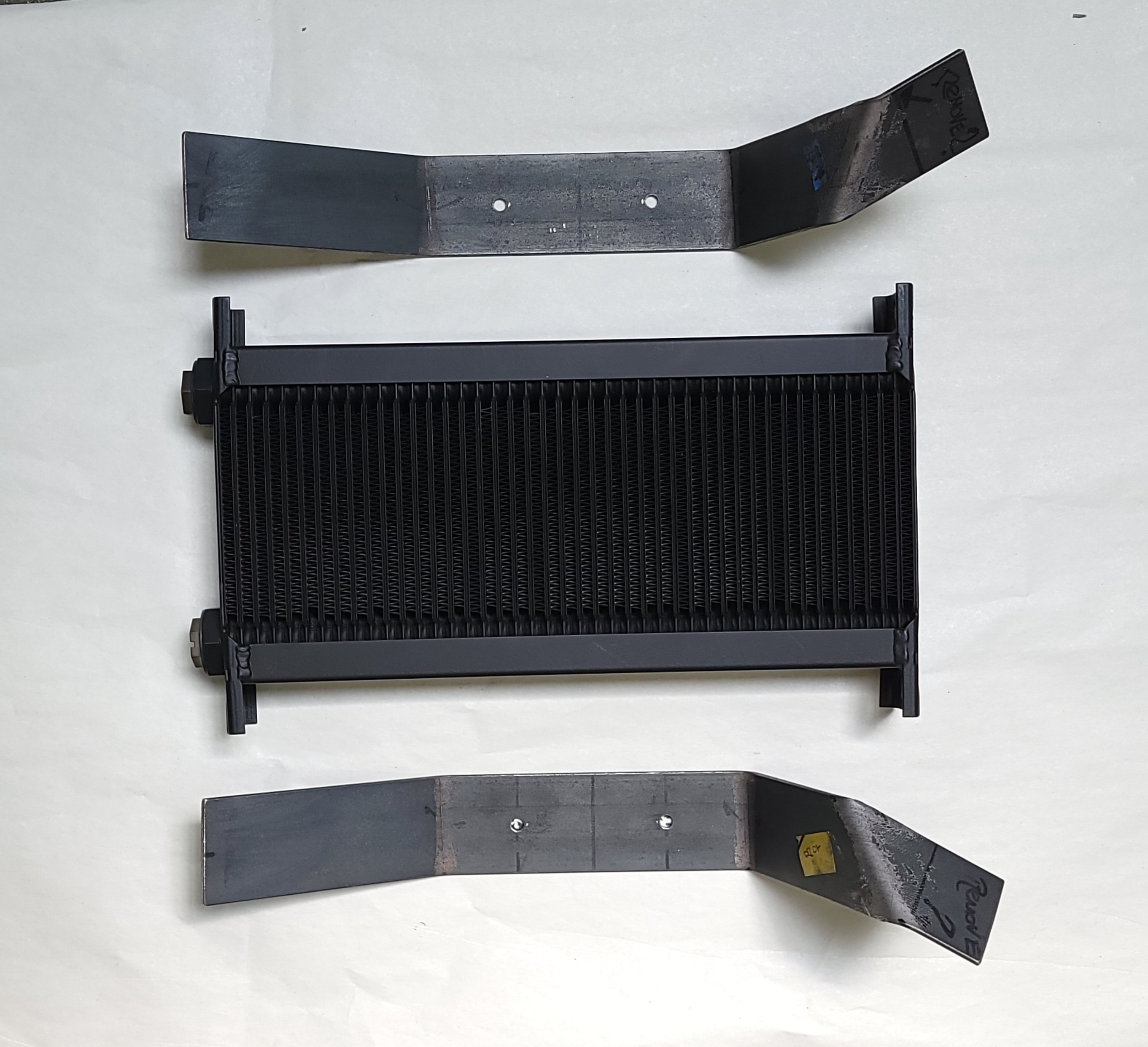

Engine oil cool brackets formed to angles needed in the Right and Left quarter panels, using two Setrab oil coolers with AN#12 fittings.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 16 2024, 12:50 PM
Post #785


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

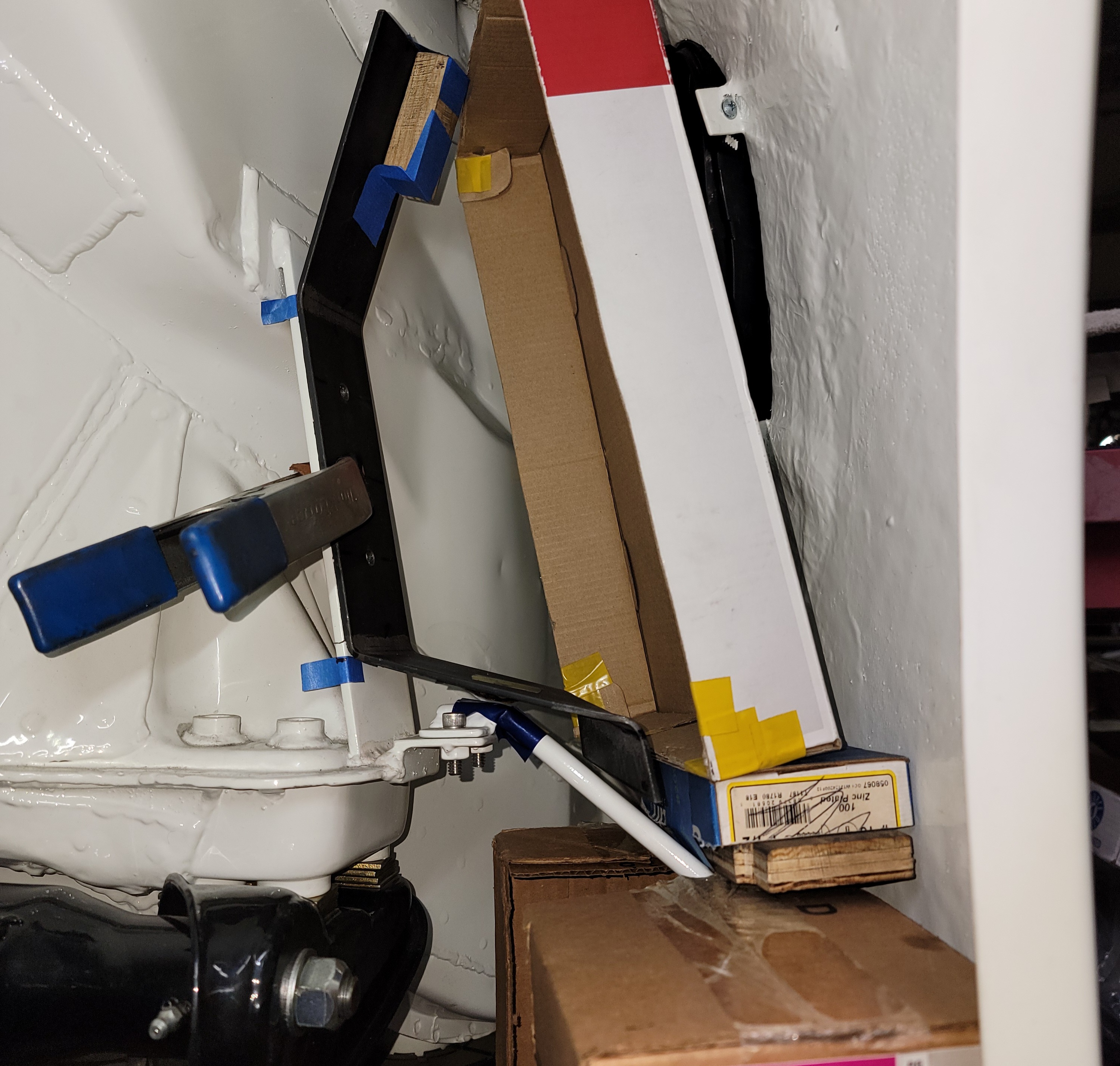

The mock-up for Setrab oil cooler and how it fits into the R quarter panel, which is the Sheridan wide body with a GT3rs inlet.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Mar 16 2024, 11:46 PM
Post #786


Newbie
*

Group: Members
Posts: 30
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None
I like that idea for the oil cooler brackets. The bracket stays out of the way. Nice execution with the correct angles! Keep working on the car and giving us updates. I check almost daily. lol
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 17 2024, 09:45 AM
Post #787


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

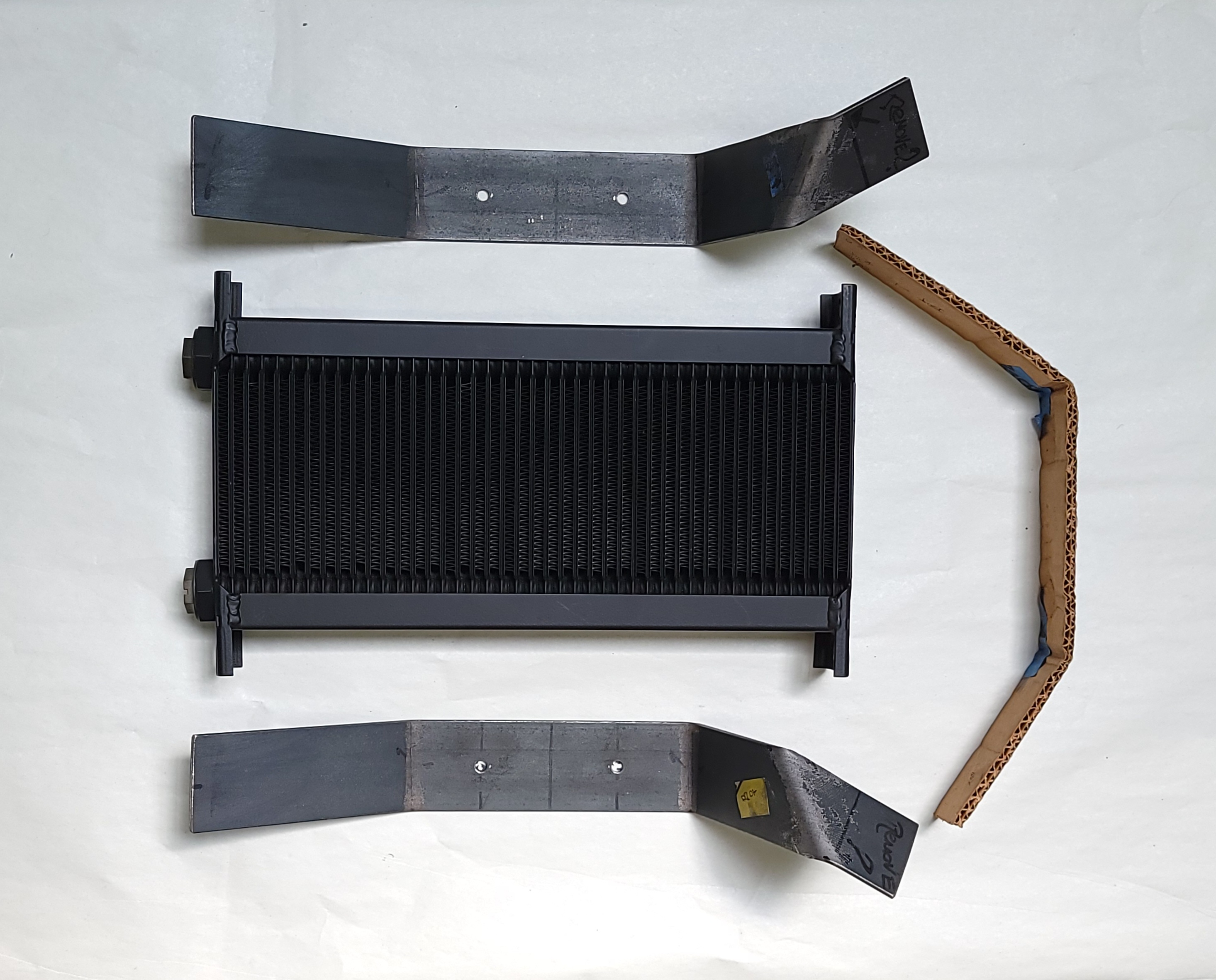

@NorCalScott your comments + enthusiasm are much appreciated! I do cheat a little on our bracket set-ups; CAD...cardboard assisted design (IMG:style_emoticons/default/smile.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 17 2024, 09:54 AM
Post #788


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

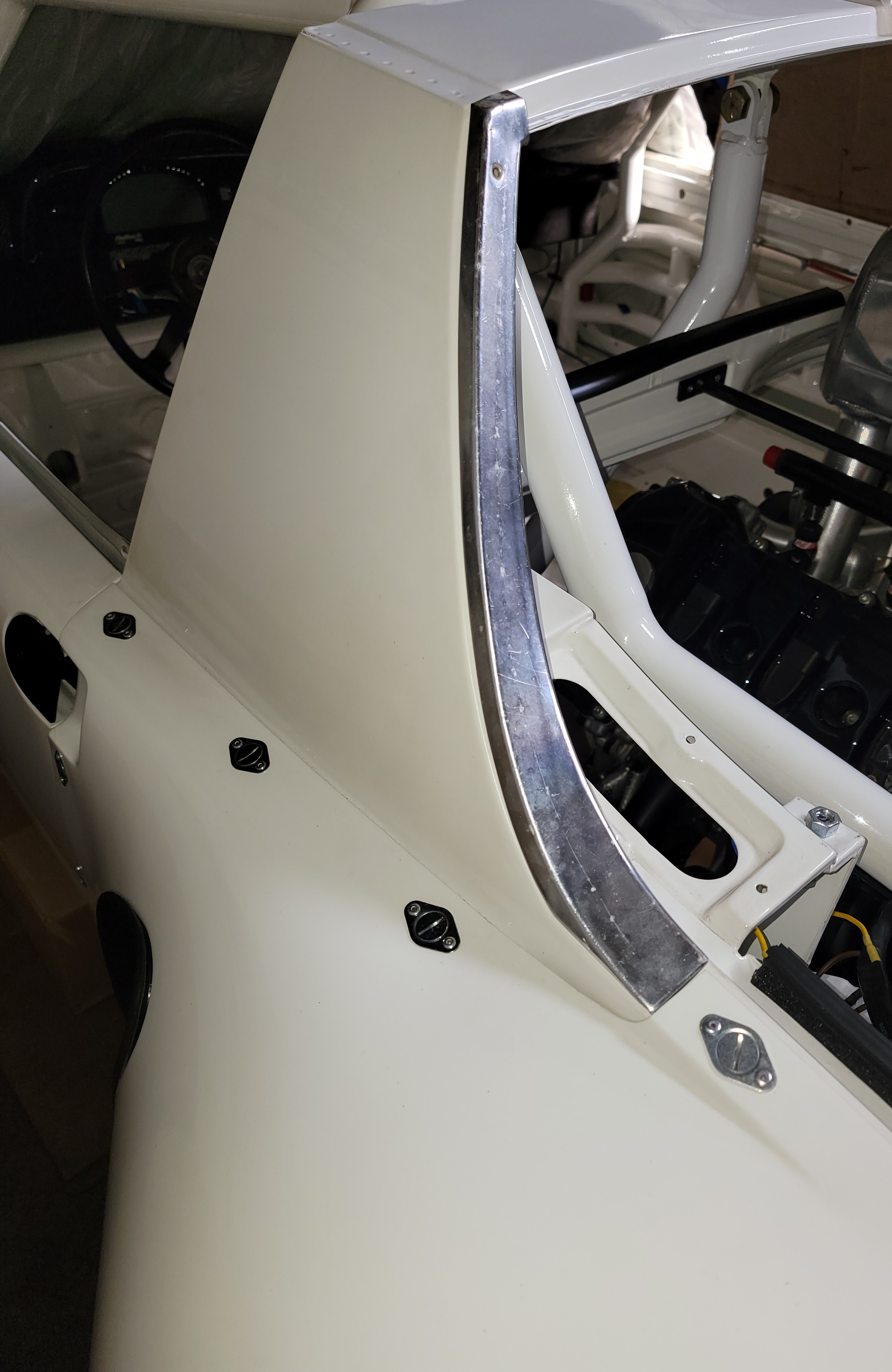

Pre fitting all of the targa area aluminum trim, before
the pieces head into the body shop for detailing + black coating. I'm big on all of the small 914 items that we can integrate back into this custom build. Shoutout to @Montreal914 for sourcing the rear targa trim pieces for us !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Mar 17 2024, 10:55 AM
Post #789


Senior Member
***

Group: Members
Posts: 1,701
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California
Glad I was able to somewhat contribute to this build (IMG:style_emoticons/default/biggrin.gif).

BTW, you picked up that trim at our previous house (rental). We bought our house and moved to Claremont 8 years ago… (IMG:style_emoticons/default/blink.gif) So…time flies… Then, I had started rebuilding a 74 914 (white repainted red) while enjoying my 73 DD bought when I moved to CA late 2009., I later decided to pass along the 74 project and focus only on my 73, restoration that is still ongoing… (IMG:style_emoticons/default/rolleyes.gif) The white 74 car project is in good hands with Glenn @pencap914 . (IMG:style_emoticons/default/smile.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 17 2024, 03:16 PM
Post #790


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
@Montreal914 mais oui !¡ time flys when you're having fun with these little cars (IMG:style_emoticons/default/smile.gif)
à bientôt
(IMG:style_emoticons/default/marty914.jpg)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Mar 17 2024, 11:45 PM
Post #791


Newbie
*

Group: Members
Posts: 30
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None
I assume you're probably using the same rubber isolators to mount the oil coolers as you did to mount the trans cooler. Although they're probably very generic, I'm still curious which ones you're using.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 18 2024, 06:59 PM
Post #792


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(NorCalScott @ Mar 17 2024, 10:45 PM) *

I assume you're probably using the same rubber isolators to mount the oil coolers as you did to mount the trans cooler. Although they're probably very generic, I'm still curious which ones you're using.

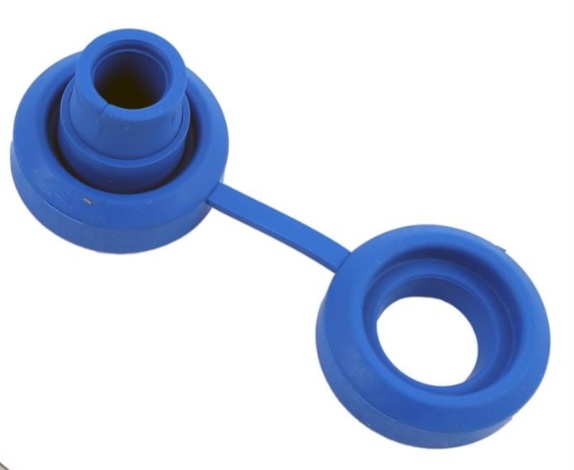

For the smaller isolater-rubber buffers, like the 4 mounting points (sae ¼x20 threads) on this trans radiator: I just use neoprene or silicon muffler-bracket inserts. I just lightly disc sand these to remove any bumps, and install with small fender style washers, then a wavy washer and a little torque.

For bigger accessories like a large intercooler (8mm or 5/16 threads) same technique but I use a larger silicon- buffer...also a donor from a muffler- bracket.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 18 2024, 07:53 PM
Post #793


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

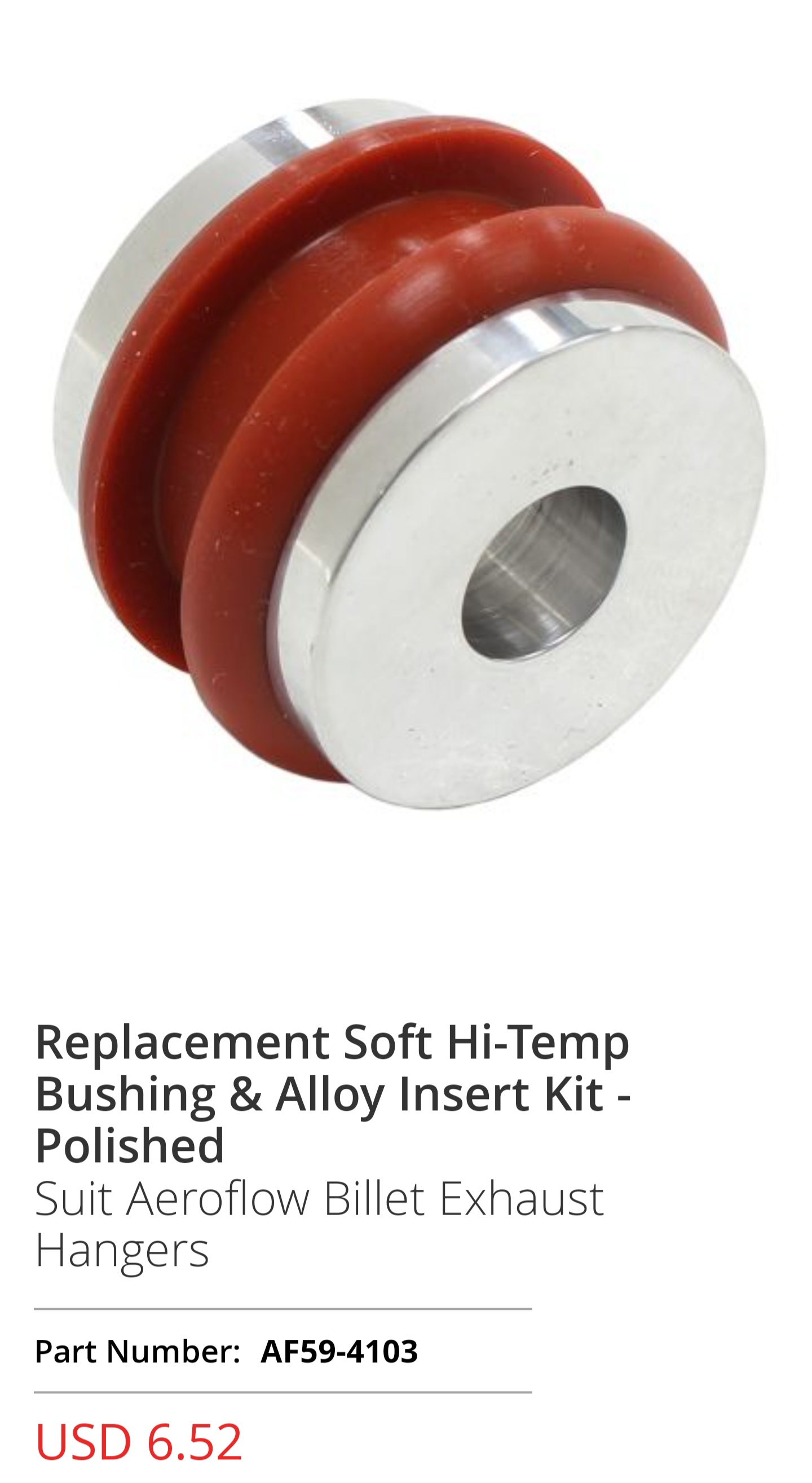

The next size up that I use as isolator-pads (intercooler mounts), are these inserts taken off the"Aeroflow" billet style muffler-clamps (not shown); for 8mm, 5/16 sae fasteners.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Mar 20 2024, 12:55 PM
Post #794


Newbie
*

Group: Members
Posts: 30
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None
Thanks for the info! I appreciate it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Mar 21 2024, 06:21 AM
Post #795


Advanced Member
****

Group: Members
Posts: 4,651
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(Maltese Falcon @ Mar 17 2024, 05:16 PM) *

@Montreal914 mais oui !¡ time flys when you're having fun with these little cars (IMG:style_emoticons/default/smile.gif)
à bientôt
(IMG:style_emoticons/default/marty914.jpg)


Mon Dieu !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 20 2024, 09:25 PM
Post #796


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

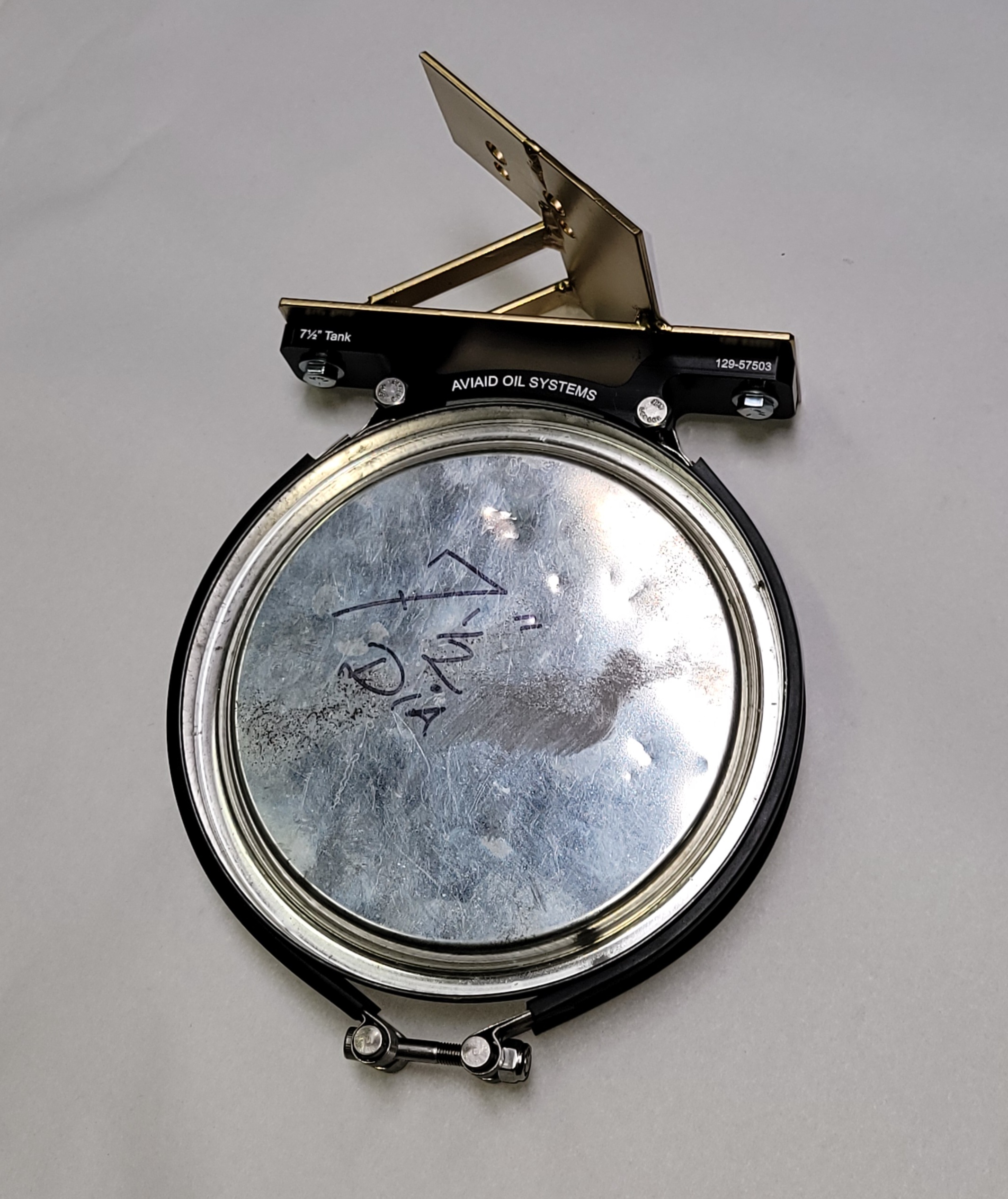

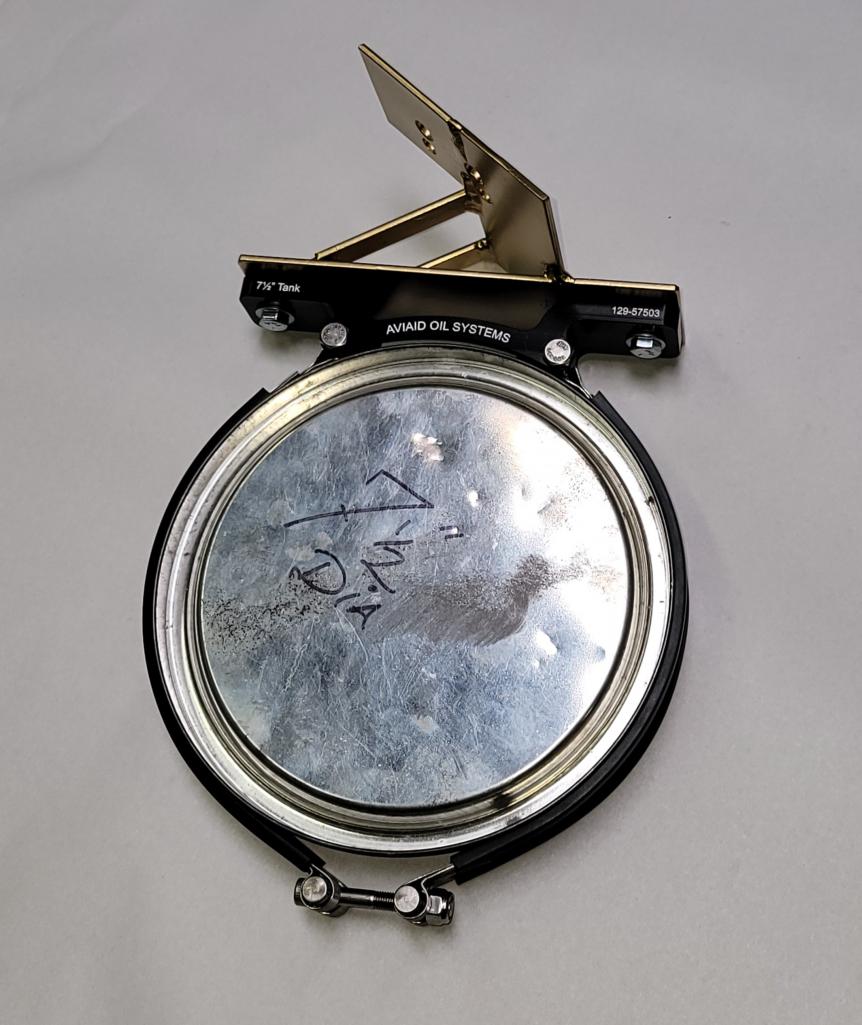

Fabrication of the lower support bracket for Aviad oil tank.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 20 2024, 09:28 PM
Post #797


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

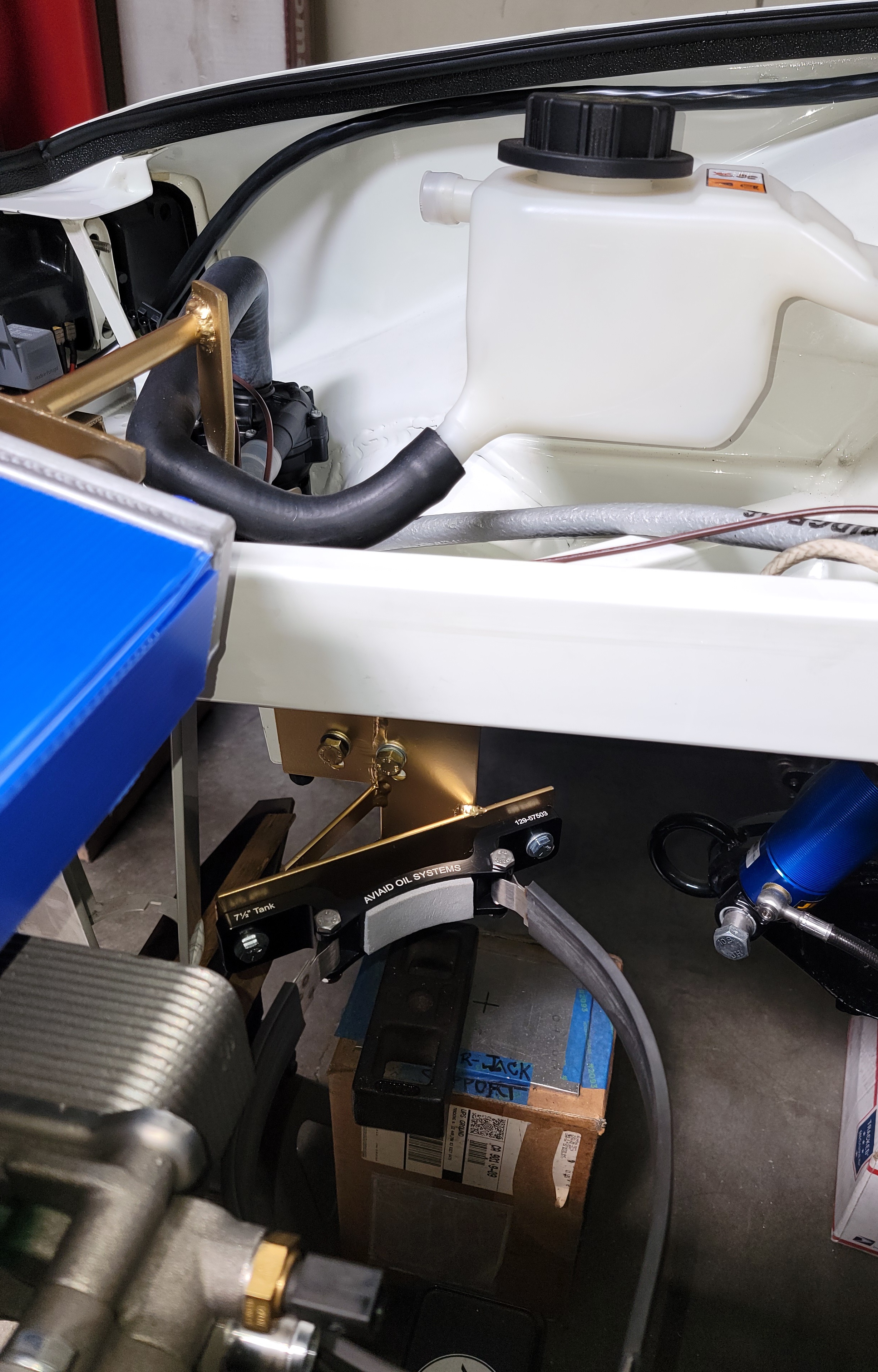

Couple of 8mm bolts fastened into 5/16" solid plate frame bracing.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 20 2024, 09:36 PM
Post #798


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

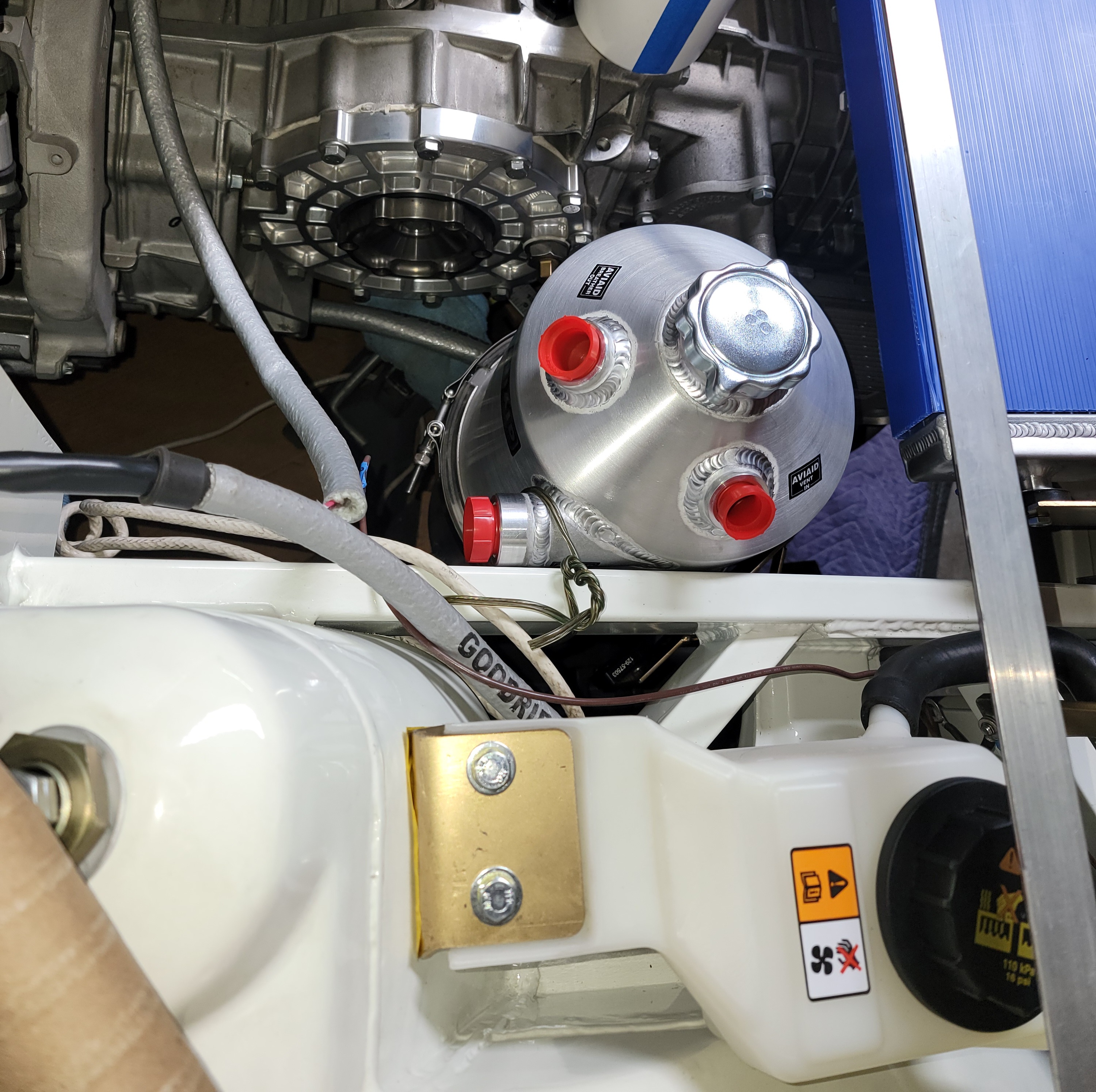

Basic location of tank, going to bring its height up another 3.375" and fabricate the upper tank-support bracket. Tight fit but I borrowed this placement idea after looking at various mid engine racecars, and the slim diameter of this tank just makes it in this spot.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Apr 21 2024, 06:38 AM
Post #799


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
When you get this finished, you should duplicate the paint job on the Sounato GT, but with number 41.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 21 2024, 01:29 PM
Post #800


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(ClayPerrine @ Apr 21 2024, 05:38 AM) *

When you get this finished, you should duplicate the paint job on the Sounato GT, but with number 41.


Clay, definitely a spin off on the LeMans 914...but a little hot Cayenne spice added !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
