> Nine Fourteen Sex, The on going story of Love and Lust for a Machine.
914 Ranch
post May 4 2020, 03:04 AM
Post #301


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

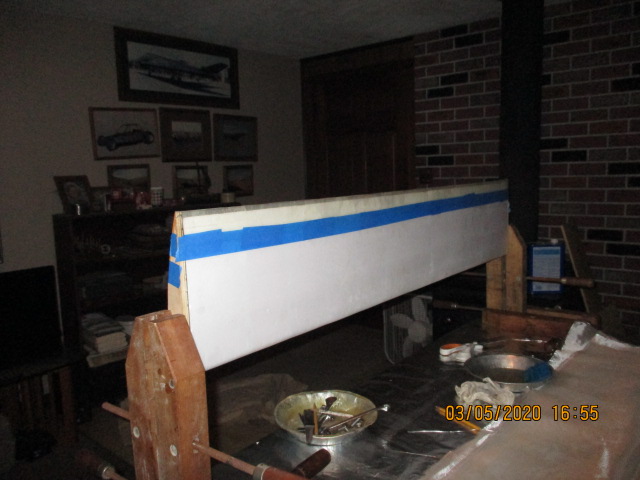

Finished gluing up the trailing edge this morning and took a brake. It was 4:20 and from the looks of it I won. I thought of a way to put a flap on it. Would make it adjustable form the cockpit. Mark will really like that.
Pic of the progress. All you can tell is that I added tape but it's where I put the glue that counts.

Attached Image

When it is dry enough to sand I will apply 2 layers of glass, sand it smooth, primer it and mount it back where it belongs. Can't wait to see it!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 6 2020, 03:03 AM
Post #302


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

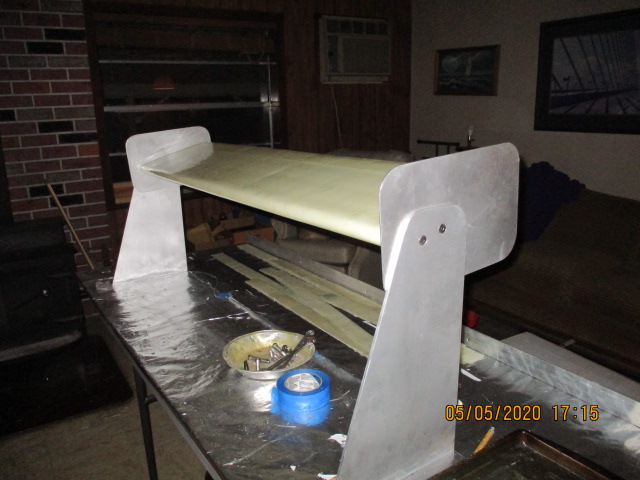

More on the rear wing.

Attached Image

Attached Image

Better than I expected.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 12 2020, 02:19 AM
Post #303


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
I have been working on the intake scoops. Building a form for the foam block shape. I had to do it twice because they are much longer than I thought. I tried to make it so I could disassemble it from around the foam after it is cured. The box is done and I am trying to talk myself into going for the pour. From the foam blocks I can make lefts and rights so really I am the only thing that is holding me back.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 13 2020, 07:23 PM
Post #304


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
The block is done and I am happy. Rough sanded it looks awesome. My computer stopped talking to my camera so I can't post pics of what's going on. Sorry.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 14 2020, 03:52 AM
Post #305


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)
I am sorry but phyque the plug is really looking good. And I can't show off damnit. The shape is just what I had envisioned. Just much bigger than I had thought. Kool uh?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
euro911
post May 14 2020, 11:12 AM
Post #306


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,858
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Have you tried taking pix with your schmart fone and e-mailing them to your e-mail account?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stownsen914
post May 15 2020, 05:27 AM
Post #307


Senior Member
***

Group: Members
Posts: 930
Joined: 3-October 06
From: Ossining, NY
Member No.: 6,985
Region Association: None
I like your work making the wing
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 15 2020, 05:40 AM
Post #308


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
I'm really trying to get some pictures up but my my phone and computer stopped talking to each other. My laptop was always a piece of shit and is a '12. Surprised it worked this long, I dumped my ipone along time ago. No point in having something that takes 2 weeks for an appointment to get it an appointment to fix it.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 15 2020, 05:49 AM
Post #309


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
Pic hopefully...

Attached Image

I'm going to need to practice that.
Posted from my phone and is not reliable.

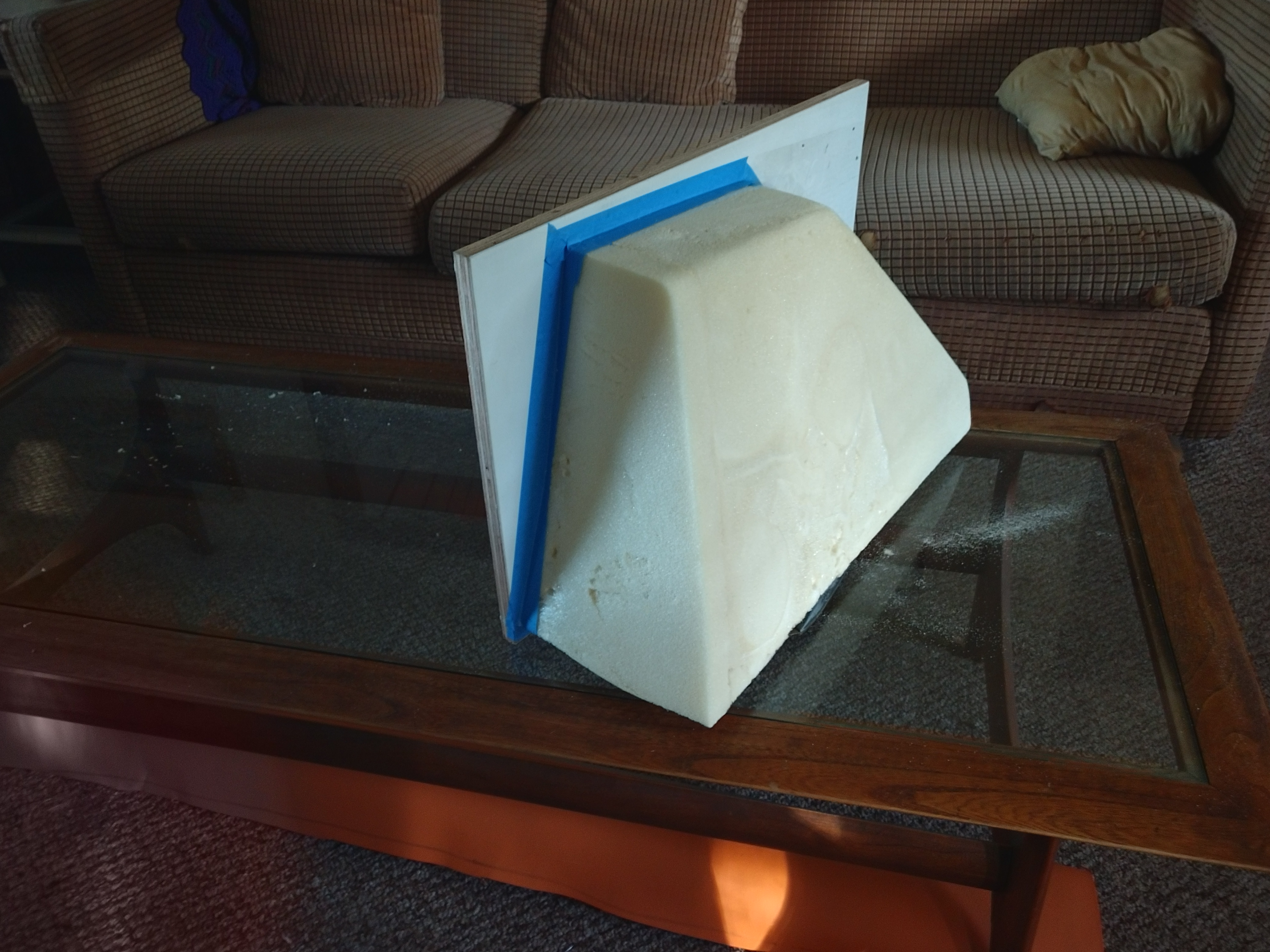

The driver side Cold Air Intake scoop plug.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 15 2020, 06:01 AM
Post #310


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
Trying again...
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 15 2020, 06:04 AM
Post #311


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
OK, probably not the last time I'll try but hoping...

Attached Image

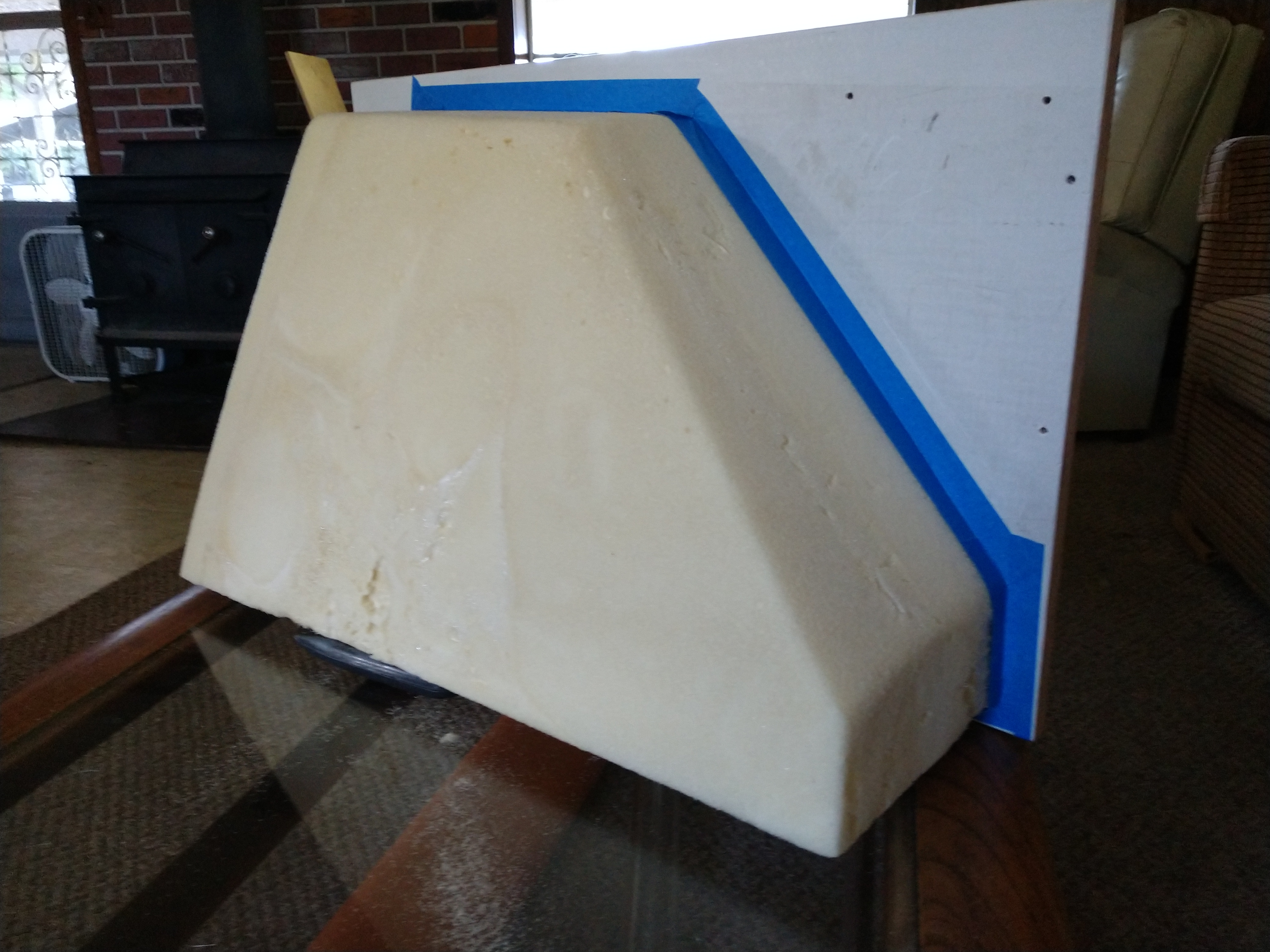

Kool, I love the shape, it's a little large but it hides part of the targa bar inside it.

This could be a total failure but I'll finish it and see if I still like it.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 18 2020, 06:22 AM
Post #312


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

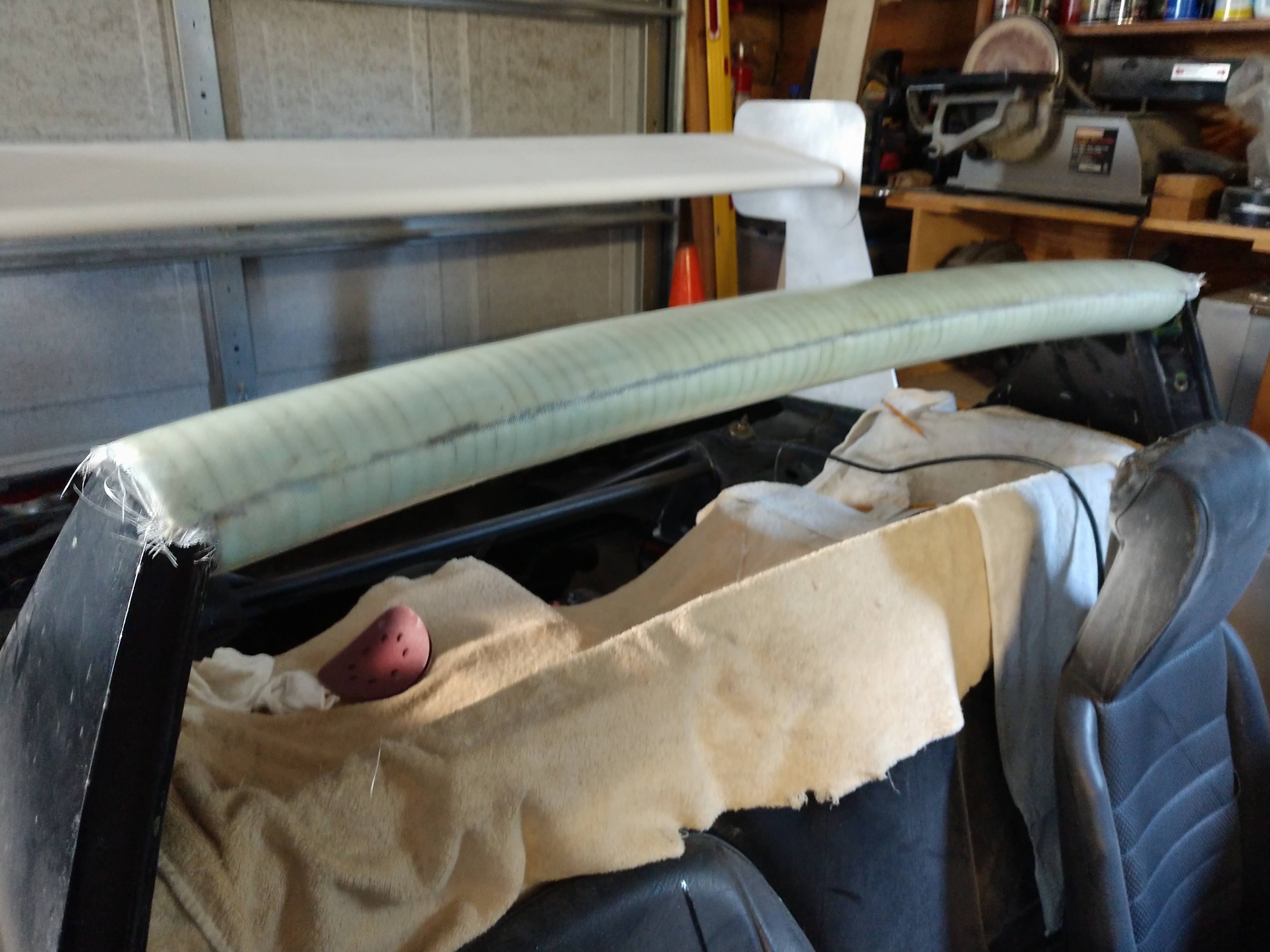

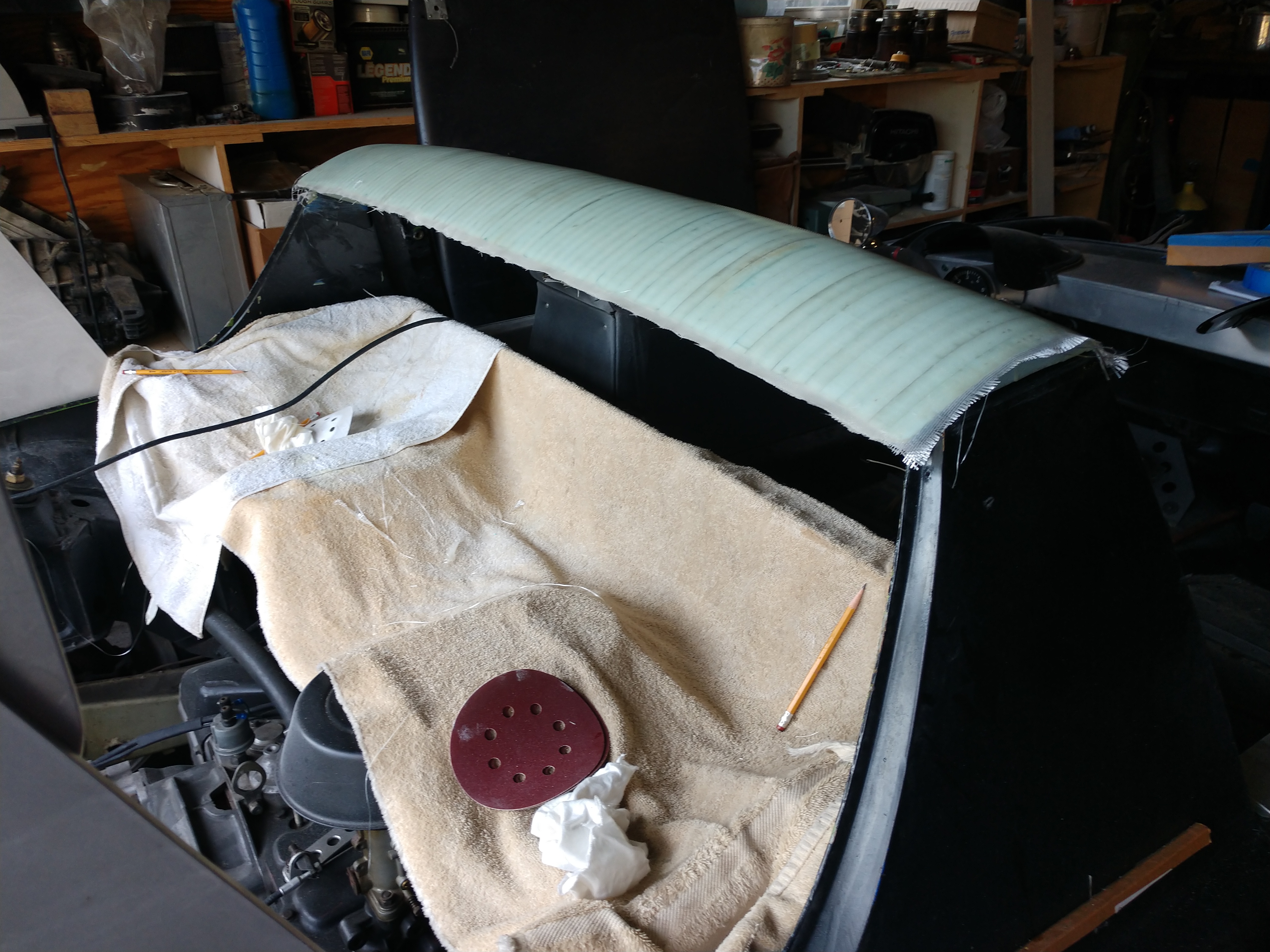

Two coats of 6.5 ounce fiberglass on the targa bar this morning.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 18 2020, 06:23 AM
Post #313


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
And


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 28 2020, 10:24 AM
Post #314


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

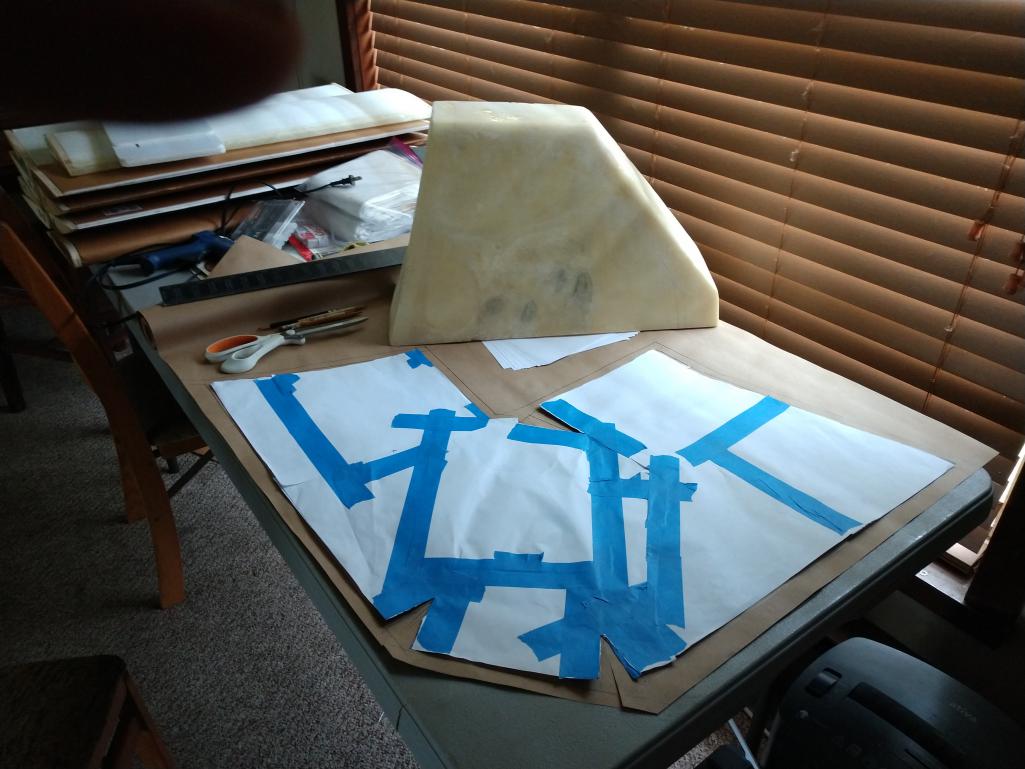

On going with the Cold Air Intake, I am getting close with the plug for the scoop.. l'm making a pattern for cutting the fiberglass cloth. Going to need a bunch of them, at least 12. 3 for each of the plugs and for the scoops.

Attached Image

I was thinking that I could make a scoop from thin aluminum from this but it would only come out all wrinkled and dented.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 28 2020, 10:38 AM
Post #315


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

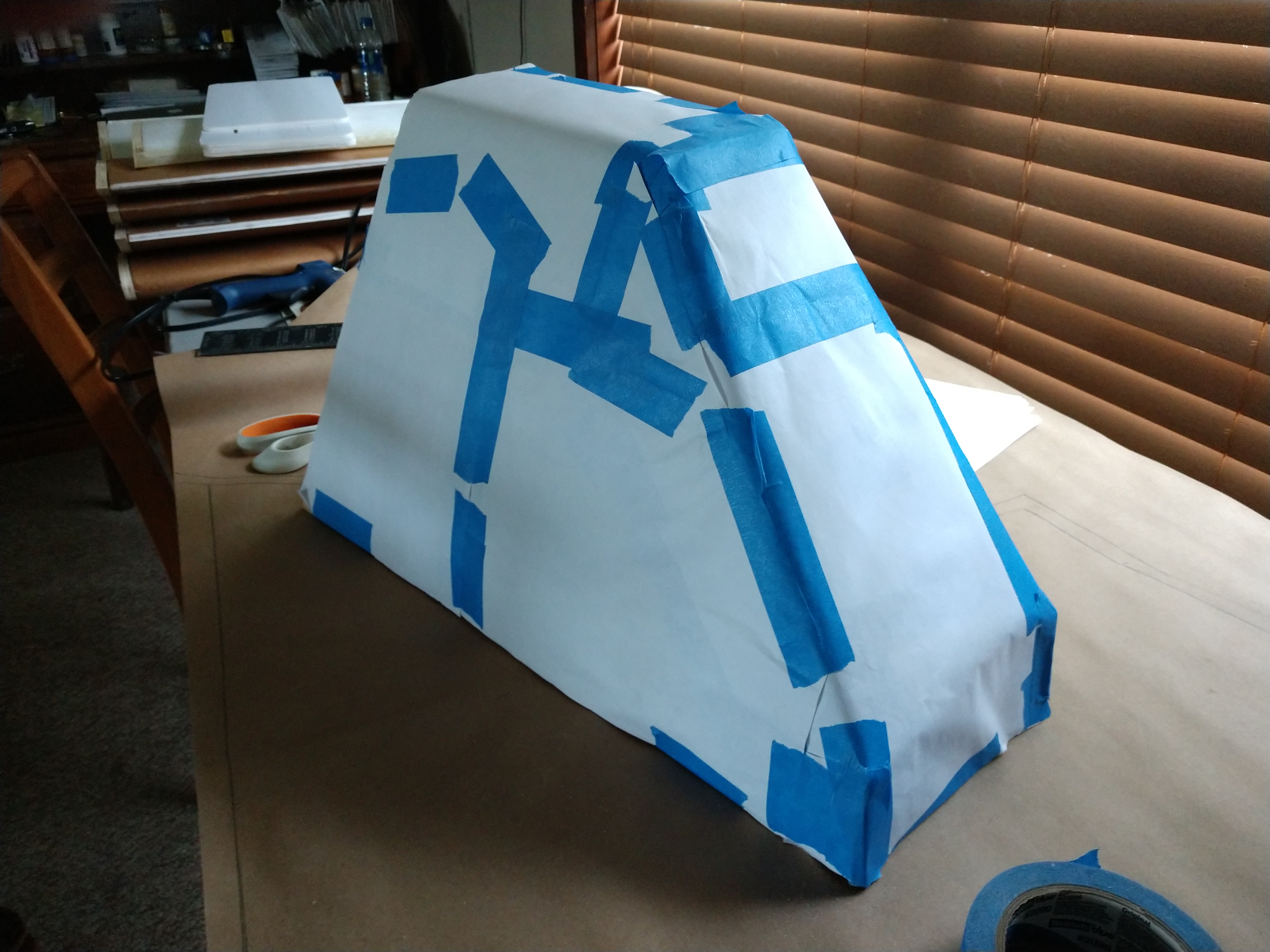

The pattern wrapped around the plug.

Attached Image

It will look much better in glass.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 31 2020, 06:12 AM
Post #316


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

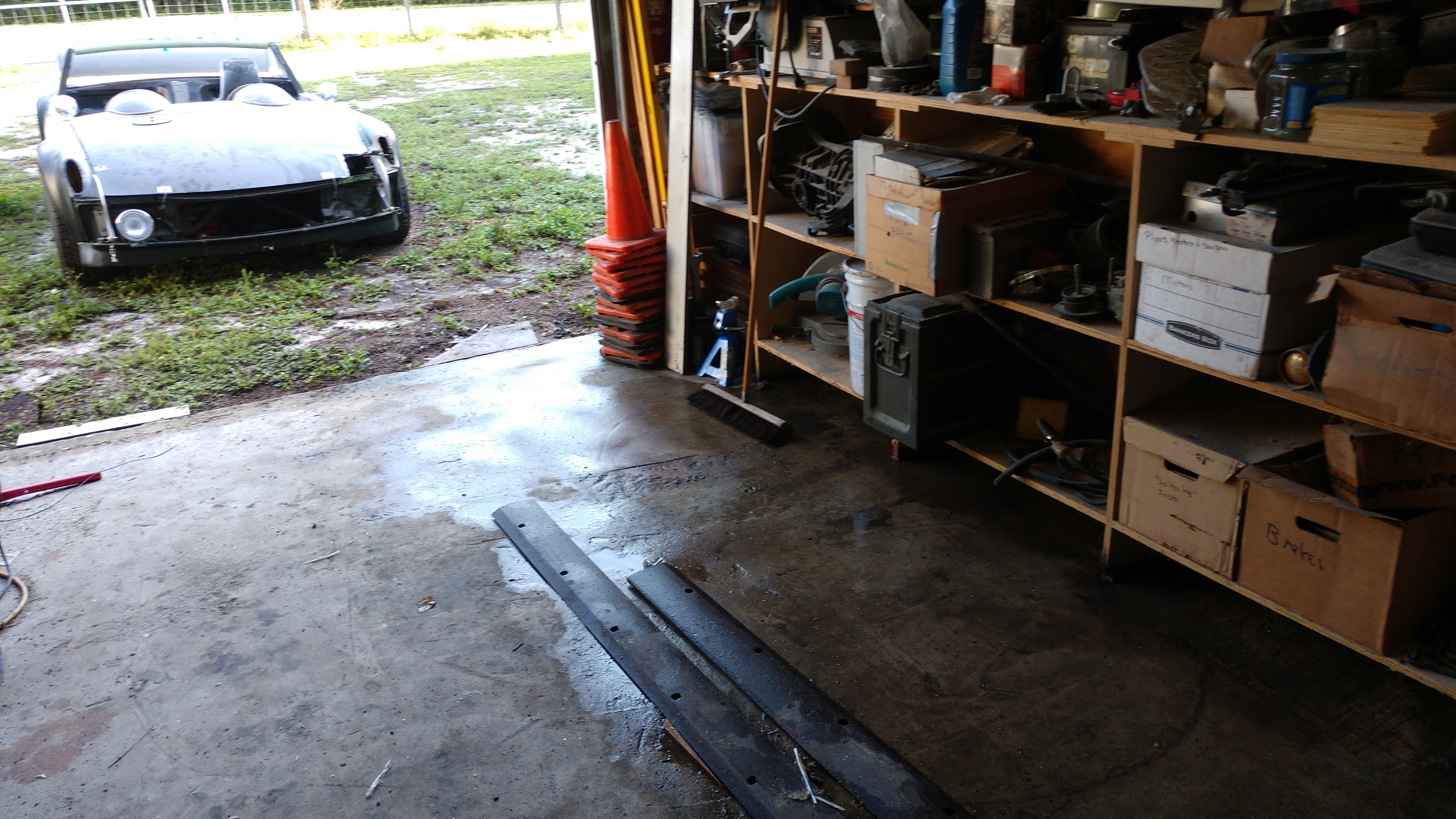

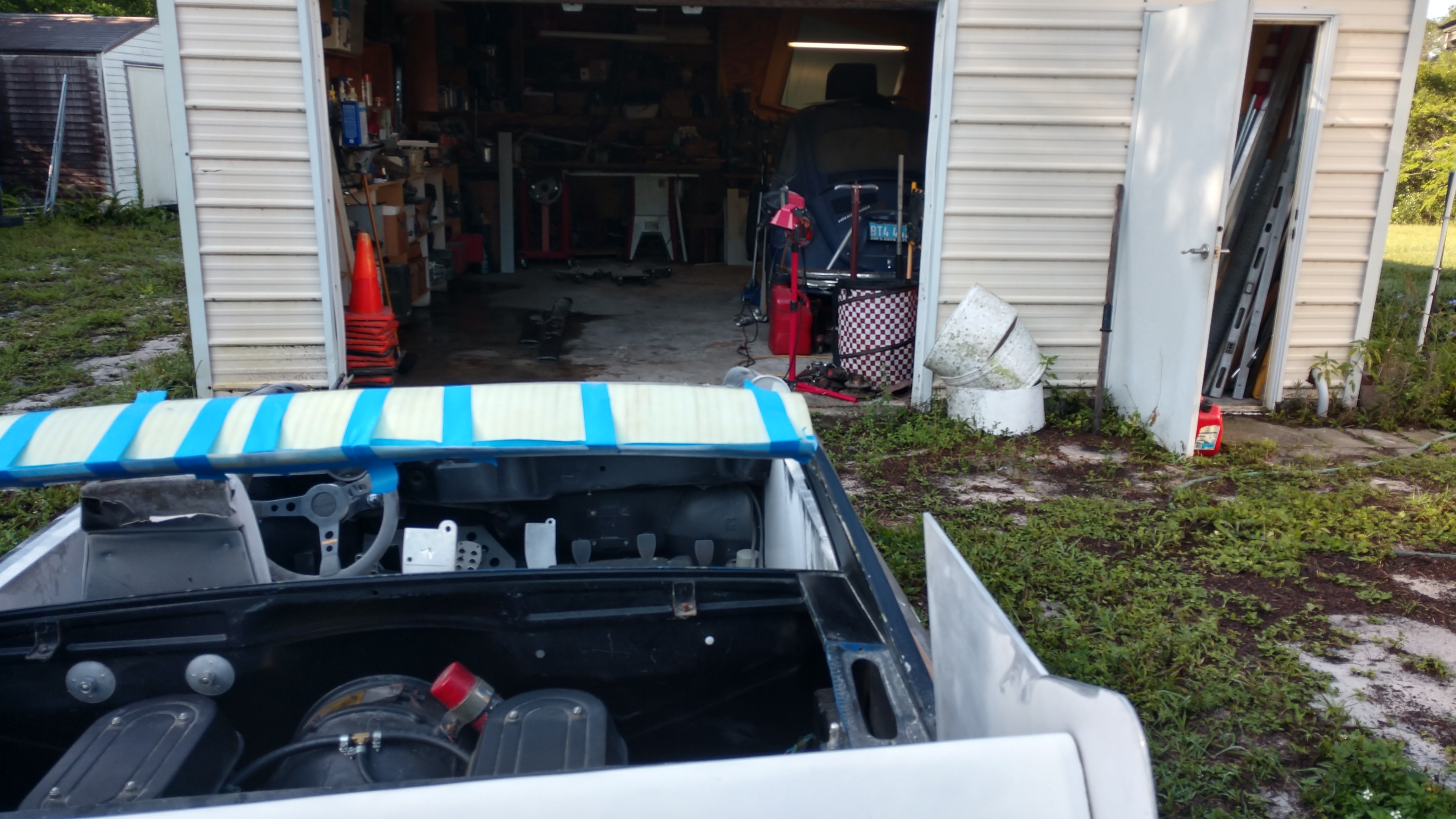

Had to drive her this morning. Rain got her bay flooded and I had to sweep out the mess. I can't help it but that always puts a smile on my face. Getting ready to try to get a better line on the trailing edge of the targa bar fairing.

Attached Image

Trying to work with my camera just to see what changes I can make to help with downloading.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 31 2020, 06:32 AM
Post #317


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

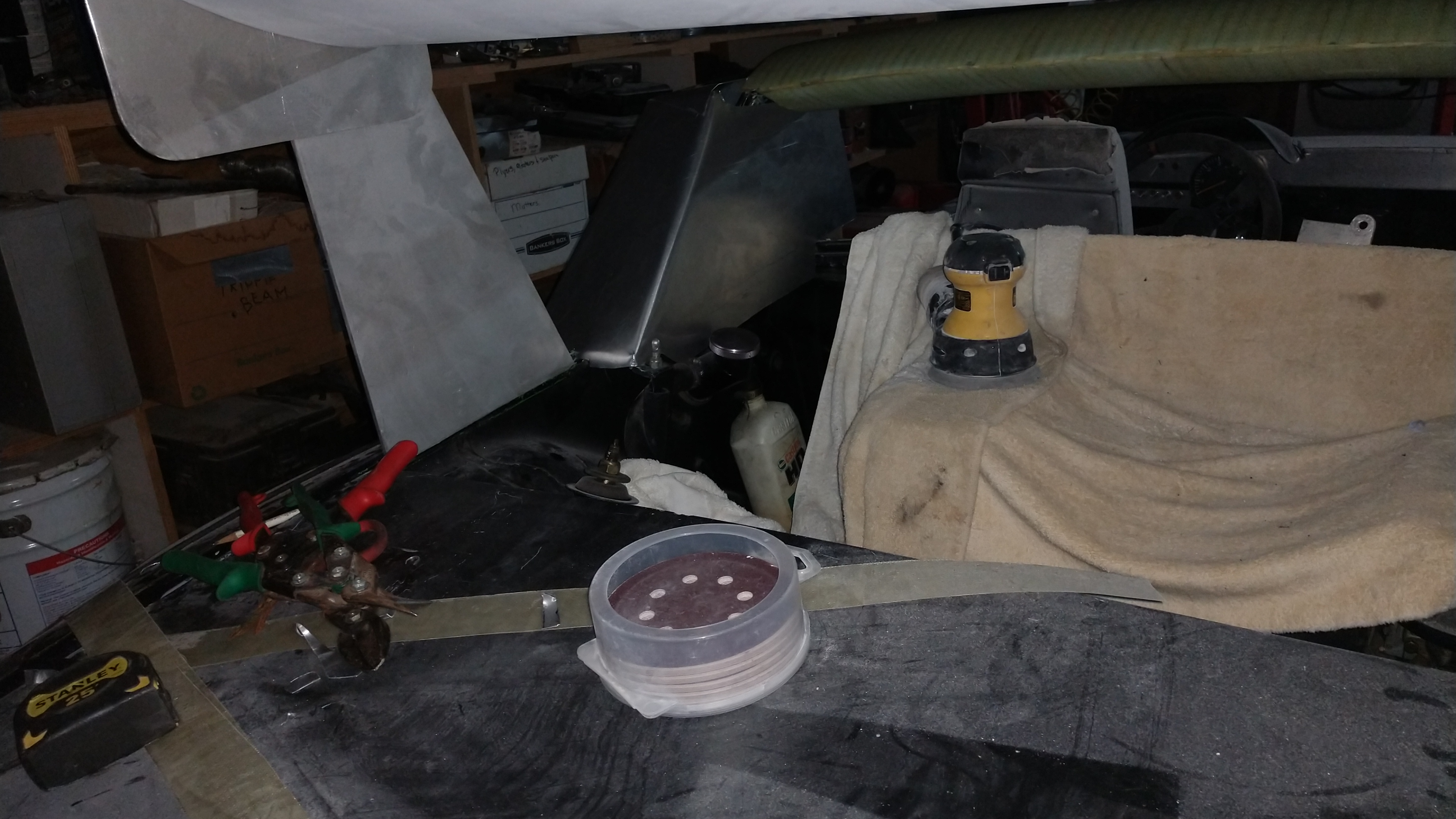

Another pic hopefully...

Attached Image

Damn it seemed to have worked.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post May 31 2020, 06:55 PM
Post #318


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

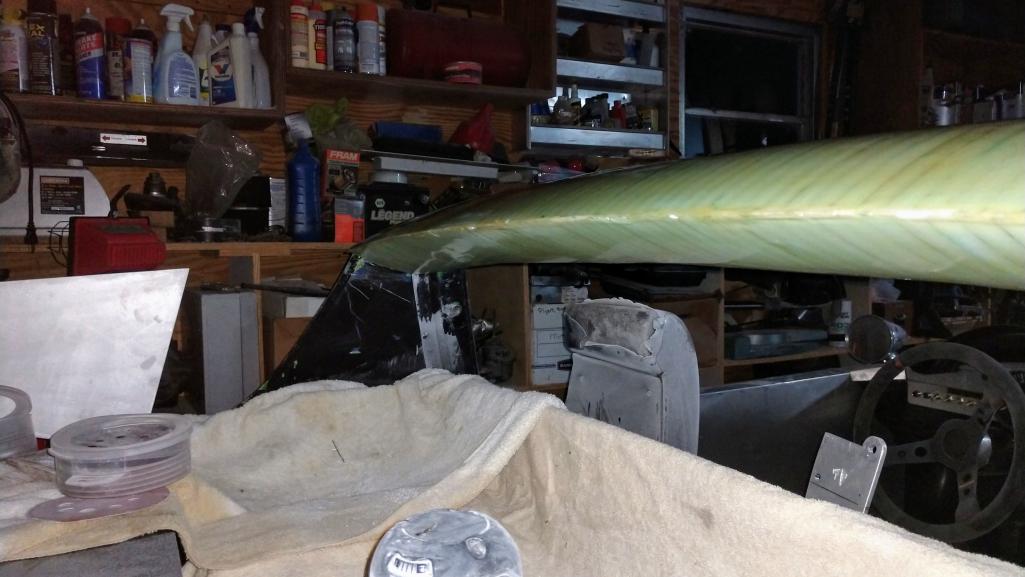

Finally getting some detail of the trailing edge of the targa bar fairing. I have been trying to fill in gaps and air pockets and bring it to a point.

Attached Image

A few more layers of epoxy and some sanding and it should be good.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Jun 2 2020, 02:02 AM
Post #319


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

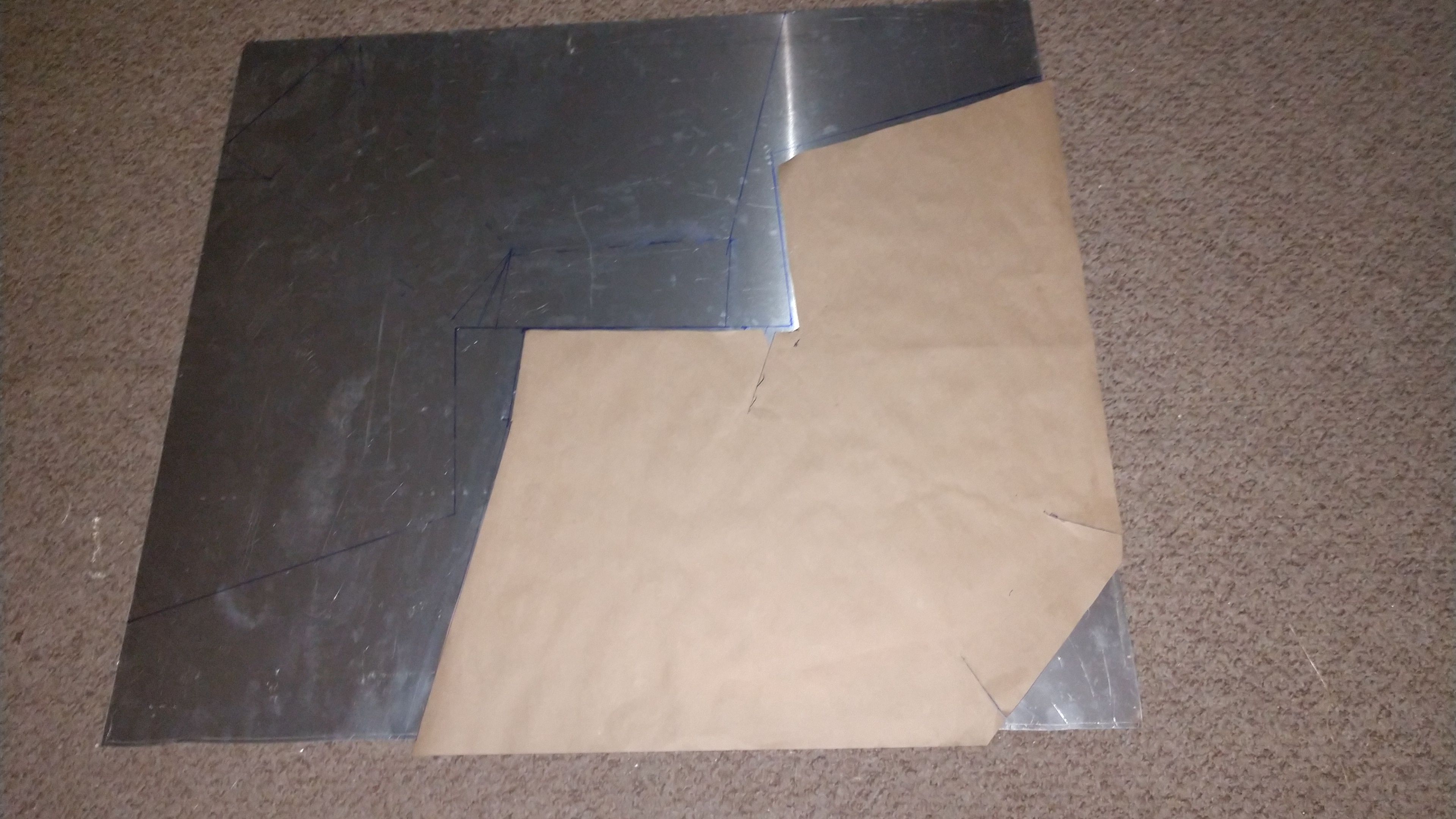

This is taking forever, so I'm in order for me to be able to get some visuals I'm going to make a change in the plans. I really want the fiberglass scoops but I want to see them while I can still drive. So I have a piece of aluminum that I was saving for something just about like this. It took me a few minutes to make it fit the pattern on and there's very little scrap material left over. It won't be pretty but it should give me prof of concept. And I can get on with making the car work. This is taking entirely too much time and I am only about half way there. It's like the plug needs glass, sand, fill, sand, jell coat, sand, polish, wax and buff. And then I can start to make the mold which will need all of that again. I think I can do all that later if I really hate the way the scoops look. And costs, it costs $130 for the foam to make a scoop and I need 2, also the glass cloth is $17 a yard and I need at least 12 more. Oh and don't forget the epoxy. I just hope that in aluminum it doesn't appear to be quick and dirty.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Jun 2 2020, 07:04 PM
Post #320


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,460
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
New pics

Attached Image

I like it.
