> Axle angle
partwerks
post Sep 8 2019, 05:21 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



From my trans to my wheels, my axles go uphill at a 10 degree slope. Is that too much?

They angle forward a bit also, but it don't appear to be that much.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Sep 9 2019, 05:31 AM
Post #2


bdstone914
****

Group: Members
Posts: 3,230
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



That rear end must be sitting very low. Badly gagged springs?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Sep 9 2019, 05:56 AM
Post #3


914 Guru
*****

Group: Members
Posts: 6,450
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region



Looks like aftermarket springs with spacer blocks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 06:04 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



So maybe need new springs?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Sep 9 2019, 06:34 AM
Post #5


bdstone914
****

Group: Members
Posts: 3,230
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



QUOTE
@partwerks


So maybe need new springs?


Hard to say. How does the car sit ? Cant see that much. What kind of shocks? They might be Bilstein with adjustable perches. If so adjust them upward. I dont see spacer blocks. Can you take a good picture with the flash on to show the spring?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsrfr
post Sep 9 2019, 06:35 AM
Post #6


Senior Member
***

Group: Members
Posts: 1,131
Joined: 30-April 09
From: Rescue, Virginia
Member No.: 10,318
Region Association: MidAtlantic Region



QUOTE(914Sixer @ Sep 9 2019, 03:56 AM) *

Looks like aftermarket springs with spacer blocks.

Check to see if there's another notch to push the perch up another inch....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Sep 9 2019, 09:17 AM
Post #7


Spooling.... Please wait
**********

Group: Members
Posts: 12,683
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



Can we see some pics of your trans mount and the spacer block on the trans side?

The v8 conversions move the trans back 1.5" and your forward to back looks good. The angle from the squat could be because the bolts arent tight enough and therefore the transmission is hanging down or the back is simply too low. which judging from the angle of the trailing arm is not the case.


Lets see a profile of the car as it sits.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 9 2019, 10:16 AM
Post #8


Resident German
*************************

Group: Admin
Posts: 39,223
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



Actually looks like the transmission is much lower with that conversion.
The problem is that with an angle like that at rest, it's only going to get worse under load.

I'd be worried about the CVs falling apart if you put some serious power through them.
(IMG:style_emoticons/default/unsure.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Sep 9 2019, 10:19 AM
Post #9


Spooling.... Please wait
**********

Group: Members
Posts: 12,683
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



Ya I think the trans is falling off the hangers. Pretty common on the V8 conversions.

Most conversions put the trans in the stock location just moved back.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 05:23 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787

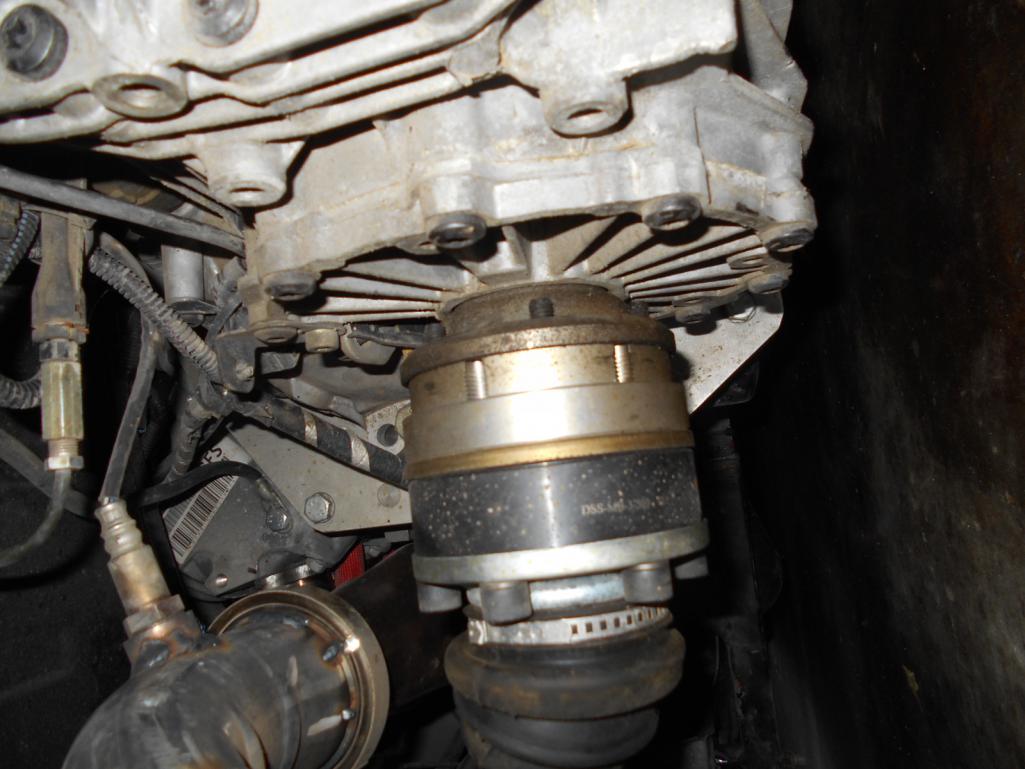

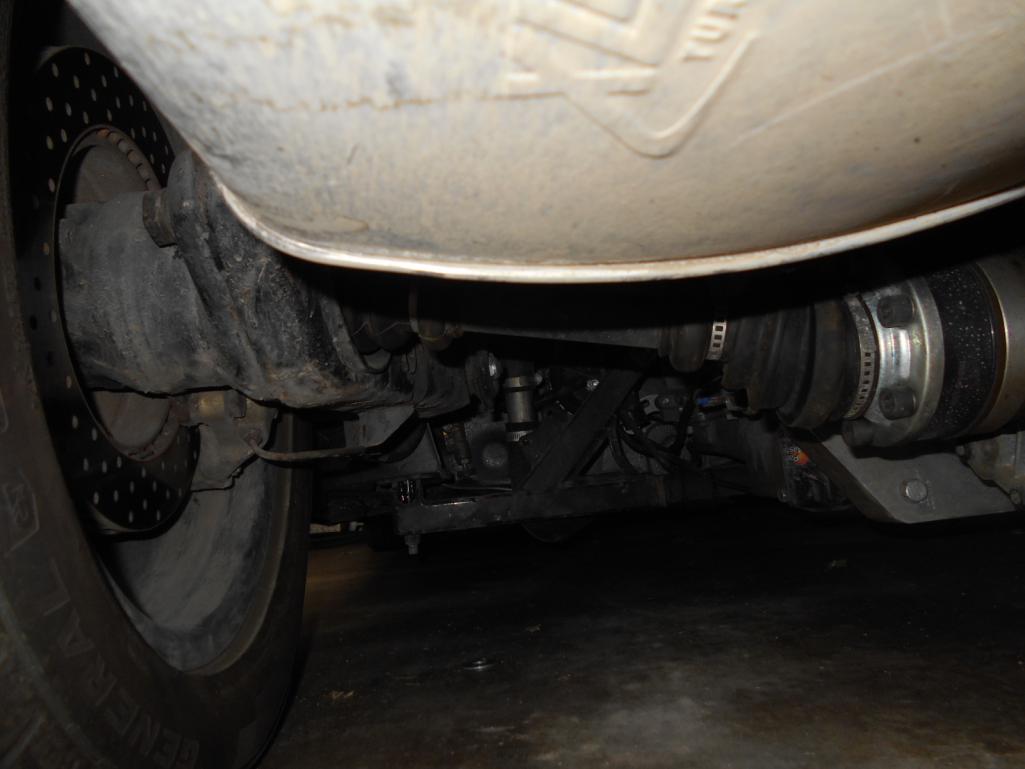

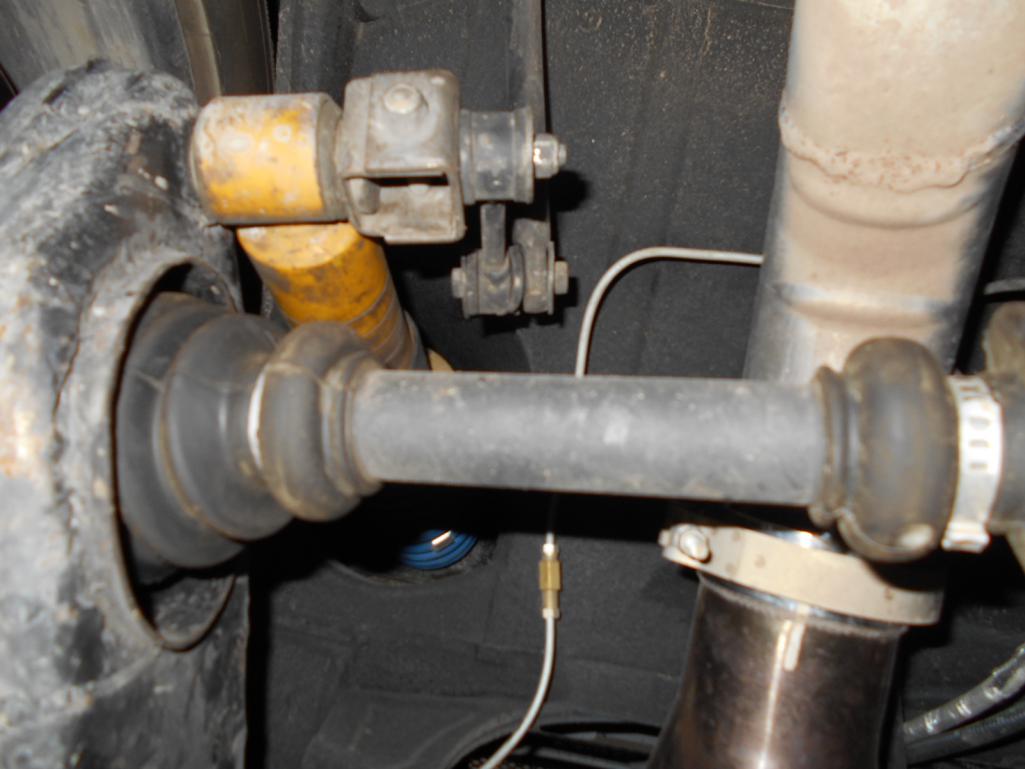

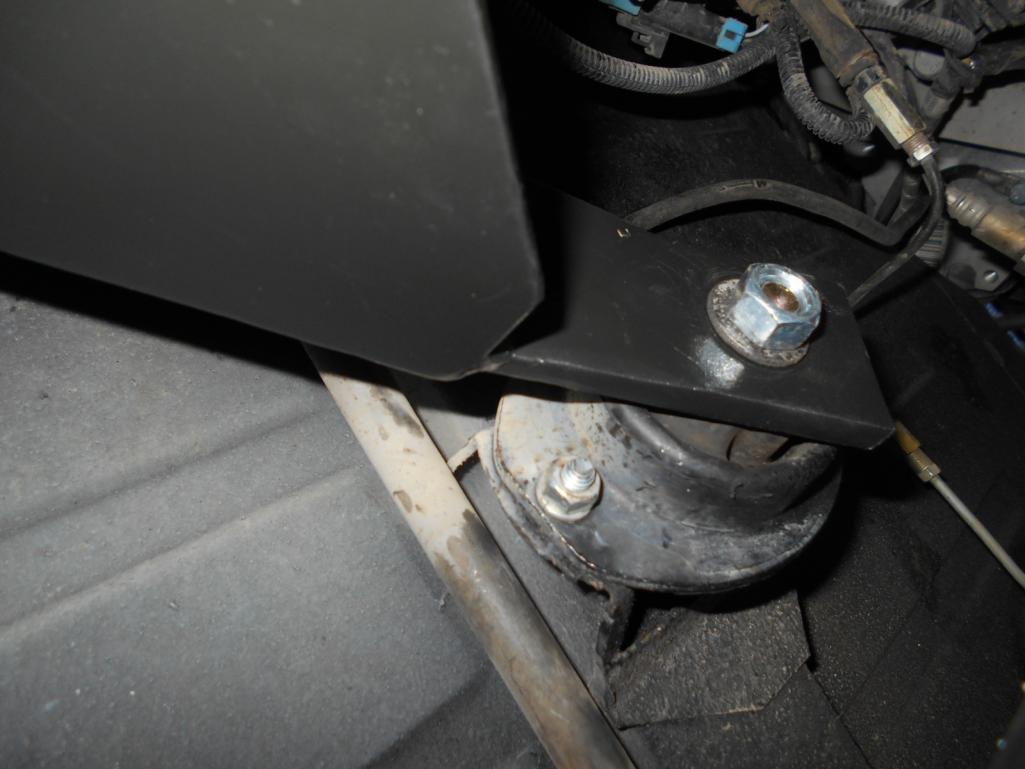

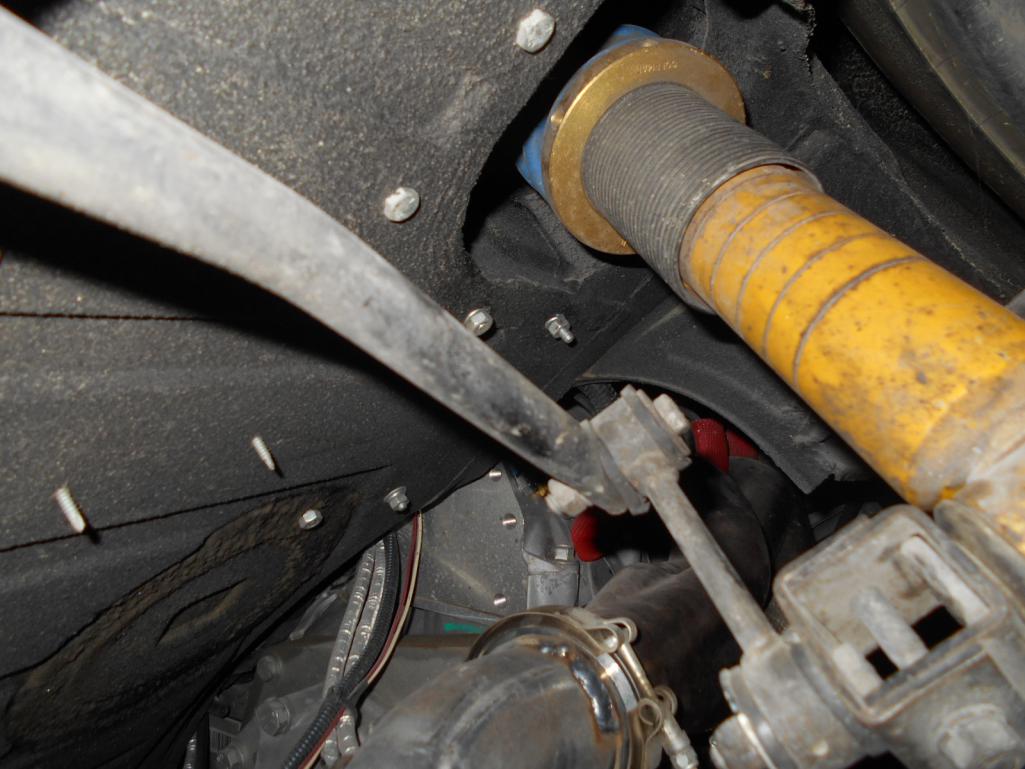

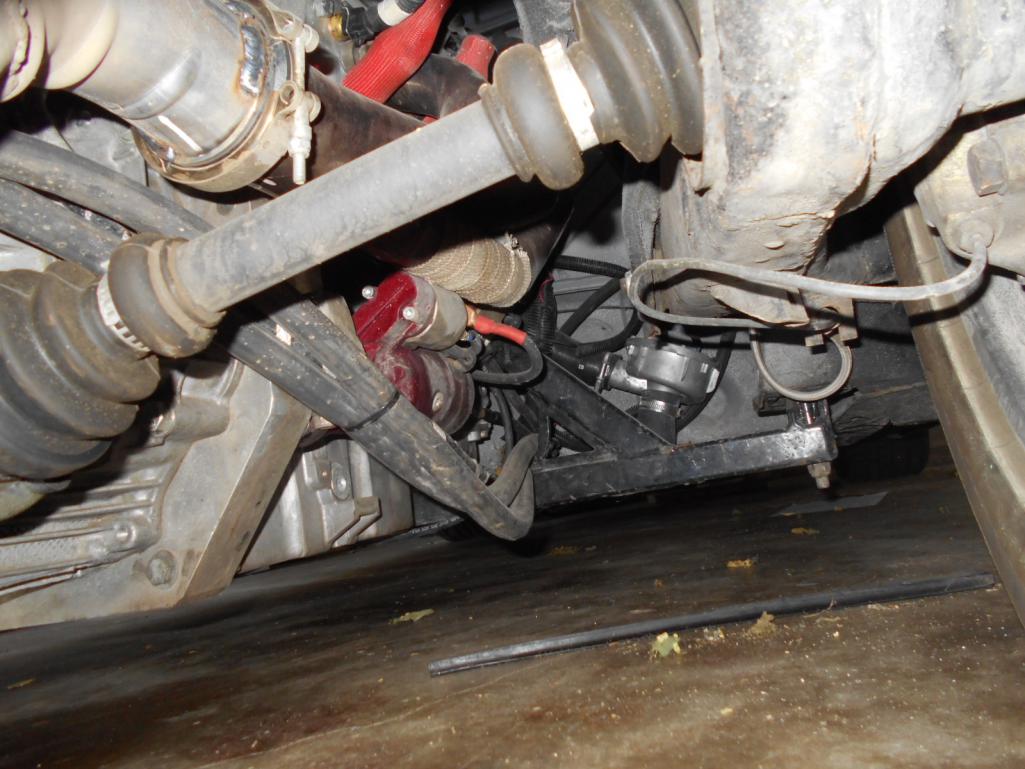

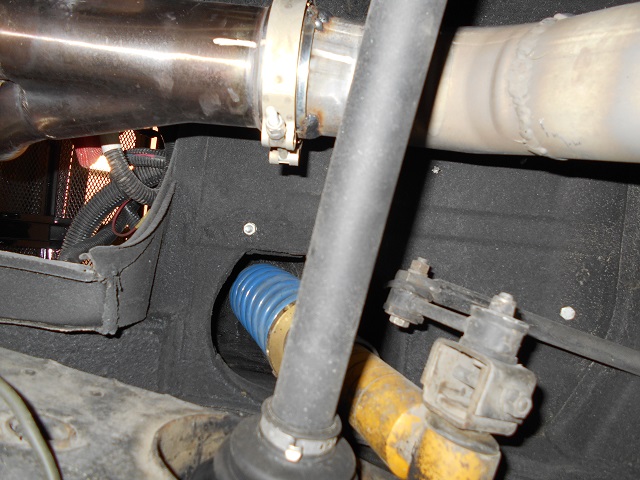

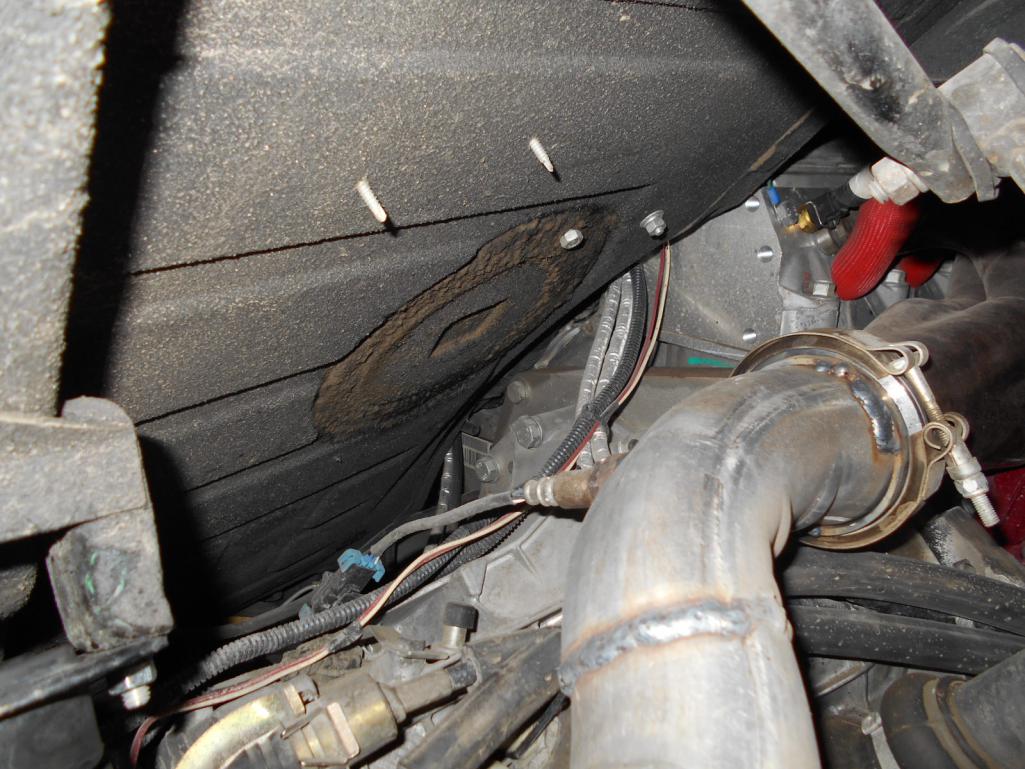

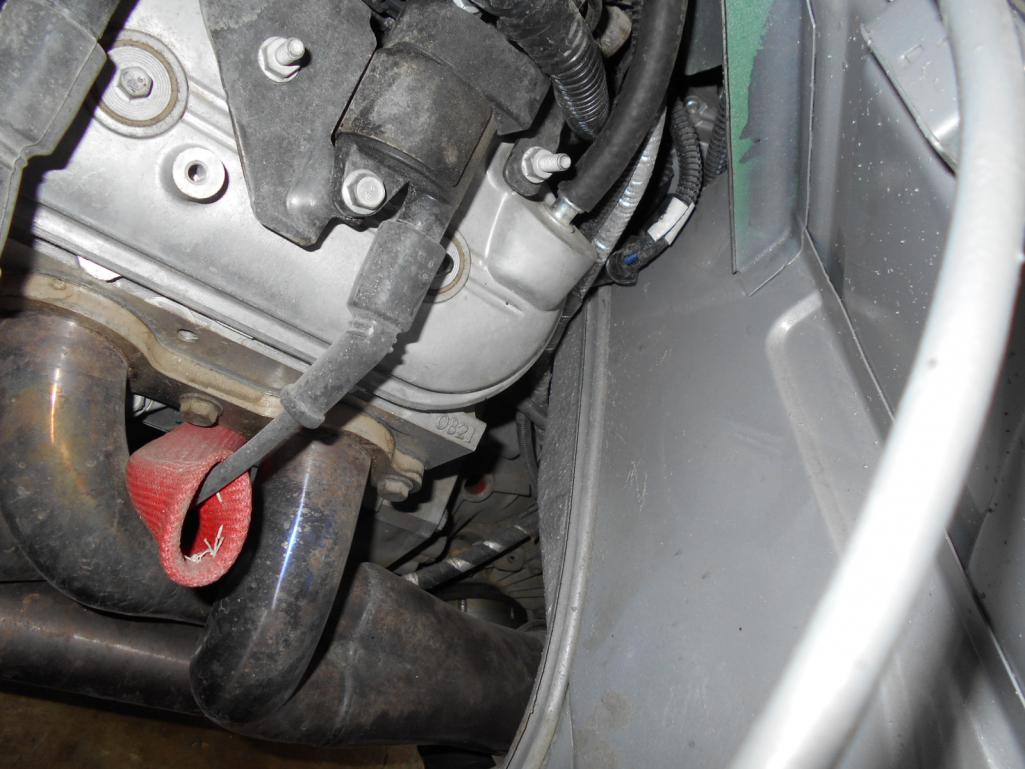

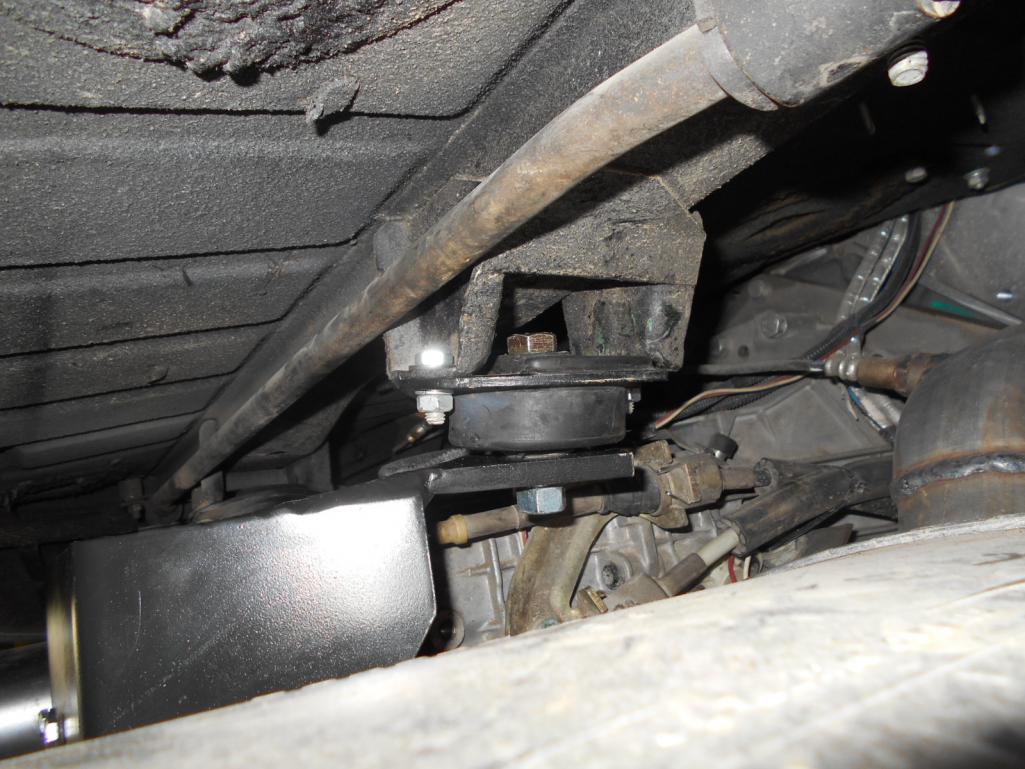

Maintenace guy at work, and I made a new trans mount on the back to replace the one the mechanic made that was too weak, and one side broke.
I think he reused the old Subie WRX engine bar. The adapter plate I had made at kitcarchassis.com.

Hopefully pictures will help.

Attached Image


Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 9 2019, 05:29 PM
Post #11


Resident German
*************************

Group: Admin
Posts: 39,223
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



Your transmission should be a good 2" higher in the chassis, there's plenty of room above.
(IMG:style_emoticons/default/popcorn[1].gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 9 2019, 05:32 PM
Post #12


Resident German
*************************

Group: Admin
Posts: 39,223
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

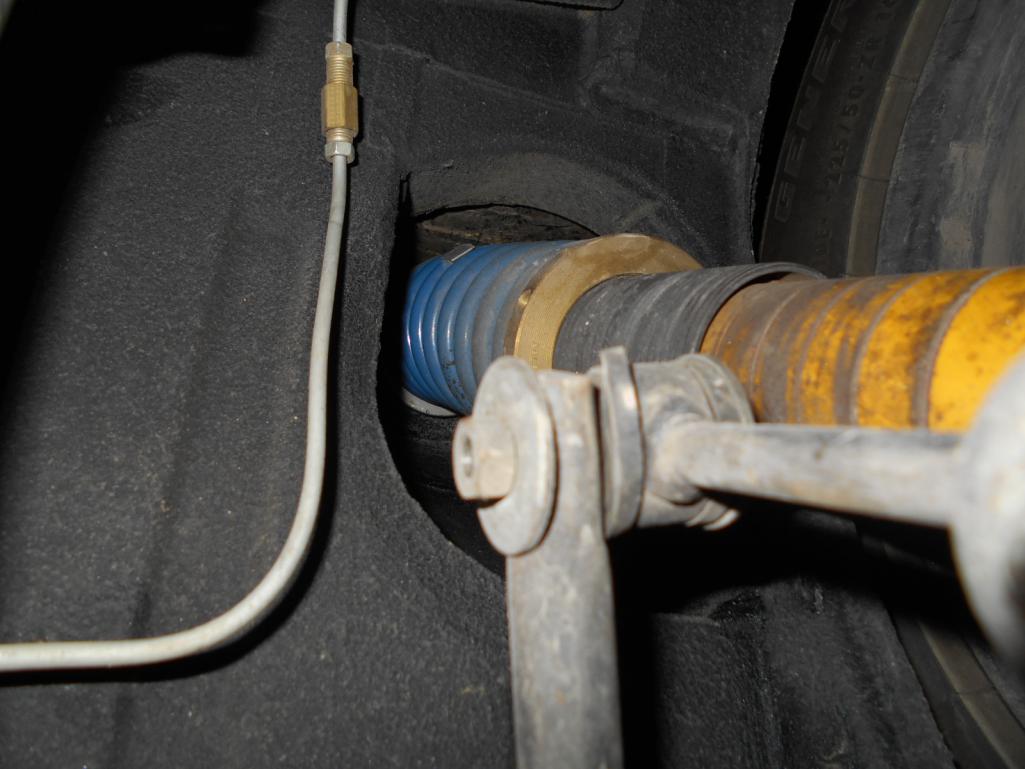

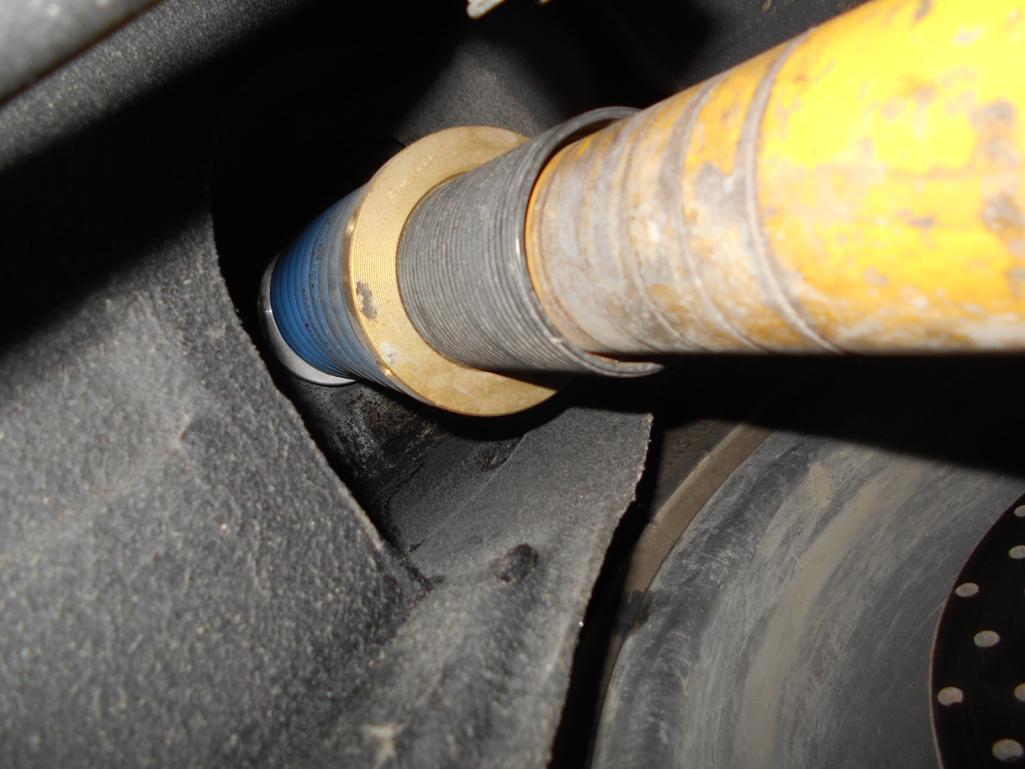

Also, why are your adjustable shocks all the way up?

How short are those springs? They better be tiny ...
(IMG:style_emoticons/default/unsure.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 05:36 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



QUOTE(SirAndy @ Sep 9 2019, 03:32 PM) *

Also, why are your adjustable shocks all the way up?

How short are those springs? They better be tiny ...
(IMG:style_emoticons/default/unsure.gif)


Probably cuz when ya pay someone to work on it, I would expect them to know more about it than me, but from lots of things I seen. That wasn't always the case.

Are they suppose to be in a different position.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 9 2019, 06:21 PM
Post #14


Resident German
*************************

Group: Admin
Posts: 39,223
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(partwerks @ Sep 9 2019, 04:36 PM) *

QUOTE(SirAndy @ Sep 9 2019, 03:32 PM) *

Also, why are your adjustable shocks all the way up?
How short are those springs? They better be tiny ...
(IMG:style_emoticons/default/unsure.gif)

Probably cuz when ya pay someone to work on it, I would expect them to know more about it than me, but from lots of things I seen. That wasn't always the case.
Are they suppose to be in a different position.

Those springs look waaaay too short, which is why the threaded collar is located on top of the highest groove and then the spring perch is on top of the collar.

I wouldn't be surprised if the part of the collar where the perch sits right now is actually above the shock body and thus has limited support.

Hopefully that's just the angle of the picture though ...
(IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 07:14 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



QUOTE(SirAndy @ Sep 9 2019, 04:21 PM) *

QUOTE(partwerks @ Sep 9 2019, 04:36 PM) *

QUOTE(SirAndy @ Sep 9 2019, 03:32 PM) *

Also, why are your adjustable shocks all the way up?
How short are those springs? They better be tiny ...
(IMG:style_emoticons/default/unsure.gif)

Probably cuz when ya pay someone to work on it, I would expect them to know more about it than me, but from lots of things I seen. That wasn't always the case.
Are they suppose to be in a different position.

Those springs look waaaay too short, which is why the threaded collar is located on top of the highest groove and then the spring perch is on top of the collar.

I wouldn't be surprised if the part of the collar where the perch sits right now is actually above the shock body and thus has limited support.

Hopefully that's just the angle of the picture though ...
(IMG:style_emoticons/default/blink.gif)


Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
BIGKAT_83
post Sep 9 2019, 07:22 PM
Post #16


Senior Member
***

Group: Members
Posts: 1,763
Joined: 25-January 03
From: Way down south Bogart,GA
Member No.: 194
Region Association: South East States



Its going to be real low when those rear mounts pull thru. They need the factory washer on the top side of the bolt.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 07:27 PM
Post #17


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



QUOTE(BIGKAT_83 @ Sep 9 2019, 05:22 PM) *

Its going to be real low when those rear mounts pull thru. They need the factory washer on the top side of the bolt.



I just have smaller flat washers on the upper trans mounts, and so are you saying that I need washers with a bigger outside diameter so that it doesn't sag?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
BIGKAT_83
post Sep 9 2019, 08:03 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,763
Joined: 25-January 03
From: Way down south Bogart,GA
Member No.: 194
Region Association: South East States



This is what you need on the top of mount.
Attached Image

This won't do any thing for your "sag" the way it is now if the rubber broke your whole engine and transaxle would fall out.

Fix this before you drive the car
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 08:07 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



QUOTE(BIGKAT_83 @ Sep 9 2019, 06:03 PM) *

This is what you need on the top of mount.
Attached Image



Do I need the round one also, or just the rectangular one on top?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 10 2019, 06:06 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,230
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787



QUOTE(SirAndy @ Sep 9 2019, 03:29 PM) *

Your transmission should be a good 2" higher in the chassis, there's plenty of room above.
(IMG:style_emoticons/default/popcorn[1].gif)


Would there be some kind of adjustment to allow the trans to be moved up higher, or how does that work with it being attached to the adapter plate. I had it made at kitcarchassis.com
