bkrantz |
May 23 2021, 07:18 PM
Post
#2801
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

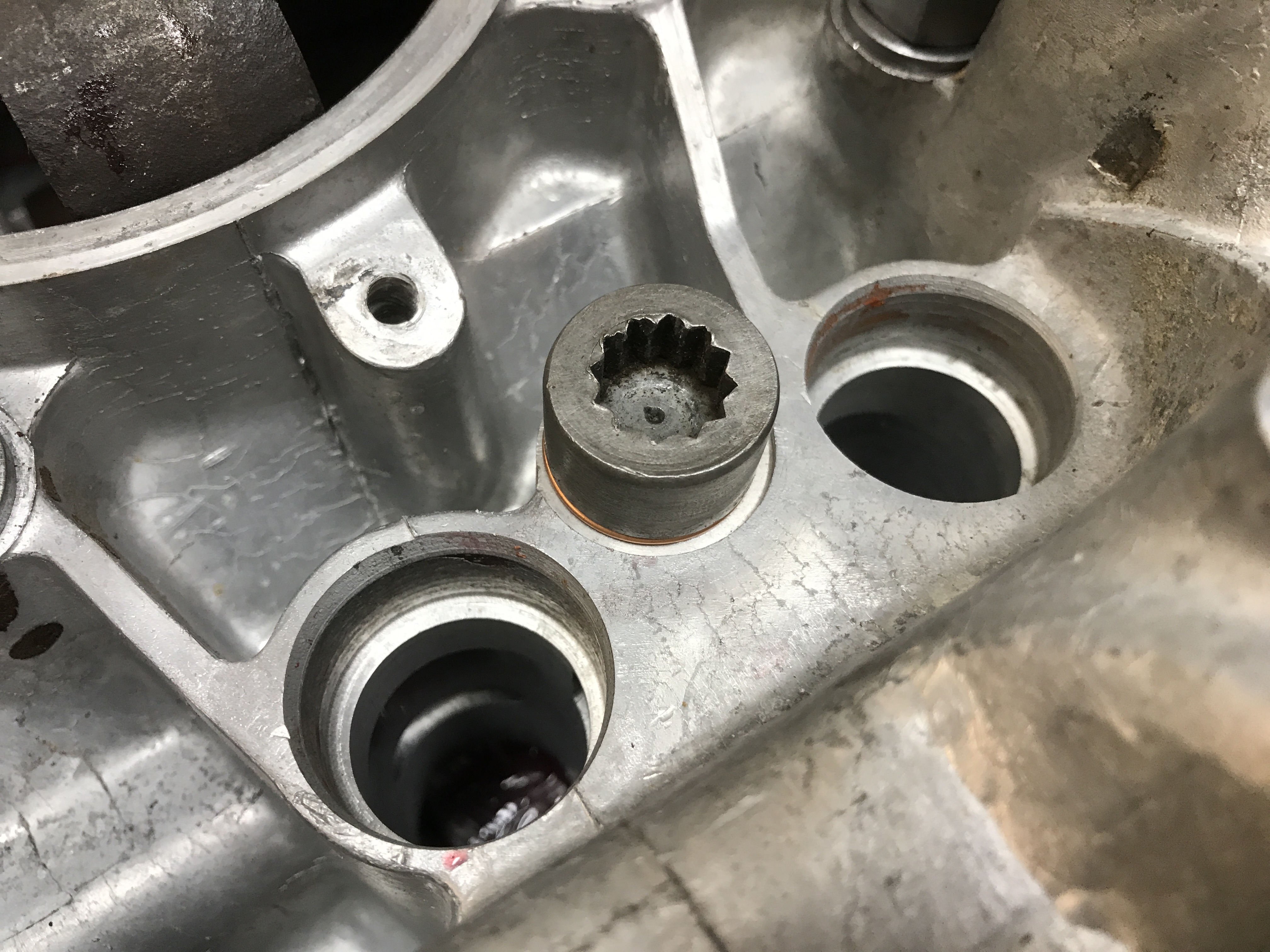

Followed by the retaining screw cap with a new crush washer.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:19 PM
Post
#2802
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

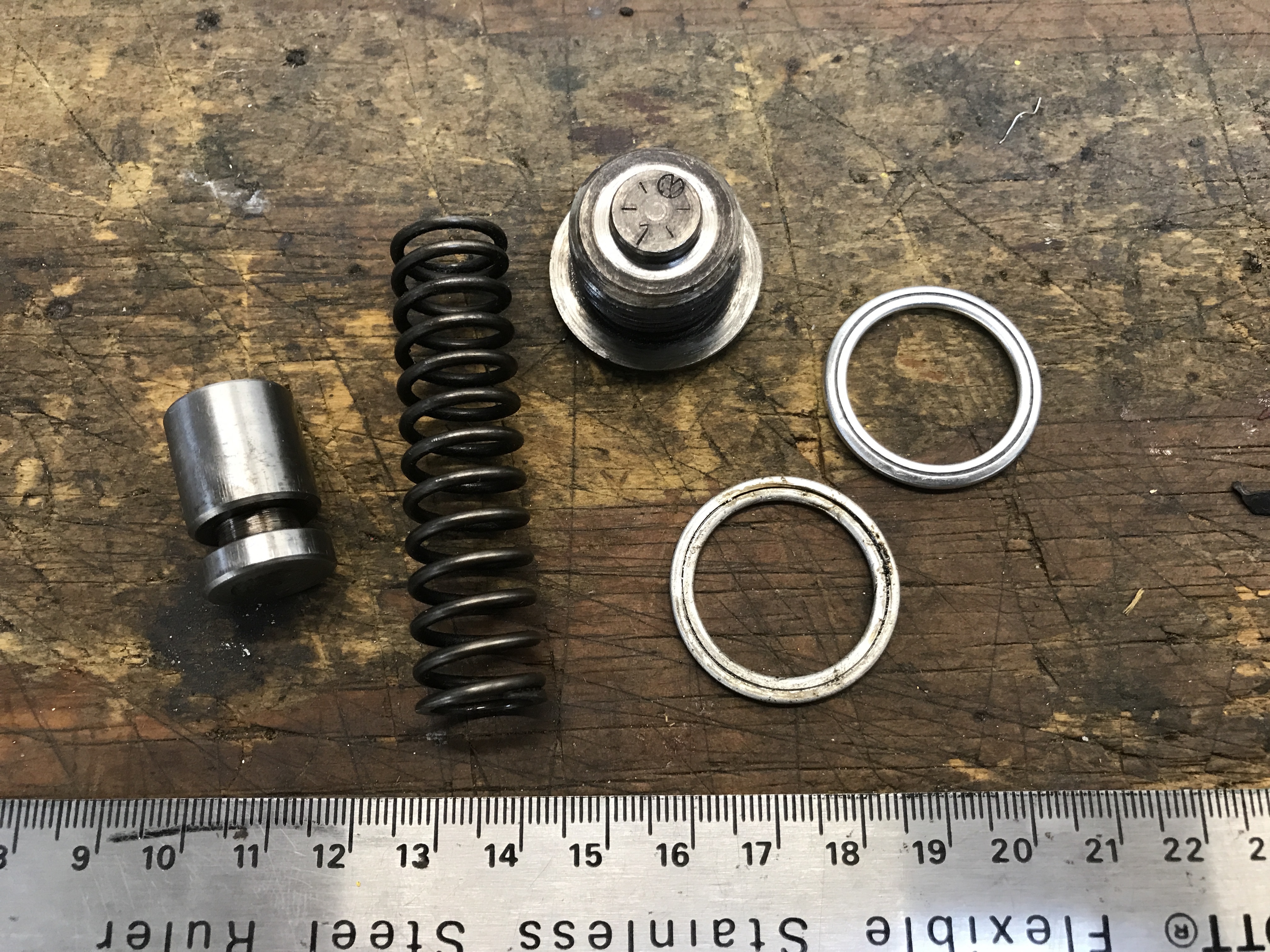

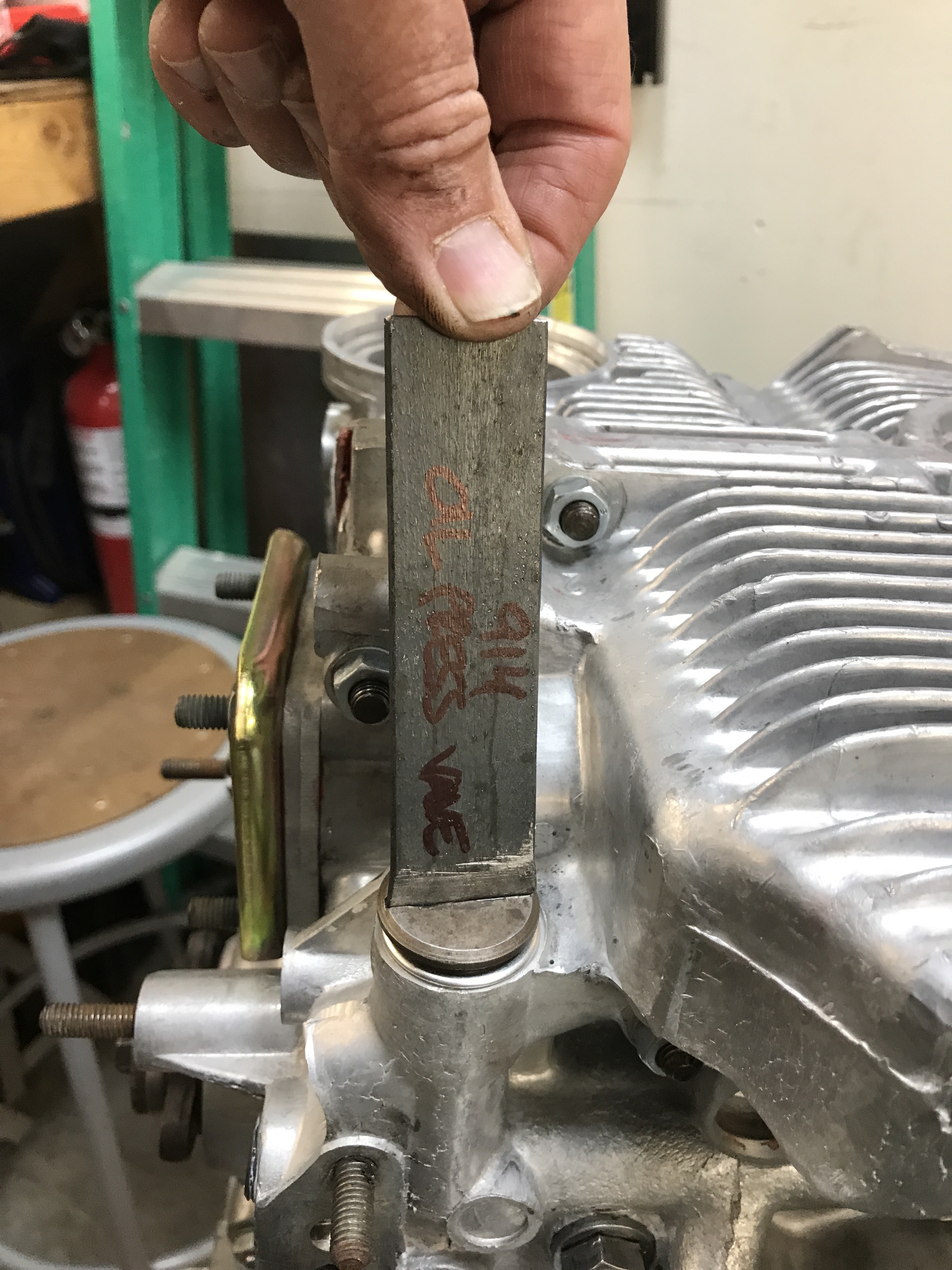

Then I got out the large diameter pressure relief valve that goes in the right case half.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:21 PM
Post
#2803
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I also found the tool I made to fit the bit slot on the retaining cap, and screwed it in.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:22 PM
Post
#2804
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

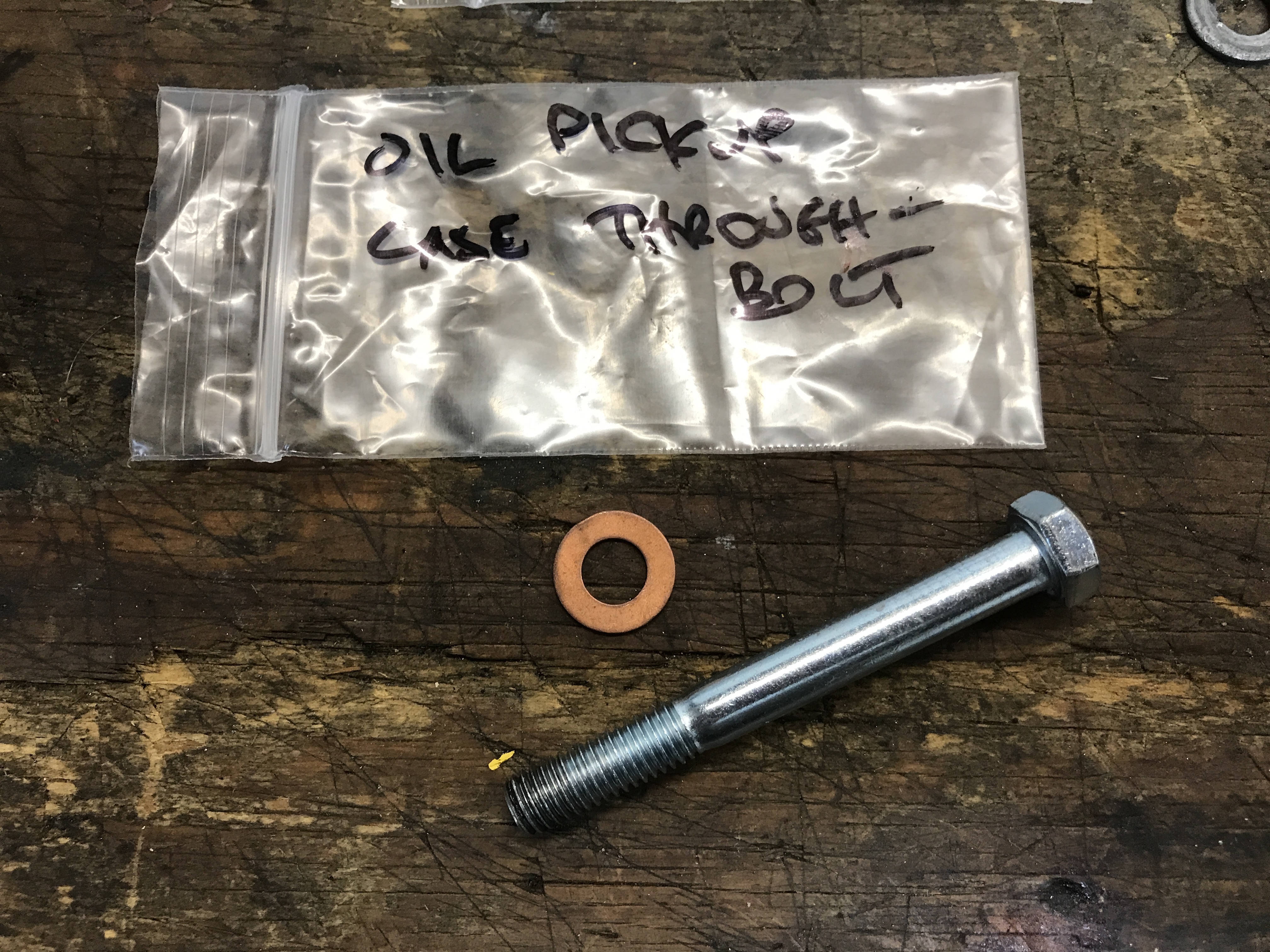

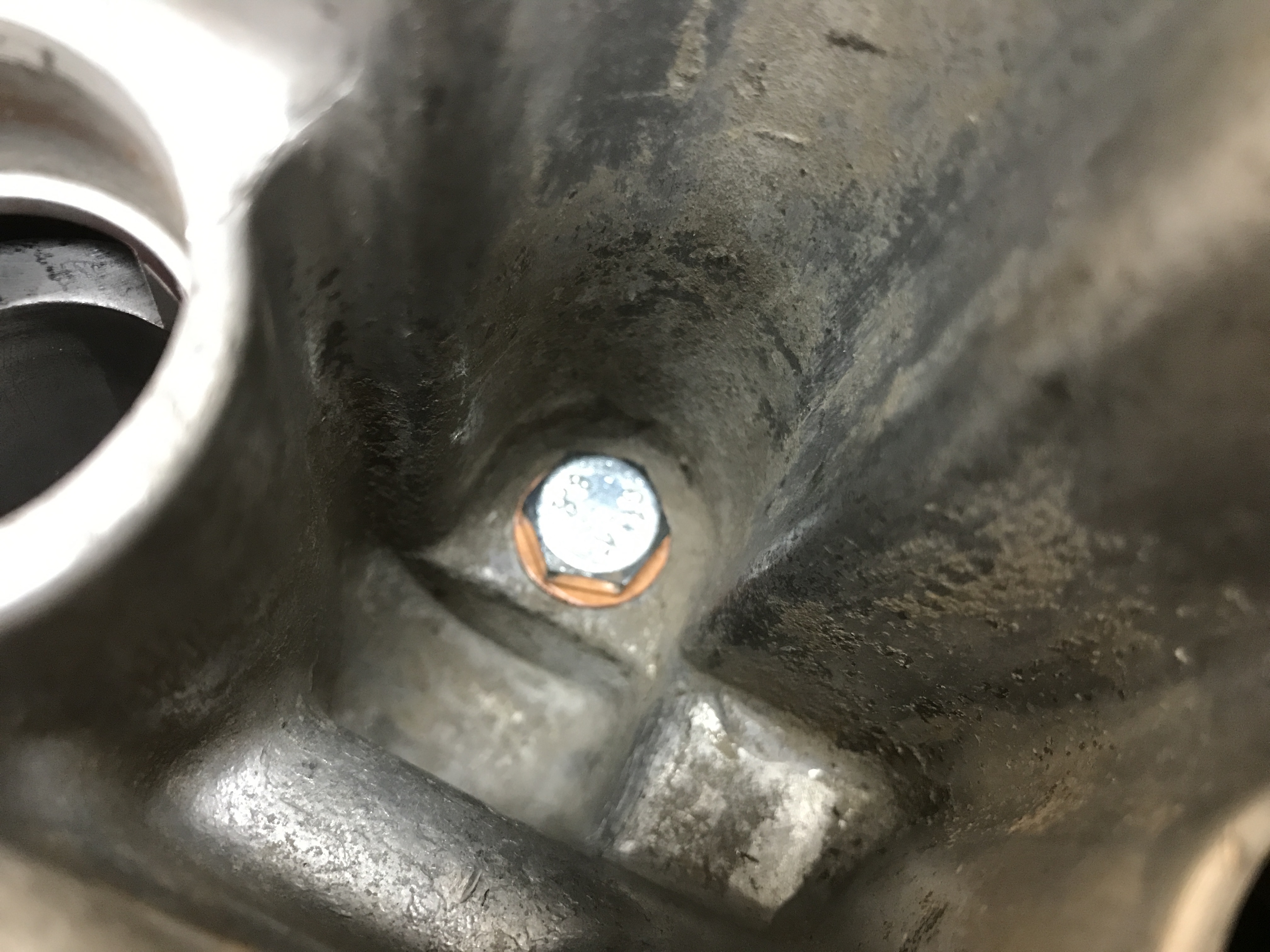

With a new case bolt for the oil pick-up and strainer retainer, I found the copper seal washer.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:24 PM
Post
#2805
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Done.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:25 PM
Post
#2806
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

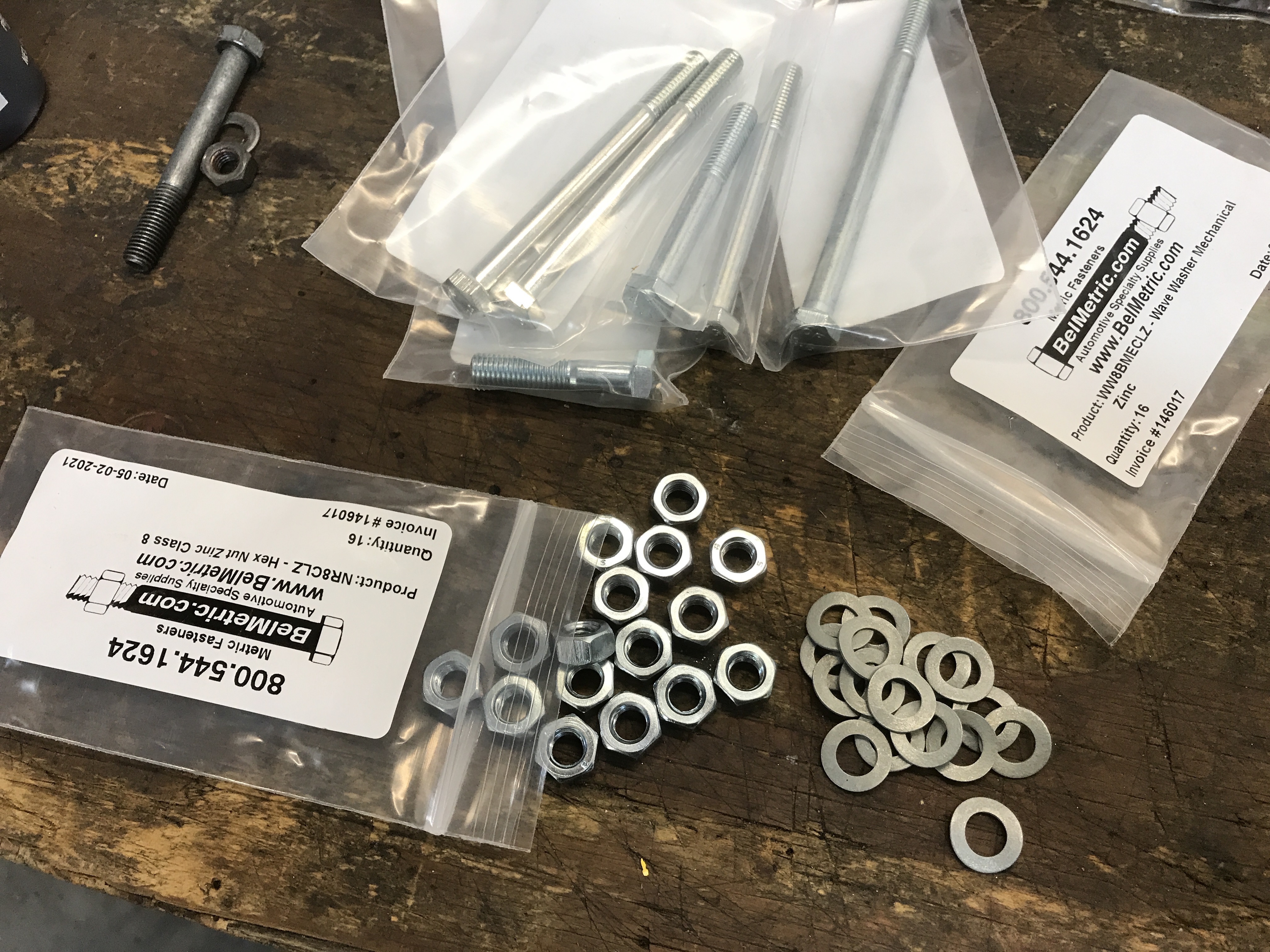

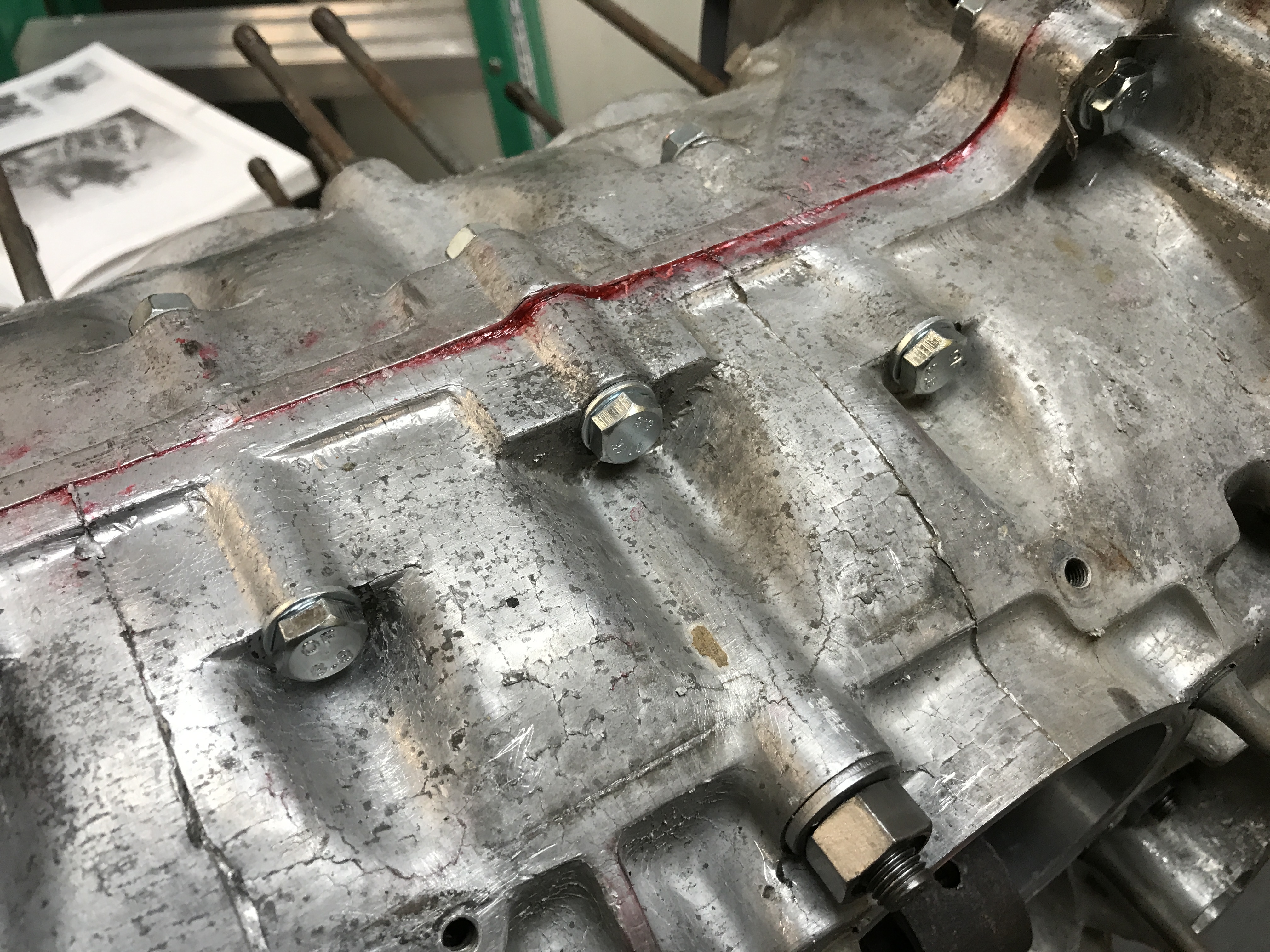

Along with that bolt, I got shiny new hardware for all the case fasteners.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:26 PM
Post
#2807
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
A bit of bling for the engine case.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:27 PM
Post
#2808
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Then the oil strainer.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:28 PM
Post
#2809
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

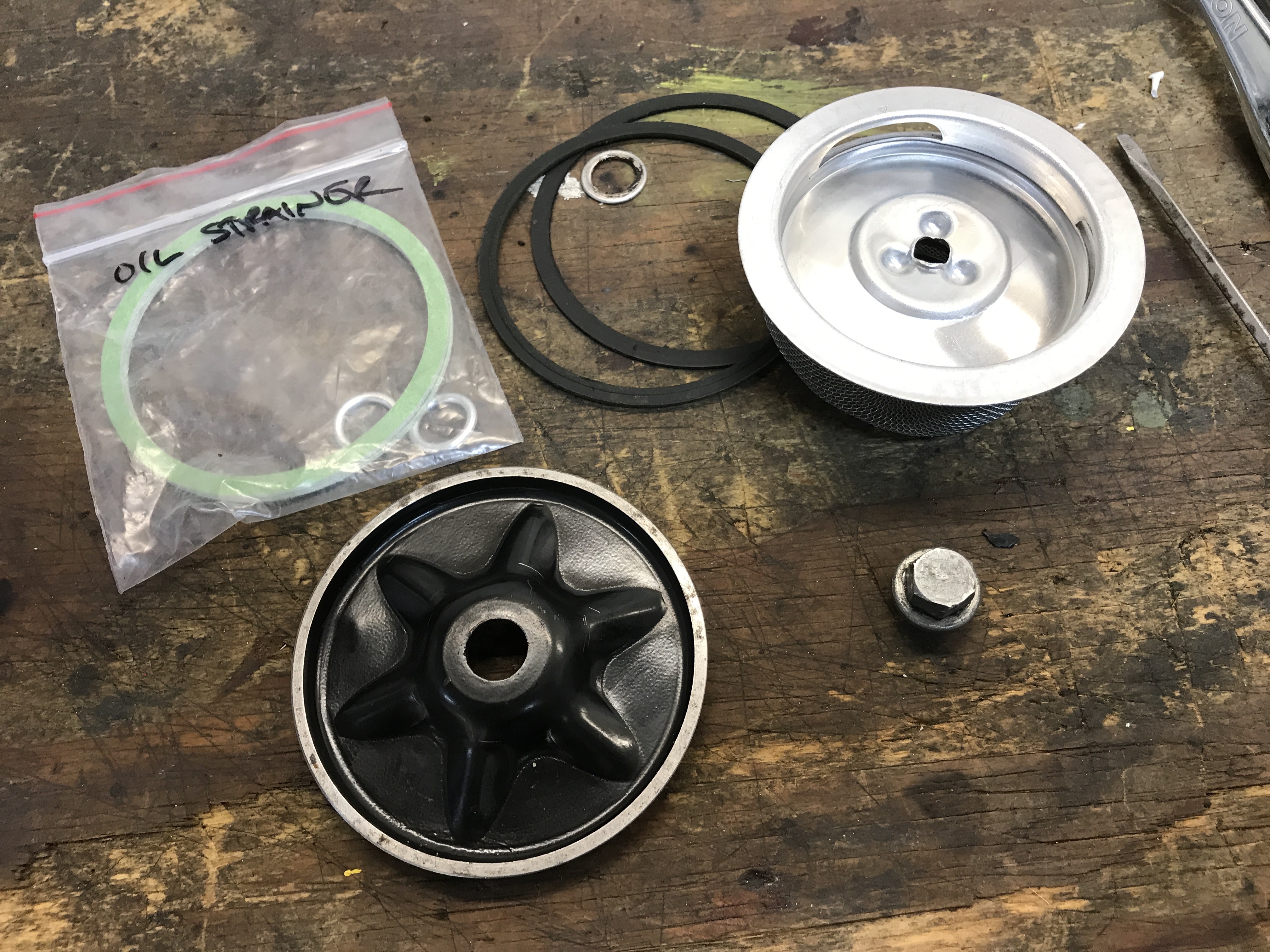

Strainer basket with a gasket above and below.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:35 PM
Post
#2810
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

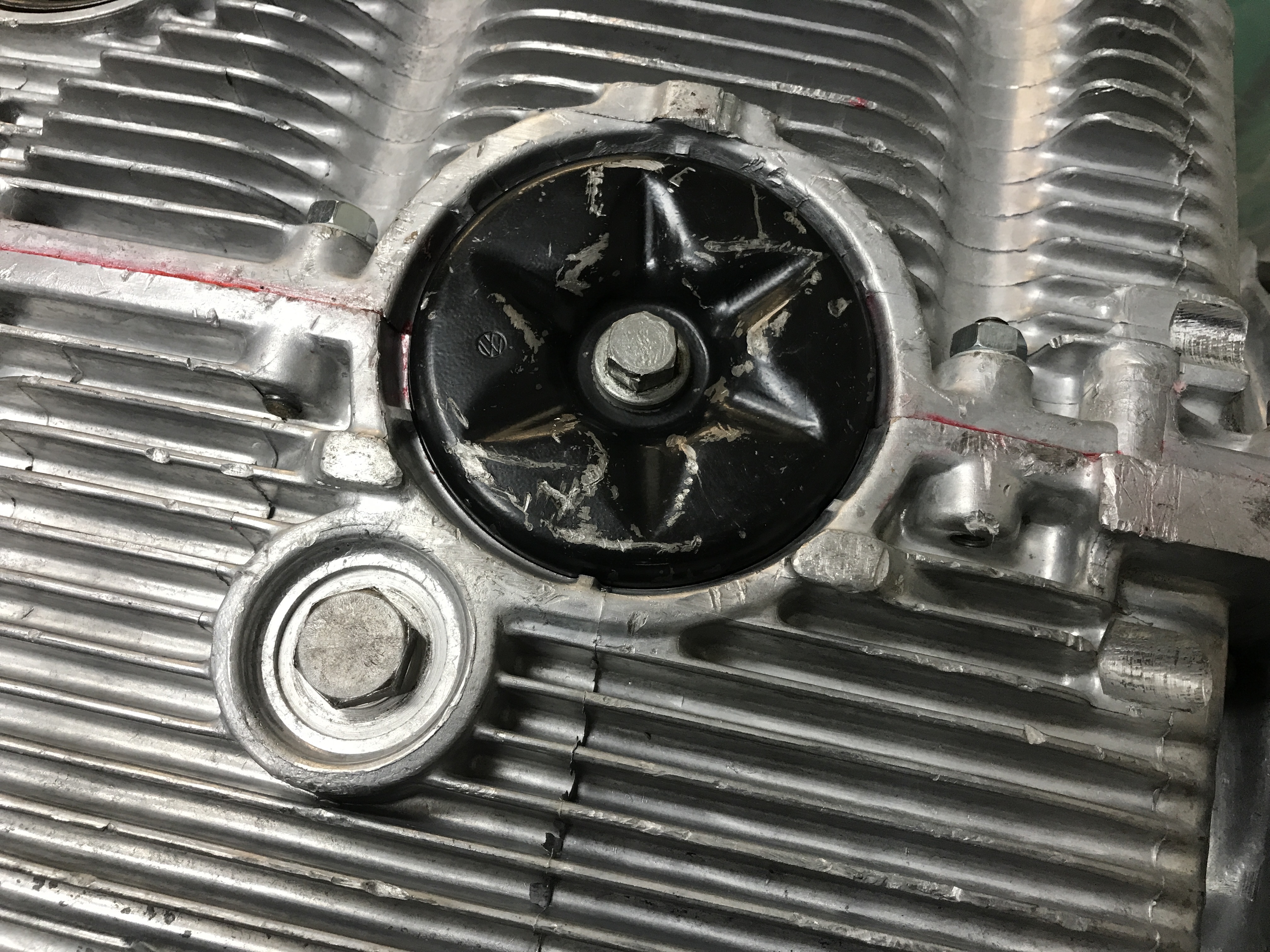

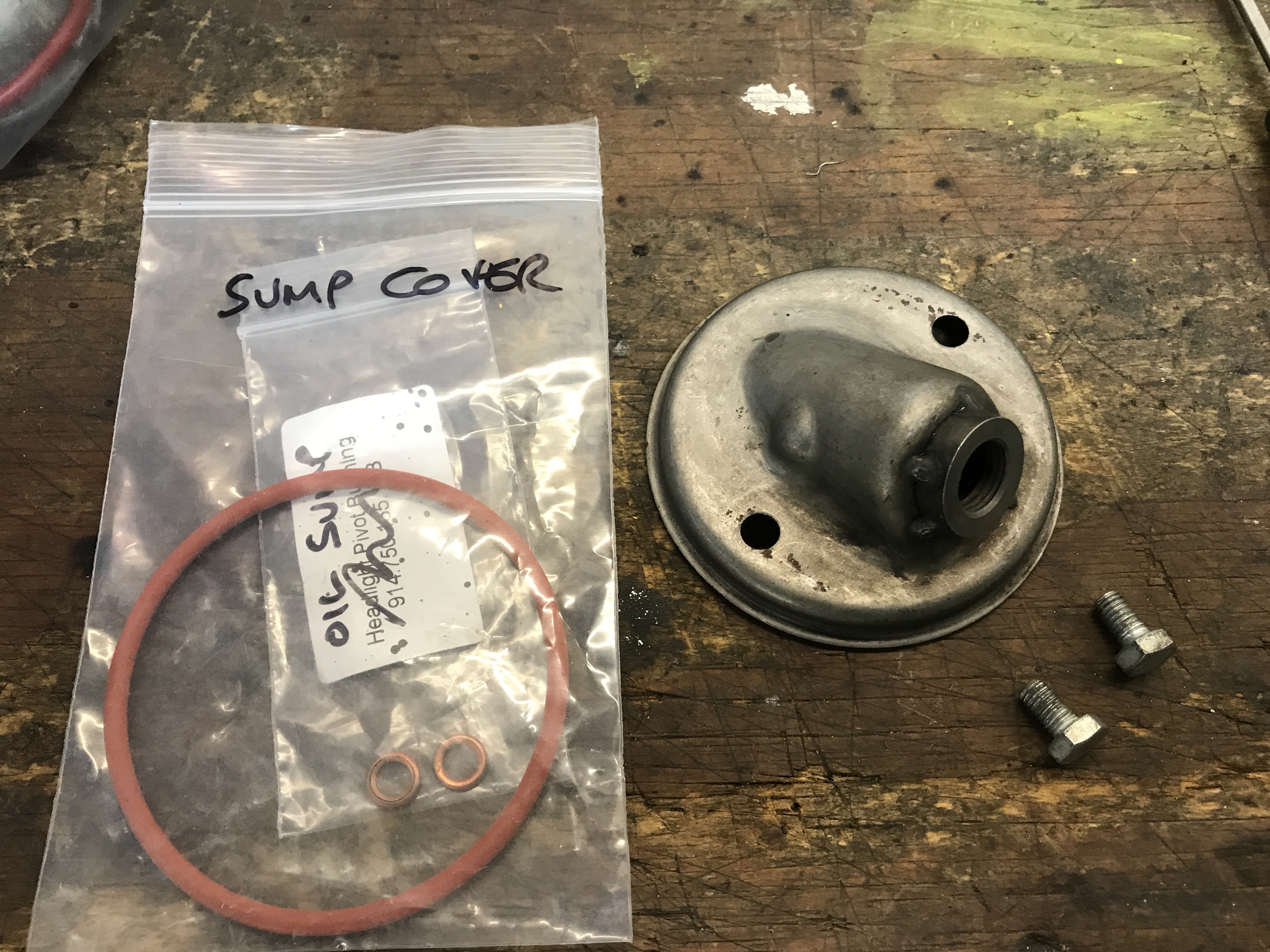

Strainer cover, retaining nut, and drain plug, all with new crush washers.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:36 PM
Post
#2811
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

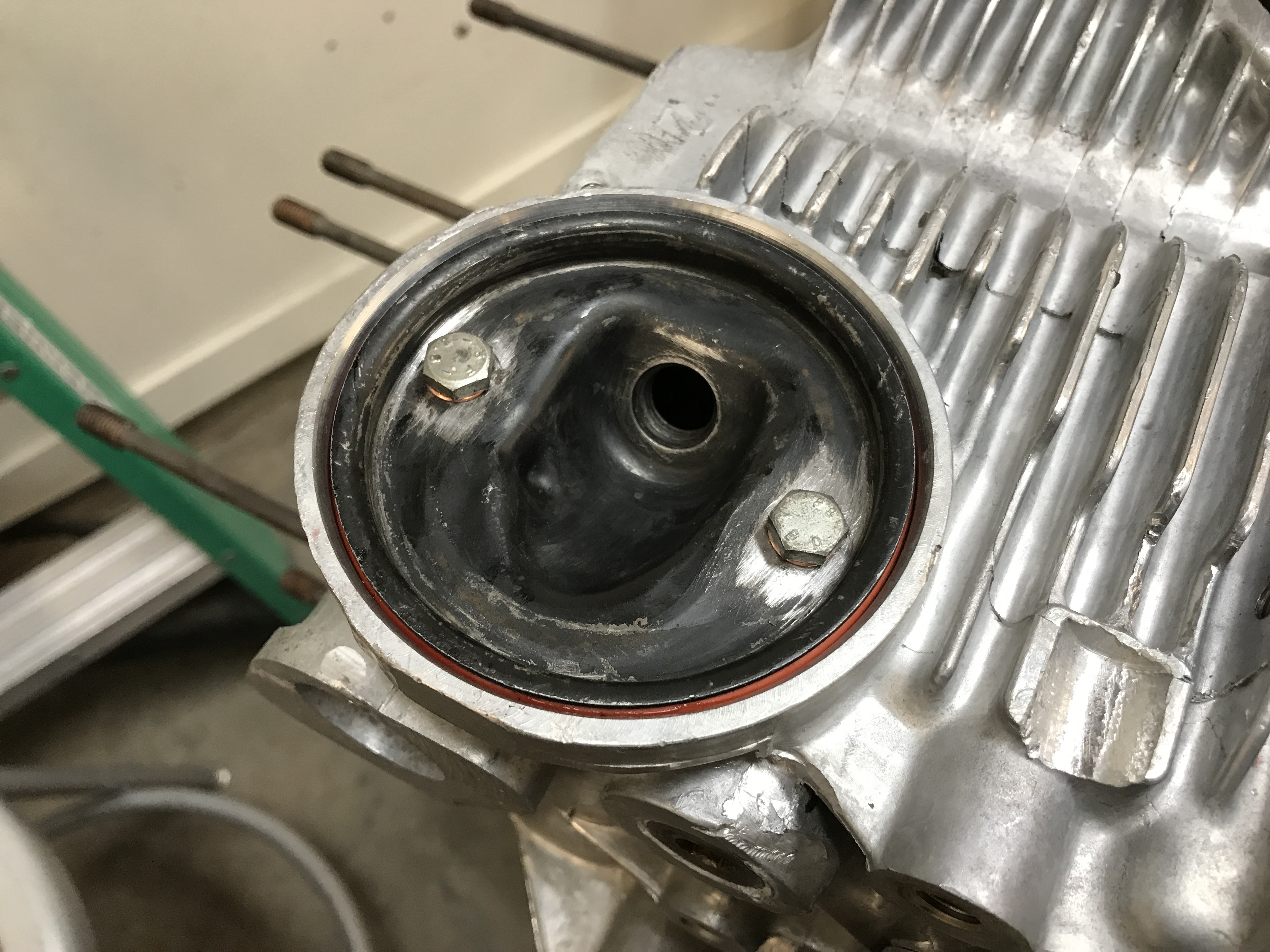

Then the taco plate, for the oil temp sensor.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:37 PM
Post
#2812
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Installed (without cover for now).
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:40 PM
Post
#2813
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

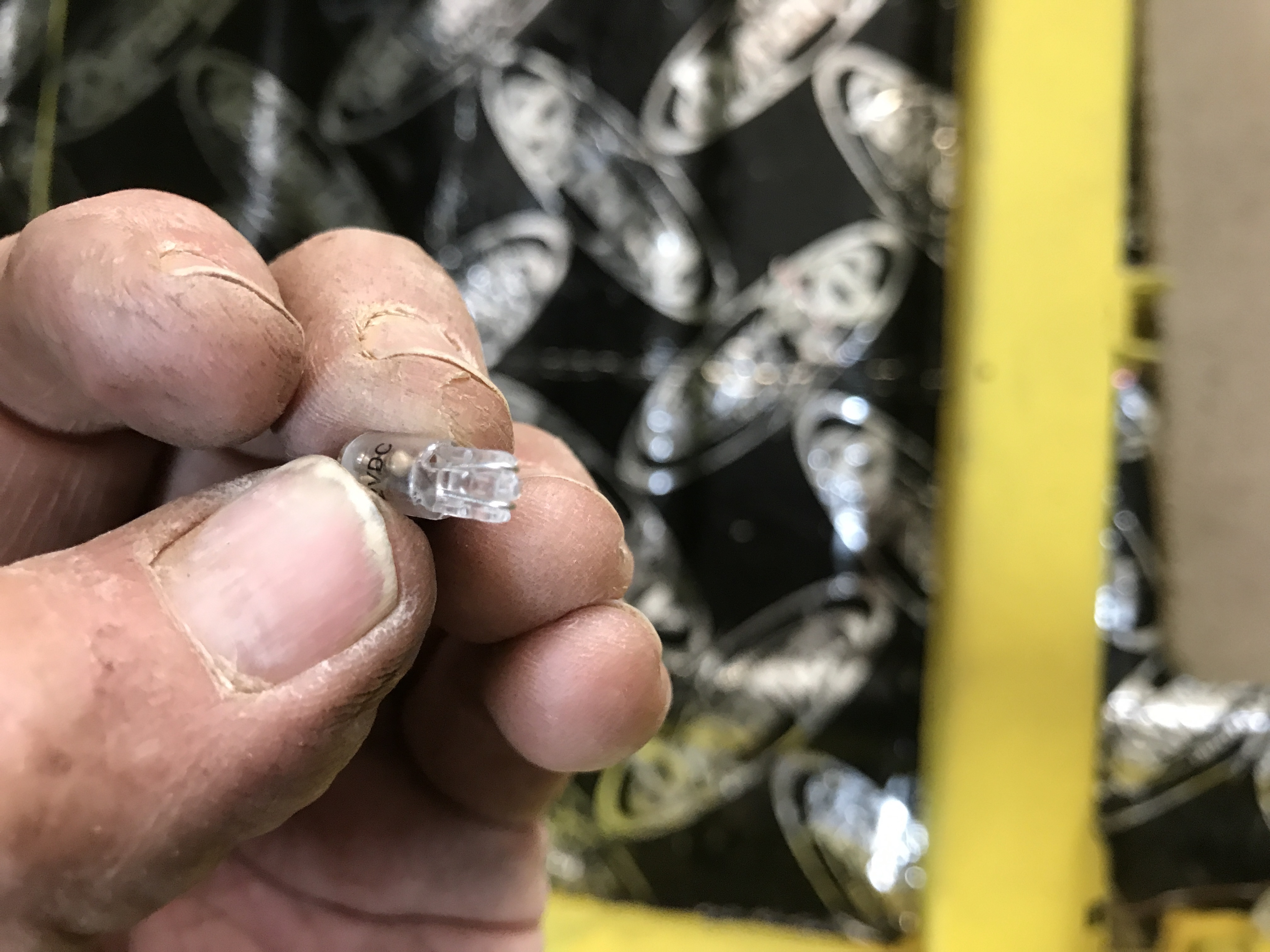

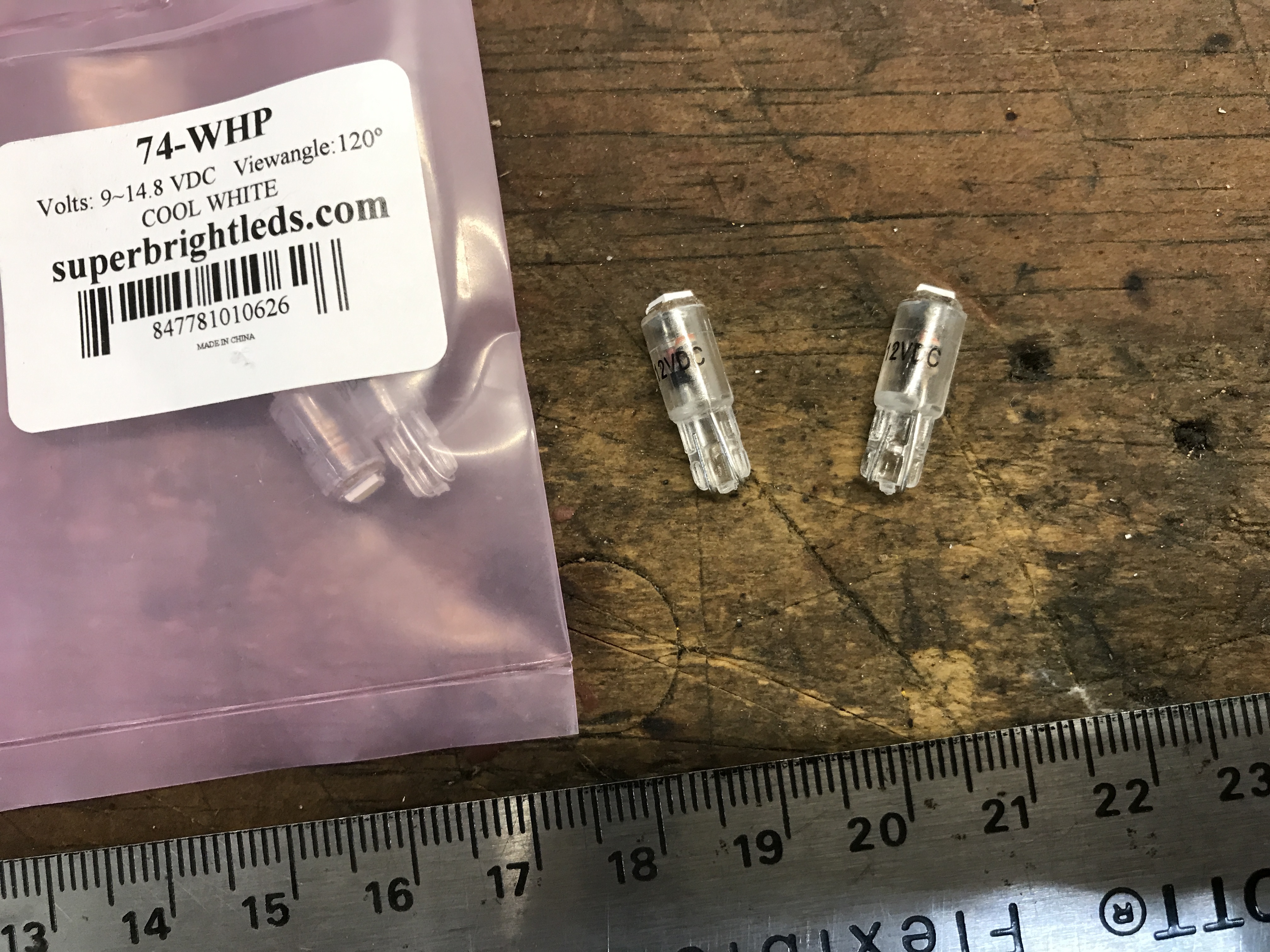

I also got the tiny LED bulbs for the indicator lights in the ventilation controls.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:40 PM
Post
#2814
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
But these have positive and negative leads that bend over from one side of the tab to the other.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:42 PM
Post
#2815
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

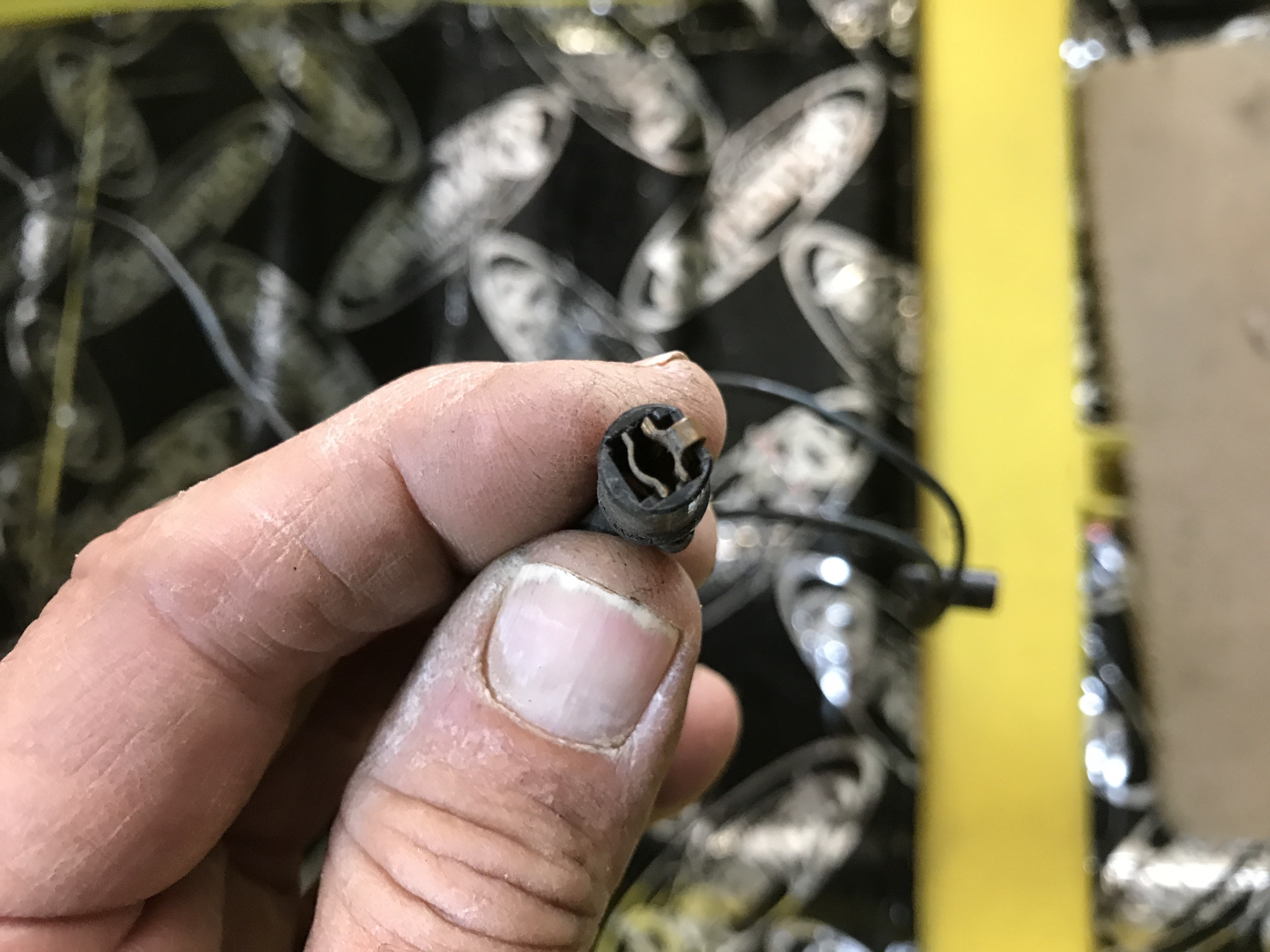

But the sockets have negative and positive leads on either side of the tab.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:44 PM
Post
#2816
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

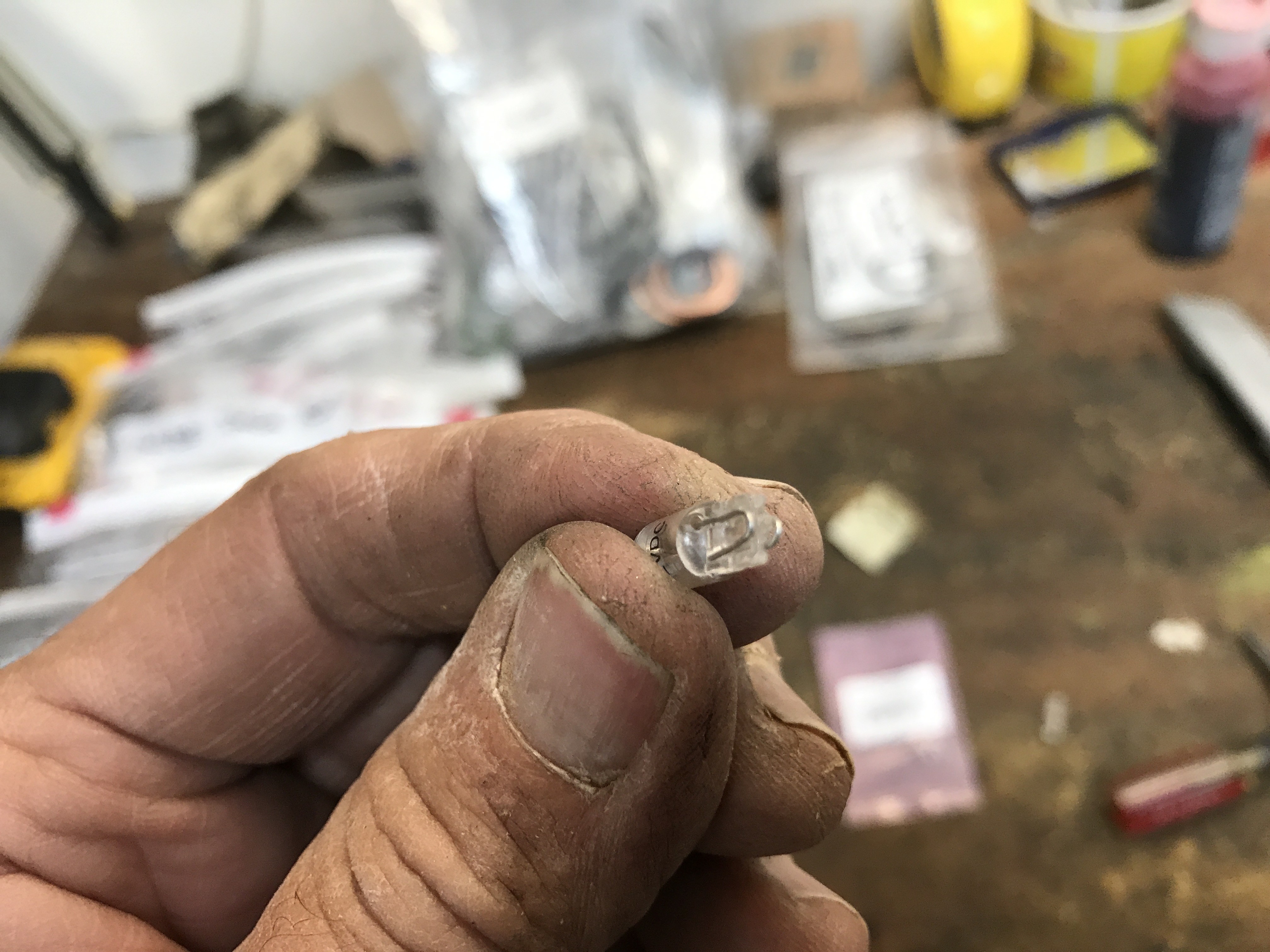

So I re-bent the leads on the bulb to keep each polarity on one side of the tab.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:44 PM
Post
#2817
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

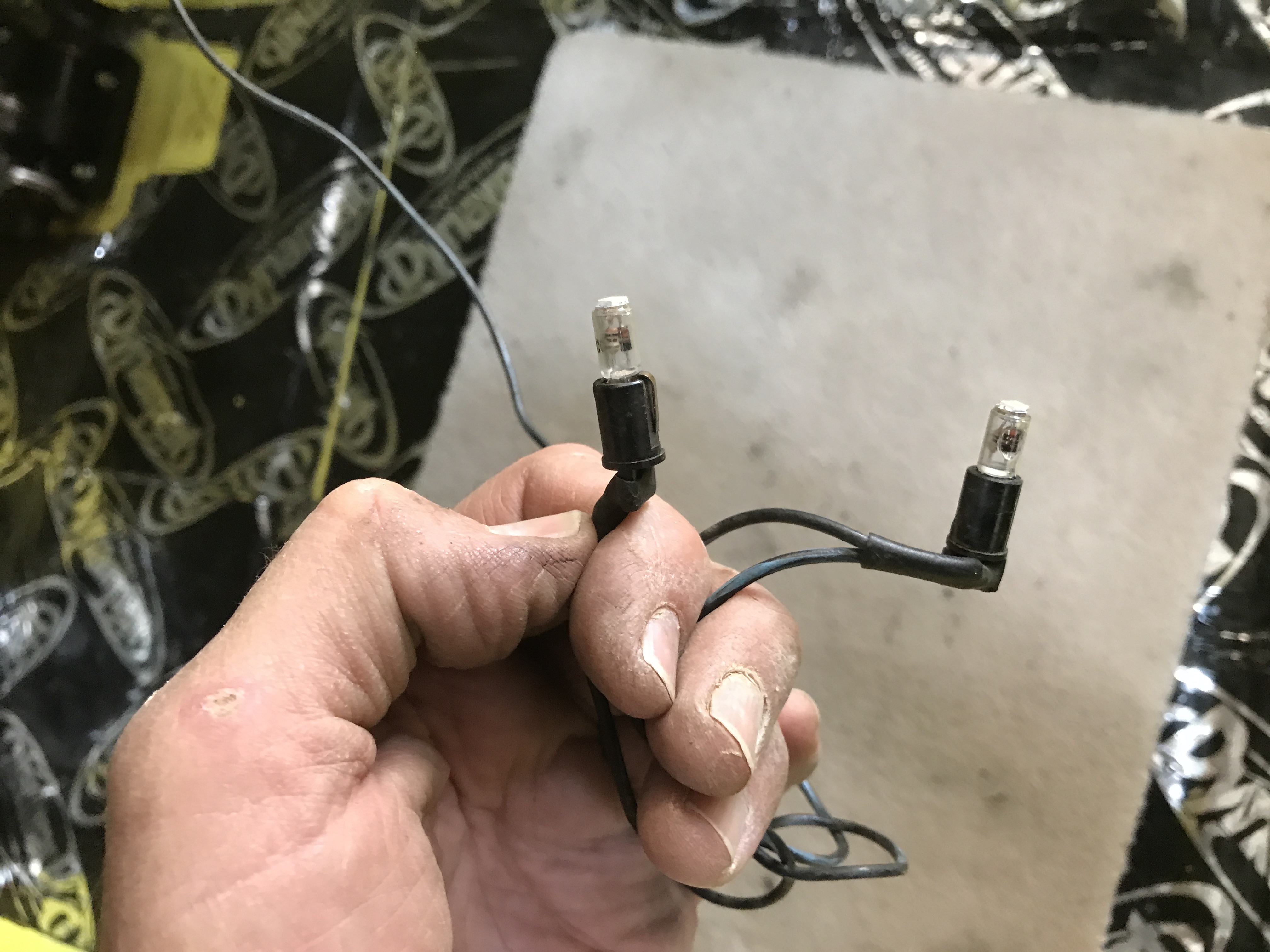

With that mod, I inserted bulbs into the 2 sockets.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:45 PM
Post
#2818
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And put those into the left and right side of the ventilation controller.
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:46 PM
Post
#2819
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

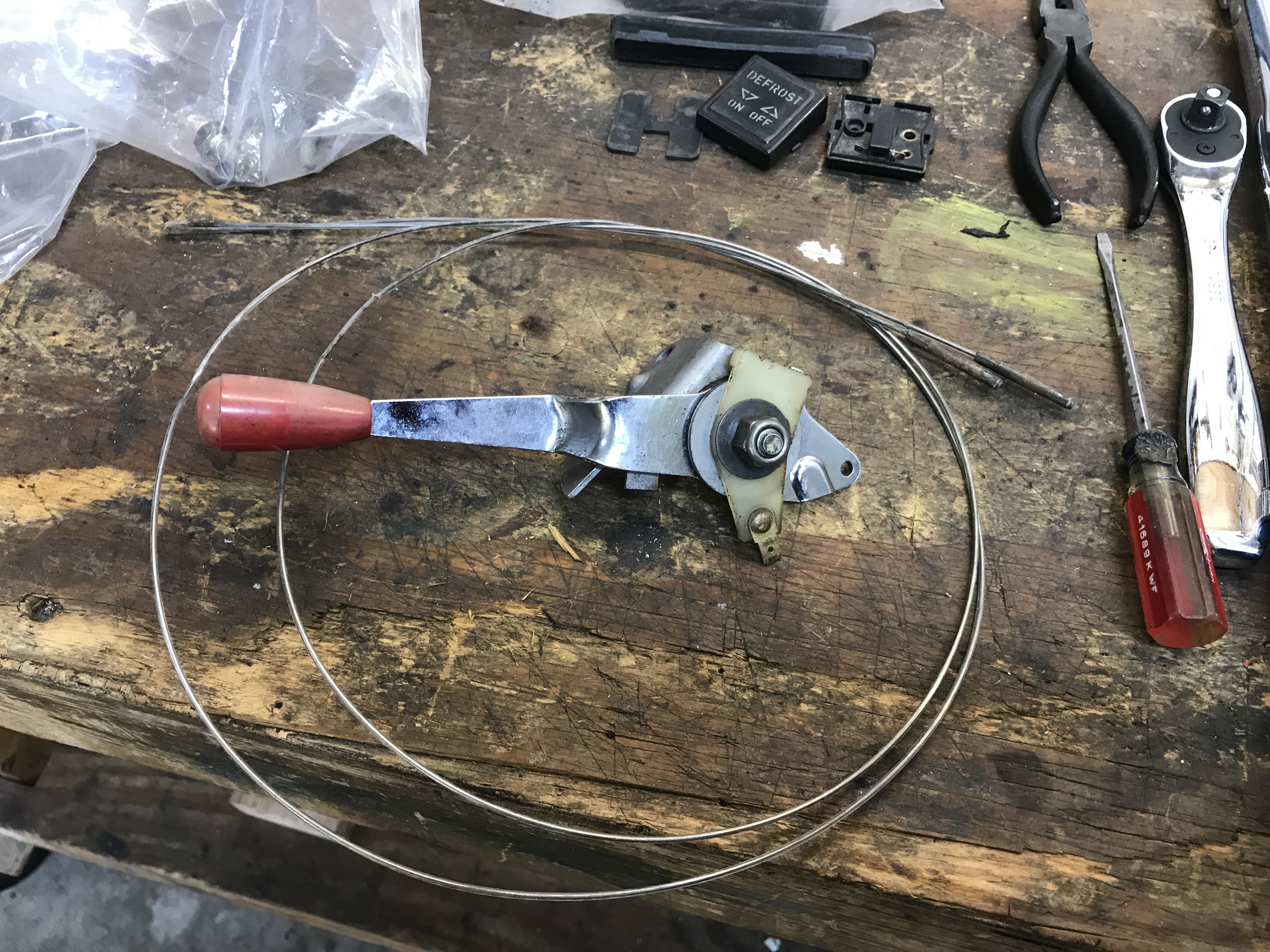

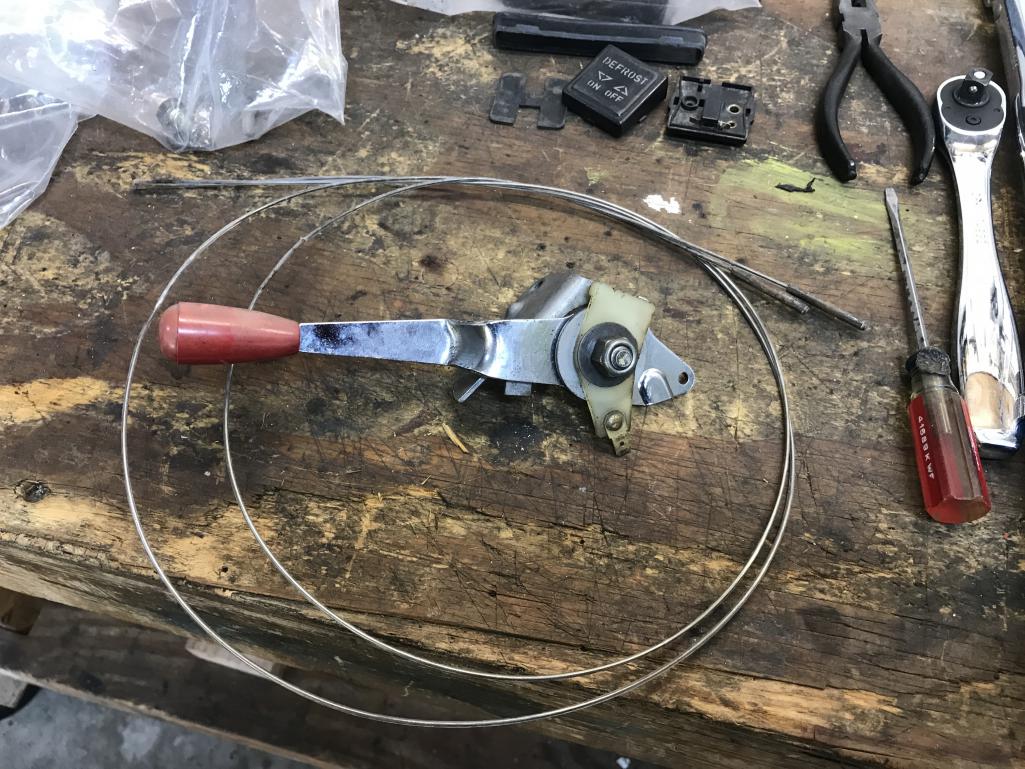

Next, I got out the heat control lever and cable. I rebuilt the lever months ago (but now the knob looks a little shabby).
Attached thumbnail(s) |
bkrantz |
May 23 2021, 07:49 PM
Post
#2820
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

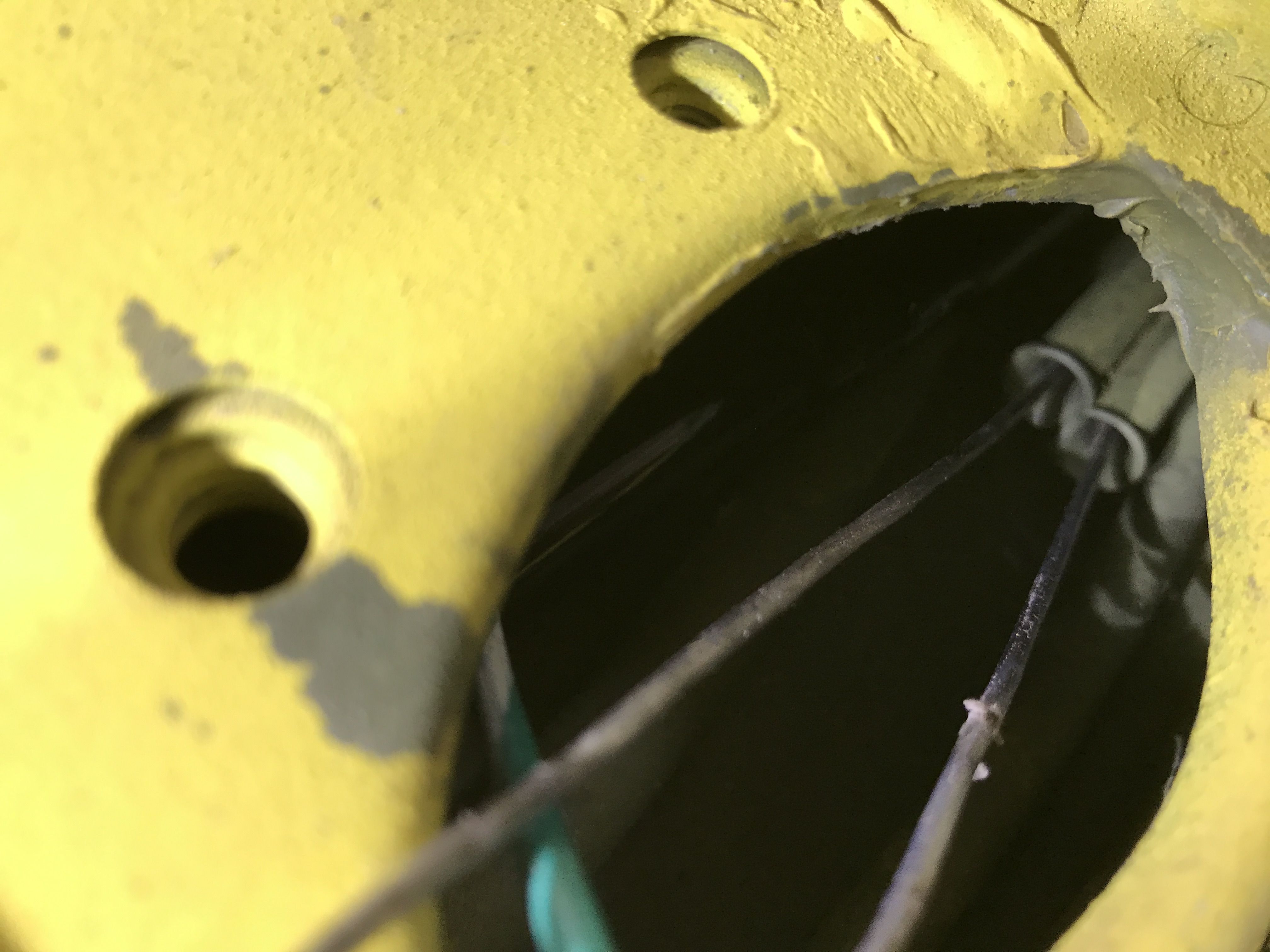

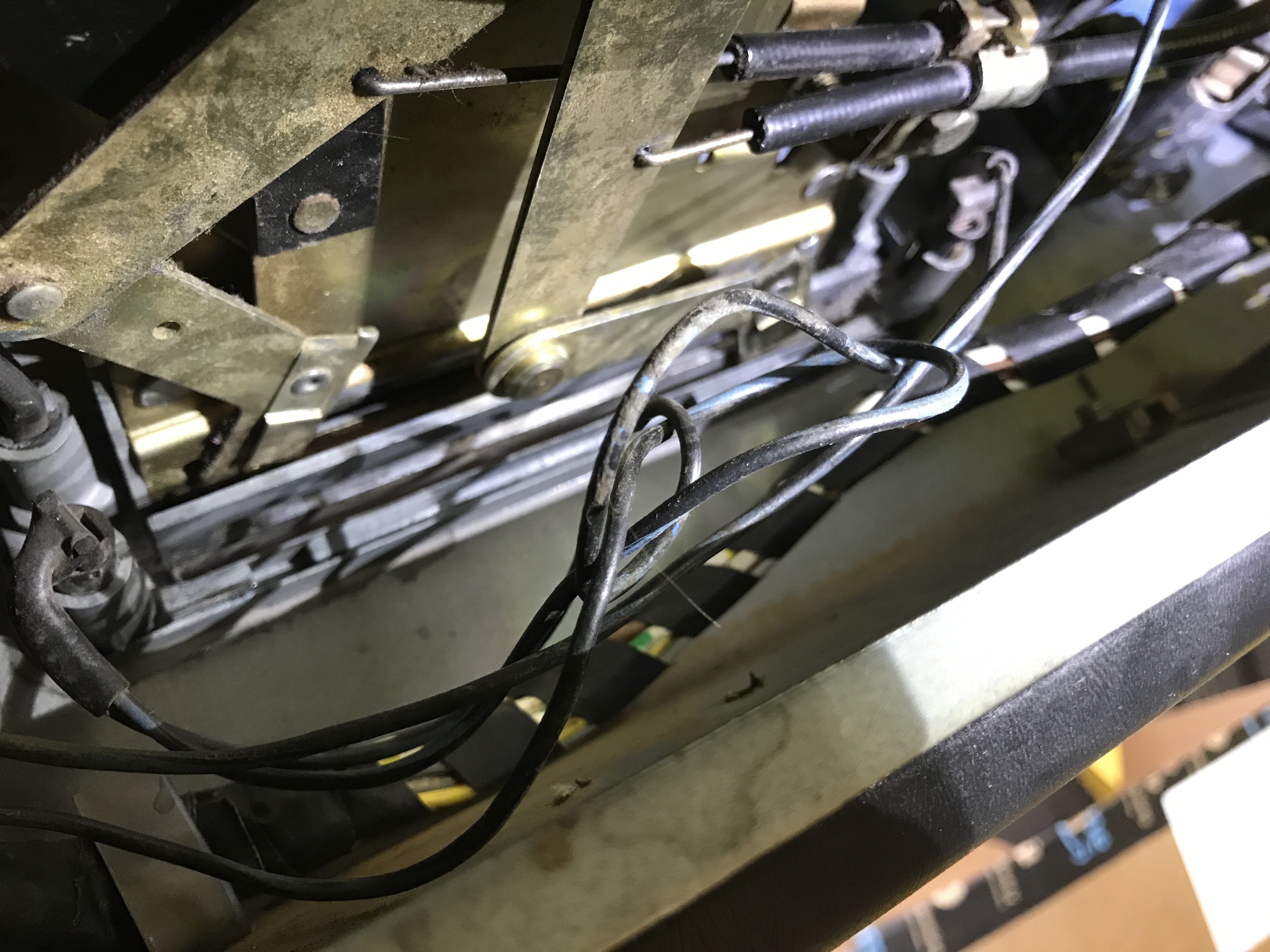

I fed the cable ends into the tubes in the tunnel, with the longer cable going into the right side tube.
Attached thumbnail(s) |
