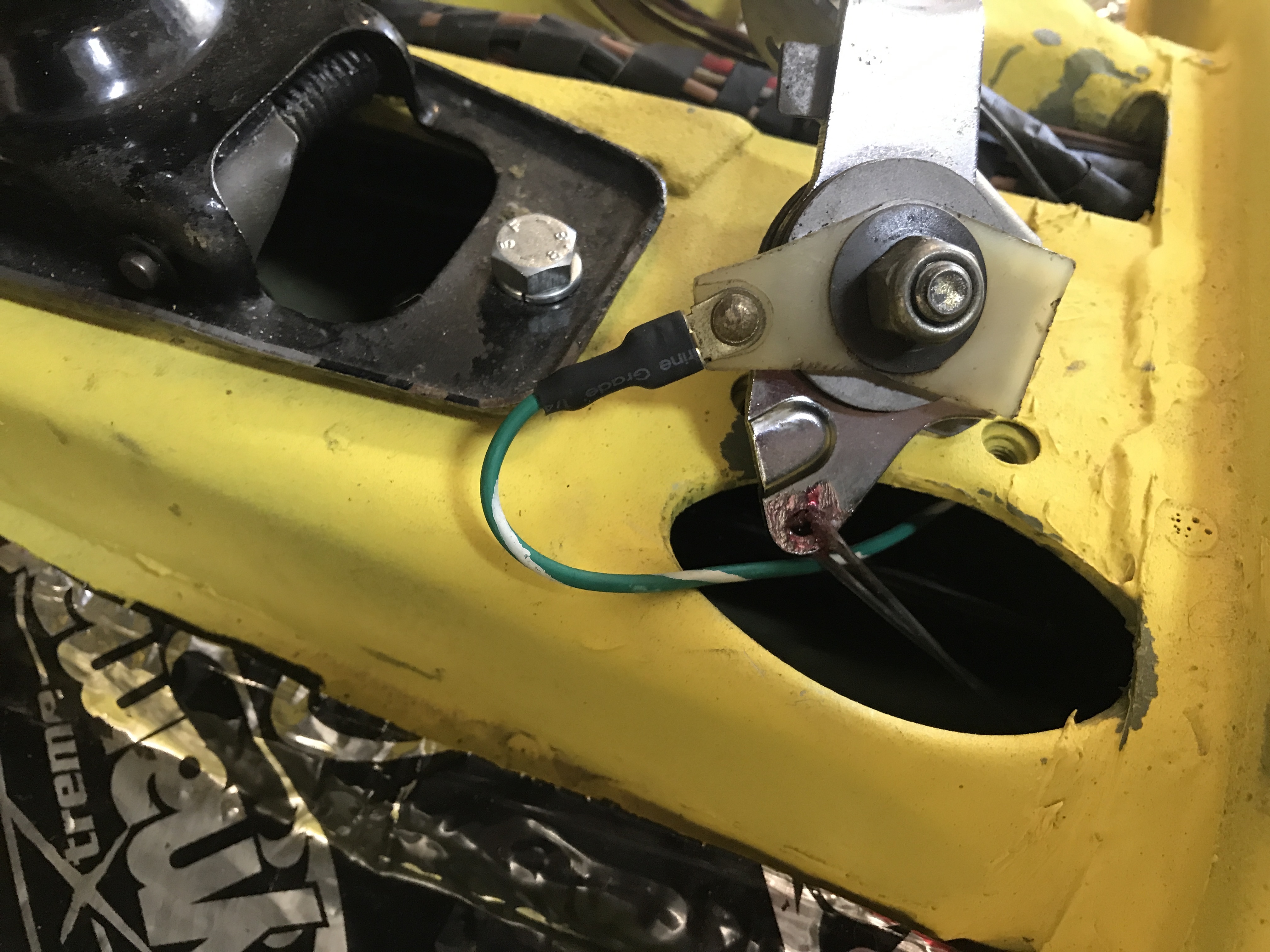

Then connected the lead for the lever switch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 23 2021, 07:51 PM
Post #2822


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And then installed the lever.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 23 2021, 07:54 PM
Post #2823


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

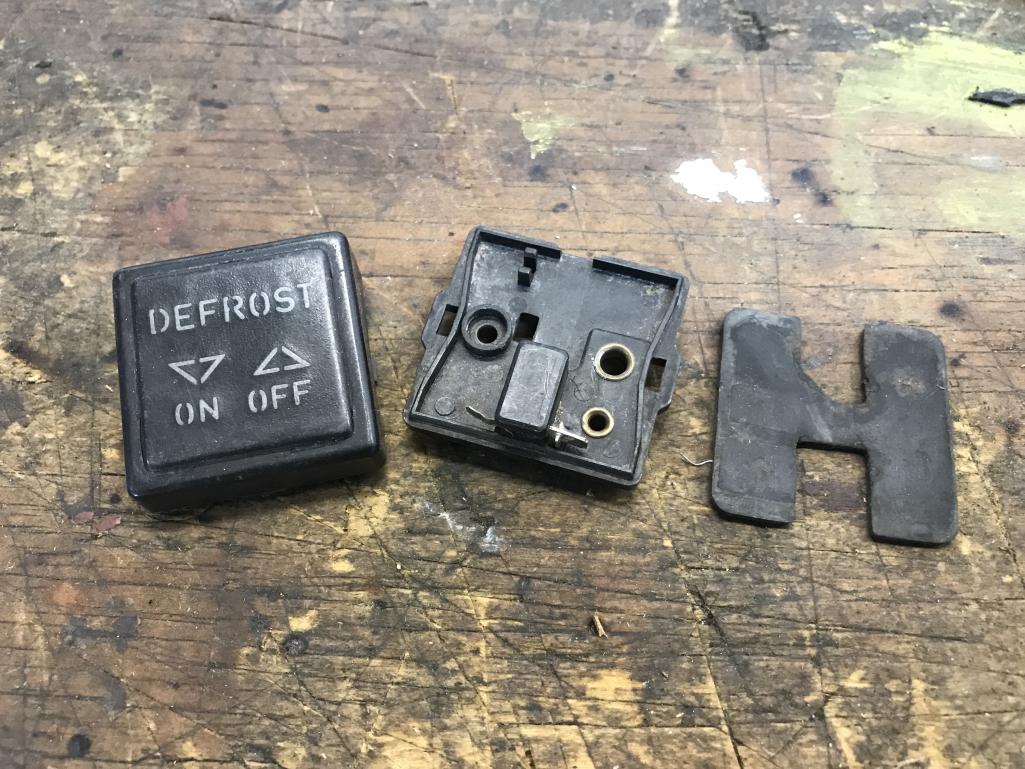

Here's the indicator light for the heater lever, actuated by the integrated switch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 23 2021, 07:55 PM
Post #2824


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

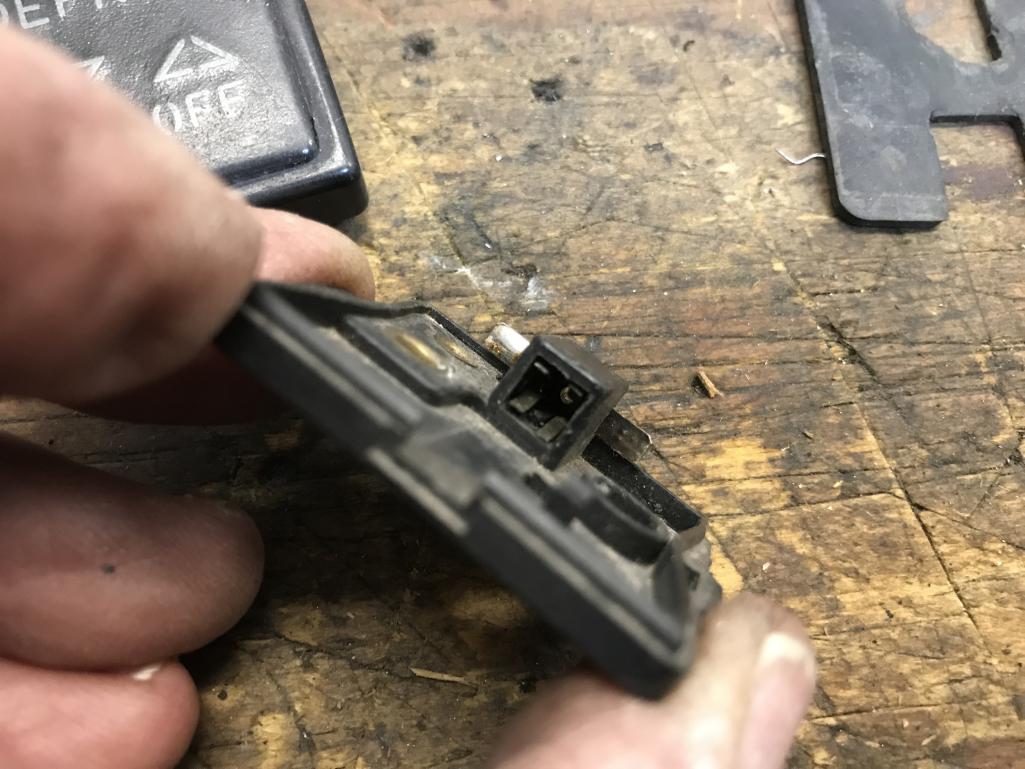

This will also need a modified LED bulb.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 23 2021, 07:56 PM
Post #2825


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

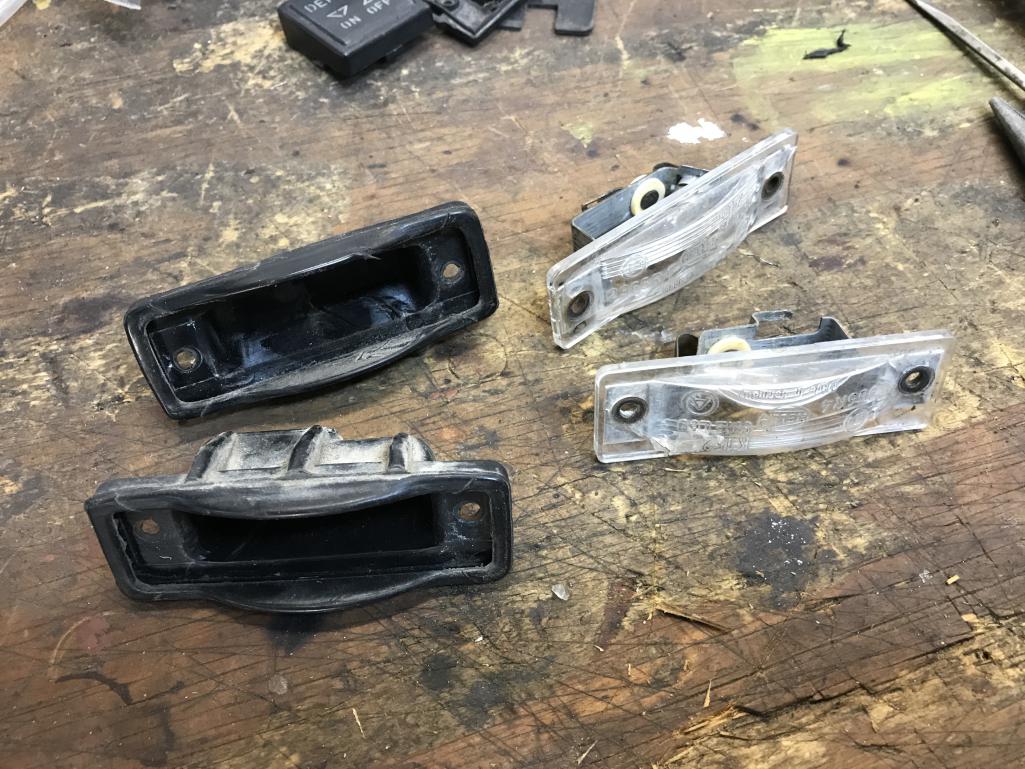

Finally, I got out the license plate lights to clean up.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:06 PM
Post #2826


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

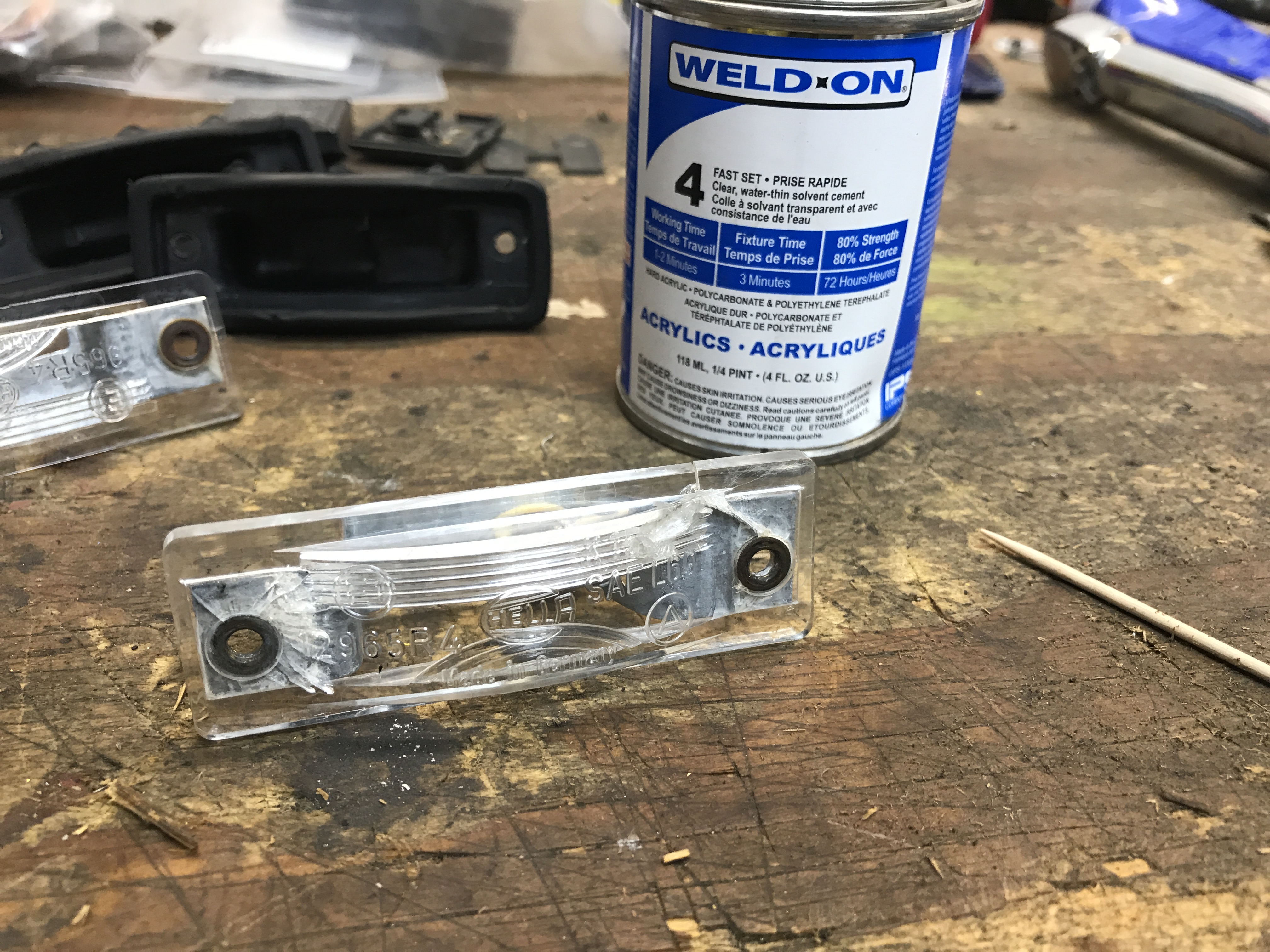

One of the lights has a couple of cracks. Time for the plastic welding liquid.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:06 PM
Post #2827


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

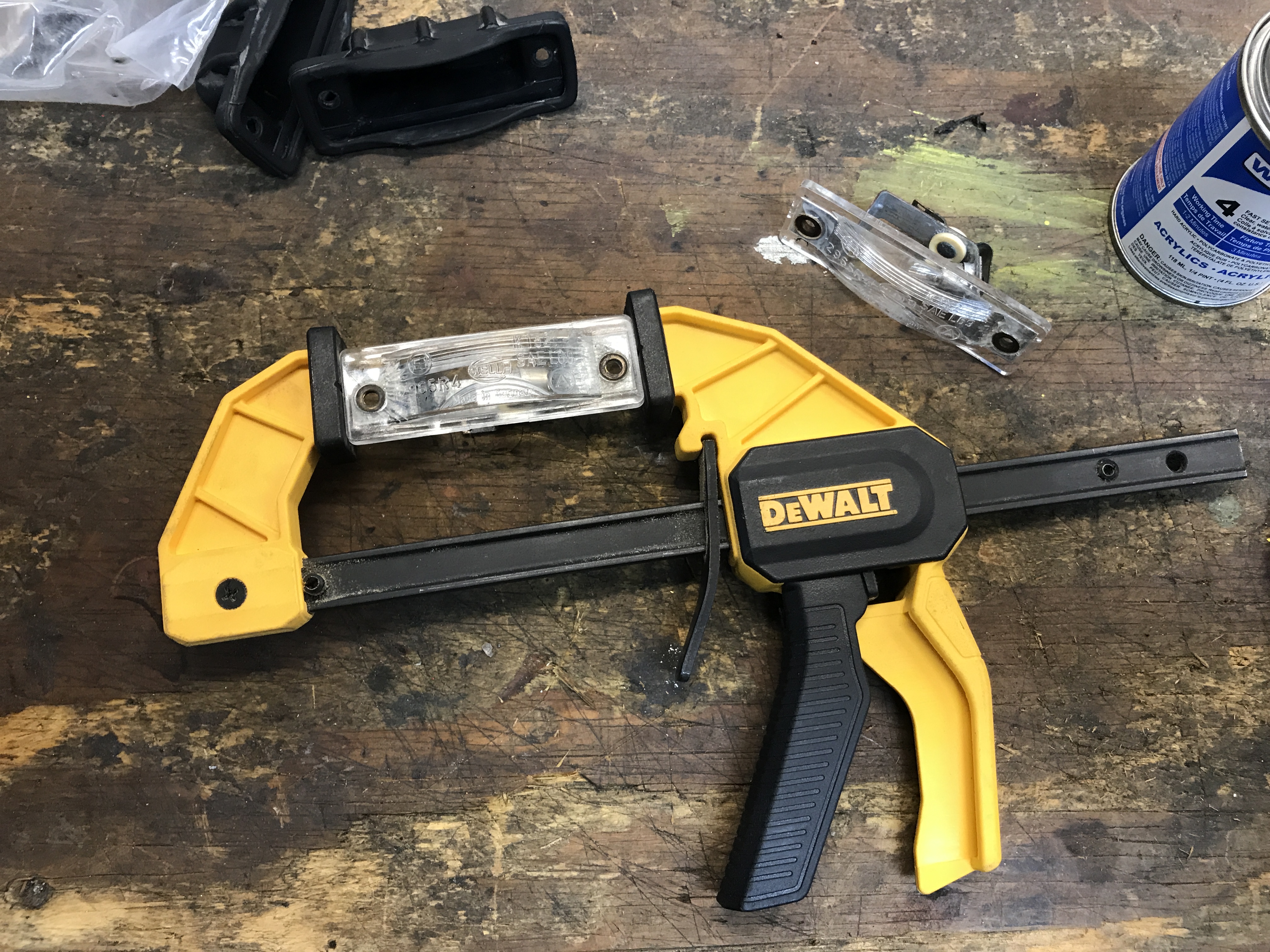

Glued and clamped.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:07 PM
Post #2828


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

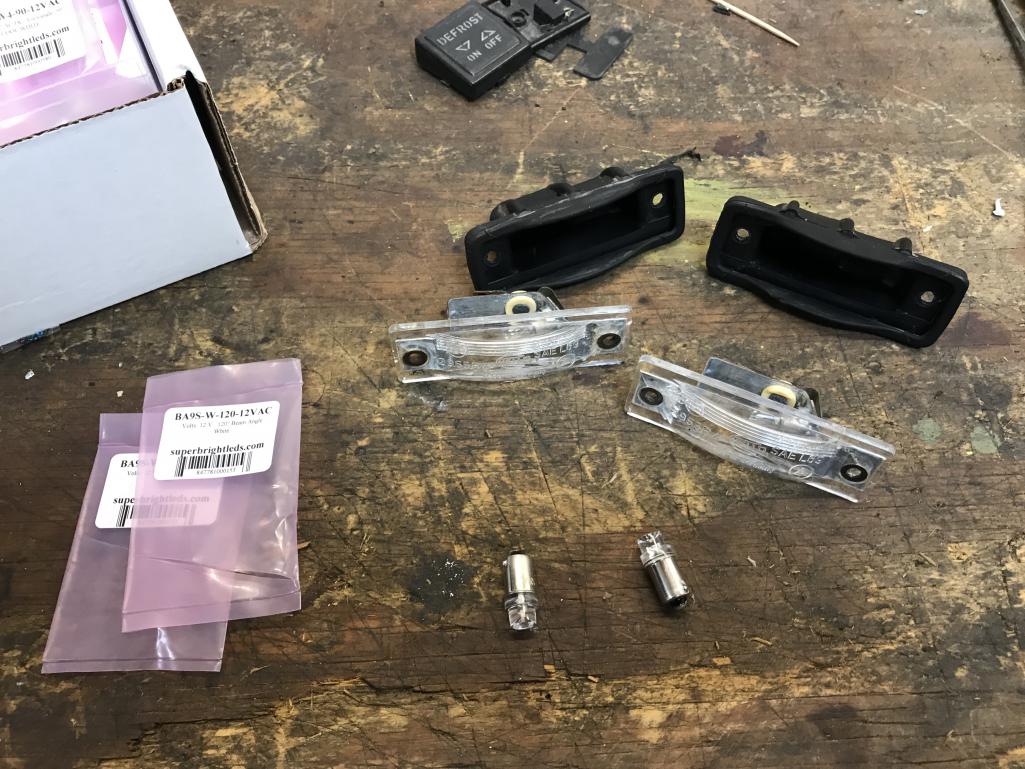

New LED bulbs.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:09 PM
Post #2829


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

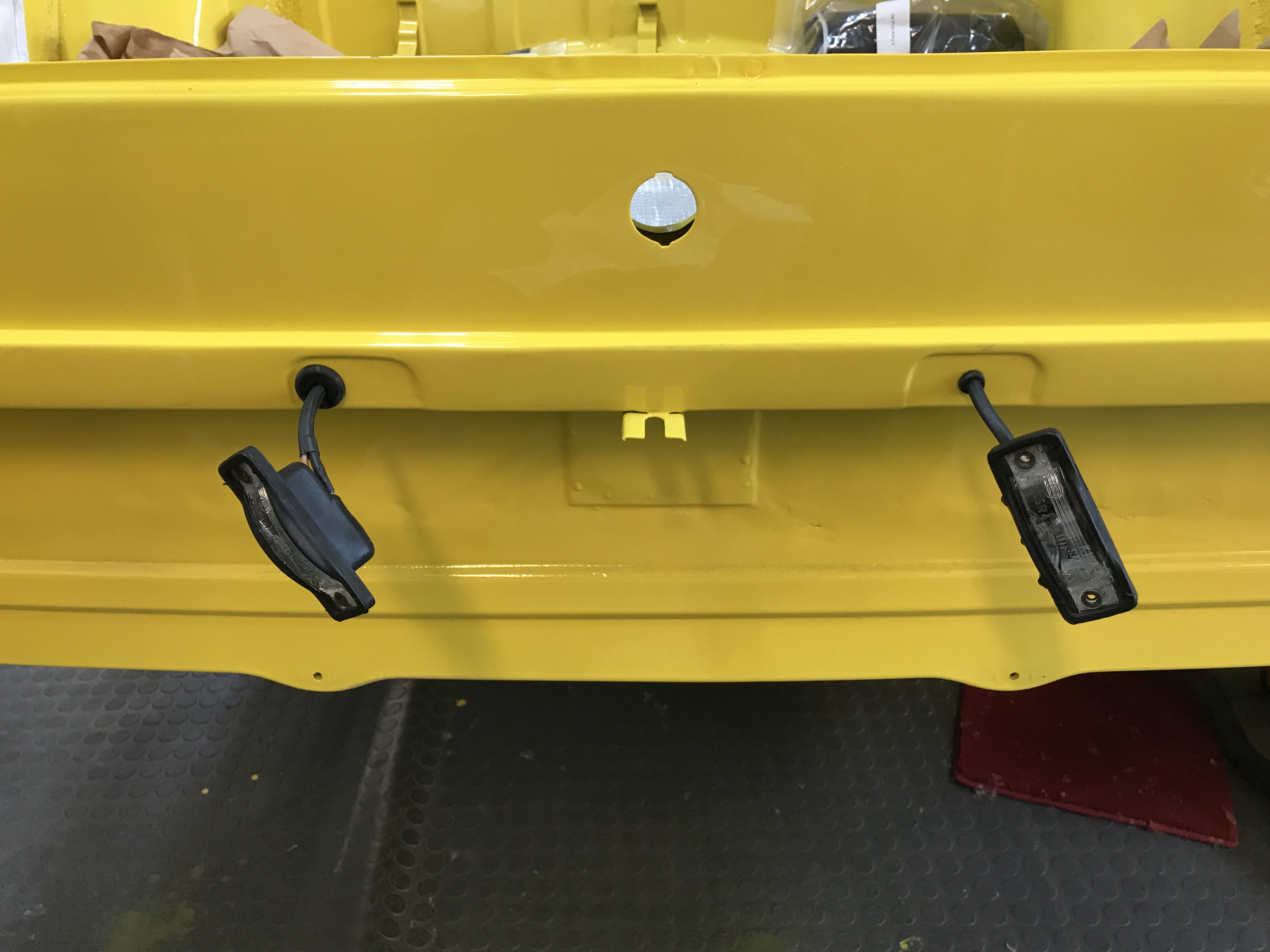

Assembled and attached.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:10 PM
Post #2830


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

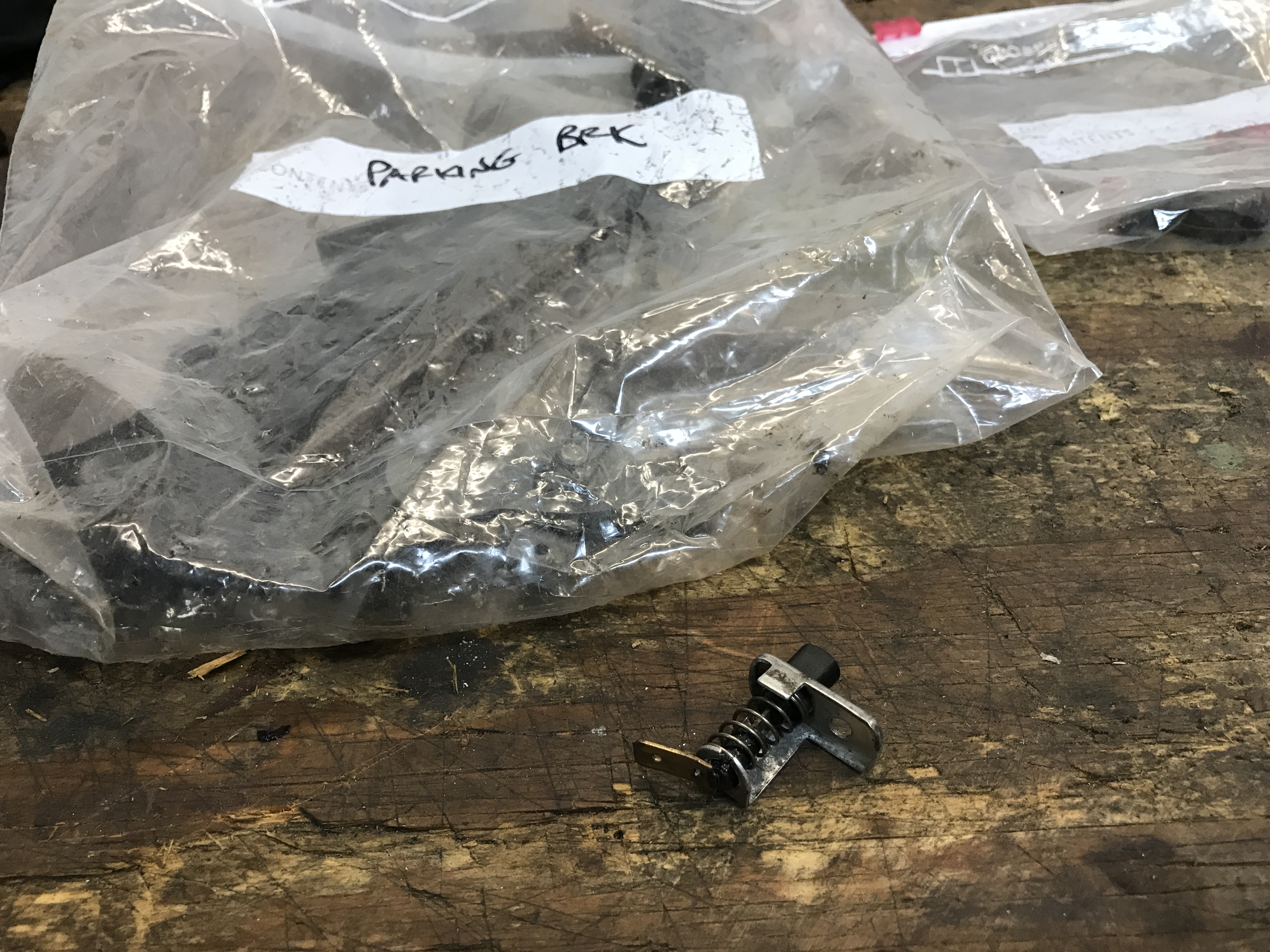

Then I dug out the bag with the parking brake, and fetched the switch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:11 PM
Post #2831


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Attached to the lead.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:12 PM
Post #2832


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

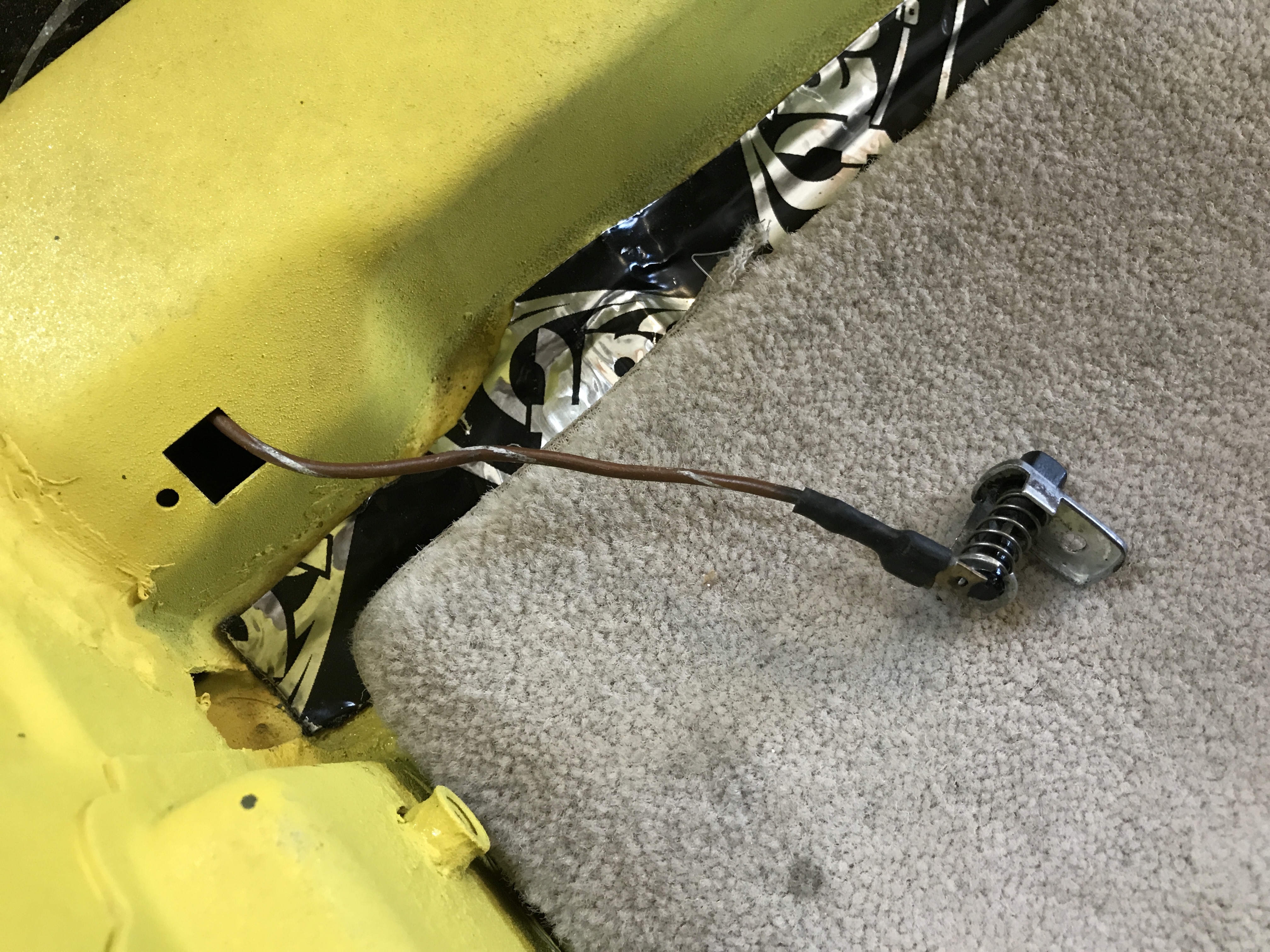

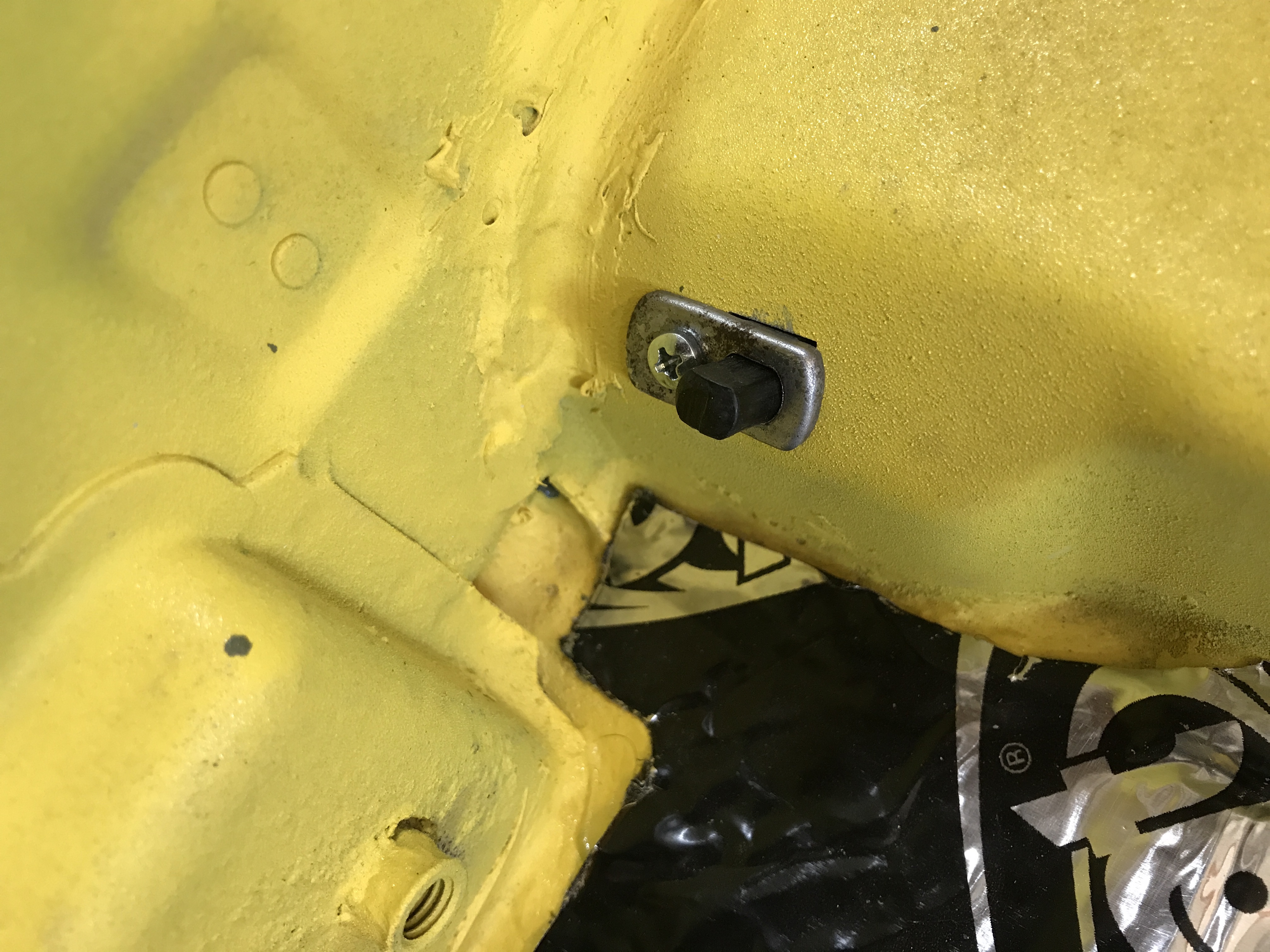

And installed.

All part of my plan to test the electric system before putting the interior together.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:15 PM
Post #2833


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

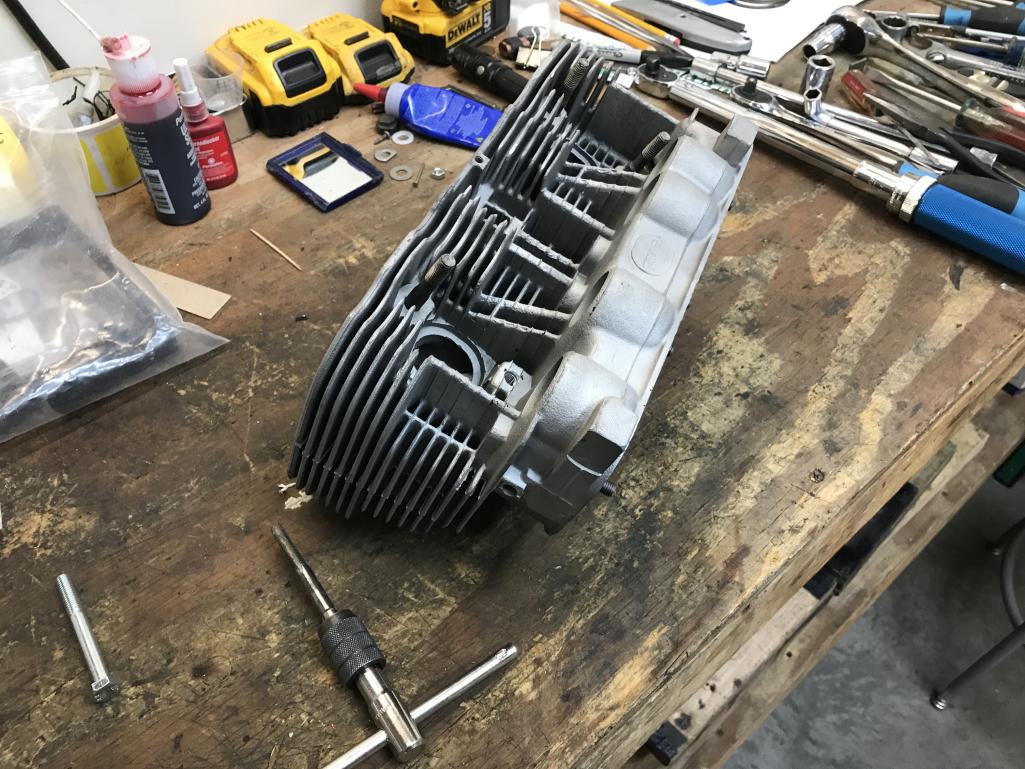

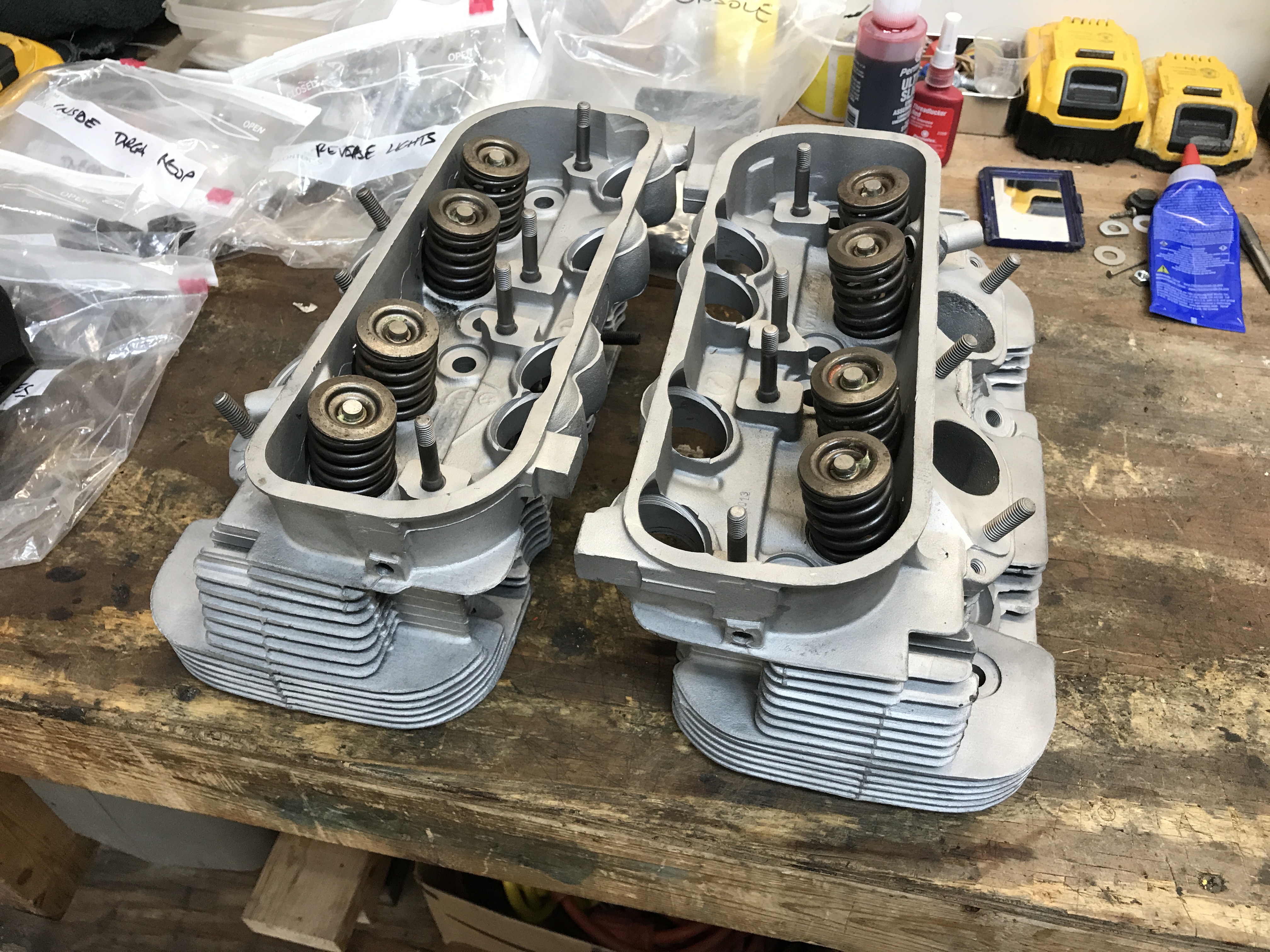

I then got out the cylinder heads. I knew I had some issues with exhaust studs but did not expect big problems. I should have known better.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:16 PM
Post #2834


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

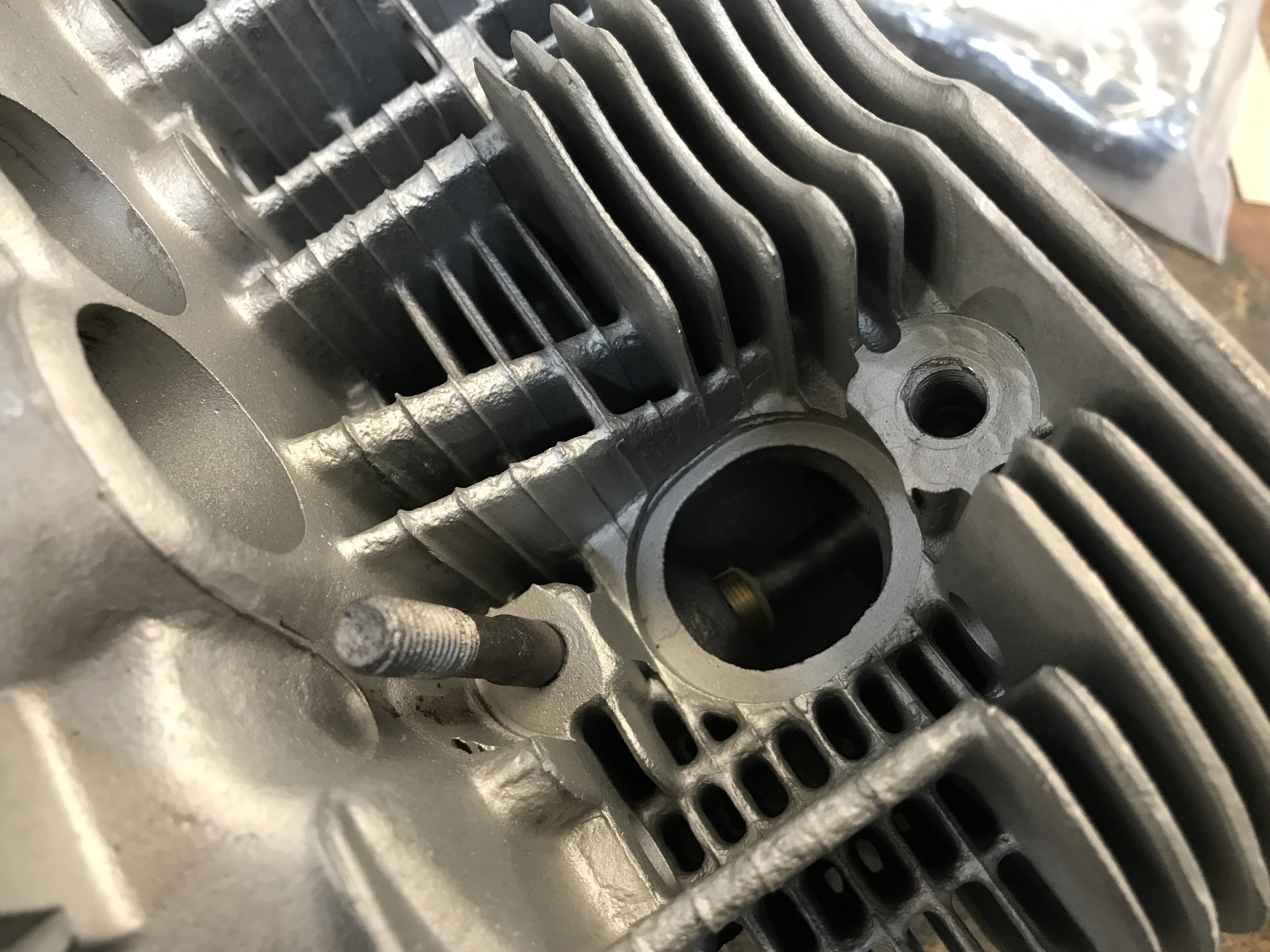

One head is missing a stud, with an oversized hole that looks like 9 mm. The threads also look a bit rough.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:21 PM
Post #2835


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The other head also has a missing stud, but the original hole and threads cleaned up with my 8mm tap.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:22 PM
Post #2836


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

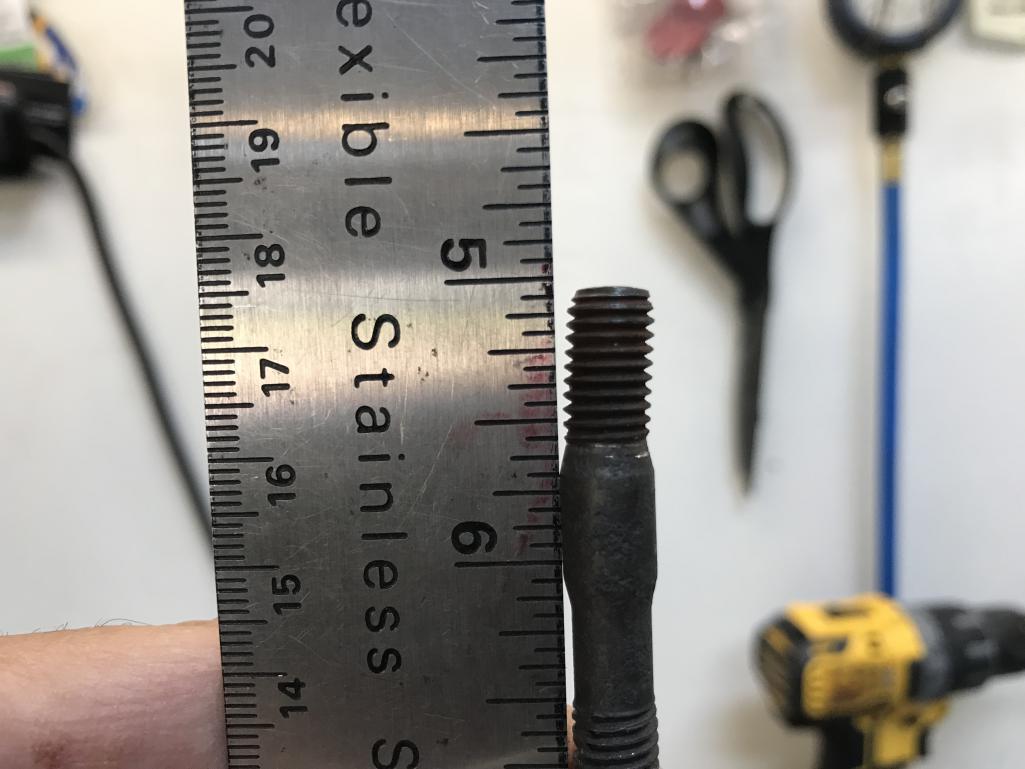

However, it also has another odd stud. It seemed loose, so I removed it--and watched it wobble on the way out. You might be able to see the bend.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:24 PM
Post #2837


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

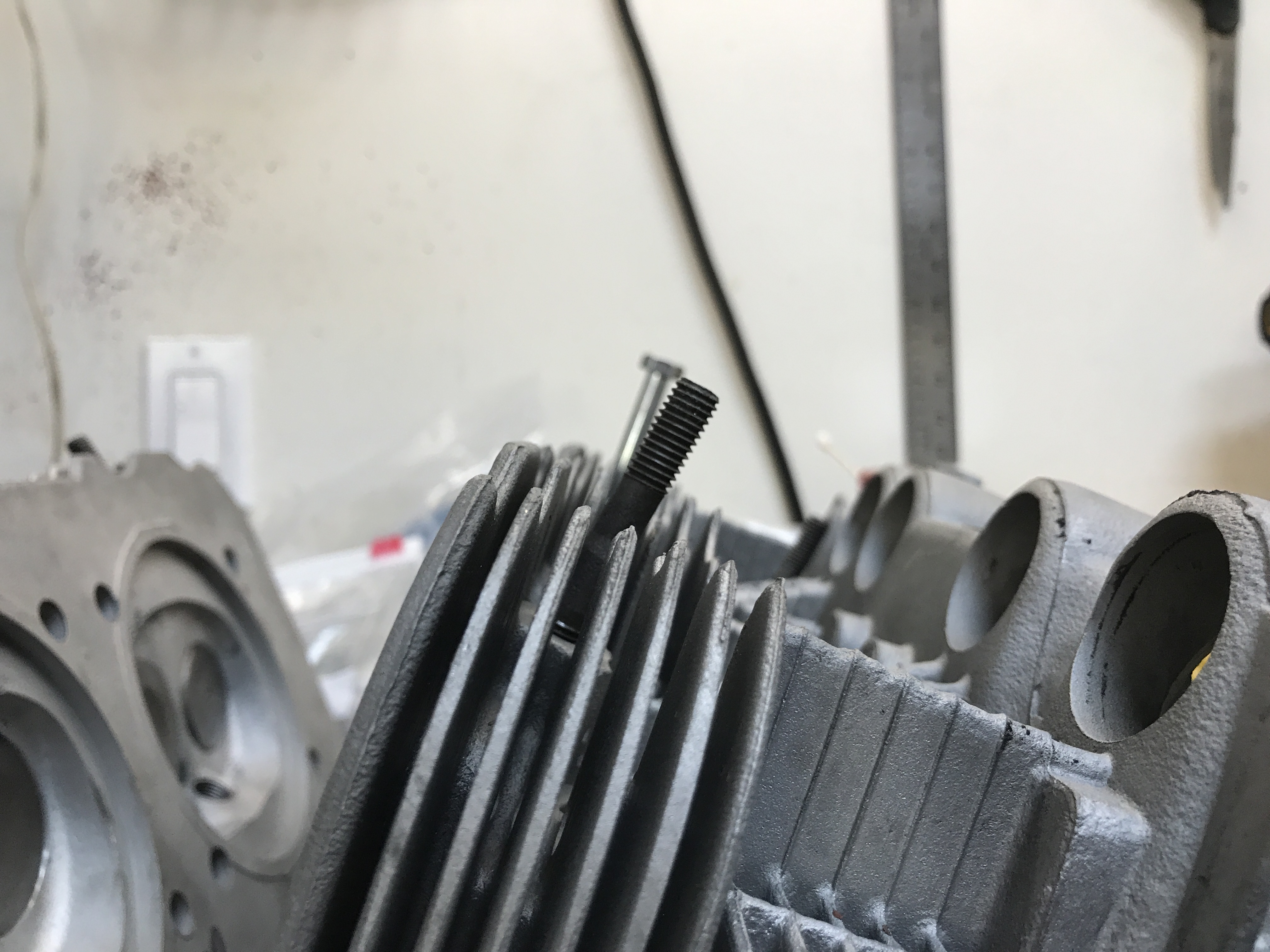

I screwed a bolt into the hole. The bolt (background) has a very different angle compared to the stud (foreground).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 24 2021, 07:28 PM
Post #2838


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

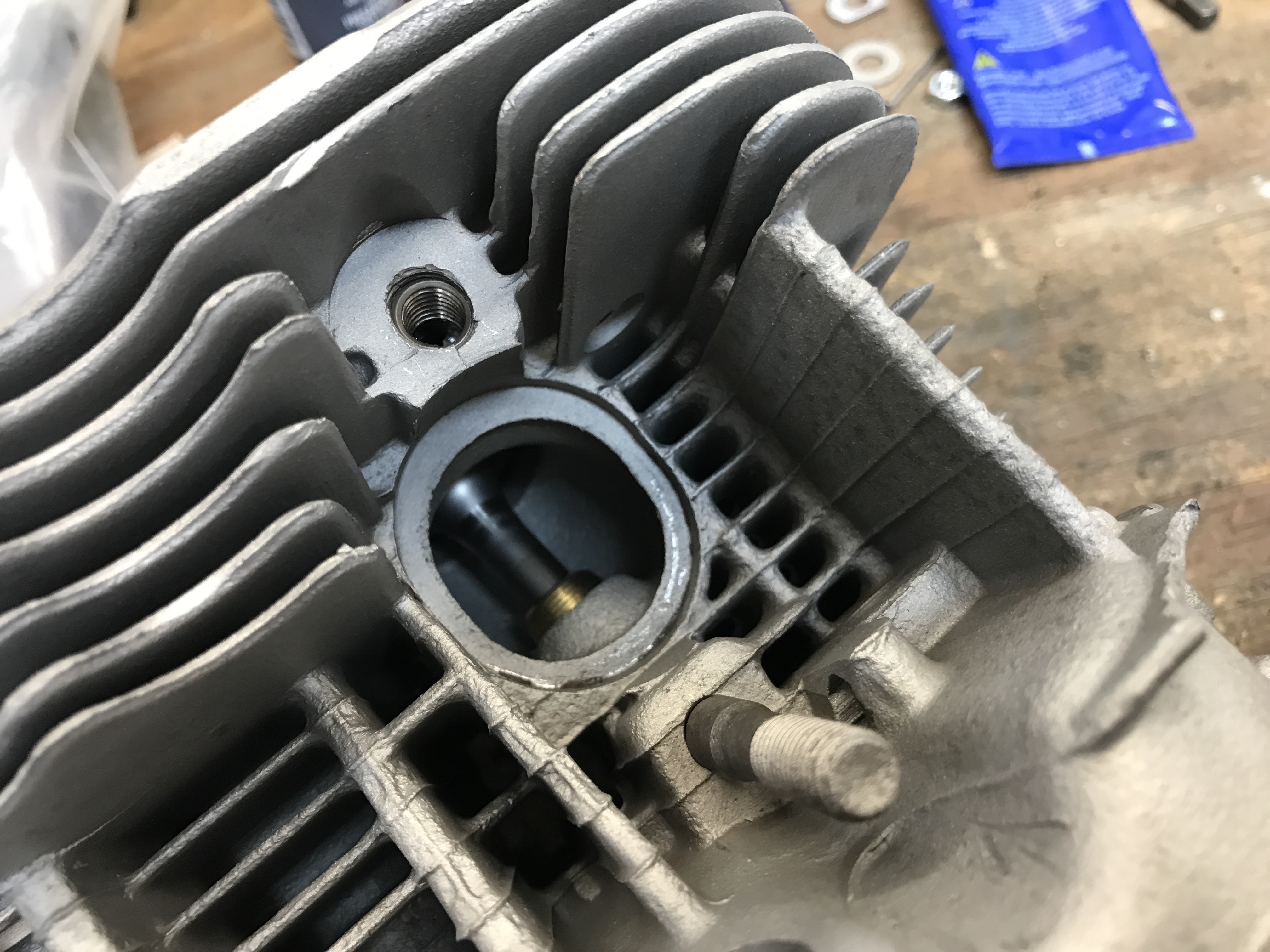

Looks like the hole with the bad angle has an insert. Whoever did the repair did not get the angle correct.

Sigh.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post May 25 2021, 01:42 PM
Post #2839


Senior Member
***

Group: Members
Posts: 1,395
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
QUOTE(bkrantz @ May 24 2021, 06:28 PM) *

Looks like the hole with the bad angle has an insert. Whoever did the repair did not get the angle correct.

Sigh.


Are you going to have it welded and re-drilled and tapped?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 25 2021, 06:50 PM
Post #2840


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(Puebloswatcop @ May 25 2021, 01:42 PM) *

QUOTE(bkrantz @ May 24 2021, 06:28 PM) *

Looks like the hole with the bad angle has an insert. Whoever did the repair did not get the angle correct.

Sigh.


Are you going to have it welded and re-drilled and tapped?



TBD
