Then I made my own jumper for the indicator lamps, following Spoke's design.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 7 2021, 07:12 PM
Post #2902


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

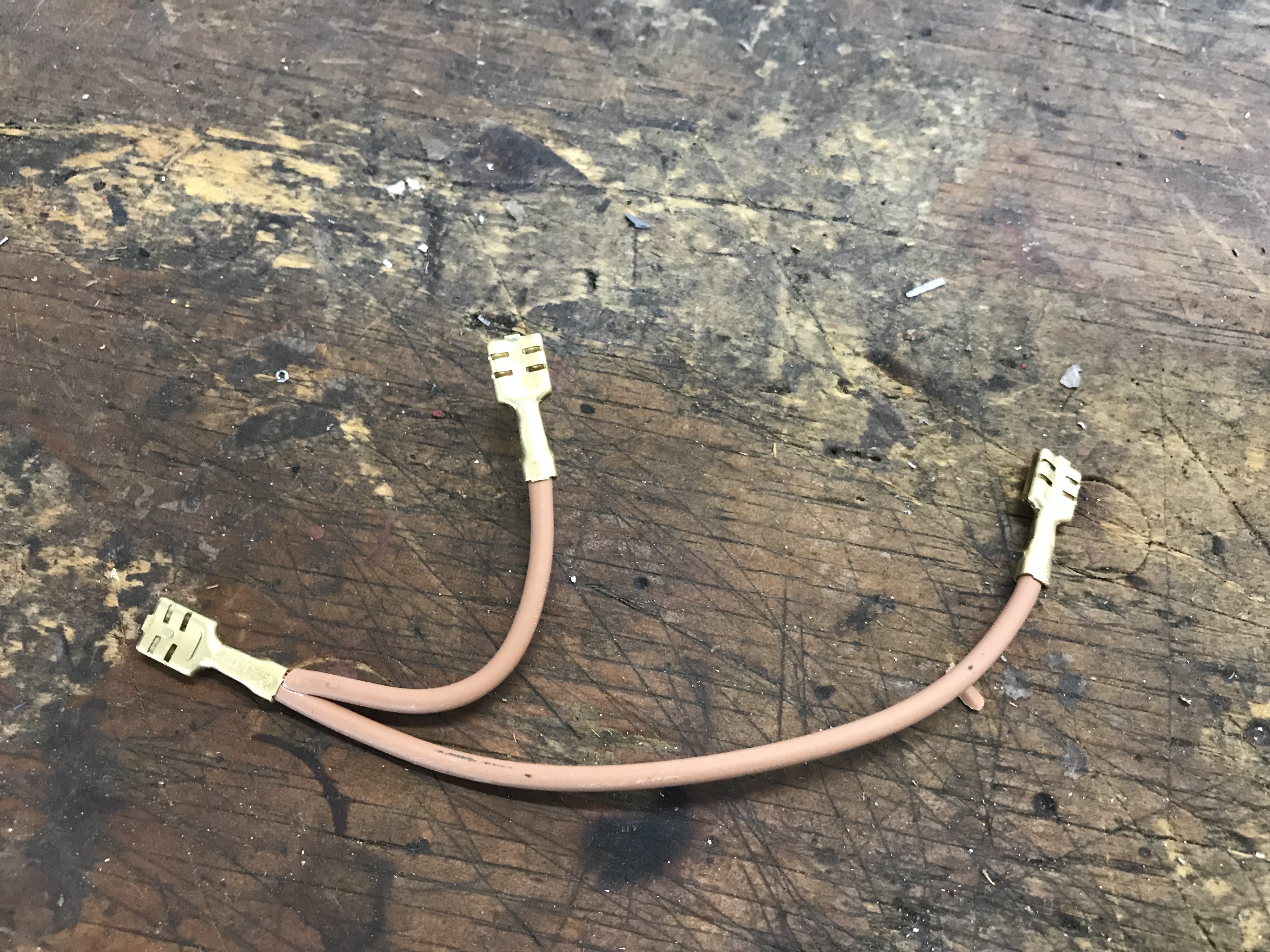

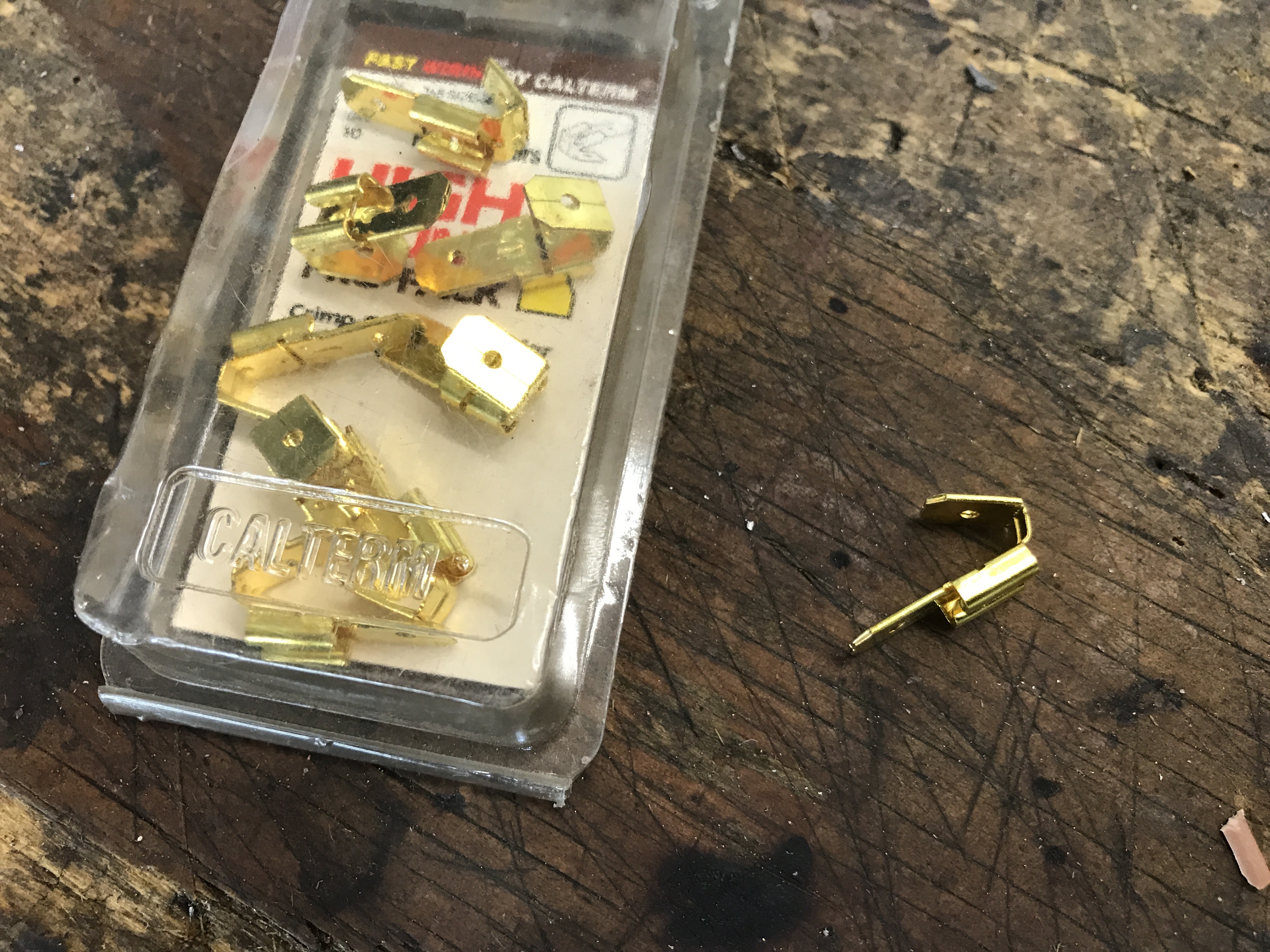

Plus a 2 into 1 spade connector.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 7 2021, 07:13 PM
Post #2903


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

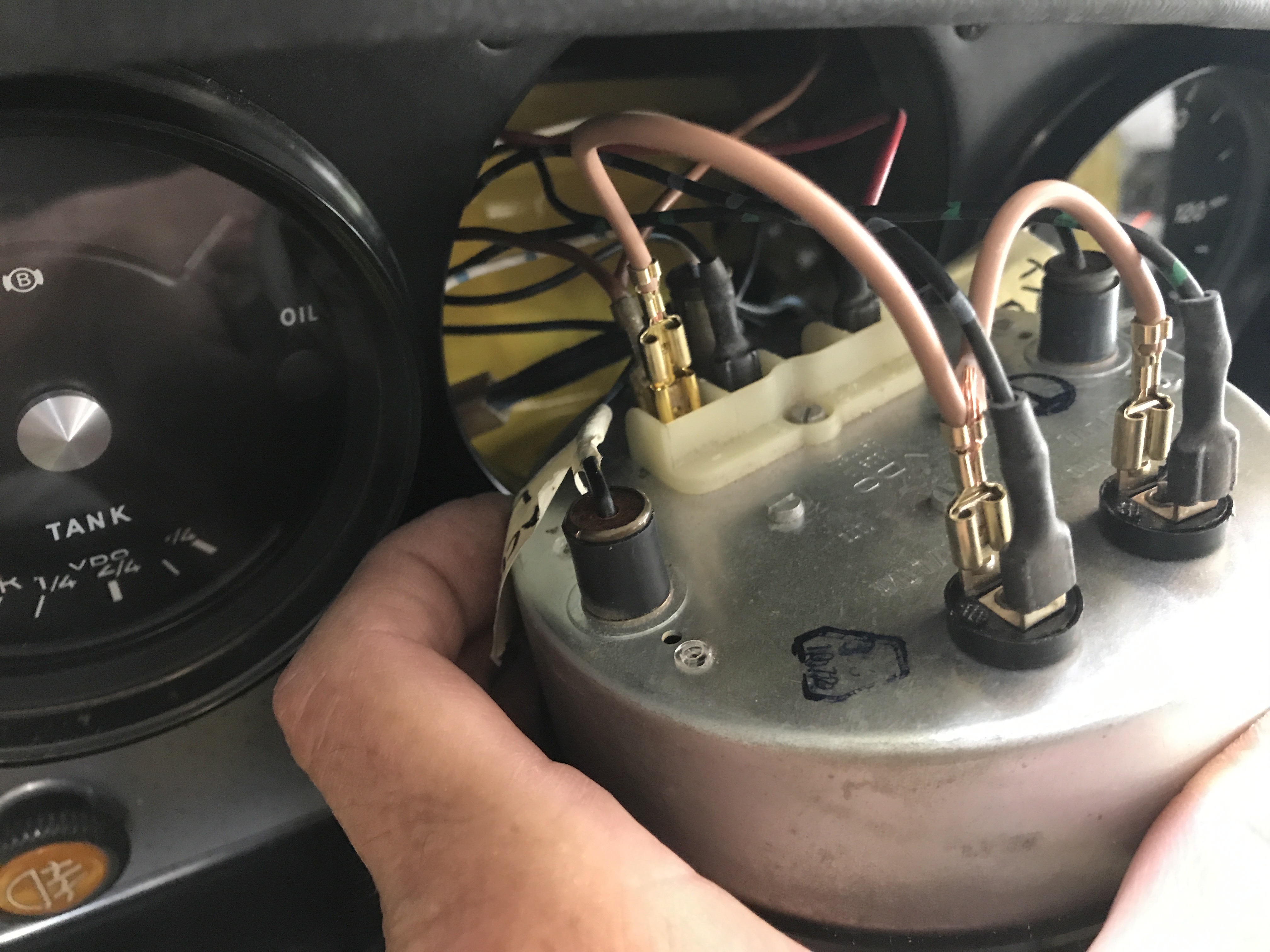

The new ground jumper installed, connecting the indicator lamps to the ground terminal on the back of the tach.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 7 2021, 07:15 PM
Post #2904


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

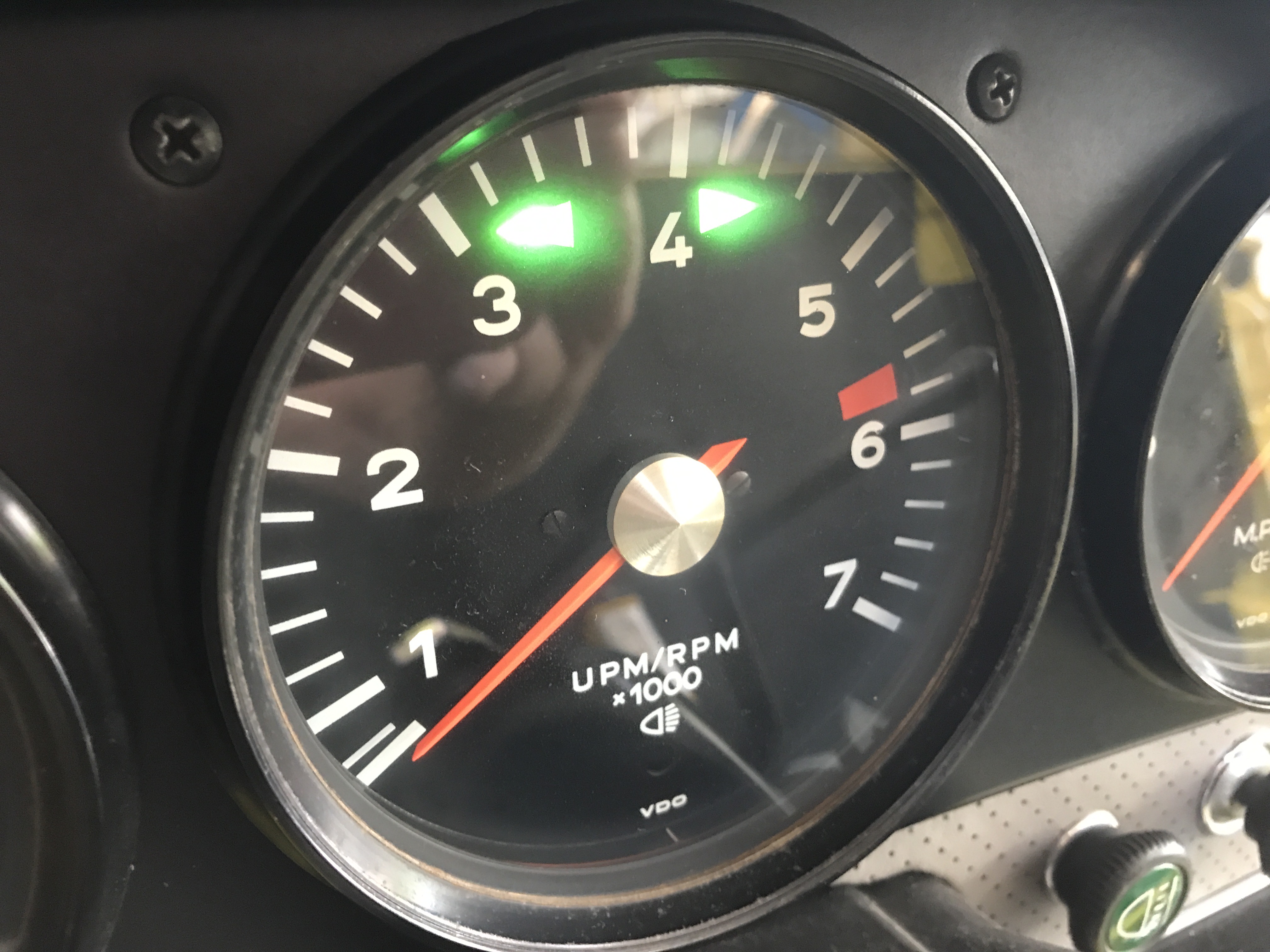

Success! Here are both indicators on with the emergency flashers on. They also work individually with the turn signals on. And I had to invert the left and right wires to reconcile the circuit change in the new flasher relay.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 7 2021, 07:18 PM
Post #2905


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I then checked out just about every other switch and component, and it looks like everything works--so far.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 7 2021, 07:19 PM
Post #2906


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

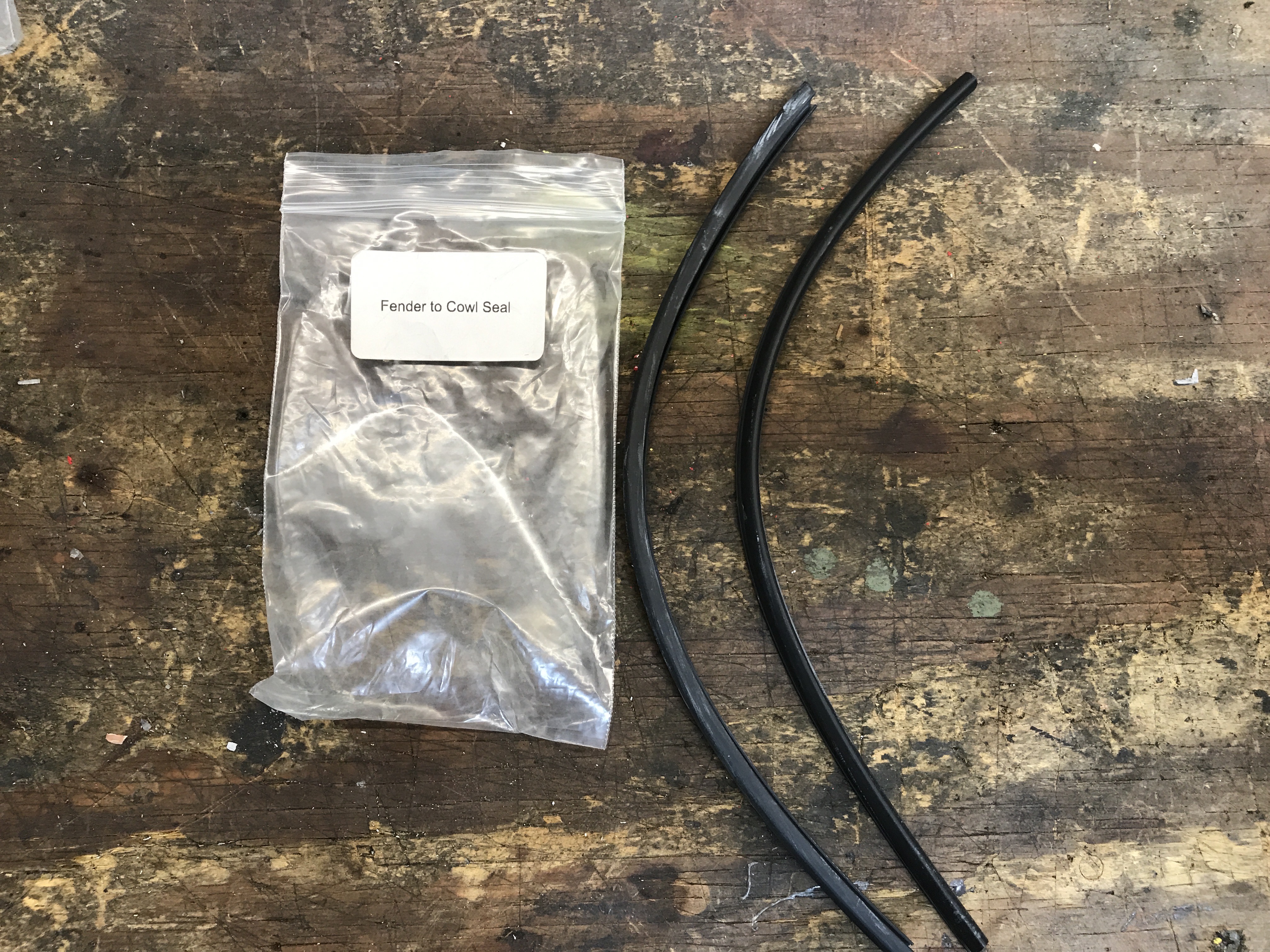

One last detail today: I got out the new front fender gap seals.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 7 2021, 07:20 PM
Post #2907


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

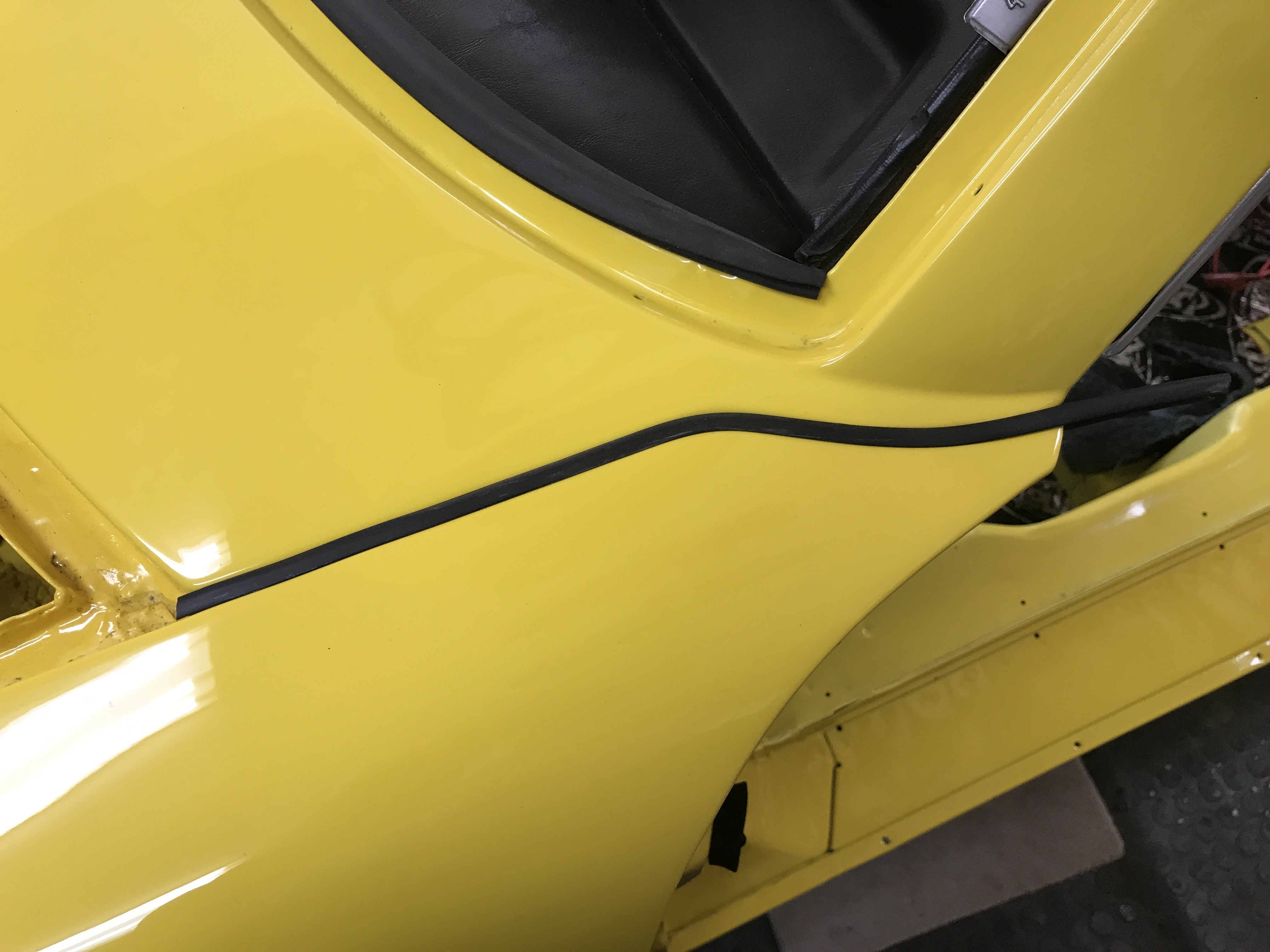

I installed them both, but left them uncut to see if they shrink a bit with time.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jun 8 2021, 07:10 AM
Post #2908


Michael
**********

Group: Members
Posts: 10,022
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Looking beautiful. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Jun 8 2021, 09:26 AM
Post #2909


Senior Member
***

Group: Members
Posts: 1,395
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
Fantastic progress Bob. I just back from Colorado and sent my badly butchered wiring harness back here to Texas. Will be referring back to your wiring build to hopefully make a working harness.

Hope the head rebuild goes well. Cant wait to see the next phase.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Jun 8 2021, 10:46 AM
Post #2910


Village Idiot
*****

Group: Members
Posts: 8,425
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Also still dealing with a butchered wiring harness. It's very frustrating when people don't understand what they are messing with.

Very nice! Love catching up on this thread.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jun 8 2021, 01:02 PM
Post #2911


Advanced Member
****

Group: Members
Posts: 3,545
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
QUOTE(bkrantz @ Jun 7 2021, 07:15 PM) *

Success! Here are both indicators on with the emergency flashers on. They also work individually with the turn signals on. And I had to invert the left and right wires to reconcile the circuit change in the new flasher relay.


Our project has both turn signals and the 4 way flashers working, but not the indicator lights are not lighting. is there a separate feed for the indicator lights.

BTW: looks great
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:44 PM
Post #2912


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(930cabman @ Jun 8 2021, 01:02 PM) *

QUOTE(bkrantz @ Jun 7 2021, 07:15 PM) *

Success! Here are both indicators on with the emergency flashers on. They also work individually with the turn signals on. And I had to invert the left and right wires to reconcile the circuit change in the new flasher relay.


Our project has both turn signals and the 4 way flashers working, but not the indicator lights are not lighting. is there a separate feed for the indicator lights.

BTW: looks great


Sounds like you have the same problem I had. The positive feeds to the left and right indicator lights in the tach (black/green and black/white wires, from the hazard switch) were working but the ground was not. I added the ground as per the design of Spoke and got the indicators to work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:46 PM
Post #2913


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(Root_Werks @ Jun 8 2021, 10:46 AM) *

Also still dealing with a butchered wiring harness. It's very frustrating when people don't understand what they are messing with.

Very nice! Love catching up on this thread.


Thanks. The wire harness work was the most tedious part of the project so far. But now I am happy that I spent weeks with the harness laid out on a big table, and traced every wire and connection, and fixed everything that looked bad.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:47 PM
Post #2914


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

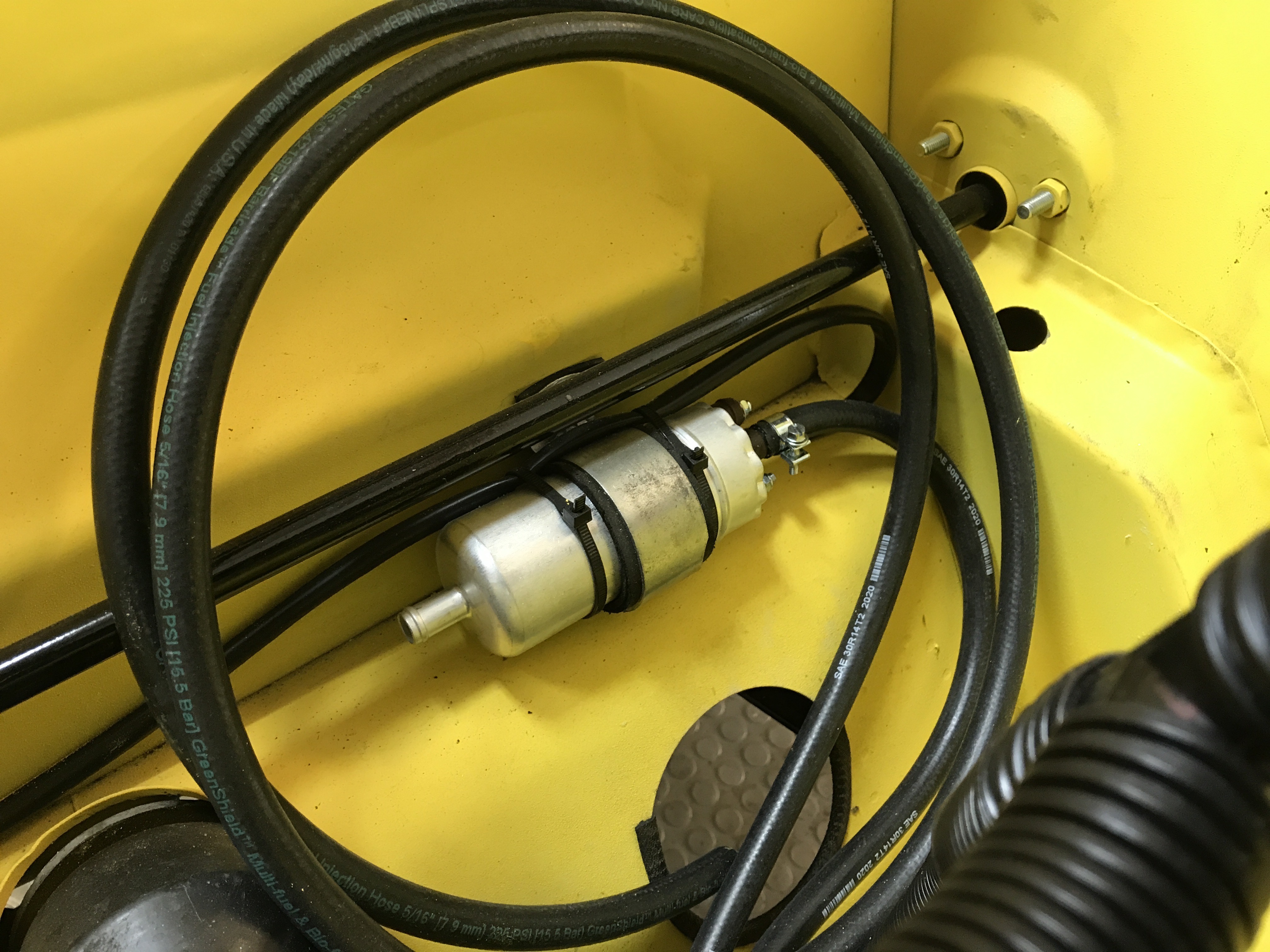

Fuel pump runs (with the correct connection tab on the relay board grounded).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:49 PM
Post #2915


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

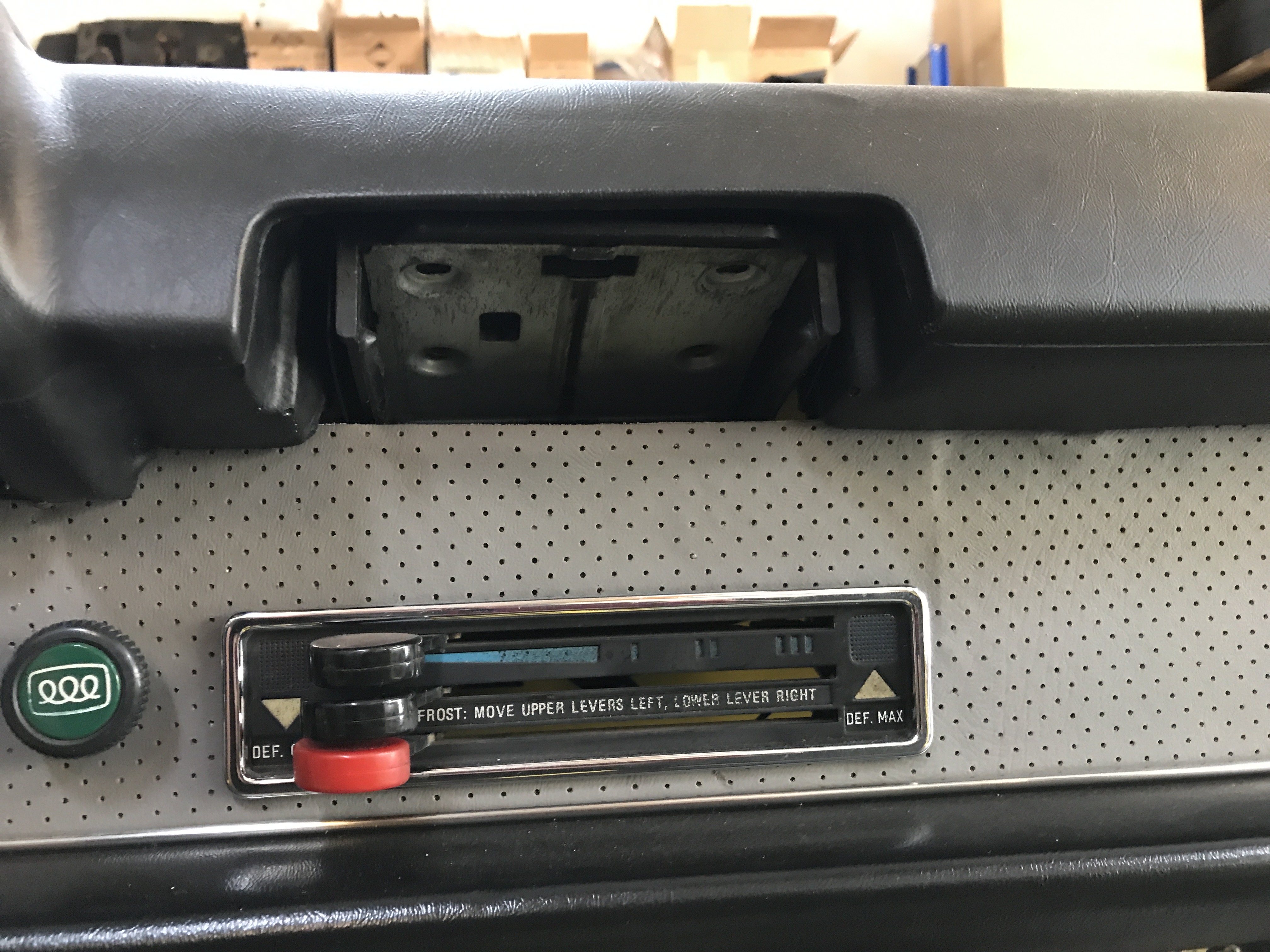

Here's my idea for moving the interior light to the ashtray slot. Seems like a good place for a cabin light.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:50 PM
Post #2916


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

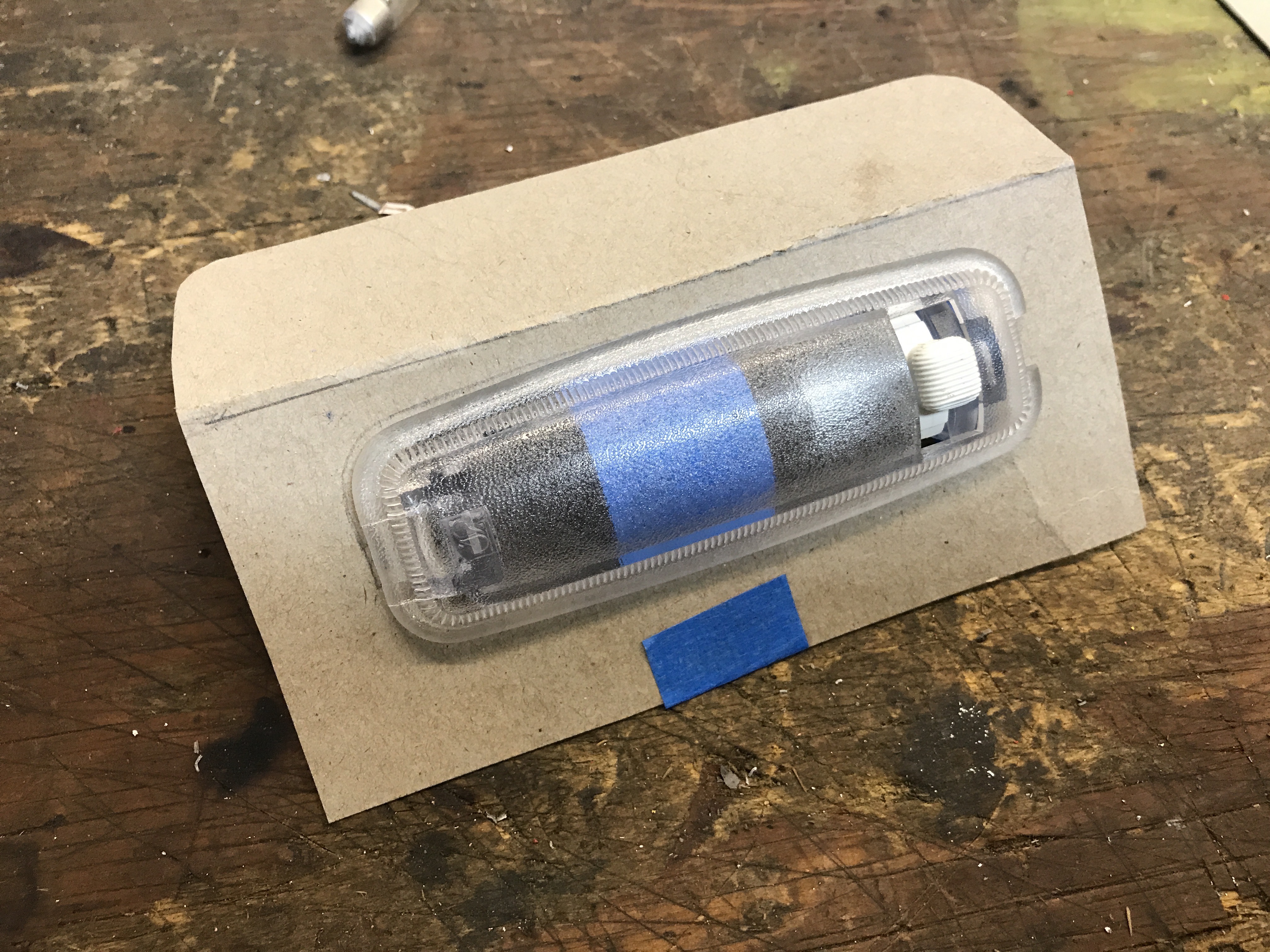

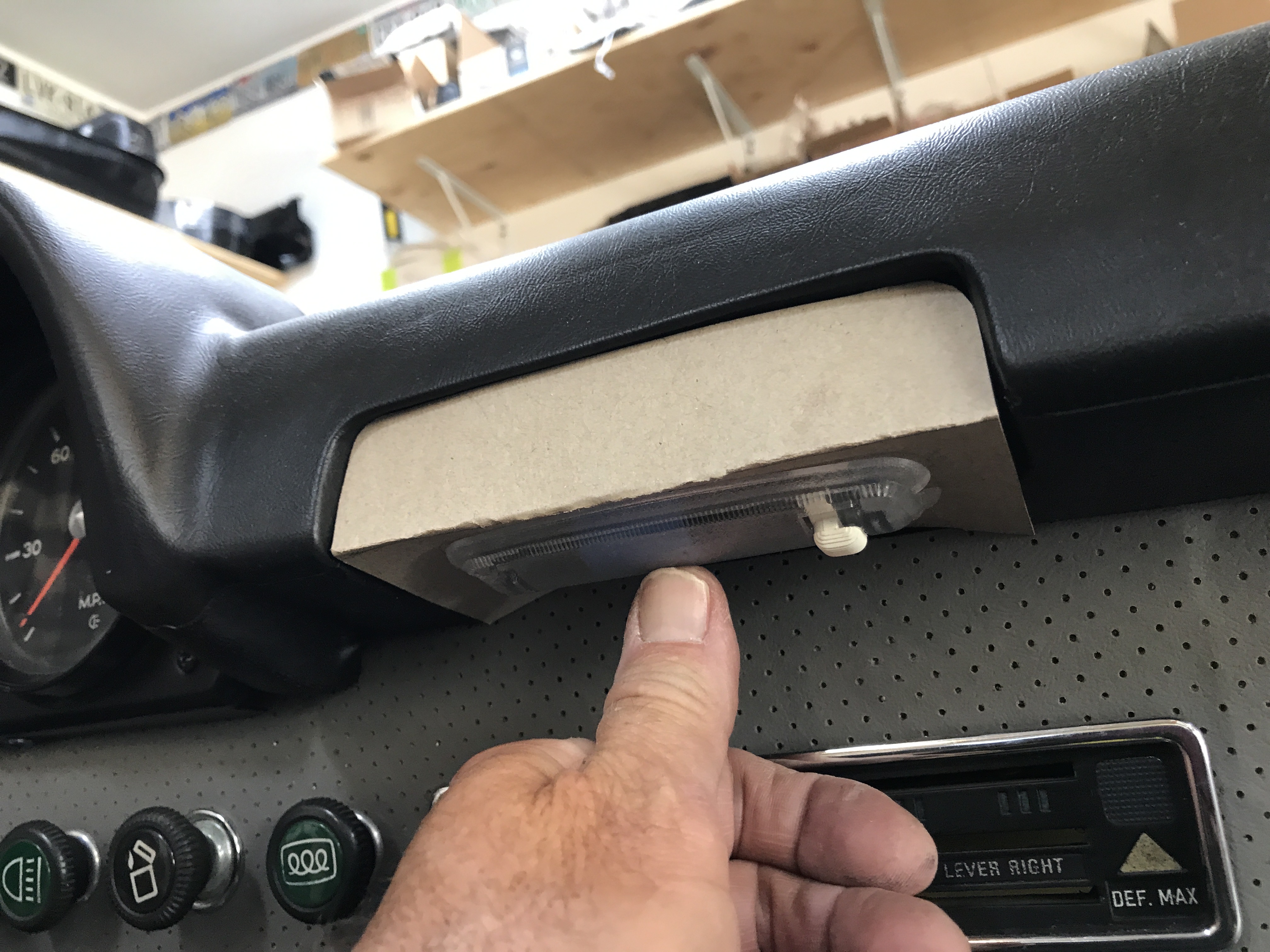

I mocked up an insert that will hold the light fixture.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:51 PM
Post #2917


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
This could work.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:52 PM
Post #2918


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

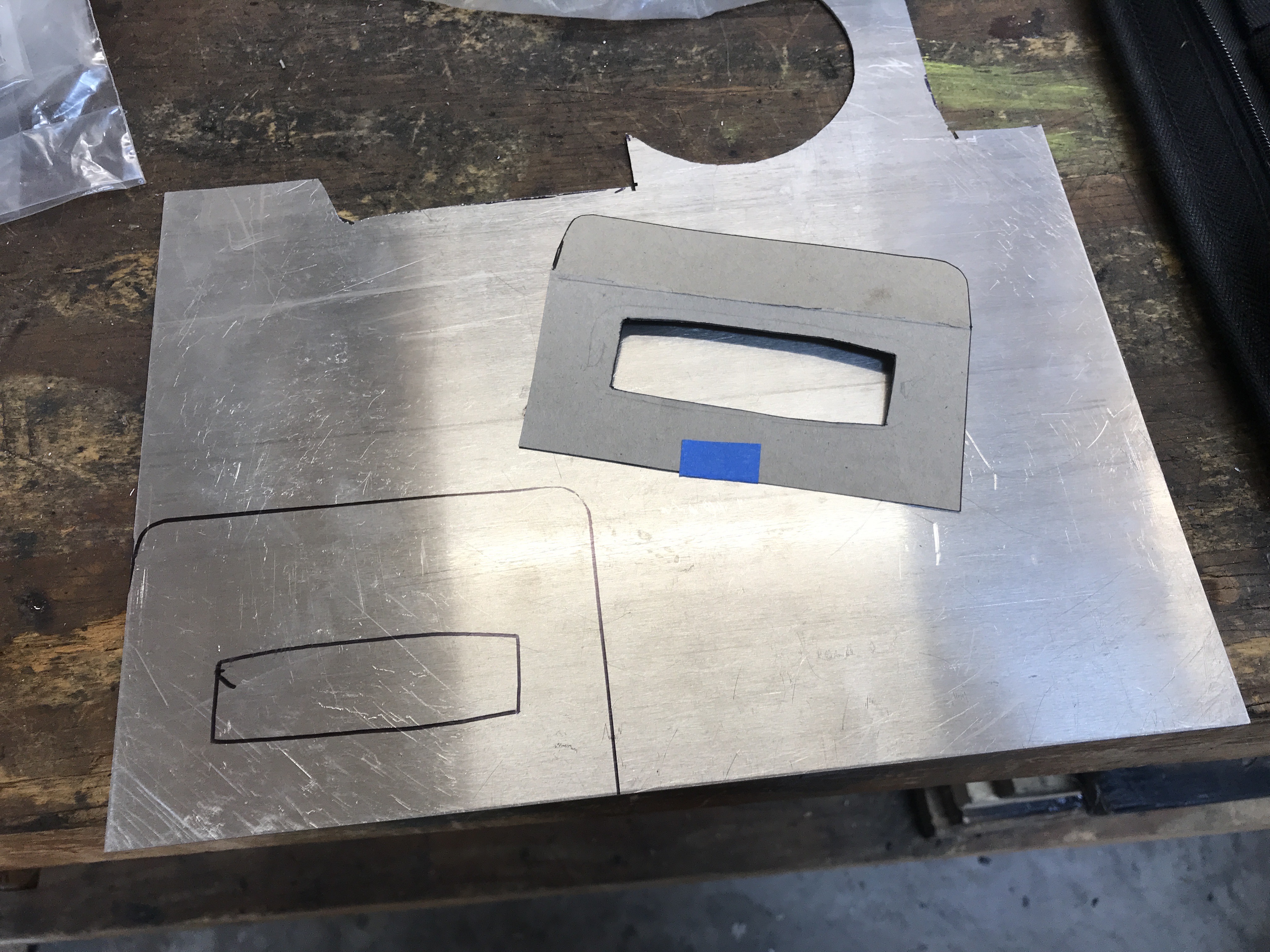

Now to fab this, starting with some aluminum sheet metal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:55 PM
Post #2919


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

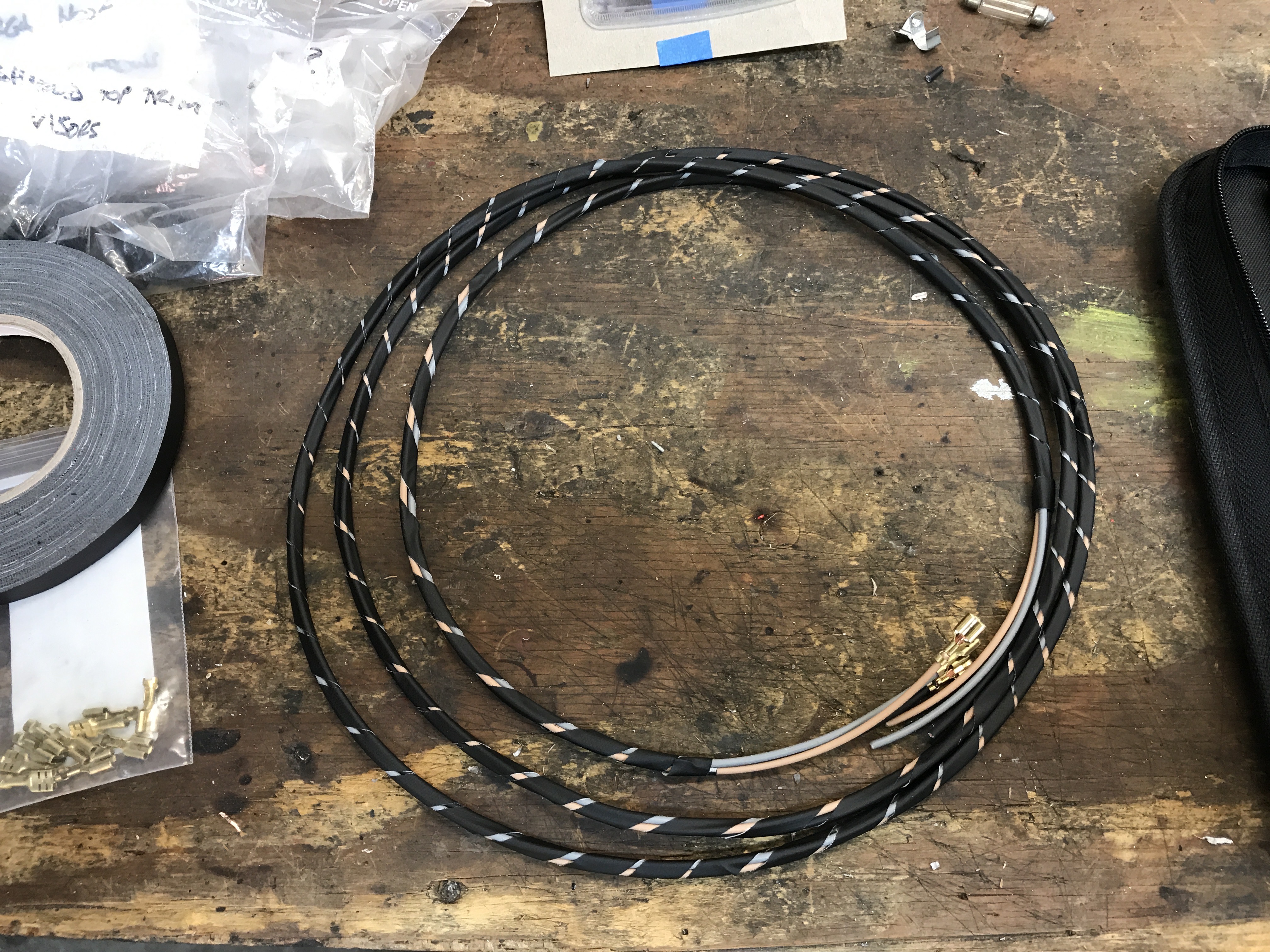

Here's the new bit of harness to extend the interior light leads. I already re-routed the existing wires from up between the seats to forward along the center tunnel.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 8 2021, 08:56 PM
Post #2920


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

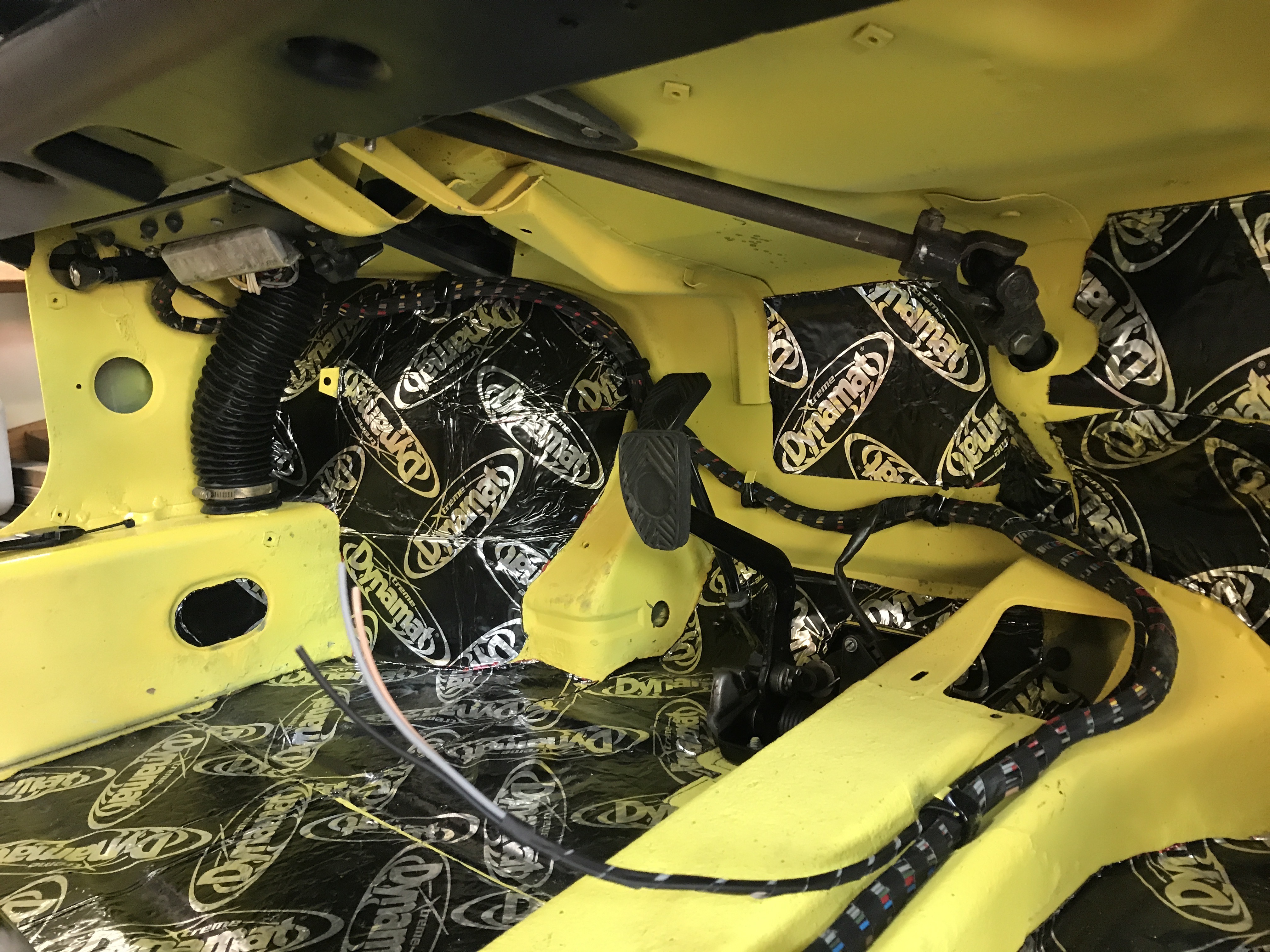

I ran the extension to follow the existing harness, behind the pedals and up under the dash.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
