Easy to feed this in from the rear, and then mount the fork and lock nut.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:25 PM
Post
#3022
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

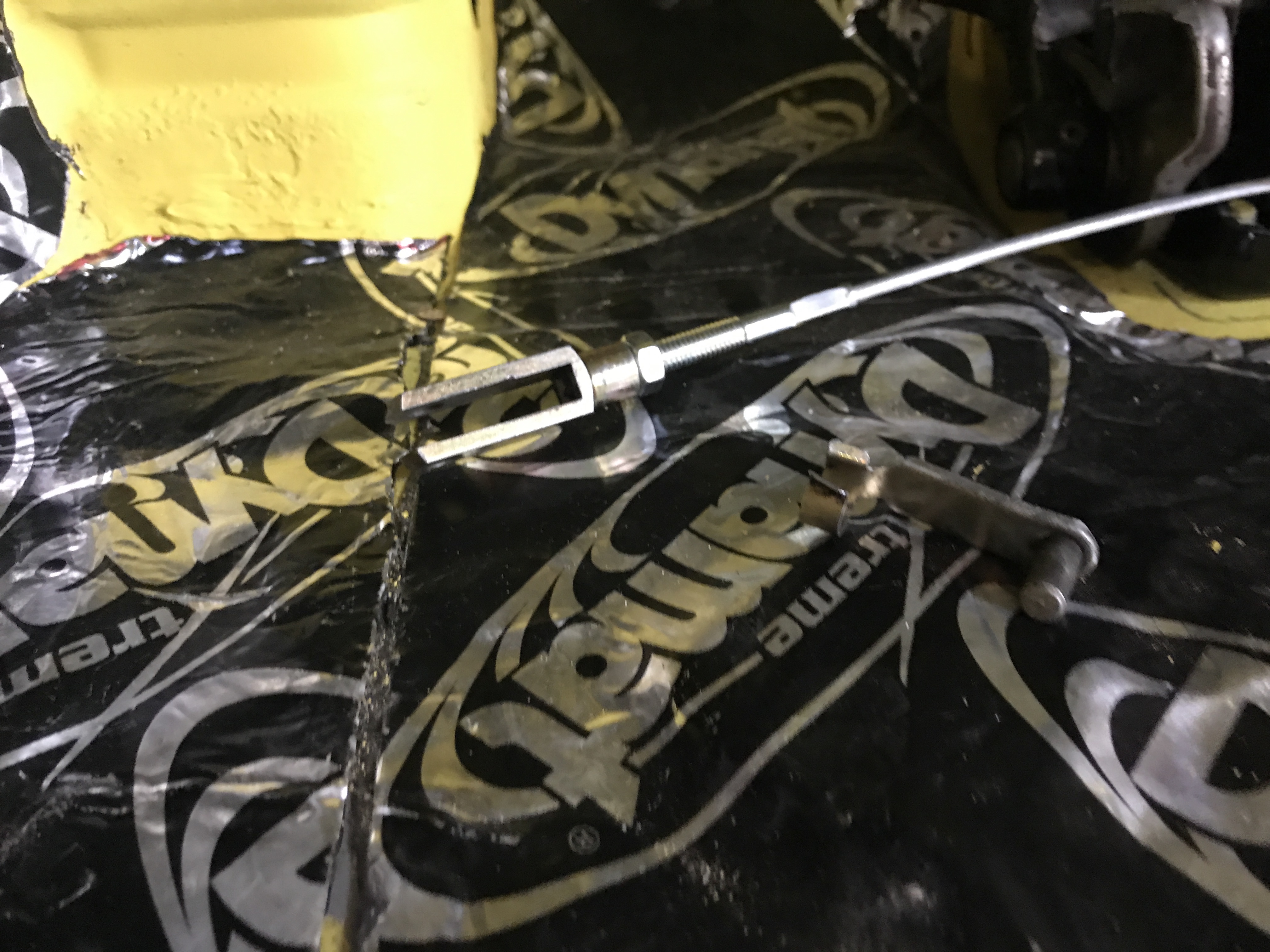

A bit fiddly, but I then got the retaining pin attached.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:26 PM
Post
#3023
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

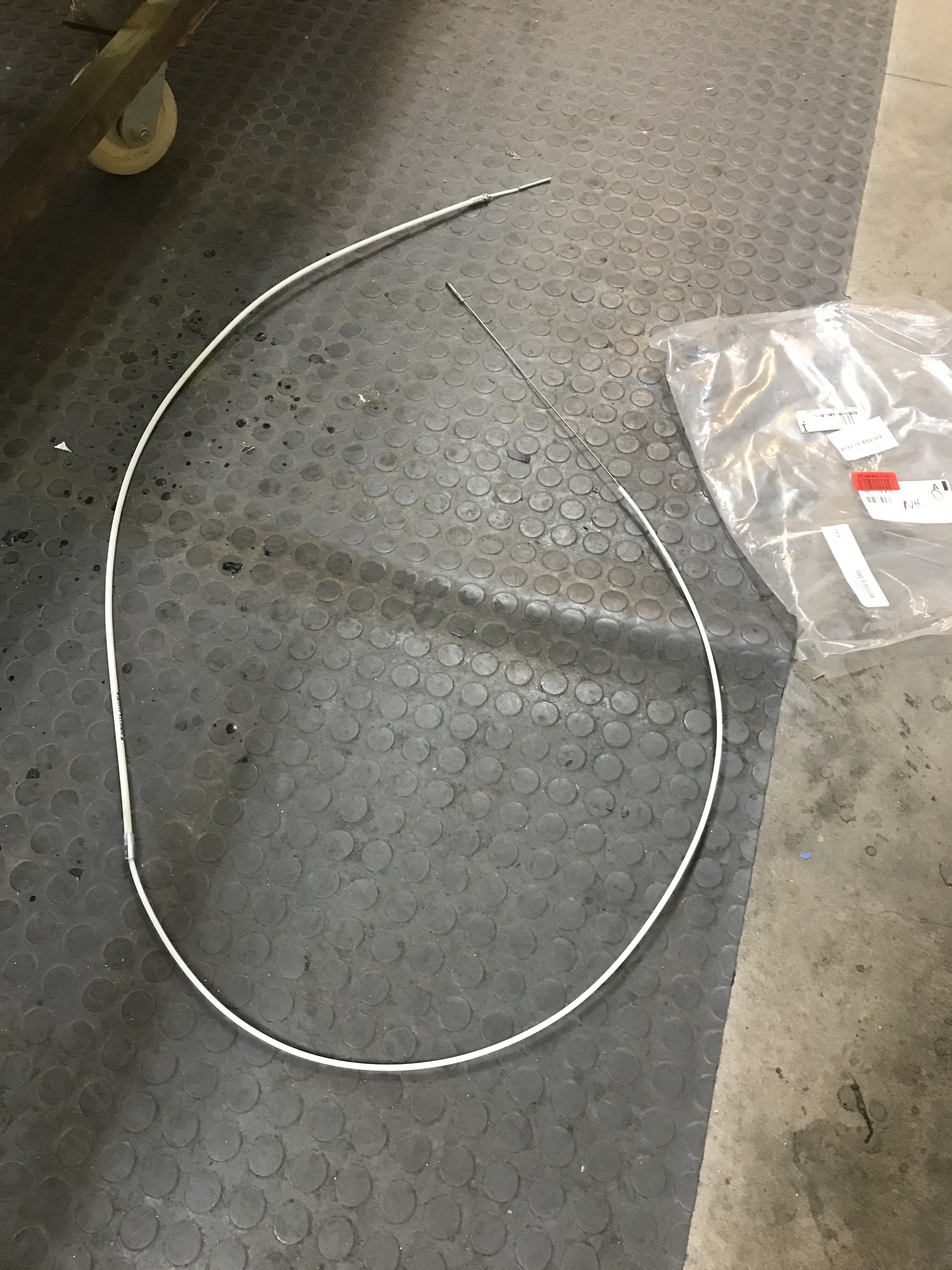

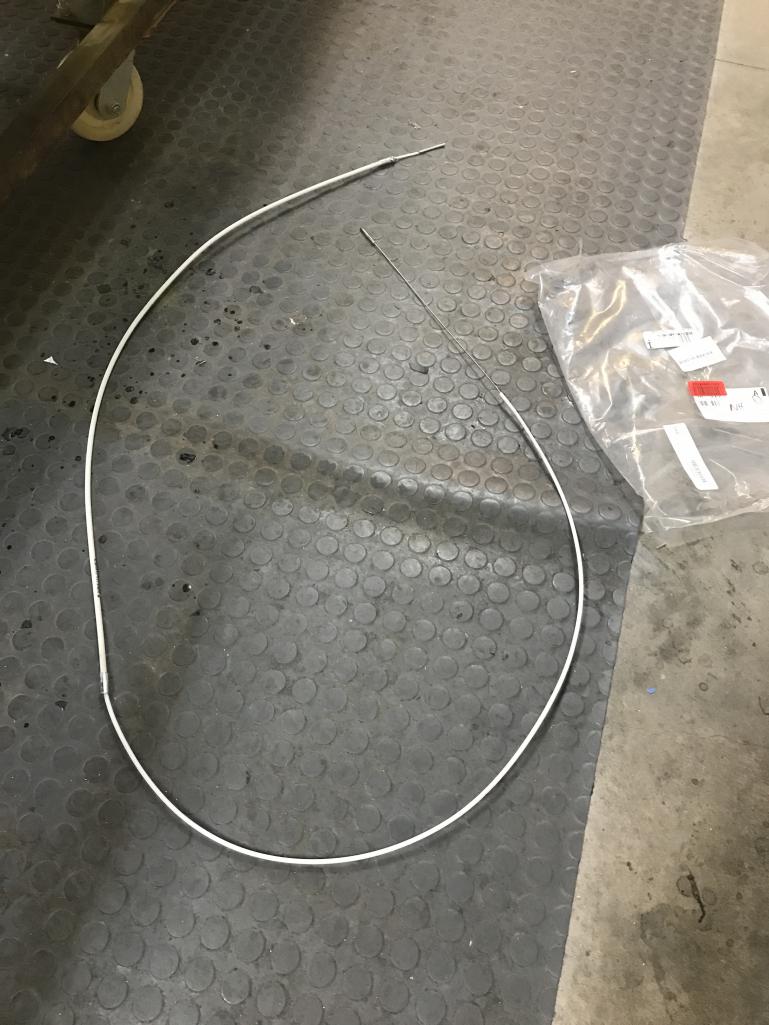

Next, the throttle cable, also a Porsche part.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:26 PM
Post
#3024
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

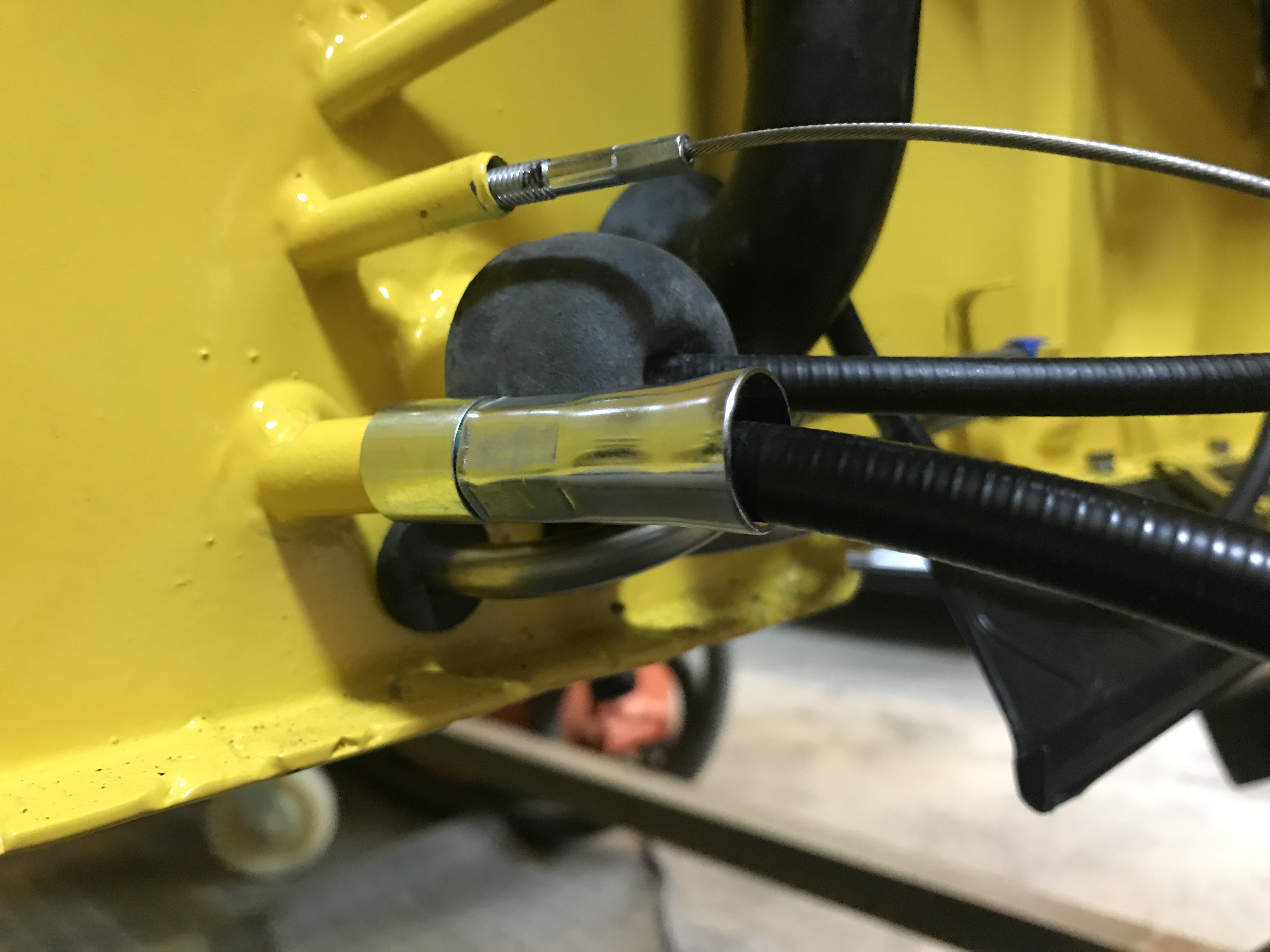

Also fed in from the rear.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:27 PM
Post
#3025
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

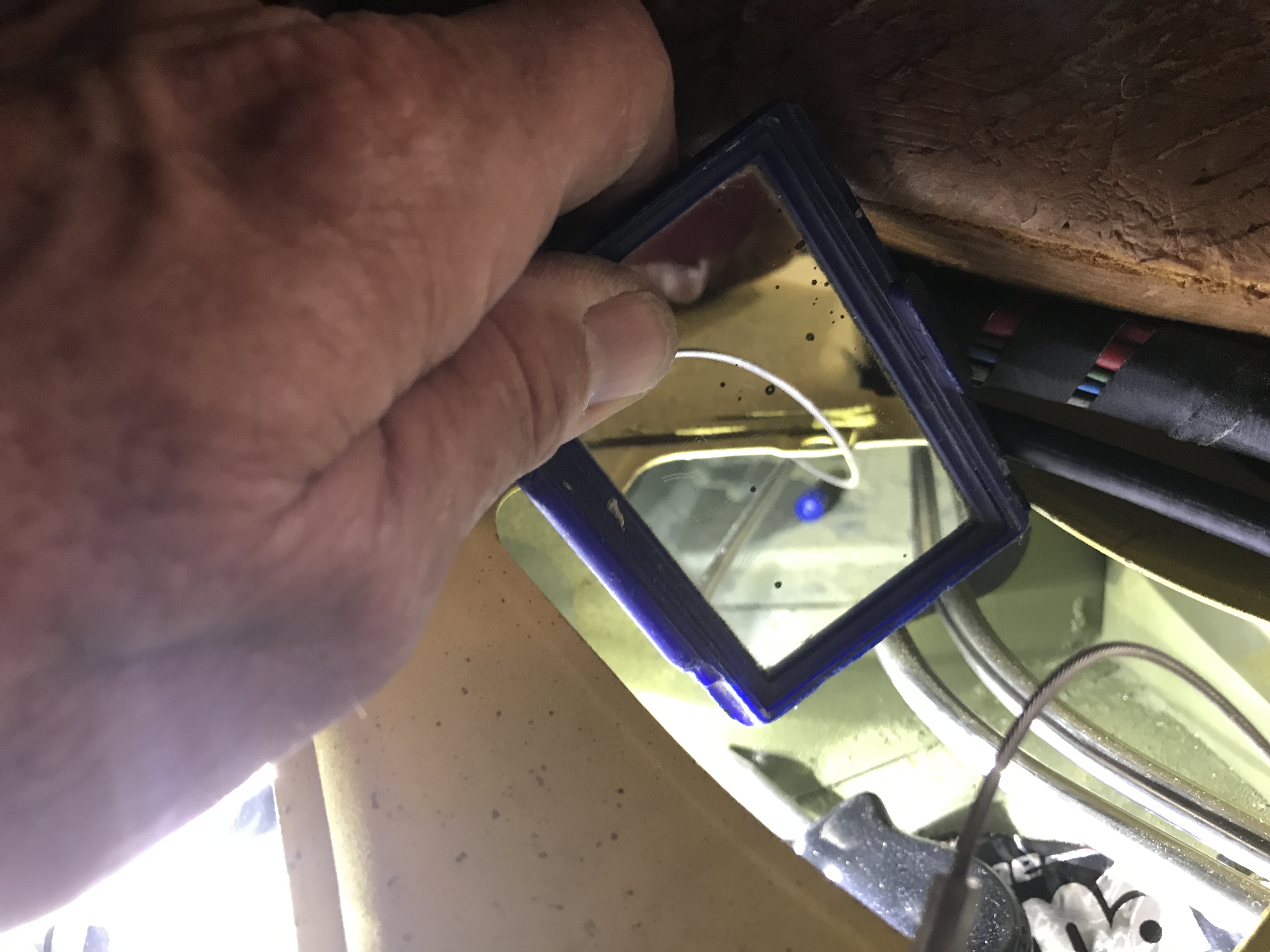

And then I made sure it was not wrapped around the clutch cable.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:29 PM
Post
#3026
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

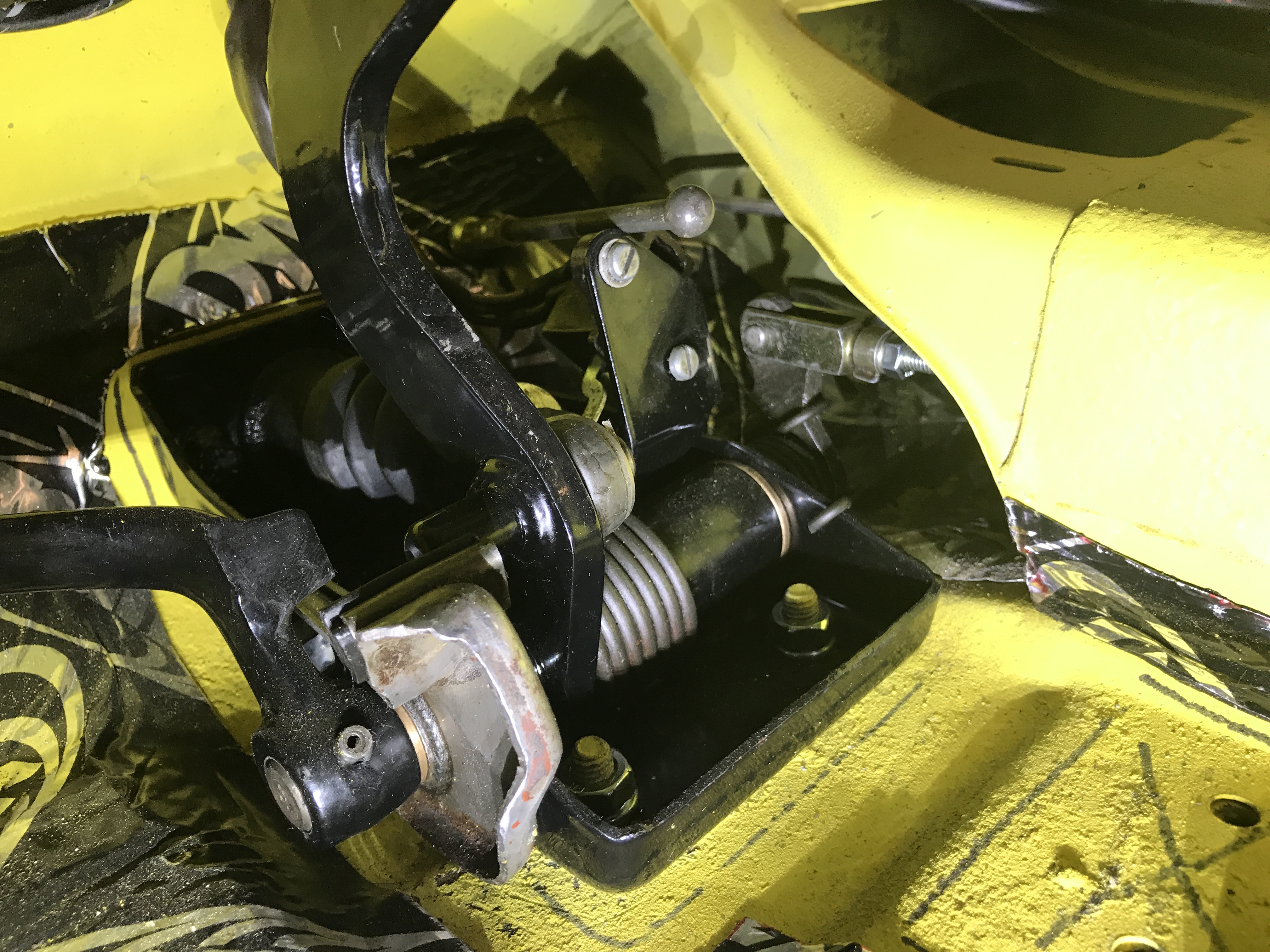

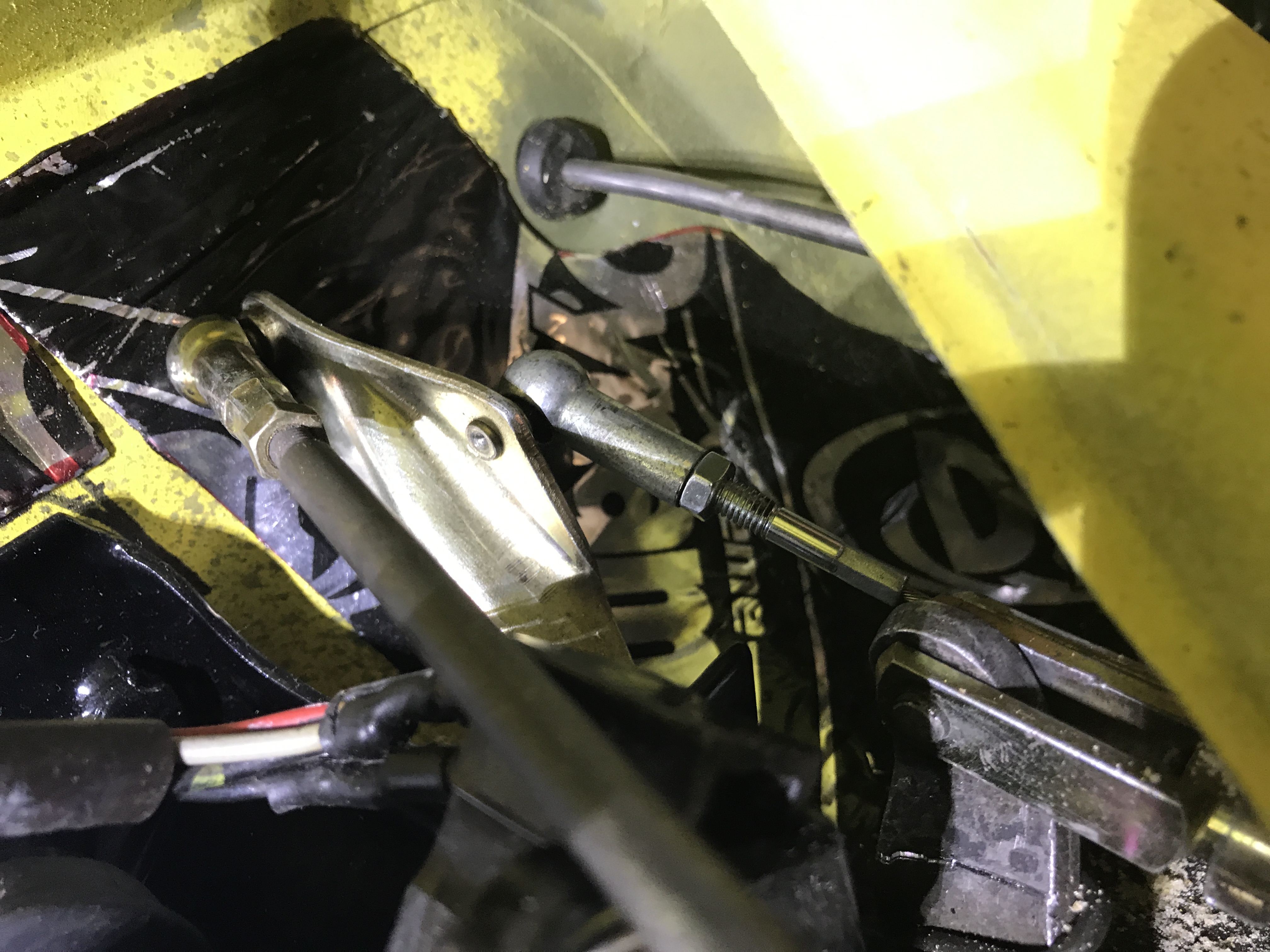

And then I attached the ball joint, and mounted that onto the pedal crank.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:30 PM
Post
#3027
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

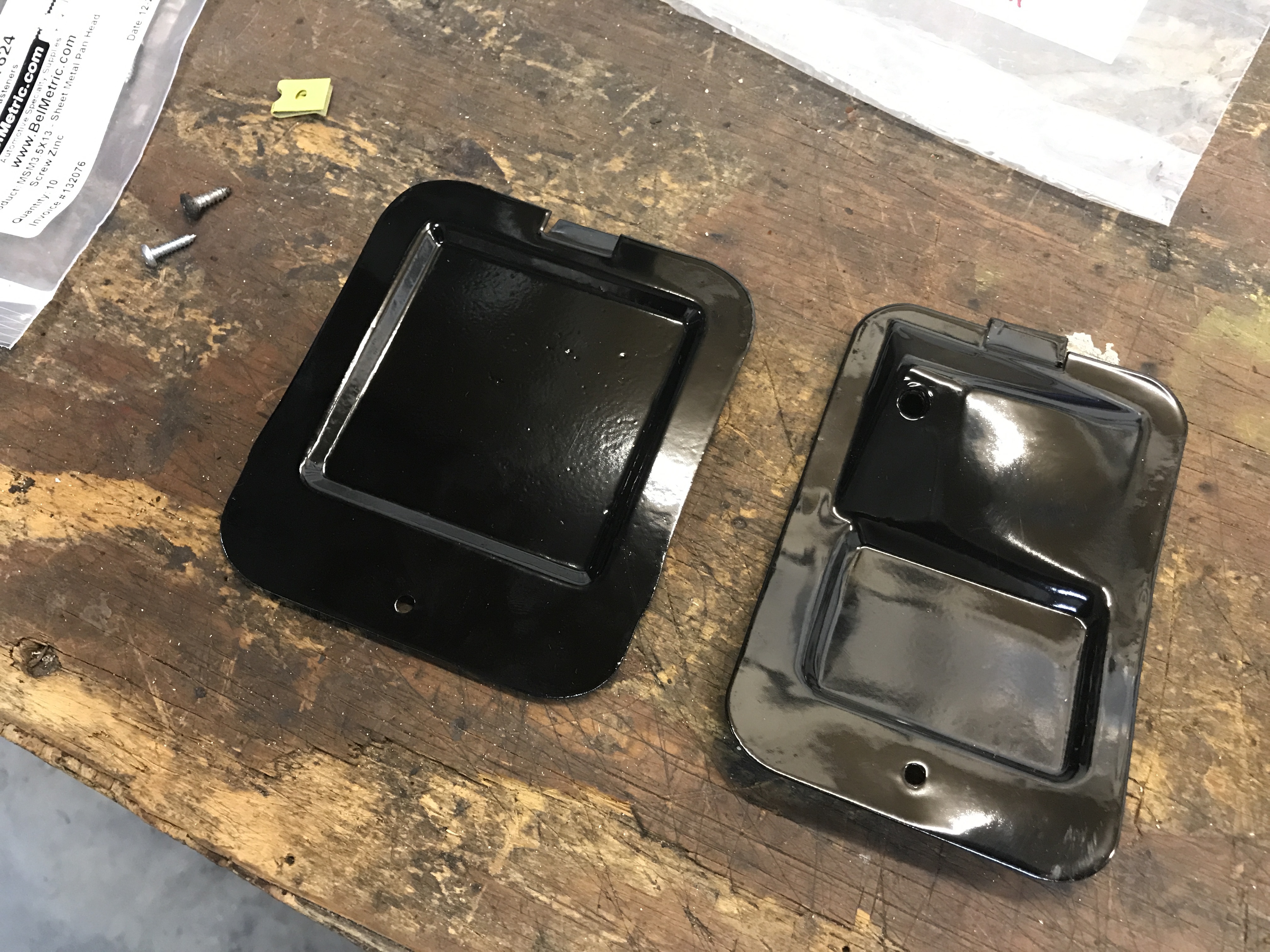

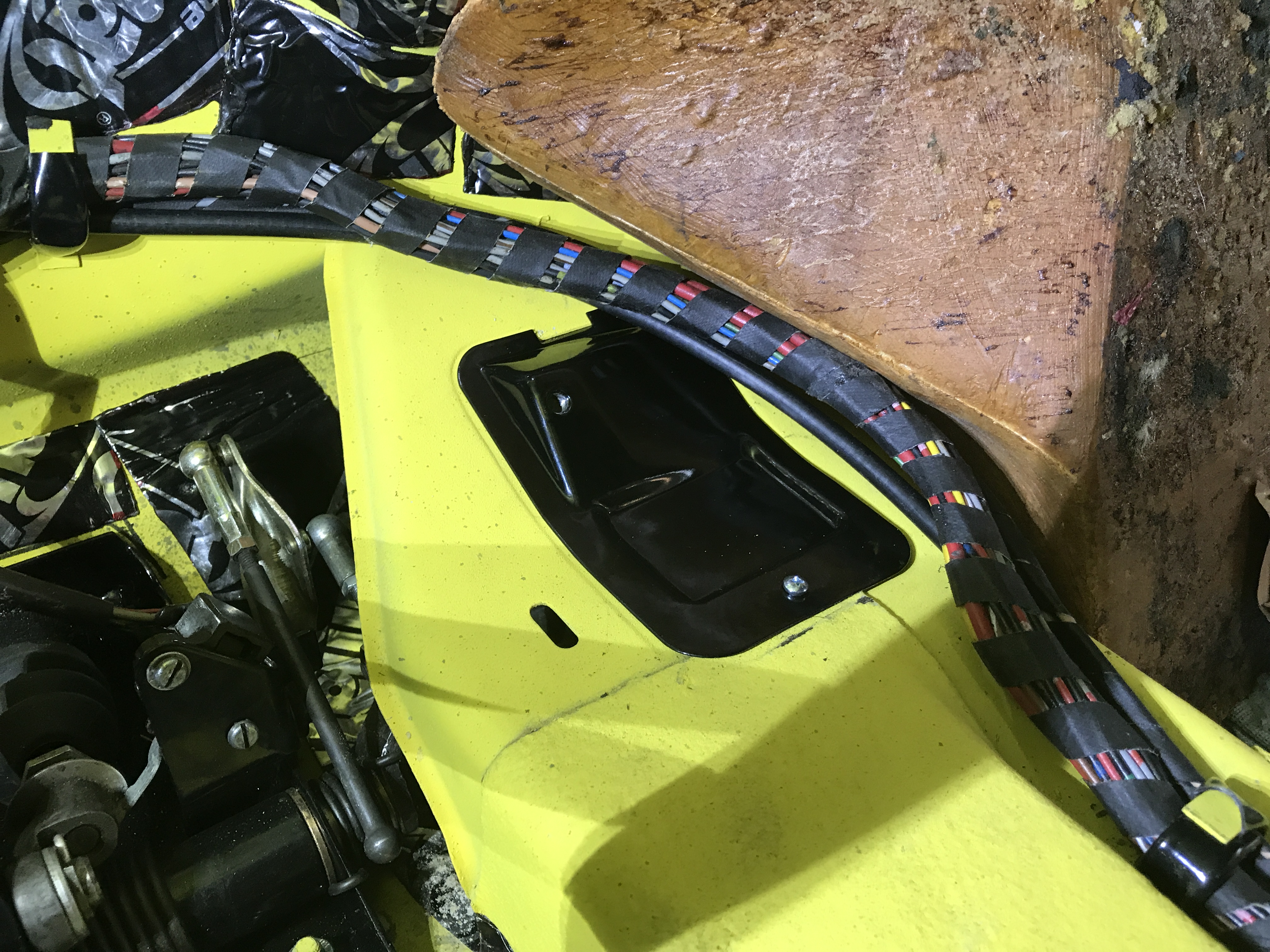

Then I installed the covers for the tunnel. I dug these out of the powder-coated box.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:32 PM
Post
#3028
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

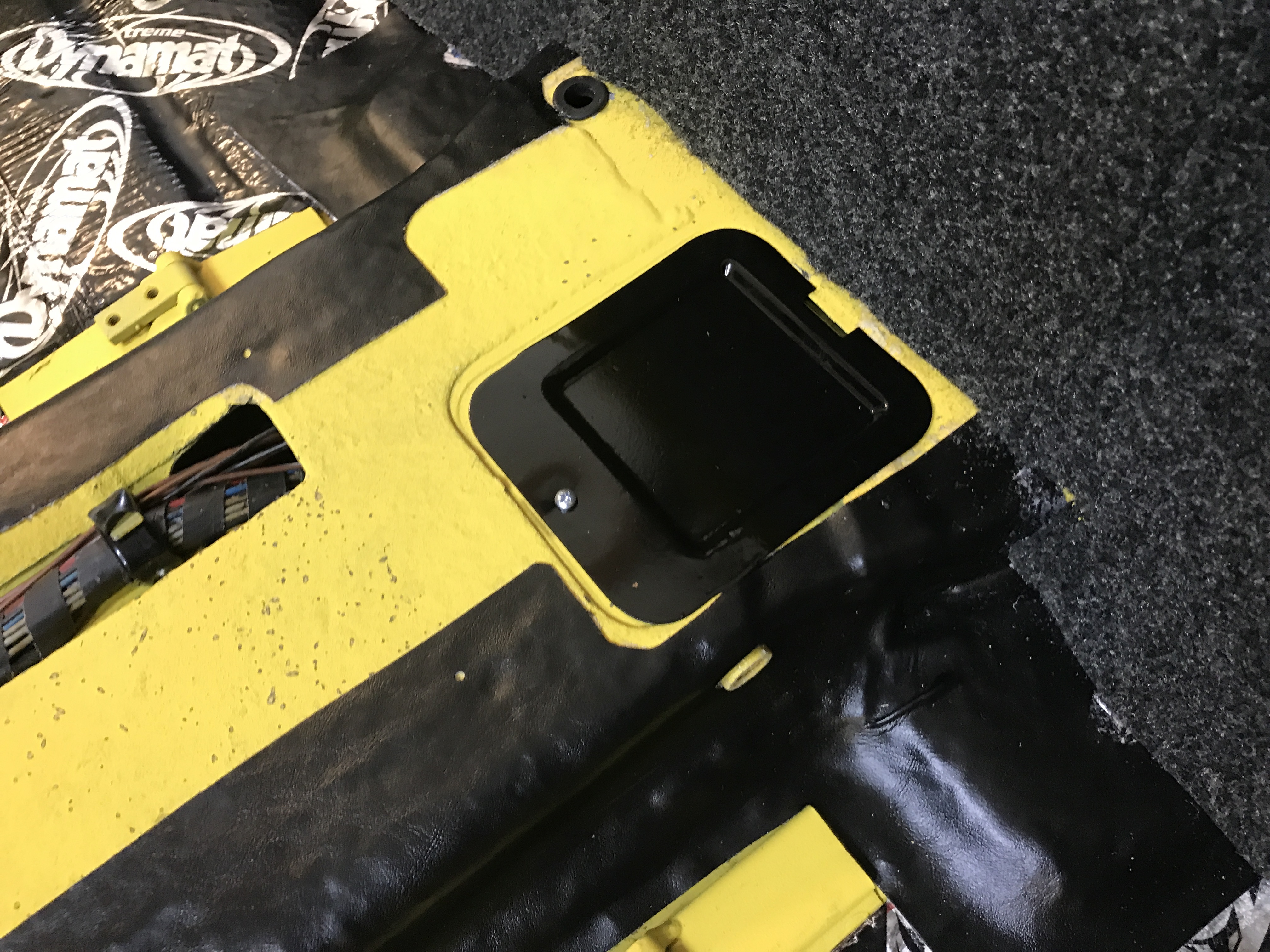

Rear cover installed.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:32 PM
Post
#3029
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

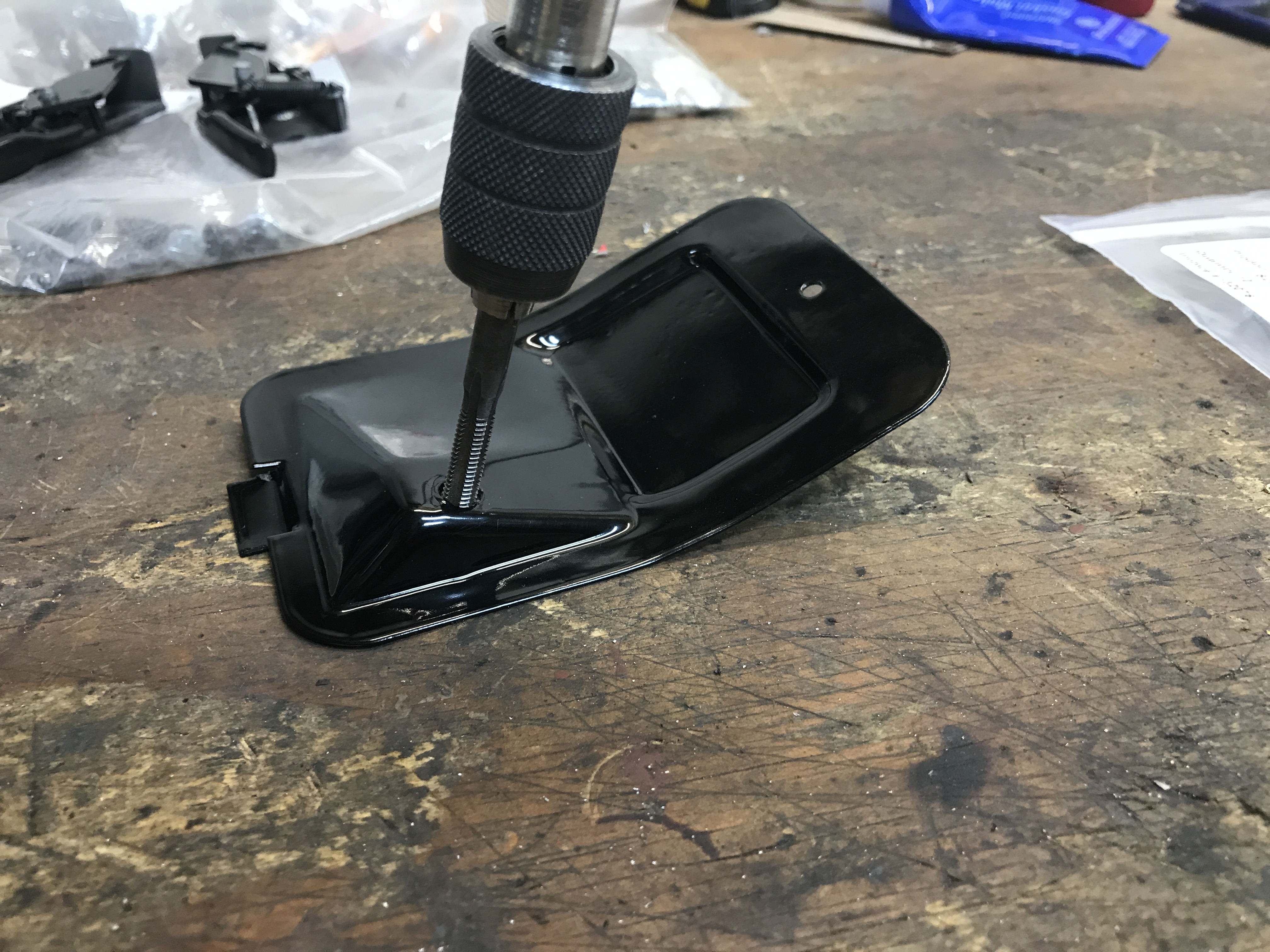

Threaded captive nut threads cleaned.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:33 PM
Post
#3030
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And front cover installed.
Attached thumbnail(s) |
bkrantz |
Jun 16 2021, 07:34 PM
Post
#3031
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I have not shown a shot of my white board in a while, but these lists are pretty much done.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 06:56 PM
Post
#3032
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

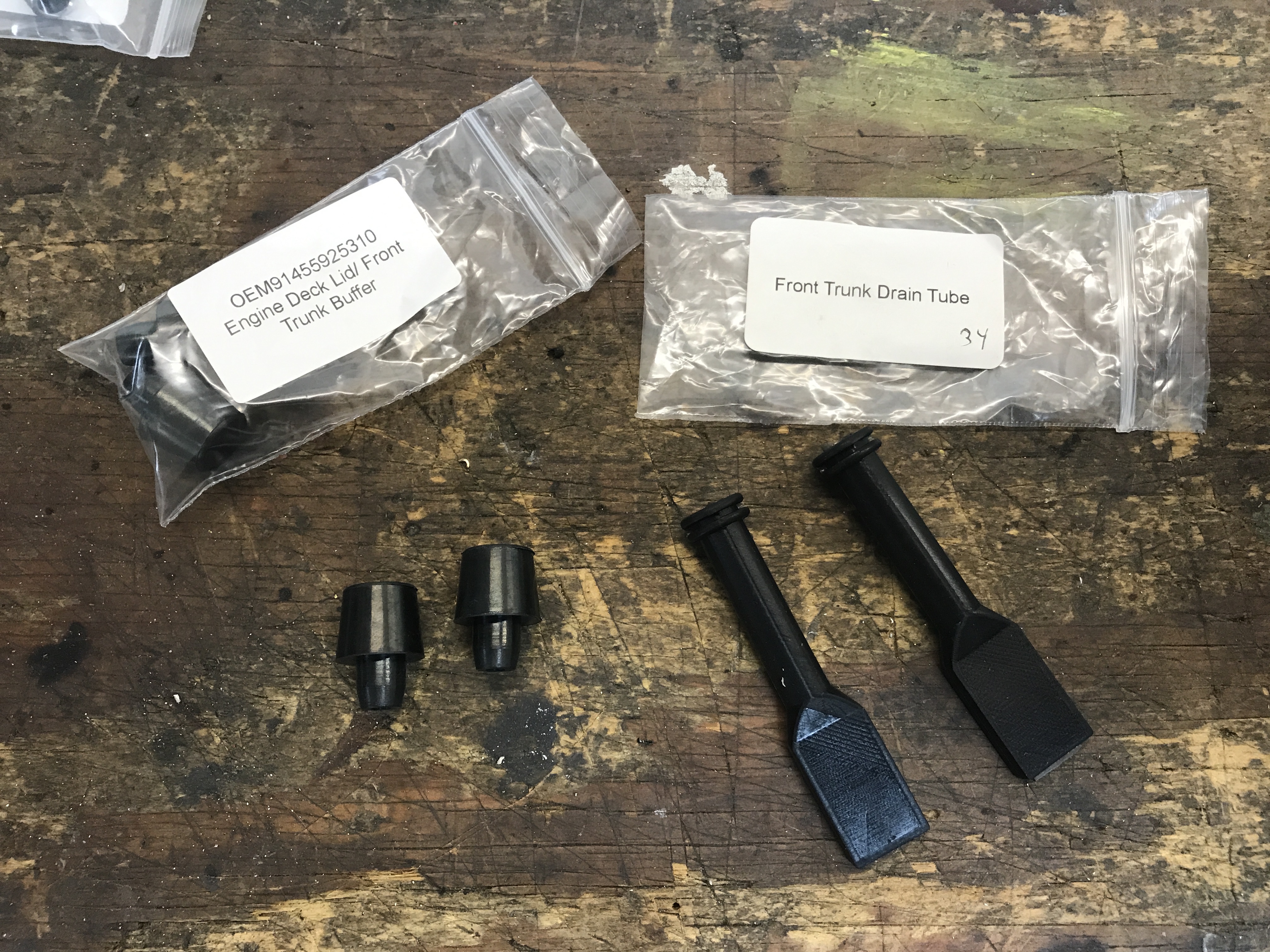

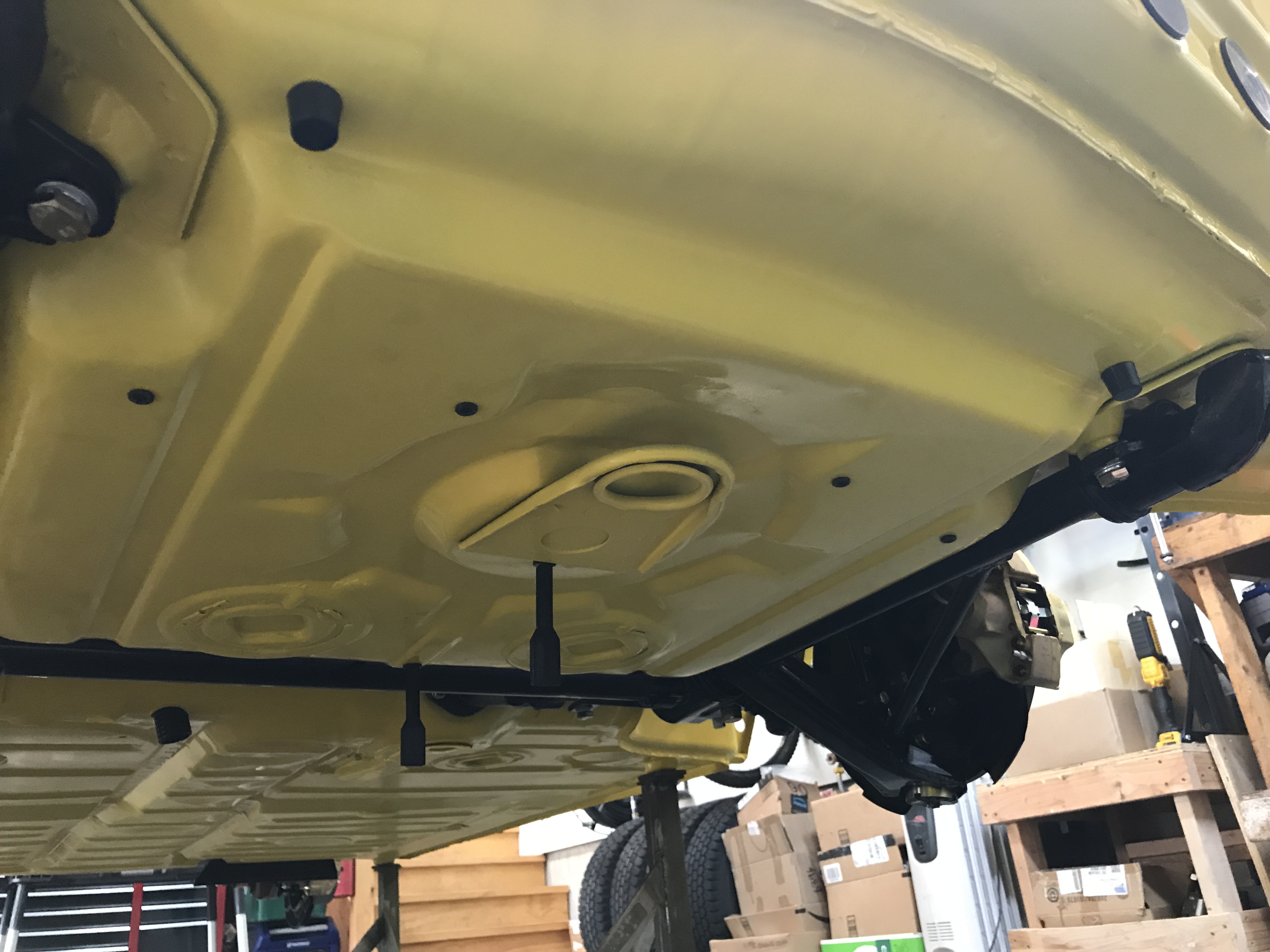

I got out the drains and plugs for the frunk floor.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 06:57 PM
Post
#3033
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

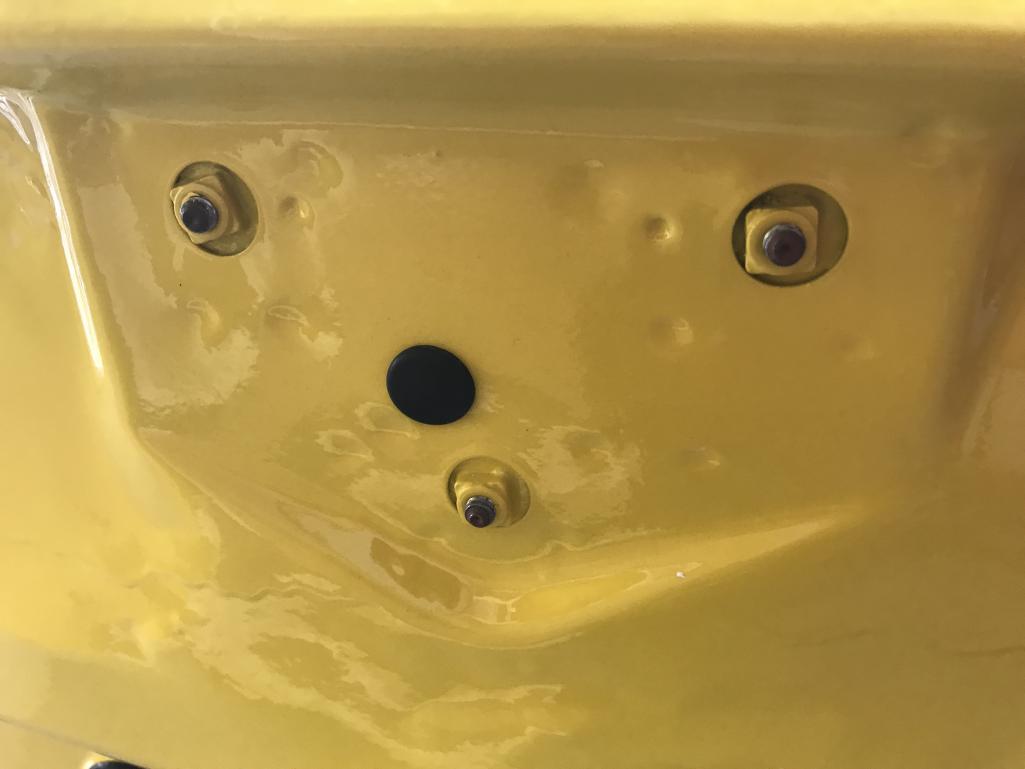

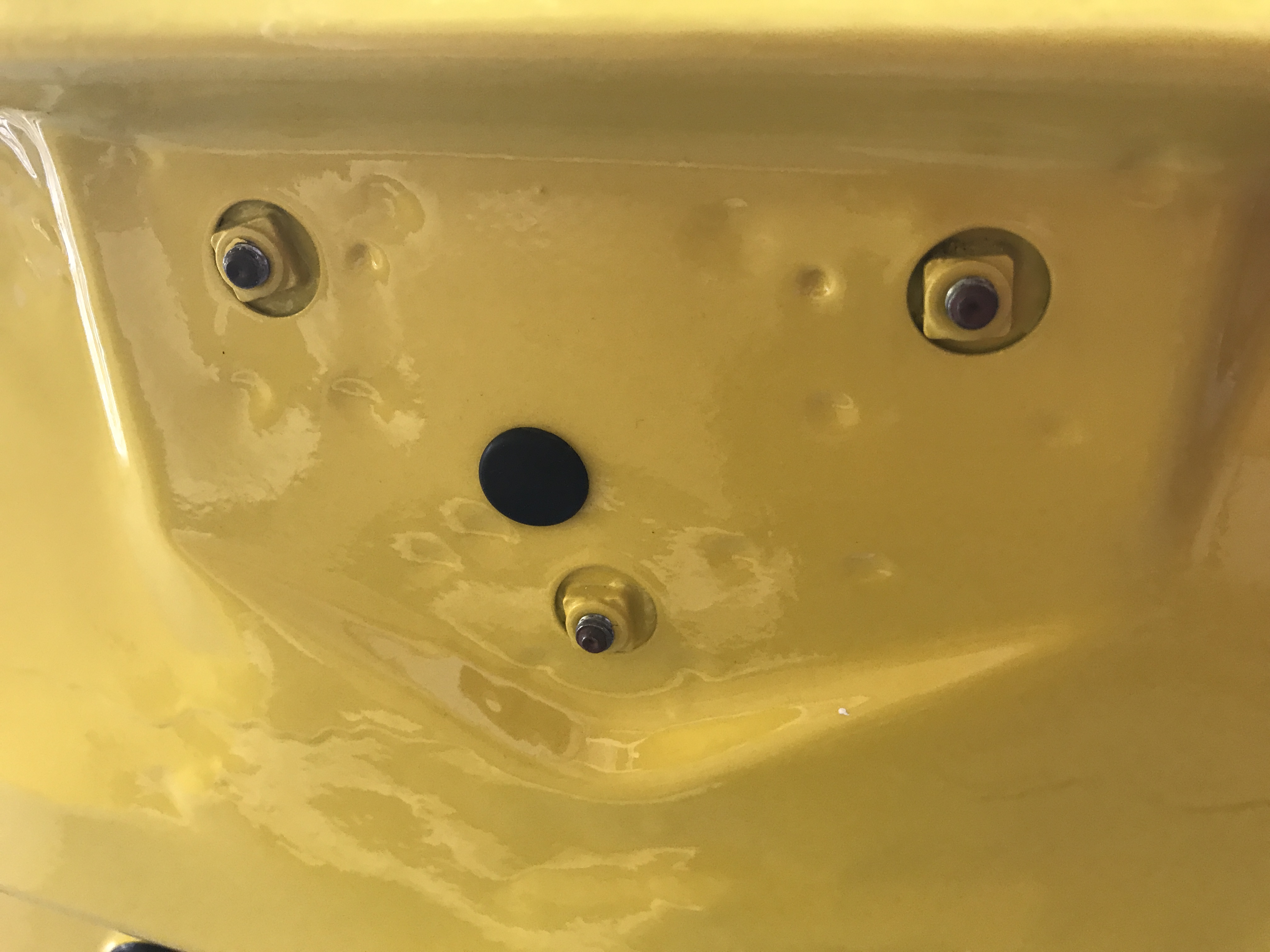

Along with a few standard rubber grommets, all the holes are filled.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 06:59 PM
Post
#3034
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And a larger grommet in my lumpy front panel.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 07:00 PM
Post
#3035
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

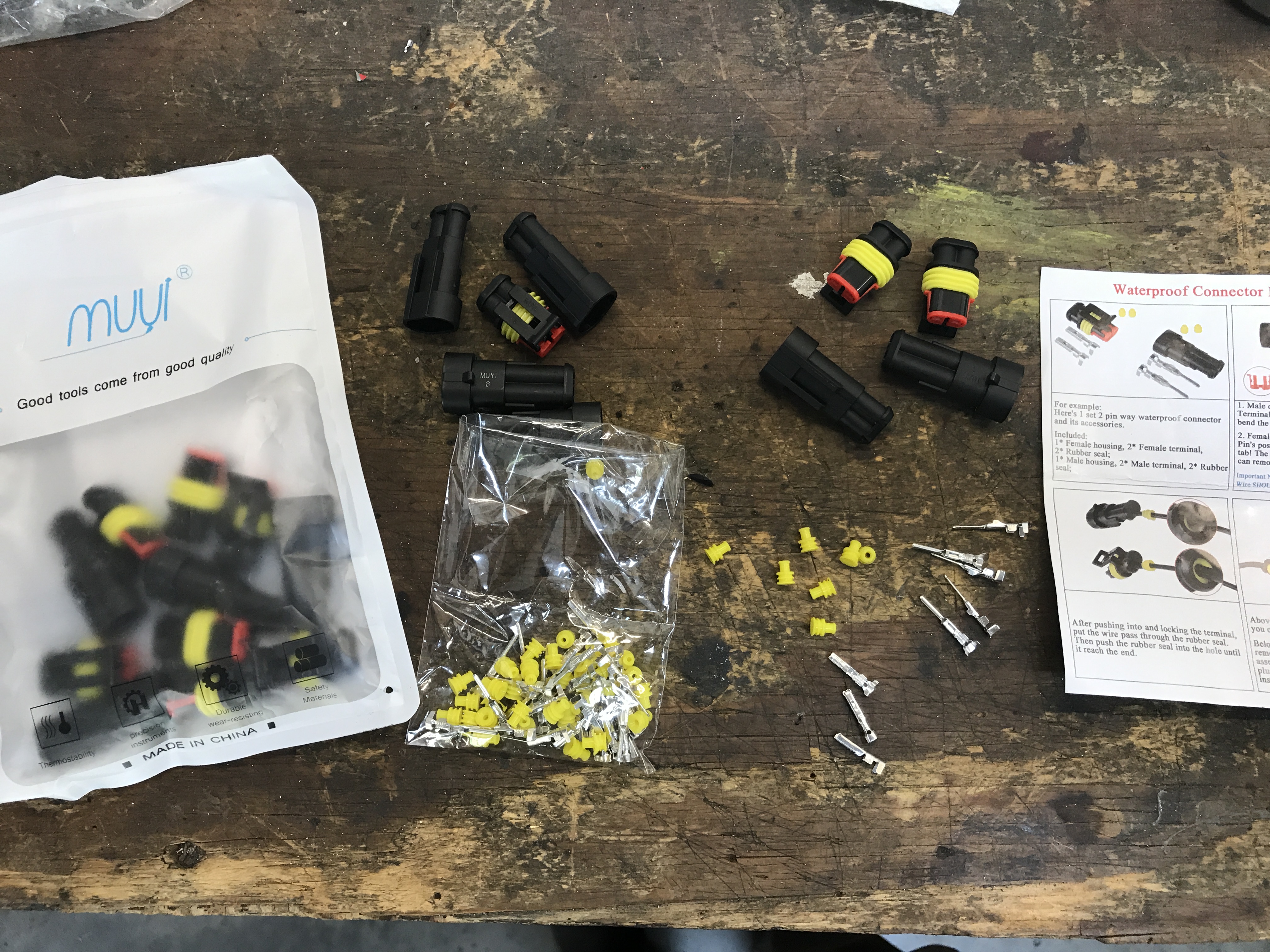

I got this kit for 2 pin waterproof connectors. It has all the components and weather sealing.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 07:02 PM
Post
#3036
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

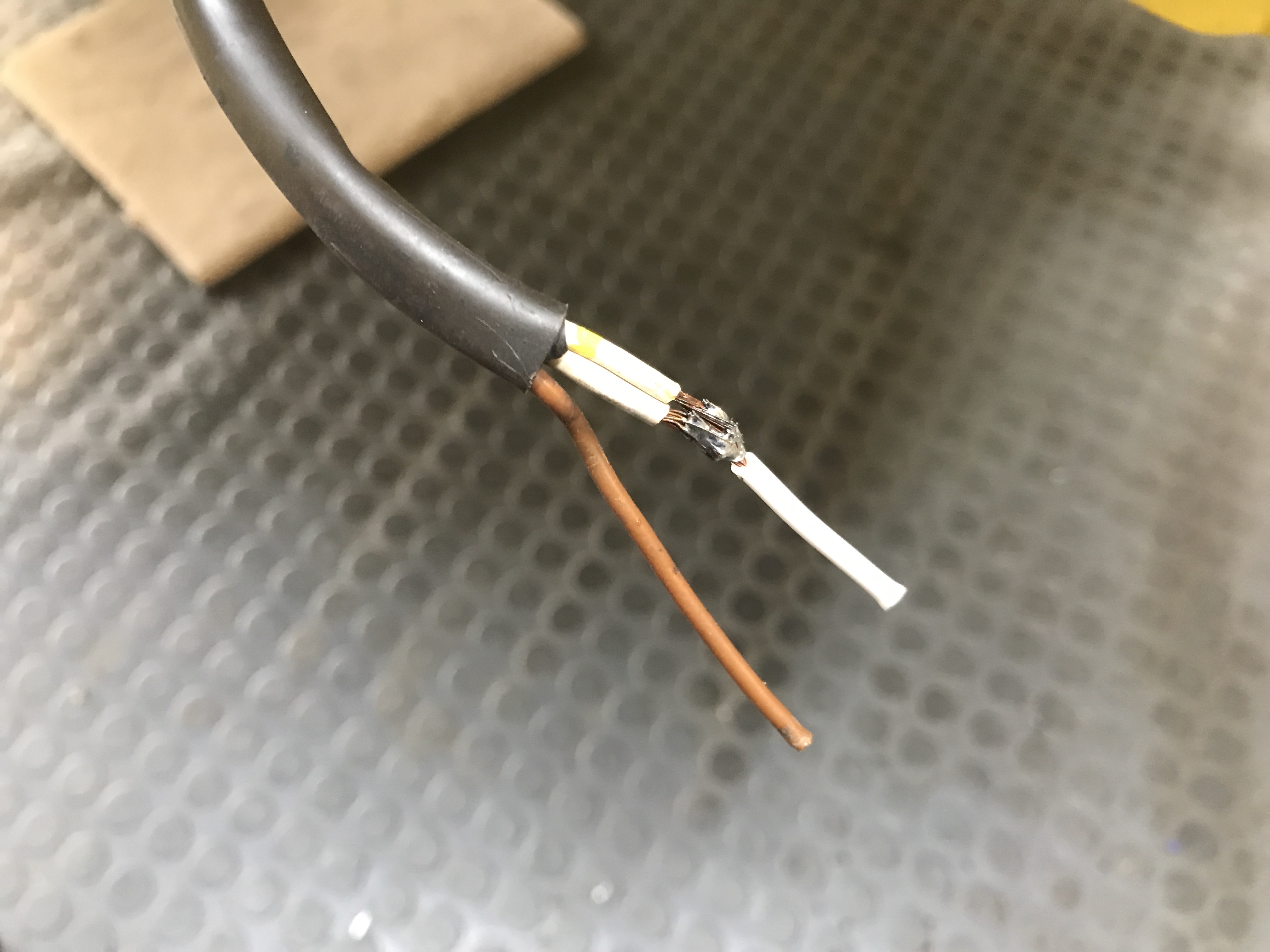

For these plugs to work on the left fog light, I had to add a single wire to the double lead (positive).
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 07:03 PM
Post
#3037
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

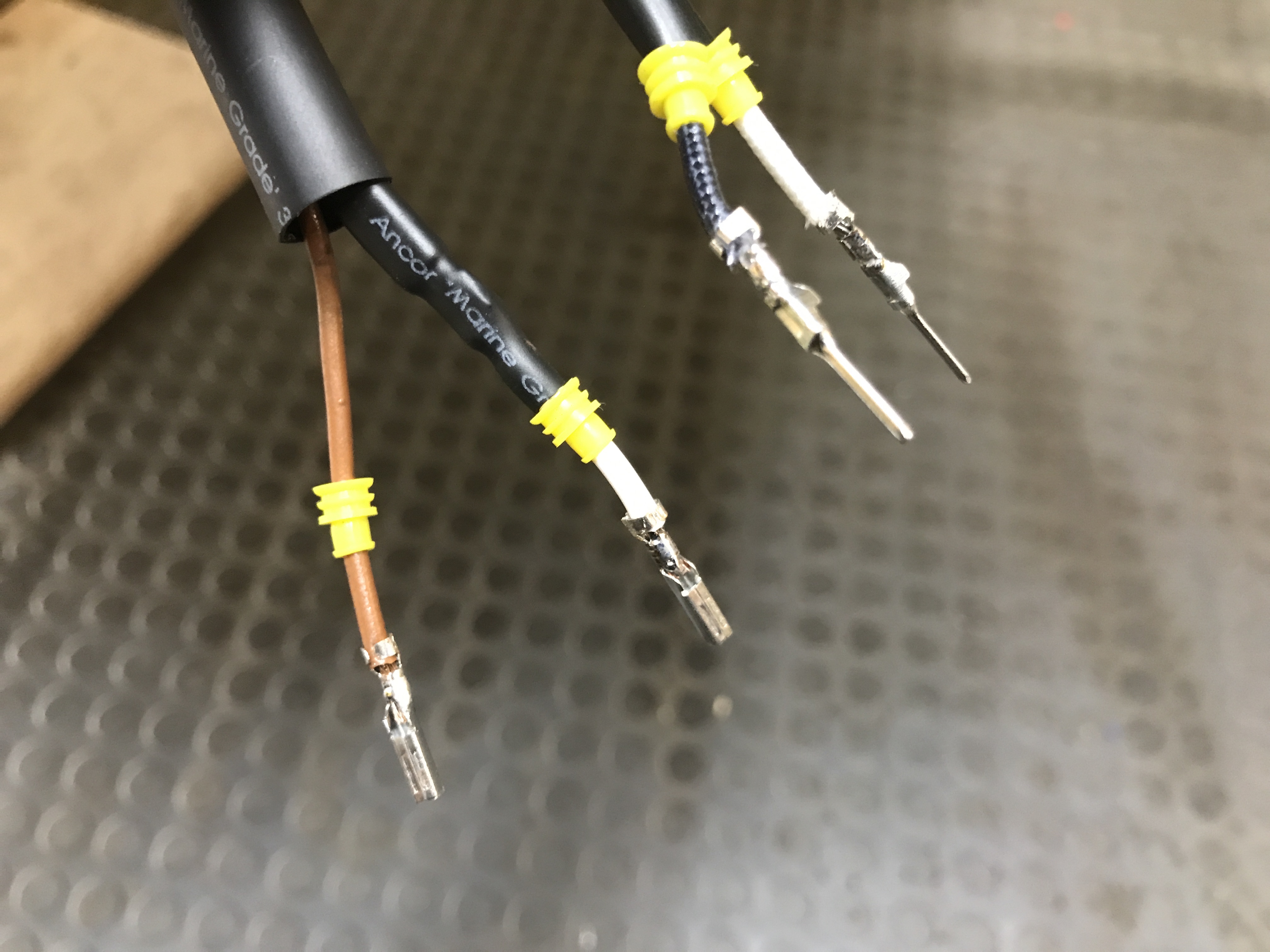

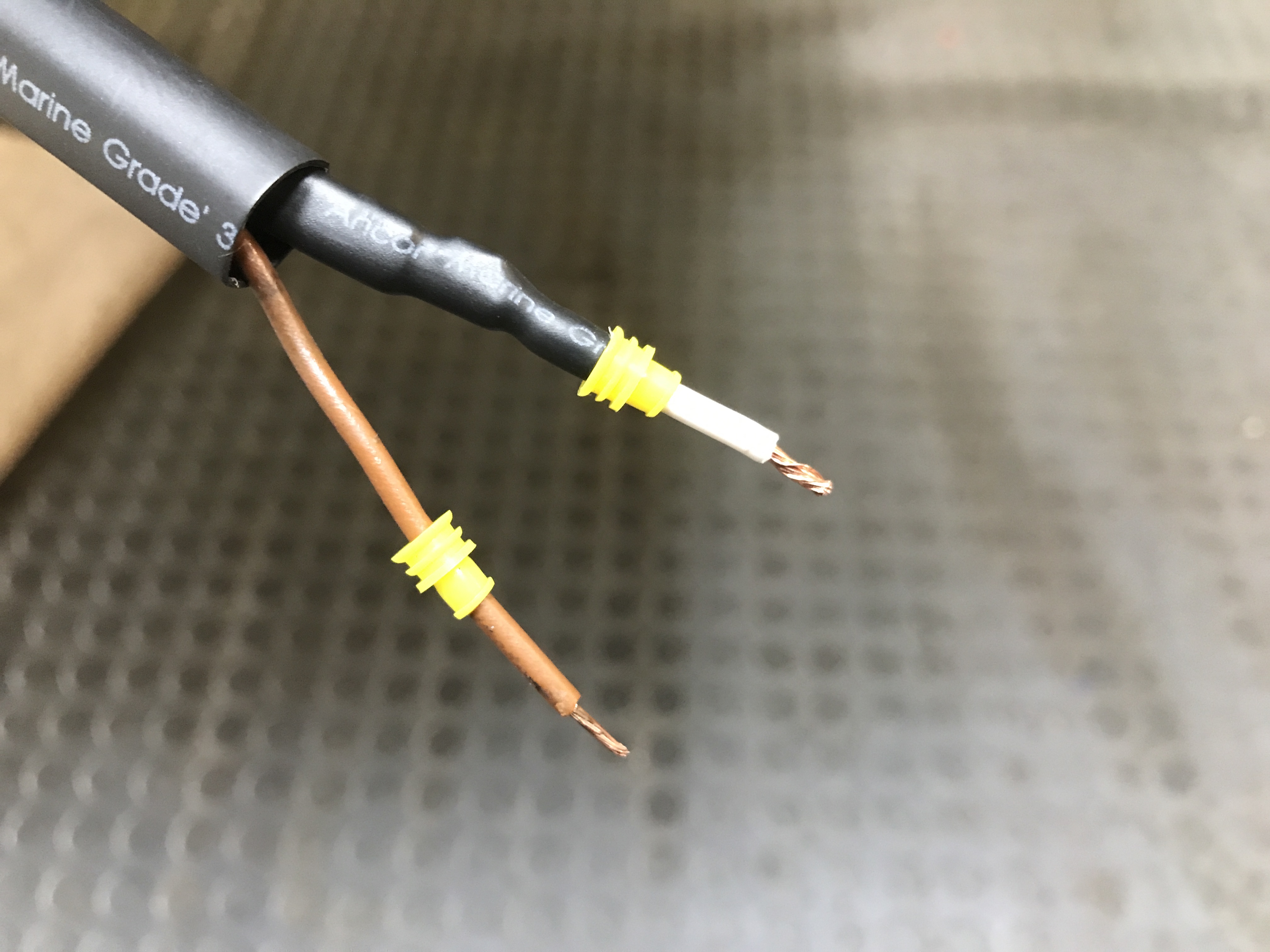

Shrink wrap insulation. And don't forget to put the wire seal stoppers on.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 07:05 PM
Post
#3038
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
All the left side leads with male and female pins. I soldered these on for extra reliability.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 07:06 PM
Post
#3039
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

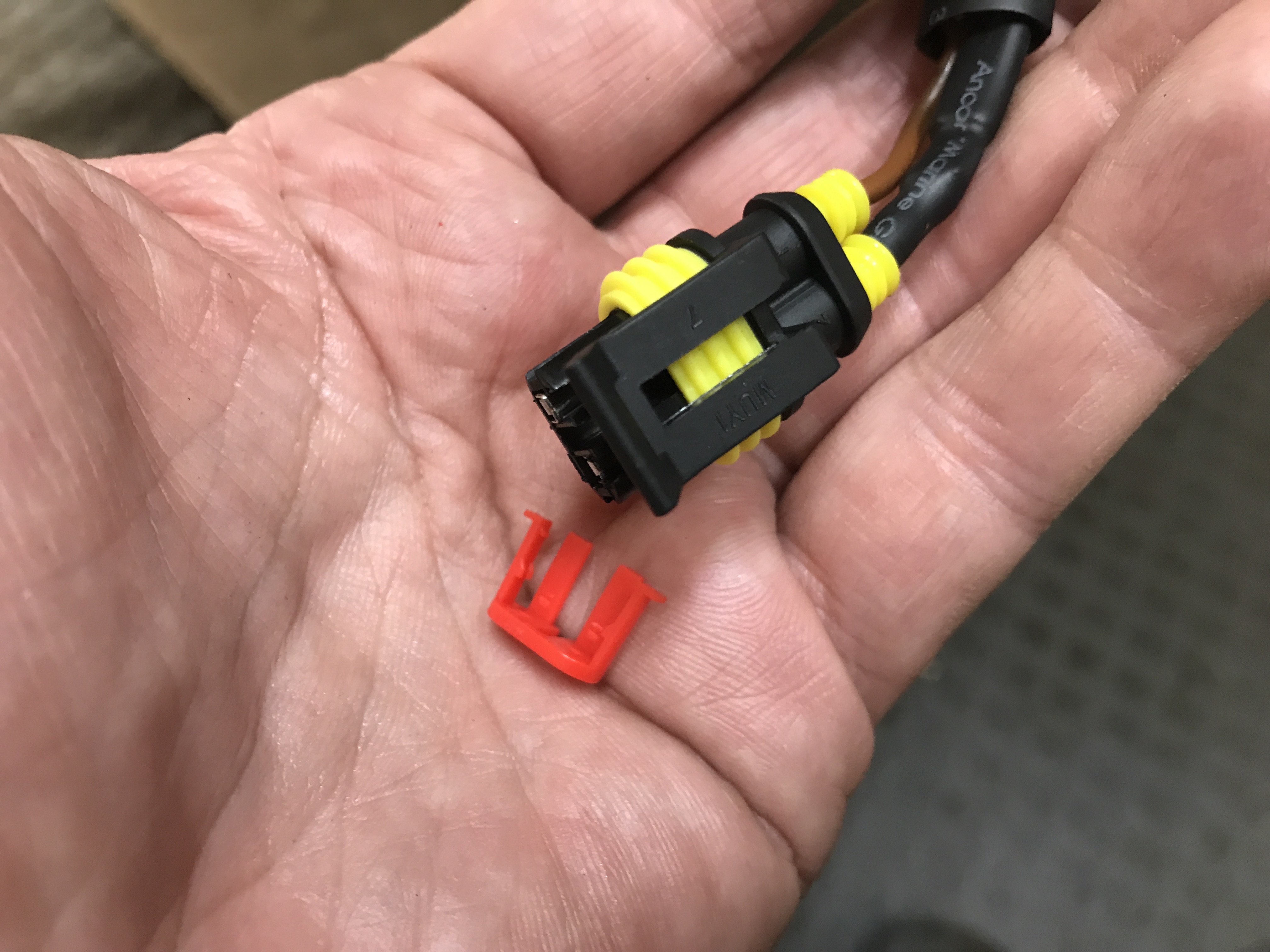

Inserting the pins into the female connector requires removing the red locking tab.
Attached thumbnail(s) |
bkrantz |
Jun 17 2021, 07:07 PM
Post
#3040
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

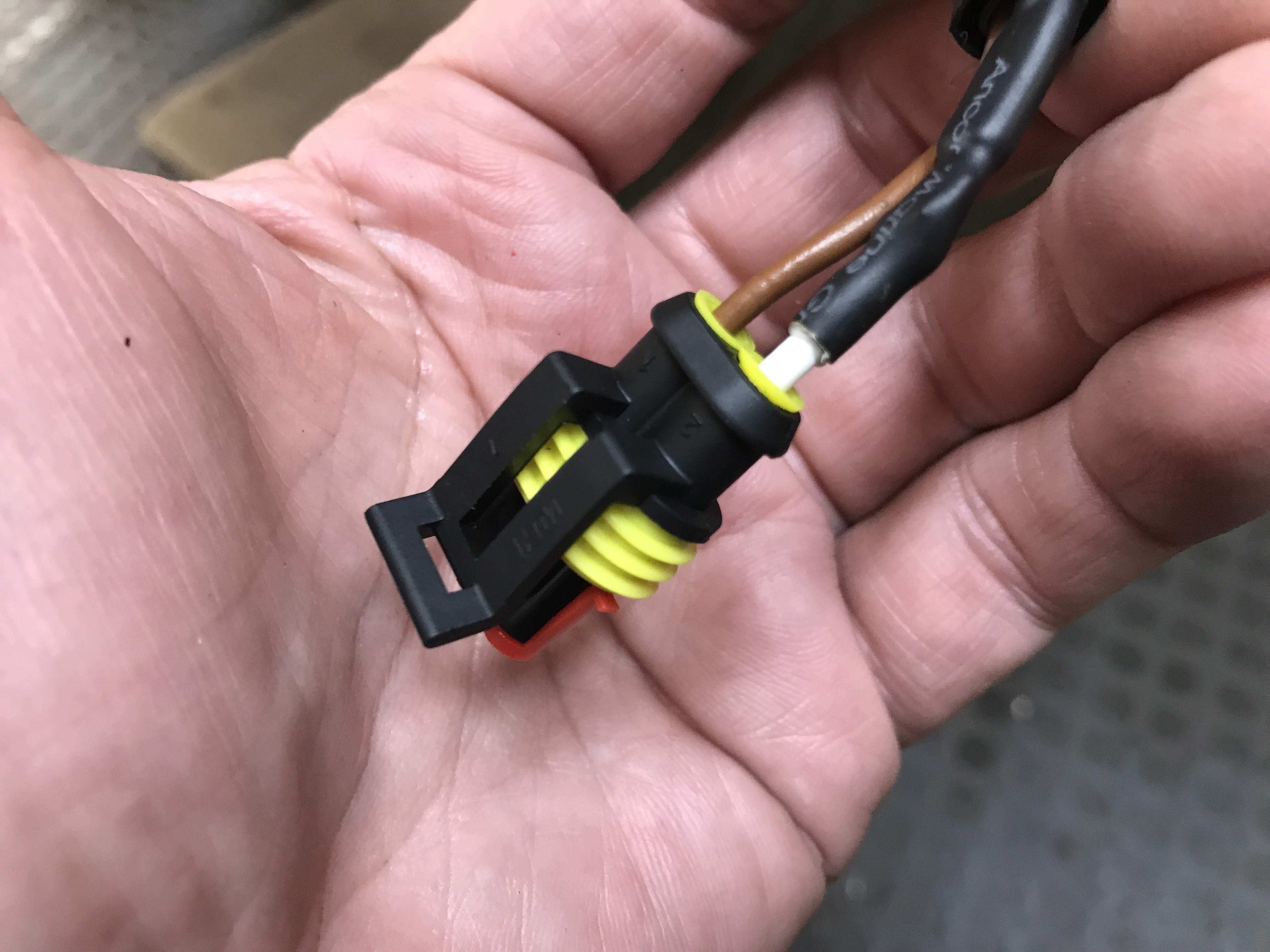

Female connector done. These things are a bit fiddly, but might be worth the effort if they keep water out.
Attached thumbnail(s) |
