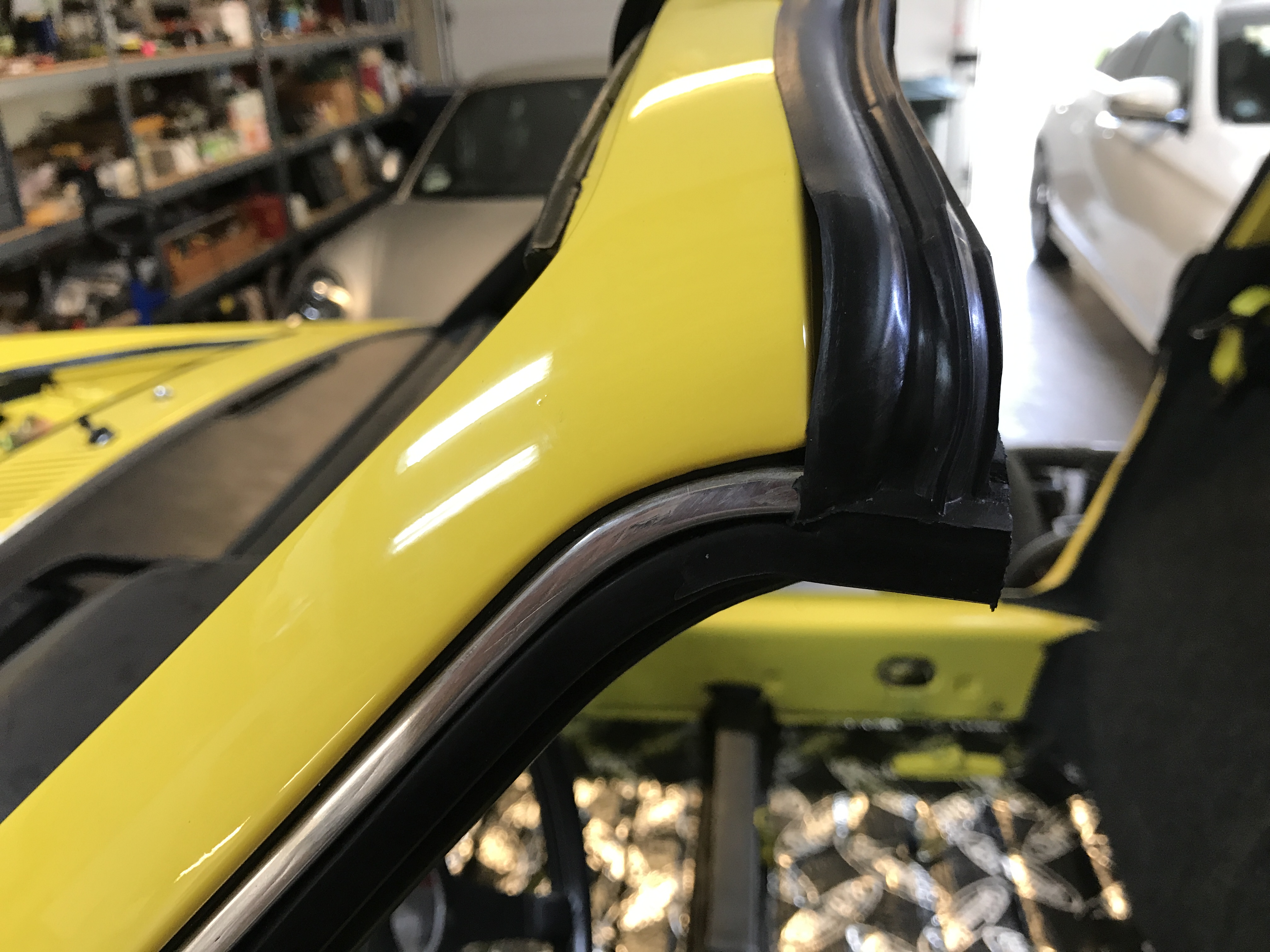

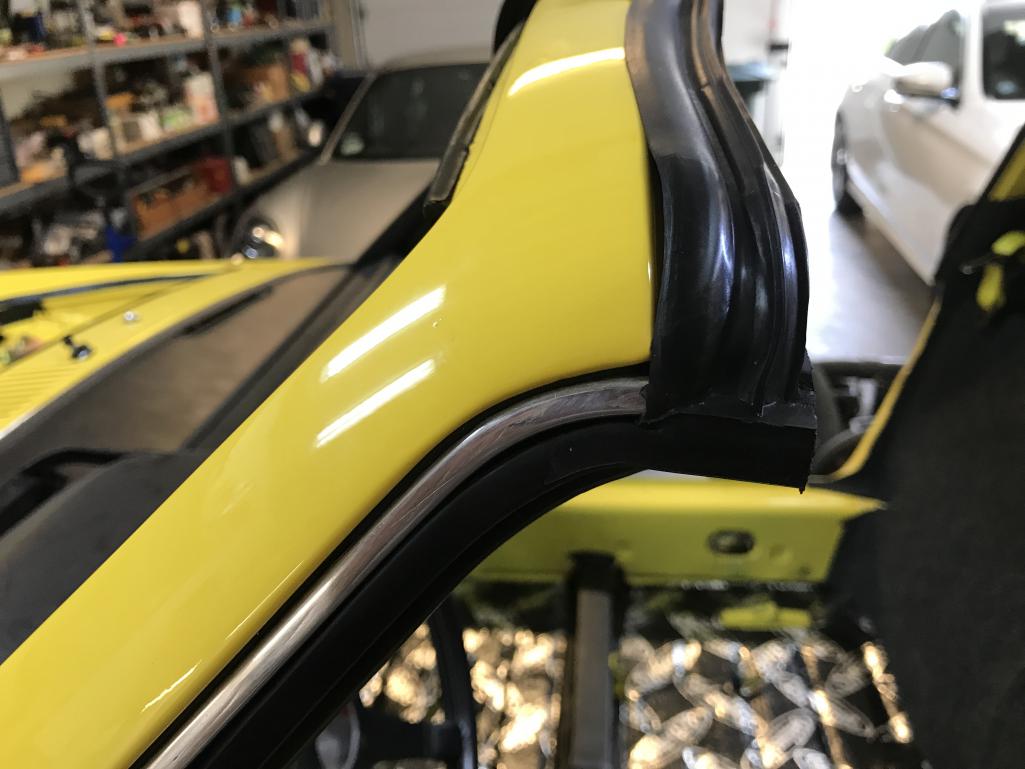

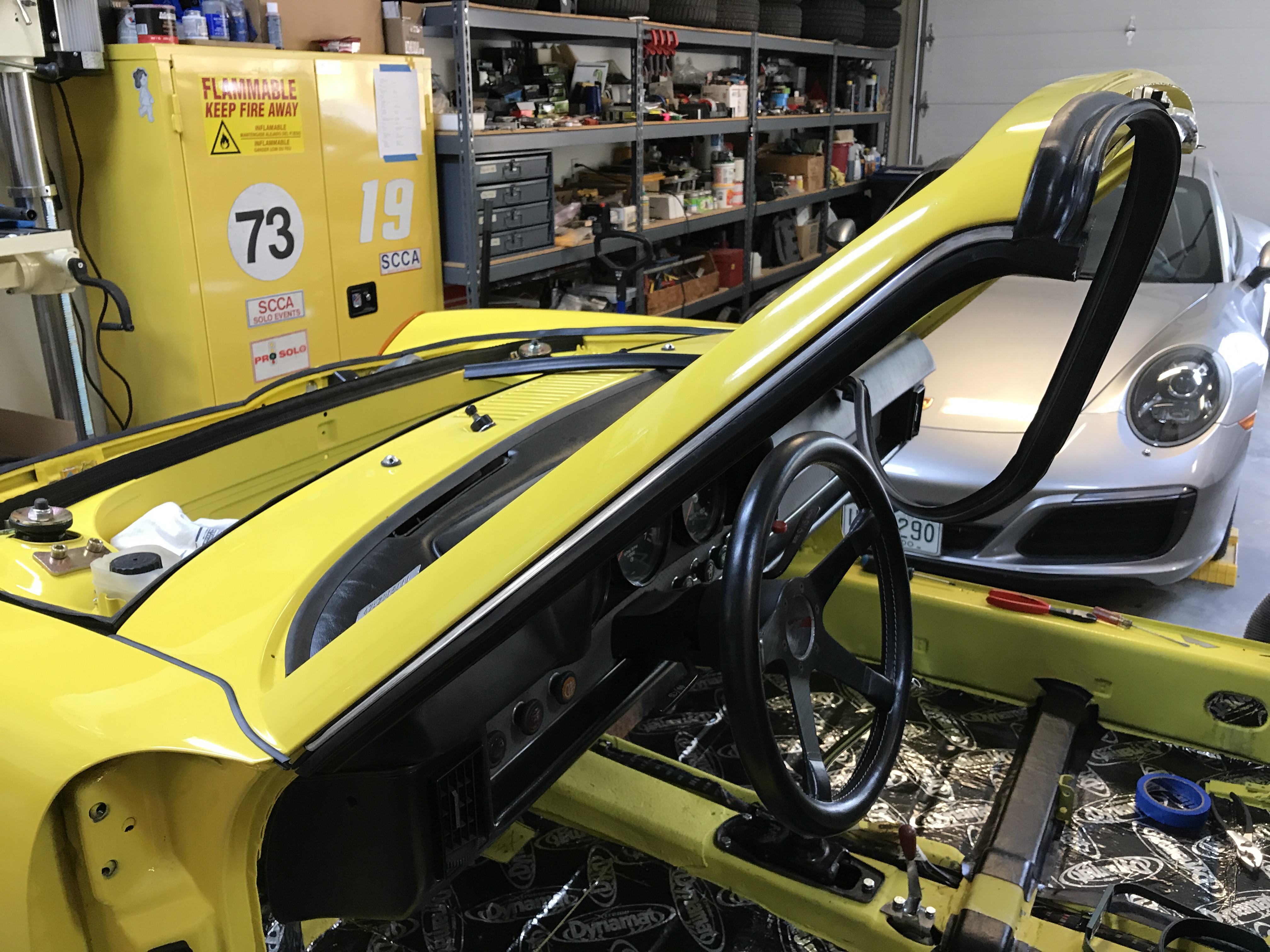

After making a small cut so the trim piece can seat properly. The bulge along the top curve will get fixed later.
Attached thumbnail(s) |
bkrantz |
Jun 20 2021, 07:02 PM
Post
#3102
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

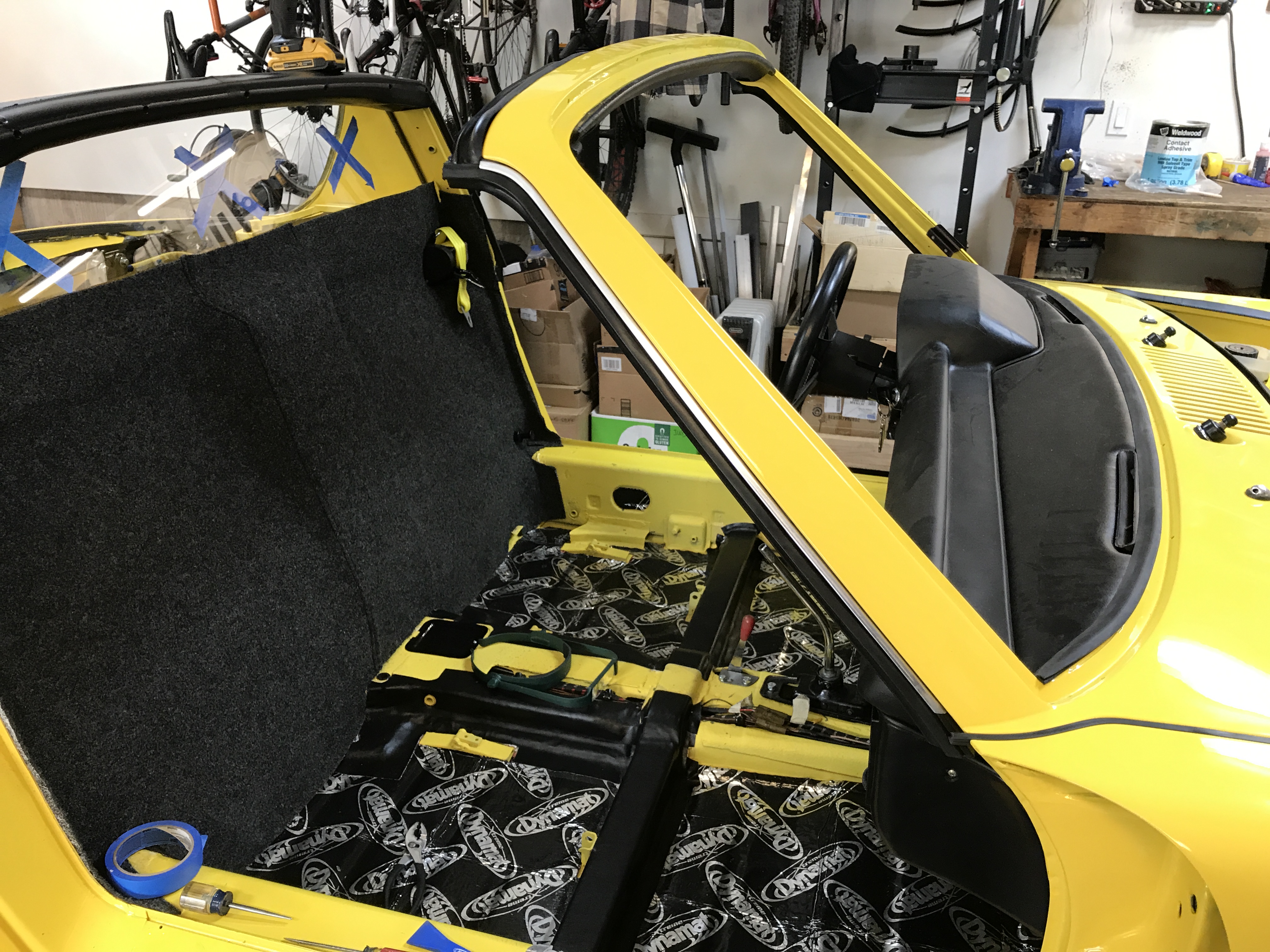

And then after about an hour of pushing and prying and squeezing, I had the left side done.
Attached thumbnail(s) |
bkrantz |
Jun 20 2021, 07:02 PM
Post
#3103
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And another half-hour for the right side.
Attached thumbnail(s) |
bkrantz |
Jun 20 2021, 07:03 PM
Post
#3104
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And then 5 minutes to get the top seated.
Attached thumbnail(s) |
bkrantz |
Jun 20 2021, 07:05 PM
Post
#3105
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And then time for the lower strip.
Attached thumbnail(s) |
bkrantz |
Jun 20 2021, 07:06 PM
Post
#3106
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

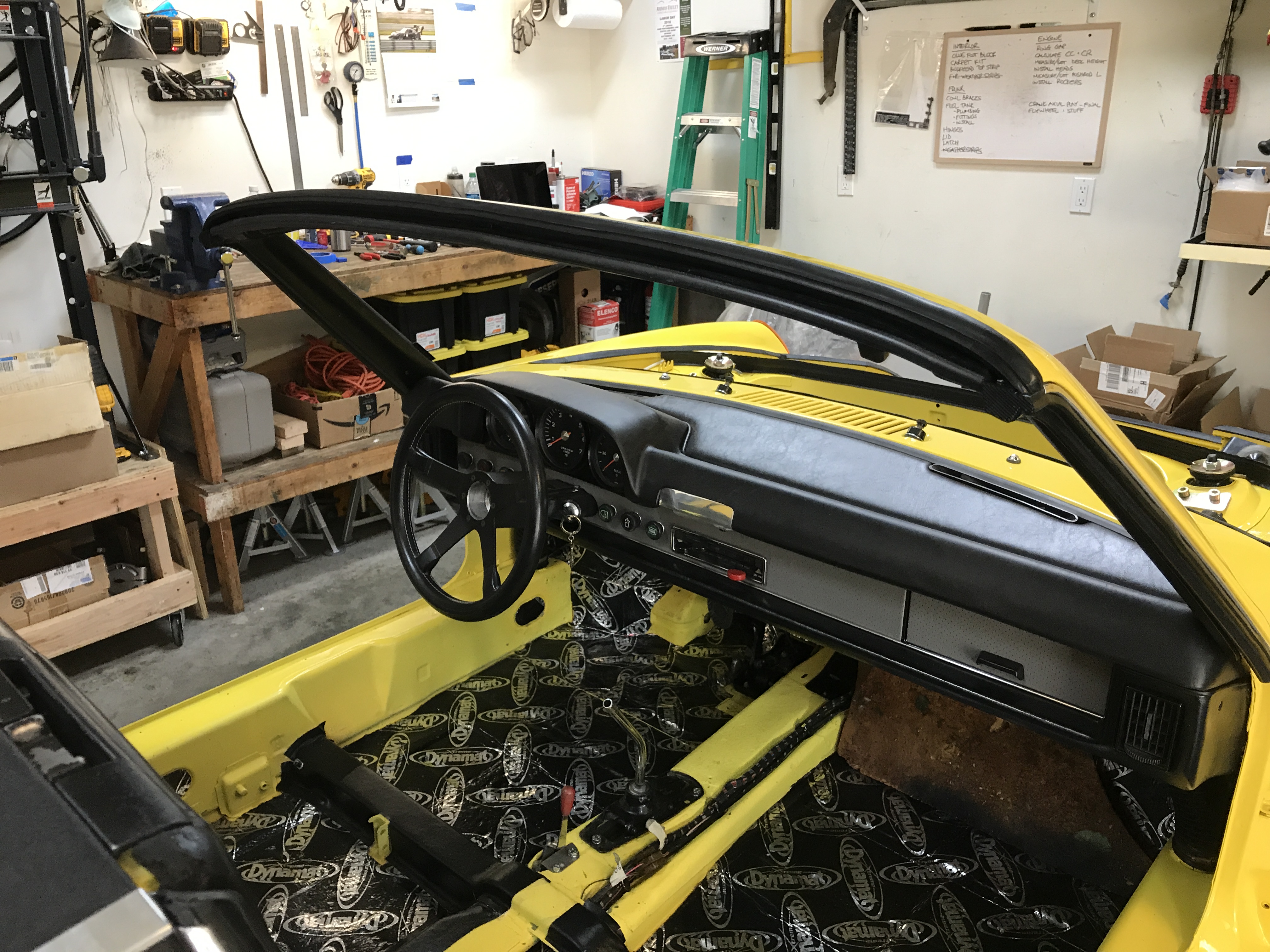

That was a pretty easy install, with some care to trim the ends at the correct angle.
Attached thumbnail(s) |
bkrantz |
Jun 21 2021, 07:07 PM
Post
#3107
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I decided to get back to some engine work, hoping to have my heads by the end of next week.

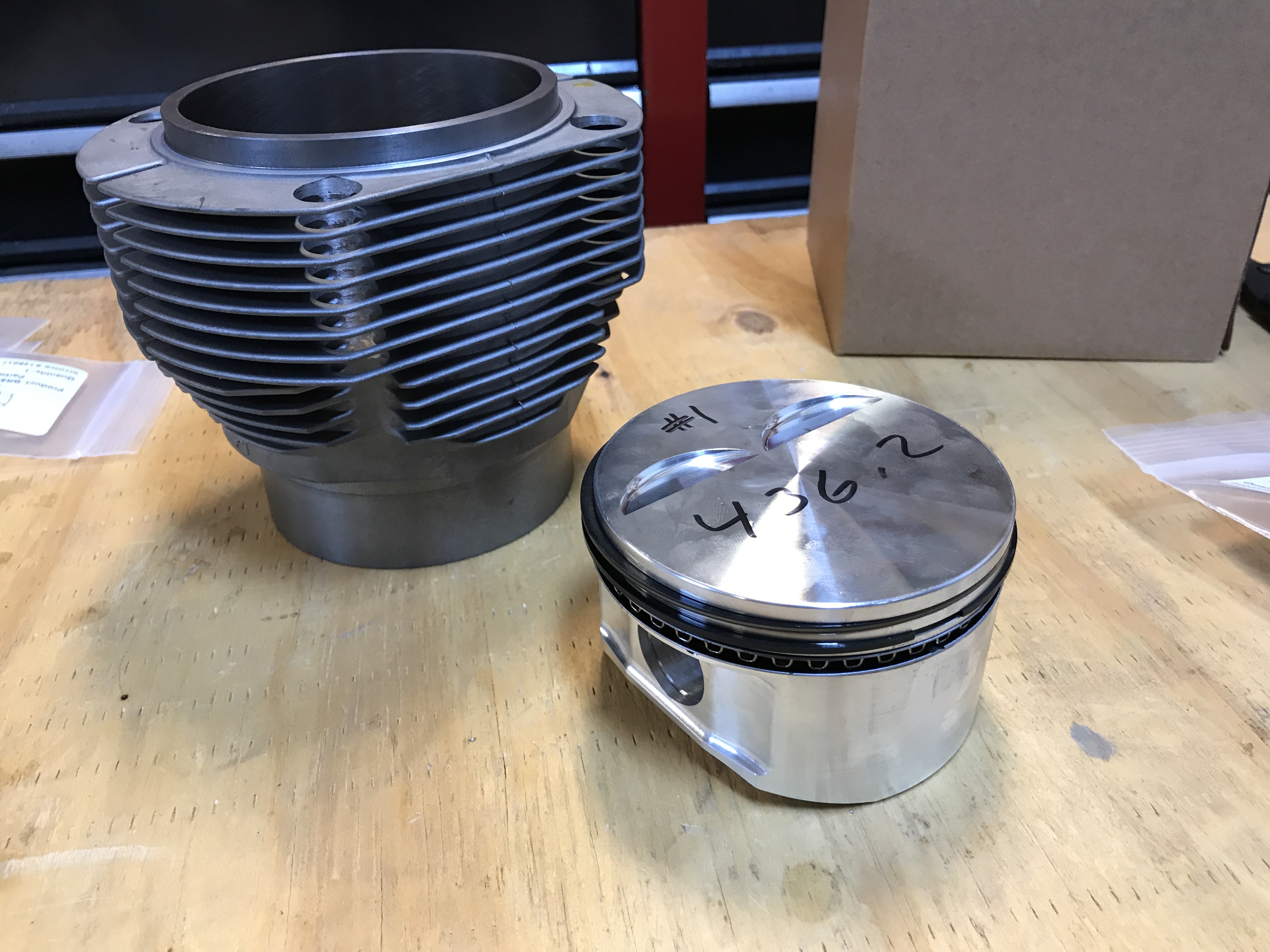

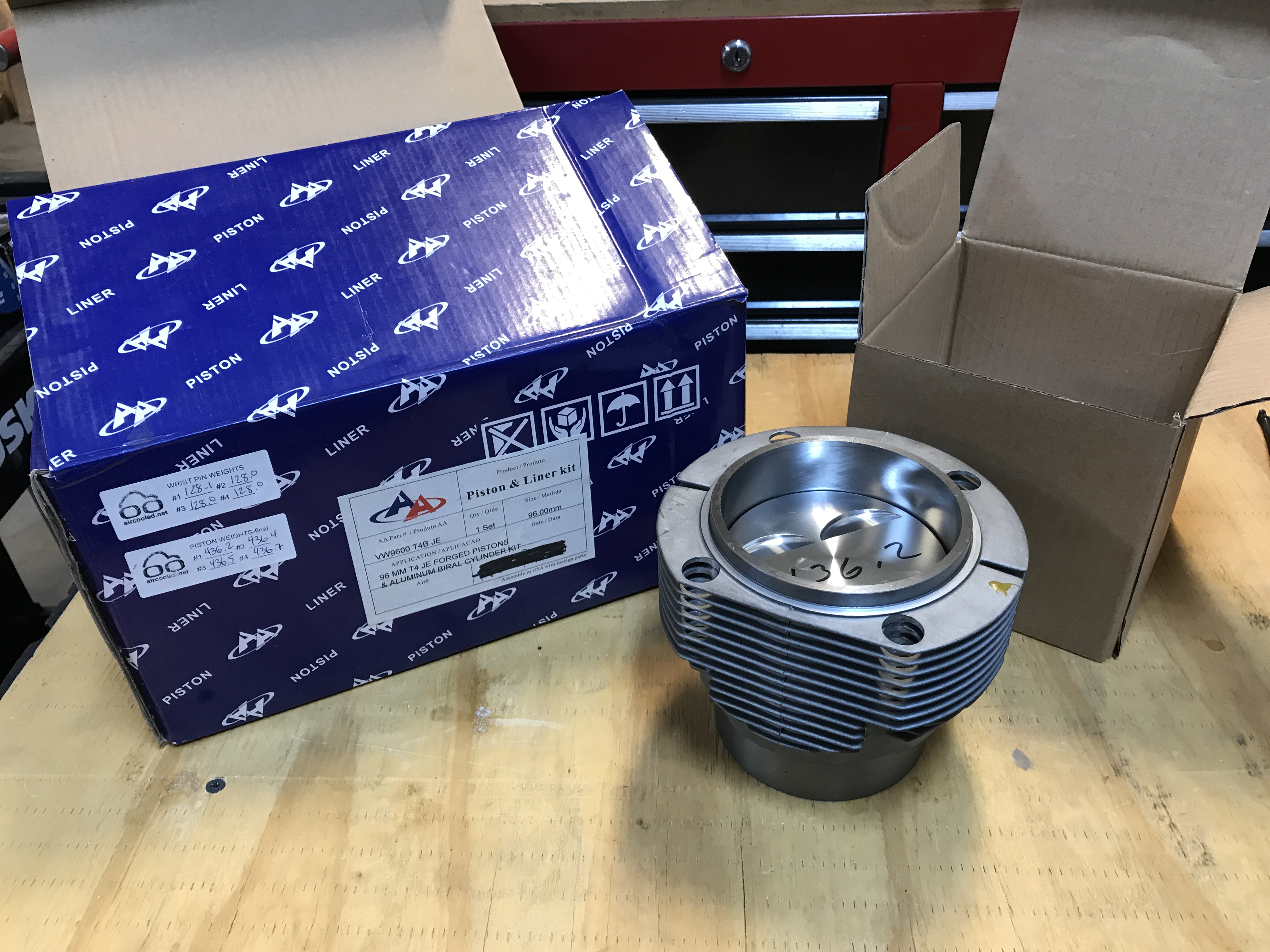

Today was ring gap day, so I opened the set of P&C from Aircooled.net, with 96 mm JE pistons and biral cylinders. I had them balance the pistons and pins. Attached thumbnail(s) |
bkrantz |
Jun 21 2021, 07:10 PM
Post
#3108
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I removed the compression rings from each piston in turn.
Attached thumbnail(s) |
bkrantz |
Jun 21 2021, 07:11 PM
Post
#3109
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

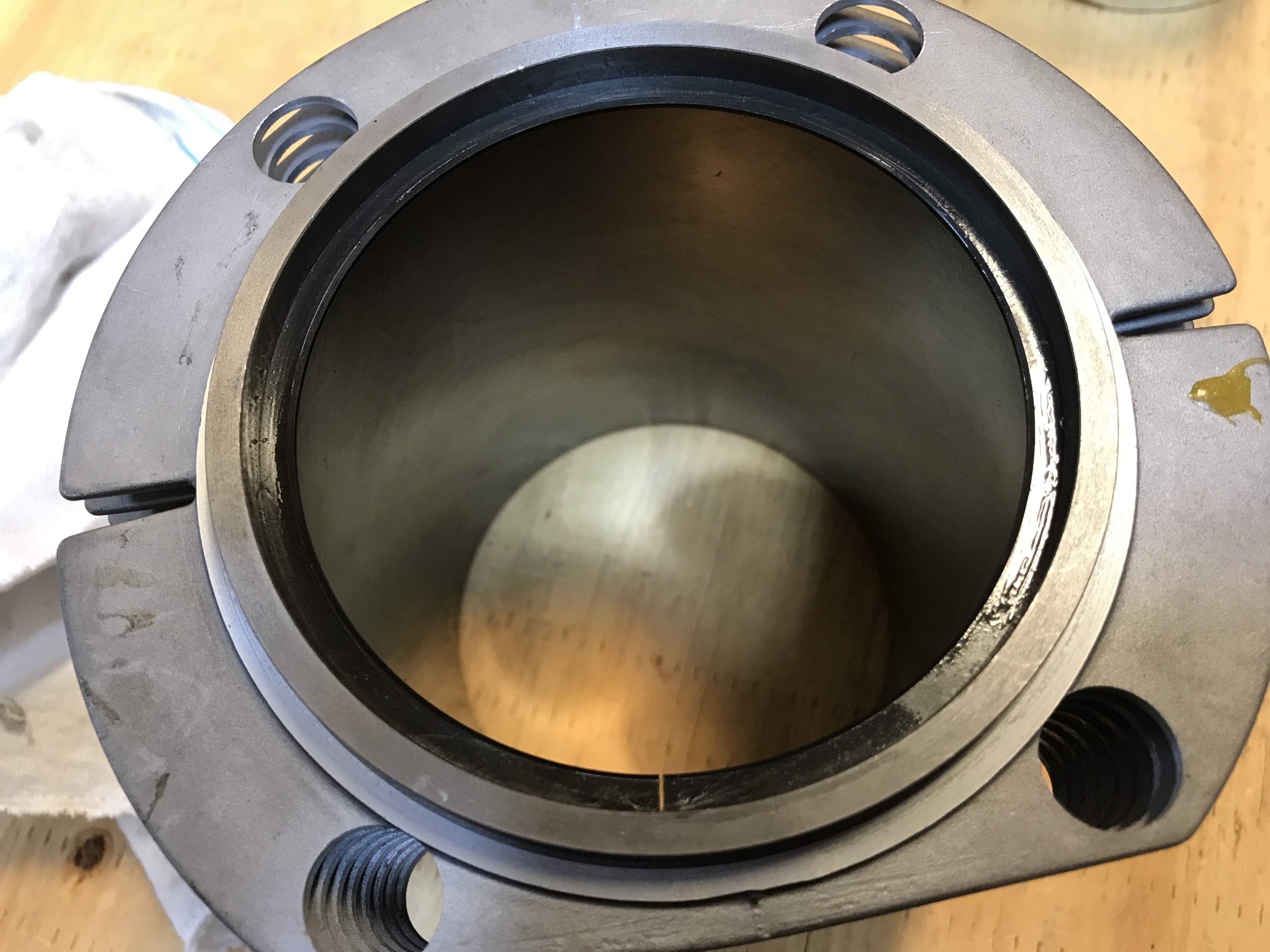

I measured the ring gaps in the cylinders. All were within spec.
Attached thumbnail(s) |
ddire333 |
Jun 22 2021, 05:01 AM
Post
#3110
|
Member Group: Members Posts: 91 Joined: 2-November 20 From: ireland Member No.: 24,835 Region Association: Europe |
Wow great work, giving me inspiration! Hope to start my engine build in a couple of weeks so keep us posted
|
raynekat |
Jun 22 2021, 04:46 PM
Post
#3111
|
Advanced Member Group: Members Posts: 2,160 Joined: 30-December 14 From: Coeur d'Alene, Idaho Member No.: 18,263 Region Association: Pacific Northwest |
Bob is quite the 914 guy....I must say.
|
930cabman |
Jun 22 2021, 05:29 PM
Post
#3112
|
Advanced Member Group: Members Posts: 3,544 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States |
I would bet Bob understands "fit" very well. I am a bit envious of his work, but still working full time.
Keep up the good work Bob and thanks for posting |
bkrantz |
Jun 22 2021, 07:19 PM
Post
#3113
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Thanks, guys. Sure is more fun without worrying about real work. Though I am supposed to be supervising some student research. And getting my own done. And writing a research paper or two. And writing a new edition of a college text.
But working on the 914 is always more fun. |
bkrantz |
Jun 22 2021, 07:23 PM
Post
#3114
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Another diversion today: I got out the trunk lock. This is a used replacement, since the car came with a non-functional electric lock release.
Attached thumbnail(s) |
bkrantz |
Jun 22 2021, 07:24 PM
Post
#3115
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

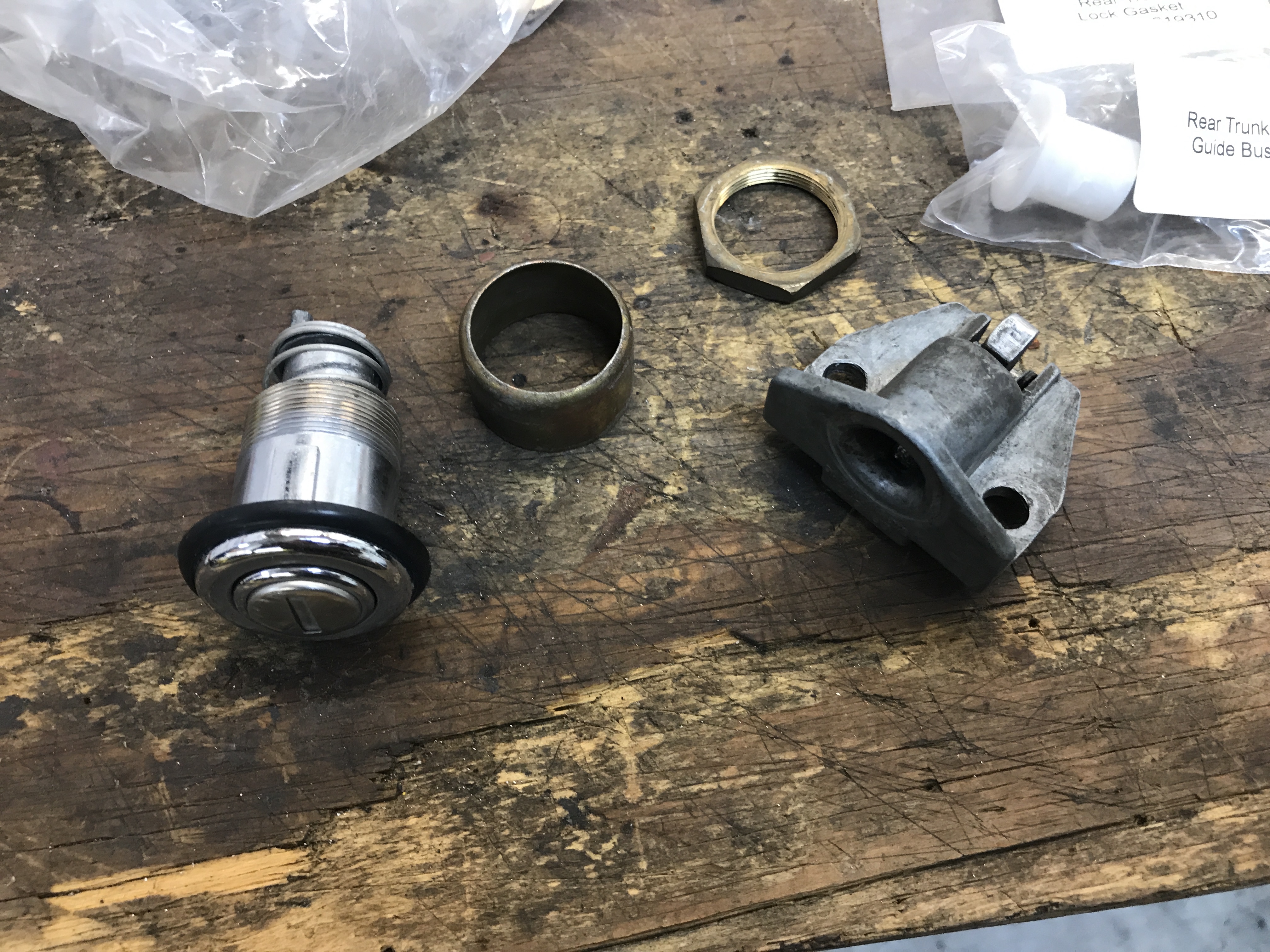

But that means re-keying the lock to match the rest of the car. Here is the lock partly disassembled.
Attached thumbnail(s) |
bkrantz |
Jun 22 2021, 07:27 PM
Post
#3116
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

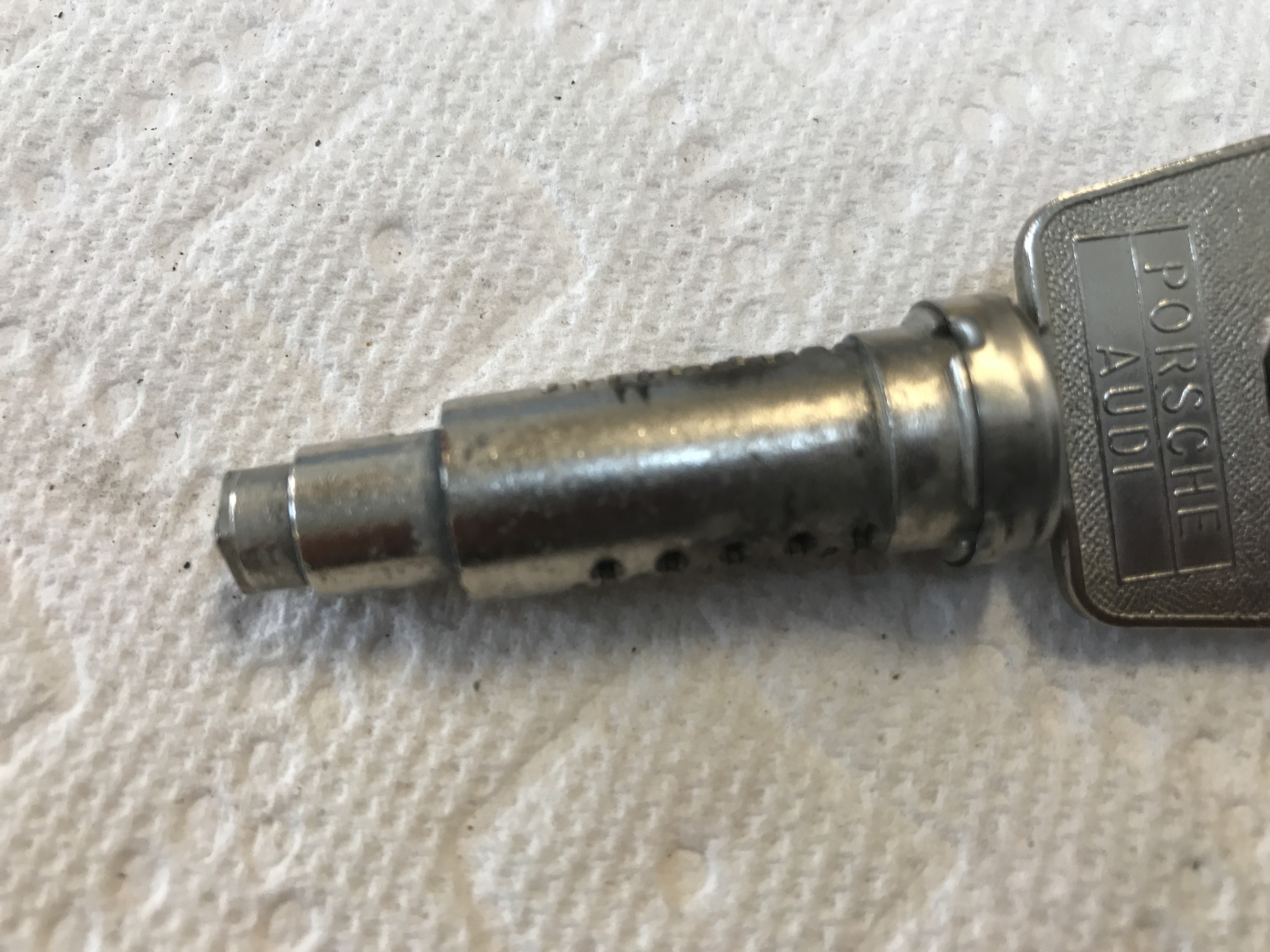

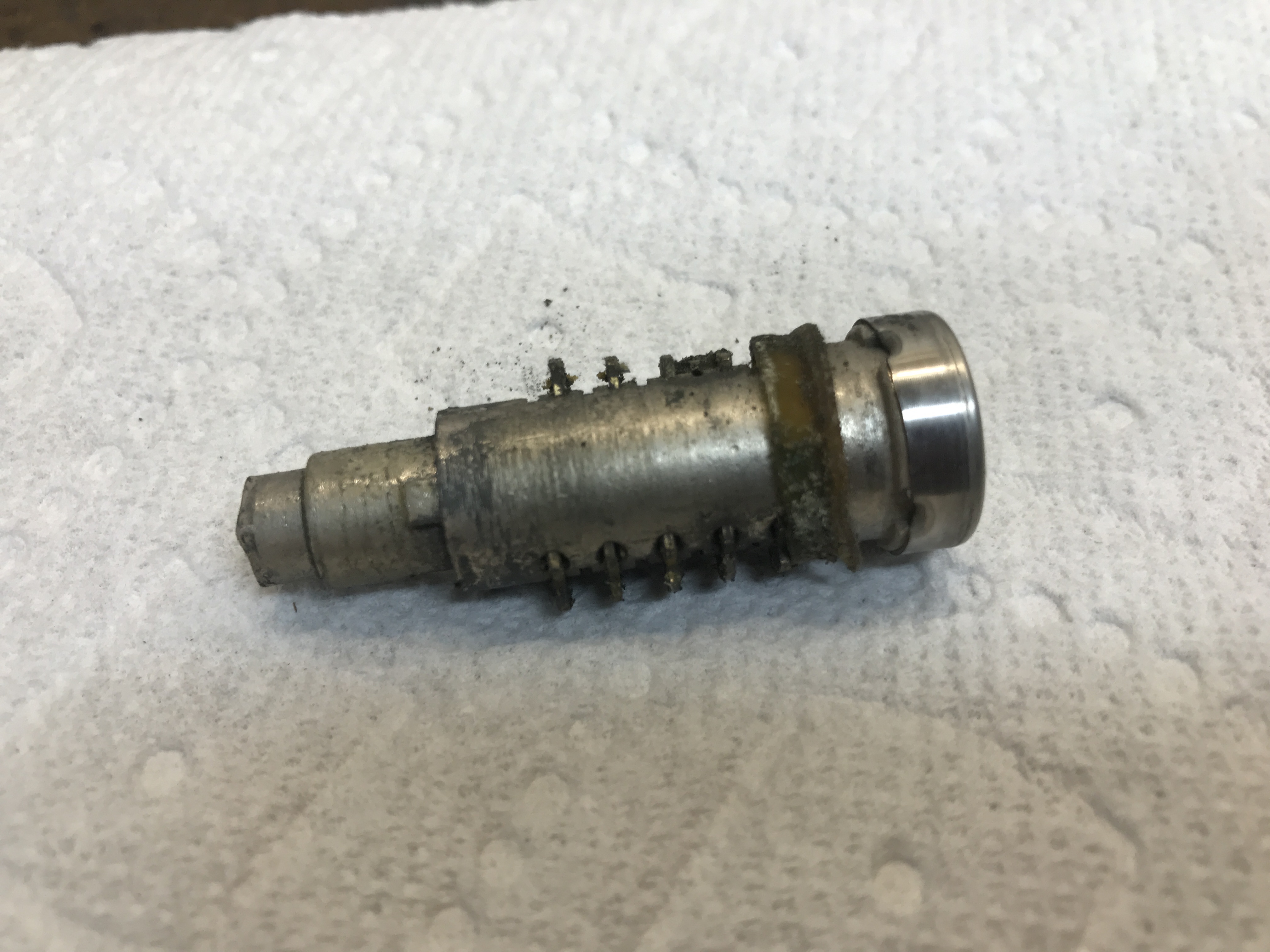

And the cylinder with all the original pins. I did not get a shot of the misalignment with the key installed, but most pins were too high or low.
Attached thumbnail(s) |
bkrantz |
Jun 22 2021, 07:29 PM
Post
#3117
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
After some pin swapping, and just a bit of filing, I got the alignment looking good.
Attached thumbnail(s) |
bkrantz |
Jun 22 2021, 07:30 PM
Post
#3118
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

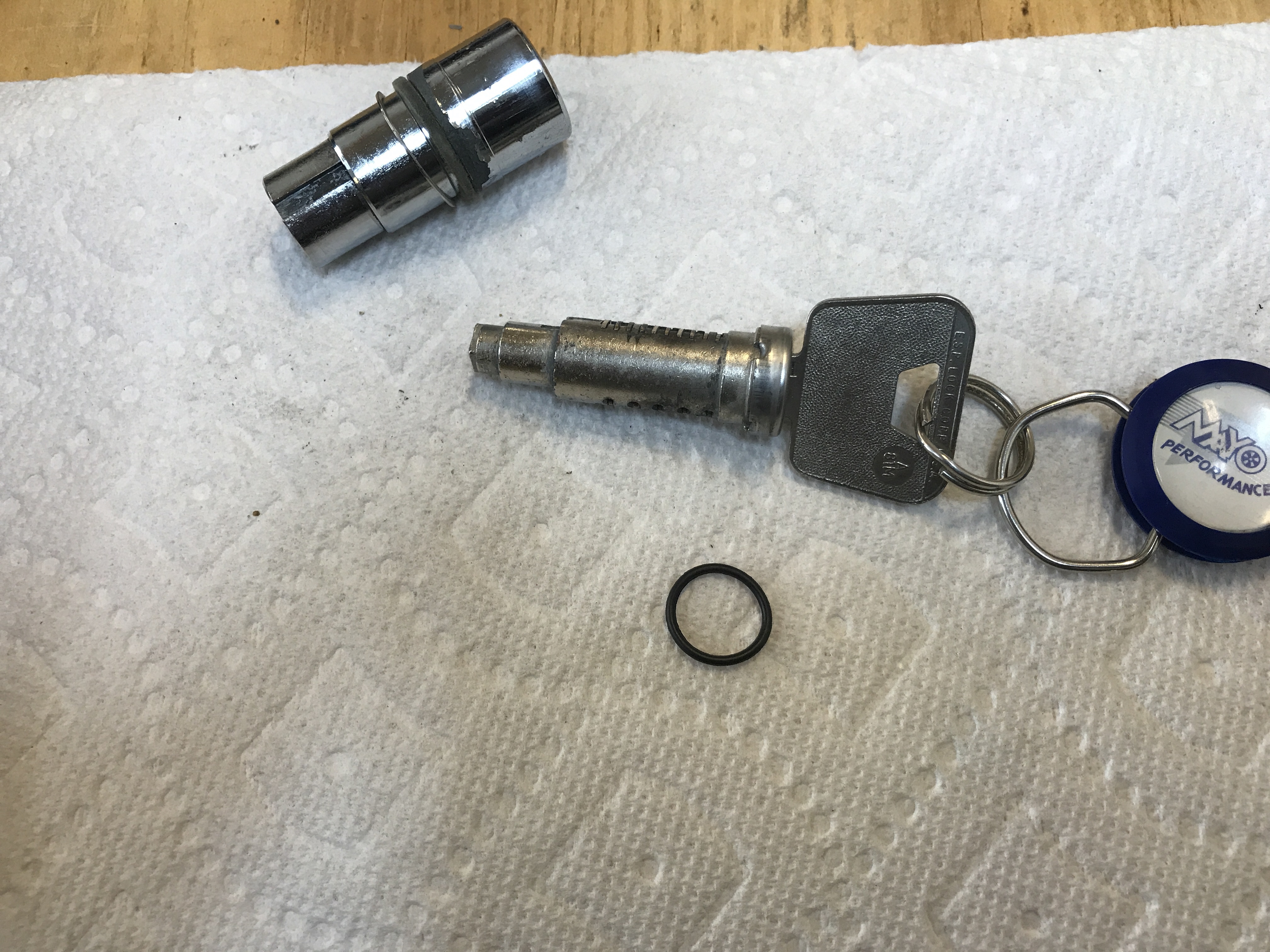

I substituted an O-ring for the original bushing.
Attached thumbnail(s) |
bkrantz |
Jun 22 2021, 07:34 PM
Post
#3119
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

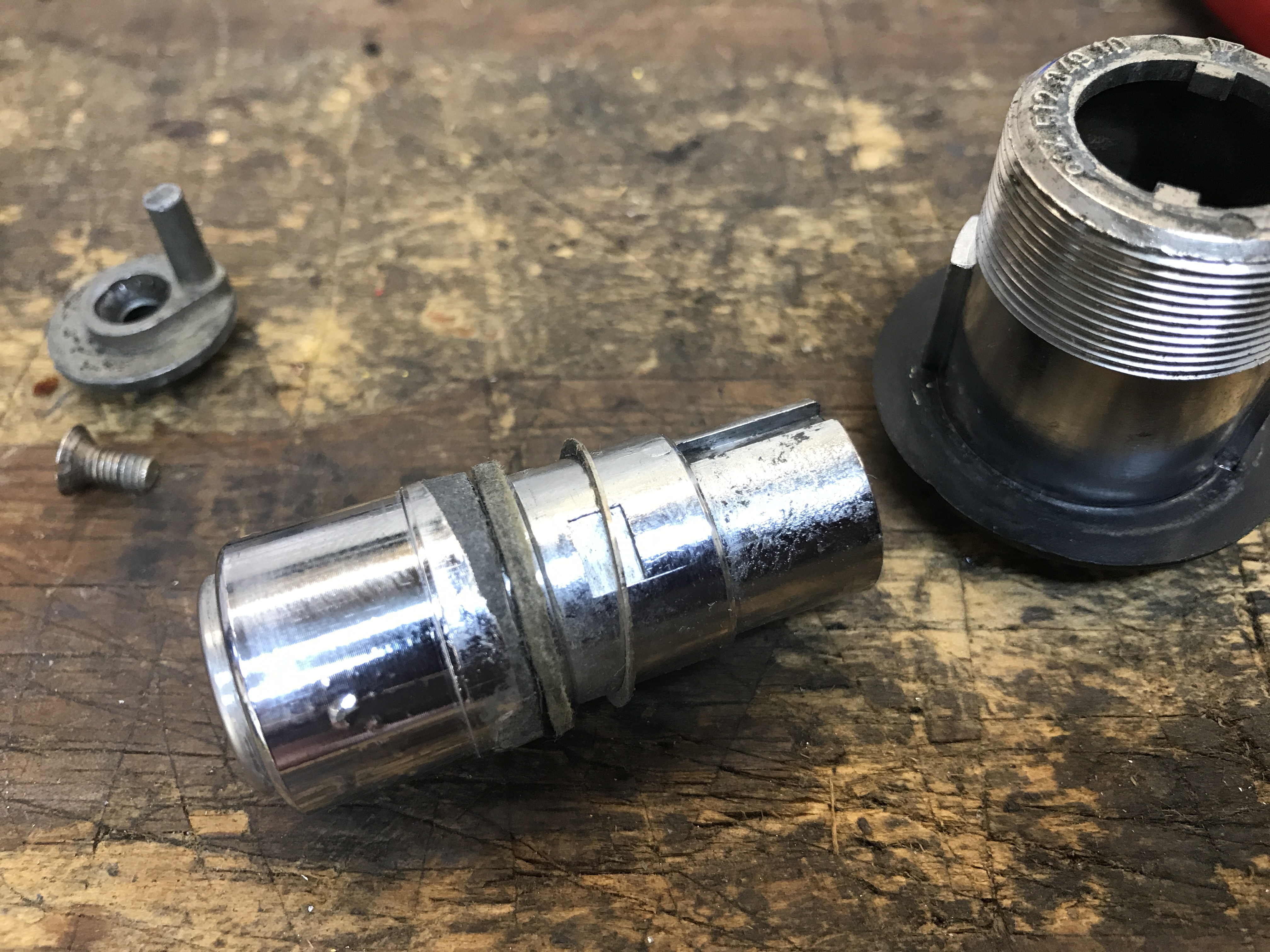

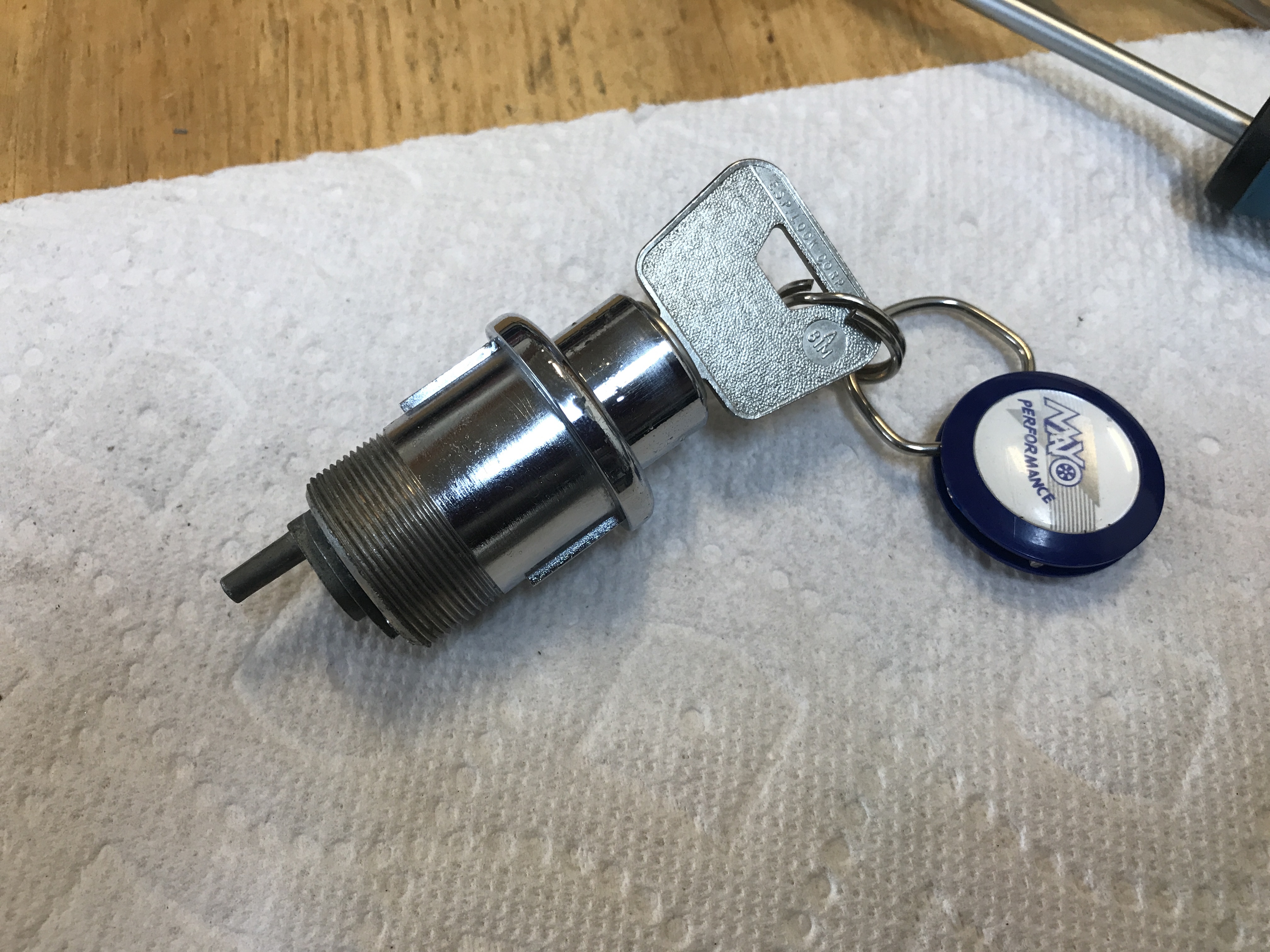

And then got the lock itself back together. (Yes, that is a vintage key ring from the shop of my old friend Ed Mayo, in Texas. It came with the car.)
Attached thumbnail(s) |
bkrantz |
Jun 22 2021, 07:39 PM
Post
#3120
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

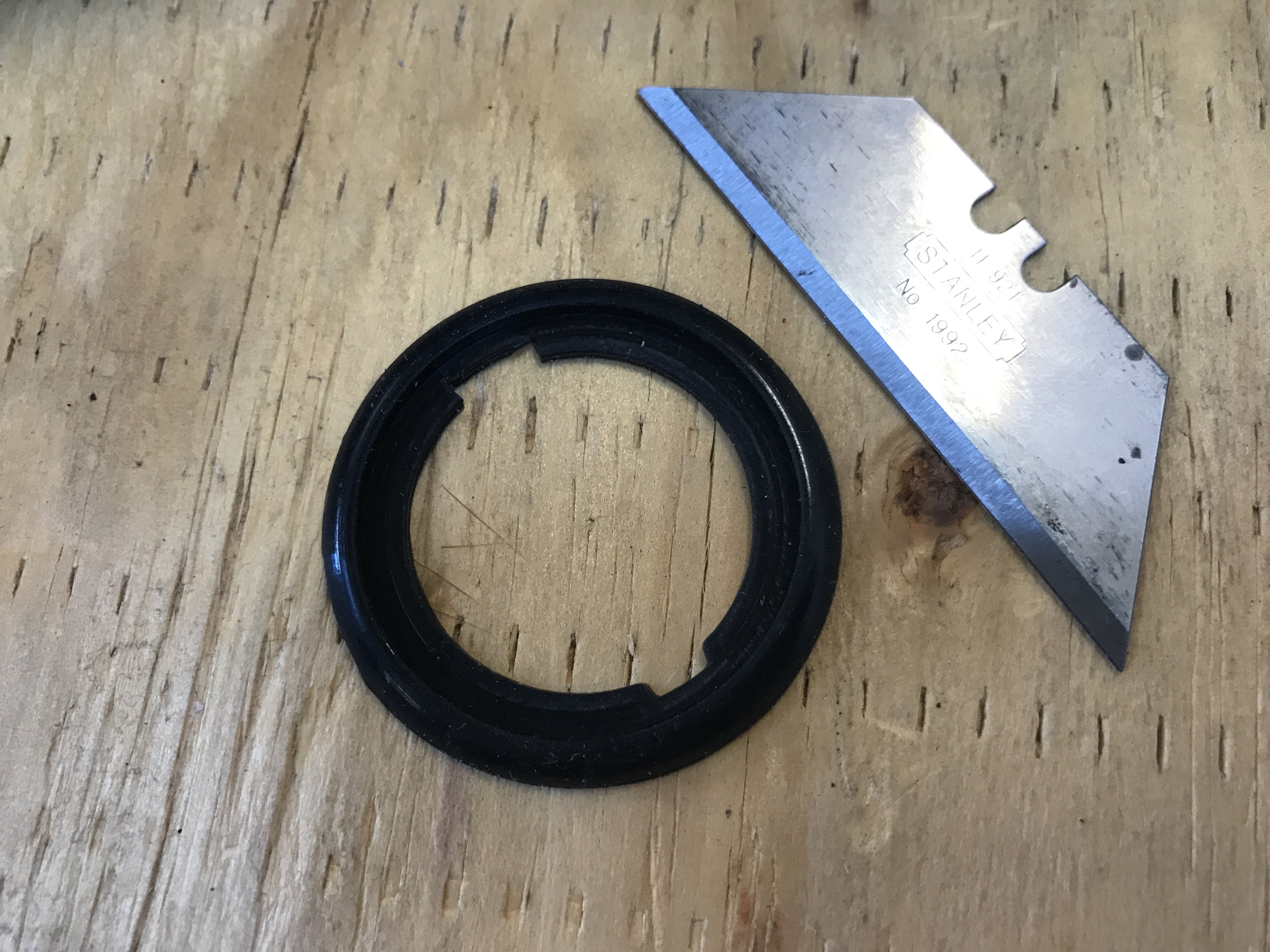

The new rubber gasket from 914Rubber needed one notch enlarged.
Attached thumbnail(s) |
