bkrantz
post Jun 22 2021, 07:40 PM
Post #3121


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

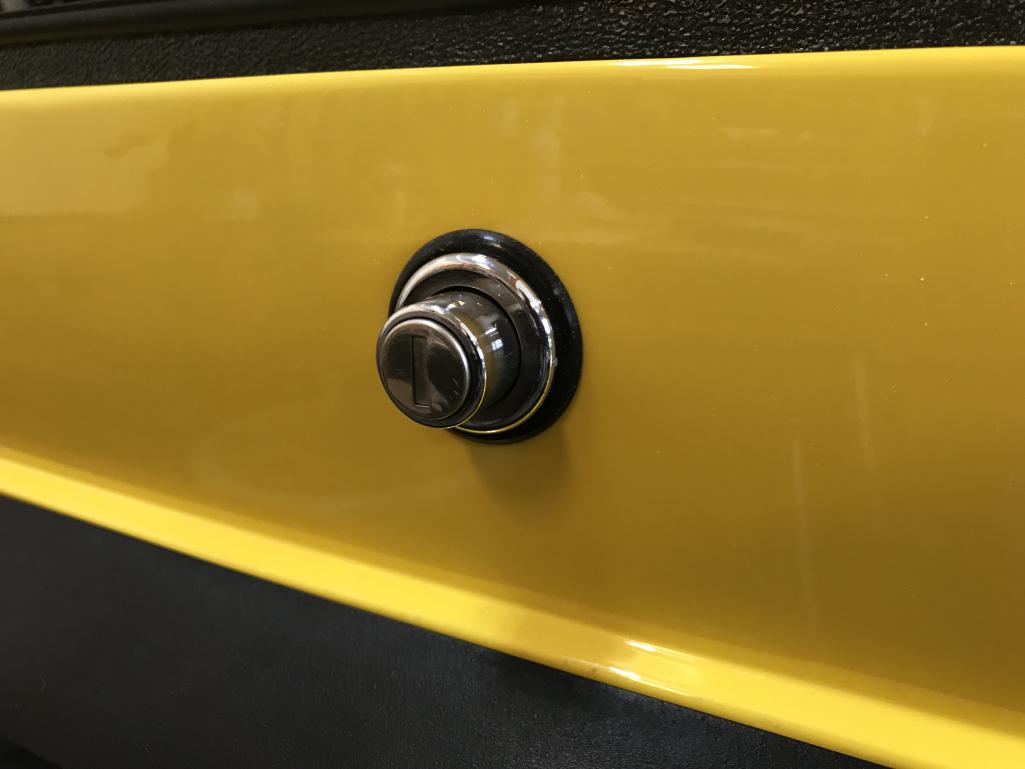

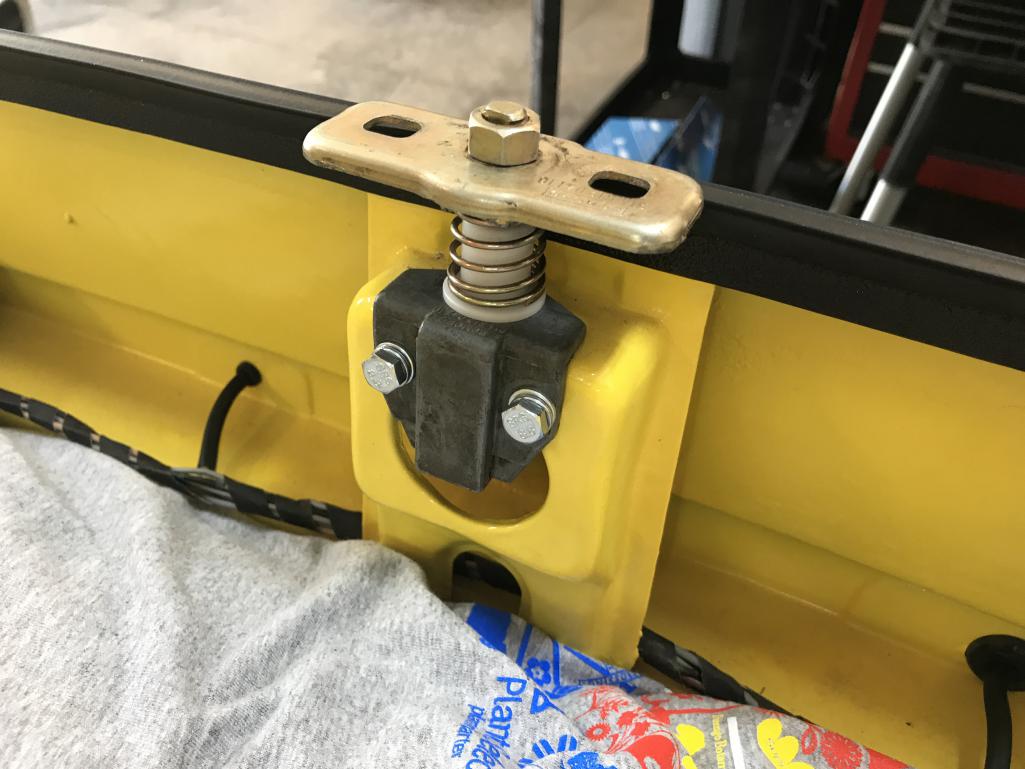

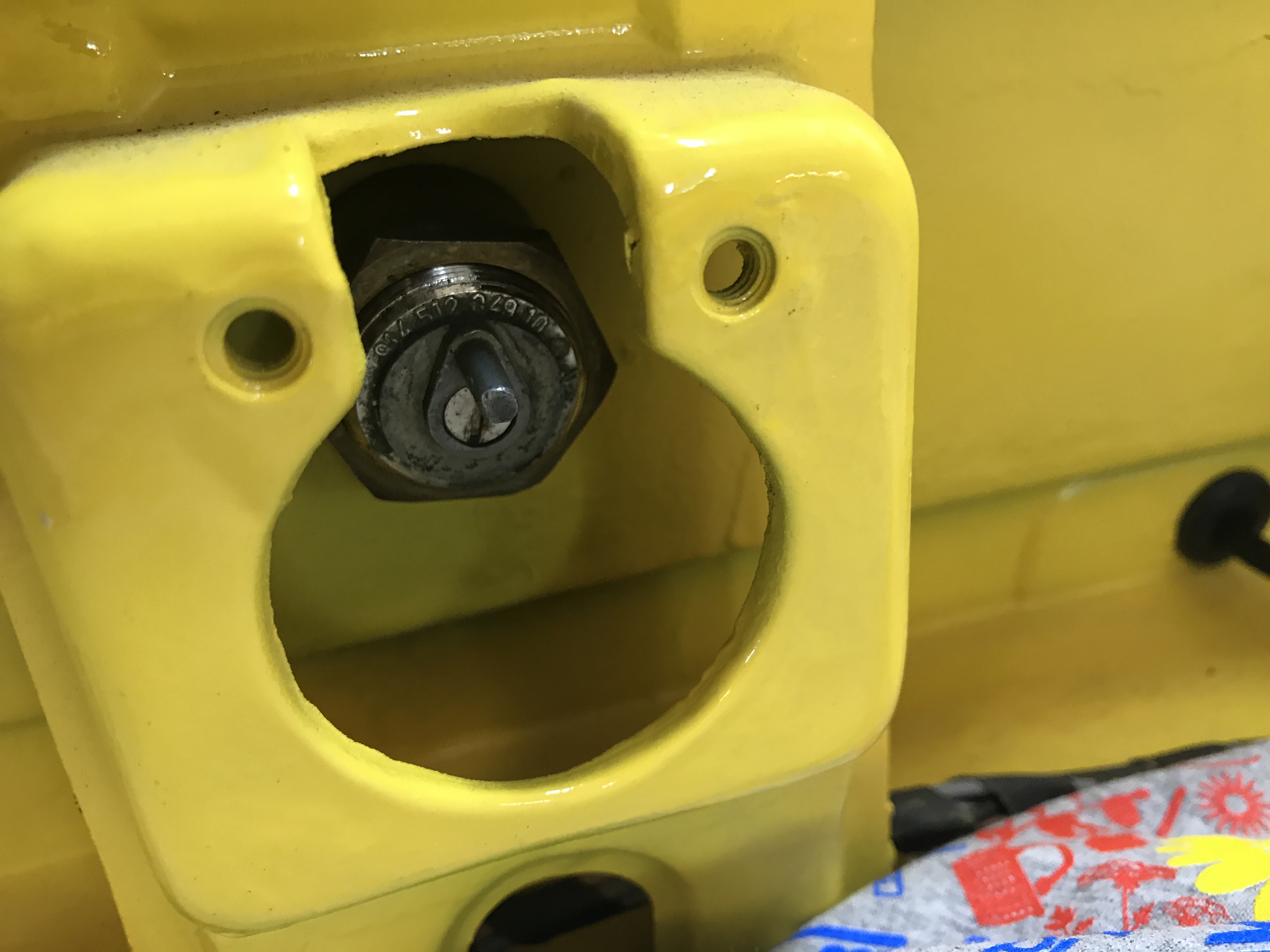

And then installed in the car.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:42 PM
Post #3122


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And on the inside, with the lock release pin pointing up.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:43 PM
Post #3123


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

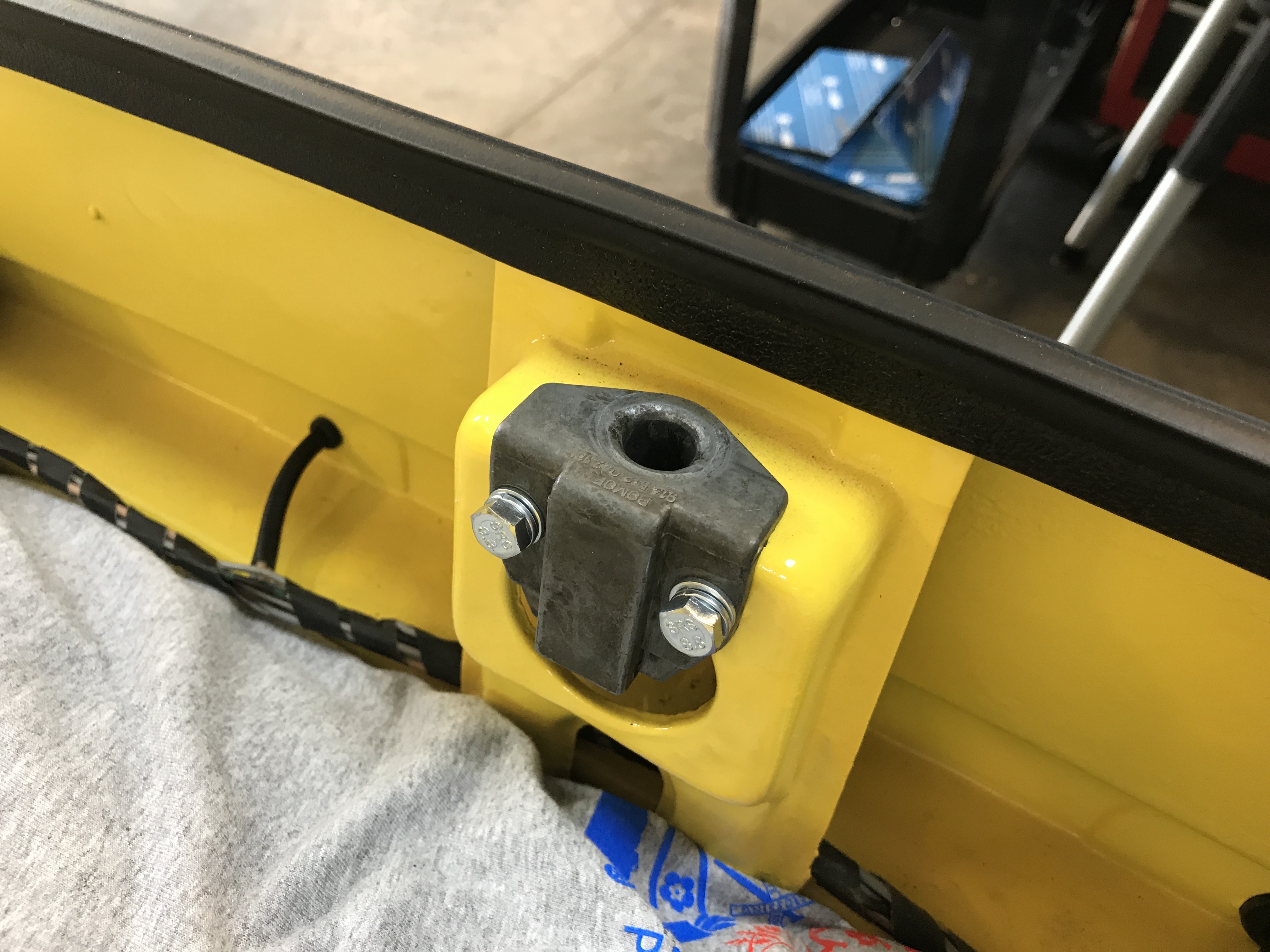

And then the latch pin receiver.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:44 PM
Post #3124


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

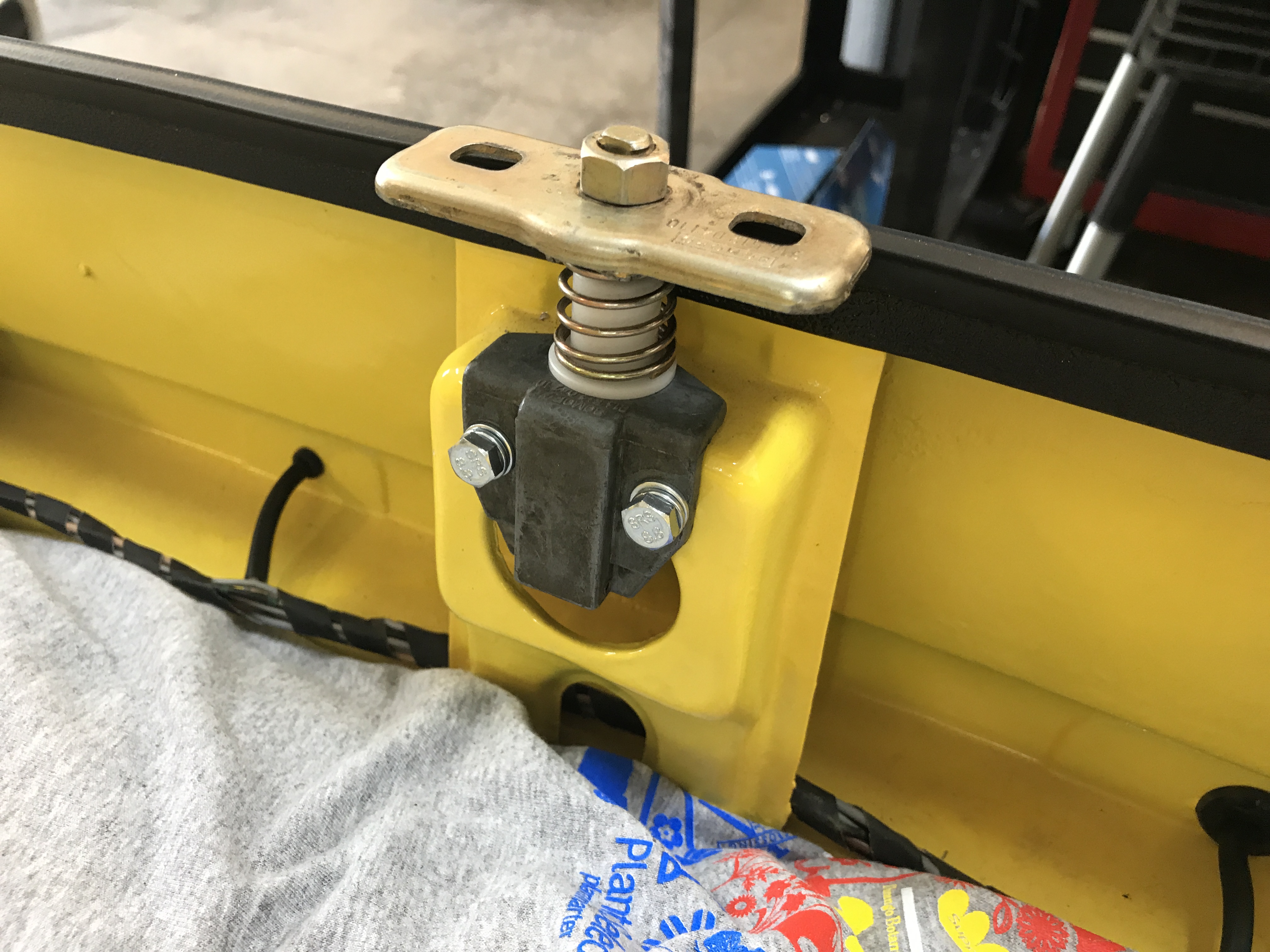

To test the function, I got out the trunk lid pin.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:45 PM
Post #3125


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

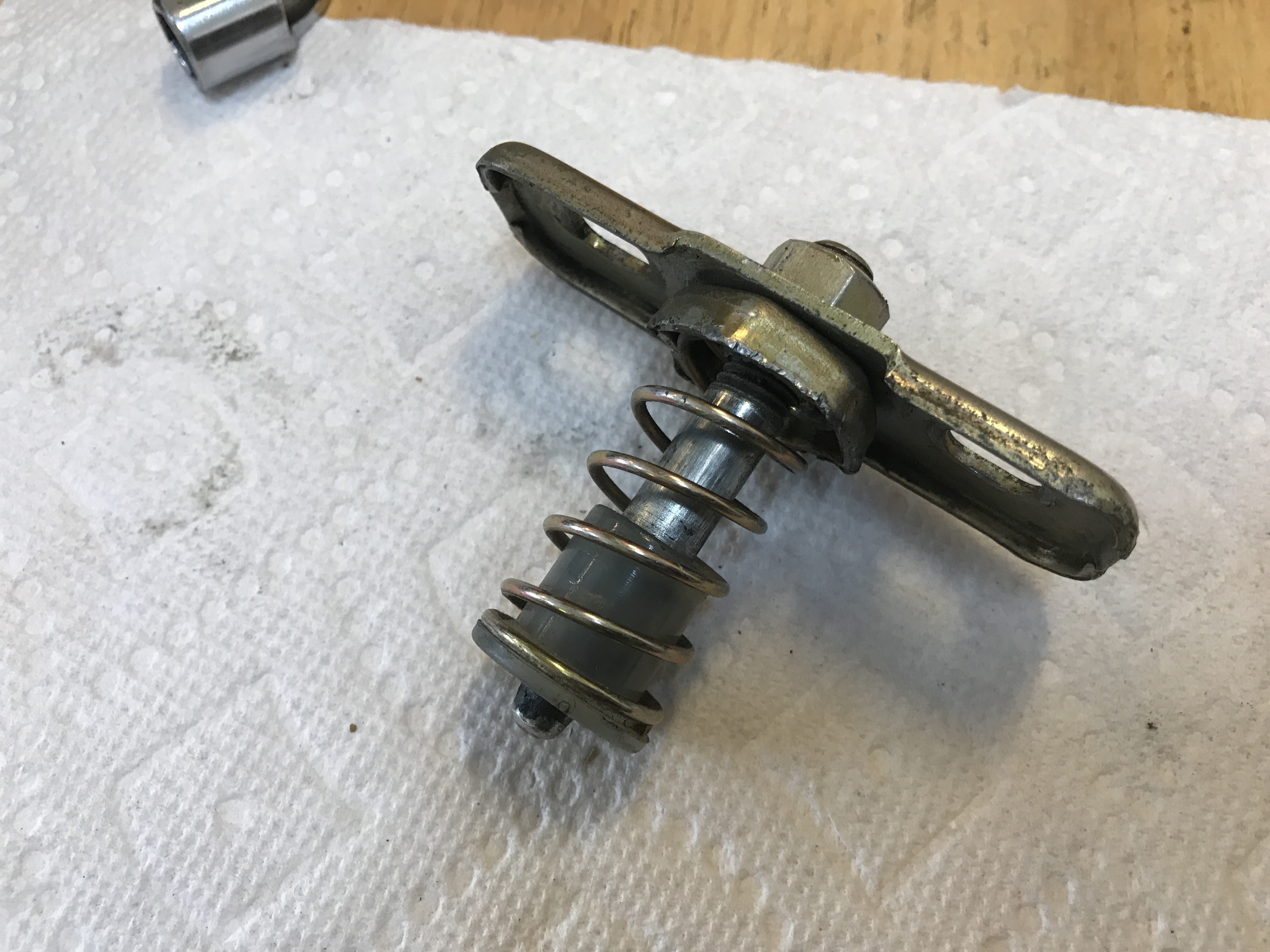

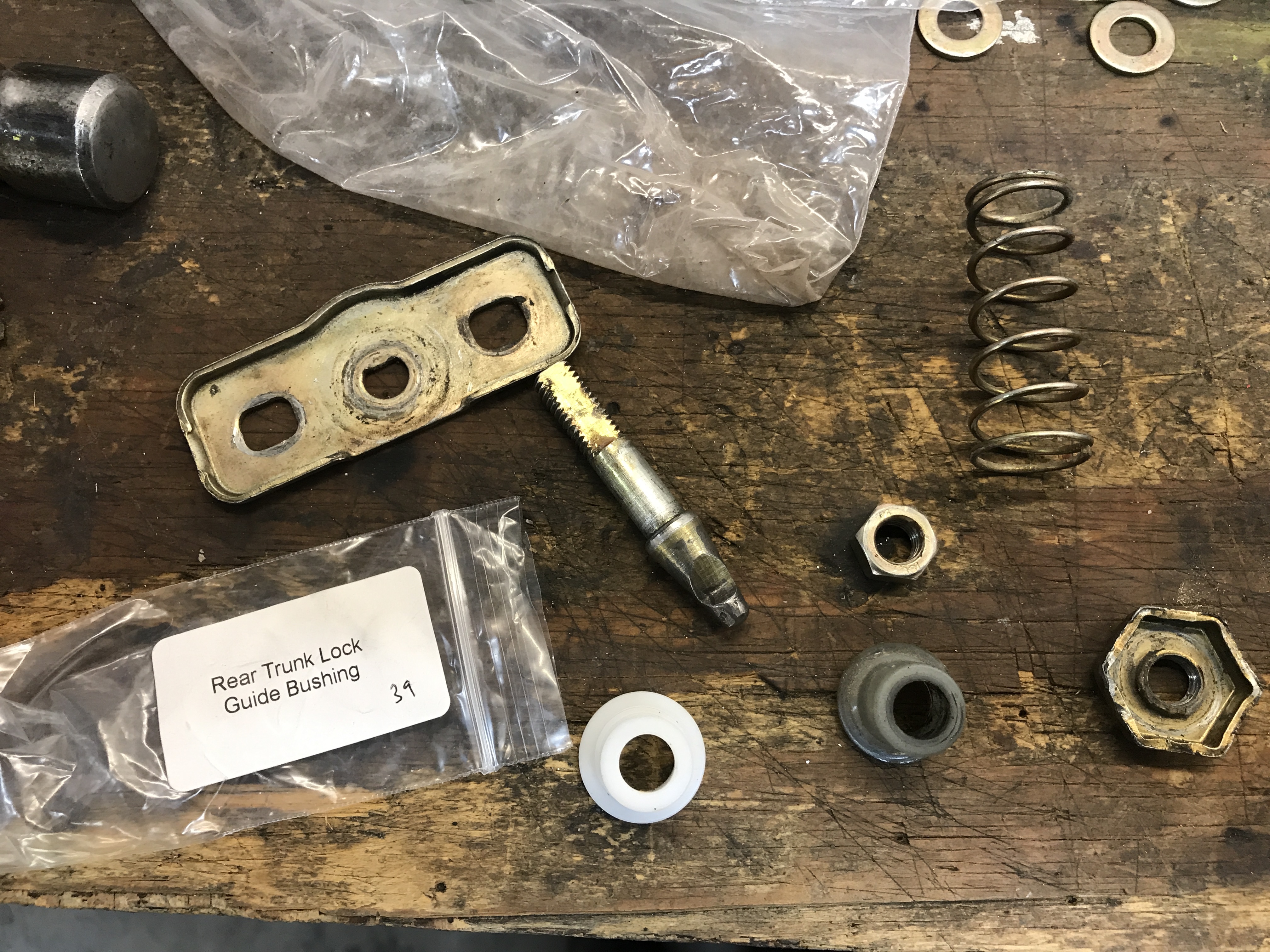

A quick disassemble for cleaning.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:46 PM
Post #3126


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

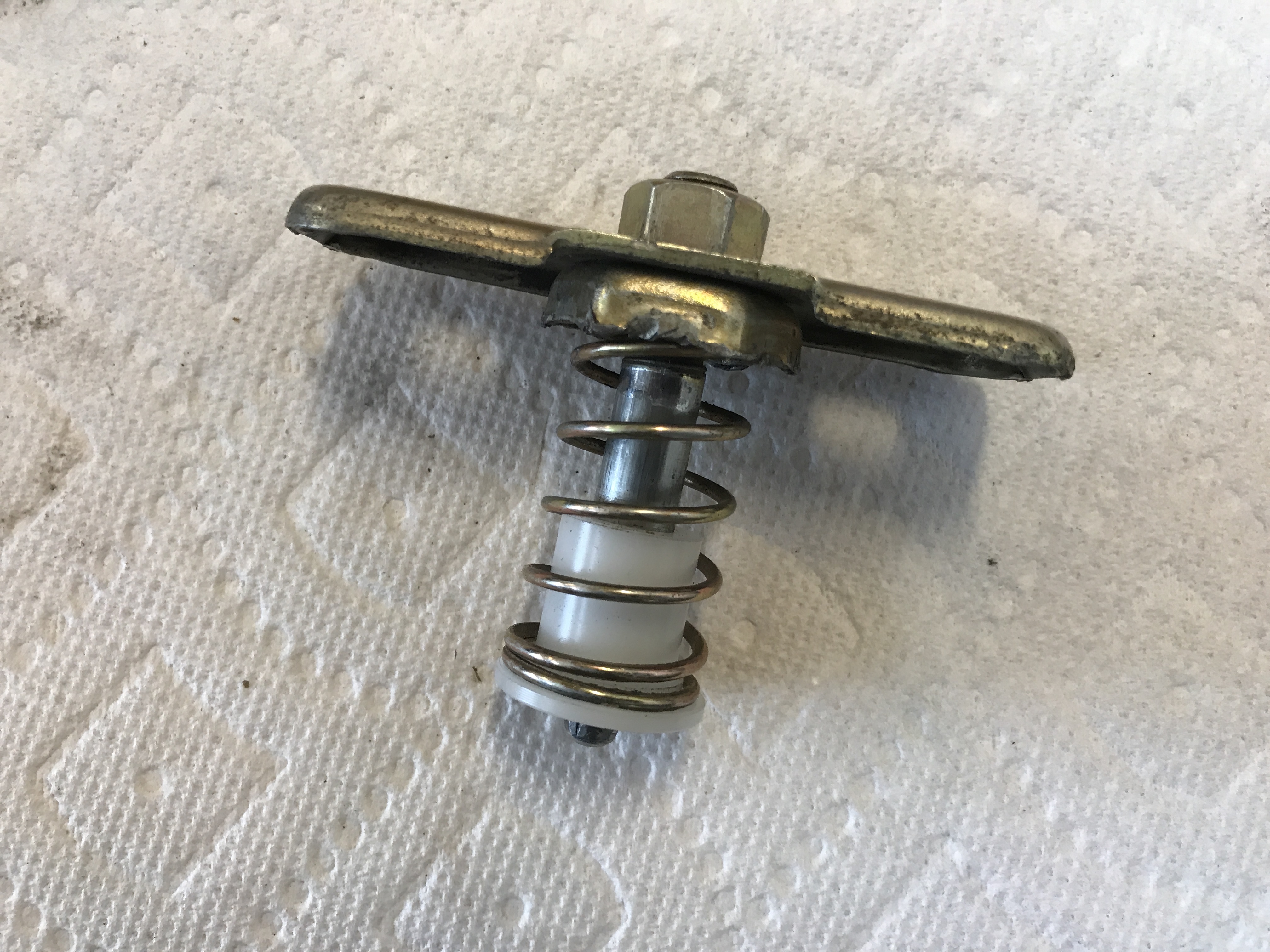

And then back together, with a new bushing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:50 PM
Post #3127


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

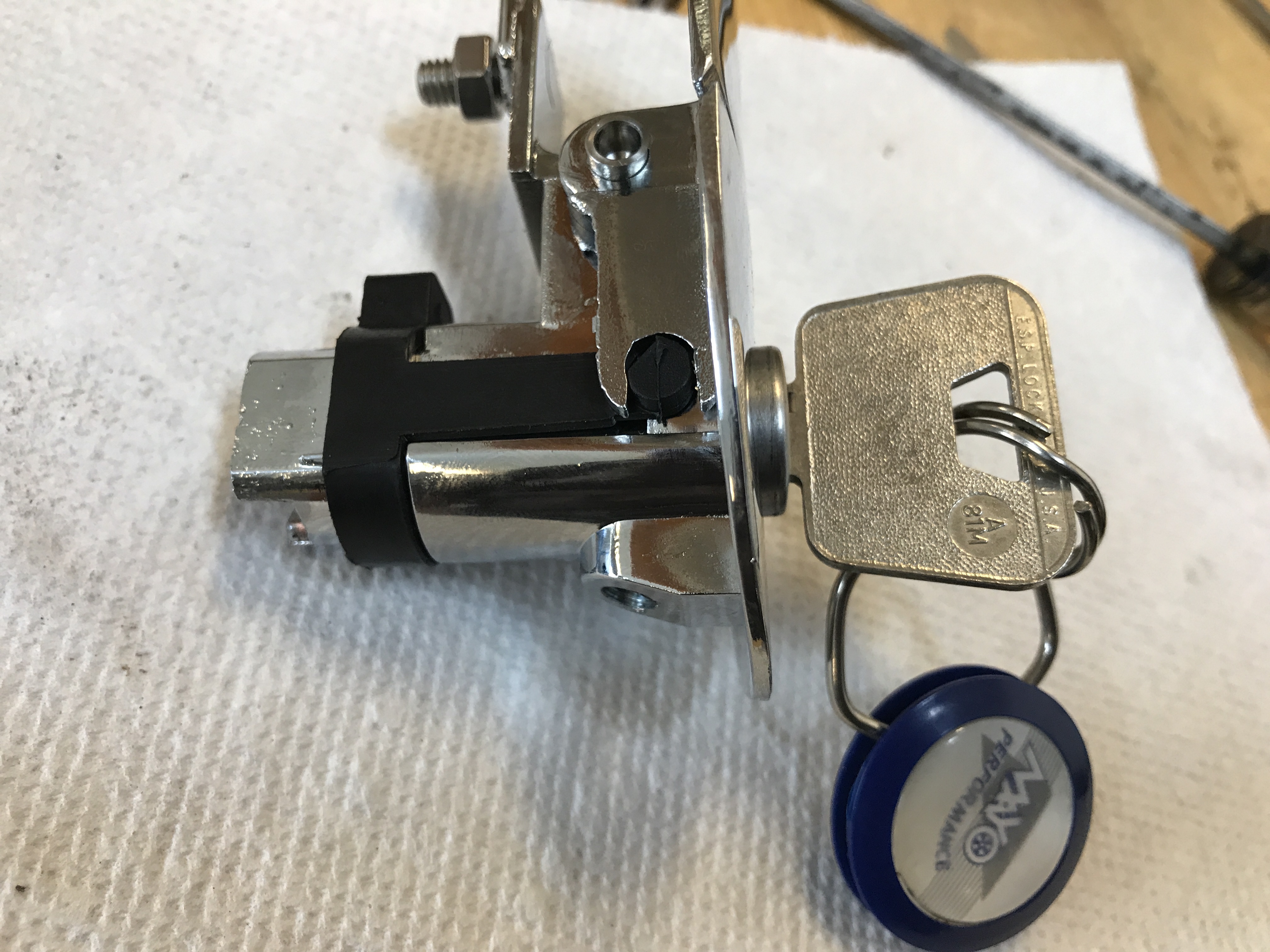

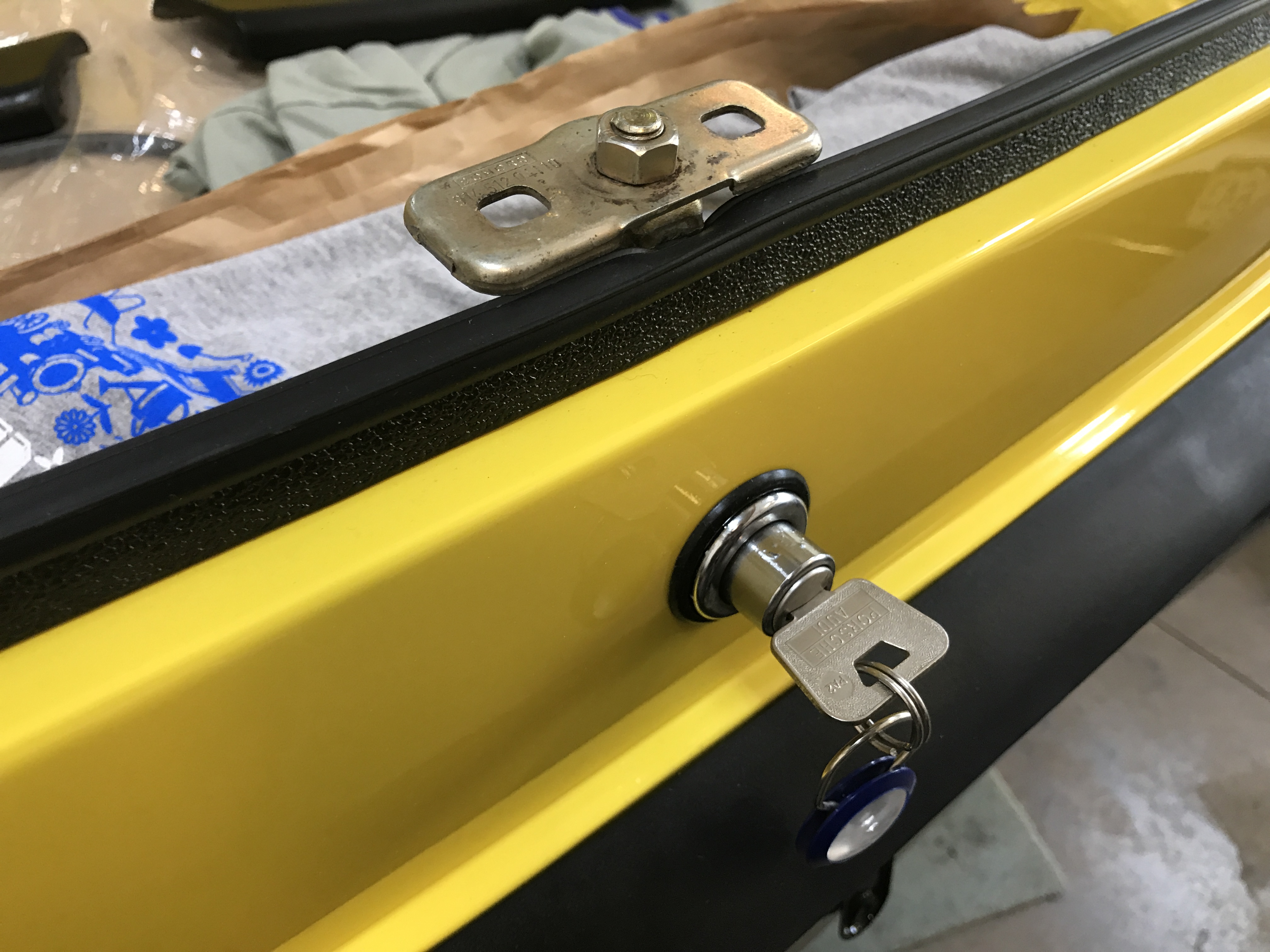

A quick test: it locks and releases!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:52 PM
Post #3128


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

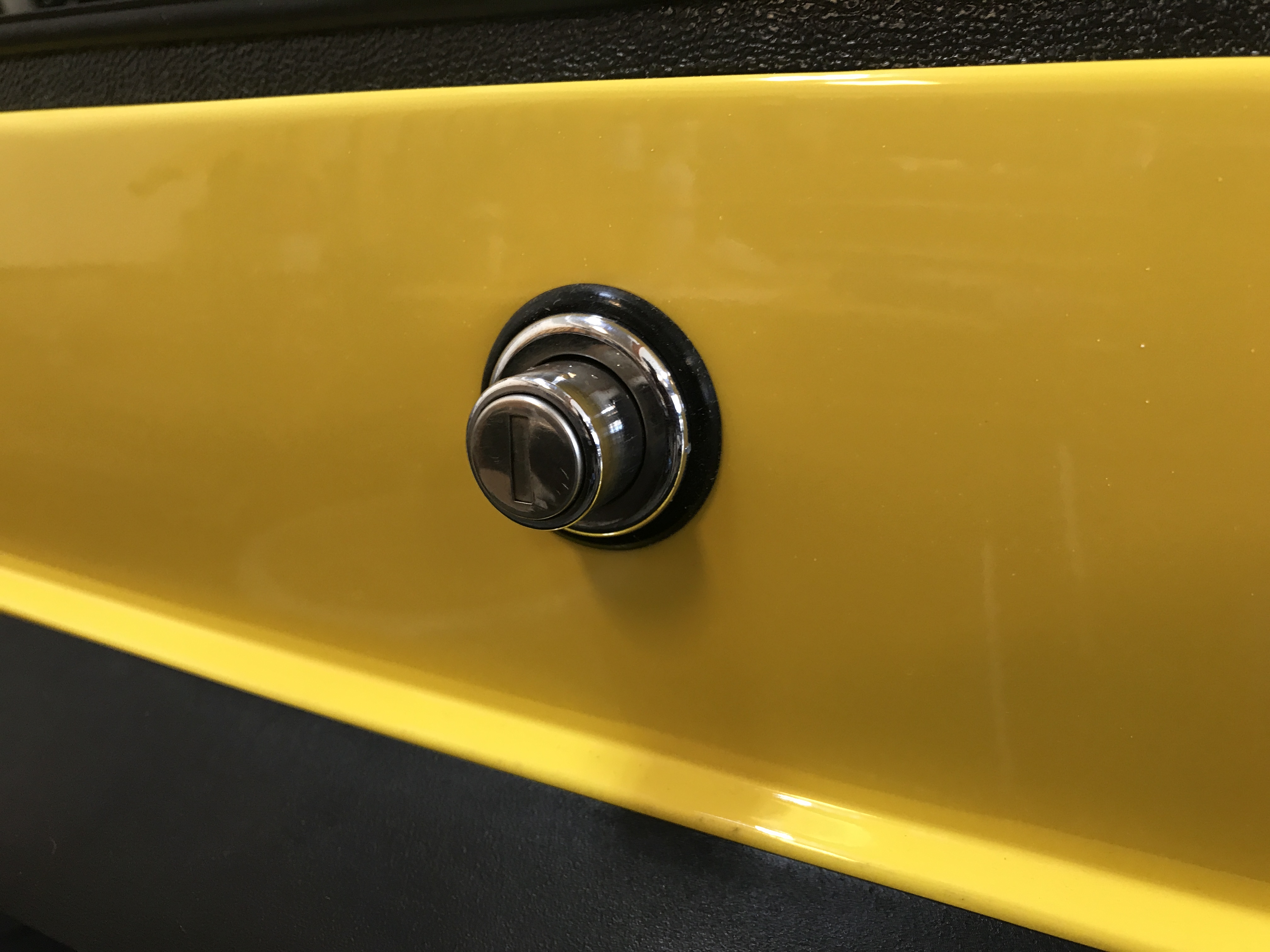

And the key locks and unlocks.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:54 PM
Post #3129


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

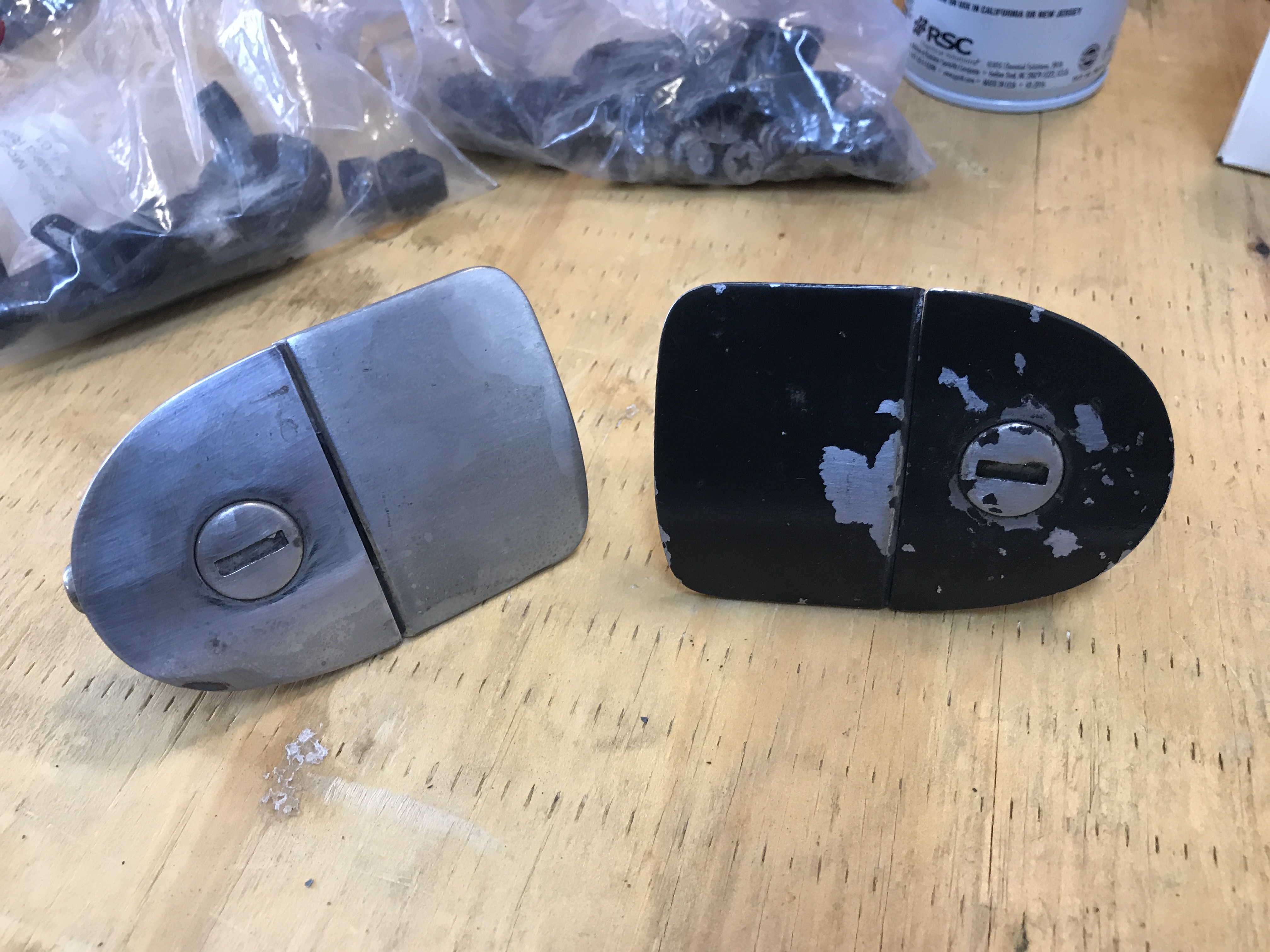

While in the mood to play with locks, I got out the door handles. Besides broken mounting tabs, the PO sanded these before painting them black.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:55 PM
Post #3130


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

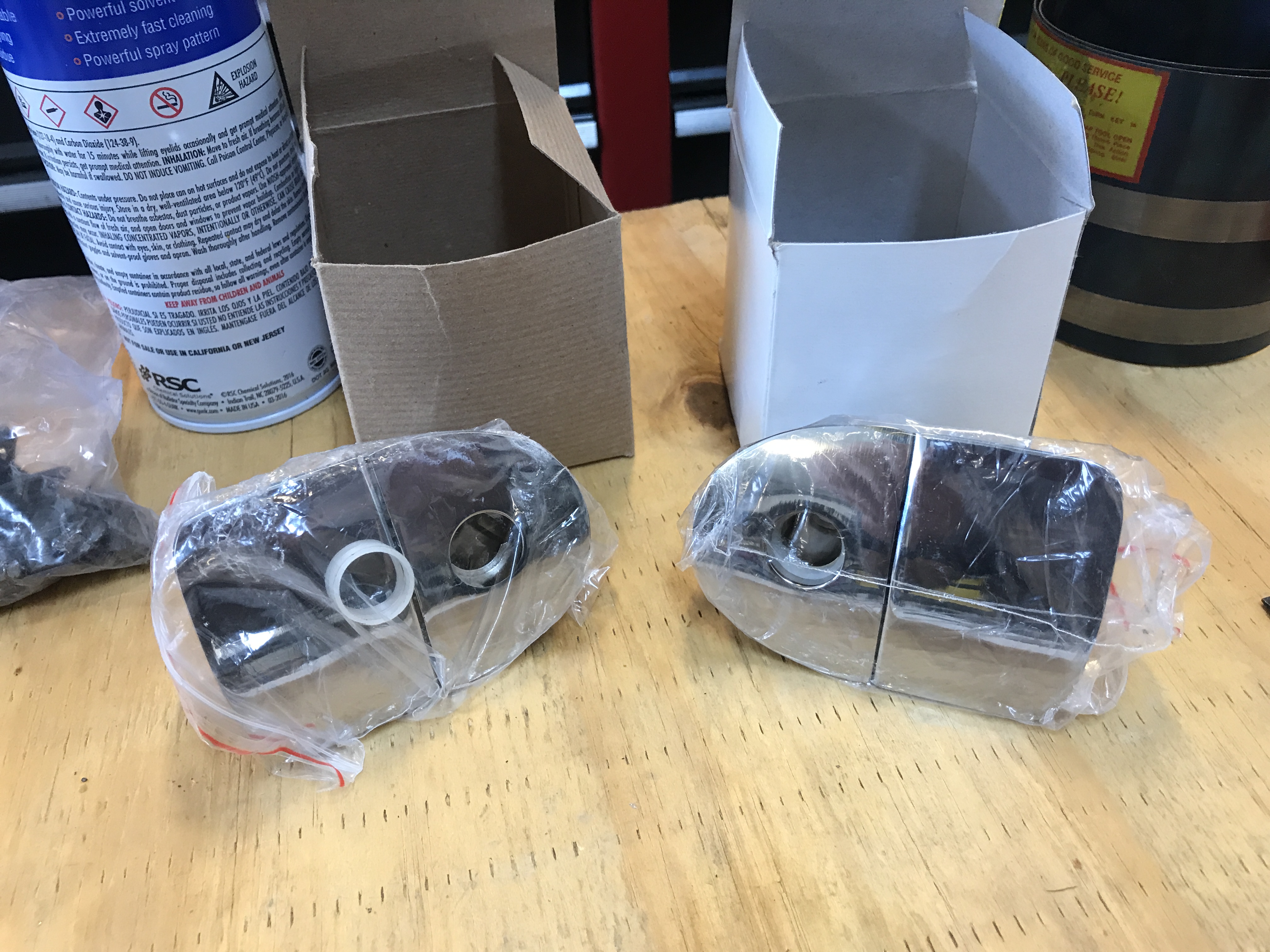

Fortunately, I have new repro handles.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:57 PM
Post #3131


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Again, step 1 was to remove the lock cylinder. This one might need some cleaning.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 07:58 PM
Post #3132


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

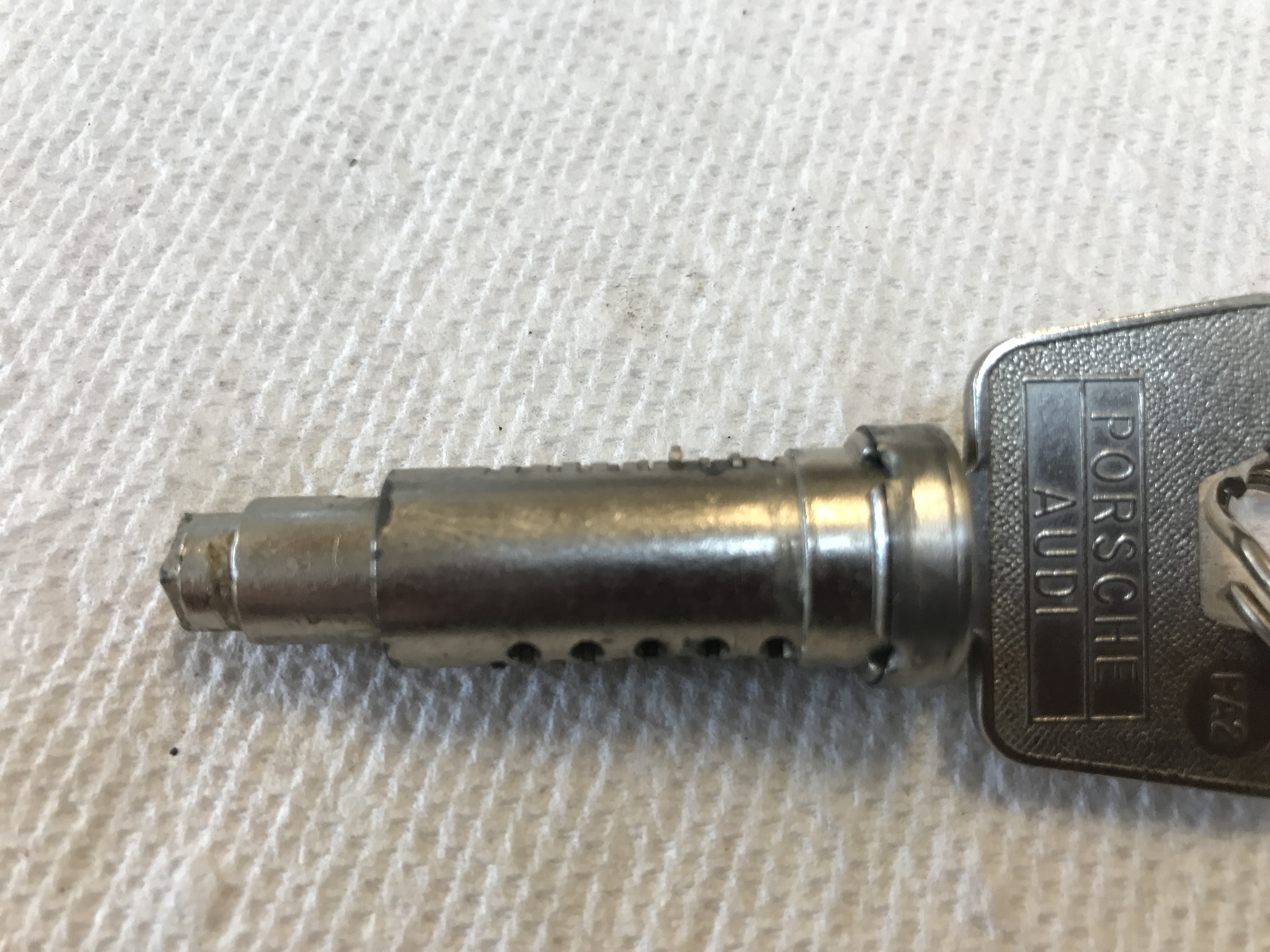

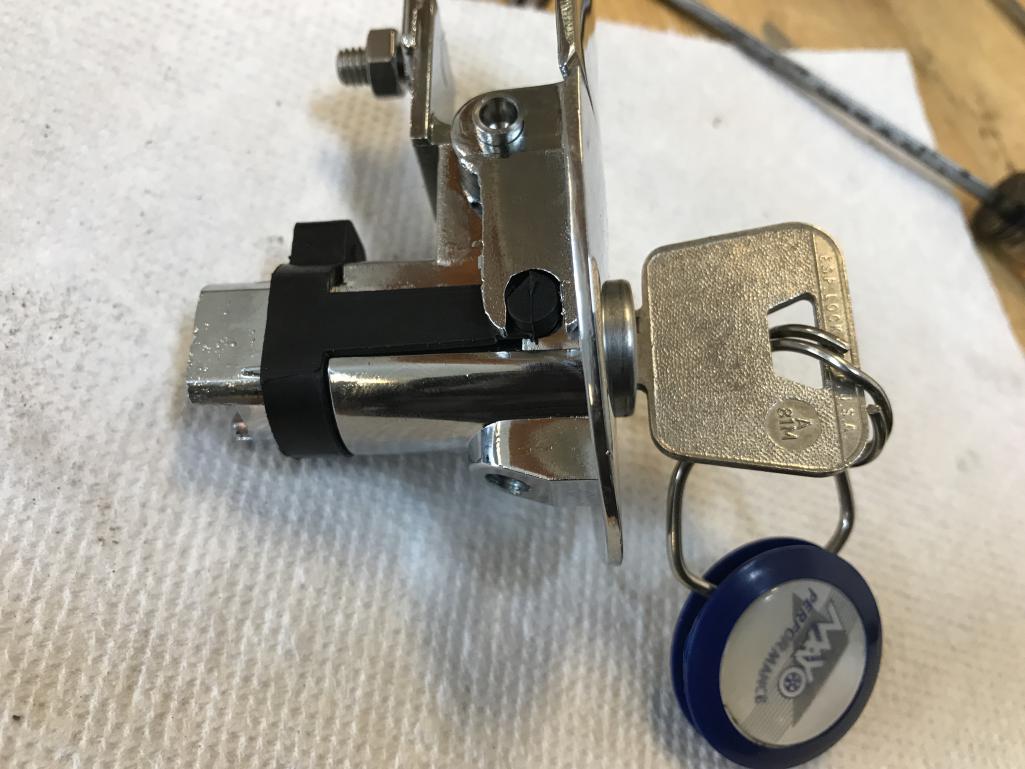

Although these are the original locks and keys, one pin is not aligned. Time for some filing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 08:02 PM
Post #3133


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

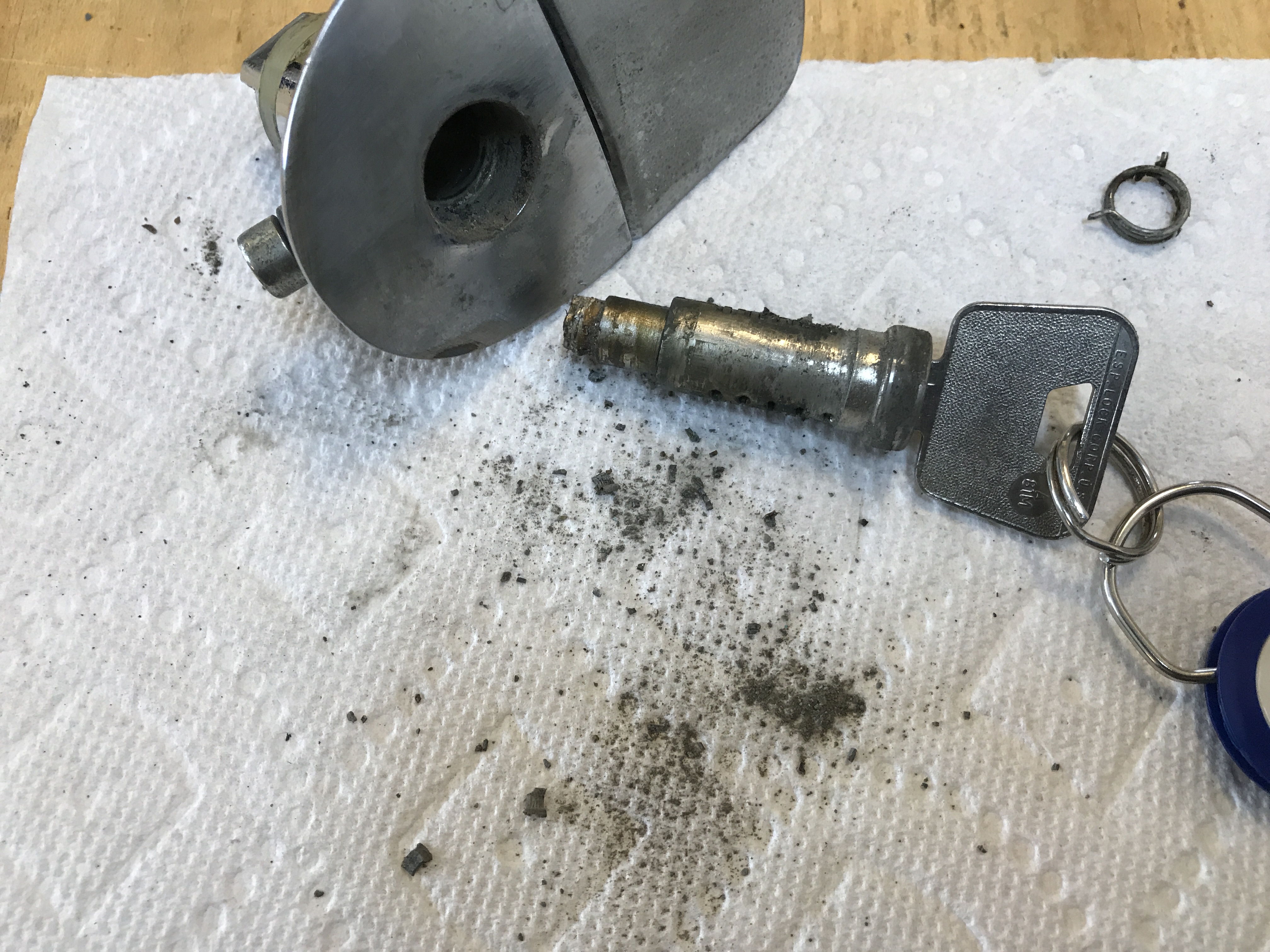

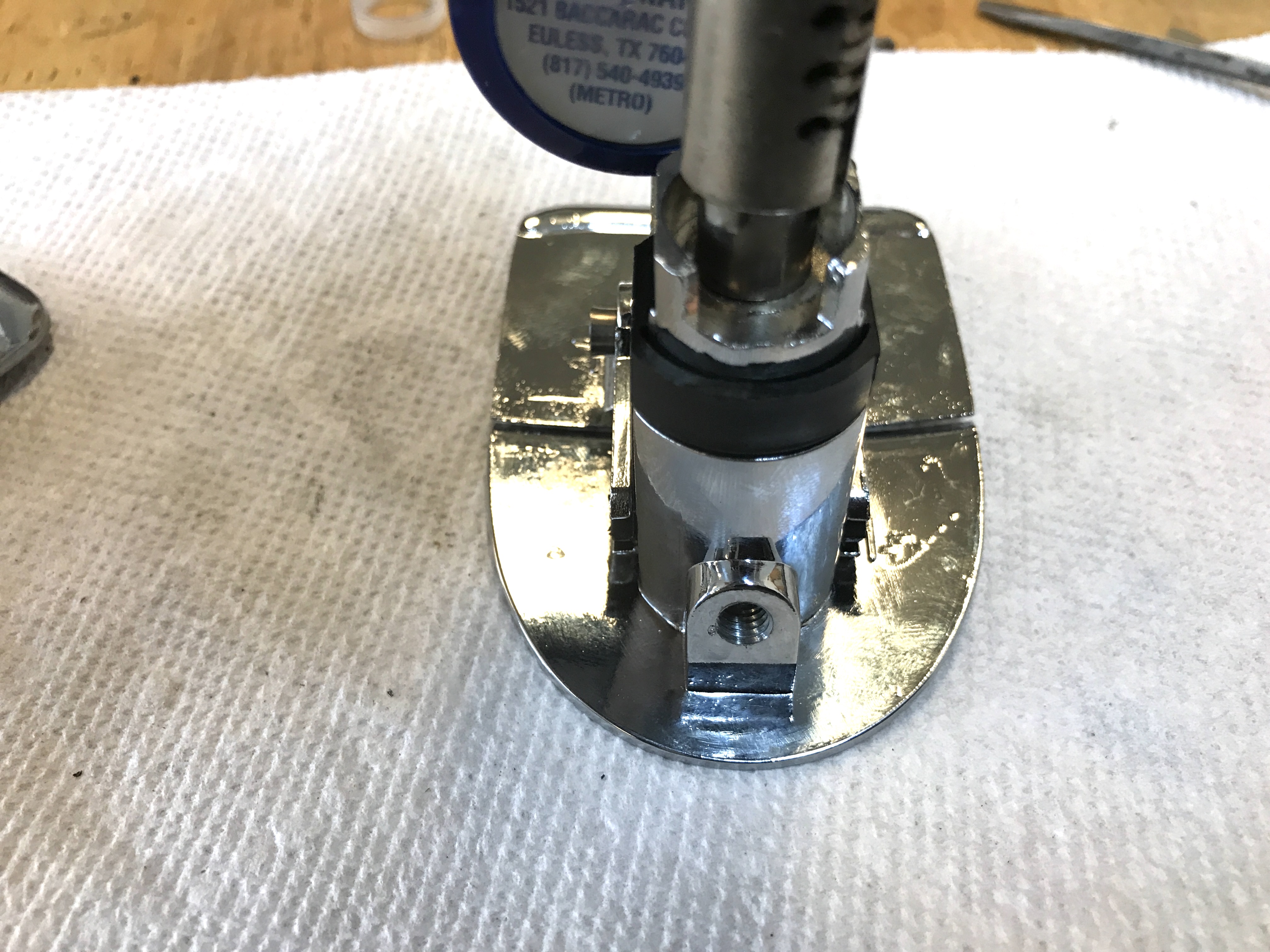

And then more filing. To start, the small end of the cylinder was too big to enter the hole at the back of the handle (shown here trying to fit it from the back side).

So I filed a bit inside the small hole section.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 22 2021, 08:04 PM
Post #3134


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
But the cylinder will still not fit into the handle. Anyone see this problem before?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 23 2021, 07:03 PM
Post #3135


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
While I try to figure out what to do with the door handles, I went back to engine work.

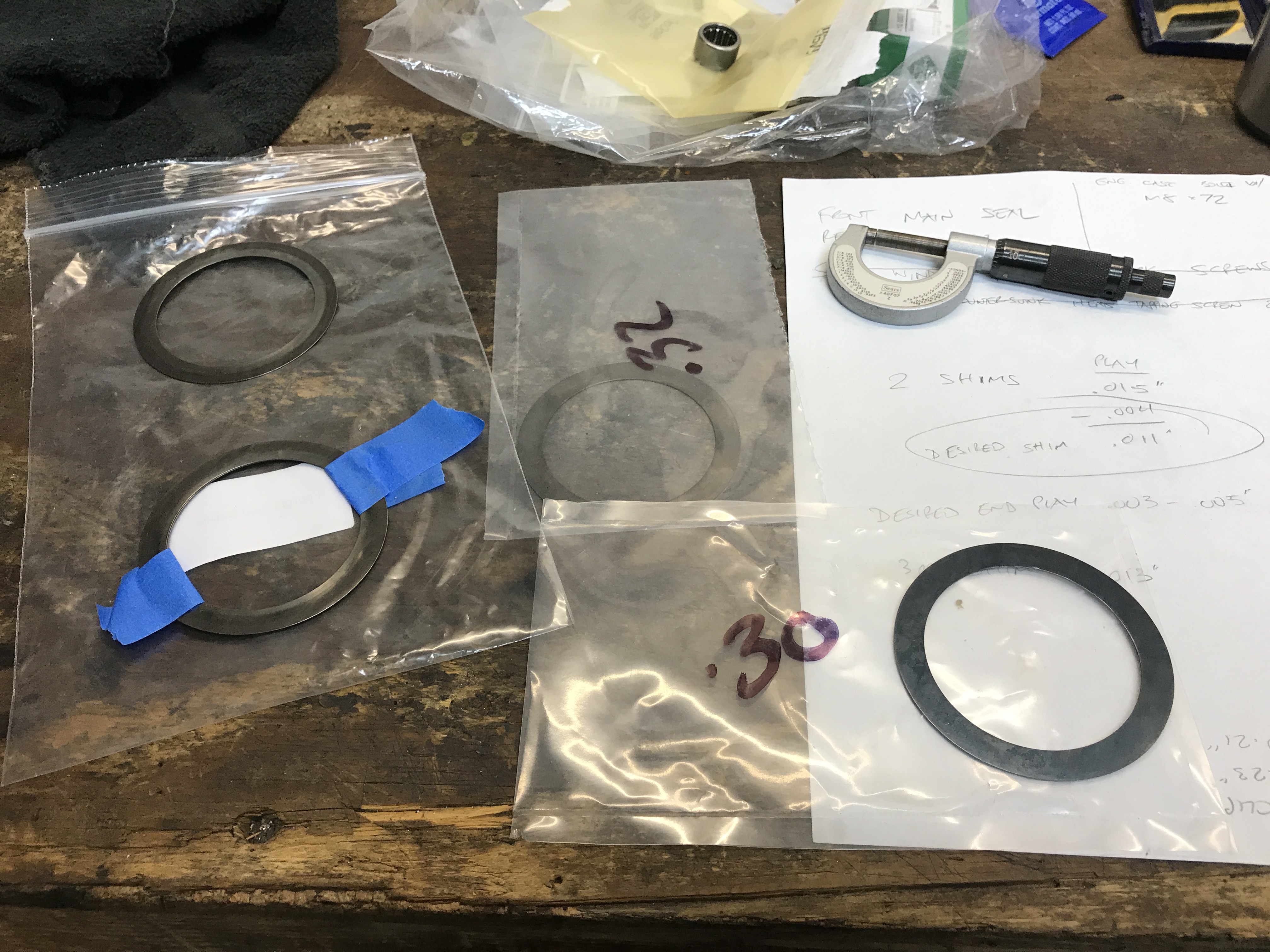

I got new shims for setting the crankshaft axial play.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 23 2021, 07:05 PM
Post #3136


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

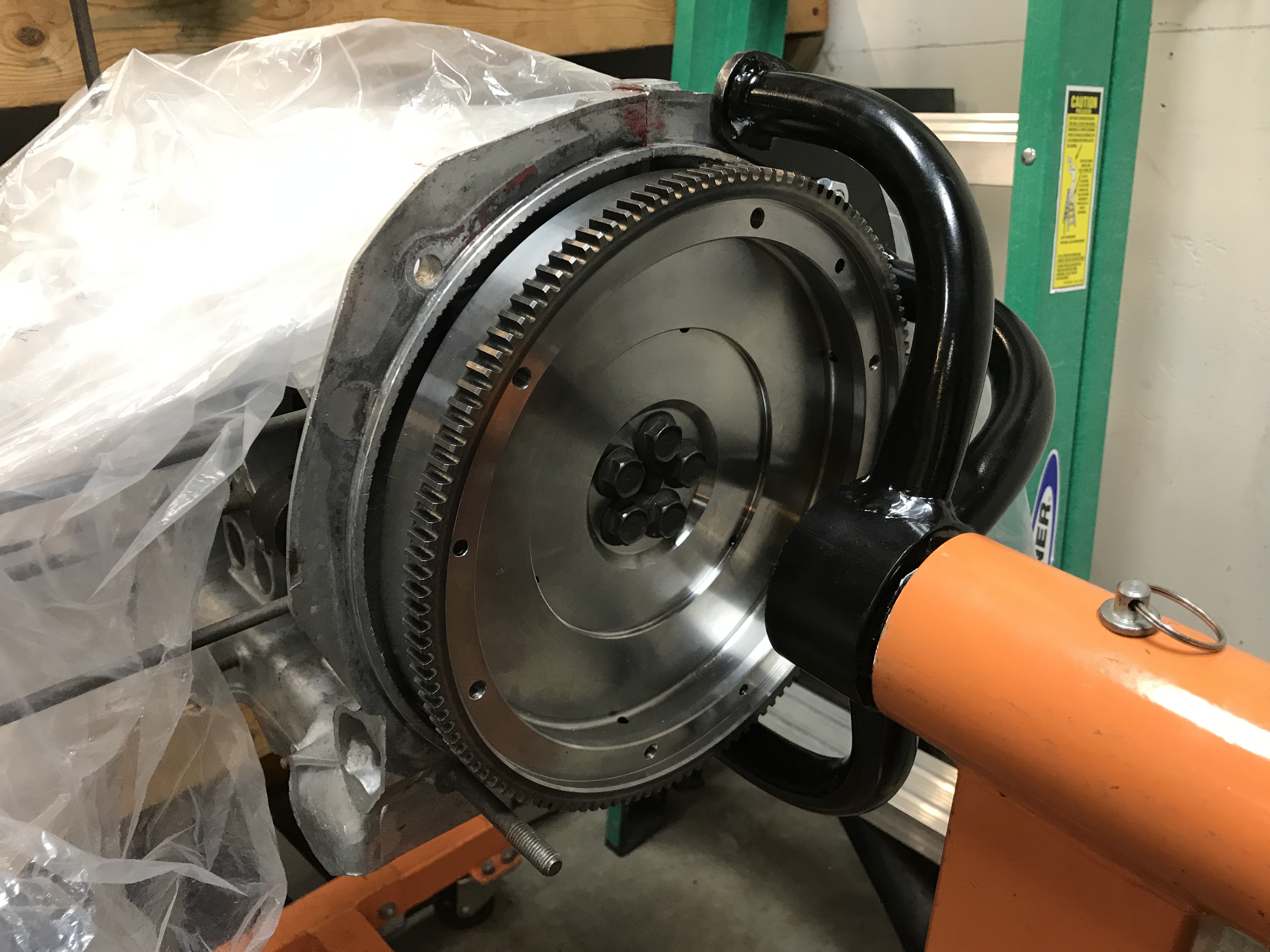

With the thinner new shim (plus two of the originals) in place dry, I mounted the flywheel and snugged up the old bolts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 23 2021, 07:07 PM
Post #3137


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
After spinning the crank a few times, I mounted the dial indicator, pulled the flywheel out, and zeroed the indicator.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 23 2021, 07:09 PM
Post #3138


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

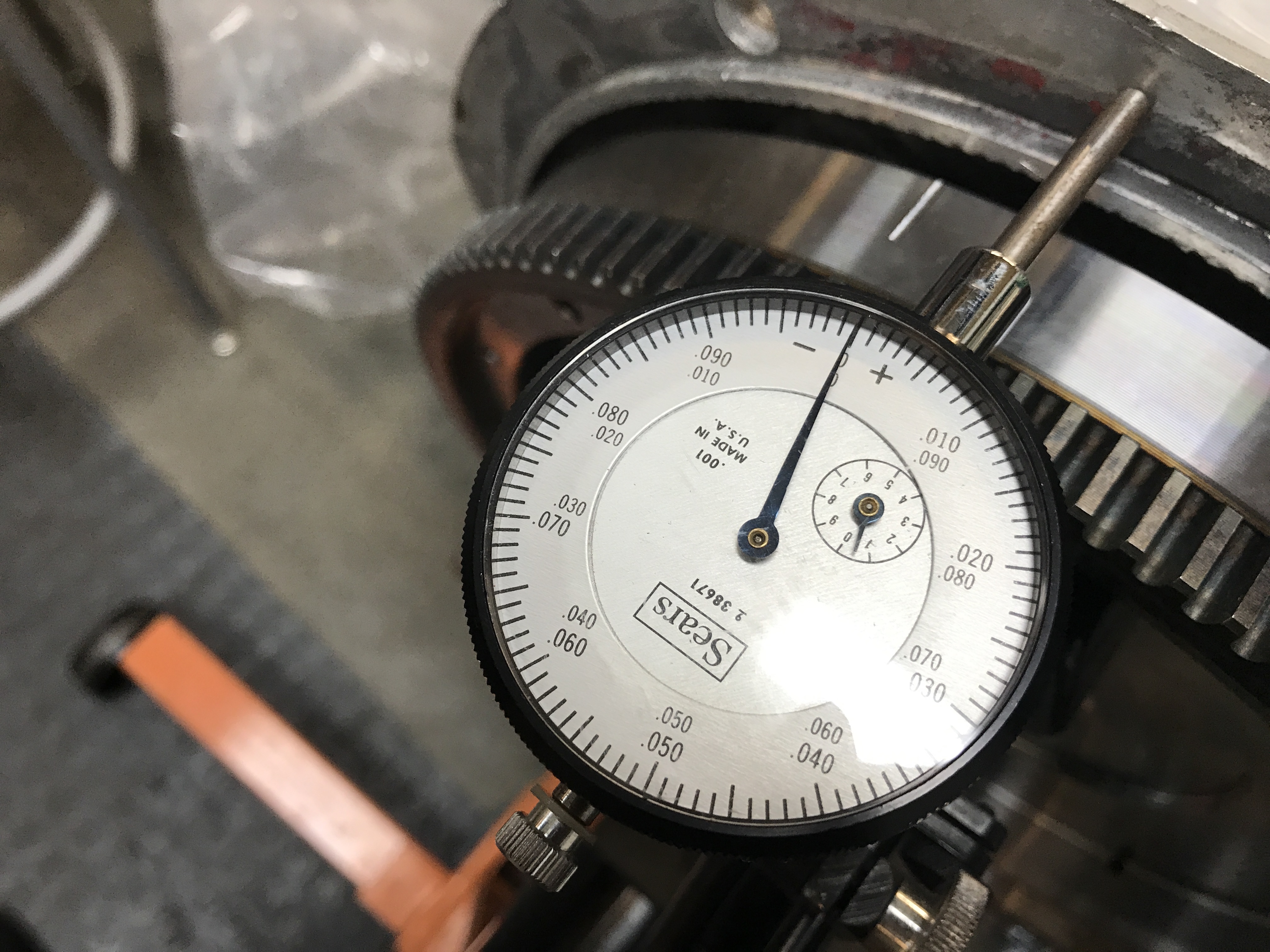

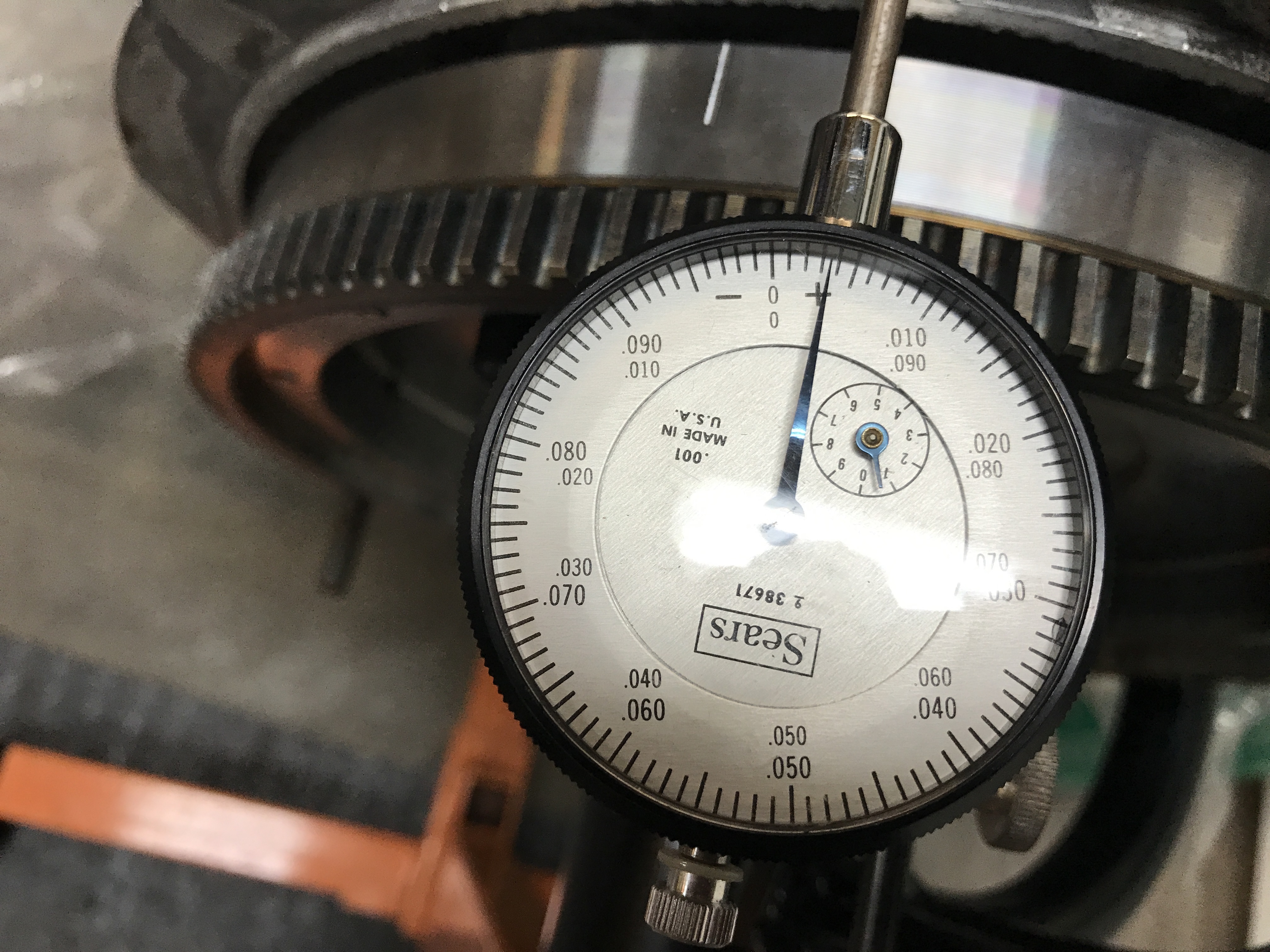

After shoving the flywheel in (and feeling a slight shift), the indicator reads .0035 inch--just right. I repeated this a few times, and got the same result.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 23 2021, 07:10 PM
Post #3139


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

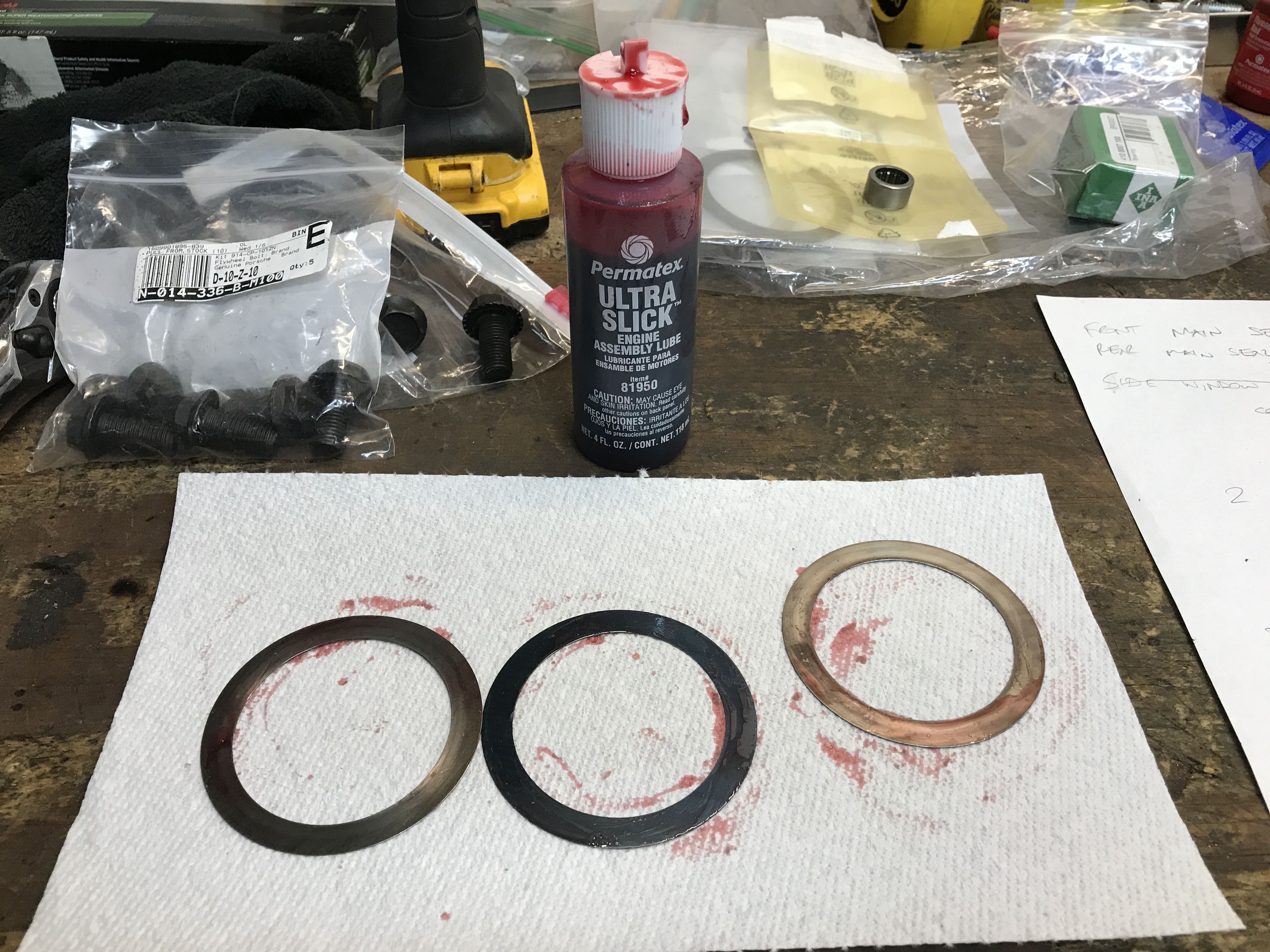

I pulled the flywheel off, and coated all the shims with assembly lube.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 23 2021, 07:12 PM
Post #3140


914 Guru
*****

Group: Members
Posts: 8,065
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

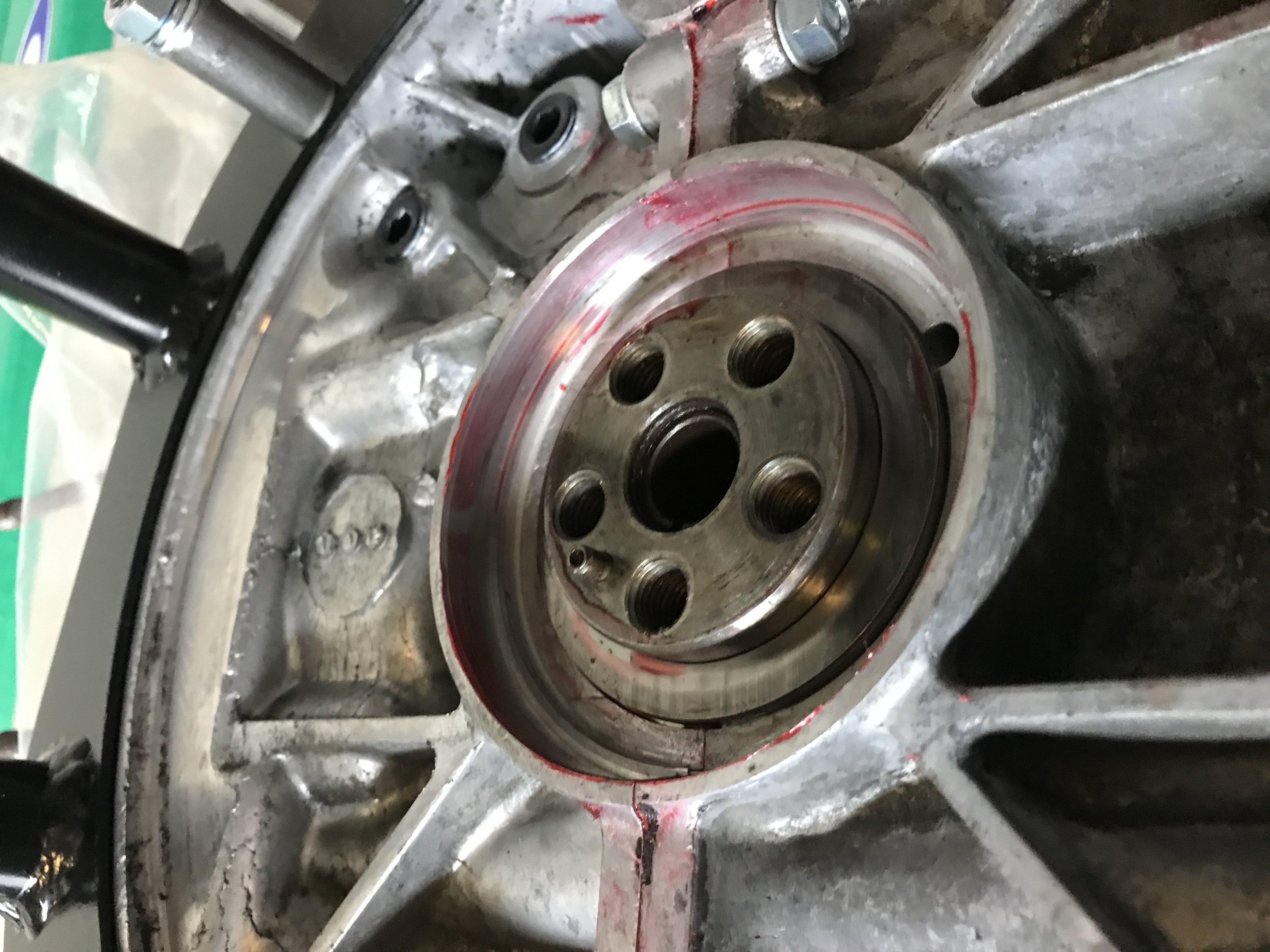

I put the shims back in, cleaned the recess for the seal, and gave it a thin smear of gasket compound.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
