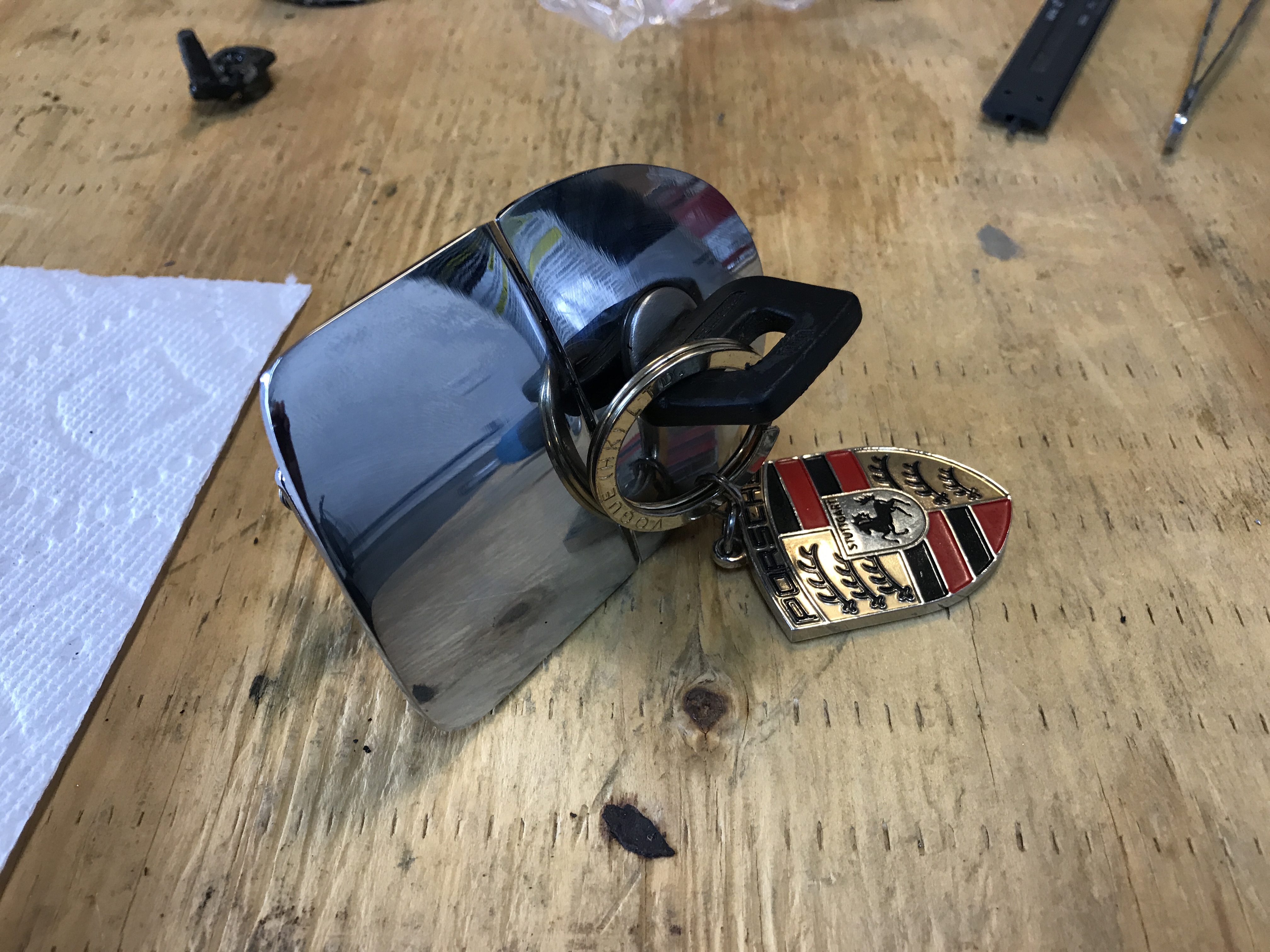

After about 2 hours I have both handles working OK. The cylinders are a little notchy to turn, depending on the key I use, but should work.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:12 PM
Post
#3162
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Getting ready to install the gas tank and plumbing. I have some ideas to try.
First, I want to use a metal fuel filter, but can only find 3/8" to 3/8". That means I need to have a separate 3/8" to 1/2" adapter to step up the supply line to feed the pump inlet. Second, I want to see if I can set the lines so I can access and change the filter from underneath. Third, I think I will connect the lines to the tank from underneath, with a minimum amount of extra length. Let's see what will work. Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:13 PM
Post
#3163
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

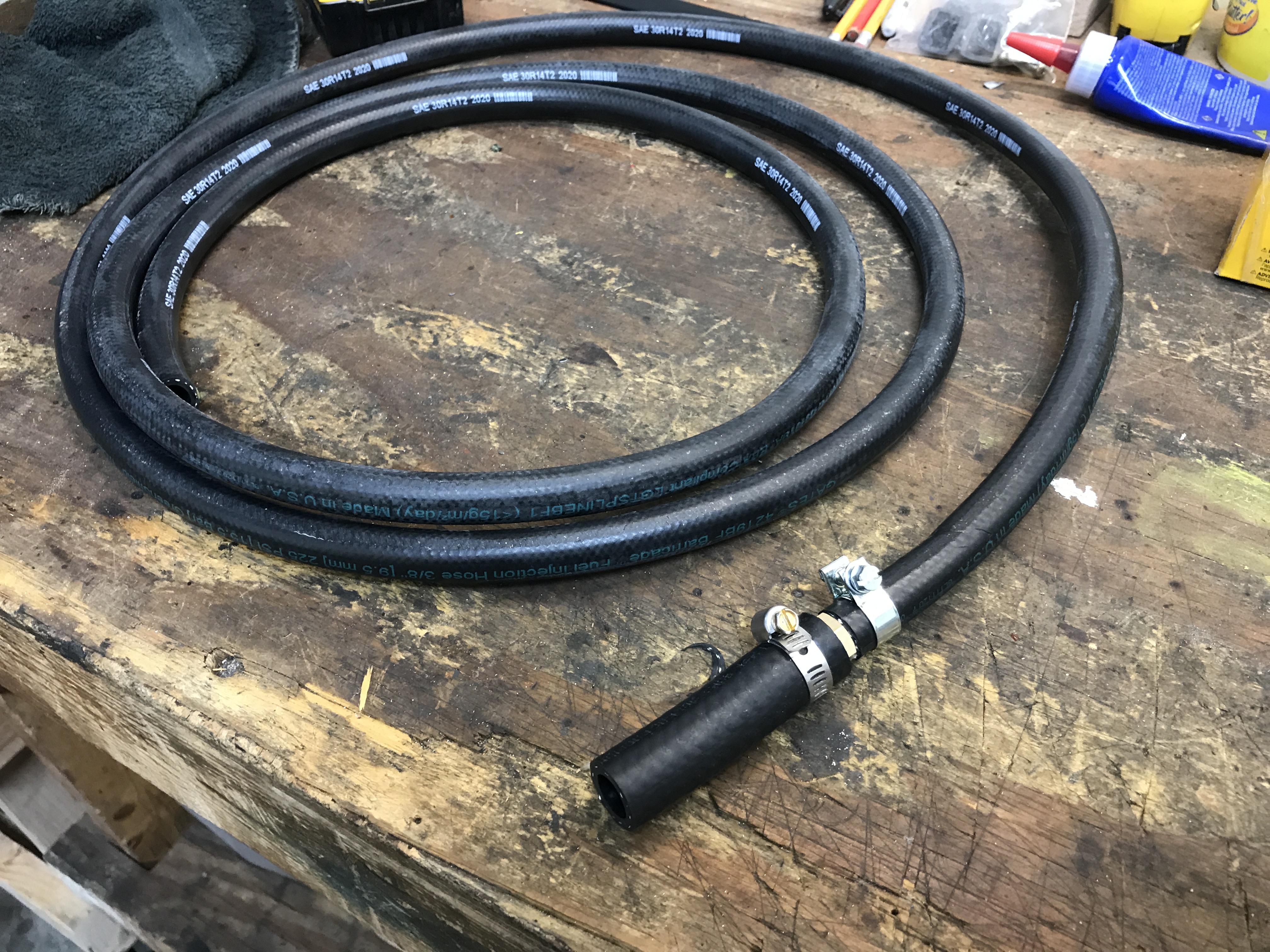

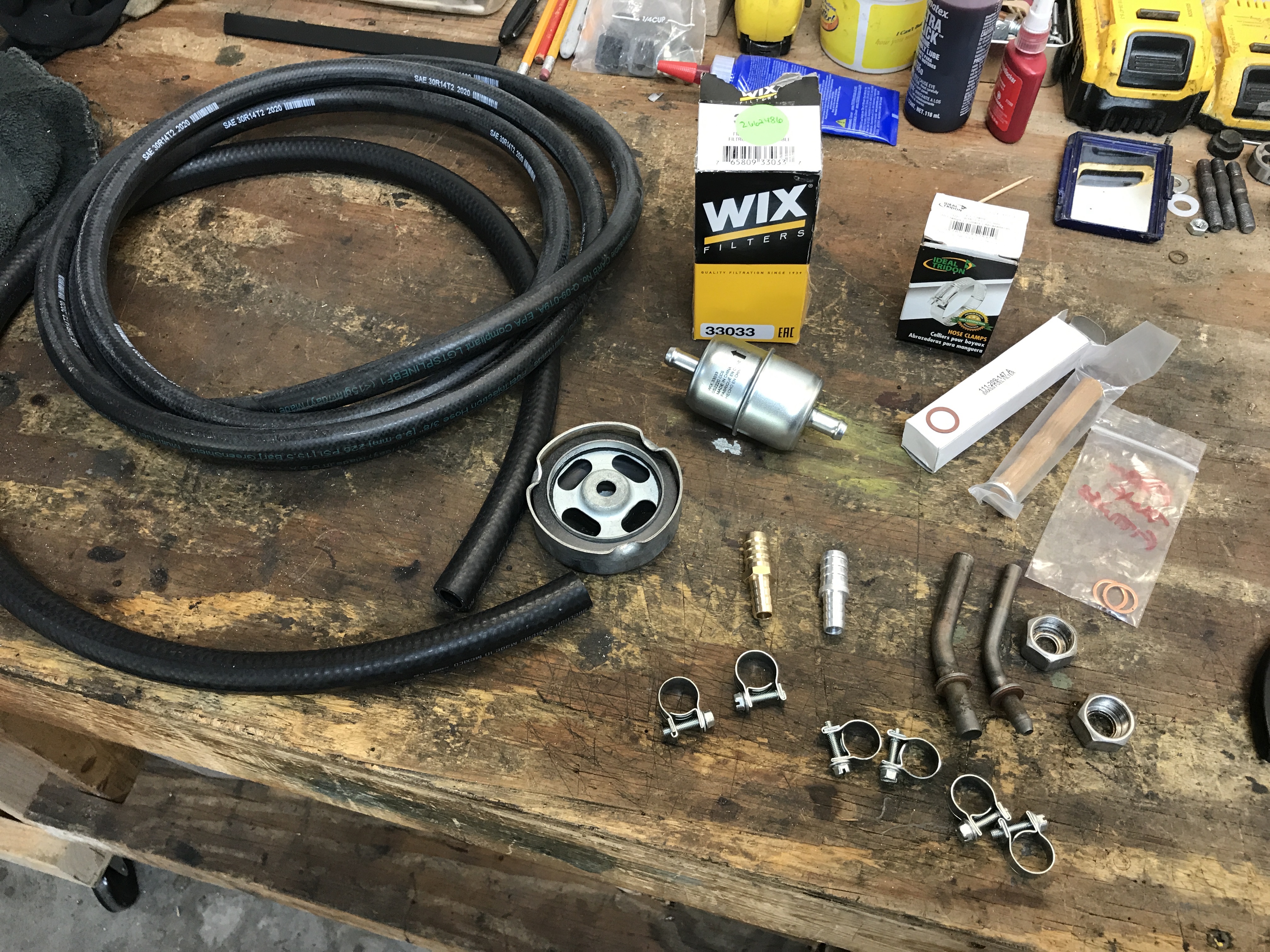

Here's the supply line, with a brass adapter to step up from 3/8 to 1/2" hose.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:15 PM
Post
#3164
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Supply line connected to the pump inlet, and the extra fed down trough the access hole (for now.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:16 PM
Post
#3165
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

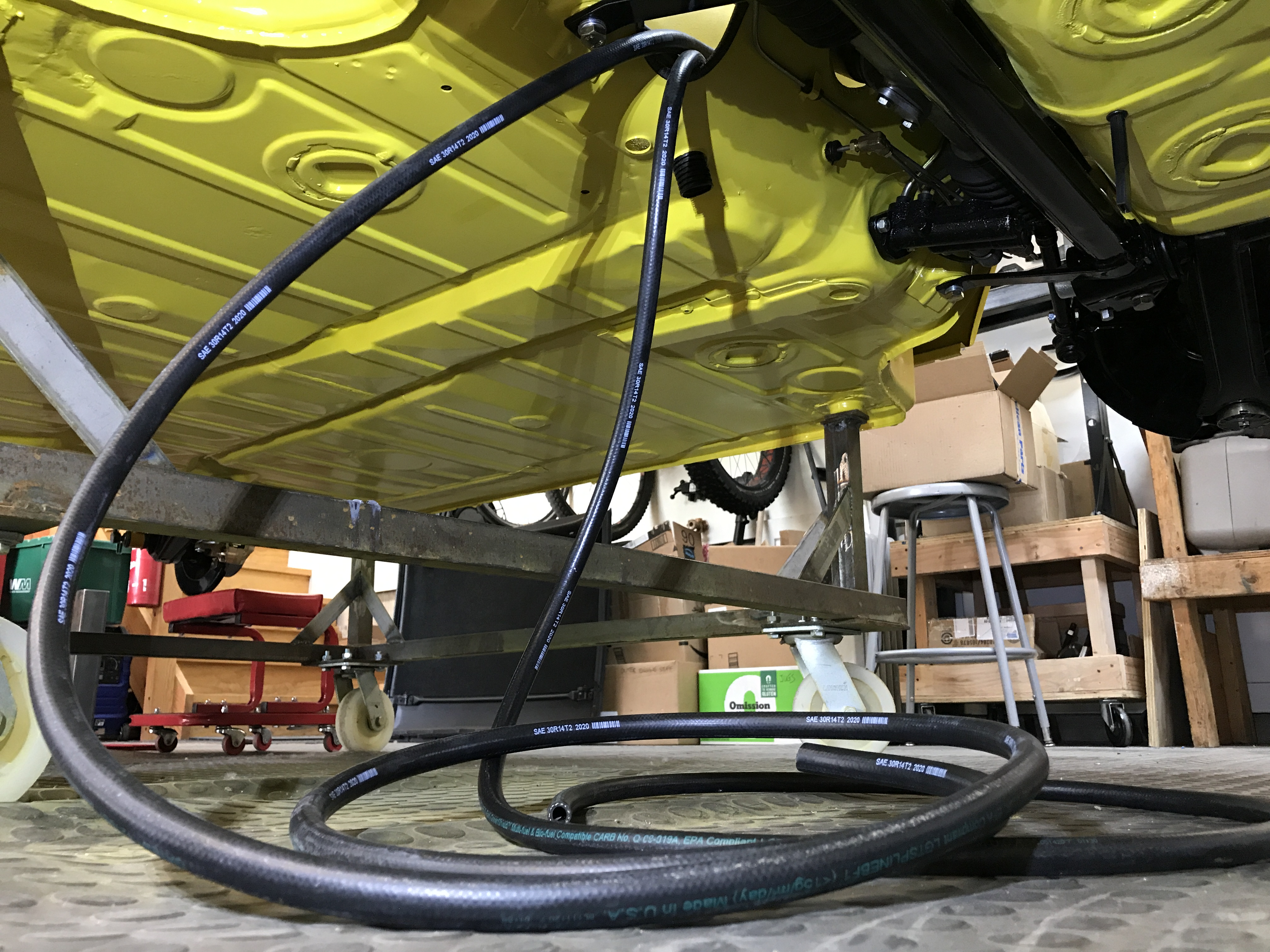

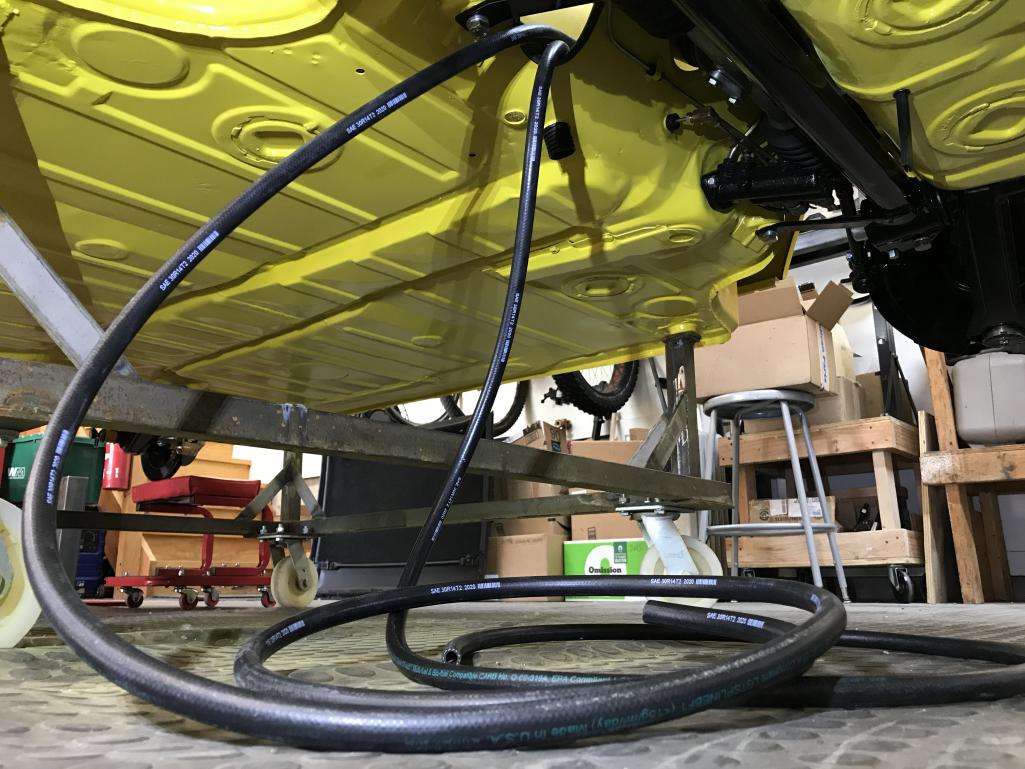

From underneath, the supply line and also the return line from the engine.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:17 PM
Post
#3166
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

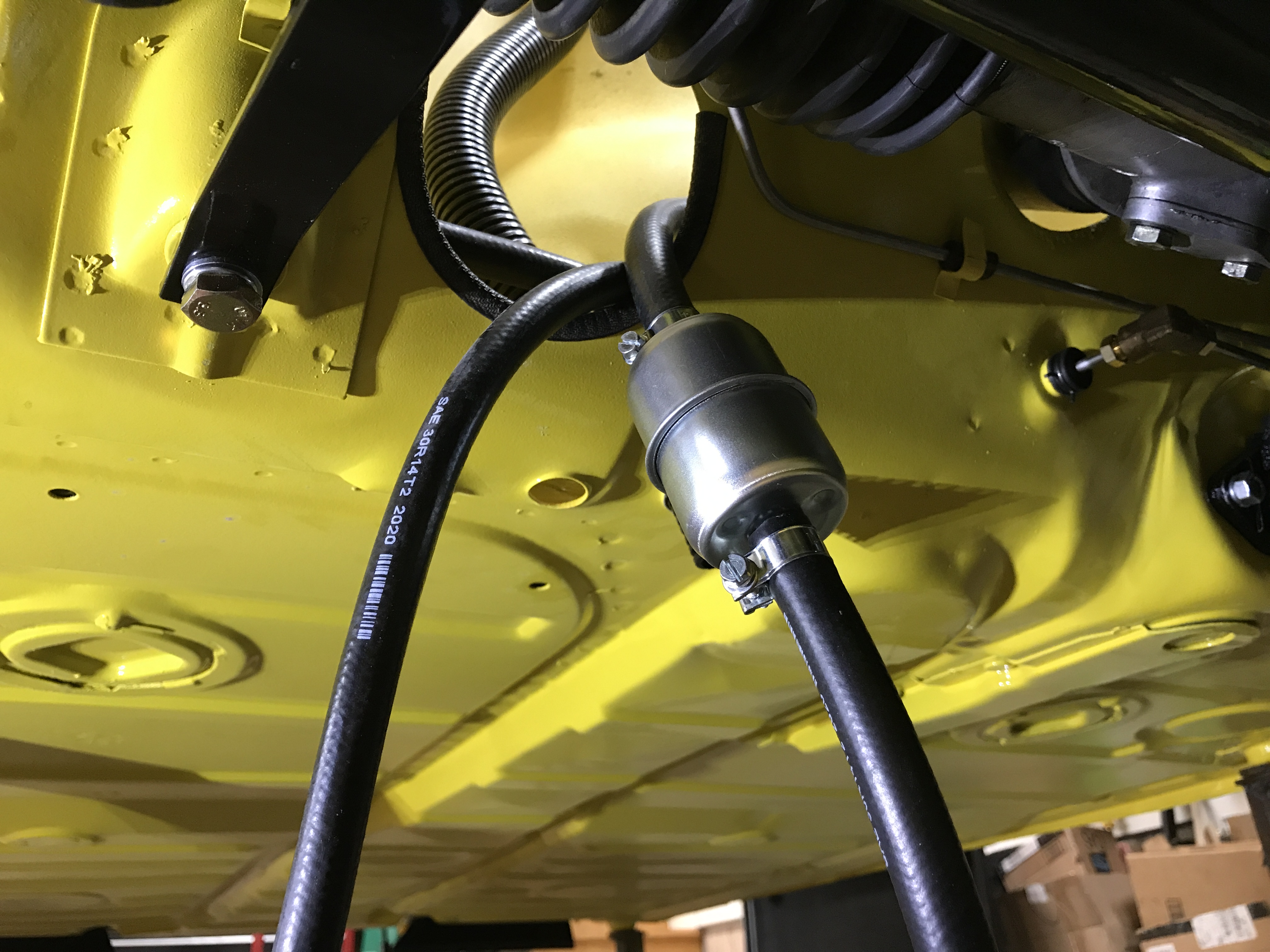

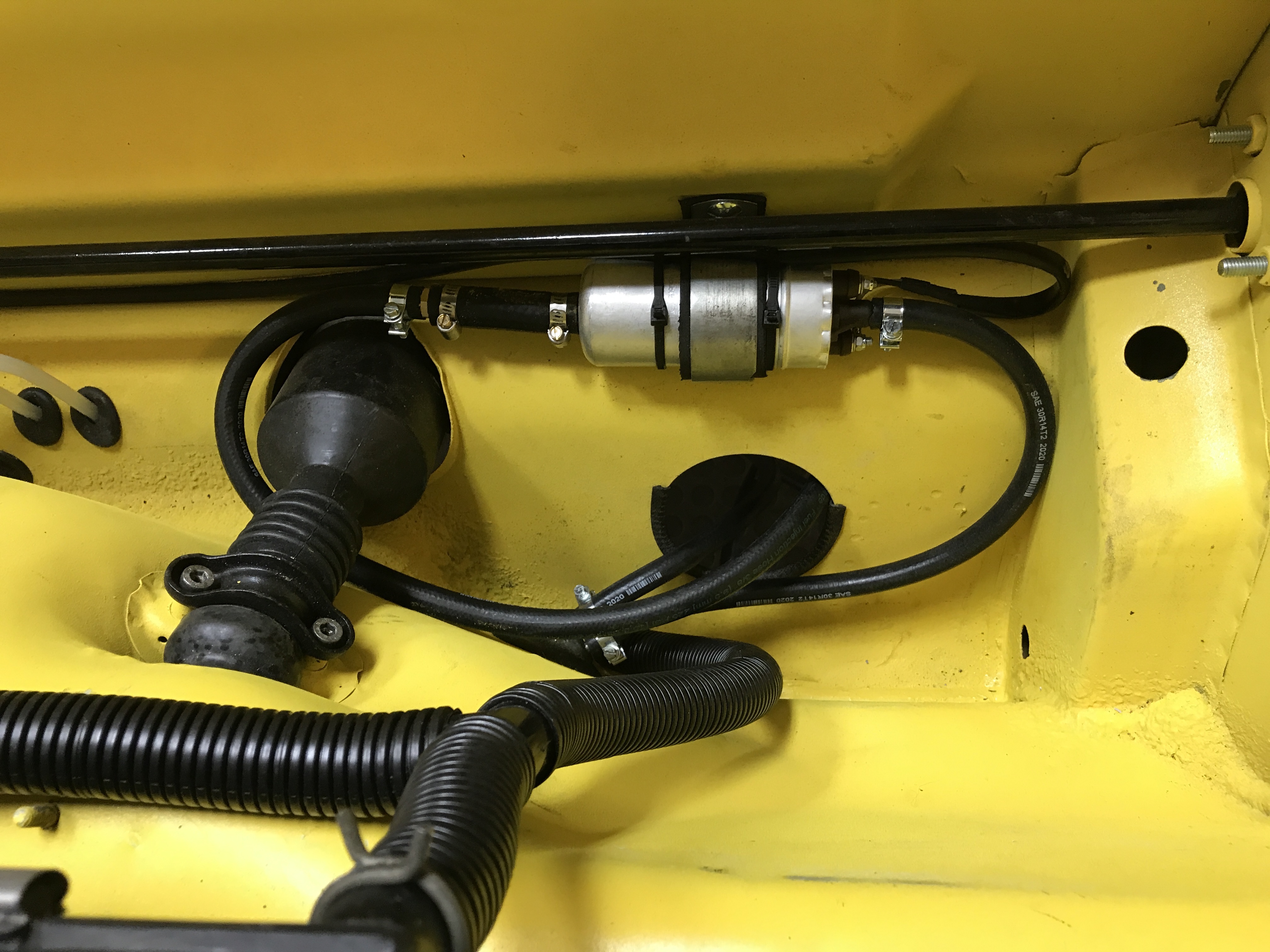

Fuel filter, attached from underneath. I can imagine being able to replace this in the future.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:18 PM
Post
#3167
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

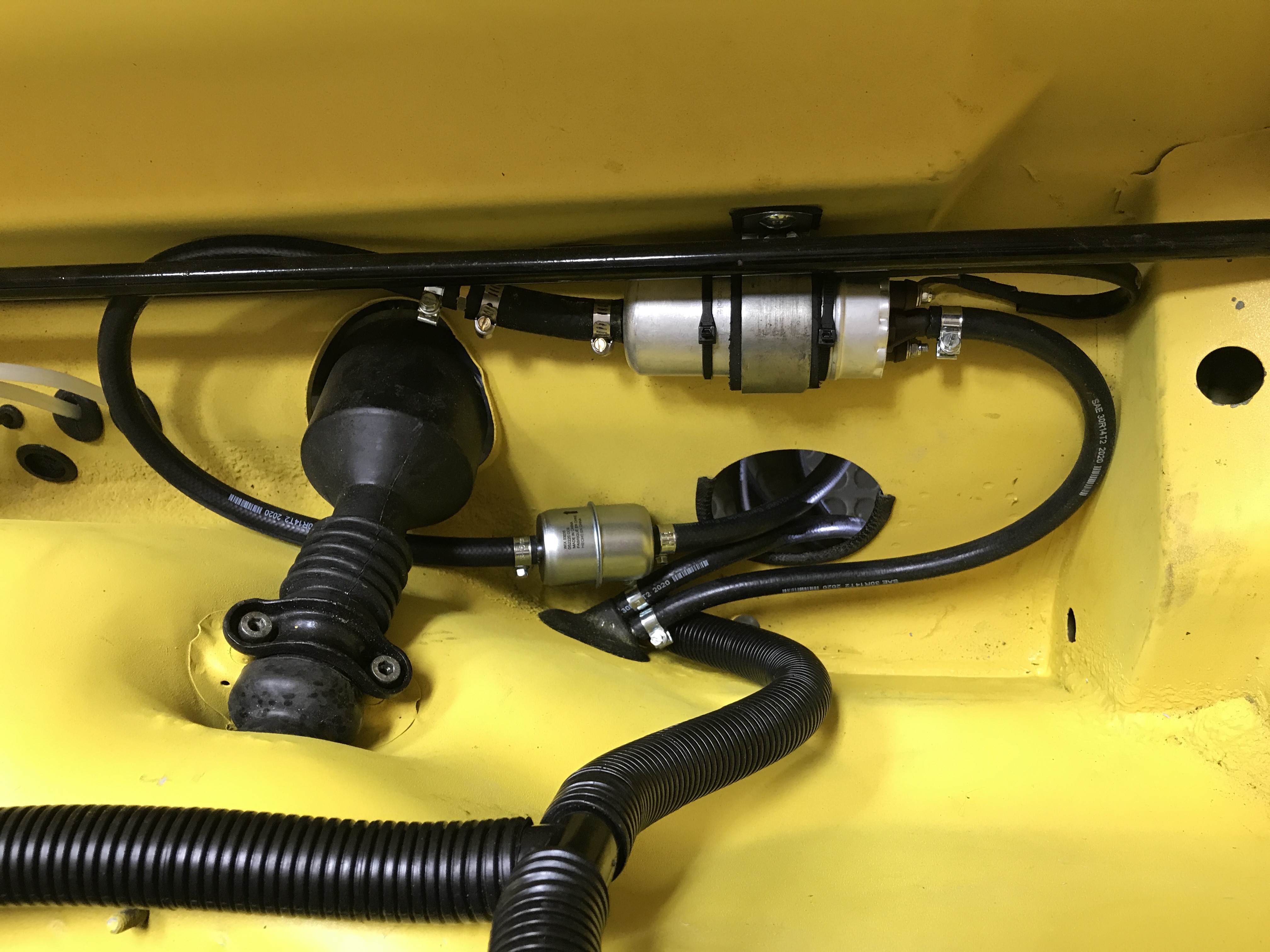

Fuel filter tucked inside, where it will live most of the time.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:20 PM
Post
#3168
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

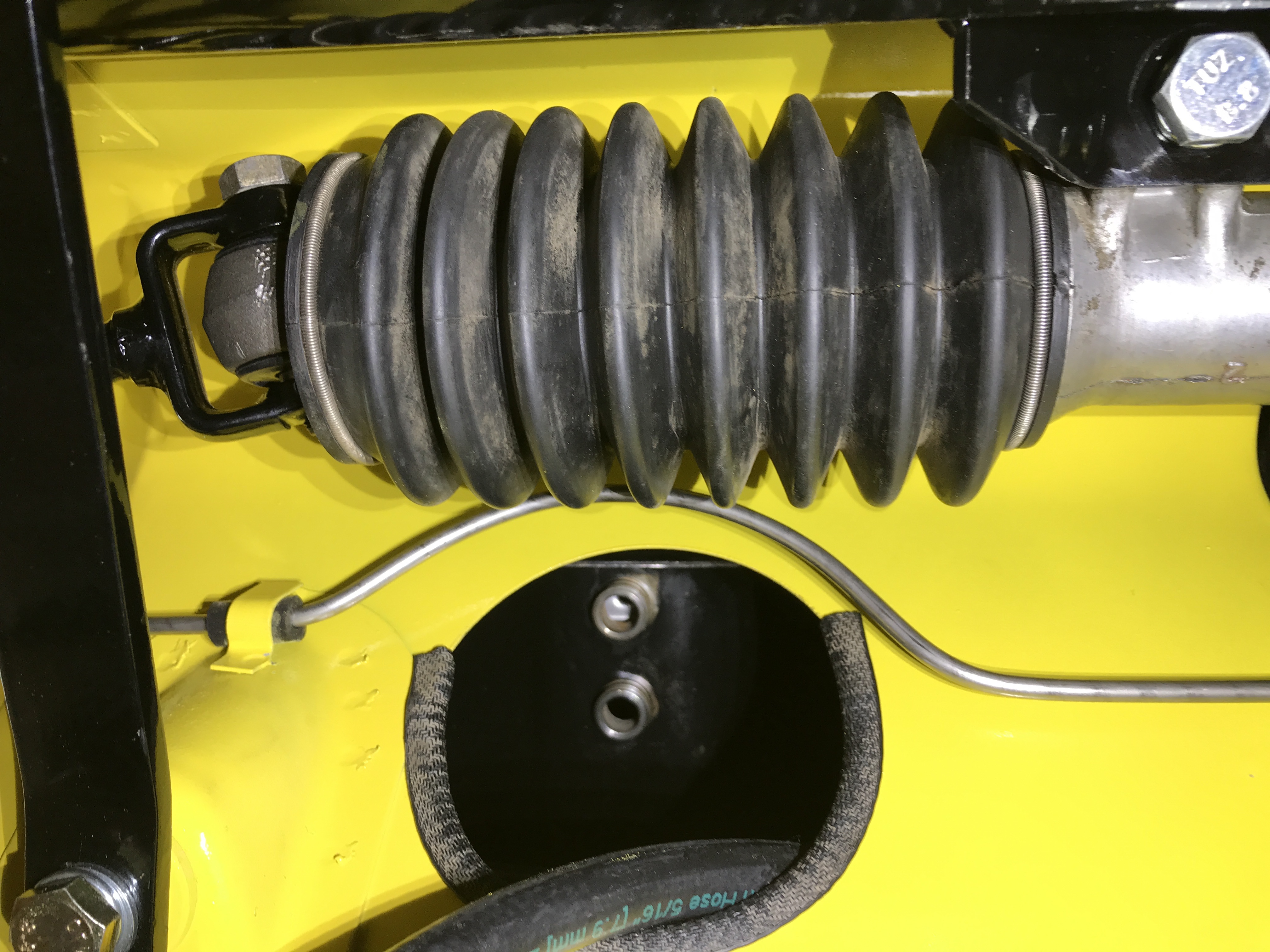

Checking access to the gas tank fittings. This might work.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:22 PM
Post
#3169
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

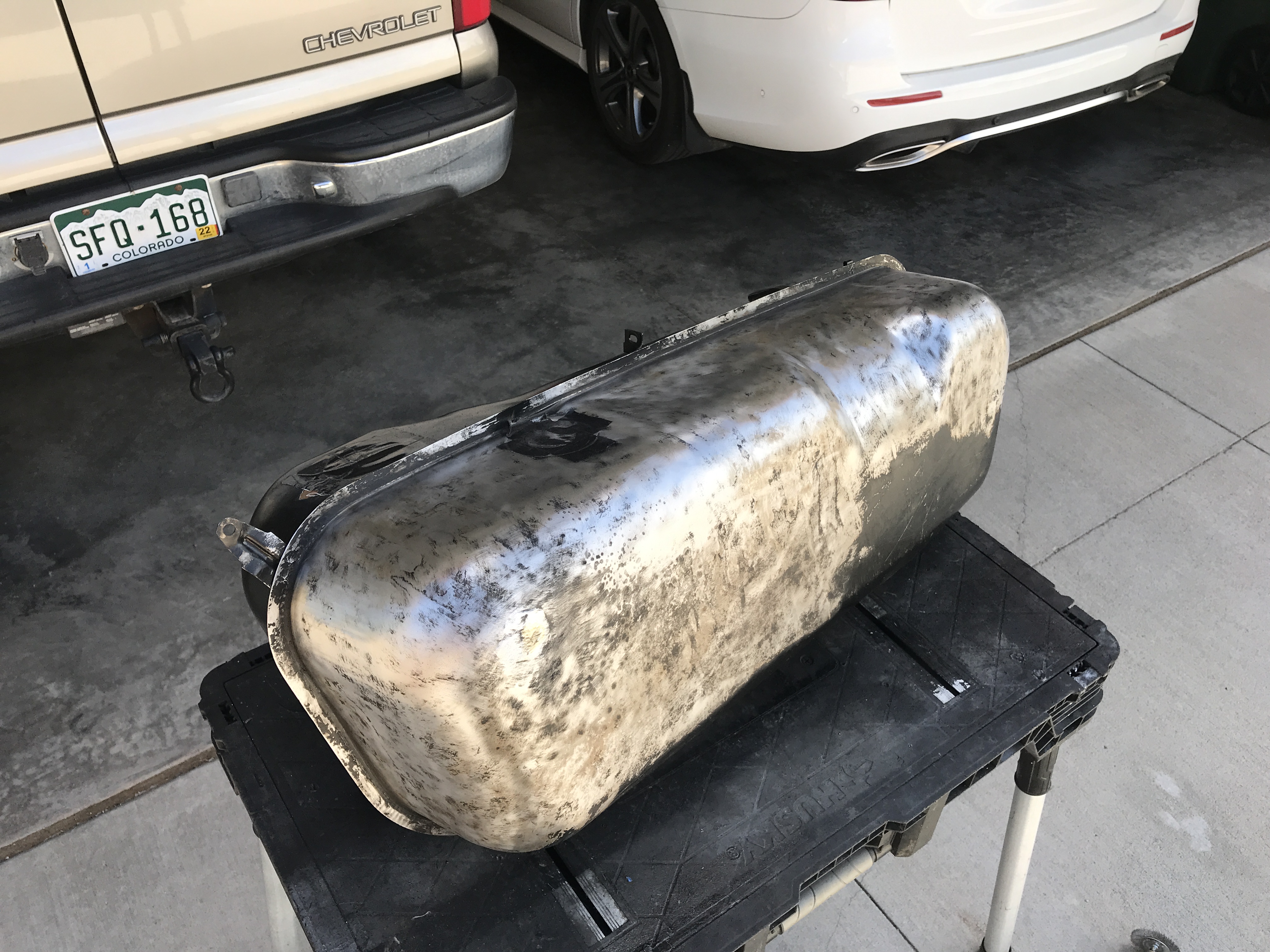

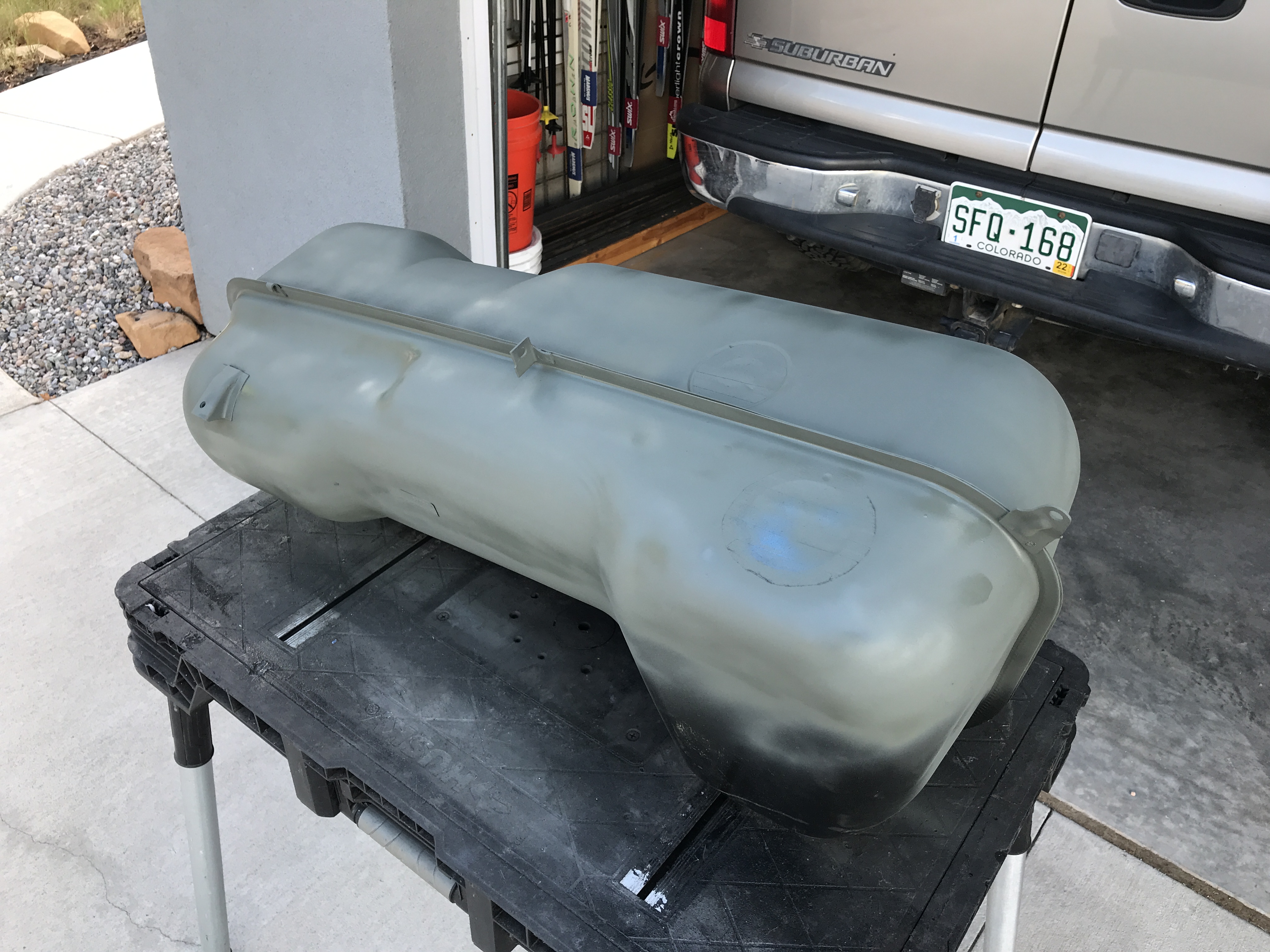

But before installing the tank, I need to repaint the upper part. The radiator shop the boiled it out did not do much prep, and the paint they applied was flaking off in places. Here's the tank after a quick wire brush treatment.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:23 PM
Post
#3170
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Primer.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:27 PM
Post
#3171
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

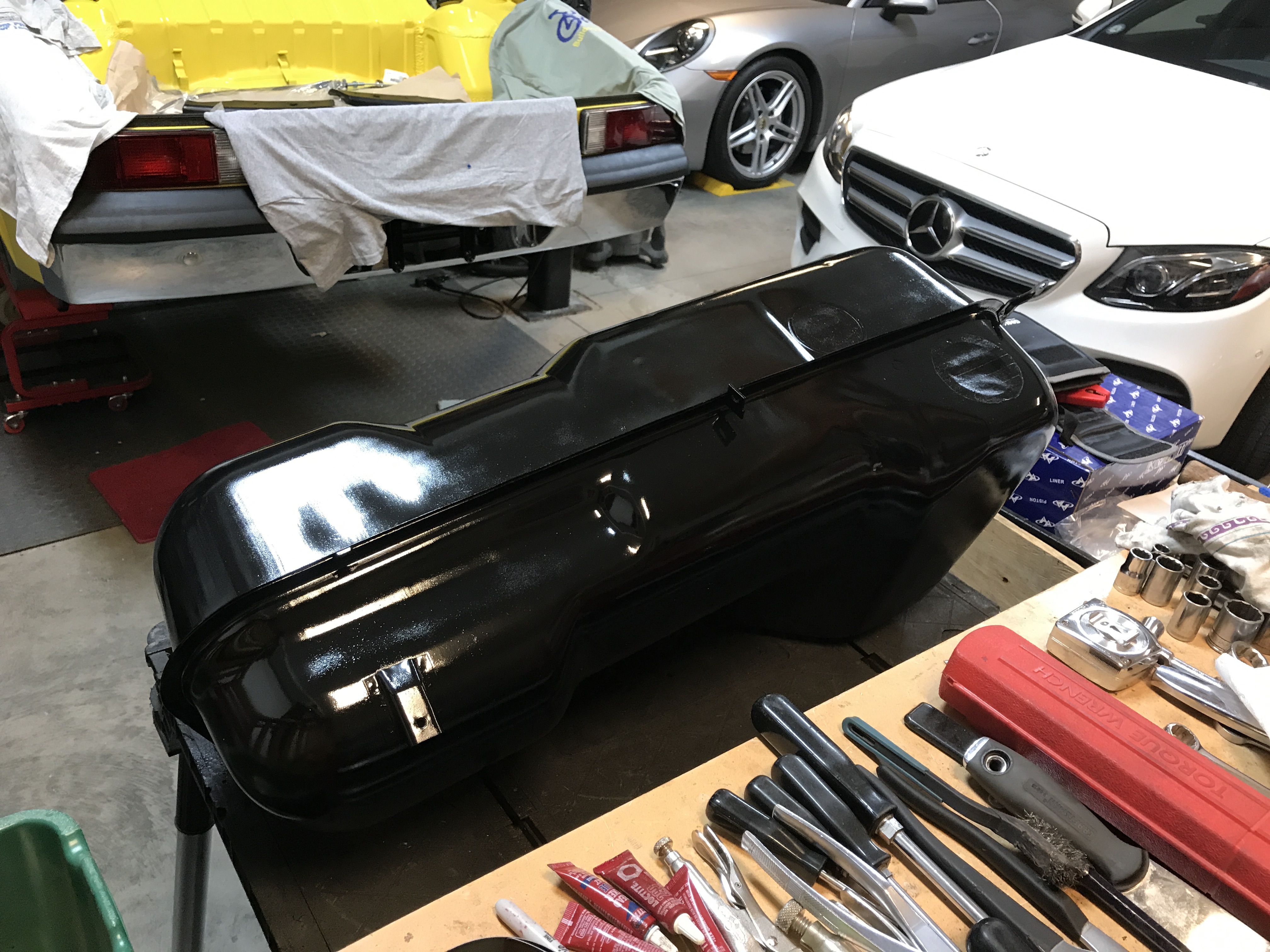

And new paint.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:30 PM
Post
#3172
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

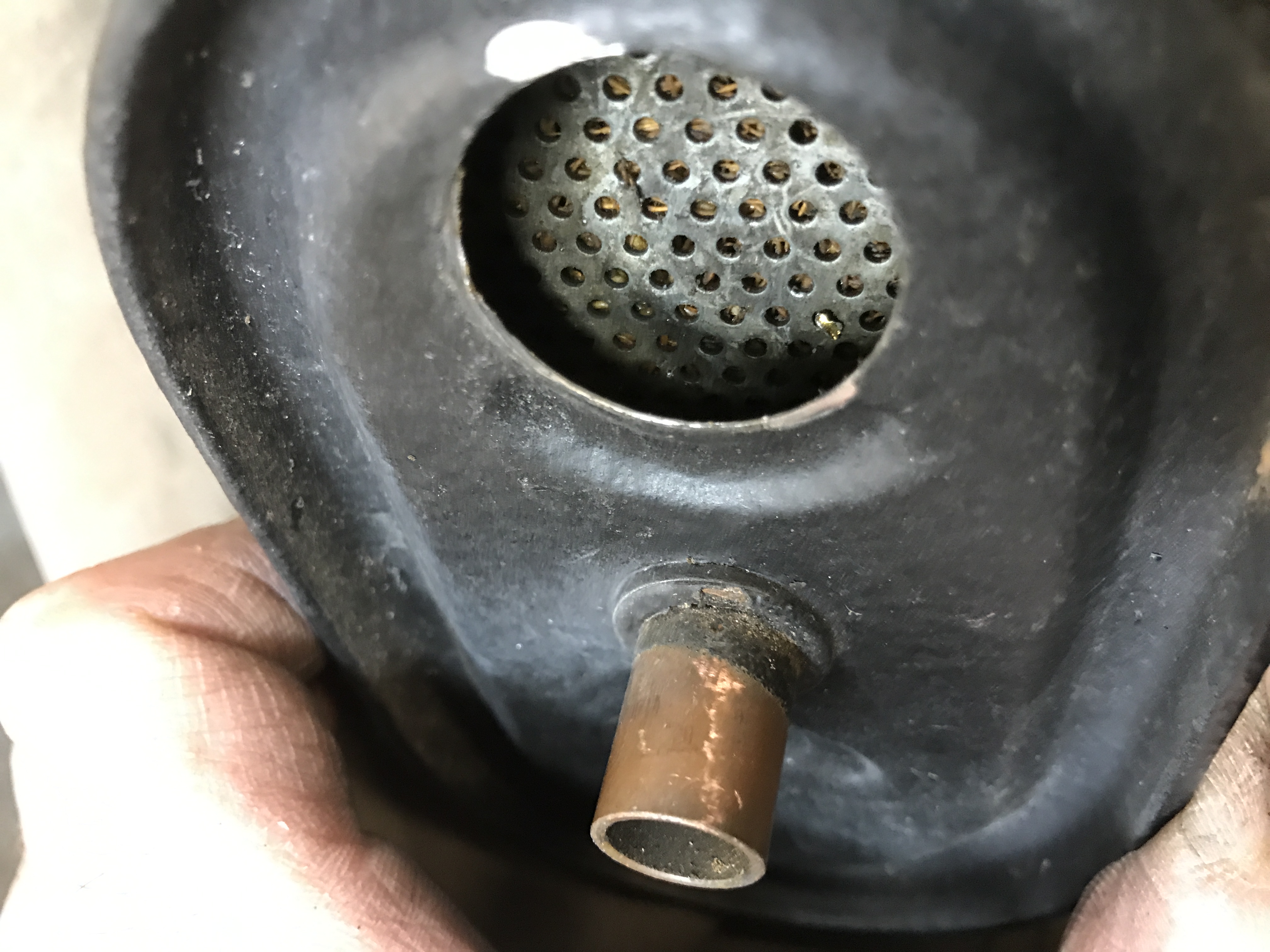

While waiting for paint to fully dry, I refilled the charcoal canister. A few months ago, I drilled 1" holes in each end to empty the original charcoal.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:31 PM
Post
#3173
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

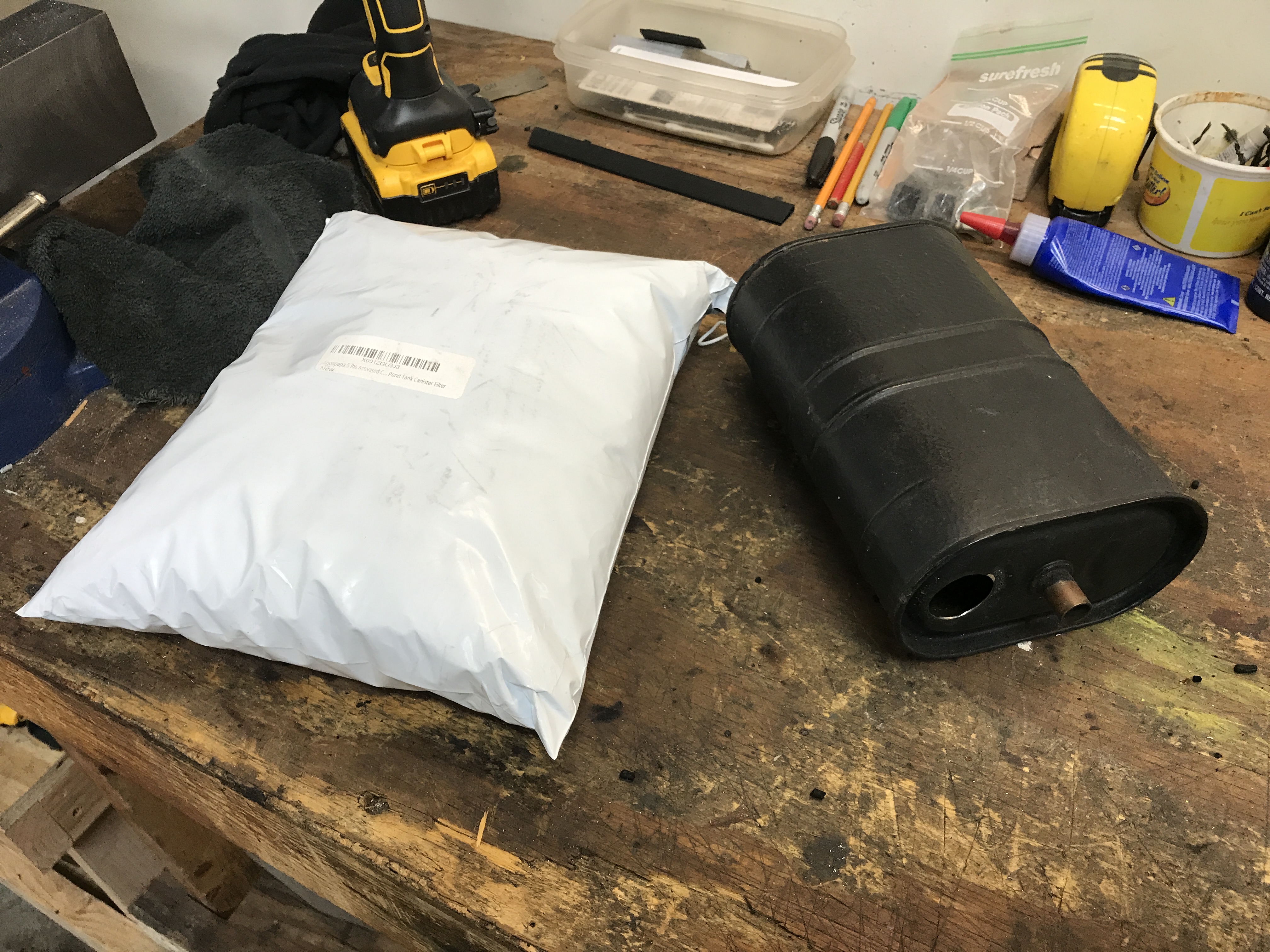

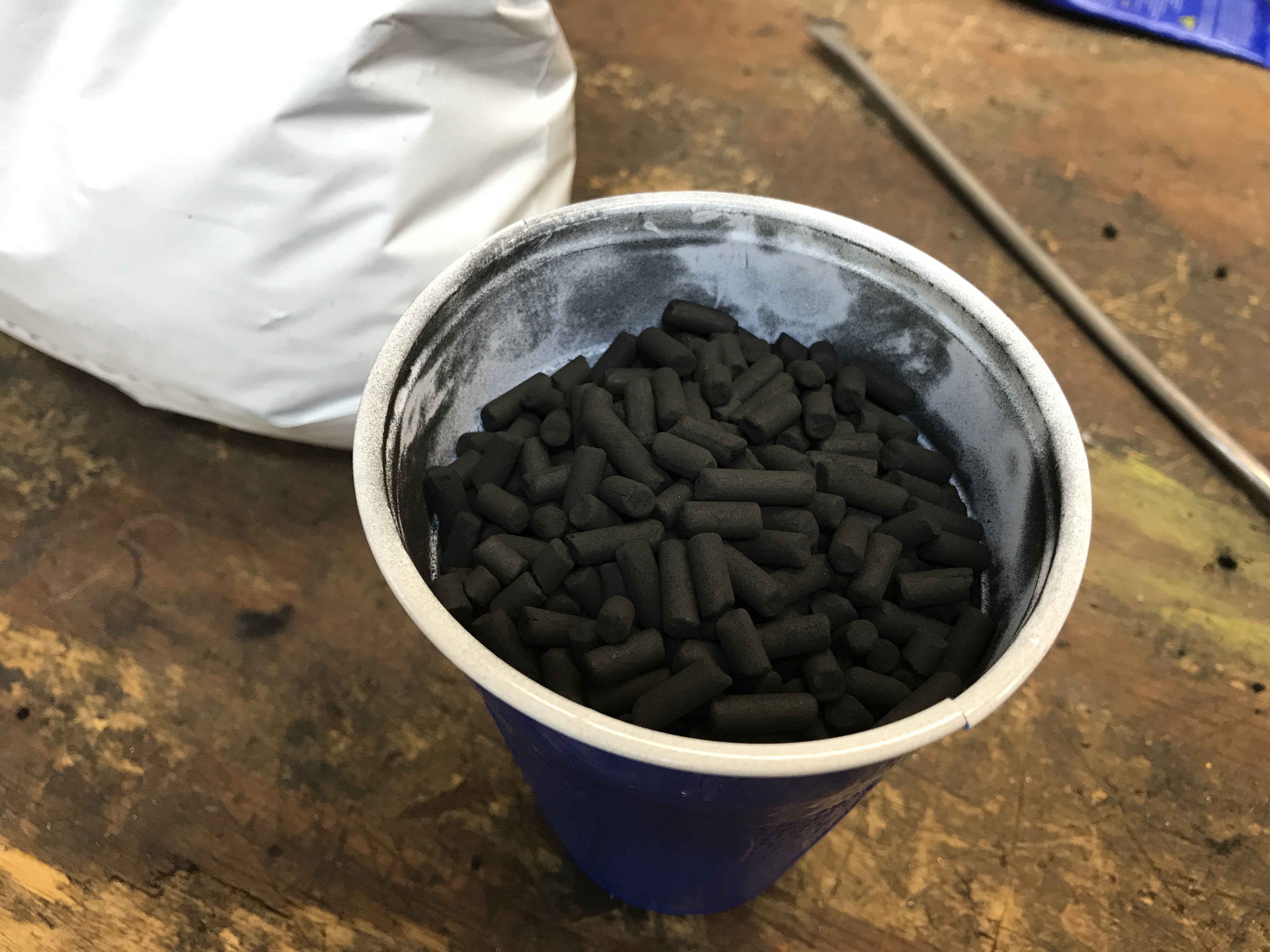

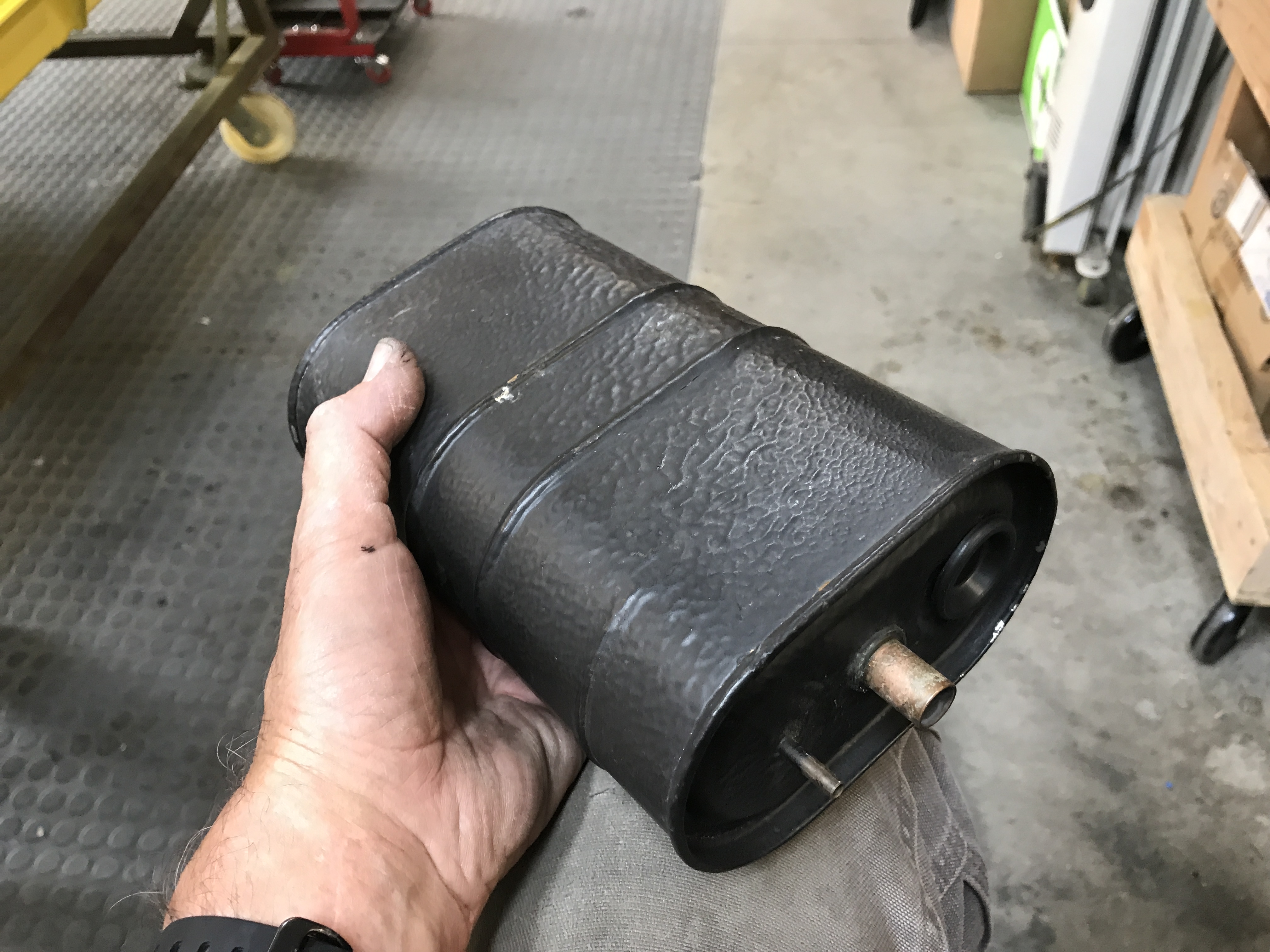

Here's the new charcoal. The pellets are a bit bigger than stock, but should work.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:32 PM
Post
#3174
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

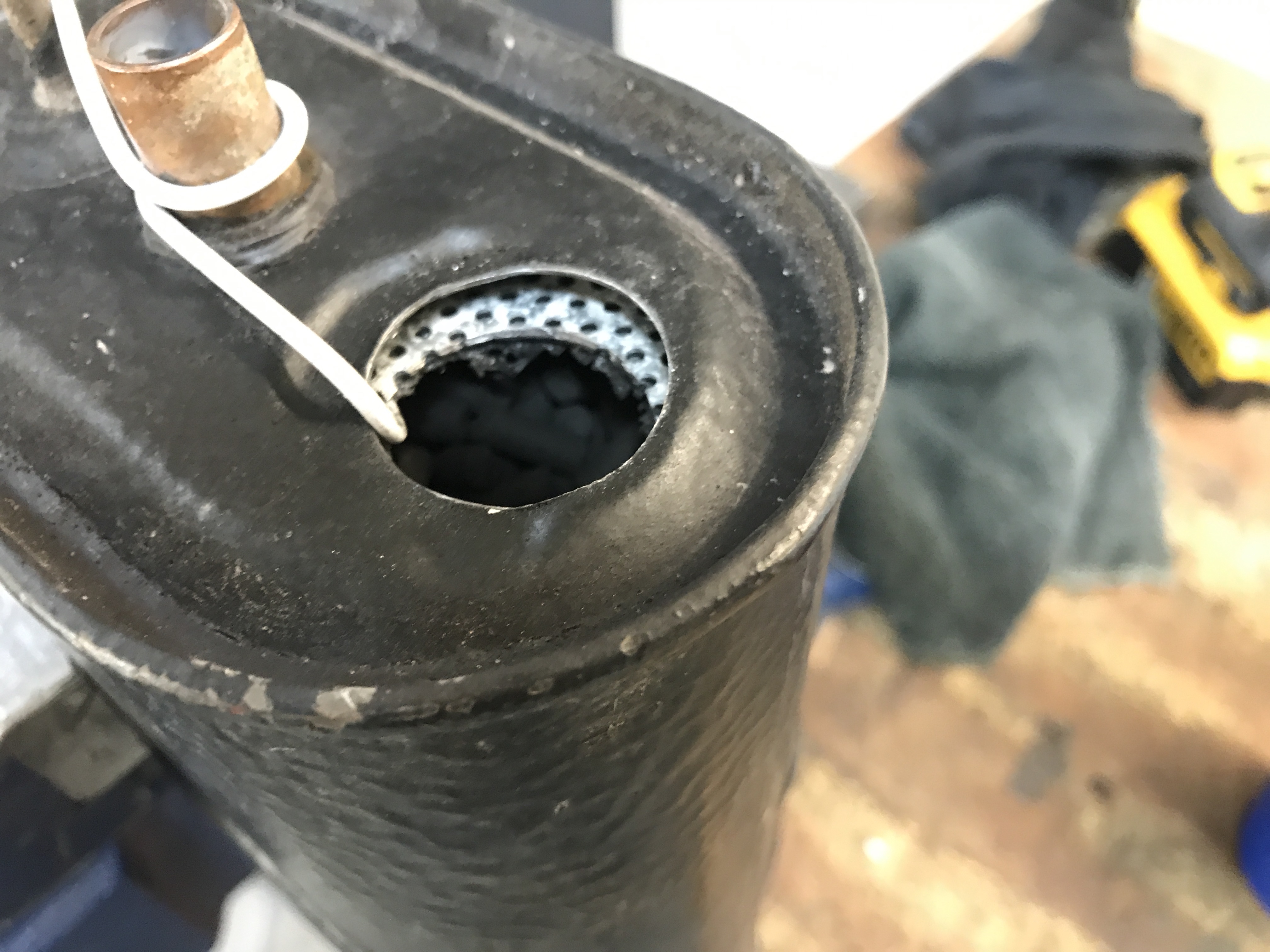

With both internal baffle plates in place, I filled the canister.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:32 PM
Post
#3175
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

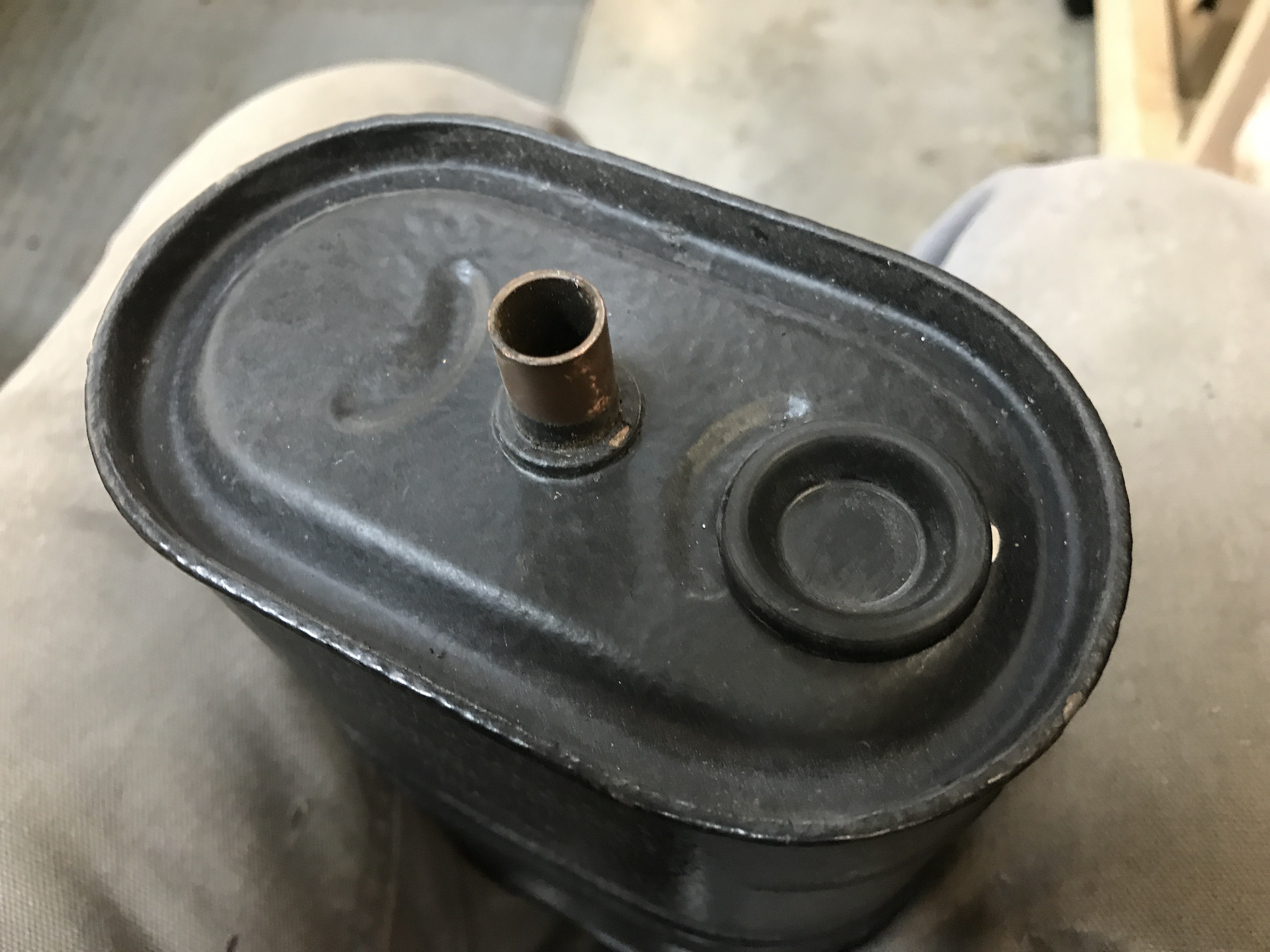

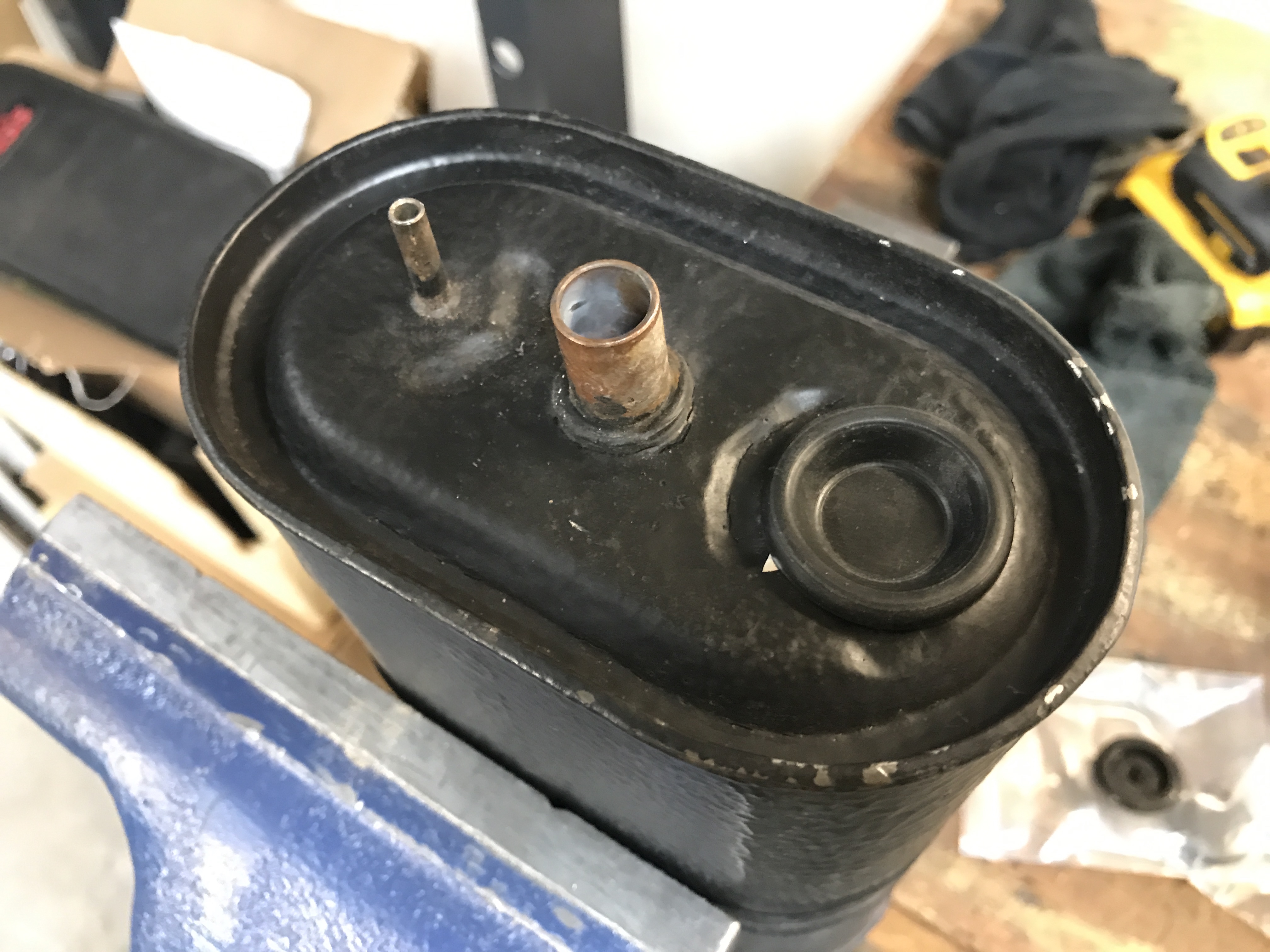

Rubber plug in the fill end.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:33 PM
Post
#3176
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

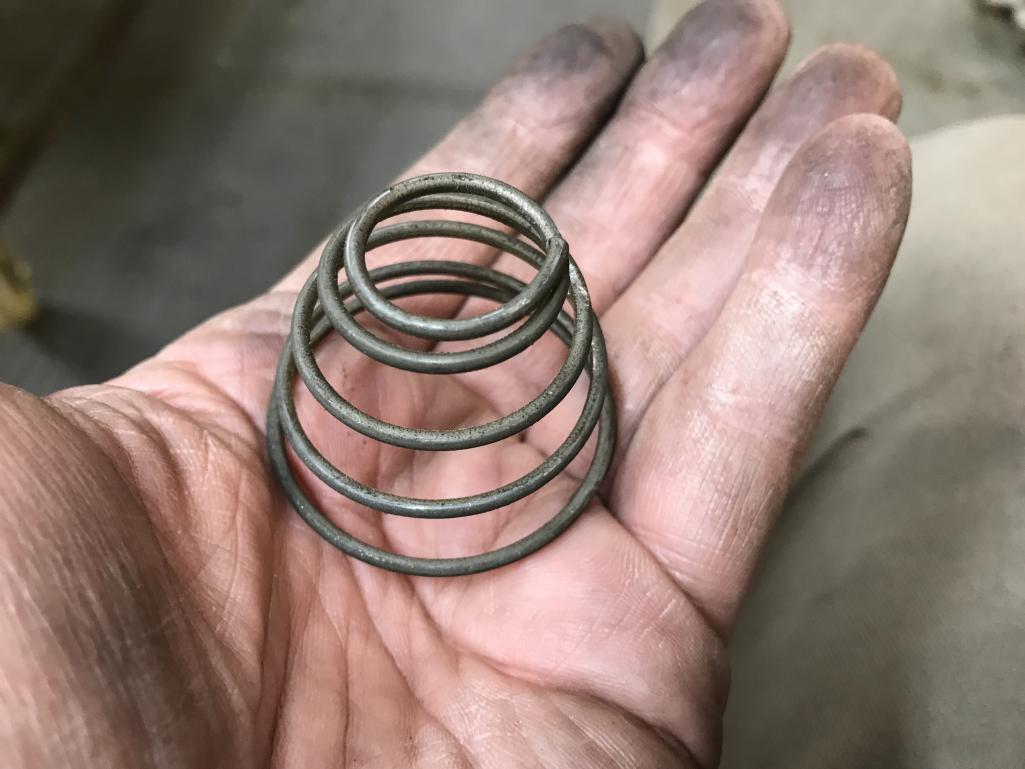

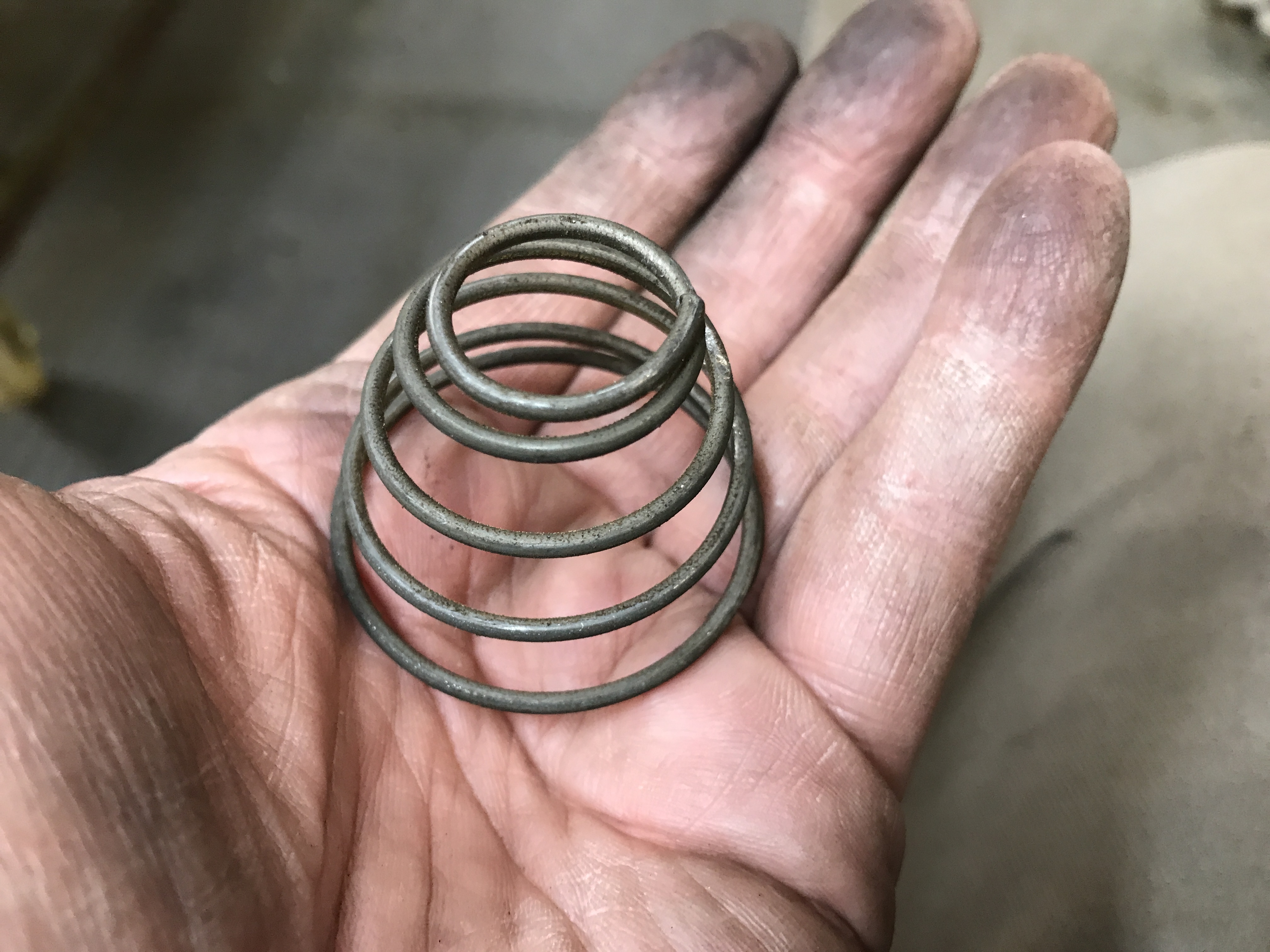

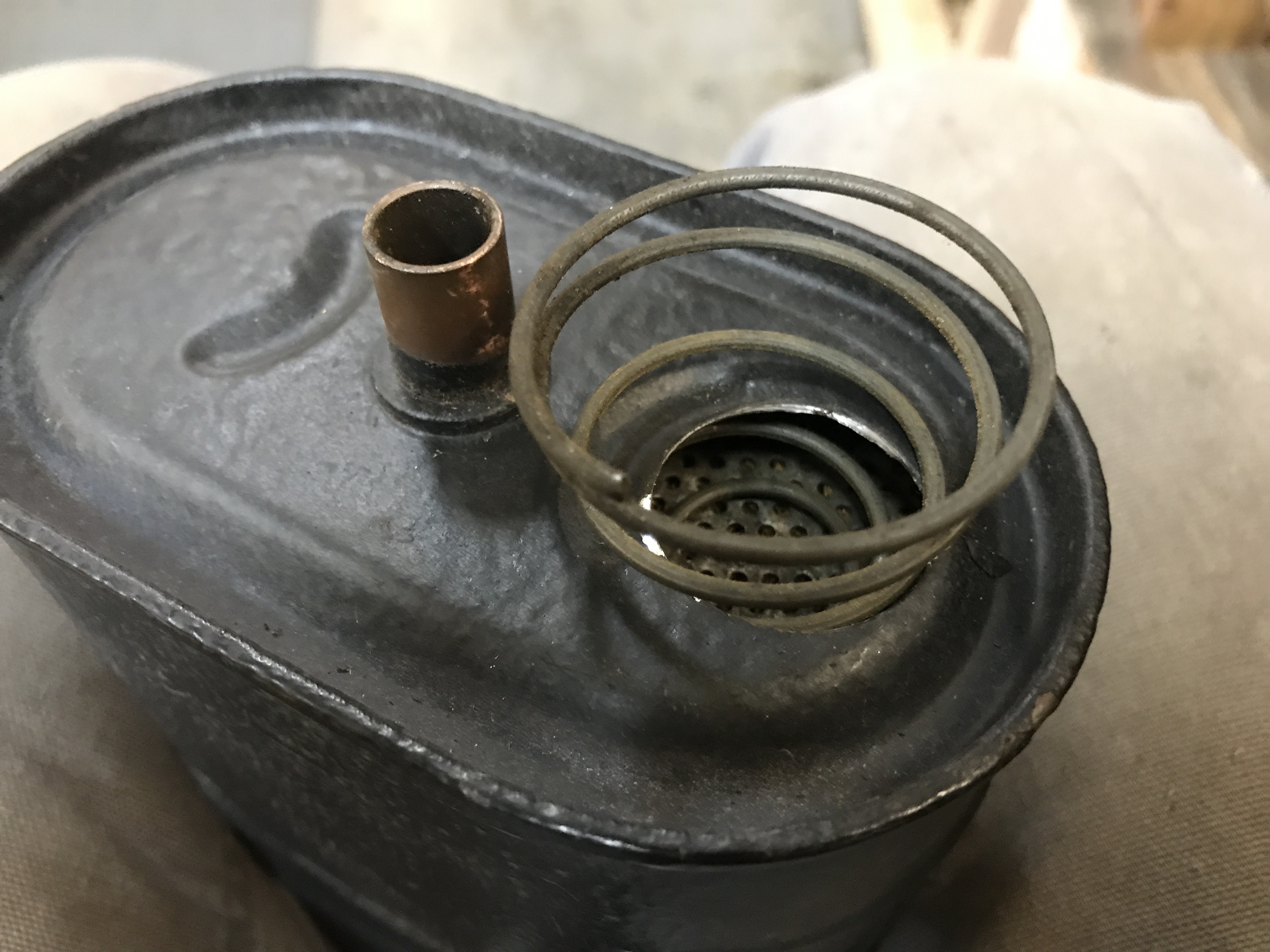

Here's the spring that keeps pressure on the end baffle to compact the charcoal.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:34 PM
Post
#3177
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Feeding into the hole.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:34 PM
Post
#3178
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And then shoved over to the middle of the space.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:35 PM
Post
#3179
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Second rubber plug.
Attached thumbnail(s) |
bkrantz |
Jun 25 2021, 07:35 PM
Post
#3180
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Ready to use.
Attached thumbnail(s) |
