> 914 GT 3.6 Ferrari Build, - Mechanicals coming along, electronics soon!
tygaboy
post Dec 10 2022, 05:32 PM
Post #461


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

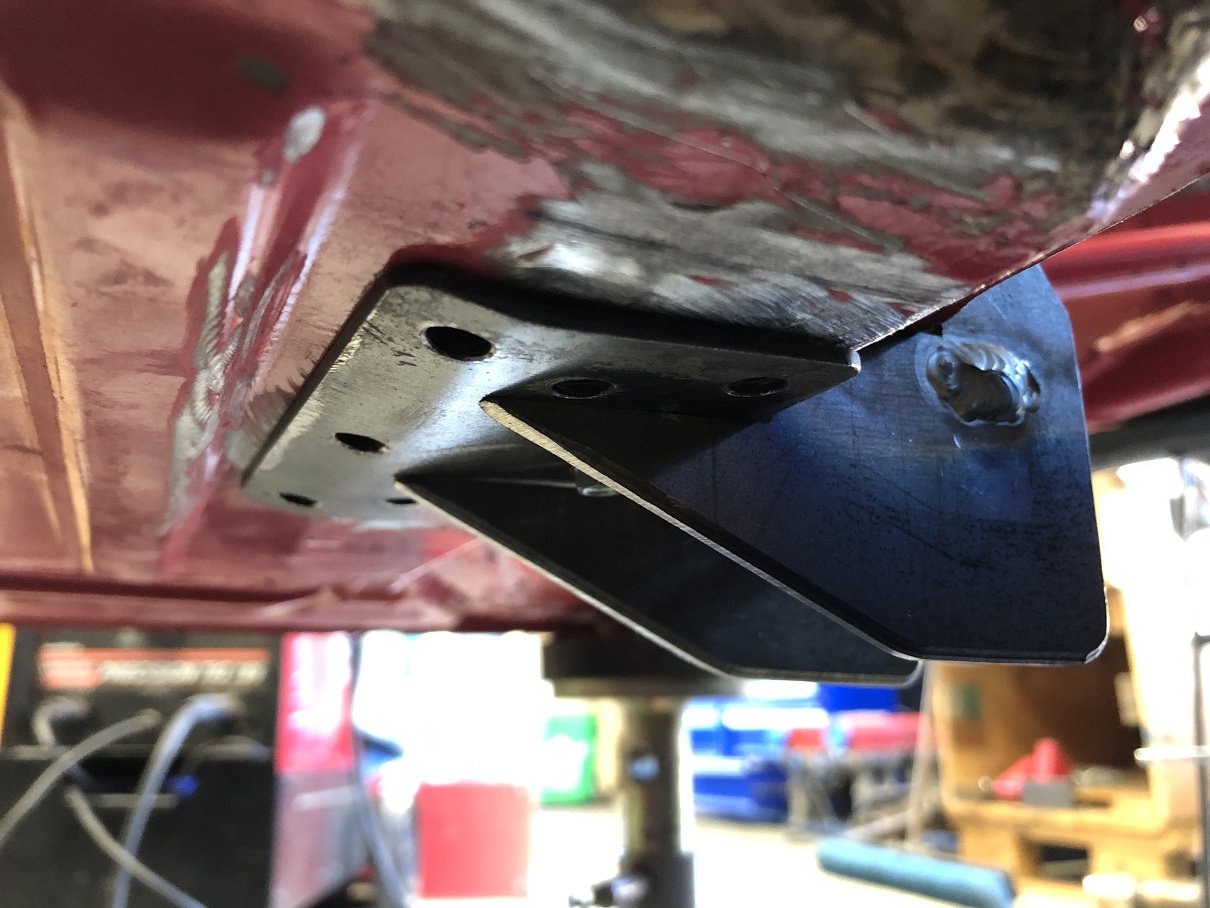

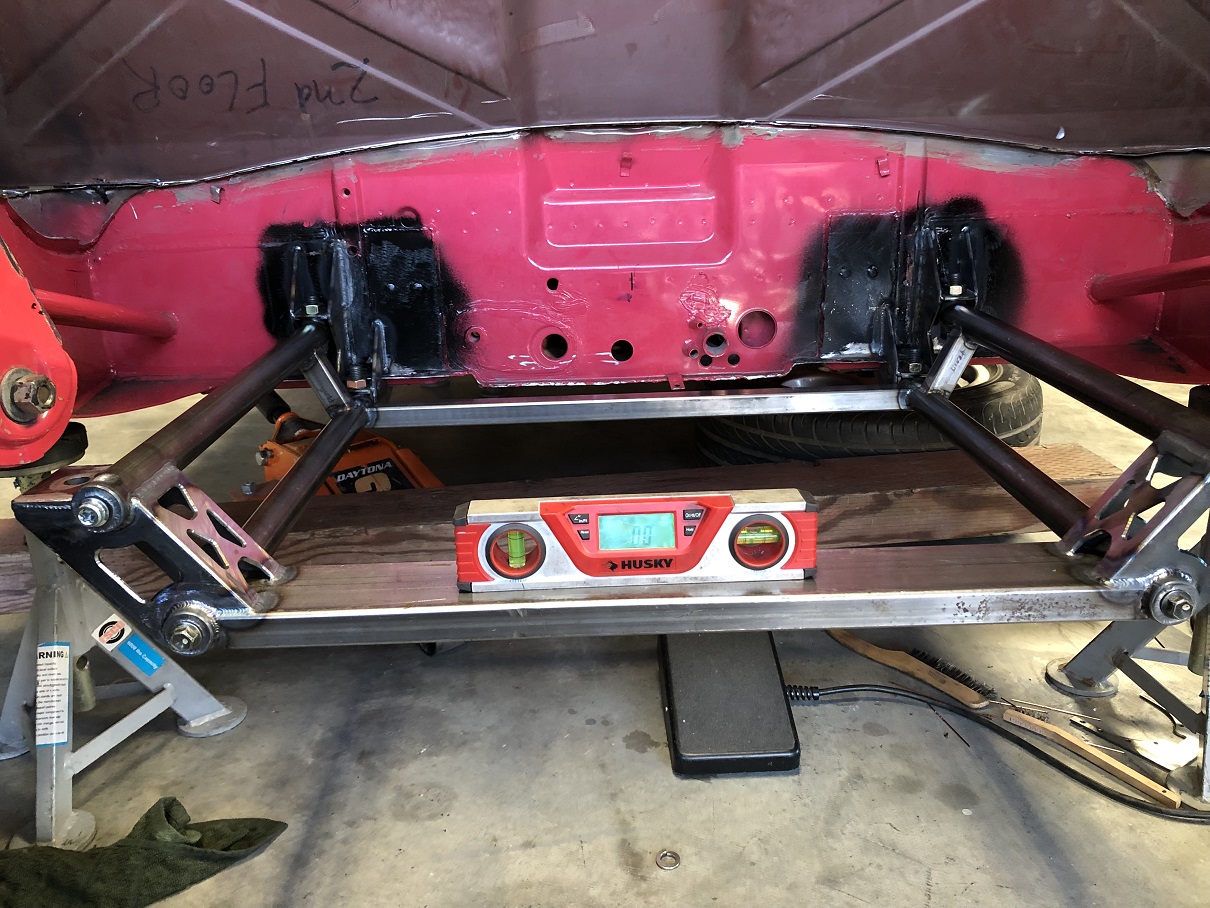

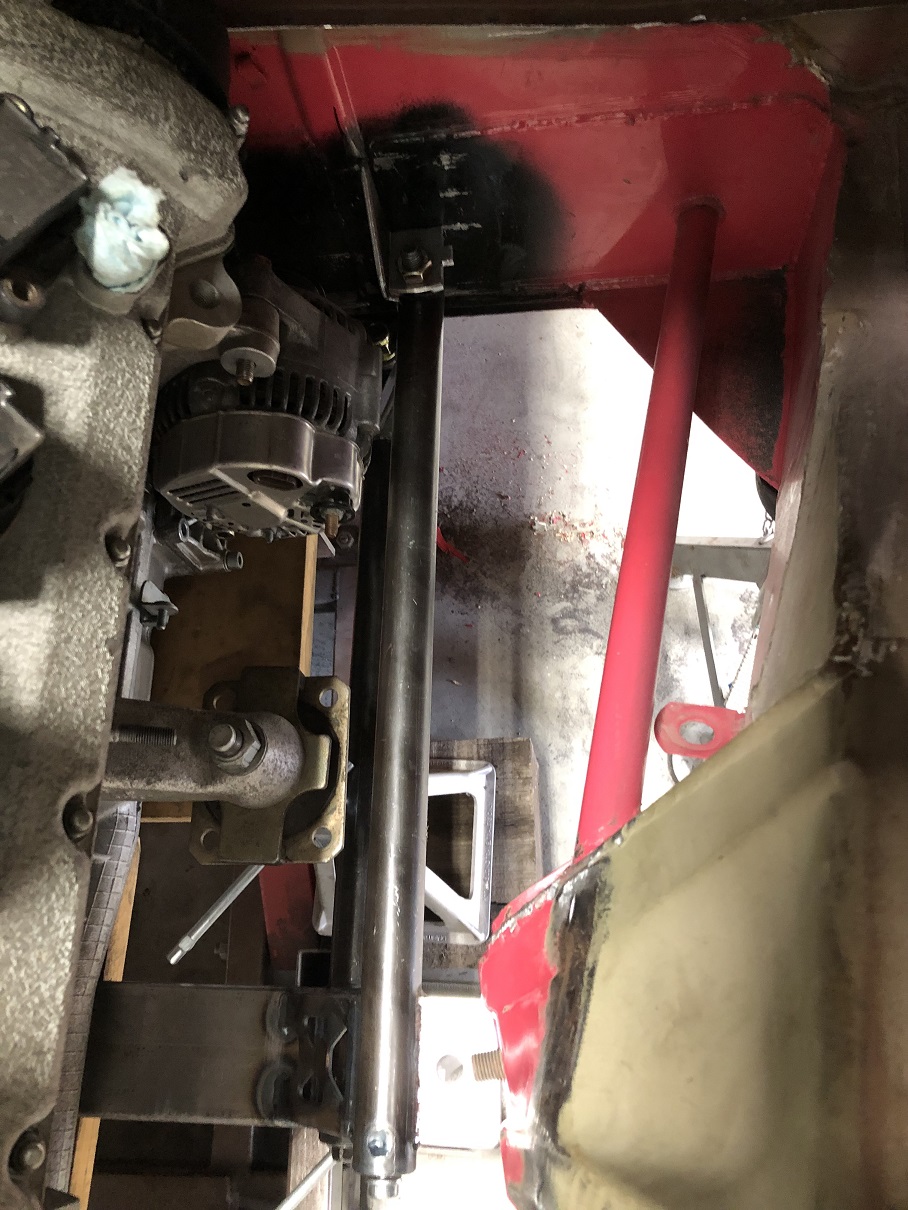

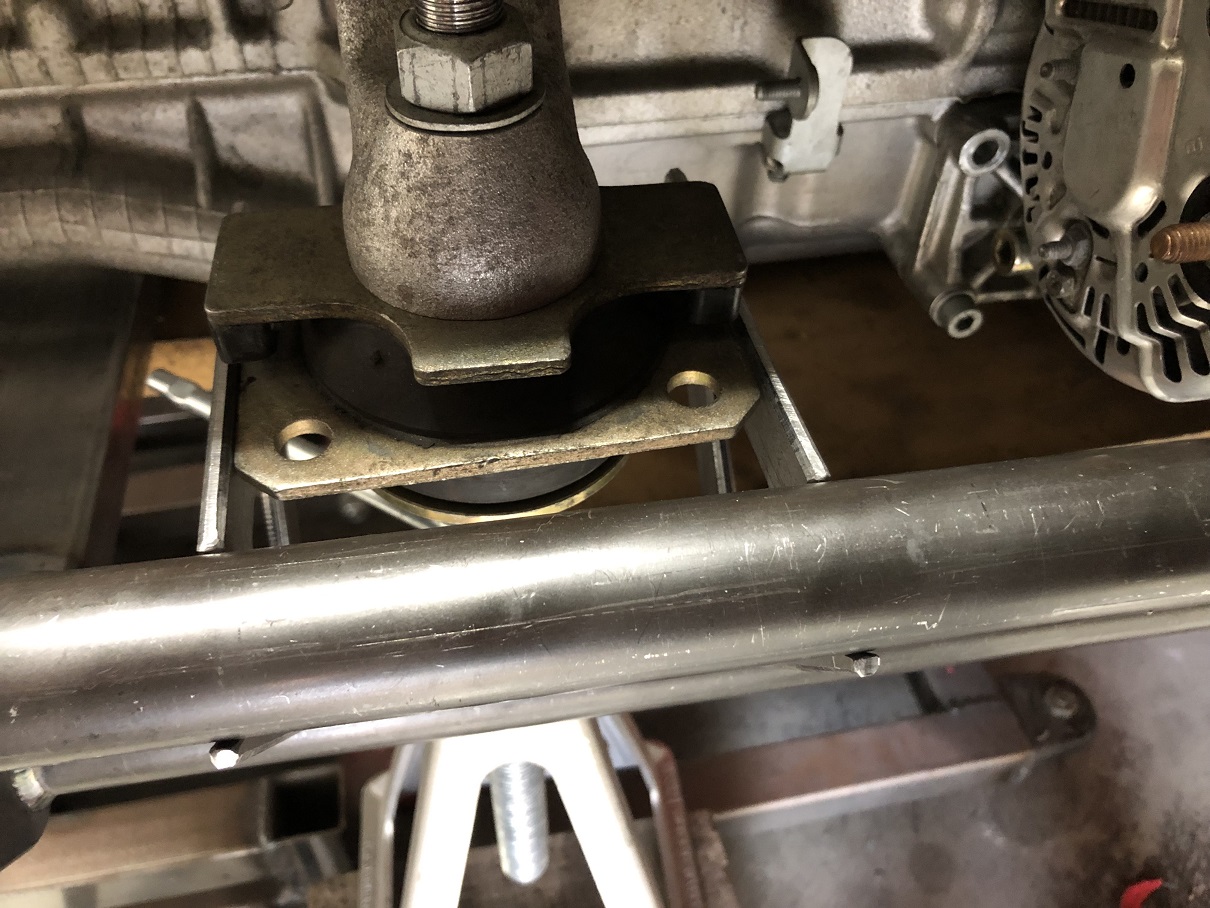

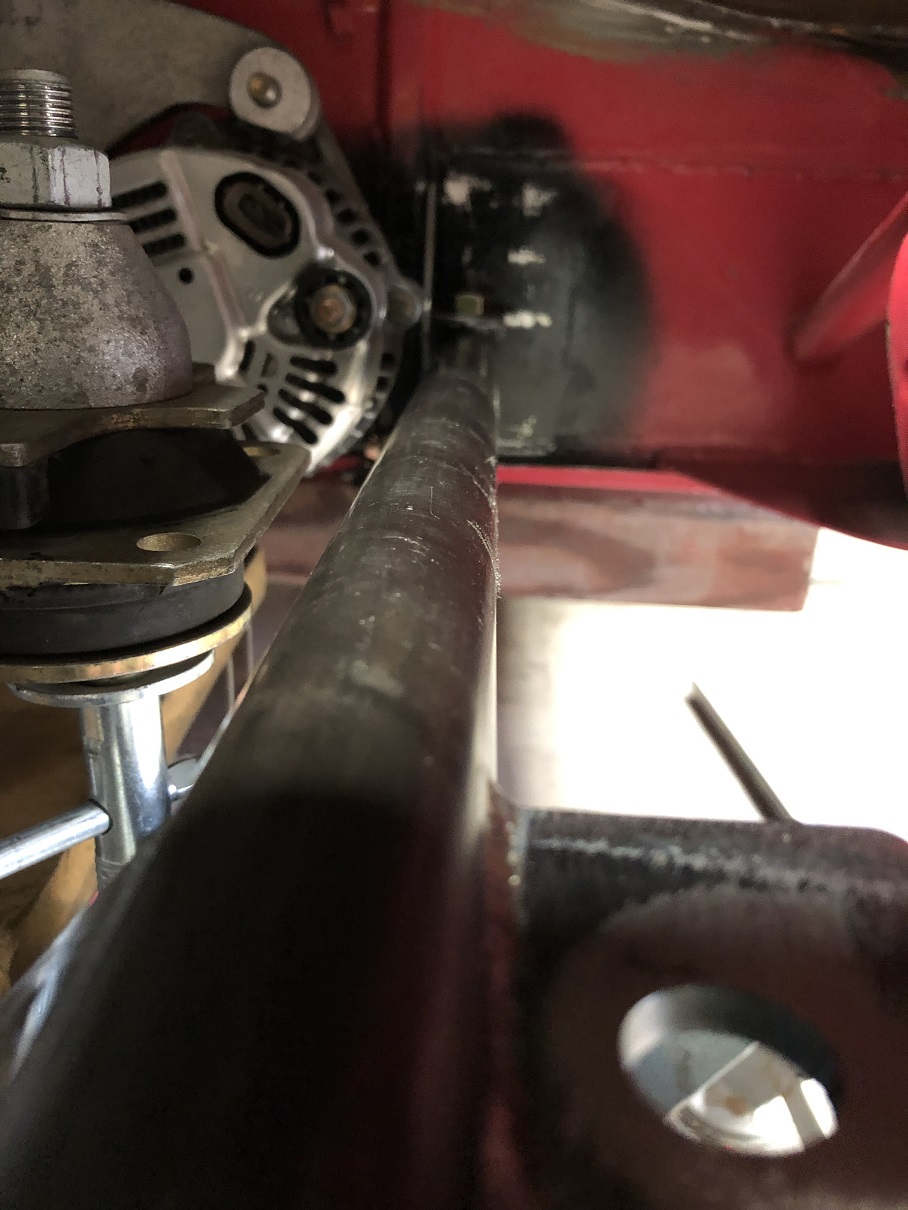

What a pain. Getting the cradle under the engine while it's on the jack is impossible. I have to jack the engine into place, install the trans mount bolt, put screw jacks under the engine mounts, lower the jack, wrestle the cradle onto the jack/under the engine and jack the cradle up into place. Did I say "what a pain..."? (IMG:style_emoticons/default/wacko.gif)

But the payoff/sighs of relief are real! All the eyeball guestimation measurements worked. Things fit. Thank heavens...


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 10 2022, 05:44 PM
Post #462


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

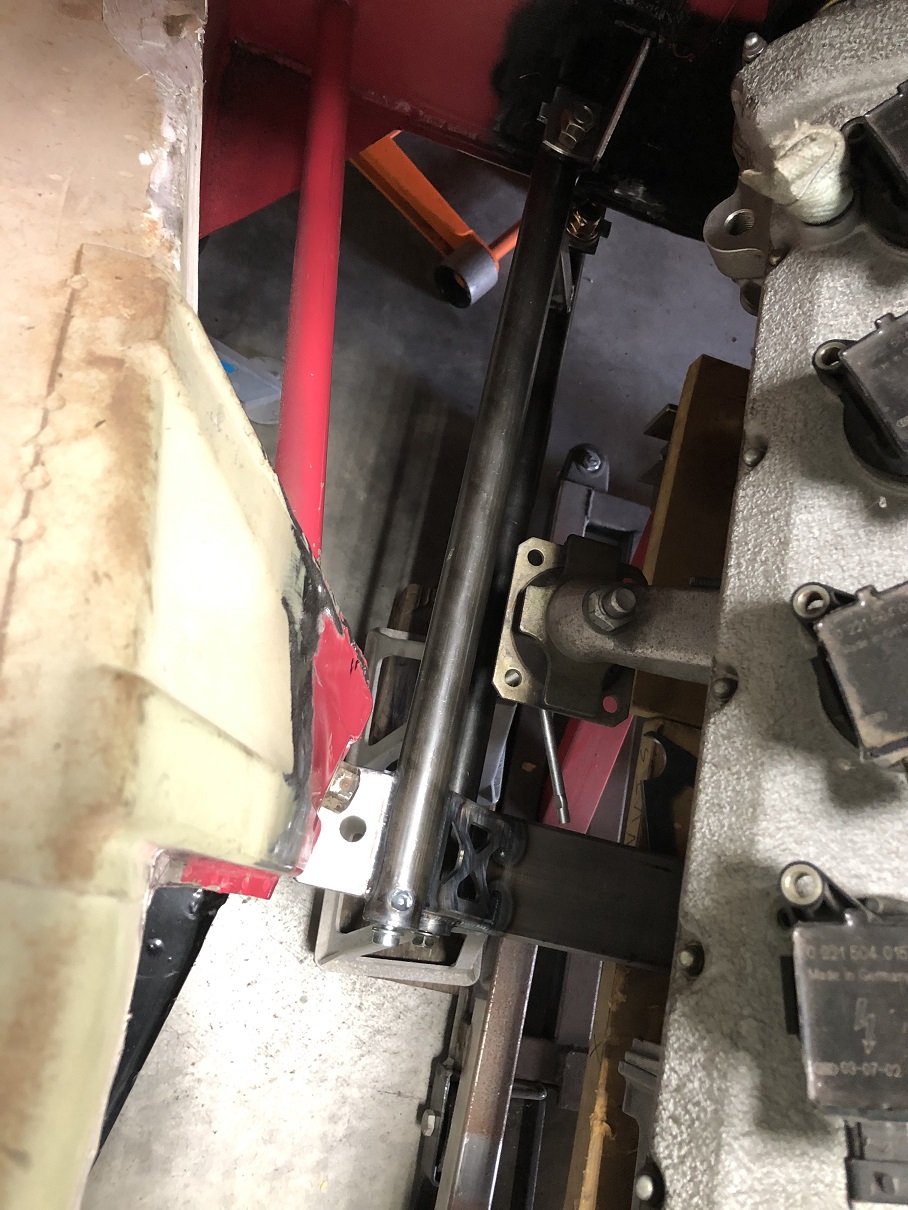

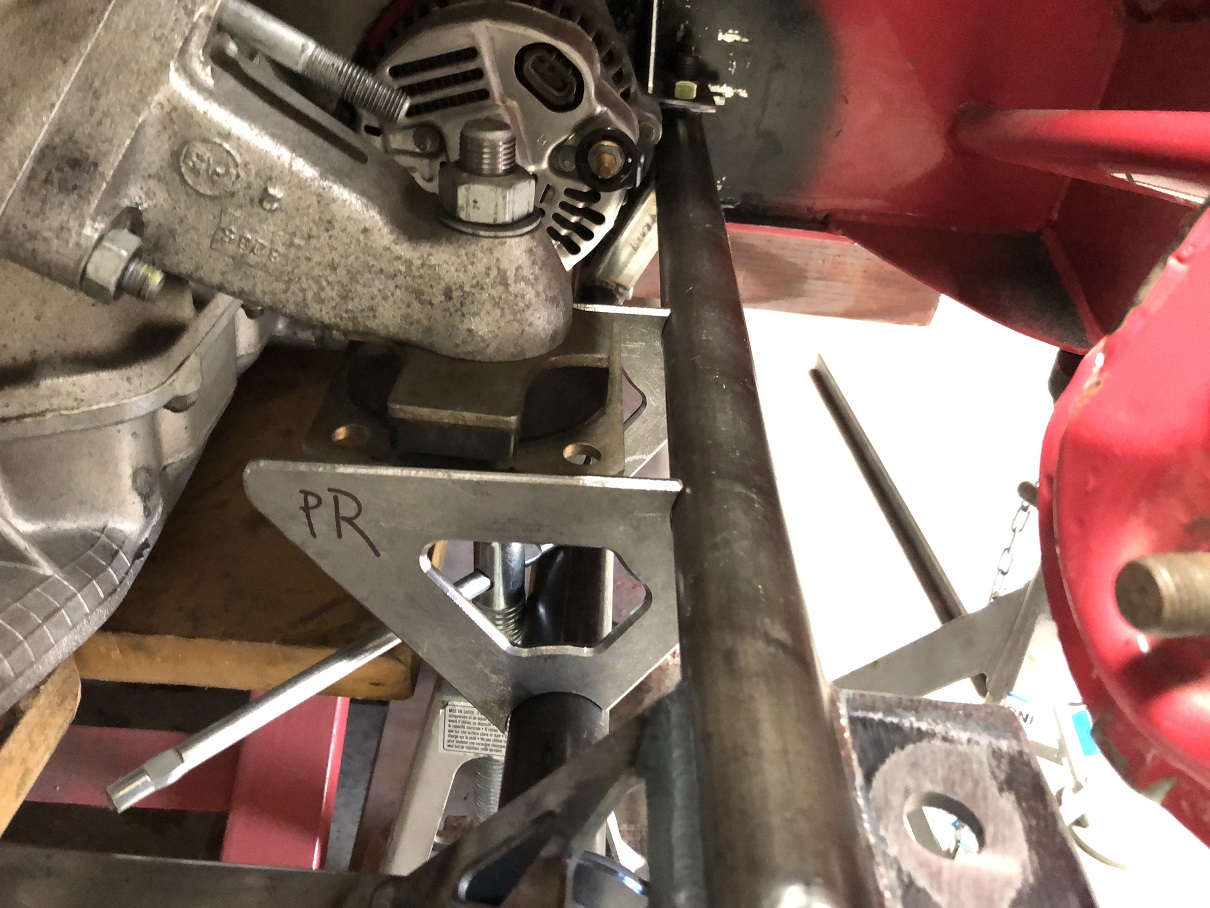

Once the fire wall tabs are tacked in place, I can fab the suspension console-to-cradle mounts. Then once that's done, I can FINALLY, locate the engine mount side and top plates.
But I couldn't resist a test fit to see how I did on this set of eyeball measurements.
Pretty well, it turns out. Again, thankfully.

Something folks may not appreciate is that even though every cradle component was designed in CAD, when it comes to fitting all the parts in the real world, and welding distortion happens as the building progresses, each piece needs to be dry fit and tuned, as needed.

So for all you aspiring comedians, that "PR" doesn't stand for Personal Record, it's "passenger rear", indicating this piece has a particular home.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 10 2022, 05:48 PM
Post #463


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
And here's another "catch you up on the past efforts" vid. Note that I explain a bit about the 914 that all y'all know about. This is for any folks who may follow the build via YouTube and don't necessarily know 914s. Thanks for your understanding.


https://www.youtube.com/watch?v=JebyCNFblro
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 10 2022, 06:10 PM
Post #464


Michael
**********

Group: Members
Posts: 10,092
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
@tygaboy Hey Chris, Great update video. Thanks, Michael (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 11 2022, 09:57 AM
Post #465


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Here's the last catch-up video. I'll make one more that brings everything current then start doing a better job of keeping up-to-date video coming.

https://www.youtube.com/watch?v=Bfb7mdkAzPE
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
siverson
post Dec 11 2022, 10:33 AM
Post #466


Advanced Member
****

Group: Benefactors
Posts: 2,451
Joined: 5-May 03
From: San Diego, CA
Member No.: 654
Region Association: Southern California
Nice work and great videos!

-Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markhoward
post Dec 11 2022, 01:13 PM
Post #467


Member
**

Group: Members
Posts: 385
Joined: 5-March 17
From: Lafayette, CA
Member No.: 20,897
Region Association: Northern California
Looking great Chris! Need to make my way to the Barn to see what you have been up to first hand.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Dec 12 2022, 11:34 AM
Post #468


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
QUOTE(tygaboy @ Dec 10 2022, 04:44 PM) *

Once the fire wall tabs are tacked in place, I can fab the suspension console-to-cradle mounts. Then once that's done, I can FINALLY, locate the engine mount side and top plates.
But I couldn't resist a test fit to see how I did on this set of eyeball measurements.
Pretty well, it turns out. Again, thankfully.

Something folks may not appreciate is that even though every cradle component was designed in CAD, when it comes to fitting all the parts in the real world, and welding distortion happens as the building progresses, each piece needs to be dry fit and tuned, as needed.

So for all you aspiring comedians, that "PR" doesn't stand for Personal Record, it's "passenger rear", indicating this piece has a particular home.


^ Shoulda known, and looking good Chris!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 12 2022, 06:06 PM
Post #469


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

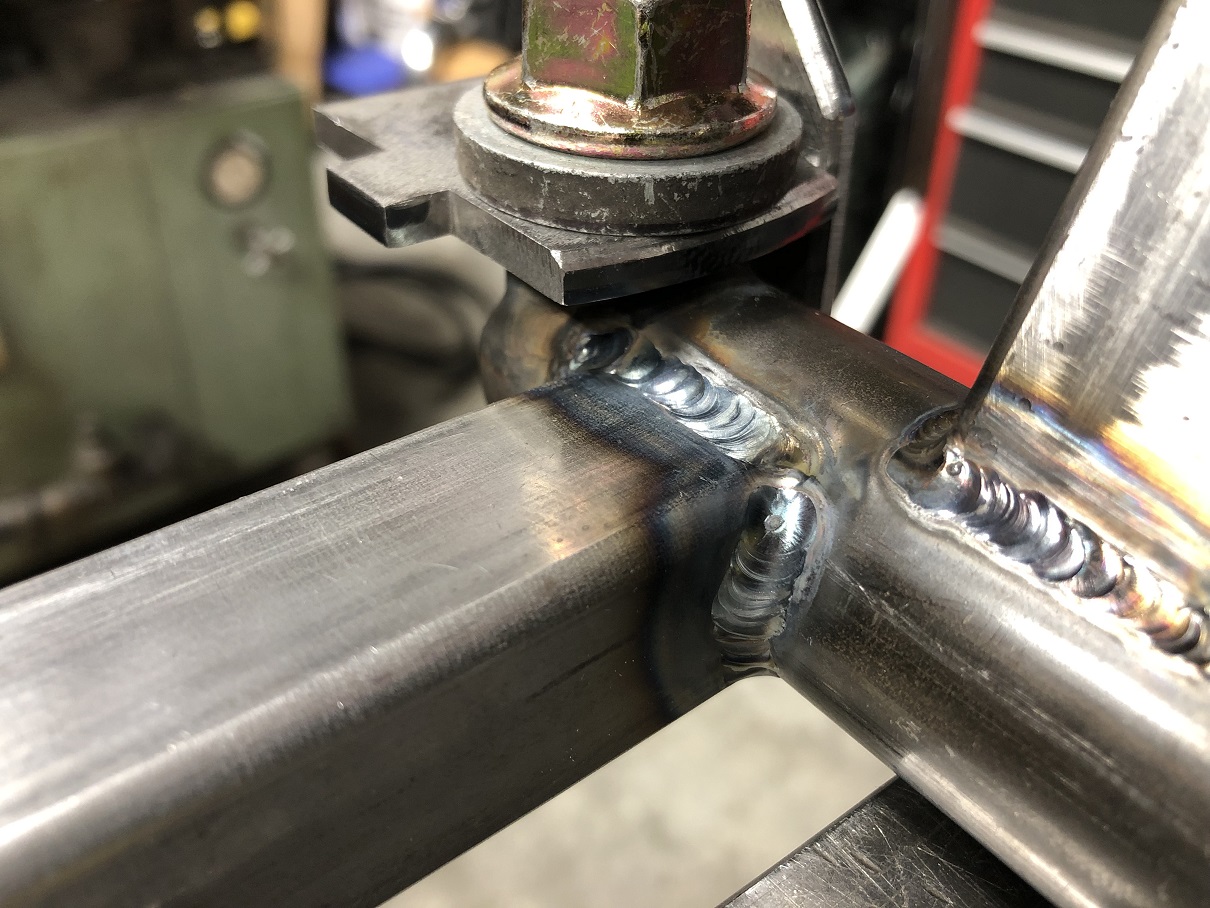

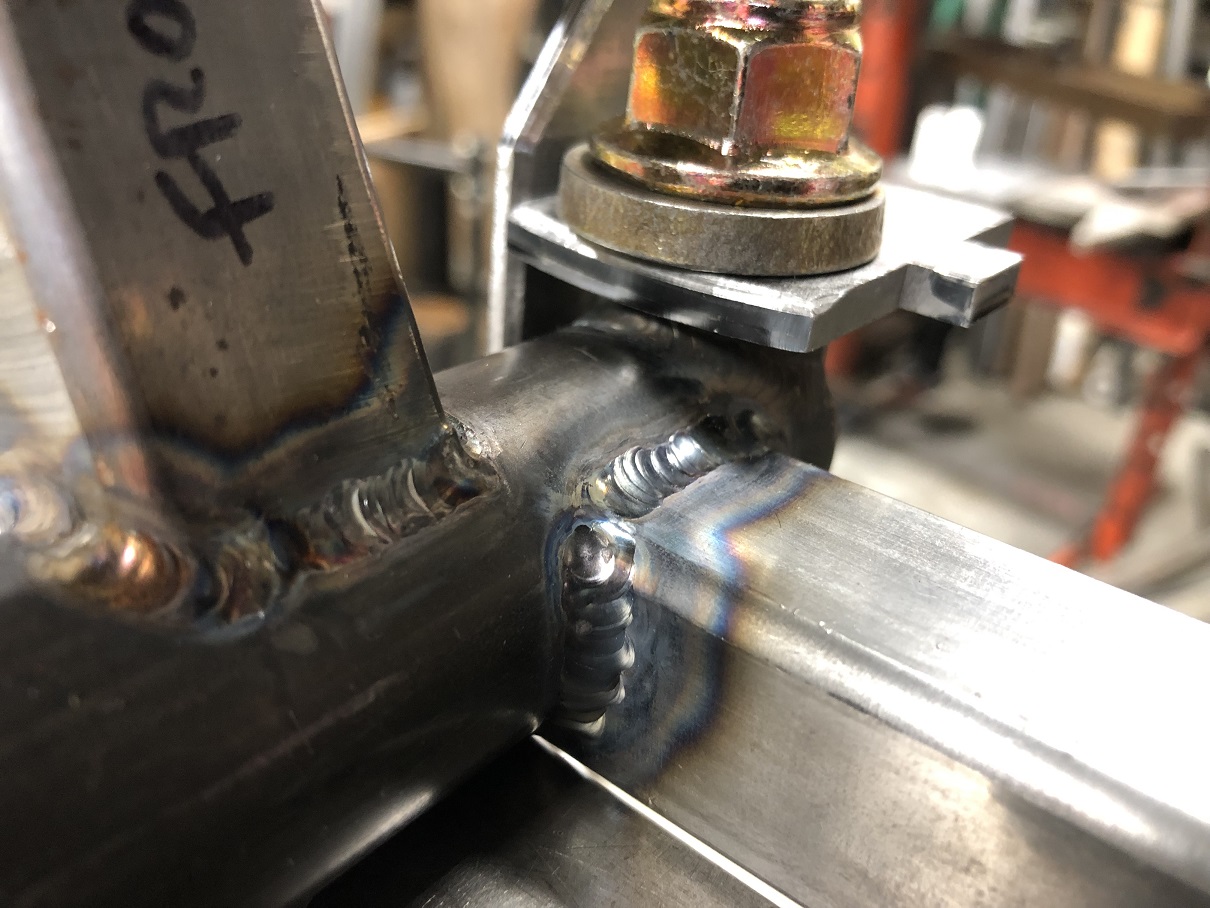

I need to become more self-sufficient, particularly when it comes to TIG welding. But it's just so hard when Martin is available and does such incredible work. But I did finally man-up and did the welding on the cradle's front cross brace. I'm getting there.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 12 2022, 06:08 PM
Post #470


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

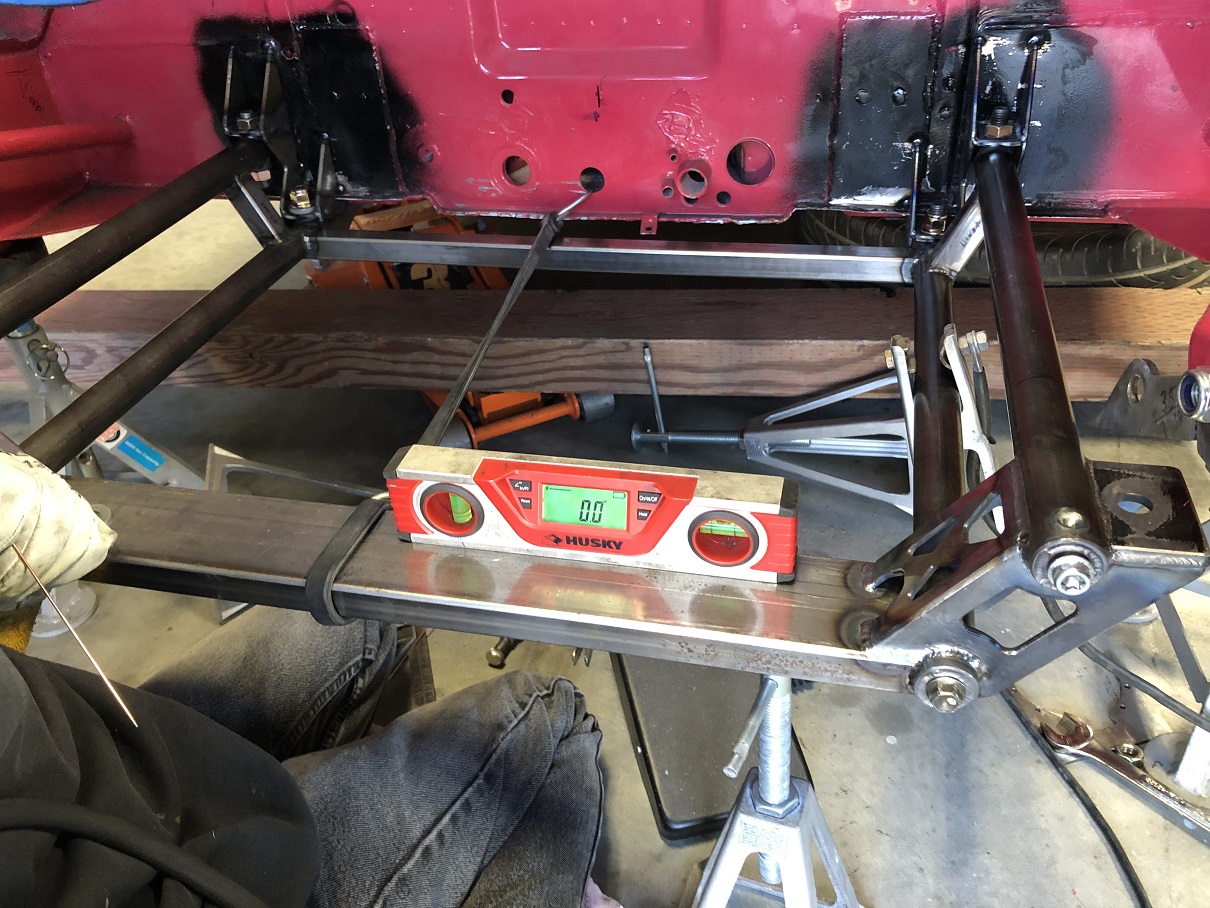

With the cradle all welded up and the fire wall tabs shimmed in place, the assembly gets final fit, leveled and centered, and the mounting plates are tacked to the fire wall tabs. This ensures everything is in the correct orientation and mounts meet dead on with the surfaces they each bolt to.

With that done, everything was removed and the tabs/mounting plates were bench welded. Then it all goes back in, is checked for center and level and the fire wall tabs are FINALLY tacked to the fire wall! (IMG:style_emoticons/default/smilie_pokal.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 12 2022, 06:13 PM
Post #471


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

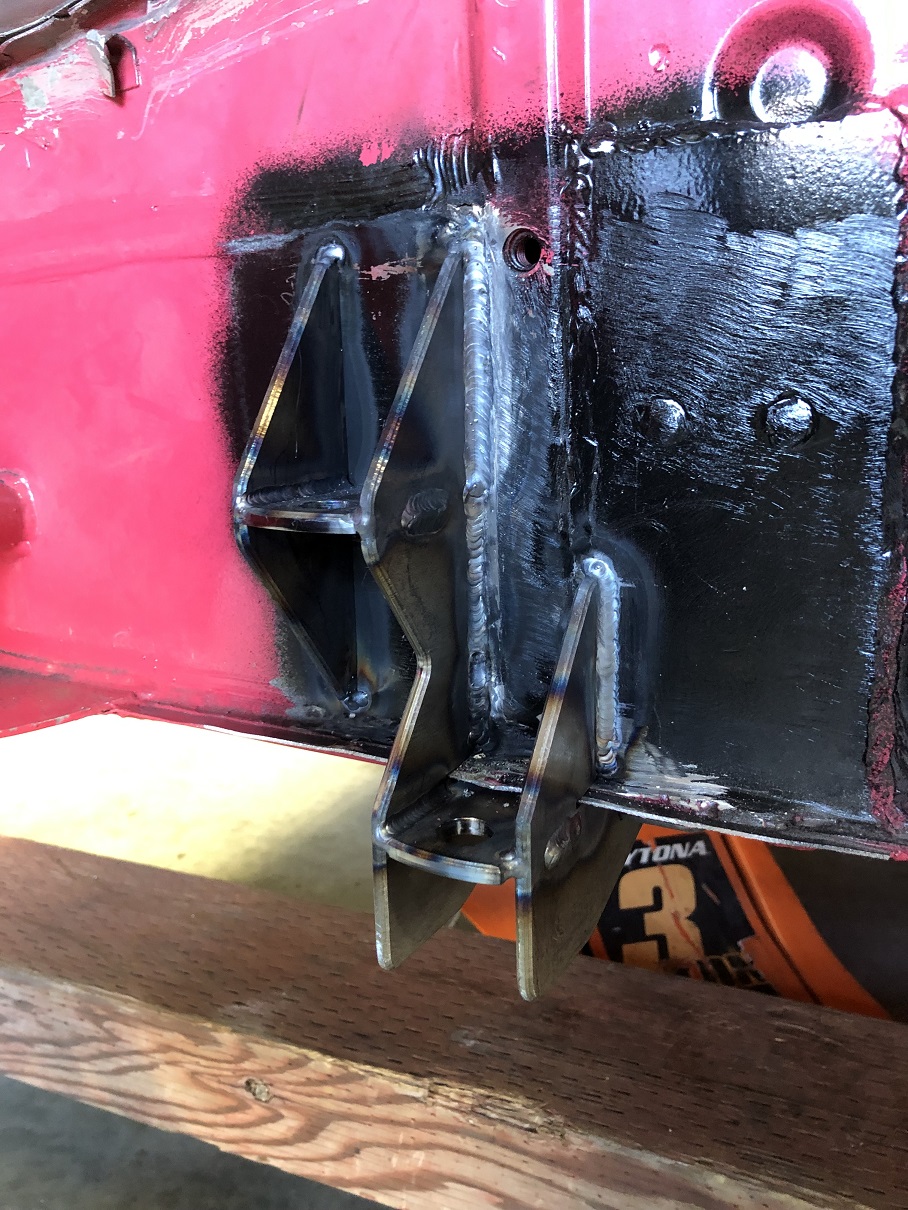

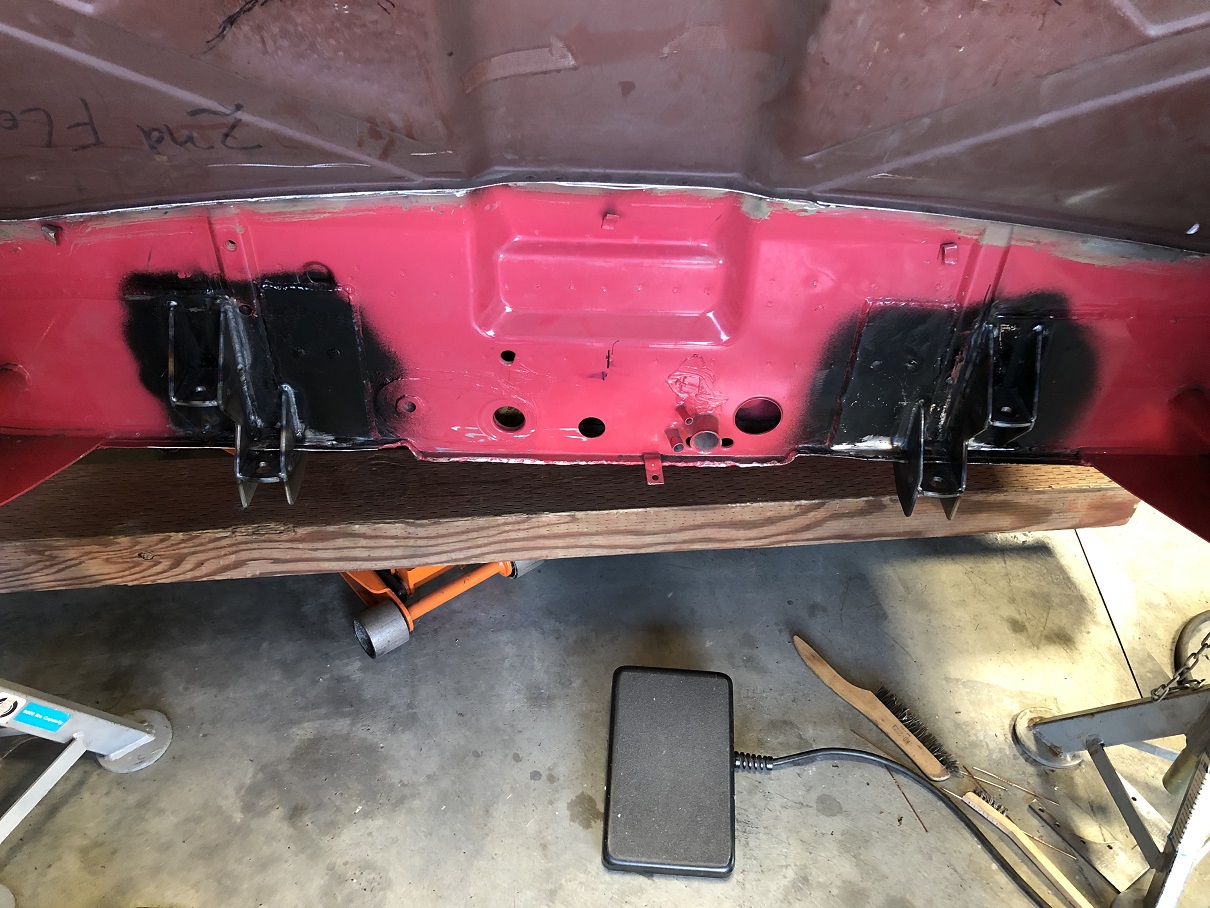

Unbolt the cradle and fully weld the tabs. (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 12 2022, 06:16 PM
Post #472


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

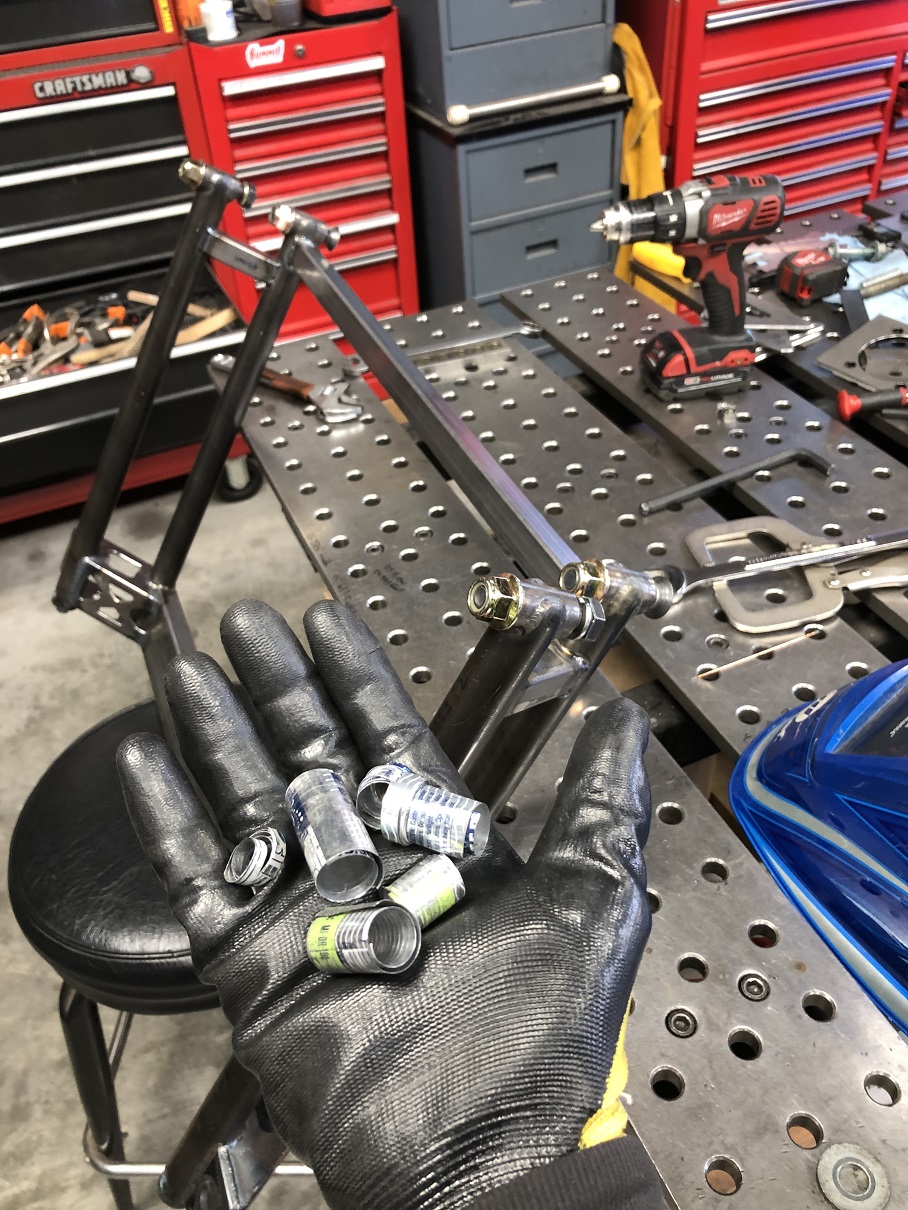

Rememer these aluminum can shims? Well, how'd they work out?

All four mounting bolts slide right through the bungs and the mounting plates with even slop all around. And btw, there's not much of it. I didn't leave much room for error and, thankfully, didn't make one. In all seriousness, the fit is essentially perfect. I couldn't be happier.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 12 2022, 06:18 PM
Post #473


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
@Andyrew Andrew - I thought of you every time I checked the gaps... (IMG:style_emoticons/default/happy11.gif)
Again, I couldn't be happier with how all this fits! Sure, there's a bit of upside down welding to go, but with gaps like that, how hard can that be? (IMG:style_emoticons/default/laugh.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 12 2022, 06:21 PM
Post #474


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
And the final acid test. Here's the cradle, bolted in place - only at the fire wall mounts - "floating" at the back. Yep, that reads dead level.

It was a great day at the Red Barn.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiacra
post Dec 12 2022, 07:26 PM
Post #475


Person.Woman.Man.Camera.TV
**

Group: Members
Posts: 441
Joined: 1-March 19
From: East Bay Region - California
Member No.: 22,920
Region Association: Northern California
QUOTE(tygaboy @ Dec 12 2022, 04:21 PM) *

And the final acid test. Here's the cradle, bolted in place - only at the fire wall mounts - "floating" at the back. Yep, that reads dead level.

It was a great day at the Red Barn.


Chris, great work! Thanks for letting me visit yesterday. Good seeing you and seeing your amazing work. Your approach to your projects and ability to problem solve is inspirational.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tferrer
post Dec 13 2022, 11:07 AM
Post #476


Newbie
*

Group: Members
Posts: 7
Joined: 5-October 22
From: Bay Area
Member No.: 26,896
Region Association: Northern California
Wow- Inspirational is an understatement. Maybe I'll just have YOU restore the CSL instead of shipping it off?! (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 13 2022, 11:16 AM
Post #477


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Tferrer @ Dec 13 2022, 09:07 AM) *

Wow- Inspirational is an understatement. Maybe I'll just have YOU restore the CSL instead of shipping it off?! (IMG:style_emoticons/default/lol-2.gif)


@Tferrer Tyson - Careful, it might end up with an LS or a Ferrari swap!
But something I just noticed: "Ferrer" shares a whole lotta letters with "Ferrari"... maybe it's meant to be? (IMG:style_emoticons/default/idea.gif) (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 13 2022, 11:31 AM
Post #478


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Awesome work, I can't wait to hear the exhaust note from this beast, it's going to howl!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tferrer
post Dec 13 2022, 03:46 PM
Post #479


Newbie
*

Group: Members
Posts: 7
Joined: 5-October 22
From: Bay Area
Member No.: 26,896
Region Association: Northern California
QUOTE(tygaboy @ Dec 13 2022, 12:16 PM) *

QUOTE(Tferrer @ Dec 13 2022, 09:07 AM) *

Wow- Inspirational is an understatement. Maybe I'll just have YOU restore the CSL instead of shipping it off?! (IMG:style_emoticons/default/lol-2.gif)


@Tferrer Tyson - Careful, it might end up with an LS or a Ferrari swap!
But something I just noticed: "Ferrer" shares a whole lotta letters with "Ferrari"... maybe it's meant to be? (IMG:style_emoticons/default/idea.gif) (IMG:style_emoticons/default/poke.gif)


Well, that's one way of getting rid of the D-jet...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Dec 13 2022, 04:18 PM
Post #480


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Love that rolling bender Chris. You have nice toys (IMG:style_emoticons/default/biggrin.gif) . Don't you love how that Chromoly welds? Have you been able bend the .095 45-60 degree w/o any small kinking. Great build as always. (IMG:style_emoticons/default/beerchug.gif)
