> 914 GT 3.6 Ferrari Build, - Mechanicals coming along, electronics soon!
tygaboy
post Dec 13 2022, 07:09 PM
Post #481


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(76-914 @ Dec 13 2022, 02:18 PM) *

Love that rolling bender Chris. You have nice toys (IMG:style_emoticons/default/biggrin.gif) . Don't you love how that Chromoly welds? Have you been able bend the .095 45-60 degree w/o any small kinking. Great build as always. (IMG:style_emoticons/default/beerchug.gif)


@76-914 Kent - Are you talking about bends for something like a roll cage? The tubing will bend fine to 180 degrees, assuming the proper die. The smallest radius you're suppsed to use is 3x OD so on the 1.5, it's a 4.5" radius. I used a 6" radius on all the 1.5" chassis stiffening tubes in my LS build. Hope that helps.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
76-914
post Dec 13 2022, 08:33 PM
Post #482


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(tygaboy @ Dec 13 2022, 05:09 PM) *

QUOTE(76-914 @ Dec 13 2022, 02:18 PM) *

Love that rolling bender Chris. You have nice toys (IMG:style_emoticons/default/biggrin.gif) . Don't you love how that Chromoly welds? Have you been able bend the .095 45-60 degree w/o any small kinking. Great build as always. (IMG:style_emoticons/default/beerchug.gif)


@76-914 Kent - Are you talking about bends for something like a roll cage? The tubing will bend fine to 180 degrees, assuming the proper die. The smallest radius you're suppsed to use is 3x OD so on the 1.5, it's a 4.5" radius. I used a 6" radius on all the 1.5" chassis stiffening tubes in my LS build. Hope that helps.

Yes it did, thx. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 14 2022, 02:12 PM
Post #483


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

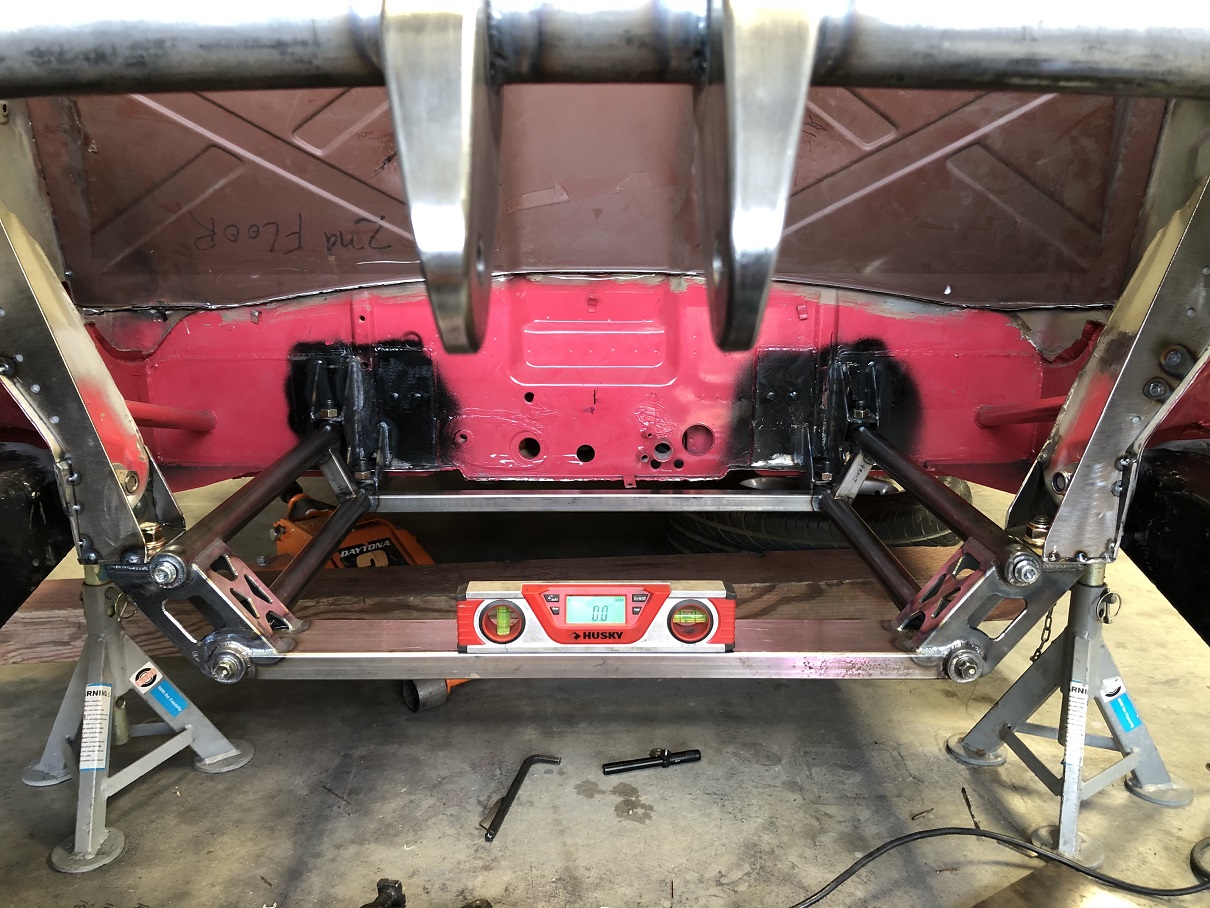

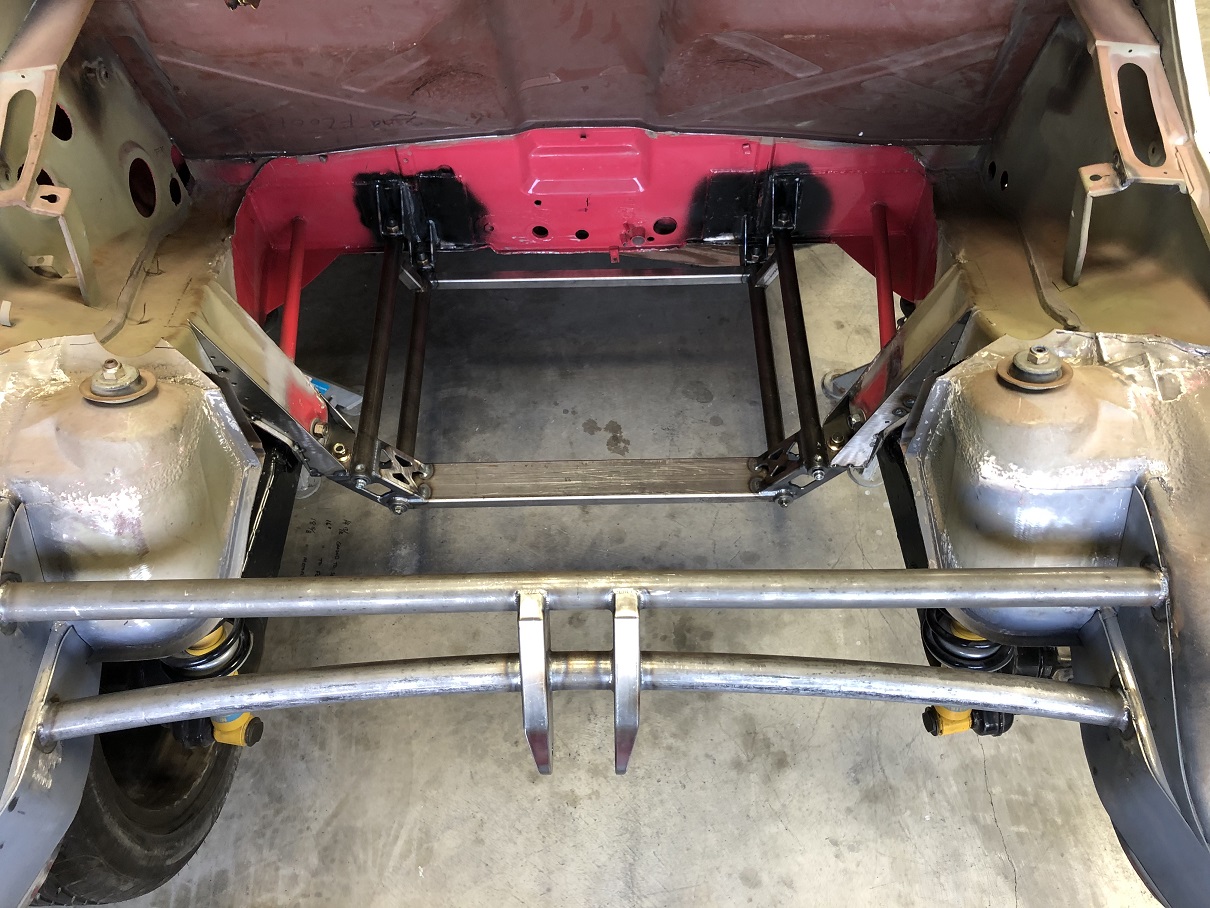

Right side rear engine cradle mount fabbed and tacked in.
While I added that plate on the rear of the suspension console, as I looked at everything, I ended up simply adding an extension to the plating that had been previously added to the front side. I think it makes for what will look more cohesive, once it's all done.
Note that the base mount is 3/16" plate. It has a slight bevel on the underside edge to help in clear a weld on the cradle and this makes it look much thinner than it really is.

Still some trimming/tuning to go, then boxing across the face but this should give a good idea of how it'll all work.

On to the left side - which should go lots quicker, now that the design and approach have been worked out.


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 14 2022, 06:02 PM
Post #484


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

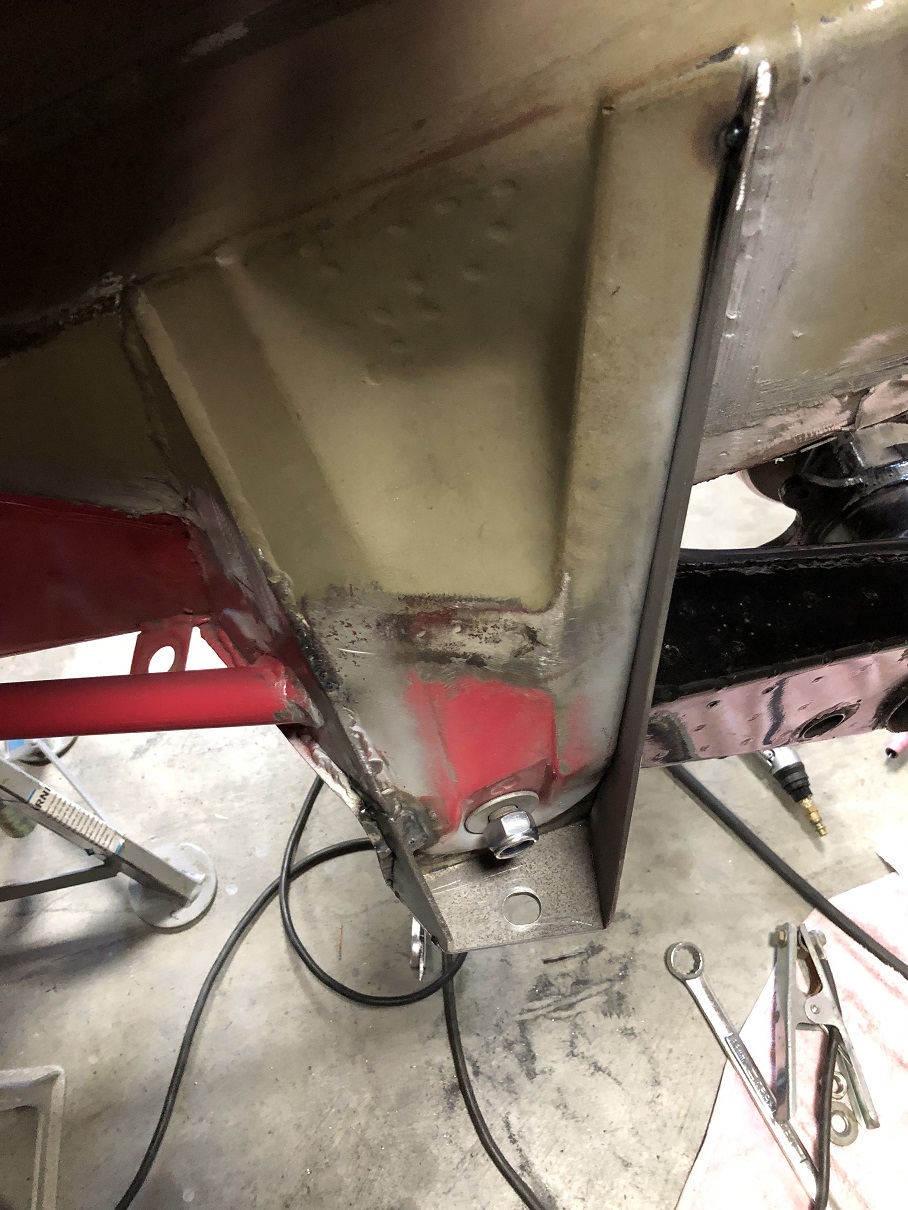

Left side in process with console vertical extension rosetted in place and rear plate tacked in postion.
The vertical piece will also be welded to the console on the backside, too.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 14 2022, 06:19 PM
Post #485


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Yep, the second time was WAY faster. After adding the same small, front plate extension, the cradle was bolted in at the front and at the right rear. I verified level then placed a scrap 3/16" plate on the cradle mount and scribed a line on each of the plates.
Remove the cradle, use a zip wheel to slice off the excess material, bolt the cradle back in, prep the actual 3/16" mount base, verify everything AGAIN and tack everything in place.

So after what seems like forever, the engine cradle mounts are fabbed, fit and (if I do say so myself) FABULOUS! (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/piratenanner.gif)

OK, OK, so I still need to install the engine mounts but, come on! I couldn't be happier.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 14 2022, 06:22 PM
Post #486


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
I'll level with you, it's good to see this is a match.
(Thanks, I'm here all week! Don't forget to tip your servers!) (IMG:style_emoticons/default/laugh.gif)


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 14 2022, 06:23 PM
Post #487


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

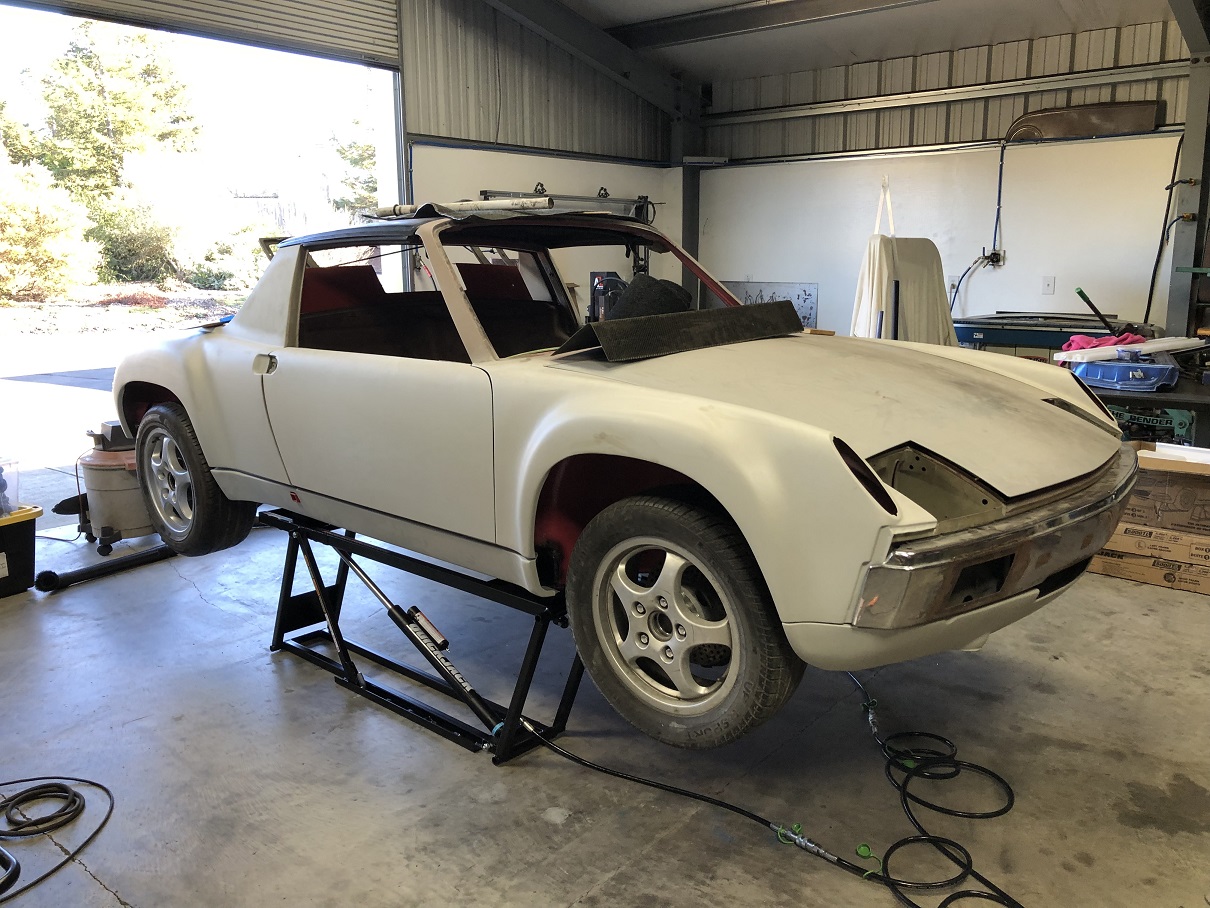

And here's something you don't see every day: one 914 chassis, essentially ready to receive a Ferrari 360 drive train.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Dec 14 2022, 06:44 PM
Post #488


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Awesome build Chris, this will send the precious pasta people to the Nut House when this rolls into Cars und Coffee (IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/marty914.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 14 2022, 09:09 PM
Post #489


Resident German
*************************

Group: Admin
Posts: 41,890
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Maltese Falcon @ Dec 14 2022, 04:44 PM) *

Awesome build Chris, this will send the precious pasta people to the Nut House when this rolls into Cars und Coffee (IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/marty914.jpg)

Especially if he keeps the "Ferrari Pink" color ...
(IMG:style_emoticons/default/biggrin.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 15 2022, 11:30 AM
Post #490


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(tygaboy @ Dec 14 2022, 06:23 PM) *

And here's something you don't see every day: one 914 chassis, essentially ready to receive a Ferrari 360 drive train.


(IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 15 2022, 02:52 PM
Post #491


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

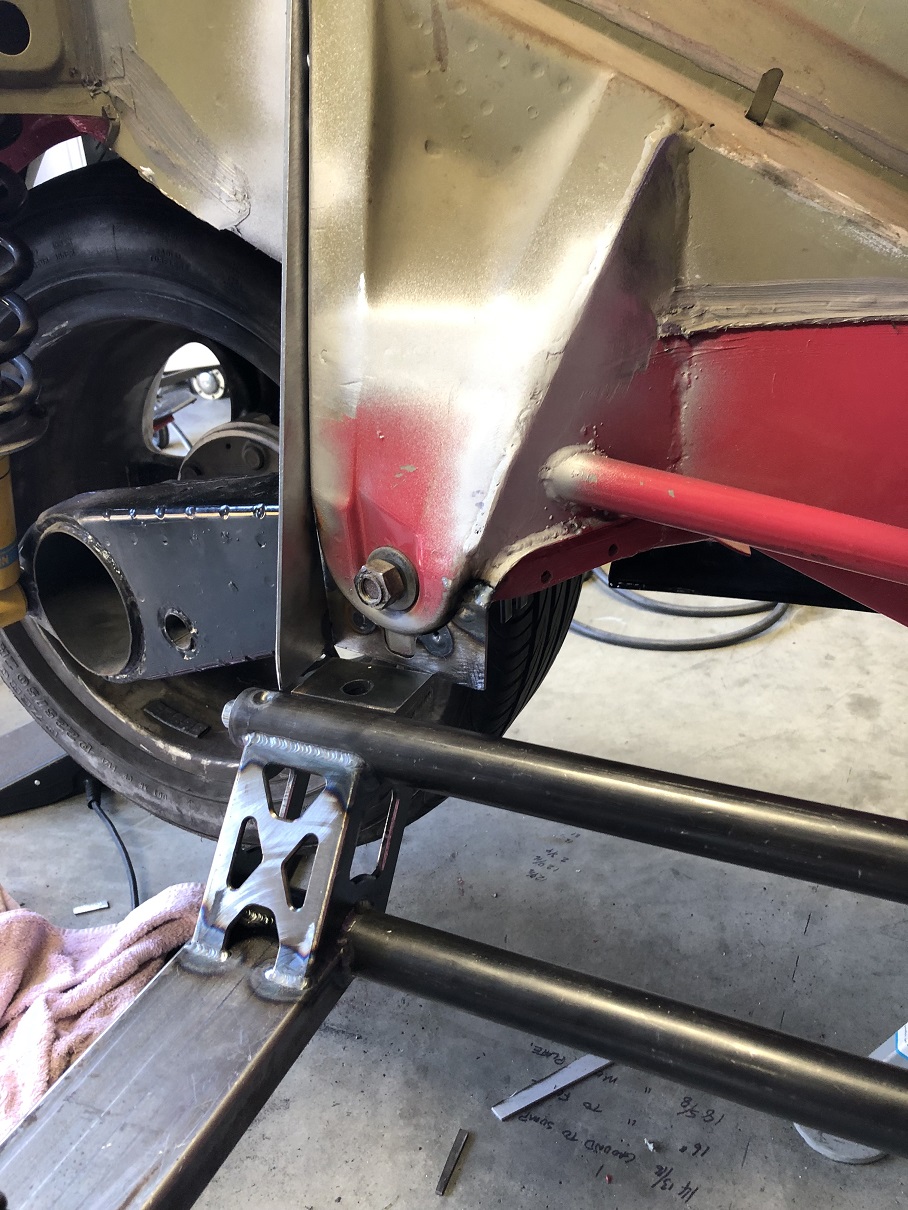

What's the opposite of "clamp"? The console's odd angles made it awkward to get the plate firmly pressed against it for rosette welding. Use a clamp backwards and "presto"!
(IMG:style_emoticons/default/laugh.gif)
Anyway, it worked a treat and the plate is welded on.


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 15 2022, 02:55 PM
Post #492


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

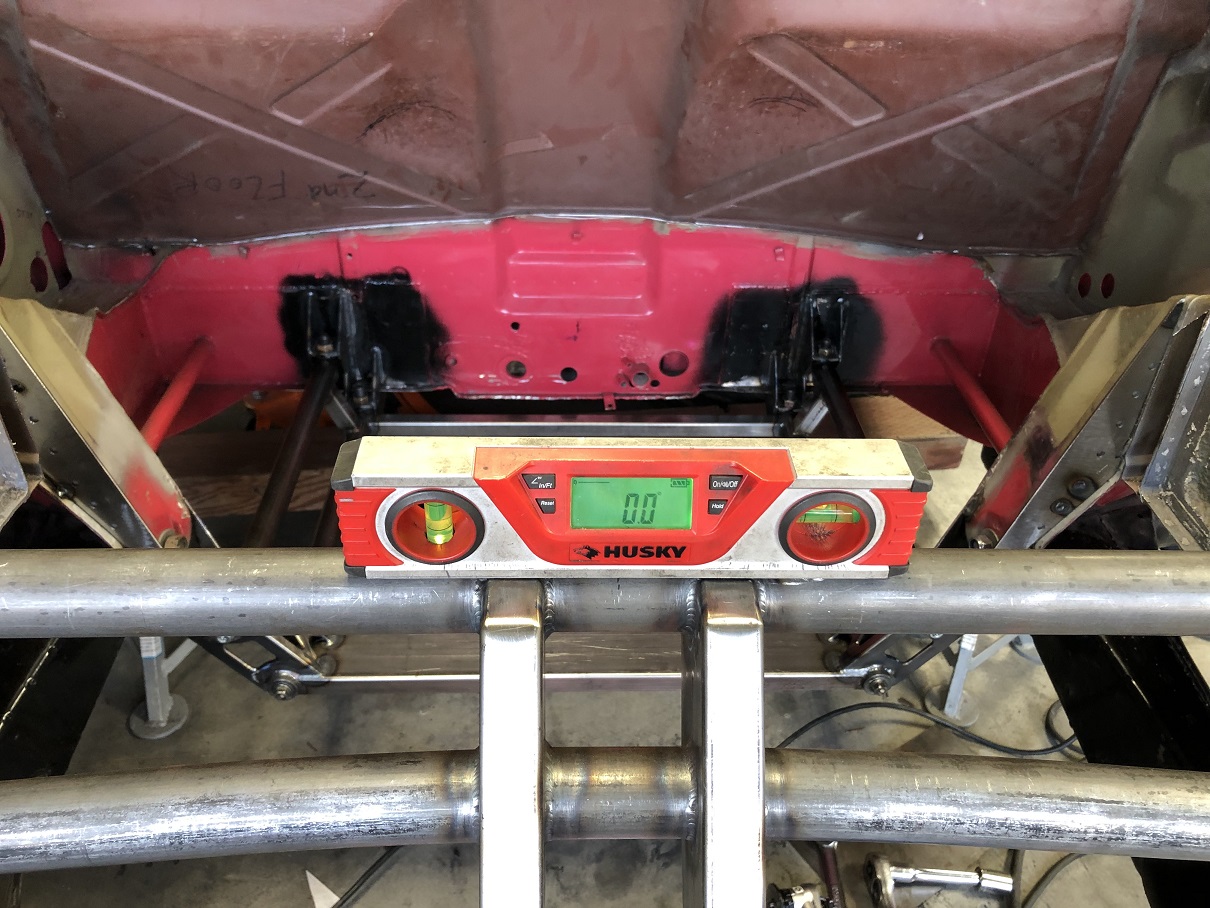

Noodling on ideas for boxing, with this design leading at the moment. The height of the opening allows access to the mounting fastener. Looks kinda cool, too.


Attached image(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Dec 15 2022, 04:30 PM
Post #493


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(SirAndy @ Dec 14 2022, 07:09 PM) *

QUOTE(Maltese Falcon @ Dec 14 2022, 04:44 PM) *

Awesome build Chris, this will send the precious pasta people to the Nut House when this rolls into Cars und Coffee (IMG:style_emoticons/default/biggrin.gif)
(IMG:style_emoticons/default/marty914.jpg)

Especially if he keeps the "Ferrari Pink" color ...
(IMG:style_emoticons/default/biggrin.gif)


From "Cannonball Run" Ferrari driver, 'And now my friend The first rule of Italian driving...what's a behind me isa not important'
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 15 2022, 04:48 PM
Post #494


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

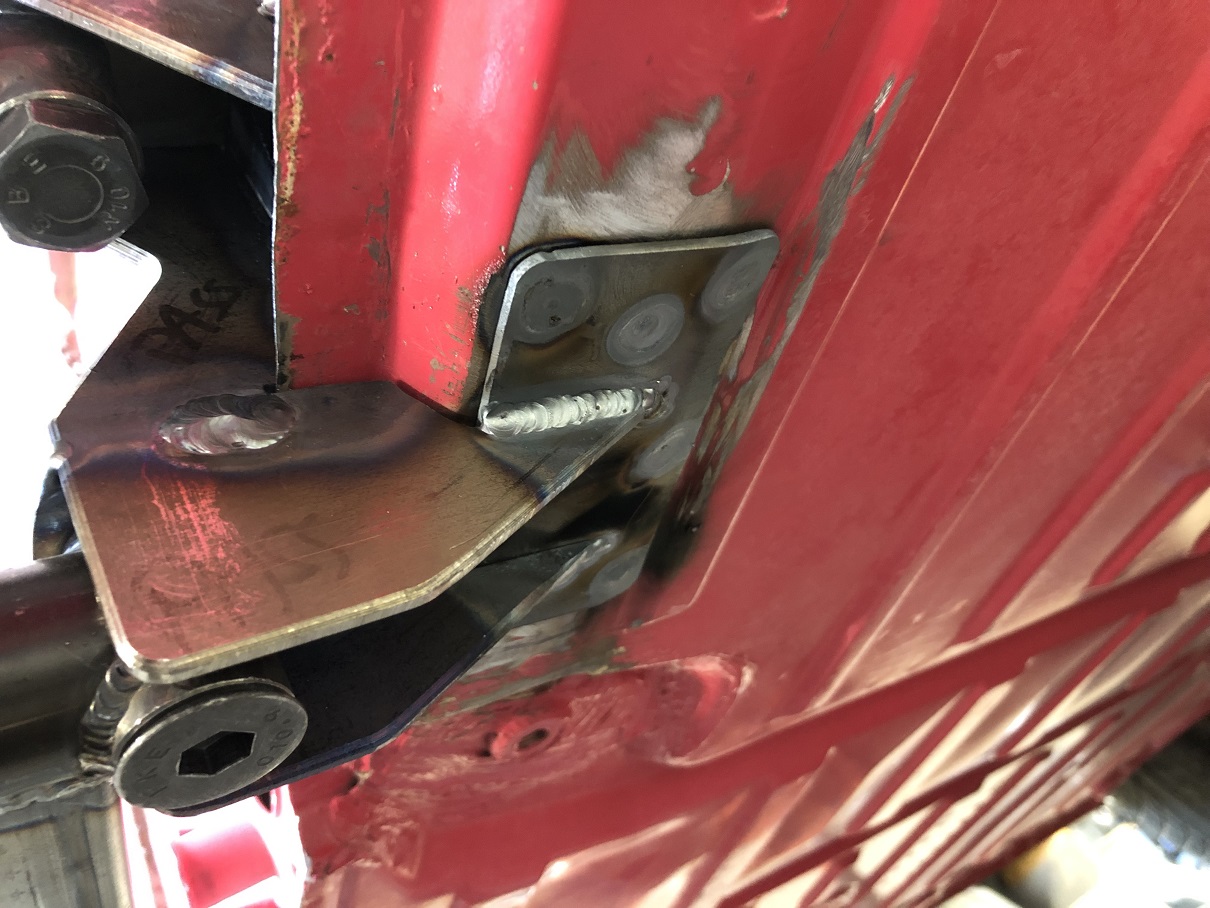

Today was me welding on my own, rosetting the spreader plates to the chassis, then the tabs to the spreader plates.
