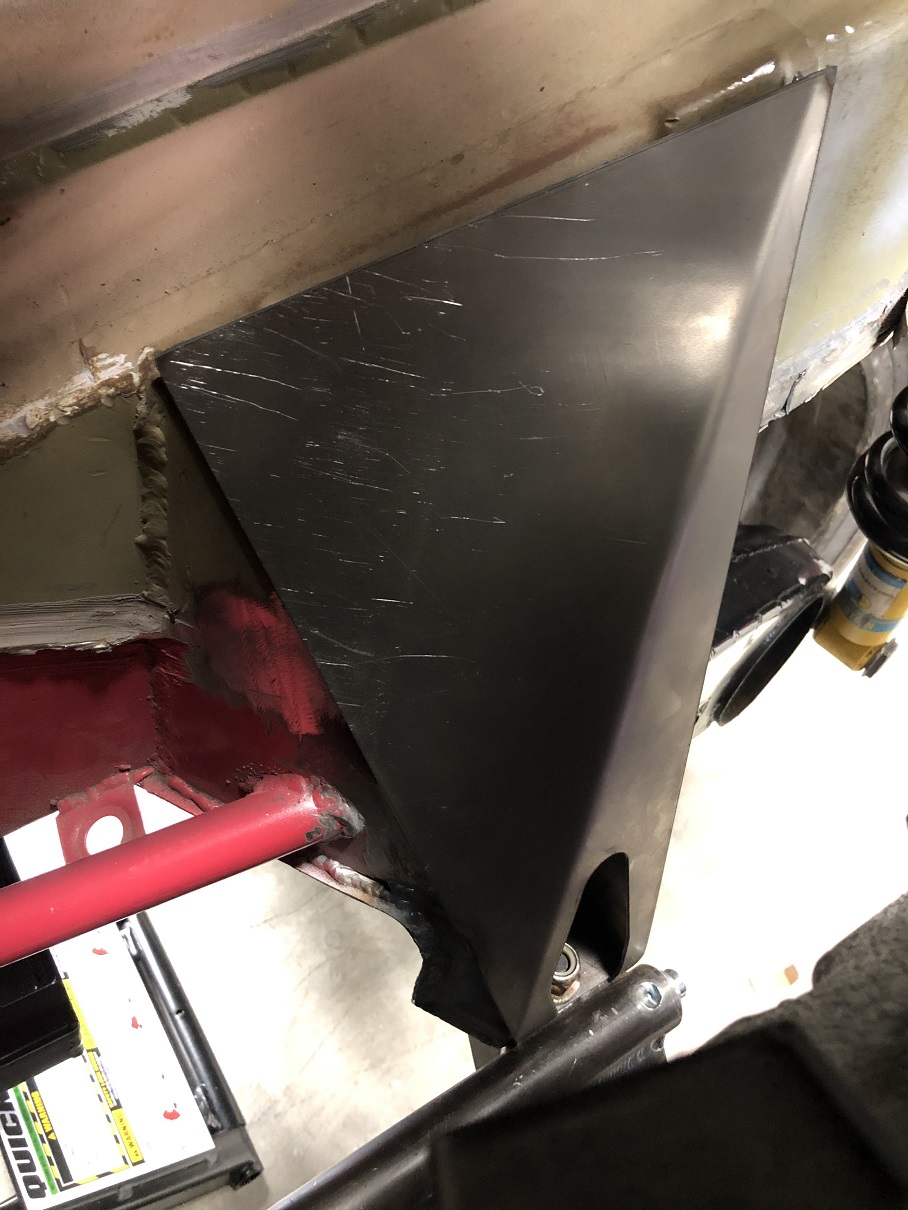

Back to some real work. Today I deceided to make the suspension console/rear cradle mount boxing panel.

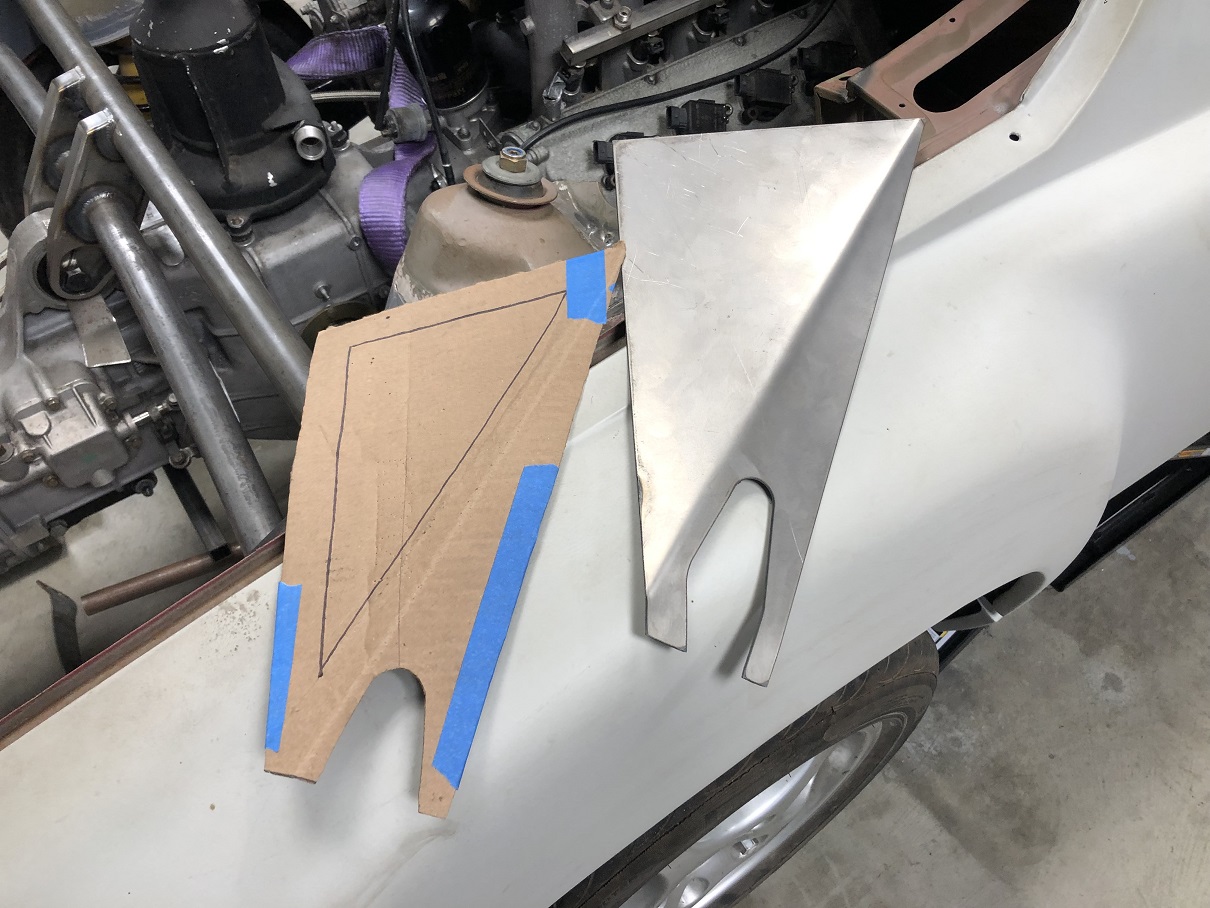

First was to final check the cardboard template and remember to add some additional length so each lower leg reaches the bottom of the mount pickup point plate.
Some careful measuring and a bit of CAD work later and I had what I needed to cut the part on the plasma table.
Then it's measure to determine where that break needed to be added using the brake... wait, what? (IMG:style_emoticons/default/wacko.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 3 2023, 06:00 PM
Post #584


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

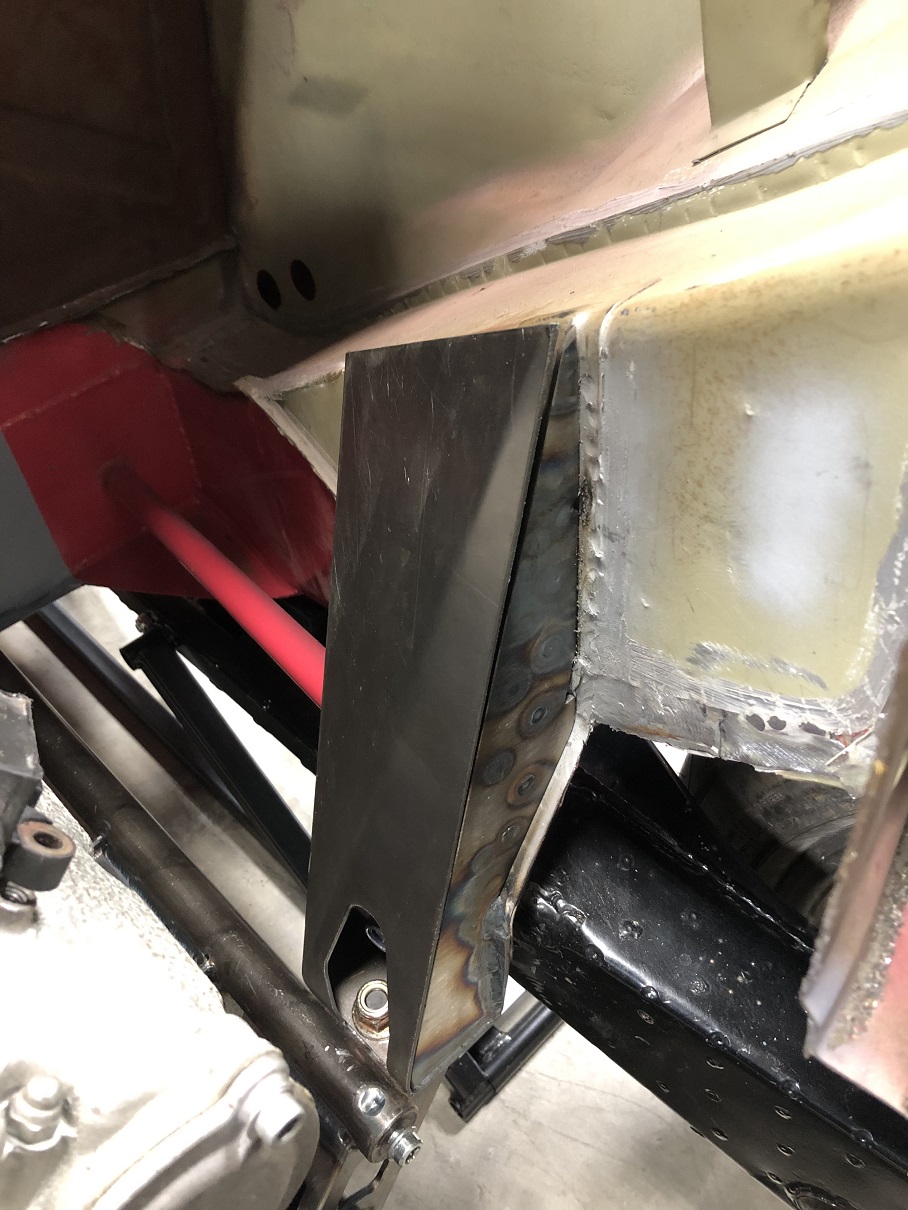

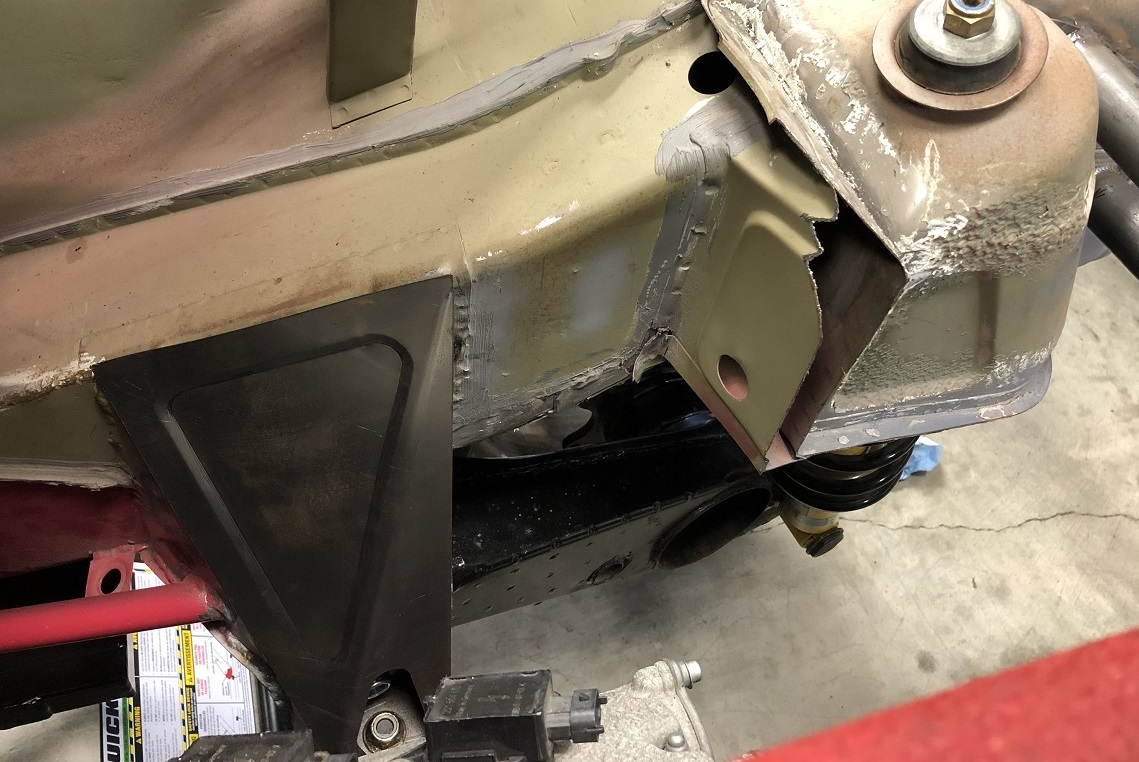

Maybe a bit hard to tell from the pics but it fits really nicely and gives what I think is a nicely "completed" look of that area. I think I'll make a stamping die and add a relief that copies the look of those stamped into the shock tower sheet metal.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Jan 3 2023, 06:22 PM
Post #585


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
QUOTE(nathanxnathan @ Dec 30 2022, 02:20 AM) *

QUOTE(Van B @ Dec 29 2022, 08:40 PM) *

QUOTE(SirAndy @ Dec 27 2022, 11:09 AM) *

You can directly embed YouTube videos (3rd topic under HELP):
http://www.914world.com/bbs2/index.php?showtopic=94568
(IMG:style_emoticons/default/shades.gif)

@SirAndy any idea why embeds don’t show up on an ipad?

It’s just Safari that doesn’t show them. Download chrome app and it works.

Trying to avoid a thread jack here, but chrome is what I use.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Jan 3 2023, 06:23 PM
Post #586


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
@tygaboy what kind of a press break do you have? Those bends are super clean!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 3 2023, 06:47 PM
Post #587


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Van B @ Jan 3 2023, 04:23 PM) *

@tygaboy what kind of a press break do you have? Those bends are super clean!

@Van B I have one of these: a 48" magnetic brake.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Jan 3 2023, 06:51 PM
Post #588


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
Wow… I have never seen one of those! How thick of plate can it handle?

Edit: just looked it up. That is some impressive kit and not that expensive for what it can do. Now I see how those bends are so clean!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 6 2023, 08:20 AM
Post #589


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Latest episode is up. I'm going to try and publish something once a week. Let's see how I do. Hope you enjoy, like and subscribe!

For those who need the direct link: https://youtu.be/kGh5oTXHk0s


https://www.youtube.com/watch?v=kGh5oTXHk0s
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 7 2023, 07:21 PM
Post #590


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Working up the design and components for that "pivoting link", underside/rear transaxle mount. It'll be a removable structure that utilizes these in-line tube connectors. These are generally used in roll cage construction when you want a bar to be removable. In this case, I found some for 1" OD tube - perfect for what I'm up to.

One half will weld to the end of the cradle's lower tube, the other, to the bracket tube. All in line, no wonky tabs. (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/wub.gif)

A bit of lathe work and I have a lighter, custom fit set. I ran out of 1" tube so it'll be next week before I make any more progress.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 12 2023, 06:25 PM
Post #591


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Today I spent some time giving a go to bead rolling an embossing vs making a stamping die set. Sure is faster! I did mess up one corner but with a little practice, I think I could get a really nice result.

Next try, I'll tweak the settings so it better matches the inset in the shock tower: it needs to be a bit deeper/the "ramp" a bit longer.

And no, you probably won't be able to see much of it once the headers are there... but that's not going to stop me spending three days working up four different versions of it. (IMG:style_emoticons/default/lol-2.gif)


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van B
post Jan 12 2023, 10:46 PM
Post #592


Senior Member
***

Group: Members
Posts: 1,618
Joined: 20-October 21
From: WR, GA
Member No.: 26,011
Region Association: None
So very cool! These are the details that make you just love to look at a build!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 13 2023, 08:55 AM
Post #593


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The latest madness "At the Red Barn" is available! I'll be dropping an episode every Friday. Your likes, shares, comments and subscribes are always appreciated. Thanks for your support.

https://youtu.be/OgTZz2u6pMs

https://www.youtube.com/watch?v=OgTZz2u6pMs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 14 2023, 05:54 PM
Post #594


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Needs a bit more tidying up, and the horse will get the same treatment, but you get the idea.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jan 14 2023, 07:24 PM
Post #595


Resident German
*************************

Group: Admin
Posts: 41,889
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
You need to add a Fiat badge to the rear so you can really confused the heck out of people.

(IMG:style_emoticons/default/biggrin.gif)



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roundtwo
post Jan 15 2023, 10:26 AM
Post #596


Member
**

Group: Members
Posts: 311
Joined: 9-February 20
From: Petaluma, CA
Member No.: 23,905
Region Association: Central California
Good times yesterday live on the set at the Red Barn. I always learn a couple dozen things from Chris while I’m there. And I walked away with an audience prize – a three-way Deutsch connector that I desperately needed. TY!

Very cool metal tube bending lesson to boot!

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 20 2023, 09:05 AM
Post #597


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Weekly video drop!
A little bit of "how the sausage is made" in this one.
Please like, subscribe (if you haven't) and share and leave a comment letting me know what you think, if you want more/less details, etc.
Thanks!

https://youtu.be/bQ_DZxxiPcw


https://www.youtube.com/watch?v=bQ_DZxxiPcw
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 20 2023, 11:50 AM
Post #598


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
It looks like the oil filler on top of the tank will hit the trunk lid. Are you going to make an external filler hole, or are you going to shorten the tank?

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tferrer
post Jan 20 2023, 12:29 PM
Post #599


Newbie
*

Group: Members
Posts: 7
Joined: 5-October 22
From: Bay Area
Member No.: 26,896
Region Association: Northern California
QUOTE(ClayPerrine @ Jan 20 2023, 12:50 PM) *

It looks like the oil filler on top of the tank will hit the trunk lid. Are you going to make an external filler hole, or are you going to shorten the tank?

Clay


That sump tank cap is a work of art. I'd make a cutout in the trunk lid the exact shape as the cap with a few mm standoff to allow the motor to move... Or a colab on a carbon trunk lid with a molded cut out... Ck out the IG page for The Son of Cobra

https://www.instagram.com/p/CiJerPuLwTG/?igshid=YmMyMTA2M2Y=
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 20 2023, 12:33 PM
Post #600


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(ClayPerrine @ Jan 20 2023, 09:50 AM) *

It looks like the oil filler on top of the tank will hit the trunk lid. Are you going to make an external filler hole, or are you going to shorten the tank?

Clay

@ClayPerrine Clay - At this point, I really haven't focused on the whole "how will all this clear/not clear". I'll be hitting up @Retroracer Tony to help come up with a design for the overall opening/screened cover/who knows what.
I've still got to decide on the final position of the throttle bodies, as well as some sort of air cleaner setup so, clearly, a ways to go.
User is offlineProfile CardPM
Go to the top of the page
