> Windshield Washer Conversion, From Water Valve Control to Microswitch
davep
post Feb 8 2007, 03:40 PM
Post #21


914 Historian
*****

Group: Benefactors
Posts: 5,212
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
What happens if you want intermittent wipe and a pump?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BigDBass
post Feb 8 2007, 03:44 PM
Post #22


Dumb Question Champion
***

Group: Members
Posts: 1,438
Joined: 11-January 06
From: Chicago (south 'burbs)
Member No.: 5,405
Region Association: Upper MidWest
Oh, it read to me like it would do both! (IMG:style_emoticons/default/whistle[1].gif) I don't remember at the moment if I even have intermittent wipers or not! (IMG:style_emoticons/default/blush.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Feb 8 2007, 04:53 PM
Post #23


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
pump + 924 switch gets you a powered squirter....

the switch has 4 stops on it.

to do intermittent wipers... you need a relay and the wiring harness.
andy showed it in a thread.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CHAFF
post Feb 8 2007, 08:39 PM
Post #24


Member
**

Group: Members
Posts: 167
Joined: 13-September 04
From: Regina, SK
Member No.: 2,749

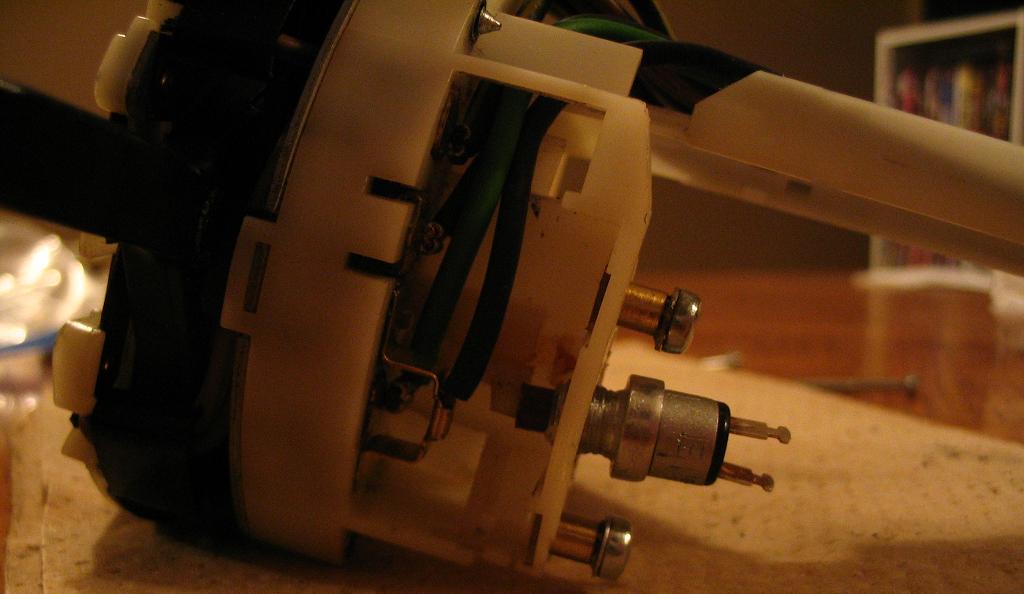

My mod.

-L


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orthobiz
post Feb 8 2007, 09:13 PM
Post #25


Senior Member
***

Group: Members
Posts: 1,757
Joined: 8-January 07
From: Cadillac, Michigan
Member No.: 7,438
Region Association: Upper MidWest
Upfixin: Vol 5, pg 80
Article by A Caldwell. Involves a microswitch on the regular 914 assembly.

Upfixin: Vol 7, pg 194
Suggests a 75/76 Rabbit column switch. It has the switch built in but needs subtle modification and reuse of 914 parts to work. It's in the article. PN 171.953.519 for the Rabbit.

Paul Biz
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Feb 8 2007, 10:03 PM
Post #26


Jerry
*****

Group: Members
Posts: 7,085
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(CHAFF @ Feb 8 2007, 09:39 PM) *

My mod.

-L


I like your mod and I even have some switches like that. Very simple and straight forward. So it looks like you drilled out the plunger hole and screwed in the switch. Do you have any glue or a nut to hold the switch?

Spoke
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 9 2007, 12:25 PM
Post #27


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Jerry... my mail-lady just came. She had a message she wanted me to give you. (IMG:style_emoticons/default/finger.gif)

(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CHAFF
post Feb 9 2007, 01:08 PM
Post #28


Member
**

Group: Members
Posts: 167
Joined: 13-September 04
From: Regina, SK
Member No.: 2,749
Hey Spoke, yep, drilled out just enough for the switch housing threads to catch on the new hole. This allows for you to tweak the distance from the actuator to the switch. Then topped off with a bit of epoxy to hold it.

Things to consider:
1) Make sure the switch isn't too hard to push on. The actuator is very delicate
2) Make a small V cut in the button part of the switch. This will ensure the actuator engages it fully. (Can't really see that in the pic)
3) Use the spare pin on the stalk for your single wire return to power the pump (makes for a nice clean install)

Biggest benefit.....everything is still original except the pressure valve is missing.

Cheers
-L



QUOTE(Spoke @ Feb 8 2007, 08:03 PM) *

QUOTE(CHAFF @ Feb 8 2007, 09:39 PM) *

My mod.

-L


I like your mod and I even have some switches like that. Very simple and straight forward. So it looks like you drilled out the plunger hole and screwed in the switch. Do you have any glue or a nut to hold the switch?

Spoke
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 27 2007, 07:49 AM
Post #29


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
A couple of questions.
1. You still have to drill out the tank cap to vent ? Correct.
2. Wiring. You only need 2 wires right ? One to body gound. One to the pump.
3. Take the HOT 12 volts straight to the pump. Switch with the ground. Therefore not having any heat or shortening issues in the steering column.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Mar 4 2007, 09:23 PM
Post #30


914 Historian
*****

Group: Benefactors
Posts: 5,212
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
So, I have made a prototype switch holder, and it works. The switch will not carry the current, so a relay would be required along with a fuse and the pump. Should I make this into a turnkey kit?


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iamchappy
post Mar 4 2007, 09:34 PM
Post #31


It all happens so fast!
****

Group: Members
Posts: 4,893
Joined: 5-November 03
From: minnetonka, mn
Member No.: 1,315
Region Association: Upper MidWest
Very nice, that looks great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 5 2007, 02:05 AM
Post #32


Jerry
*****

Group: Members
Posts: 7,085
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Dave,

Your setup looks good. Ideally the switch should be able to carry the current of the pump. Adding a relay is an extra complication that could be avoided with a 1 to 5 amp switch.

What current rating is your switch?

Spoke
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 5 2007, 02:09 AM
Post #33


Jerry
*****

Group: Members
Posts: 7,085
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(cary @ Feb 27 2007, 08:49 AM) *

A couple of questions.
1. You still have to drill out the tank cap to vent ? Correct.
2. Wiring. You only need 2 wires right ? One to body gound. One to the pump.
3. Take the HOT 12 volts straight to the pump. Switch with the ground. Therefore not having any heat or shortening issues in the steering column.


1) Yeah, as shown in Sir Andy's thread, the cap needs to be drilled out.

2) Wiring: 1 switched 12V, fused lead to the switch, then to the pump. Ground wire from the pump to chassis ground.

3) Switch can be 12V switched or ground switched. Switching ground requires 2 wires to go from interior to front trunk. One is 12V HOT and one is switched ground. My car already has a switched 12V wire run to the trunk. The ground wire for the pump is connected to chassis ground in the trunk.

Spoke
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Mar 5 2007, 07:40 AM
Post #34


914 Historian
*****

Group: Benefactors
Posts: 5,212
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
This switch is about 0.25 amp, and another I will try to sample is about 3 amps. Not sure of the inrush current of a washer pump, and that is what will burn the switch contacts. Relay can be a 10 amp unit that is mounted in an easy to replace location. Also have to have a fuse. I want this to be a reliable solution. Also have to figure out the pump mounting. The six has the mount locations, and I'd like to duplicate this and the 914/6 pump. I can supply the vent for the washer bottle cap.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 5 2007, 12:20 PM
Post #35


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Help. I received my 924 switch and opened it this Sunday. It was kinda cracked up where the mounting screws go into it and, it didn't seem to have a pull/on washer pump feature.

Am I missing something? The right stalk should pull correct?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 5 2007, 01:11 PM
Post #36


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
sometimes its hard to feel the pull feature when it isnt mounted.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 5 2007, 02:44 PM
Post #37


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
The high beam on the left stalk is fairly obvious.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 5 2007, 03:27 PM
Post #38


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
how many wires you got?

(IMG:http://www.914world.com/bbs2/uploads/blog-219-1153778014.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 5 2007, 03:43 PM
Post #39


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
I see you have the same cracks...

Let me count wires. How many should I have? 11-12? (that's about all I can see in that pic)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 5 2007, 03:45 PM
Post #40


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
you should have 2 more than a stock 914 switch (just the washer section)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
