> FYI: Official Alien Build thread Started 2003, Alien Resurection is underway. Flywheel is finished - transaxle is bolted - Starter works
ClayPerrine
post Jan 12 2023, 02:51 PM
Post #641


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille

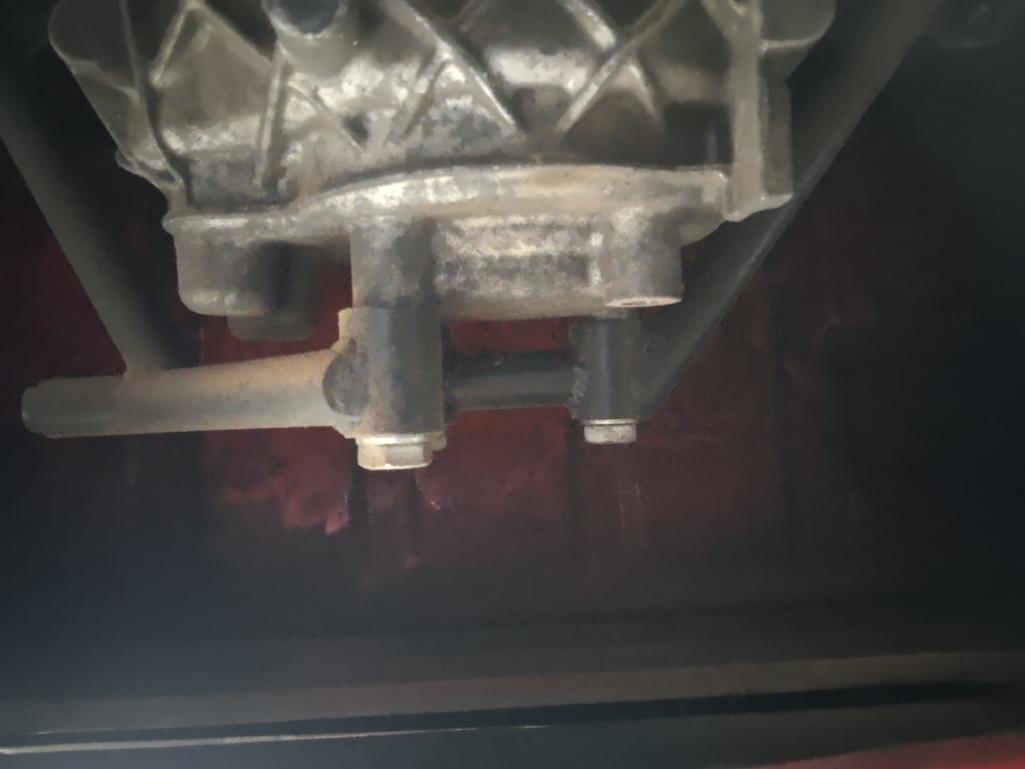

I went out to the garage and laid my cell phone on the ground to get this picture.

Attached Image

That is with a 1/2 inch adapter plate between the engine and trans.

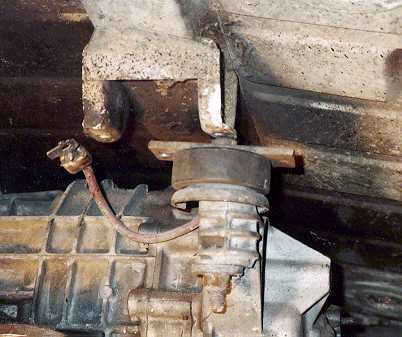

I pulled your picture from your webpage of the alien's trans mount.

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.d.umn.edu-1143-1673556684.1.jpg)

Considering you trim the transmission bellhousing, and you are only backed up that far, you should have room for the 6-speed.

(IMG:style_emoticons/default/biggrin.gif)








User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jan 13 2023, 08:12 PM
Post #642


Advanced Member
****

Group: Members
Posts: 4,844
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(rick 918-S @ Jan 10 2023, 03:48 PM) *

The Alien is scheduled to get back in line to complete her resurection after Juergen's car is transported thru the space time continum on it's way home.

I received a special package from Marty today! We have talked about this for years. We finally made it happen.

When shopping for your exhaust needs don't forget Marty and MSDS! (IMG:style_emoticons/default/assimilate.gif)





...as if you even Need more torque

(IMG:style_emoticons/default/marty914.jpg) Long (IMG:style_emoticons/default/welder.gif) Tube (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jan 14 2023, 05:54 PM
Post #643


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I’m happy you get to go out and work on your own car again.
I hope you enjoy each moment alone…tinkering.

I’m finally getting this barn find to stop marking its territory.
Then fuel, etc etc
Once that is sold, my old 914 is going to get done…and painted, and driven again!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jan 16 2023, 02:33 PM
Post #644


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California

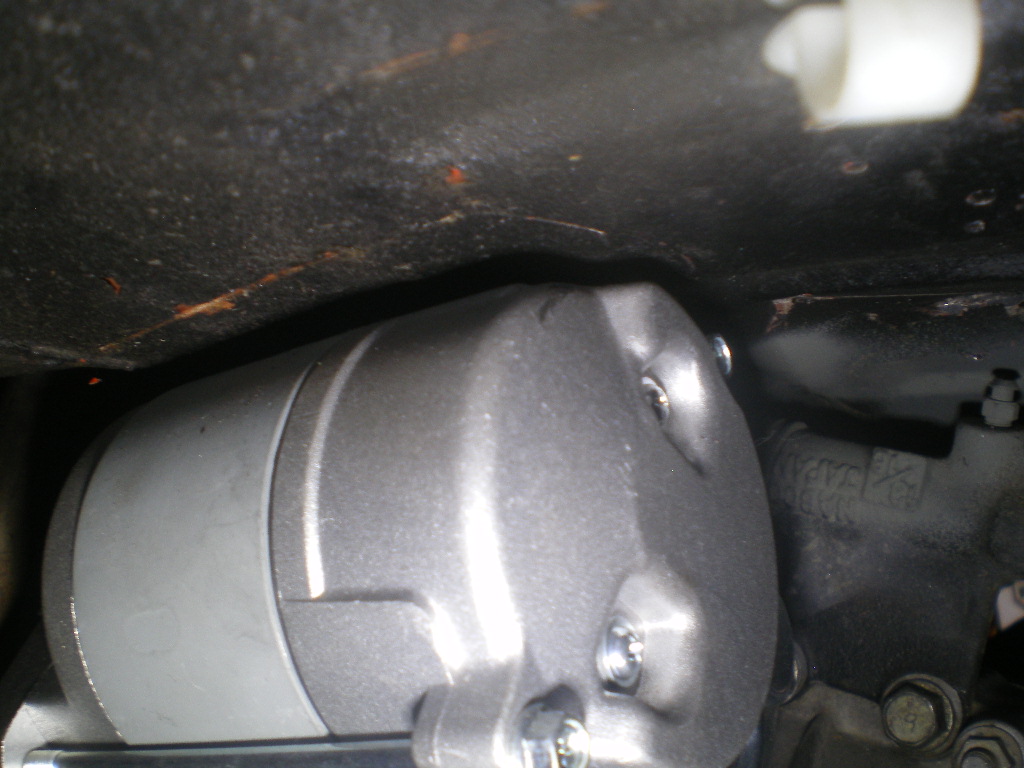

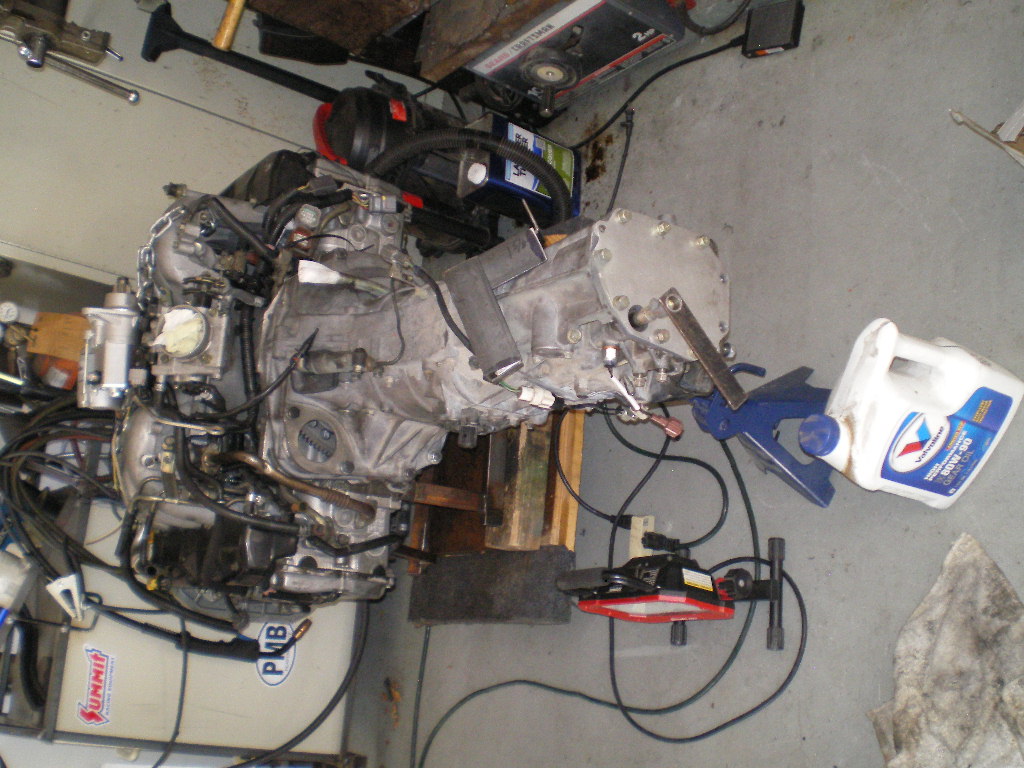

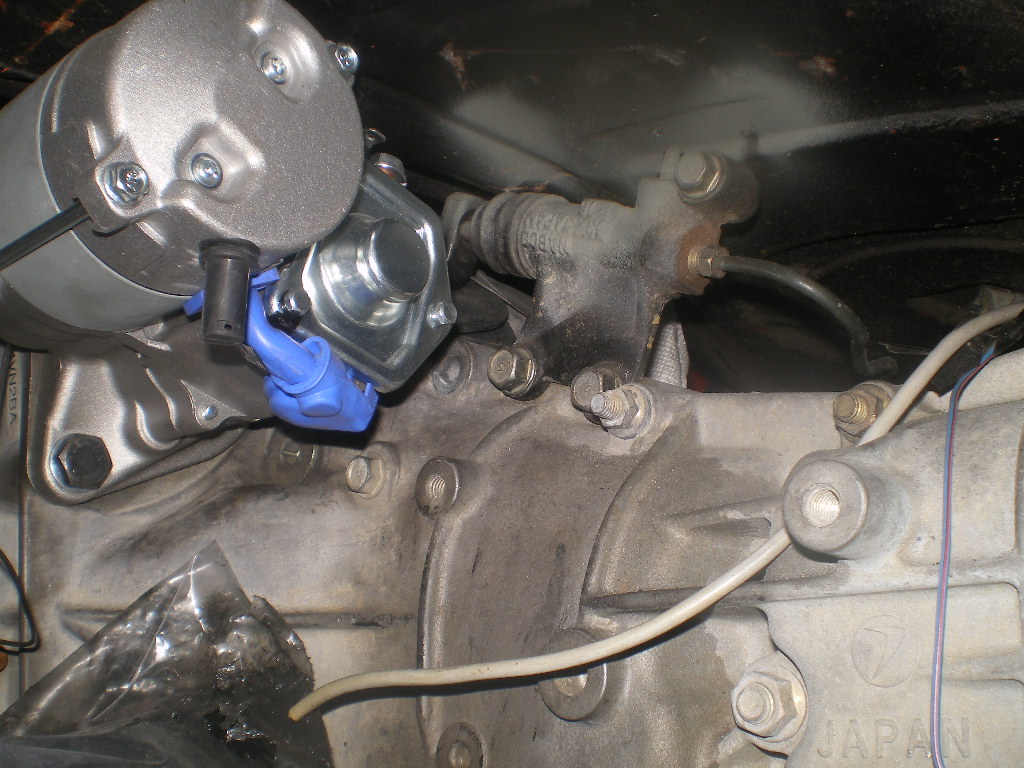

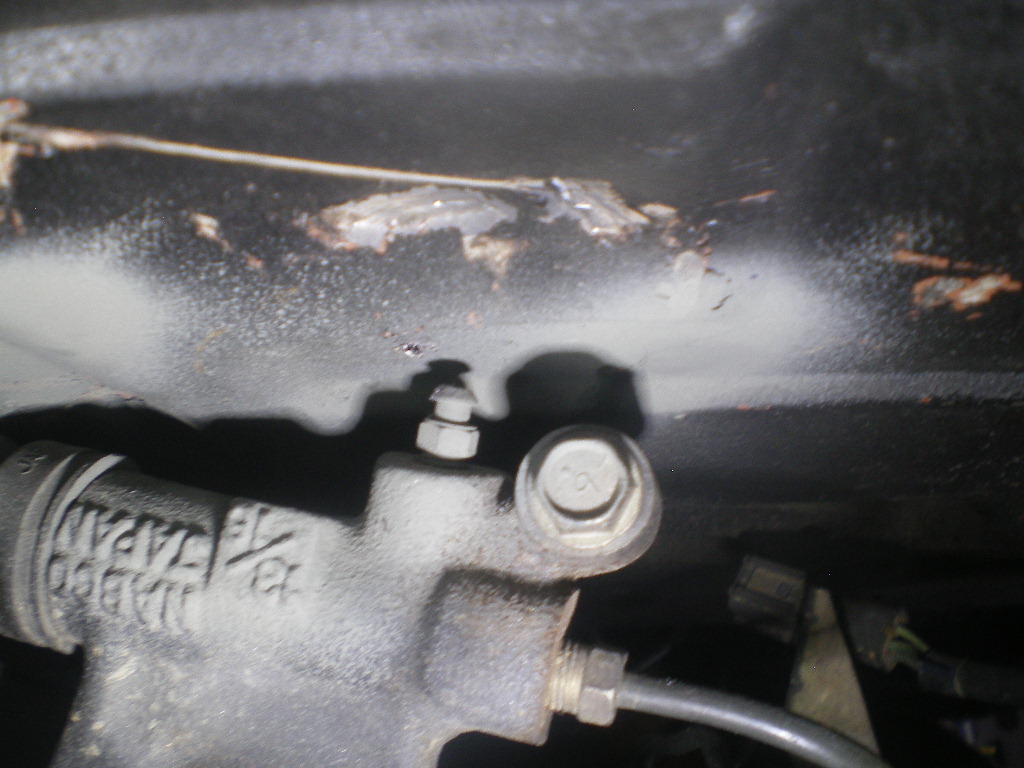

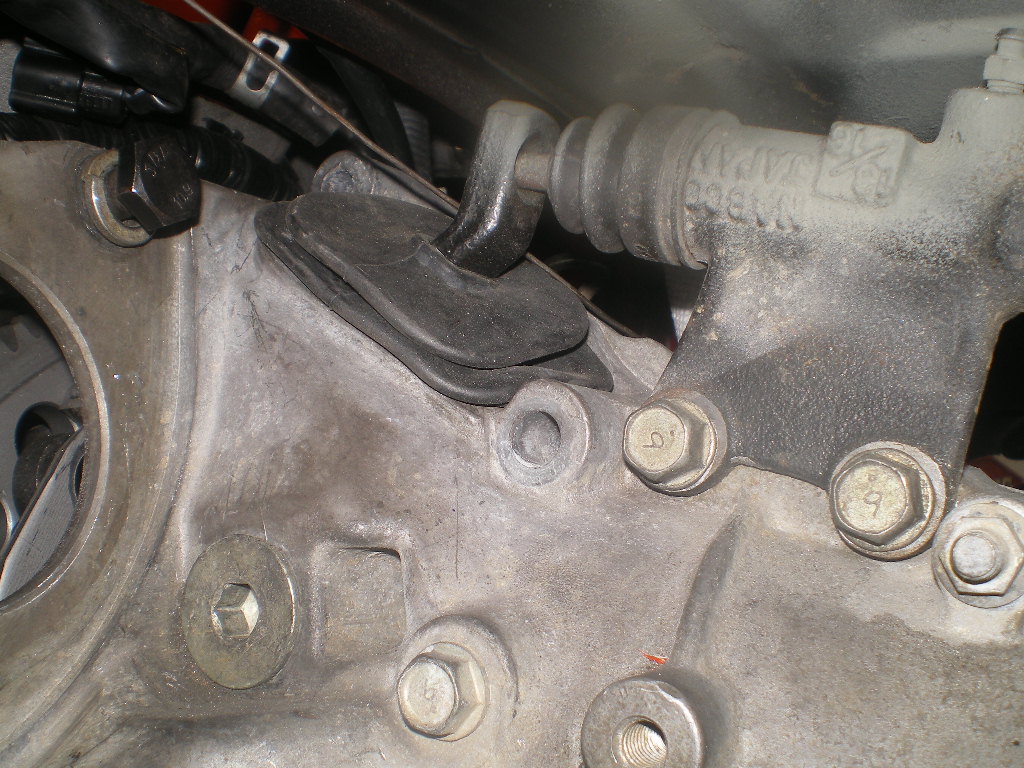

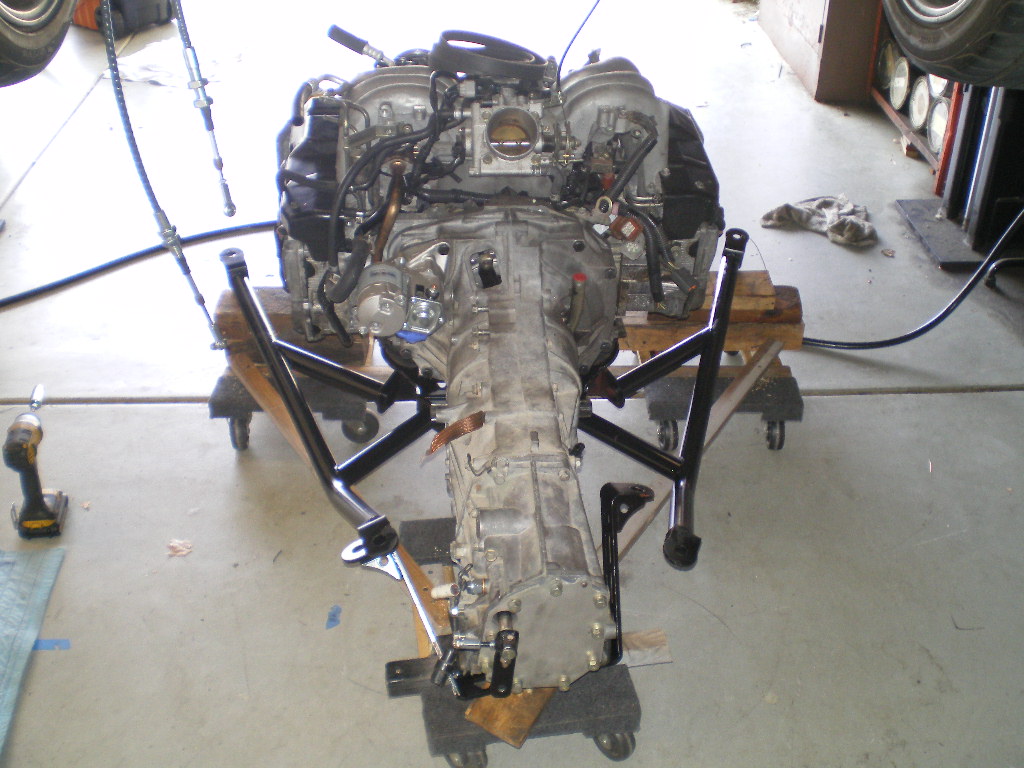

Here ya go Rick @rick 918-S Hope this helps. I threw in a few extra. (IMG:style_emoticons/default/beerchug.gif)

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jan 16 2023, 02:35 PM
Post #645


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Here ya go Rick @rick 918-S Hope this helps. I threw in a few extra. (IMG:style_emoticons/default/beerchug.gif)

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jan 16 2023, 02:40 PM
Post #646


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
You'll probably want this chart as well. https://www.rallispec.com/downloads/Transmi...hart_Public.pdf
This is the starter. https://www.rockauto.com/en/moreinfo.php?pk...a9%2BKatR%2Ffoj BTW Subaru gears makes a Quaif unit for the 5 sp transmission.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jan 16 2023, 05:32 PM
Post #647


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I got a bit lost on this thread.
Did you put a Boxster motor and trans in your car? @76-914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 17 2023, 09:05 AM
Post #648


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,783
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(r_towle @ Jan 16 2023, 05:32 PM) *

I got a bit lost on this thread.
Did you put a Boxster motor and trans in your car? @76-914


Clay suggested I use a Boxster transaxle. Kent and I were talking about the the Subaru swap and he posted photos of the subaru unit as well. I have been thinking about changing out the 901.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jan 17 2023, 09:05 AM
Post #649


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(r_towle @ Jan 16 2023, 03:32 PM) *

I got a bit lost on this thread.
Did you put a Boxster motor and trans in your car? @76-914

Sorry for the confusion Rich. No changes on this end. Rick is looking at transmission options and needed to see the starter clearance on my '70 914. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Jan 17 2023, 11:05 AM
Post #650


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
If you go suby 5 speed you will need a LSD to hold it together per the guys at subygearz.. i was looking at that until I got the boxster s.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 18 2023, 06:12 AM
Post #651


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,783
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Interesting info on the Subaru Transaxle swap started by Ross. Posting the thread here in the event I want to hunt it down later.

http://www.914world.com/bbs2/index.php?sho...351451&st=0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 18 2023, 08:16 AM
Post #652


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
How does the length of the Subi trans compare with the 901 and the Boxster 6 speed?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jan 18 2023, 05:05 PM
Post #653


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
3 moving dolly’s. Good idea.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Jan 19 2023, 06:11 PM
Post #654


Jackstands are my life.
****

Group: Members
Posts: 3,413
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
QUOTE(rick 918-S @ Jan 17 2023, 07:05 AM) *

Clay suggested I use a Boxster transaxle. Kent and I were talking about the the Subaru swap and he posted photos of the subaru unit as well. I have been thinking about changing out the 901.


Me too for the Nissan swap, target is 290 hp 270 tq. Also I posted weights somewhere. Suby is 100 lbs. 914 85 lbs. Box6 is 175 lbs iirc. I want to be able to flog it without concern and solid shifting would be nice for a change.

QUOTE(ClayPerrine @ Jan 18 2023, 06:16 AM) *

How does the length of the Subi trans compare with the 901 and the Boxster 6 speed?

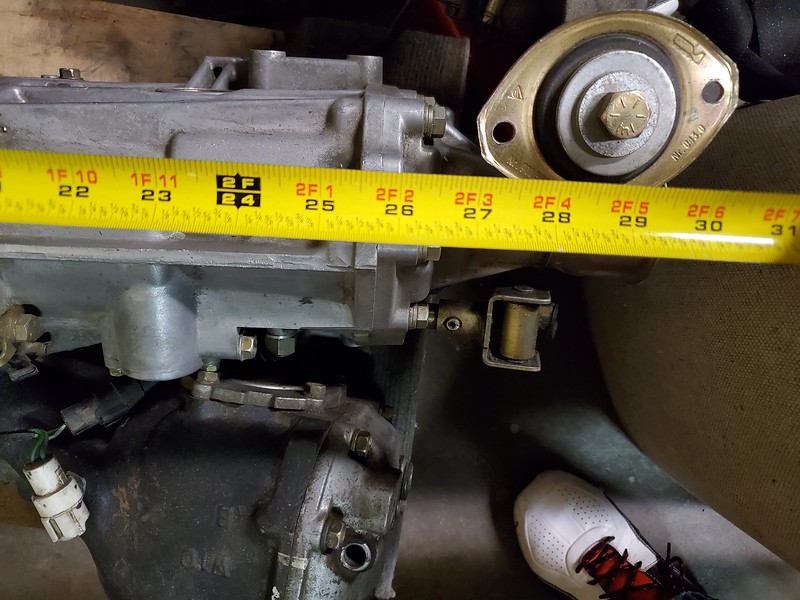

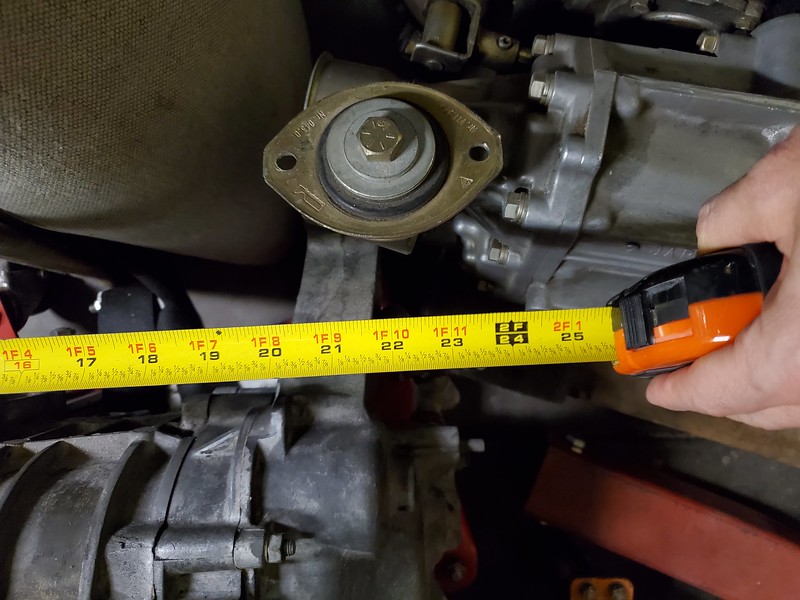

914. ~22" at the mount center bolt. ~24" at the muffler bracket mount.

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-431-1674173477.1.jpg)

Suby. >26" at the case plate w/ 2wd swap. ~28" at the shift rod. Diff is forward 1 1/2", looks like that will put you back to stock axle geometry.

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-431-1674173478.2.jpg)

You might find the German to German swap easier in some small ways. I had that benefit with my Japanese to Japanese matchup. The problem I had with the Box5 is the small flywheel/clutch vs the Nissan.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 19 2023, 07:16 PM
Post #655


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,783
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Liked the Audi/ Passat Transaxle stuff too. That looks like a nice option. I am totally into low buck solutions.

http://www.914world.com/bbs2/index.php?showtopic=363366
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 20 2023, 11:48 PM
Post #656


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
When I did my car, the low mileage Cayman 6-speed was about 4K.

The other alternative I had was a G-50. It would have to be run upside down, and I would have had to cut the trunk floor out to use it. And a clapped out G-50 was 10K.

And another thing to think about is that with a Boxster/Cayman trans behind the 928 motor, you are still eligible to participate in Porsche Parade. With a Subi or Audi box, you are not.

Don't know if that matters to you, or not.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 21 2023, 07:05 PM
Post #657


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,783
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(ClayPerrine @ Jan 20 2023, 11:48 PM) *

When I did my car, the low mileage Cayman 6-speed was about 4K.

The other alternative I had was a G-50. It would have to be run upside down, and I would have had to cut the trunk floor out to use it. And a clapped out G-50 was 10K.

And another thing to think about is that with a Boxster/Cayman trans behind the 928 motor, you are still eligible to participate in Porsche Parade. With a Subi or Audi box, you are not.

Don't know if that matters to you, or not.



Looks like I may have located all the parts for a Boxsster conversion.

I am posting a link you your thread her so it's easy to find. You have done some interseting research.

http://www.914world.com/bbs2/index.php?showtopic=279084
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 22 2023, 10:29 AM
Post #658


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
If you really want to be unique.. you could put in this....


https://www.ebay.com/itm/364103210113?hash=...ABk9SR5Dp66S7YQ


2009-2012 PORSCHE BOXSTER 987 2.9 7-SPEED PDK TRANSMISSION 58k Miles


914 with a 928 motor and a Boxster 7 speed PDK transmission... Unique.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 22 2023, 10:32 AM
Post #659


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
This is serious...

There is a 6 speed trans identical to the one in my 914 for sale on ebay.

https://www.ebay.com/itm/115252249168?hash=...ABk9SR5zF1qS7YQ

US $2,499.98 plus shipping.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 24 2023, 09:58 PM
Post #660


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,783
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
trying to get my new garage organized. I am working around tool boxes welders bins fo parts & Juergen's car. So adding Drywall a little at a time. I needed something to motive me so I spent a couple evening and added this garage art. I have always wanted to do this.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


39 Pages V « < 31 32 33 34 35 > »
Reply to this topicStart new topic
3 User(s) are reading this topic (3 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 23rd November 2024 - 04:41 AM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
