> Bringin Sexy Back-, She is Finished-The final installment
Series9
post Apr 28 2011, 07:08 AM
Post #141


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
More progress.

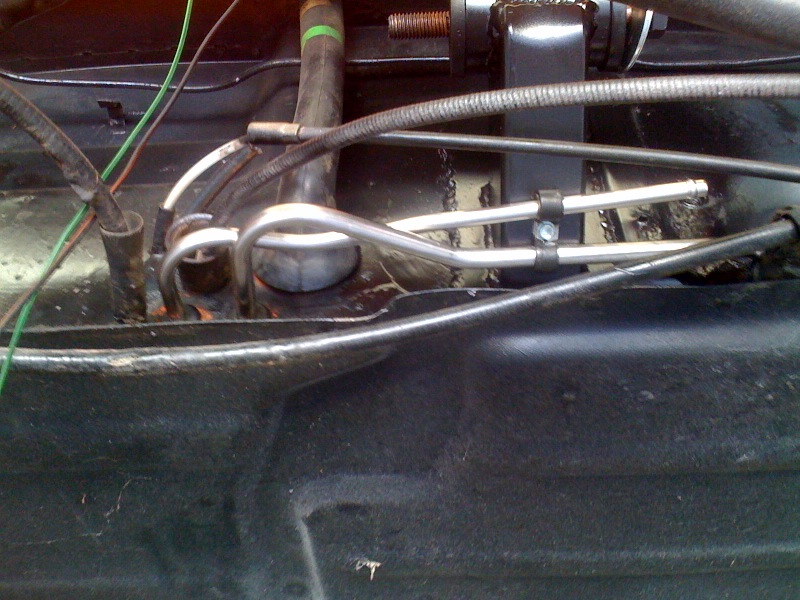

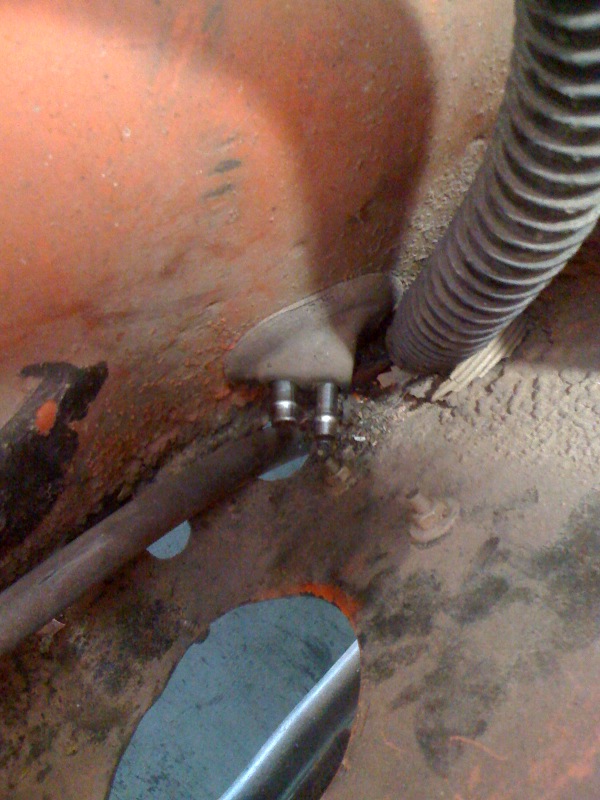

Fuel lines installed:



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Apr 28 2011, 07:12 AM
Post #142


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
Oil tank test fit after cutting.

The scavenge hole is big because there was already a hole there for a breather line from the old engine.





Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Apr 28 2011, 07:14 AM
Post #143


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

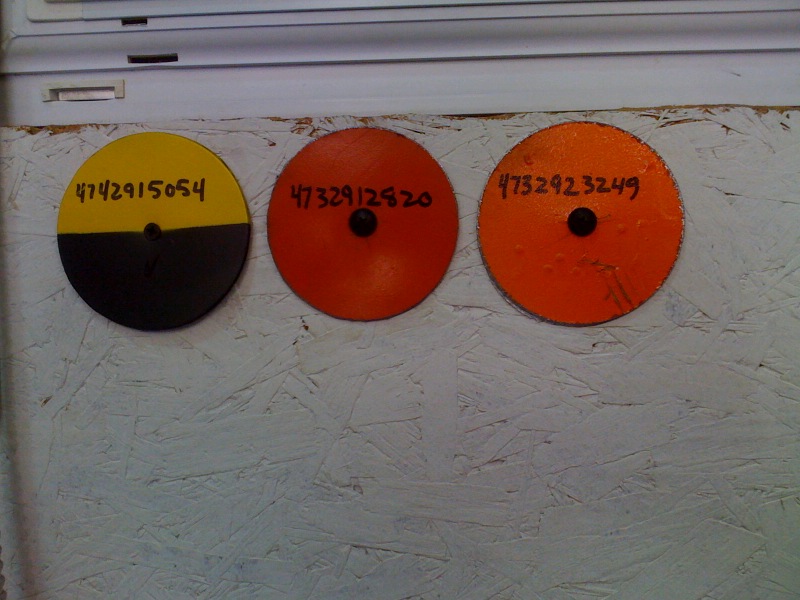

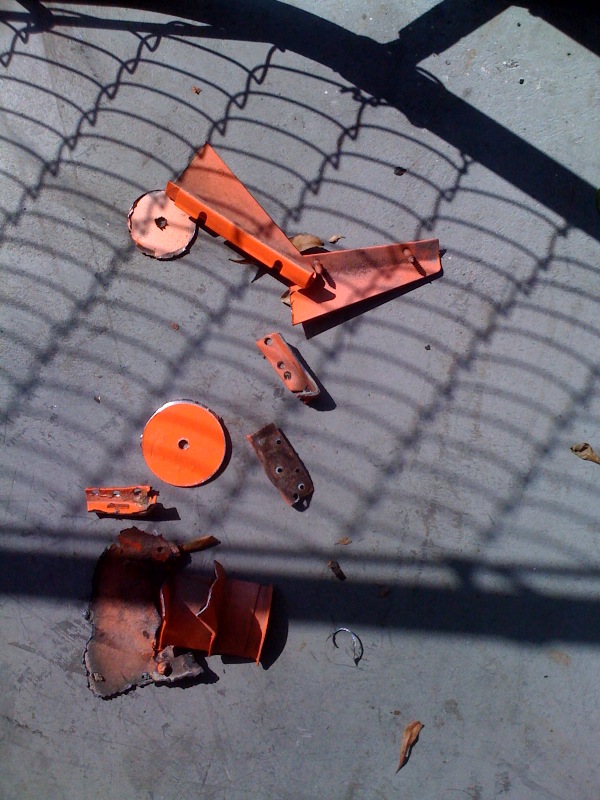

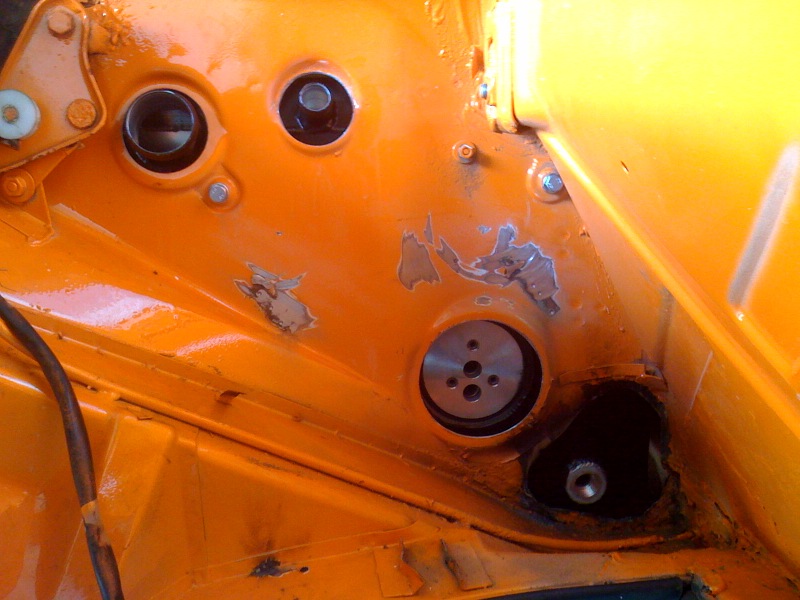

Put the filter console remnant on the wall and throw the rest away:



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Apr 28 2011, 07:16 AM
Post #144


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

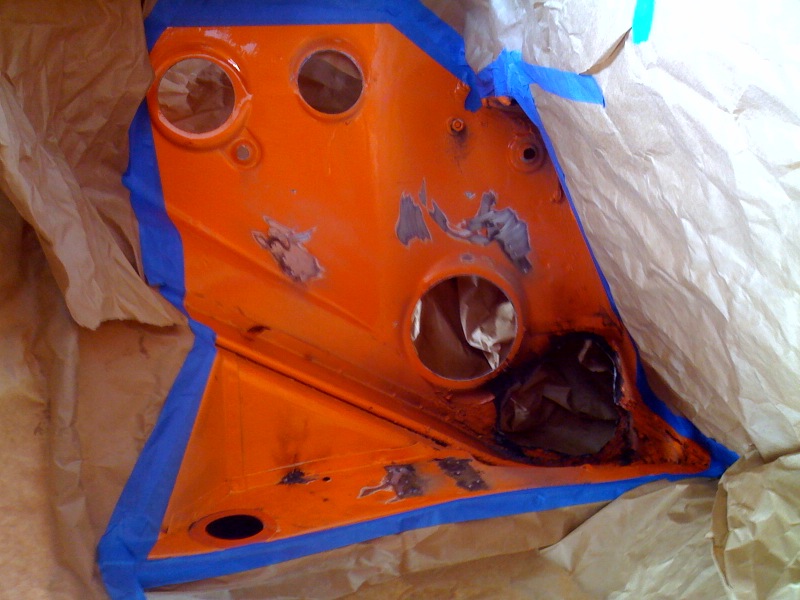

Mask and paint. Don't worry about the black paint. It'll be a little oily around here:



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Apr 28 2011, 03:30 PM
Post #145


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

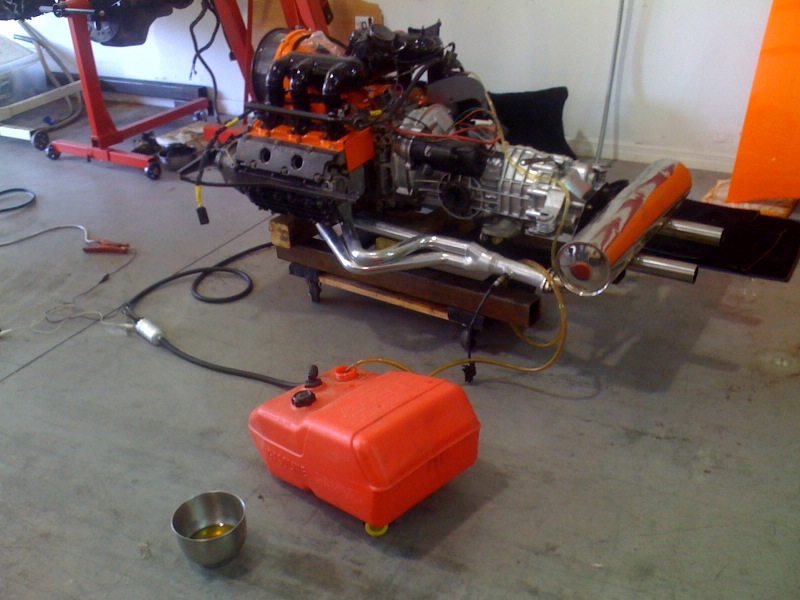

It looks like I only took one picture today.

The fuel plumbing on the engine passed with no leaks.


The other work consisted of running a couple of wires from the engine bay into the main harness in the tunnel, getting the fuel pump wire to its appropriate location up front, finished the last grinding of the passenger-side /4 engine mount and got that area painted, rewrapping the wiring harness in the engine bay, etc.

I'm trying to make sure I get everything that is easier to do with the engine out done so the engine can go in.

Nelson's 914 needs a couple days of work, so I'll get back on this next week.

The engine will be in the car shortly.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Apr 28 2011, 07:06 PM
Post #146


914 Guru
*****

Group: Members
Posts: 5,504
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Looking good, makes me wish I had the money and lived closer...I'd just have you do my conversion (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Apr 30 2011, 05:23 PM
Post #147


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

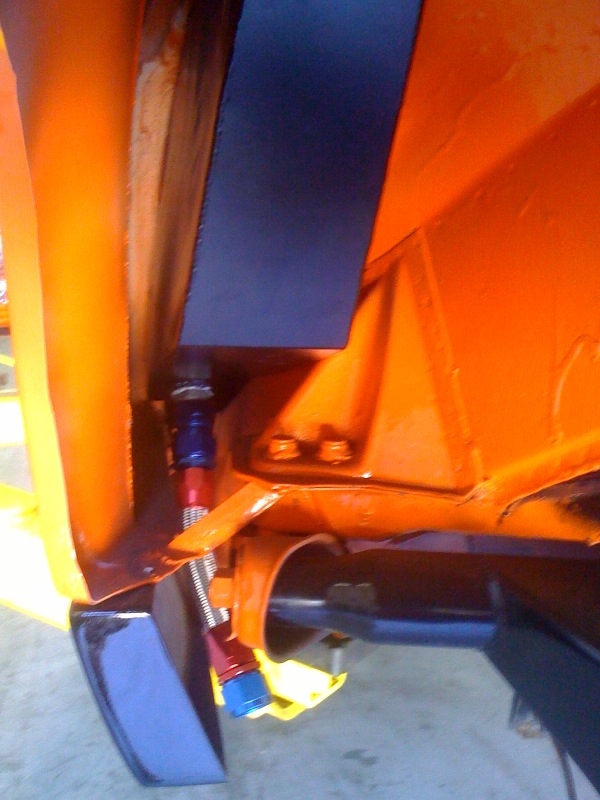

Oil tank installed:



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Apr 30 2011, 05:27 PM
Post #148


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

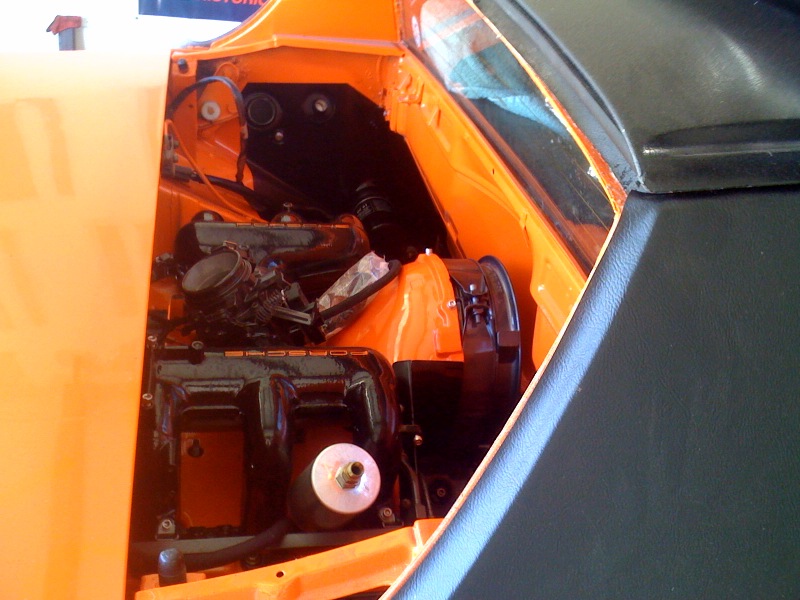

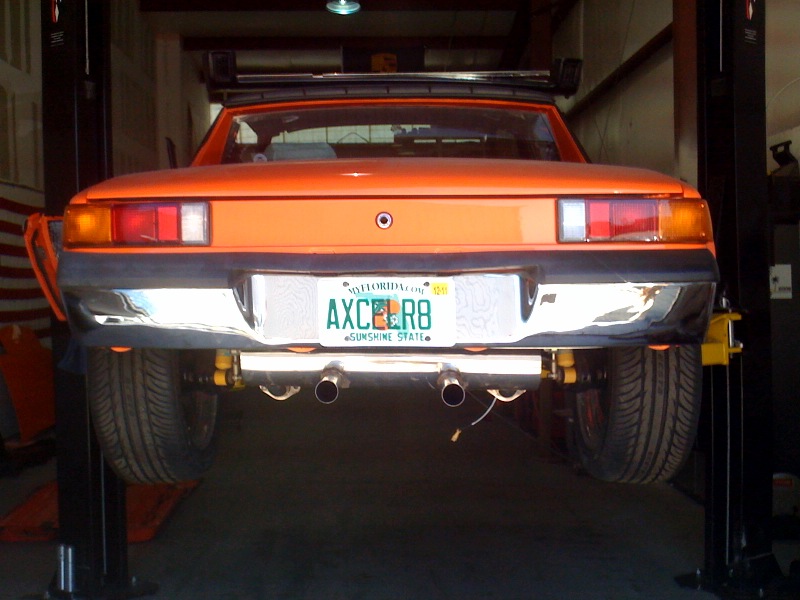

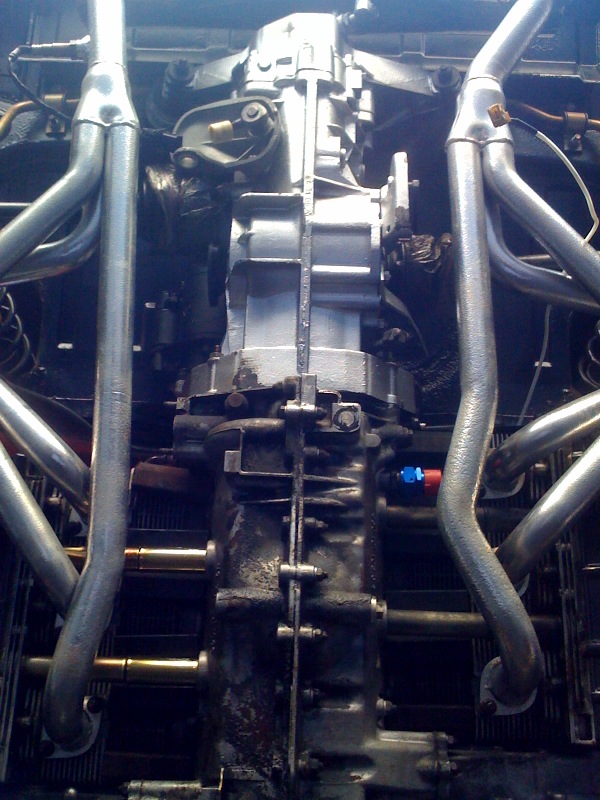

We'll call this a test-fit for now. I may not have to take it back out, we'll see.


The muffler is a little crooked. It was a lot crooked until I removed the muffler hanger. I'll have a make another one that will hold it straight.



Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post Apr 30 2011, 05:47 PM
Post #149


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None
(IMG:style_emoticons/default/thumb3d.gif) Beautiful, Joe.

I may have missed this in an earlier post - what muffler is that?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tomeric914
post Apr 30 2011, 06:44 PM
Post #150


One Lap of America in a 914!
***

Group: Members
Posts: 1,263
Joined: 25-May 08
From: Syracuse, NY
Member No.: 9,101
Region Association: North East States
Hey Joe,

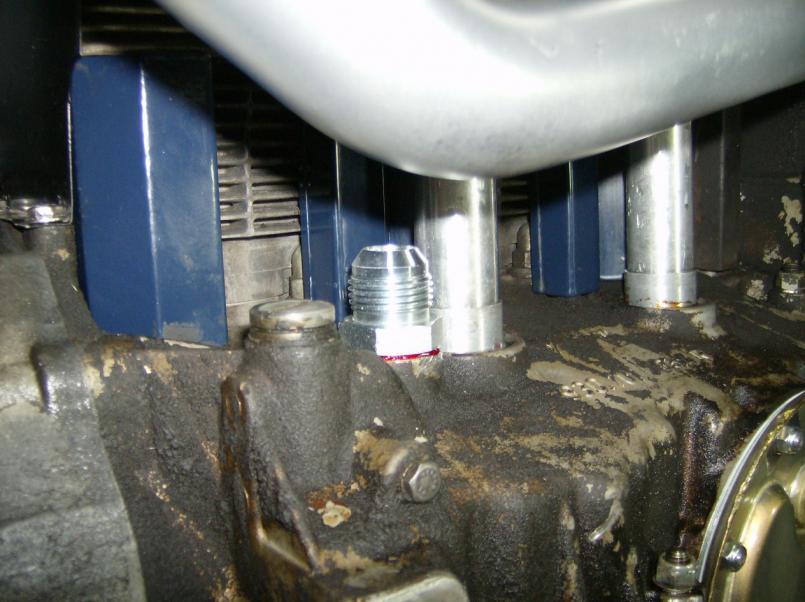

I don't like how close the scavenge line adapter is going to be to the exhaust. I found a better alternative to the Setrab fittings for my application at a local hydraulics shop for $8. This screws right into the case and replaces the factory M22 to M30 adapter. The orifice diameter is no different than the factory adapter.

Part number 9068-12-22 3/4" Male JIC x M22x1.5 Male Metric (Steel) which comes with a sealing washer.

Also found here: http://www.discounthydraulichose.com/9068_...tric_p/9068.htm

Attached Image

YES, I know my engine case is dirty. It matches the transmission!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ellisor3
post Apr 30 2011, 07:46 PM
Post #151


HPWhore
***

Group: Members
Posts: 811
Joined: 23-October 08
From: Fleming Island, Florida
Member No.: 9,683
Region Association: South East States
QUOTE(MDG @ Apr 30 2011, 07:47 PM) *

(IMG:style_emoticons/default/thumb3d.gif) Beautiful, Joe.

I may have missed this in an earlier post - what muffler is that?


It is a M&K sport muffler

http://www.mkexhaust.com/products/911s.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post Apr 30 2011, 09:08 PM
Post #152


Advanced Member
****

Group: Members
Posts: 2,369
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
QUOTE(ellisor3 @ Apr 30 2011, 05:46 PM) *

QUOTE(MDG @ Apr 30 2011, 07:47 PM) *

(IMG:style_emoticons/default/thumb3d.gif) Beautiful, Joe.

I may have missed this in an earlier post - what muffler is that?


It is a M&K sport muffler

http://www.mkexhaust.com/products/911s.html


I have one of those for my GT clone too....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post May 1 2011, 04:51 AM
Post #153


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
QUOTE(tomeric914 @ Apr 30 2011, 08:44 PM) *

Hey Joe,

I don't like how close the scavenge line adapter is going to be to the exhaust.....







I'm looking at those, but I have done it like this a bunch of times. I put a 120 degree fitting on the adapted outlet and run the scavenge line either forward or back to the driver's side, depending upon the thermostat arrangement.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post May 1 2011, 06:01 AM
Post #154


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None
QUOTE(racerbvd @ Apr 30 2011, 11:08 PM) *

QUOTE(ellisor3 @ Apr 30 2011, 05:46 PM) *


It is a M&K sport muffler

http://www.mkexhaust.com/products/911s.html


I have one of those for my GT clone too....


Thanks, guys. How neighborhood friendly are those?

A: "Wow that car sounds great!"
B: "Nice car but it's kinda loud."
C: "If that A-hole from down the road drives past here one more time I'm gonna throw a brick at him."
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post May 1 2011, 08:41 AM
Post #155


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
Keep it up Joe, good to see your making head way with your ‘hobby’ business
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ellisor3
post May 1 2011, 10:04 AM
Post #156


HPWhore
***

Group: Members
Posts: 811
Joined: 23-October 08
From: Fleming Island, Florida
Member No.: 9,683
Region Association: South East States
QUOTE(MDG @ May 1 2011, 08:01 AM) *

QUOTE(racerbvd @ Apr 30 2011, 11:08 PM) *

QUOTE(ellisor3 @ Apr 30 2011, 05:46 PM) *


It is a M&K sport muffler

http://www.mkexhaust.com/products/911s.html


I have one of those for my GT clone too....


Thanks, guys. How neighborhood friendly are those?

A: "Wow that car sounds great!"
B: "Nice car but it's kinda loud."
C: "If that A-hole from down the road drives past here one more time I'm gonna throw a brick at him."


I ran the muffler for a short time in the old 3.0 and it sounded great. Not loud at all. It has that low bellow sound, like a tiger.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 1 2011, 11:55 AM
Post #157


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(ellisor3 @ May 1 2011, 12:04 PM) *

QUOTE(MDG @ May 1 2011, 08:01 AM) *

QUOTE(racerbvd @ Apr 30 2011, 11:08 PM) *

QUOTE(ellisor3 @ Apr 30 2011, 05:46 PM) *


It is a M&K sport muffler

http://www.mkexhaust.com/products/911s.html


I have one of those for my GT clone too....


Thanks, guys. How neighborhood friendly are those?

A: "Wow that car sounds great!"
B: "Nice car but it's kinda loud."
C: "If that A-hole from down the road drives past here one more time I'm gonna throw a brick at him."


I ran the muffler for a short time in the old 3.0 and it sounded great. Not loud at all. It has that low bellow sound, like a tiger.


I have one on the list for my build but in an "R" version. I live non developement so no neigbor issues anyway.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post May 1 2011, 12:27 PM
Post #158


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None
QUOTE(ellisor3 @ May 1 2011, 12:04 PM) *

I ran the muffler for a short time in the old 3.0 and it sounded great. Not loud at all. It has that low bellow sound, like a tiger.


Thanks. The only other 3.2 914 up here I know of has a twin pipe but I think it's a 911 sport muffler - Dansk probably. He may have even made it himself from an old single out banana. It is LOUD - like race track loud.

I'd love to hear your impressions of the M&K when Joe has finished your 3.2
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post May 6 2011, 09:50 AM
Post #159


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

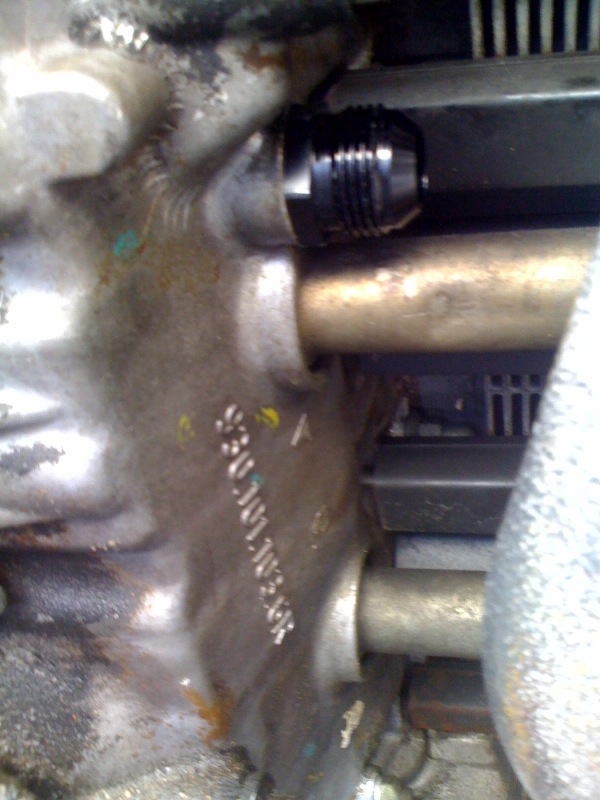

Turns out that this is the same size as the adapters for the Setrab oil coolers. M22x1.5:-12AN Male.


Is this better?




Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bee Jay
post May 6 2011, 11:13 AM
Post #160


Member
**

Group: Members
Posts: 204
Joined: 22-April 05
From: Lompoc, Ca.
Member No.: 3,964
Suscribed. Lot of good info for a novice like me. Thanks.
Bee Jay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
