sdoolin
Have OE flexible lines removed. Engine still in car, gas tank out.

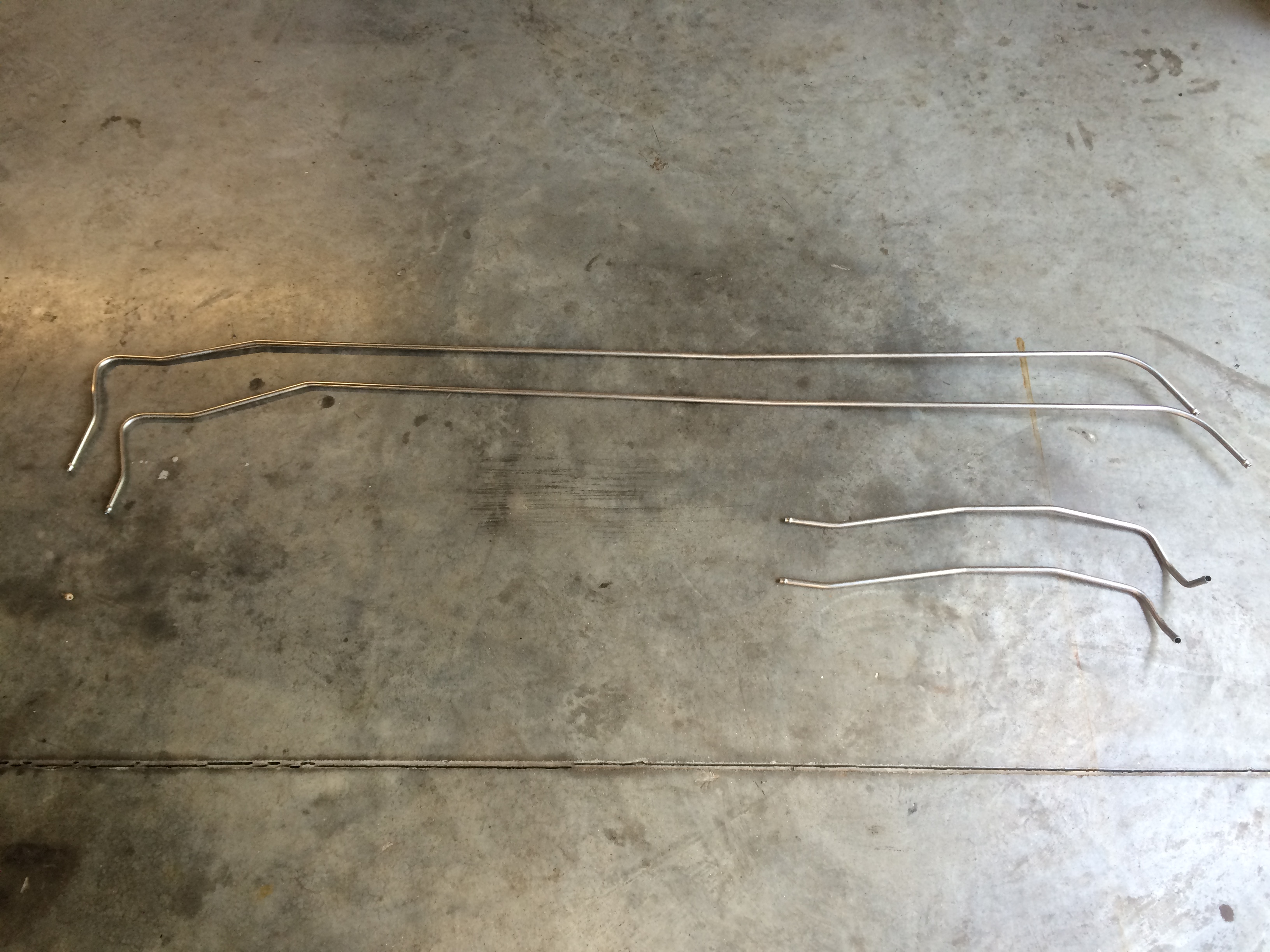

Does it matter which fuel line goes where? They all have slightly different bends so I would guess that it matters at least a little bit. I mean I know that the long ones go through the tunnel and the short ones into the engine compartment (duh), but not sure otherwise.

My kit from Tangerine did not have instructions, so looking for any help.

Click to view attachment
ChrisFoley
QUOTE(sdoolin @ Oct 11 2015, 01:22 PM) *

My kit from Tangerine did not have instructions, so looking for any help.

I can email you the instructions.
The one with the extra bend along the back end goes on the left.
It is the return line.
The engine compartment lines nest with the longer one above (return). The bent ends go towards the rear.
EdwardBlume
Definitely makes a difference.

Great product. Should be on every 914.
914itis
here
sdoolin
So in my pic, top to bottom first line is feed from tank (right hand side facing forward at firewall), second line is return to tank, then return line in engine compartment and last is the feed line to the engine compartment?

Chris thanks for the email, still didn't get me all the info that (I think) I need.
dangerranger01

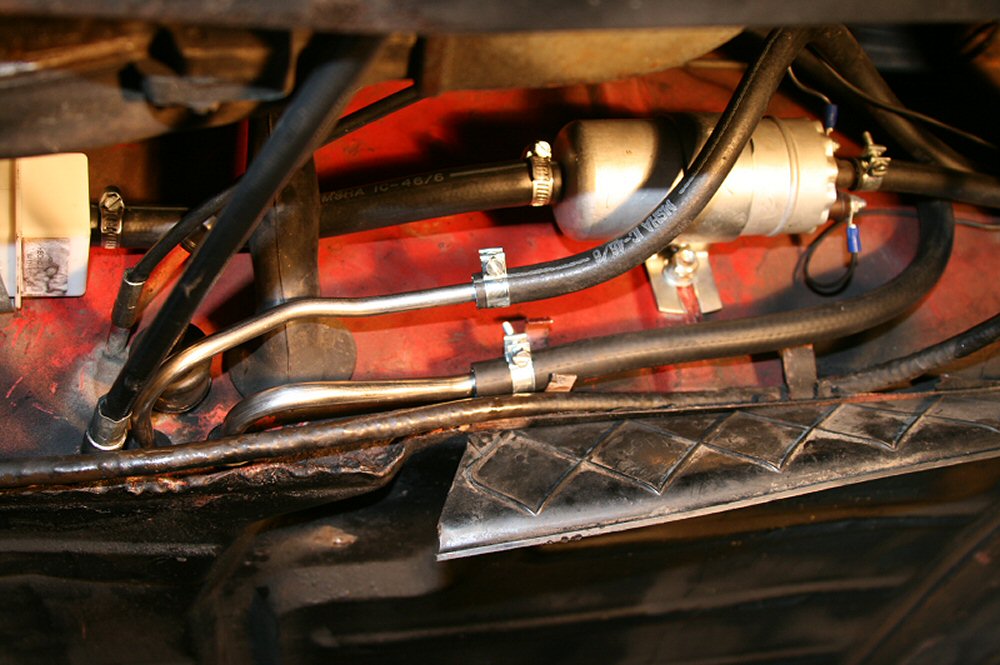

I haven't installed mine yet, but I saved this picture as a reference...forgot who posted it. But it shows a nice spot for the fuel pump as well...

Click to view attachment
sdoolin
Thanks for all the replies, long lines are installed, buffered (wrapped with spare fuel hose in a couple of places) and clamped down.

On to the engine compartment...

I took it apart long enough ago that I don't recall which side is the feed and which is the return. The injectors on drivers' side get the "feed" first, then back across to the passenger side, then return to tank?

If I had a pump mounting bracket I think I'd be driving it tonight...
pete000
Good investment !
sdoolin

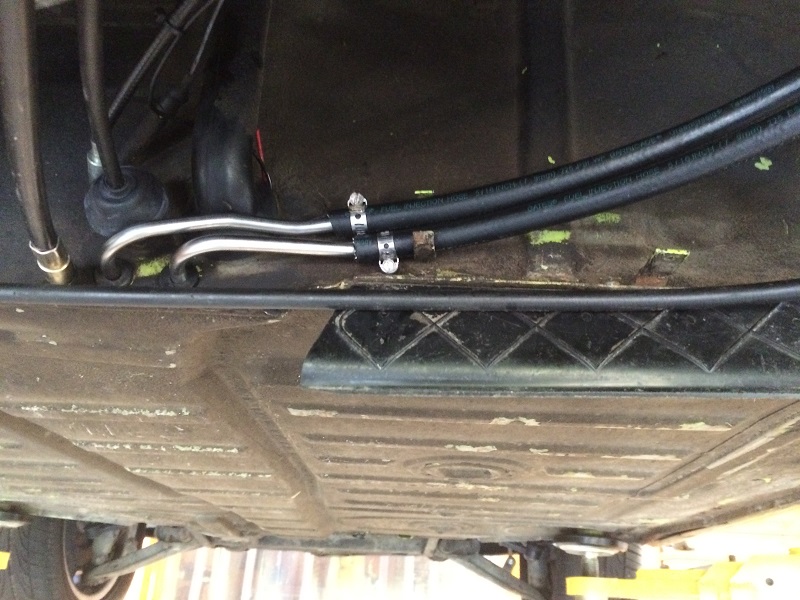

I have the long lines and the engine bay lines installed. Also new grommets in firewall and engine bay floor. Might not be exactly correct, but better/safer than the 42 year old OE lines. Still have a few lines on the engine to replace, but will wait until engine comes out this winter.

Click to view attachment

Click to view attachment

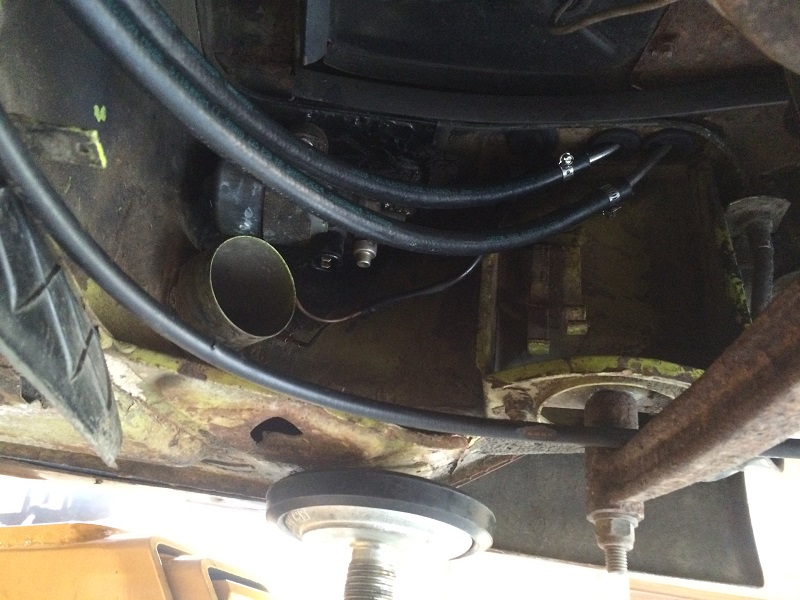

That OE fuel pump (above) will live the rest of its life right where it is. I cannot get a ratchet or a wrench on the bolts that hold the clamp in place. I have a new pump and am relocating to the front. I do run heat in the car, so these lines will live above the heater hose from flapper to body.

Click to view attachment

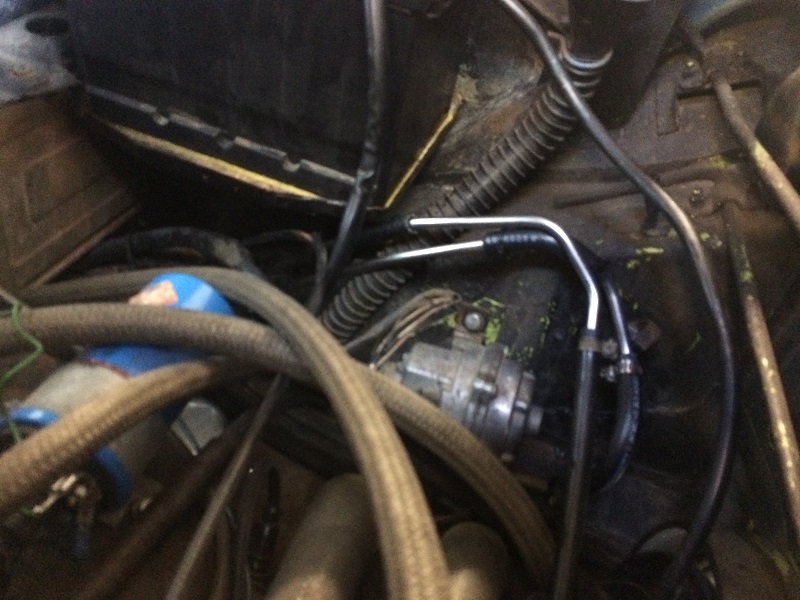

Engine bay lines were tricky, not much room to work, but they are in and protected from any rubbing/chafing due to vibration.

I need to sort out getting power to the pump up front, still looking for a pump bracket, then can re-install tank and drive...
ChrisFoley
The engine lines appear to be reversed, ie the shorter one goes below.
Also, I think they will fit better behind the drain hose.
sdoolin
QUOTE
The engine lines appear to be reversed, ie the shorter one goes below.
Also, I think they will fit better behind the drain hose.


Good to know. I will re-install them when the engine comes out this winter. For now, I plan to drive it as is.
jim_hoyland
Nice job: reminds me, I bought the SS lines and forgot to install them. Did you do the install with the motor in place ? Any problems "pushing" the new lines up through the tunnel ? And, did you use a helper ?
mepstein
QUOTE(jim_hoyland @ Oct 12 2015, 06:51 PM) *

Nice job: reminds me, I bought the SS lines and forgot to install them. Did you do the install with the motor in place ? Any problems "pushing" the new lines up through the tunnel ? And, did you use a helper ?

I used a helper. With the engine out it took 5 minutes.
sdoolin
QUOTE
Nice job: reminds me, I bought the SS lines and forgot to install them. Did you do the install with the motor in place ? Any problems "pushing" the new lines up through the tunnel ? And, did you use a helper ?


I had engine in, gas tank out, drivers seat out, steering wheel removed, center console out, gas pedal removed and both tunnel cover plates removed. Right rear wheal removed. Lines pushed in very easily, but I had a helper after getting the tunnel lines bound up by the brake line once or twice. Helper really helped.

Engine compartment lines more difficult for me than tunnel lines, just because of lack of space to work.
jim_hoyland
QUOTE(sdoolin @ Oct 13 2015, 05:06 AM) *

QUOTE
Nice job: reminds me, I bought the SS lines and forgot to install them. Did you do the install with the motor in place ? Any problems "pushing" the new lines up through the tunnel ? And, did you use a helper ?


I had engine in, gas tank out, drivers seat out, steering wheel removed, center console out, gas pedal removed and both tunnel cover plates removed. Right rear wheal removed. Lines pushed in very easily, but I had a helper after getting the tunnel lines bound up by the brake line once or twice. Helper really helped.

Engine compartment lines more difficult for me than tunnel lines, just because of lack of space to work.


Thanks. Good tip on removing the driver seat and right rear wheel.... smile.gif What size hose/type hose did you buy ? and where ?
sdoolin
QUOTE
What size hose/type hose did you buy ? and where ?


I purchased the full monty kit from Tangerine Racing, so it came with hoses, lines, clamps, adapters, the whole deal. Not exactly sure what size flexible lines (but I think 8mm & 12mm).

Talk to Chris at Tangerine, he is very helpful and supports his product(s).
sdoolin
Potentially stupid question.....

Best way to get power to my relocated fuel pump (up front under fuel tank)? I have searched (believe me) and read quite a bit, but nothing I have found has helped.

I can run long wires from the existing power/ground leads in the engine bay through the tunnel and out the firewall to the new pump but that just doesn't seem "clean".

Electrical systems not my strong suit, I am learning. I don't have a wiring diagram for the thing either unsure.gif
andrewck
Does anybody have a photo of how the SS fuel lines sit in the center tunnel?

I'll be installing this weekend, and not sure how these should lay. There appear to be some metal tabs on the right-hand side, but unsure what they hold down.
mepstein
The tabs hold down the oem plastic line. I don’t think I used them for the stainless line. It helps to have a spotter. Makes it a 5 minute job. Lube the ss lines so they slip through the rubber grommets easily.

The gas tank does have to come out.
andrewck
QUOTE(mepstein @ Sep 15 2020, 05:21 PM) *

The tabs hold down the oem plastic line. I don’t think I used them for the stainless line. It helps to have a spotter. Makes it a 5 minute job. Lube the ss lines so they slip through the rubber grommets easily.

The gas tank does have to come out.

Appreciate it! Everything (including gas tank) are out of the car, so hoping for easy installation.
mmichalik
I have to do this real soon on the restoration project. Been putting it off because it seemed like a real PIA even though the motor and tank are out.
Thanks for posting this. Very helpful.
mepstein
QUOTE(mmichalik @ Sep 16 2020, 12:42 AM) *

I have to do this real soon on the restoration project. Been putting it off because it seemed like a real PIA even though the motor and tank are out.
Thanks for posting this. Very helpful.

Once I used my wife as a spotter, once my teenage son. Gave them a small flashlight and sat them out in the car at the tunnel windows, Each time it was 5 minutes and no cursing. Don’t forget the lube.
AZBanks
Getting the lines through the tunnel is a "feel" thing. I found it worked best for me to try to push the lines in keeping the tip of the line low on the passenger side of the tunnel.
JOEPROPER
With the gas tank and engine out, this is an easy upgrade.
iankarr
This may help with visualizing things...

https://youtu.be/IDFsZoI_W3g
