Full Version: SOLD: Front 911 BOGE Struts 3" and BREMBO Calipers with Hawk Pads
914World.com > The 914 Forums > Classified Forums > FS/WTB: 914 Parts
CG-914
ALL SOLD, For sale are two things:

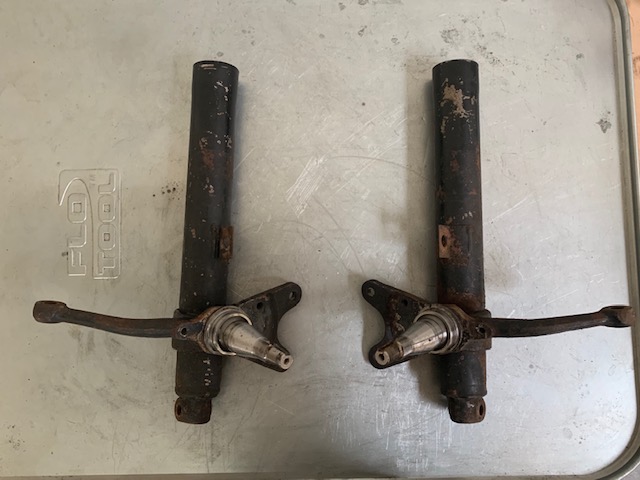

Pair of front 911 BOGE Struts 3 inch spacing in good condition, need to be painted.
They came of an early 70s 911E. Perfect For ATE M calipers as well as Brembo Calipers.
- These are a must for 5 Lug conversion.
- Boge is the best choice, because you have a choice of ALL shock inserts.

SOLD: $500 $425 for the pair of Struts.

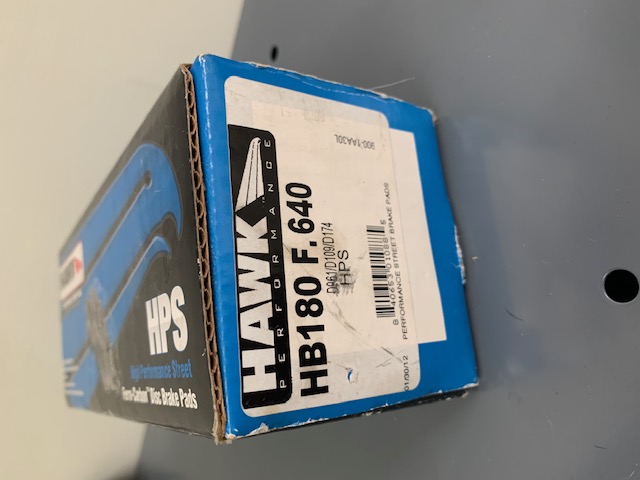

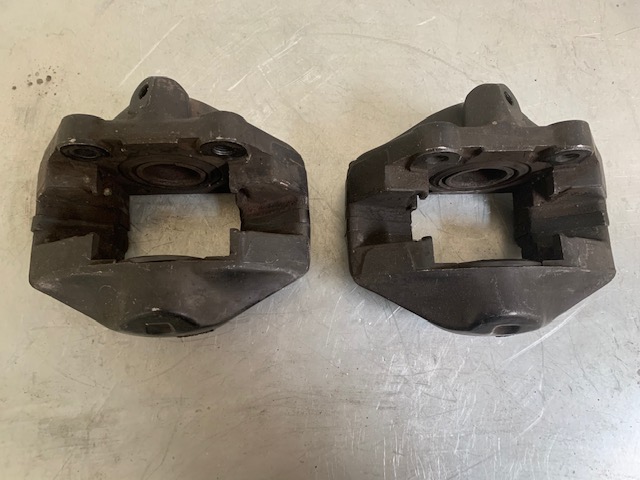

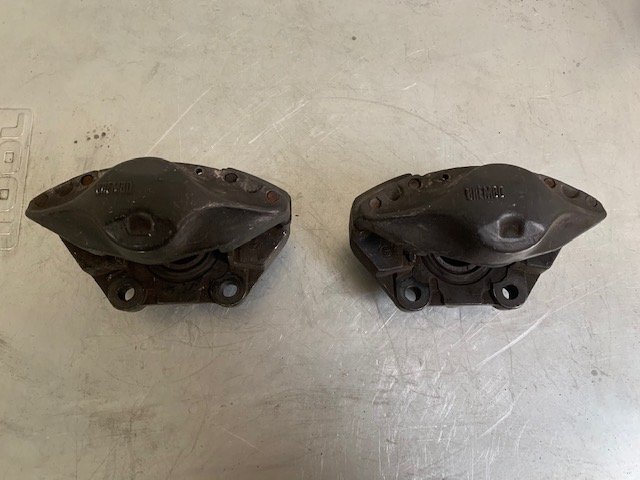

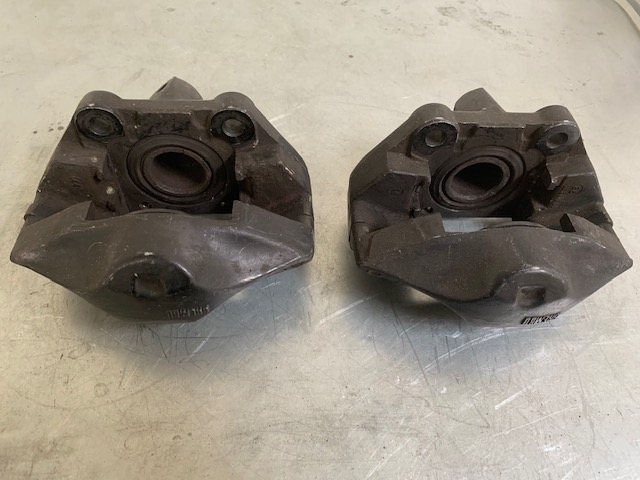

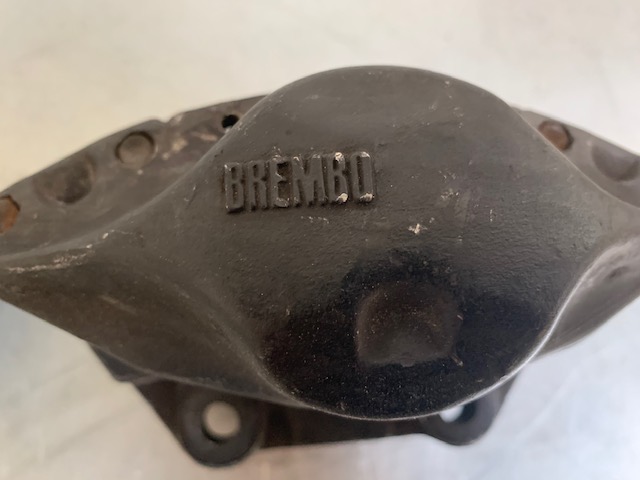

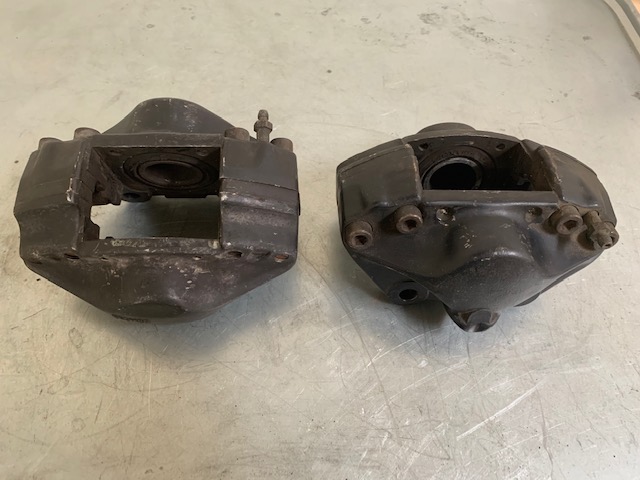

A Pair of Brembo Aluminium Calipers with a set of new Hawk HPS (High Performance Street) pads. The Calpiers have the same Piston diameter as the ATE 911 S calipers, but with these advantages:
- Lighter
- Less flex
- Cheaper
- No leak issues

SOLD $350 for the Brembo Calipers with Pads.

These are located in OC California. Buyer is responsible for pick up or shipping cost.

Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
Click to view attachment
bdstone914
@CG-914

S calipers require 3.5 inch bolt spacing
Robarabian
Seller: Ok, so now I'm confused. Do these bolt to a regular 911 strut, with 3 inch spacing, or are they S calipers that require the 3.5 inch spacing.

maybe a measurement photo showing the bolt spacing?
Superhawk996
Those Brembo calipers are not the Porsche S calipers. They should be 3" spacing to work with early 3" 911 struts.

Agree that a photo of strut ear spacing won't hurt and would be a benefit to potential buyers having once upon a time ended up with 3.5" struts that were advertised as 3".
Literati914
Those are most likely Brembo's off an Alfa Romeo (and are the lightest weight choice of calipers) and DO HAVE 3" mounts, and will therefore work with the 3" 911 Boge struts that are pictured. Like the 'S' calipers they would have 48mm pistons (compared to 33mm of stock 914 btw). This is a great set up, GLWS.

Edit: I see seller has corrected the description.
Robarabian
PM sent ref the calipers.
CG-914

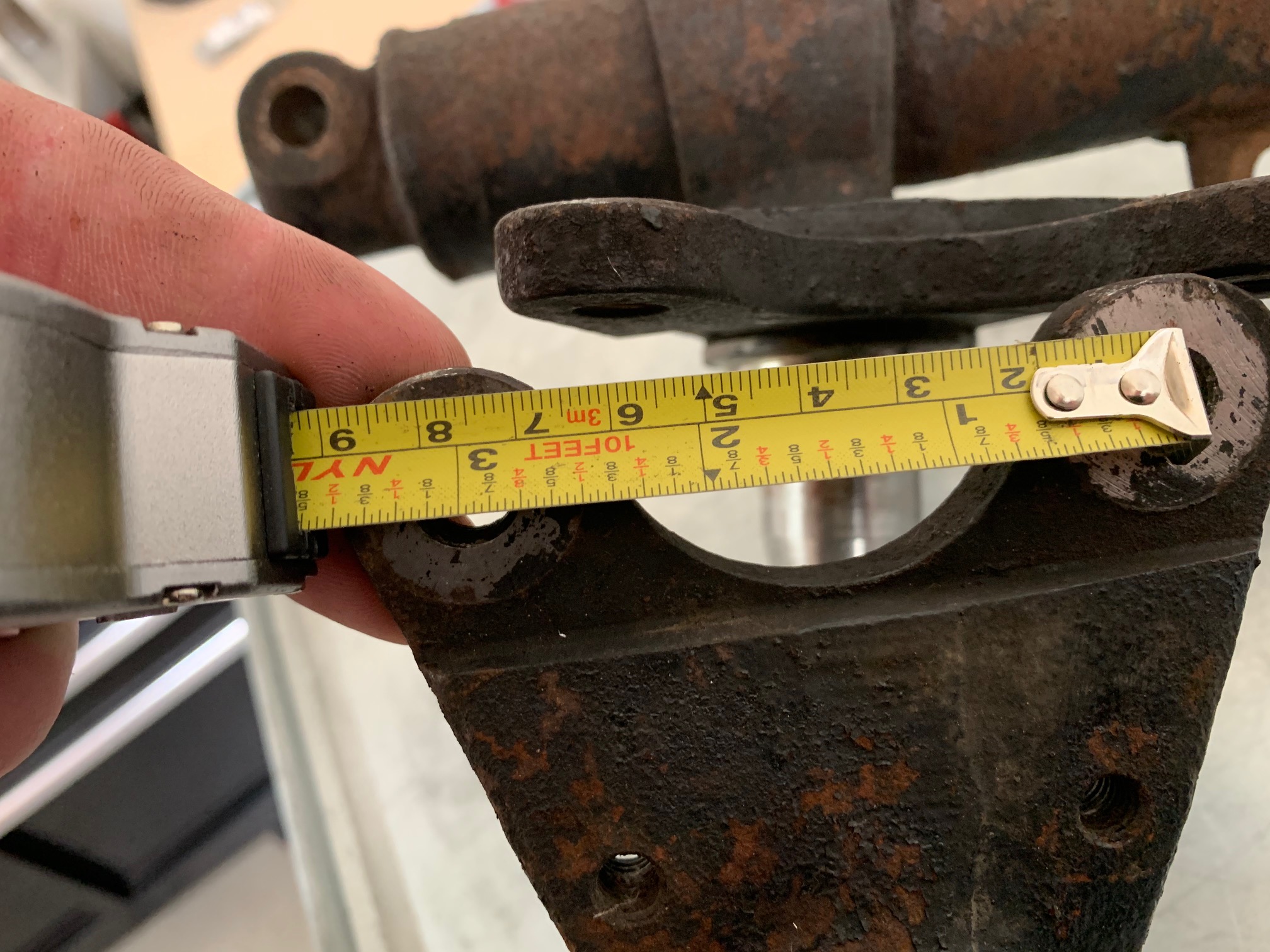

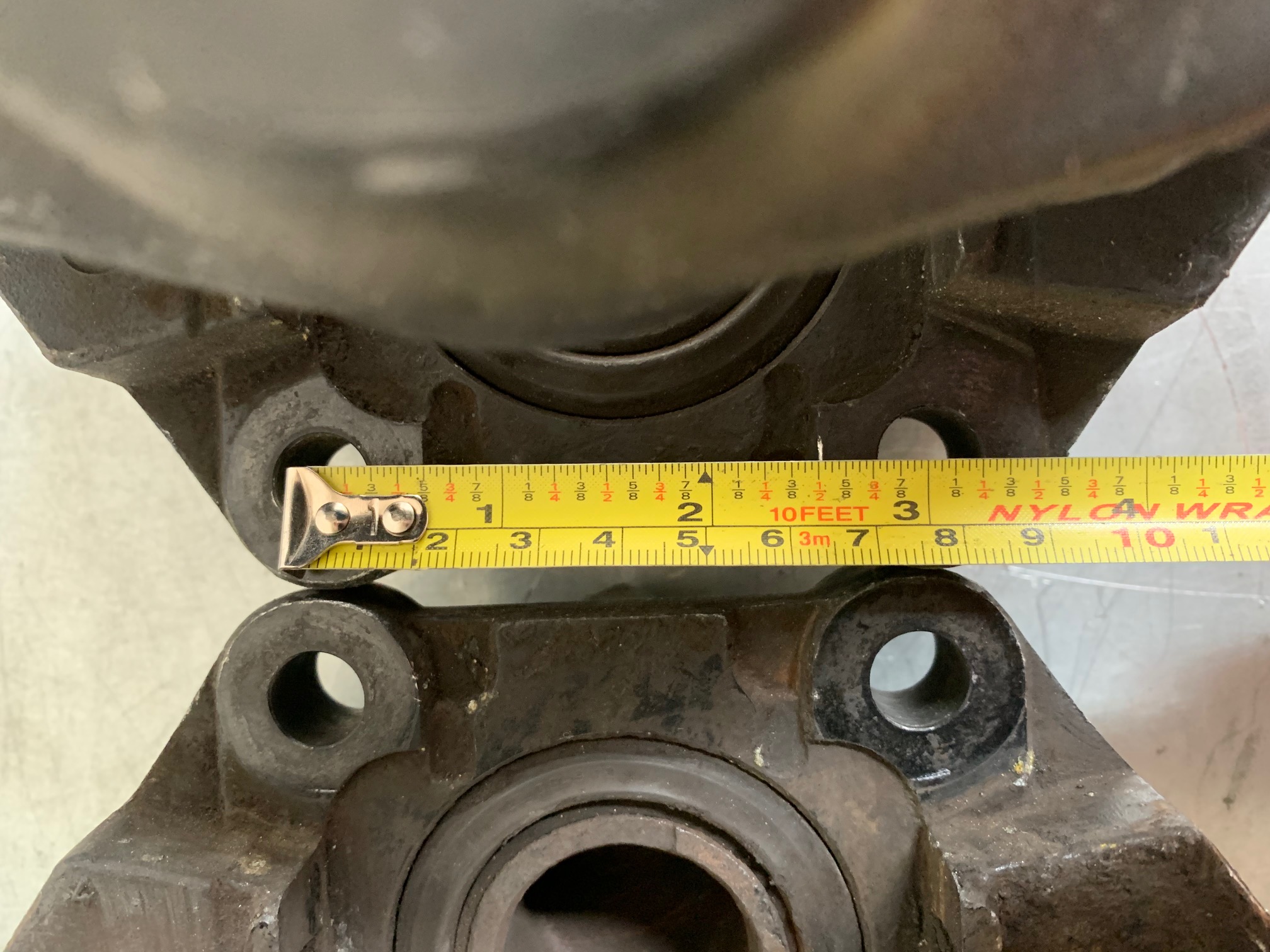

Here are the pictures with measurements, proving, that they are both 3 inches.

Click to view attachment
Click to view attachment
AZBanks
If you replace the word "Brembo" with "BMW" and those calipers look identical to BMW 320i calipers (which have 3 inch spacing).
CG-914
Those are not the same thing @AZBanks

First ATE 320i Calpers are steel and not Aluminium.

Second, the Brembo can be run on 911 struts with Vented Rotors and on non vented rotors when you remove the spacers. The ATE 320i Calipers can only be run with non vented rotors.

QUOTE(AZBanks @ Oct 19 2020, 05:45 PM) *

If you replace the word "Brembo" with "BMW" and those calipers look identical to BMW 320i calipers (which have 3 inch spacing).
Montreal914
I don't understand why all this confusion. confused24.gif

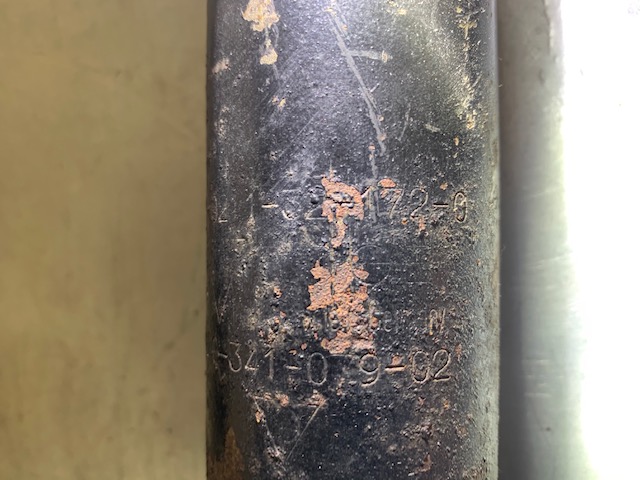

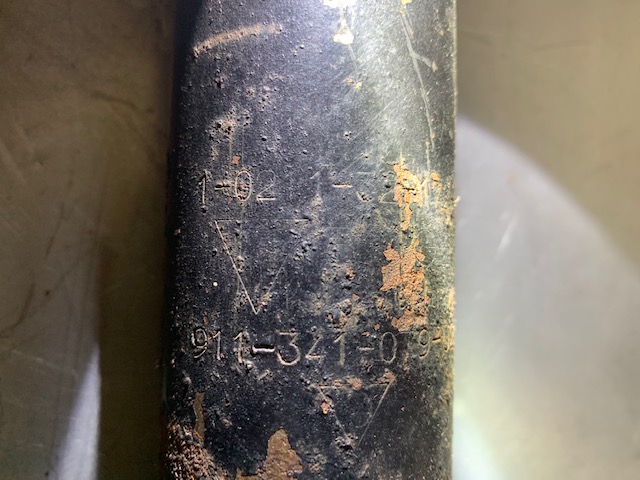

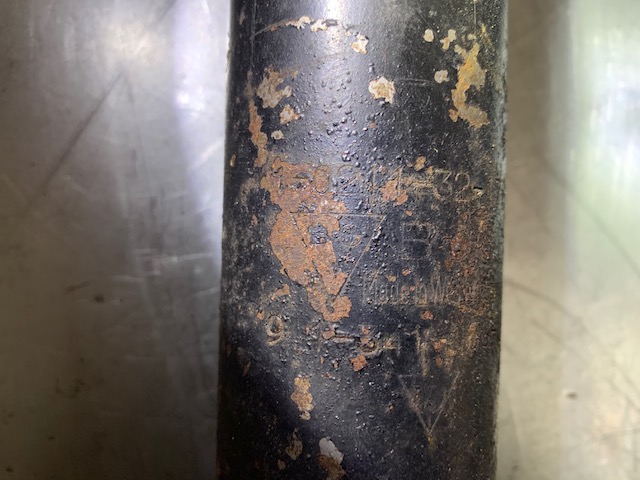

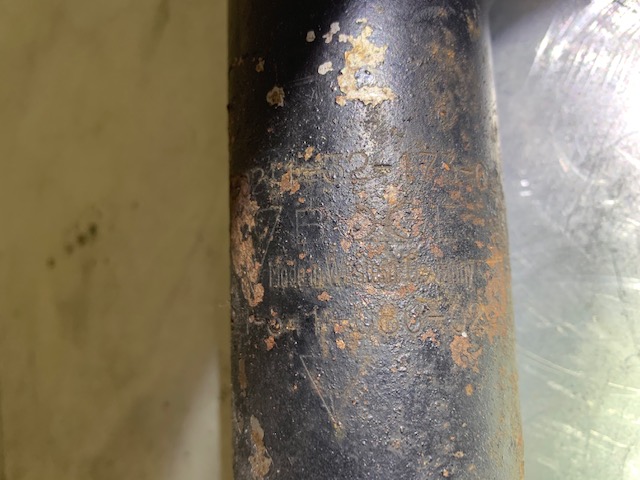

These are the Alfa Brembos that are sought after for all the reasons exposed by the seller and the struts have their part number clearly shown. This setup is explained in the 5lug conversion thread by Eric Shea in the Classic section.

I have the same setup and looking forward installing it when I convert my car to 5 lugs.

GLWTS, free bump beerchug.gif
Robarabian
purchased..
CG-914
QUOTE(Robarabian @ Oct 20 2020, 12:01 AM) *

purchased..



Yes, Calipers are sold.

Struts are still available!
CG-914

REDUCED TO $425
Alain V.
QUOTE(CG-914 @ Oct 26 2020, 11:47 AM) *


REDUCED TO $425


sending you a PM
Mark Henry
QUOTE(Montreal914 @ Oct 19 2020, 10:22 PM) *

I don't understand why all this confusion. confused24.gif

These are the Alfa Brembos that are sought after for all the reasons exposed by the seller and the struts have their part number clearly shown. This setup is explained in the 5lug conversion thread by Eric Shea in the Classic section.

I have the same setup and looking forward installing it when I convert my car to 5 lugs.

GLWTS, free bump beerchug.gif

Also note these work with 911 M-caliper rebuild kits. Except for being made of aluminum and saying brembo dimensionally they're the same as the Porsche M-caliper.

It's what I have on my /6.
Franky_Four_Fingers
Interested in Struts, sent you a PM.
CG-914
Sorry, all sold. Will update Post.

QUOTE(Franky_Four_Fingers @ Nov 1 2020, 05:38 PM) *

Interested in Struts, sent you a PM.
