> home made engine lift
Jeroen
post Mar 28 2005, 05:29 PM
Post #1


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
with the car out of the garage, I have space to do some other fun projects
like this one...

was also nice to practice my welding

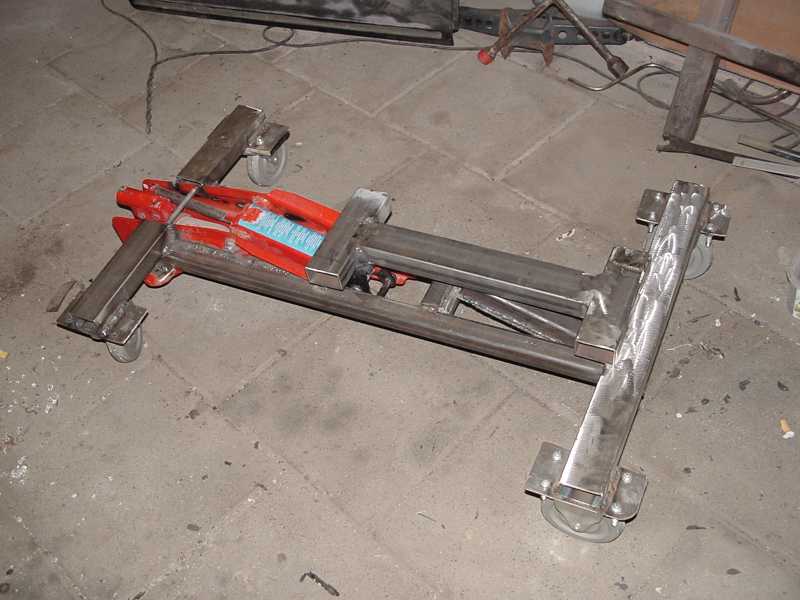

started out with a cheap a$$ jack
added some decent castor wheels, a pair of hinges and some square tubing


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 28 2005, 05:29 PM
Post #2


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe

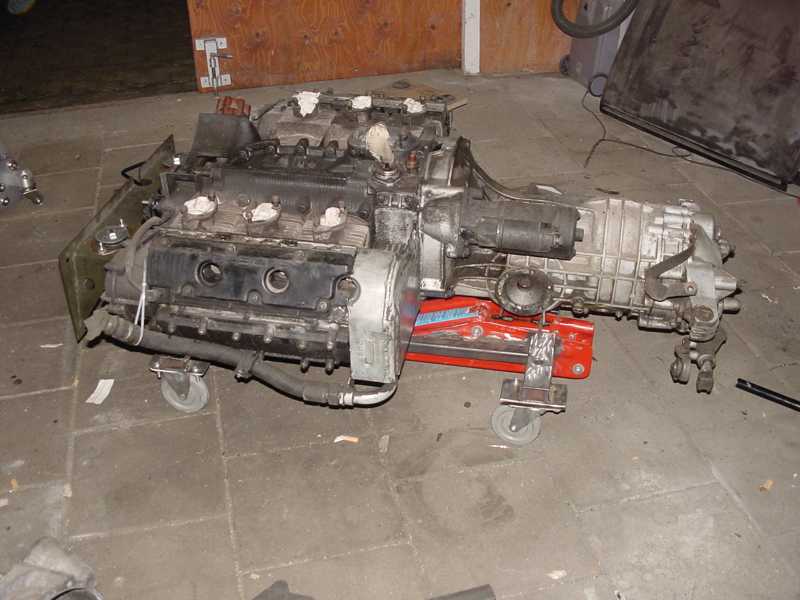

put the engine on top of it...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 28 2005, 05:30 PM
Post #3


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe

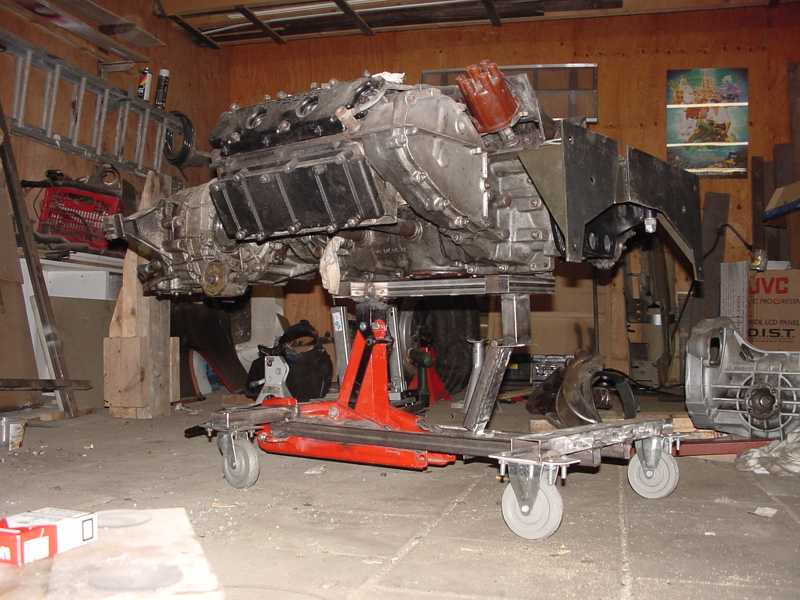

and lift (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 28 2005, 05:31 PM
Post #4


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe

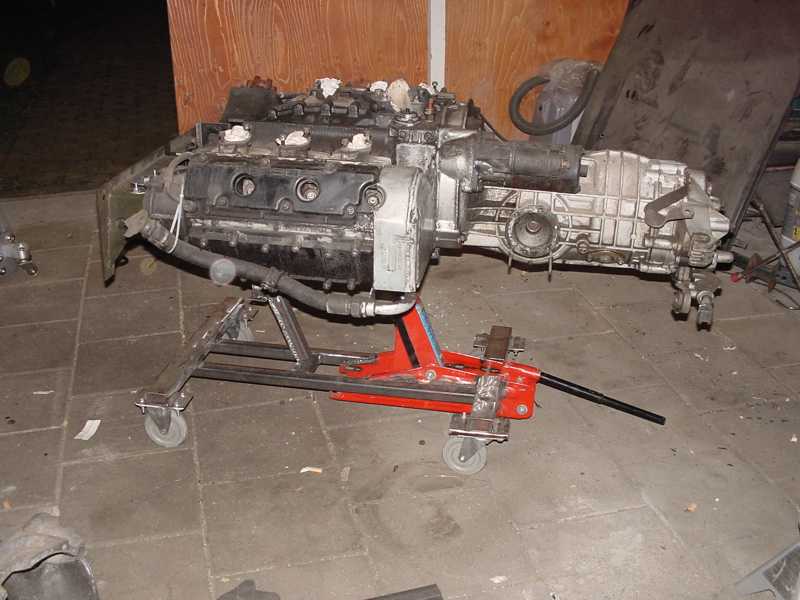

still need to make some minor adjustments, but overall I'm happy with the result


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Mar 28 2005, 05:36 PM
Post #5


Village Idiot
*****

Group: Members
Posts: 8,522
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) That thing rocks! (IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif) I love it! Hey, can I borrow it? (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
736conver
post Mar 28 2005, 05:40 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,117
Joined: 25-May 03
From: SE Wisconsin
Member No.: 736
Region Association: None
Thats awesome. What was the end cost. $50 $75 ??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SpecialK
post Mar 28 2005, 05:40 PM
Post #7


aircraft surgeon
****

Group: Benefactors
Posts: 3,211
Joined: 15-March 04
From: Pacific, MO
Member No.: 1,797
Wunderbar!!

Brings it up to a nice "sittin' on a stool" height for werkin on! Got any means of locking it in the up position, just incase the jack bleeds down?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joseph Mills
post Mar 28 2005, 05:52 PM
Post #8


on a Sonoma diet now...
***

Group: Members
Posts: 1,482
Joined: 29-December 02
From: Oklahoma City, OK
Member No.: 39
Is that wooden ramp in the background made of 4X12s? It looks huge. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)


Oh... very nice engine lift.
Can I borrow it when Root is finished with it?
(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Mar 28 2005, 06:11 PM
Post #9


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
(IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif) AWESOME (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) , now my brains a werkin too!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Mar 28 2005, 06:20 PM
Post #10


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
ship it overseas!! (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 28 2005, 06:36 PM
Post #11


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
$50 is about right
the jack (about $25) was collecting dust since I got one of those fancy aluminium jacks for x-mas
wheels were about $20 (came off the furniture dolly I had the engine sitting on)
hinges were $5 or so and I already had the square tubing as well

just using a jack doesn't work in my garage, cause the floor isn't smooth enuf (the small jack-wheels get caught in the seems between the concrete tiles)

when I took the engine out of the car, I lowered the car+engine onto the furniture dolly, unbolted the engine and lifted the car so I could roll the engine out. It worked, but it sucked...

no provision to lock it in the up position (hadn't thought of that, so thanks!)
I guess I could always put a jack-stand in the middle, but I'll look into fabing something up

figuring out the geometry of the second arm was fun (it needs to move in the same radius as the jack-arm or the engine won't stay level)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
slivel
post Mar 28 2005, 06:41 PM
Post #12


Old car....... older driver
***

Group: Members
Posts: 516
Joined: 10-July 04
From: San Diego
Member No.: 2,332
Region Association: Southern California

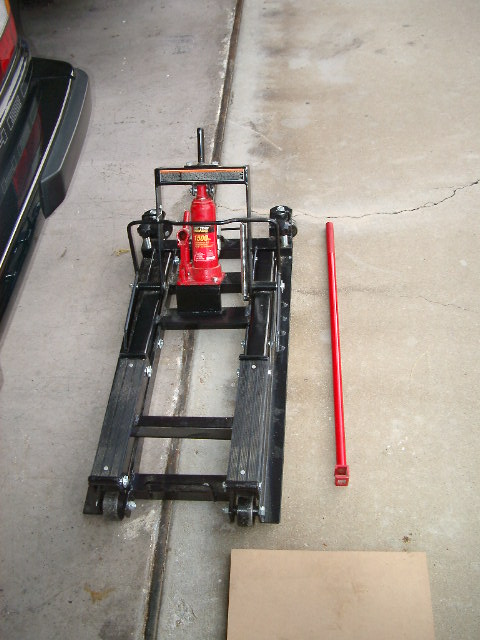

I've used this for engines, transmissions and most recently installing a double wall oven. It's an ATV jack and I got it on sale at Kragen for $49.95.

Steve


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madd_dogg_914
post Mar 28 2005, 07:21 PM
Post #13


Member
**

Group: Members
Posts: 480
Joined: 30-March 03
From: Vacaville, CA
Member No.: 497
Region Association: Northern California
QUOTE (slivel @ Mar 28 2005, 04:41 PM)
I've used this for engines, transmissions and most recently installing a double wall oven. It's an ATV jack and I got it on sale at Kragen for $49.95.

Steve

Way to burst his bubble . . . sheesh!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skline
post Mar 28 2005, 07:26 PM
Post #14


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
That is so slick, I wish I had the time to think of stuff like that. It would make it much easier to install and remove engines in these cars. Maybe you could patent that and start selling them?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 28 2005, 07:26 PM
Post #15


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
I had seen those and considered buying one, but I was concerned the upright part of it wouldn't clear the transmission
and it still has the small wheels, like a regular jack...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Mar 28 2005, 07:43 PM
Post #16


I drive my car everyday
*****

Group: Members
Posts: 8,325
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
QUOTE (Jeroen @ Mar 28 2005, 07:26 PM)
I had seen those and considered buying one, but I was concerned the upright part of it wouldn't clear the transmission

You are correct. the jack hits the tranni (IMG:http://www.914world.com/bbs2/html/emoticons/mad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Mar 28 2005, 08:02 PM
Post #17


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 124,370
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Jeroen,
Nice work, you're thinking like a cheap American 914 Owner. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

Why buy it when you can spend more money and time to build it yourself.

Paul (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 28 2005, 08:06 PM
Post #18


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,958
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
I want one of these to go with my lift.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SpecialK
post Mar 28 2005, 08:29 PM
Post #19


aircraft surgeon
****

Group: Benefactors
Posts: 3,211
Joined: 15-March 04
From: Pacific, MO
Member No.: 1,797
QUOTE (Jeroen @ Mar 28 2005, 04:36 PM)

figuring out the geometry of the second arm was fun (it needs to move in the same radius as the jack-arm or the engine won't stay level)

Well, looking at the pics, you 'nailed it'!

I've got an engine stand the PO made out of angle iron (holds engine w/front engine mount and tranny attached). I plan to beef it up a little, check some of the if'y welds, mount some gauges (oil pres./CHT/EGT) on it, and start and tune the engine right where it sits. I've been trying to figure out a way to modifiy the one I have already to collapse and lift kind of like you did....Actually, if you incorporated some means of solidly mounting the engine/tranny onto your lift (maybe something that bolted on "after" the engine was dropped).........hmmmm, (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif) time to whip out Solidworks when I get home.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFix
post Mar 28 2005, 08:33 PM
Post #20


Member
**

Group: Members
Posts: 173
Joined: 3-March 05
From: Chapel Hill, NC
Member No.: 3,707
QUOTE (slivel @ Mar 28 2005, 04:41 PM)
I've used this for engines, transmissions and most recently installing a double wall oven. It's an ATV jack and I got it on sale at Kragen for $49.95.

Steve

Have you used that ATV jack for removing a 914 engine, and did it clear the tranny. PEP Boys has it on sale for $45 and it seems like it is a pretty nice fit for engine drops. Would love to hear any user experience.
User is offlineProfile CardPM
Go to the top of the page
