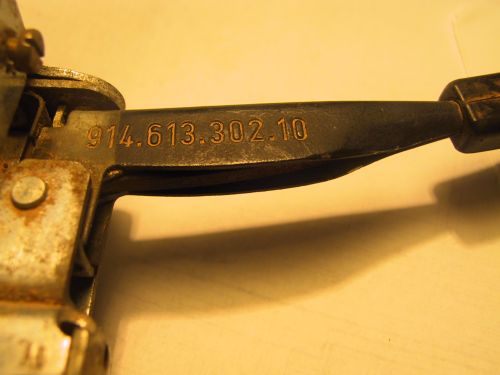

As part of my /6 restoration, I am re-doing the whole wiring. I'm now looking at the steering column and associated wiring. I have 2 wiper switches, both the correct part number:
Attached image(s)
|
   |

|
| michel richard |
Oct 26 2005, 08:06 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,291 Joined: 22-July 03 From: Longueuil, Québec Member No.: 936 |

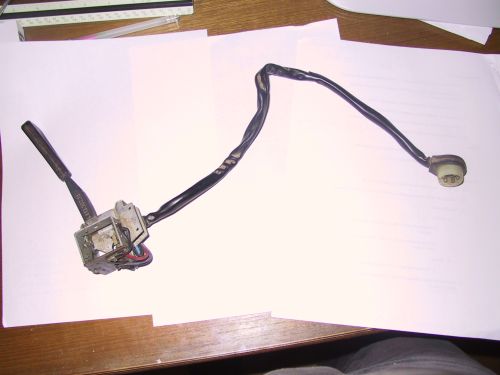

The problem is the connector at the end of the little bundle, at the right in this picture:
Attached image(s)
|
|
|
|
| michel richard |
Oct 26 2005, 08:09 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,291 Joined: 22-July 03 From: Longueuil, Québec Member No.: 936 |
I can find nothing in the main wiring harness that would connect to this plug. The wiring diagram that I have shows both the wiper and the blinker switches as one item, and does'nt really help. I looked at the PET parts diagrams, and can't find help there either.
Does anybody know what it is that I am missing, or can't figure out ? Thanks |
|
|
|
| sixnotfour |
Oct 26 2005, 08:15 PM
Post
#4
|
|
914 Wizard Group: Members Posts: 10,698 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
The steering colum wiper lead plugs into a bulkhead receptacle, that comes right from the -6 wiper motor.
914-6 only wiper motor. |
|
|
|
| michel richard |
Oct 26 2005, 08:29 PM
Post
#5
|
|
Senior Member Group: Members Posts: 1,291 Joined: 22-July 03 From: Longueuil, Québec Member No.: 936 |
OK,
I knew there was something I did'nt understand ! I believe I have a /6 wiper motor, in one of the boxes, so that should not be a problem. I'll go look and let you know. Thanks |
|
|
|
| ClayPerrine |
Oct 27 2005, 11:12 AM
Post
#6
|
|
Life's been good to me so far..... Group: Admin Posts: 15,970 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
The plug on the wiper motor looks like the plug for a round relay. It fits in the hole where the windshield washer hoses come through the bulkhead on the /4.
The harness on the six will only have a lead for the power to the wiper motor, nothing else. |
|
|
|
| michel richard |
Oct 27 2005, 09:04 PM
Post
#7
|
|
Senior Member Group: Members Posts: 1,291 Joined: 22-July 03 From: Longueuil, Québec Member No.: 936 |
I have found a /6 wiper motor, and I now remember that Jon Lowe had said it was different, although I could not remember why.

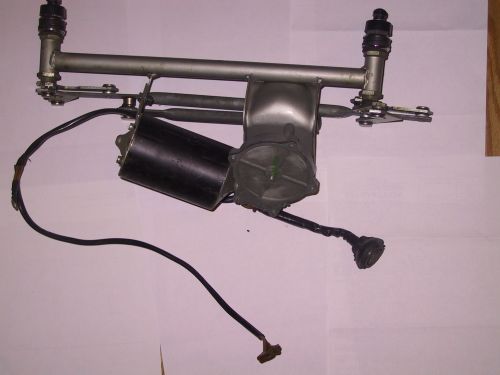

Here's a picture, in case it's of interest to anyone. The special lead is the one that's a little higher. There's a big rubber grommet/fitting so it can be fixed to the bulkhead. Attached image(s)
|
|
|
|
| sixnotfour |
Oct 27 2005, 10:46 PM
Post
#8
|
|
914 Wizard Group: Members Posts: 10,698 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
the other lead is for the washer pump. (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)
|
|
|
|
| michel richard |
Oct 28 2005, 05:29 AM
Post
#9
|
|
Senior Member Group: Members Posts: 1,291 Joined: 22-July 03 From: Longueuil, Québec Member No.: 936 |
Jeff,
Thanks, I had not yet figured that one out either ! |
|
|
|
|
