> My SDS EFI install, What, me working on my own stuff? no way
Mark Henry
post Oct 1 2003, 11:26 AM
Post #1


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

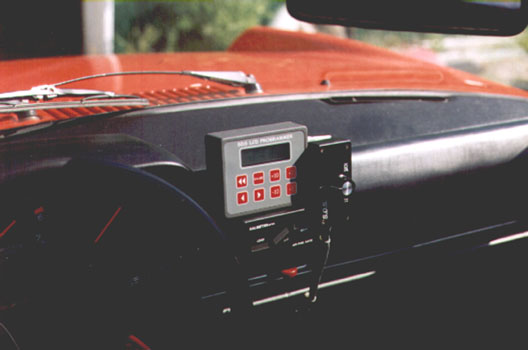

My programmer, mixture knob and air/fuel meter.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 11:31 AM
Post #2


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

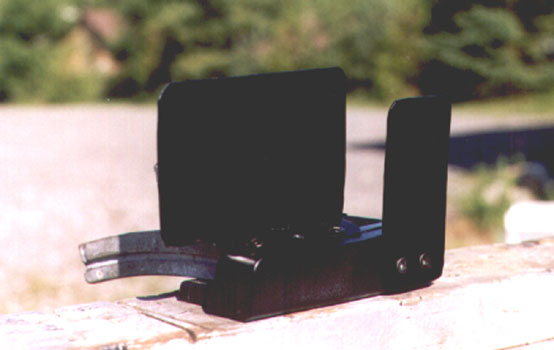

It's mounted to an old ashtray. I will remove it when I'm done programing.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 11:32 AM
Post #3


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

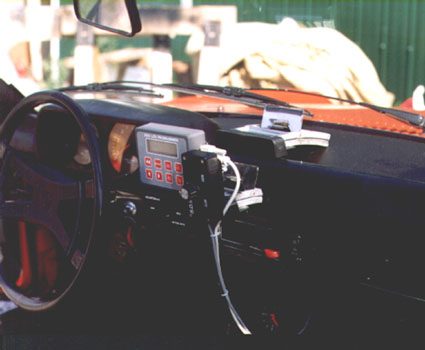

ashtray


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 11:33 AM
Post #4


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
TPS mount


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 11:35 AM
Post #5


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

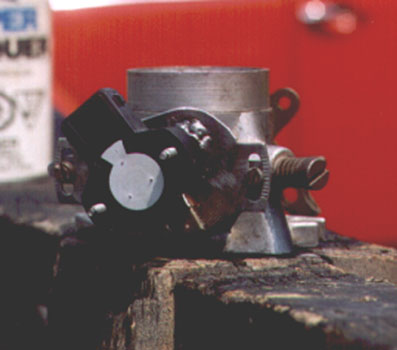

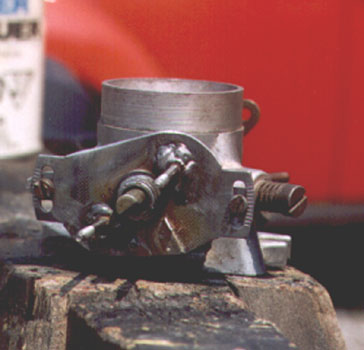

TPS on the TB


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 11:49 AM
Post #6


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
More pic's to come soon!

I have to punch a 1.5" hole in the firewall, where should it go?
Above or below the engine tin?

The ECU is going behind the passenger seat. Doesn't matter if I mount it inside or out I still have to drill a hole. I don't want to cut the SDS cables.

My junk yard dog engine is ready to go. I have about $400 canadian into it.
2.0, 1800 42X38mm valves, new rings, used Scat C-25 cam, new lifters and a bunch of spare parts. If it goes boom I don't care, but I hope it lasts the SDS learning curve.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 1 2003, 12:21 PM
Post #7


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
It's about time you worked on your damn car !!!!! j/k (IMG:style_emoticons/default/smile.gif)

I'd punch the hole above the engine tray, maybe off to the side, but make sure it's in a flat surface so that you can use a good firewall connector:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 12:43 PM
Post #8


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Where do you get that? Cost?

I was just going to use a grommet.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Oct 1 2003, 01:13 PM
Post #9


914 Wiring Harnesses
*****

Group: Members
Posts: 8,737
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Mark that looks really fine so far.

The multi-pin connector maybe / maybe not a good idea...

Good: It could be mounted to the firewall in sealant for a watertight connection

Bad: It introduces a full set of connections...which are susceptible to corrosion and vibration. If its a watertight cap then that takes some of the risk out of it.

Given any thought to just mounting the ECU inside the OEM brainbox for a sleeper look?

I like the SDS alot because it is programmable by a dedicated module that stays with the car. With laptop systems, who knows if your laptop will be supported in about X years...when you need it most.

Anxious to see your further results.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 1 2003, 02:17 PM
Post #10


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(bowlsby @ Oct 1 2003, 11:13 AM)
Given any thought to just mounting the ECU inside the OEM brainbox for a sleeper look?

I like the SDS alot because it is programmable by a dedicated module that stays with the car.  With laptop systems, who knows if your laptop will be supported in about X years...when you need it most.

Anxious to see your further results.

I thought about mounting it in an old box, but it would be a pain connecting/disconnecting the controller. Once you are done programing you lock it off and remover the controller.
Unless you want to run the progammer cable outside the car (not long enough but it is just an old style mouse cable) you have to still drill a hole. I'm going to see if I can get a PS2 cable adaptor, if I can (and it works) then I'll mount it your way and drill a smaller hole. SDS is warns that the ECU is not waterproof and they would rather you mounted it inside the cab.

Also the harness is far from stock looking, if I really wanted it to look like stock I would give it to you for the once over.

I have more pic's being developed as we speak, so more to come soon.
(IMG:style_emoticons/default/MDB2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Oct 1 2003, 03:47 PM
Post #11


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
i used to know a place where you could get MIL-SPEC (military grade) surplus connectors up to like 3 inches- quite expensive tho (IMG:style_emoticons/default/wink.gif) and they only come in olive drab
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 07:59 PM
Post #12


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

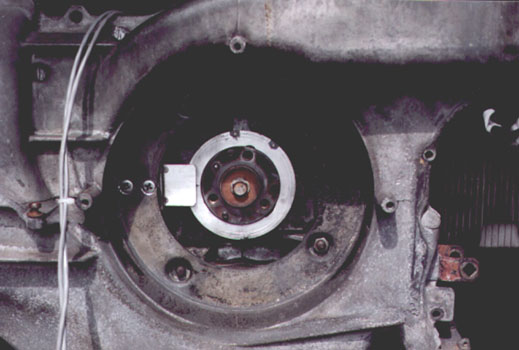

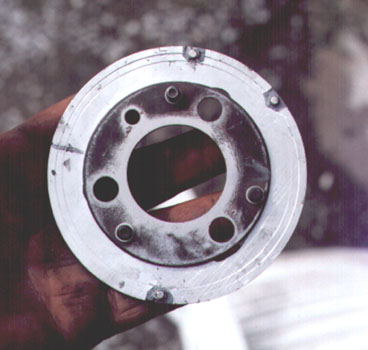

My crank trigger disk, the magnets 180 apart are the trigger and the other one is the sync.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:05 PM
Post #13


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

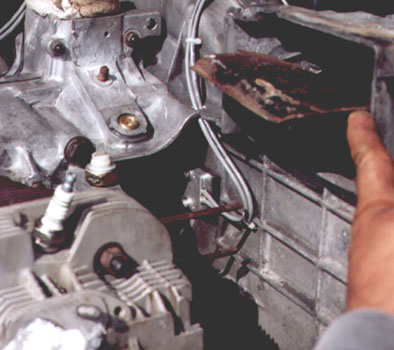

on the engine


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:08 PM
Post #14


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

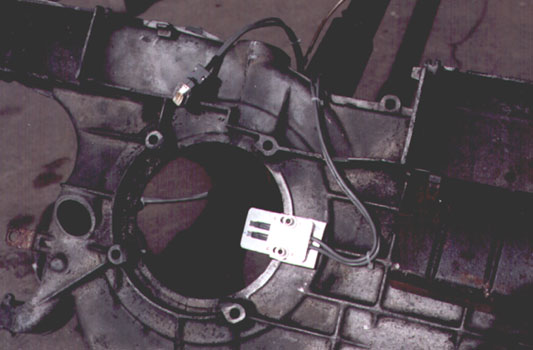

the sensor mounted


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:11 PM
Post #15


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
All together now!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:12 PM
Post #16


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
The backside


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:14 PM
Post #17


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

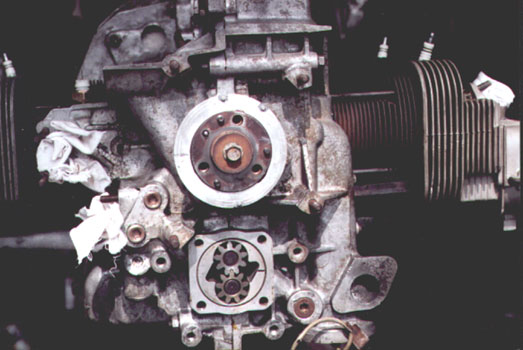

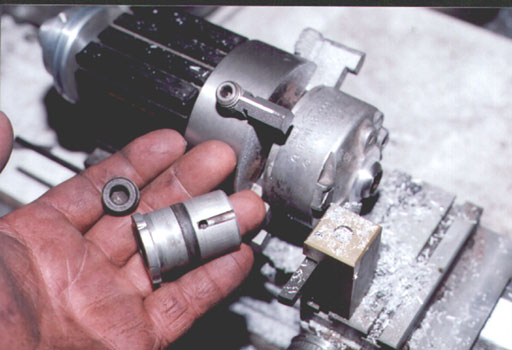

Had to plug the dizzy hole. Cut this off of an old POS dizzy and tapped and plugged with a 3/8 NPT plug.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:17 PM
Post #18


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
I've done it now!

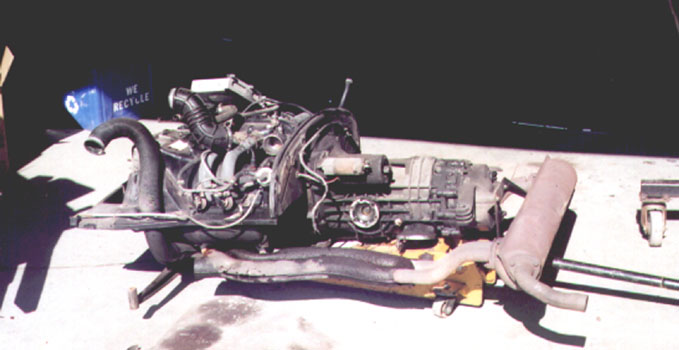

Me old 1.8 L-jet.

Bye-bye!!!!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:19 PM
Post #19


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

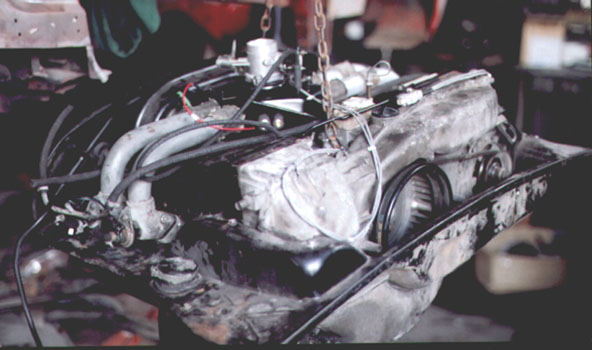

My new JYD 2.0 SDS PEFI engine!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Oct 2 2003, 08:24 PM
Post #20


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
SDS ECU and coil.
