> 914/6 Column Wiring
RiqueMar
post Jun 7 2020, 03:32 PM
Post #1


Enrique Allen Mar
****

Group: Members
Posts: 2,179
Joined: 28-August 08
From: San Diego, CA
Member No.: 9,478
Region Association: Southern California
Hi All,

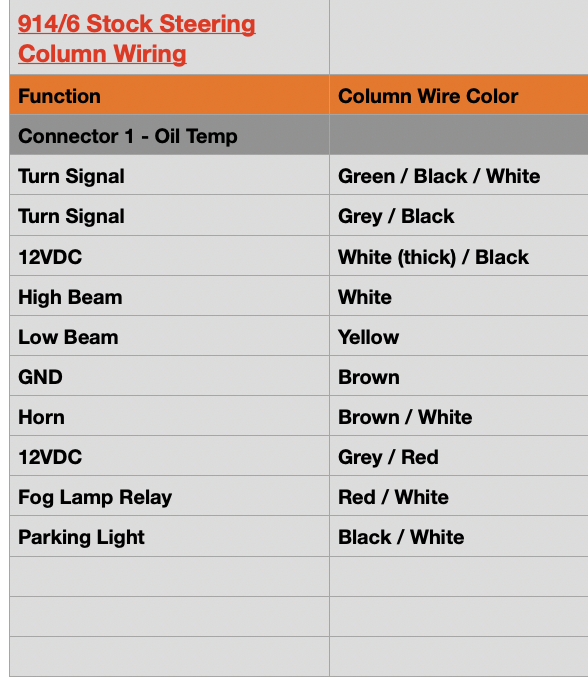

Does anyone have any reference on the wiring colors and functions for the 914/6 harness? Currently, this is what we have come up with.

Working on reinserting into 12-pin connector and then, soldering on the female connectors to the new harness.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jun 7 2020, 03:46 PM
Post #2


914 Wizard
**********

Group: Members
Posts: 10,645
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
here is a recent thread all about it
http://www.914world.com/bbs2/index.php?sho...=345469&hl=
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gereed75
post Jun 7 2020, 07:39 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,311
Joined: 19-March 13
From: Pittsburgh PA
Member No.: 15,674
Region Association: North East States

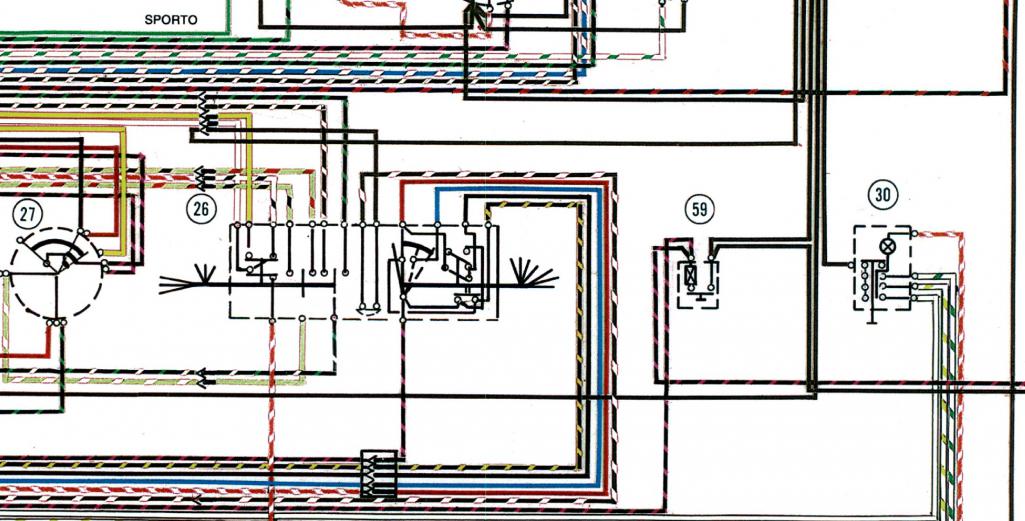

Not sure exactly what you are looking for but here are some pix of the steering column switch diagram. The one diagram shows the terminal numbers. It is not at all clear but it might get help. The others show the wire colors.

Attached Image

Attached Image

Let me know if you need any others


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Jun 7 2020, 10:05 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RiqueMar
post Jun 8 2020, 10:54 AM
Post #5


Enrique Allen Mar
****

Group: Members
Posts: 2,179
Joined: 28-August 08
From: San Diego, CA
Member No.: 9,478
Region Association: Southern California
Thanks all.

@sixnotfour - For clarification, I did see the thread listed but it seemed to me this was based on adapting a 911 steering. Am I correct?

The reference diagrams help, however what I'm looking for is wire color and function. I have a /6 column, I just want to confirm that my notes are correct.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jun 8 2020, 11:25 AM
Post #6


914 Wizard
**********

Group: Members
Posts: 10,645
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
(IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
RiqueMar
post Jun 8 2020, 12:19 PM
Post #7


Enrique Allen Mar
****

Group: Members
Posts: 2,179
Joined: 28-August 08
From: San Diego, CA
Member No.: 9,478
Region Association: Southern California
@gms / @gereed75 - from your diagrams (I can't seem to get my hands on one) can you discern which color responds to which function / equipment?

Very appreciative if you can, thanks in advance. This would a lot!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Jun 8 2020, 01:13 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Are you looking for each of these pins to be identified?

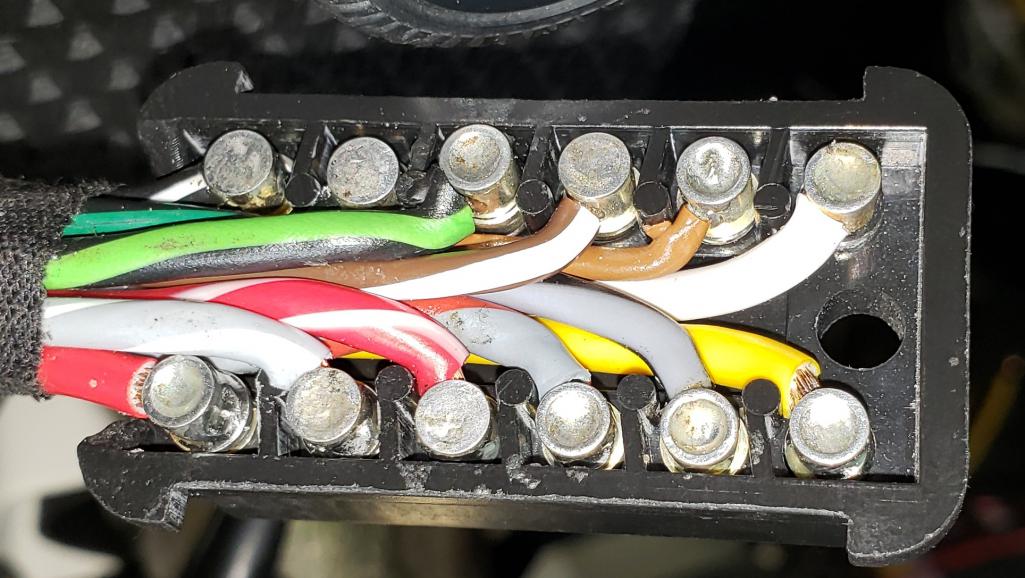

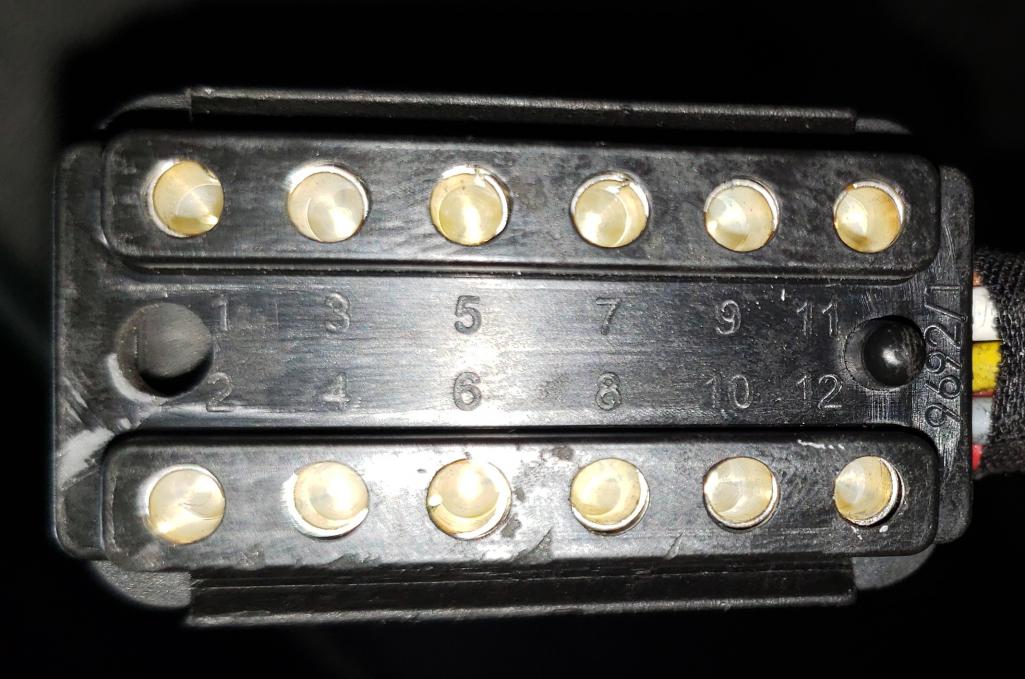

914/6 turn signal switch 12 pin
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RiqueMar
post Jun 8 2020, 01:19 PM
Post #9


Enrique Allen Mar
****

Group: Members
Posts: 2,179
Joined: 28-August 08
From: San Diego, CA
Member No.: 9,478
Region Association: Southern California
QUOTE(gms @ Jun 8 2020, 12:13 PM) *

Are you looking for each of these pins to be identified?

914/6 turn signal switch 12 pin
Attached Image

Attached Image



Thanks for the response, @GMS

Not so much the pins to be identified, but rather which lead goes to which device, and if my list is correct.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gereed75
post Jun 8 2020, 06:54 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,311
Joined: 19-March 13
From: Pittsburgh PA
Member No.: 15,674
Region Association: North East States
I can trace wires to their termination on my diagrams but it will take some time. Maybe late tonight.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gereed75
post Jun 9 2020, 04:44 AM
Post #11


Senior Member
***

Group: Members
Posts: 1,311
Joined: 19-March 13
From: Pittsburgh PA
Member No.: 15,674
Region Association: North East States
EnRique, better yet send me your email.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gereed75
post Jun 9 2020, 01:08 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,311
Joined: 19-March 13
From: Pittsburgh PA
Member No.: 15,674
Region Association: North East States
enrique, emails sent Good luck
