> Ricky's 914-6/GT Calipers, Eye Candy
Eric_Shea
post May 24 2006, 05:58 PM
Post #1


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains

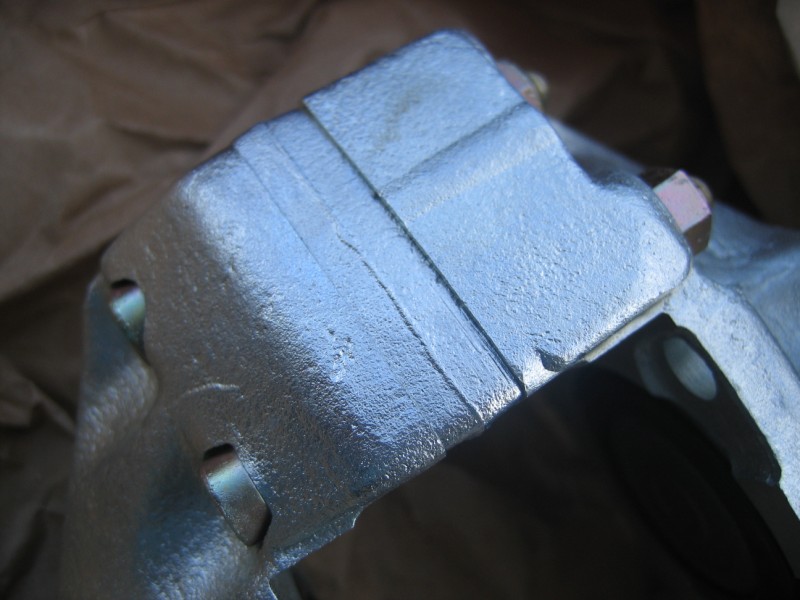

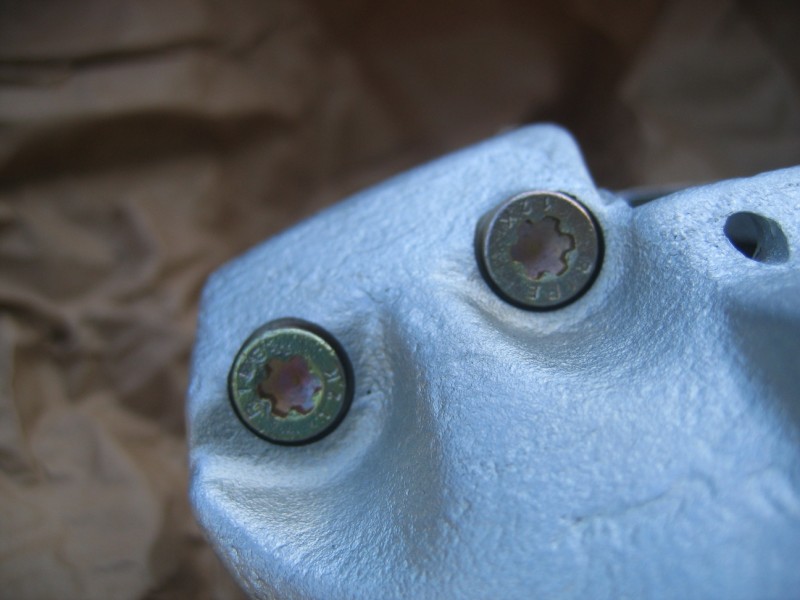

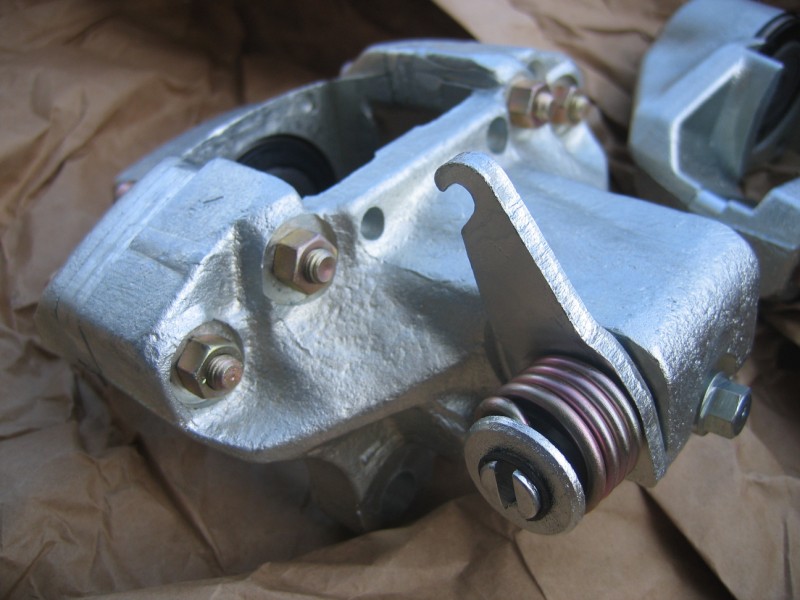

I love 914-6/GT Calipers... just somethin about'em (IMG:style_emoticons/default/wub.gif)


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 24 2006, 06:00 PM
Post #2


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains

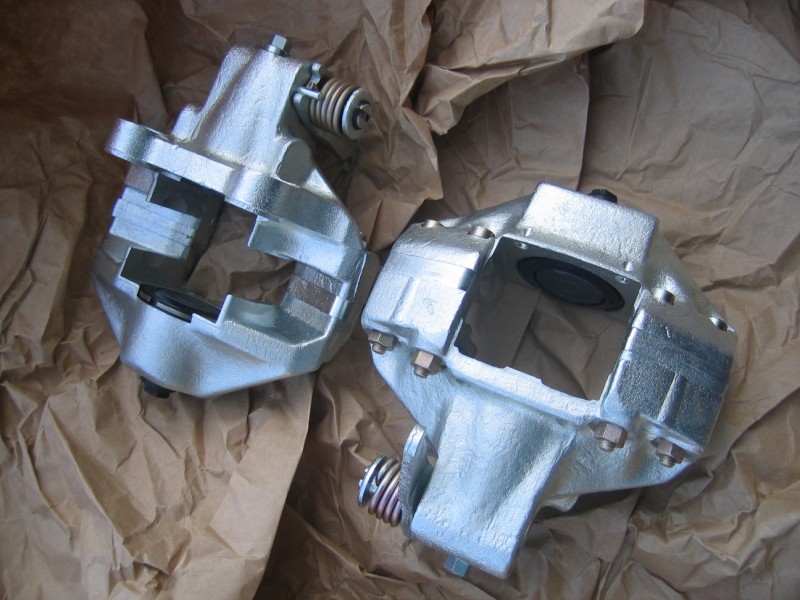

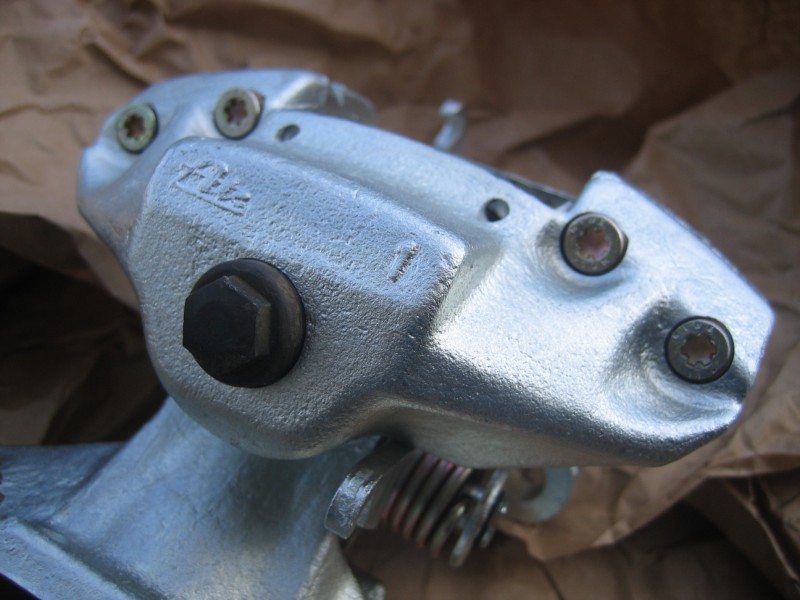

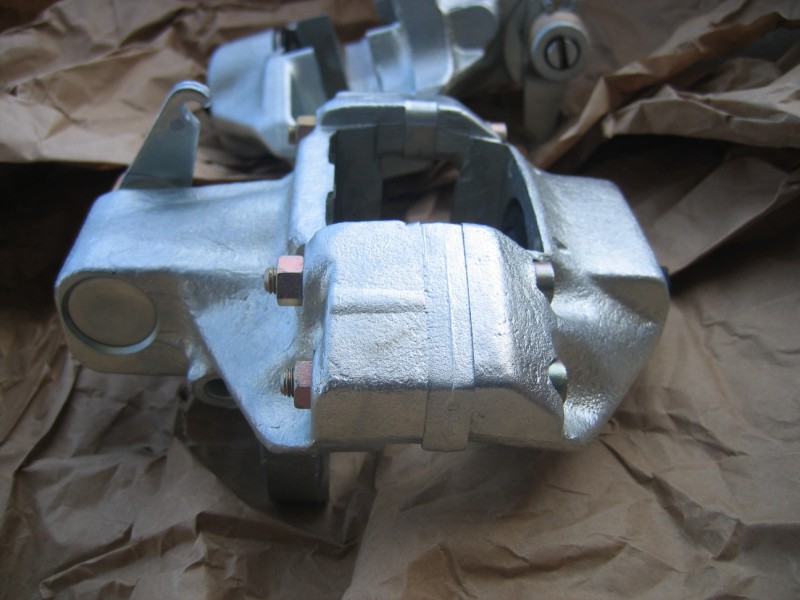

These are for Ricky Garcia and should be an awesome match for the S-Calipers up front.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post May 24 2006, 06:03 PM
Post #3


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
(IMG:style_emoticons/default/humpy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post May 24 2006, 06:06 PM
Post #4


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
saweeeeeet!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post May 24 2006, 06:18 PM
Post #5


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
so they are widened /6 calipers?

nice.


i can wait for marty's spot caliper....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 24 2006, 09:04 PM
Post #6


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
10mm wider (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rickyhgarcia
post May 24 2006, 10:41 PM
Post #7


UPS truck is here...
**

Group: Members
Posts: 293
Joined: 13-June 04
From: Miami, Florida
Member No.: 2,198
Eric,

They are beautifull....thanks for posting and the bragging rights.

Your work is beyond excellent...I am now thinking sending you my front S-calipers for the same treatment.

Thanks,

Ricky
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rickyhgarcia
post May 27 2006, 09:50 AM
Post #8


UPS truck is here...
**

Group: Members
Posts: 293
Joined: 13-June 04
From: Miami, Florida
Member No.: 2,198
Eric,

Post #2...picture #3

Is that the adjuster cover that wasn´t holding initially??

Ricky
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post May 27 2006, 09:58 AM
Post #9


914 Historian
*****

Group: Benefactors
Posts: 5,226
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
I'm starting to make my own adjuster covers now. Tricky trying to get the threads into the part. Both sets of initial samples seem to work, but the third attempt should be much better.

Those outer adjusters seem to want to crack quite often. Any ideas how they can be fixed? Can't just throw them away.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rickyhgarcia
post May 27 2006, 08:33 PM
Post #10


UPS truck is here...
**

Group: Members
Posts: 293
Joined: 13-June 04
From: Miami, Florida
Member No.: 2,198
Eric,

The following list of items you detailed in another´s member thread about putting together the 914-6 GT calipers:

*10mm Caliper Spacers (included, exact match in the rear 911 m-caliper)
*Longer Hardware (included, exact match in the rear 911 m-caliper)
*5mm Rotor Spacer (we can supply, they're not cheap but not too bad)
*Custom Pins (Michel has this sorted... for others plan on about $12-15 each at a decent machine shop)
*911 Rear Pad Spring Kit
*Longer Studs for the rear hubs (to accomodate the rotor spacer)

I know we have done 1 and 2 on the list...and that you are currently working on on number 4. Since I already have vented 914-4 calipers in my car, number 3 and 6 are probably taken care of.

What is the "911 Rear Pad Spring Kit?" Is it already there?

Ricky
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 30 2006, 09:27 AM
Post #11


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
Post #2...picture #3

Is that the adjuster cover that wasn´t holding initially??


No... one of the 'inner' adjuster bores is stripped (post #2... picture #1). The one in picture #3 is an outer adjuster cover. The new 10mm cover for the rear is deeper and it makes it's way to some threads. We call that dodging a bullet.

Dave, your fellow countryman Bruce N. has made the outer covers already. Might want to take that into consideration...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 30 2006, 09:32 AM
Post #12


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
Since I already have vented 914-4 calipers in my car, number 3 and 6 are probably taken care of.

What is the "911 Rear Pad Spring Kit?" Is it already there?


The cores we used for the GT kit had springs so I had them plated and refurbished (riveted). You're all set there.

3 and 6 are rotor spacers and longer studs. If this is a GT clone you may want to take this time to install the 72mm Verbus studs in your hubs and use the open lug nuts. I'm not sure how far you want to go for the sake of GT appearance.

Regarding the rotor spacers. I believe we decided that you were going to attempt the spacers underneath the caliper ears (which I think is what you had). If that didn't/doesn't work we have the rotor spacers to go that route. There are two ways to go about it:

1. Space the caliper 5mm off the ear moving the centerline back to align with that of the 911 rotor.

2. Space the 911 rotor out 5mm to move the centerline out to match that of the 914-6/GT caliper. This is sometimes the only option because the 914 based calipers come 'very' close to the trailing arm.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mrs. K
post May 30 2006, 10:24 AM
Post #13


Grieve we must, but celebrate a great life!
*****

Group: Birthday Fairy
Posts: 7,513
Joined: 6-June 04
From: Long Beach, CA
Member No.: 2,166
QUOTE(Eric_Shea @ May 24 2006, 04:58 PM) *

I love 914-6/GT Calipers... just somethin about'em (IMG:style_emoticons/default/wub.gif)


(IMG:style_emoticons/default/idea.gif) ..........does A-aron wear them when he comes to "visit" you (IMG:style_emoticons/default/grouphug.gif)
I think we all know how much you two like "toys" (IMG:style_emoticons/default/happy11.gif)

(IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rickyhgarcia
post May 30 2006, 10:58 AM
Post #14


UPS truck is here...
**

Group: Members
Posts: 293
Joined: 13-June 04
From: Miami, Florida
Member No.: 2,198
Eric,

Thanks for the info...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
