> Just another home build 2056 upgrade...but this one is mine!, Redux THrē: It's been so FUN lets do it again.....
rfinegan
post Apr 27 2021, 06:31 AM
Post #101


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
shimmed rocker to .050
Push rod length 27.27 cm

this turns out to be the wrong way to do this...

Started over and things are looking fine without the shims and the pushrods are close to the stock length...

FWIW: The aluminum rod to help align the adjuster is from a shot gun cleaning kit ;-)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Apr 27 2021, 01:26 PM
Post #102


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
UPDATE:

Removed all the shims
Base line push rod to stock: 10.66/27.1

Lengthen push rod 1/8 turn till alignment @ 1/2 lift .238/ full lift .476 (card .465)

Final
Intake push rod length 10.704in/27.188cm


Attached thumbnail(s)

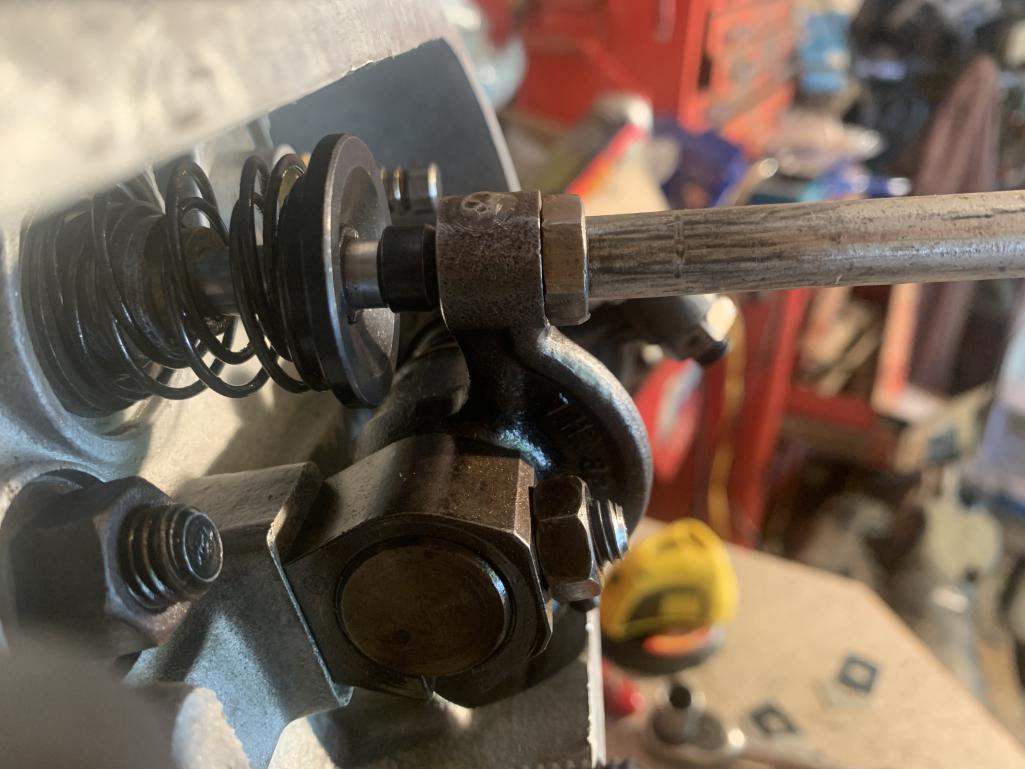

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Apr 27 2021, 01:27 PM
Post #103


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
another view

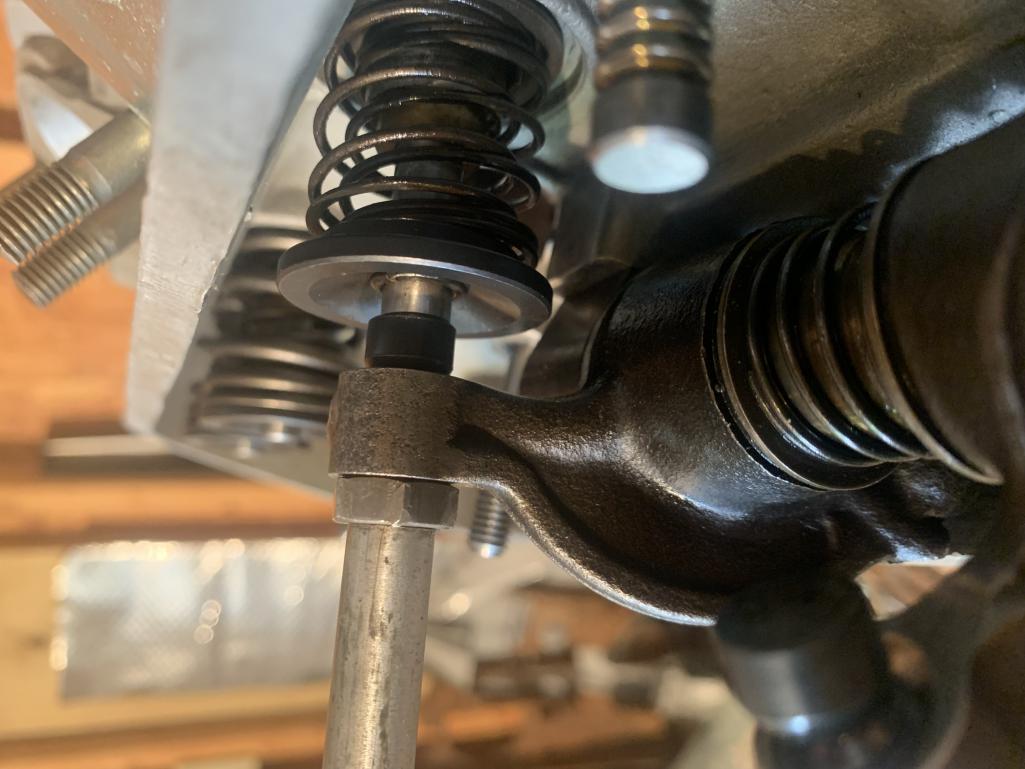

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Apr 27 2021, 01:28 PM
Post #104


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
one more Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Apr 27 2021, 04:35 PM
Post #105


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

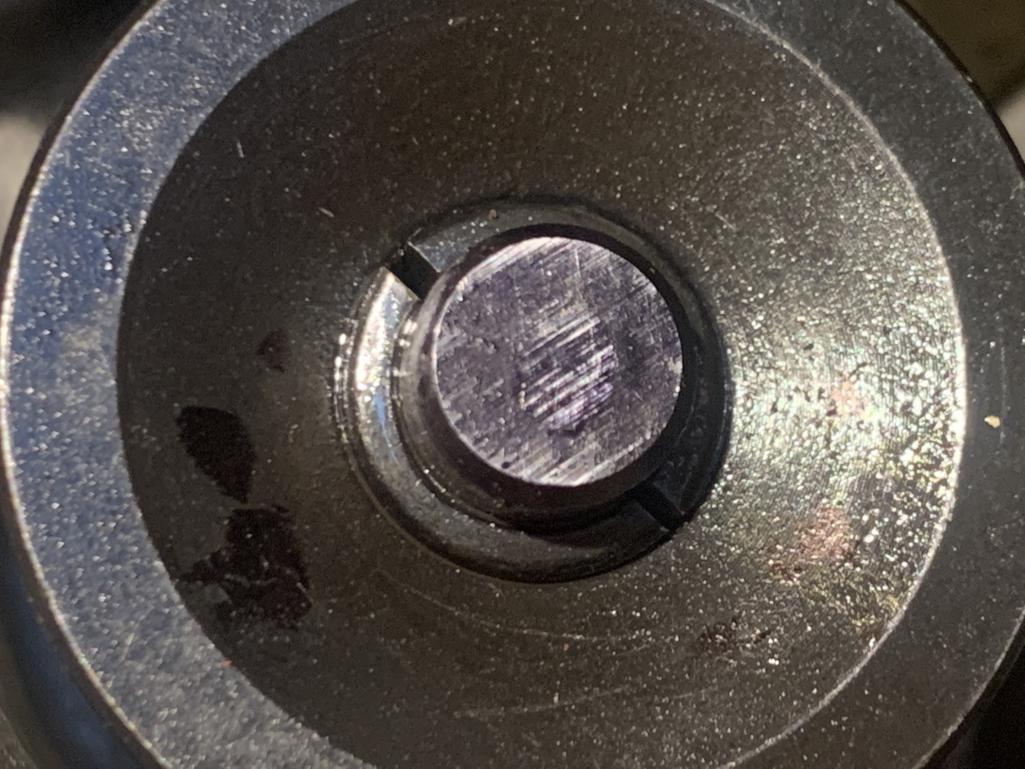

Here is a picture of the contact patch on the valve stem when rolled 2 times aroundAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Apr 28 2021, 01:15 PM
Post #106


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

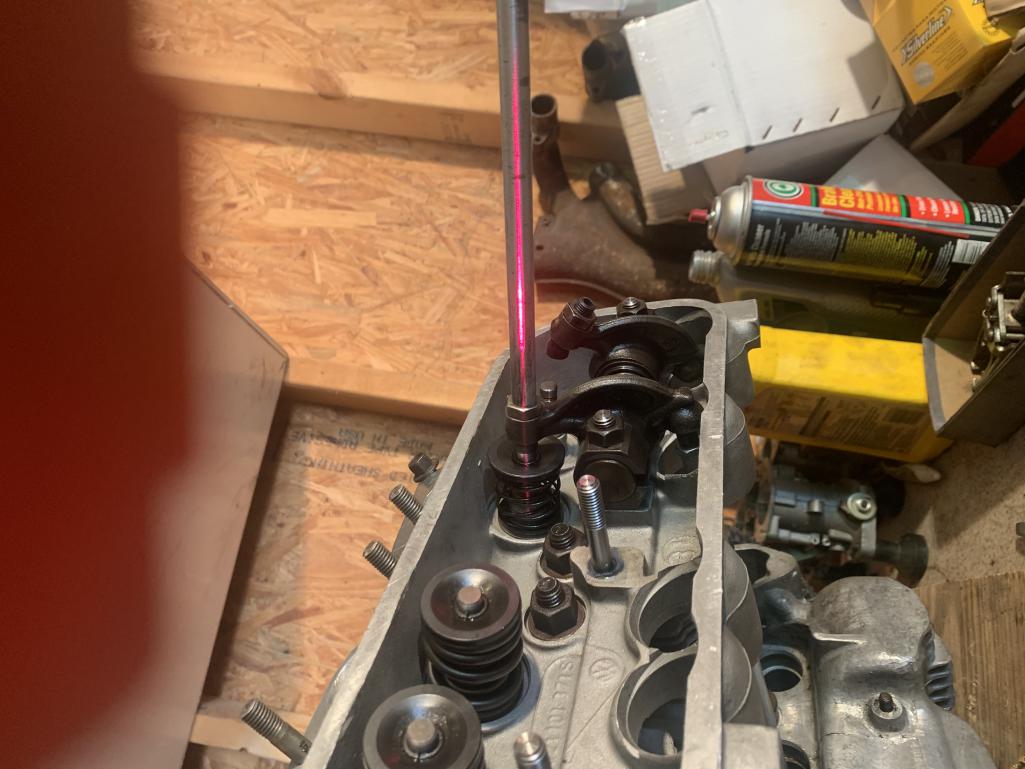

Ditch the laser for an angle gauge for the exhaust valve geometry. The push rod is a little smaller than the Intake. More on that...

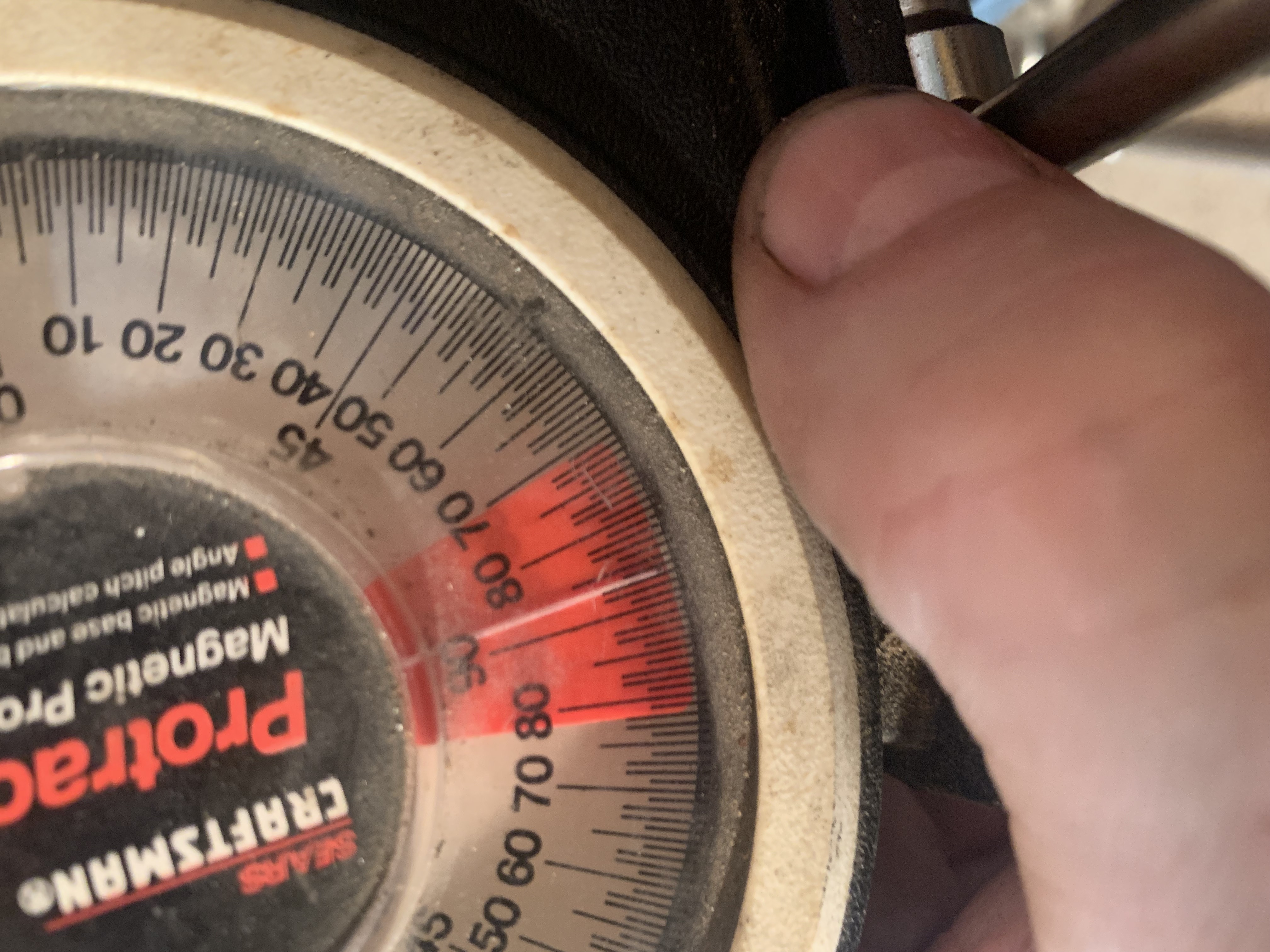

Set a base line angle of the valve stem with a collet holder on the stem and an angle gauge HERE: 3.5 degrees

Attached Image


Next I do a full lift rotation of the cam and measure with a dial indicator at the retainer of the valve. .458 in
Cam card .465 less than the needed 5% loss
1/2 lift =229

I mention the wrong gross value in the video but use the correct 1/2 lift of 229


https://www.youtube.com/watch?v=TFHP6UVlFv0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post May 17 2021, 11:25 AM
Post #107


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Finished the last 2 Pushrod measurements last night. Good news is a few of them are the same across cylinders. ODD however one (first cylinder) #1 had no shim. All the others had .015" , but the lenses are close to the same
I will measure them again and see if the if it was performed correctly. Others would not adjust zero lash unless I was much under the stock Push rod length . shim put it right in there
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pilothyer
post May 17 2021, 01:52 PM
Post #108


Member
***

Group: Members
Posts: 838
Joined: 21-May 08
From: N. Alabama
Member No.: 9,080
Region Association: South East States
Looks like you have gone to great pains to get your geometry as (nearly) perfect as you could. I am also in the ranks of those who believe this is a vital part of the engine build.
I do, however, wonder what happens to this "perfect" rocker geometry as future valve adjustments are made.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jun 13 2021, 12:03 PM
Post #109


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
I was getting ready to do a quick video on cutting push rods and while pressing the tip on may last intake push rod, I noticed it was much too long. About 0.030 inches too long.
WHAT WENT WRONG? All the others were within 0.001 of my desired final length. NOT a big a deal I got another one on the way. $9.95 but shipping was more than the part. But I wanted to be sure they were the same brand and I want a complete the set.

Seems I had "30" on the brain...my target was 11.300..I cut to 11.330. Wound be fine but i did not notice till I had pressed on the tip (IT IS NOT COMING OFF) It was not till I was cutting another push rod that I found out what my hang up on the .030 mark on the dial caliper was not "0" or .300

Working on the spacers for the rocker shafts . Number all the parts for each location to ensure they go where they need to go and the .003-.005 spacing clearance is maintained. THIS INCLUDED THE END Clamps. As they wear on one side (spring side)

I will get a video on this too ounce I set up the final Push rod cut length and confirmed.

But for now:


Attached thumbnail(s)

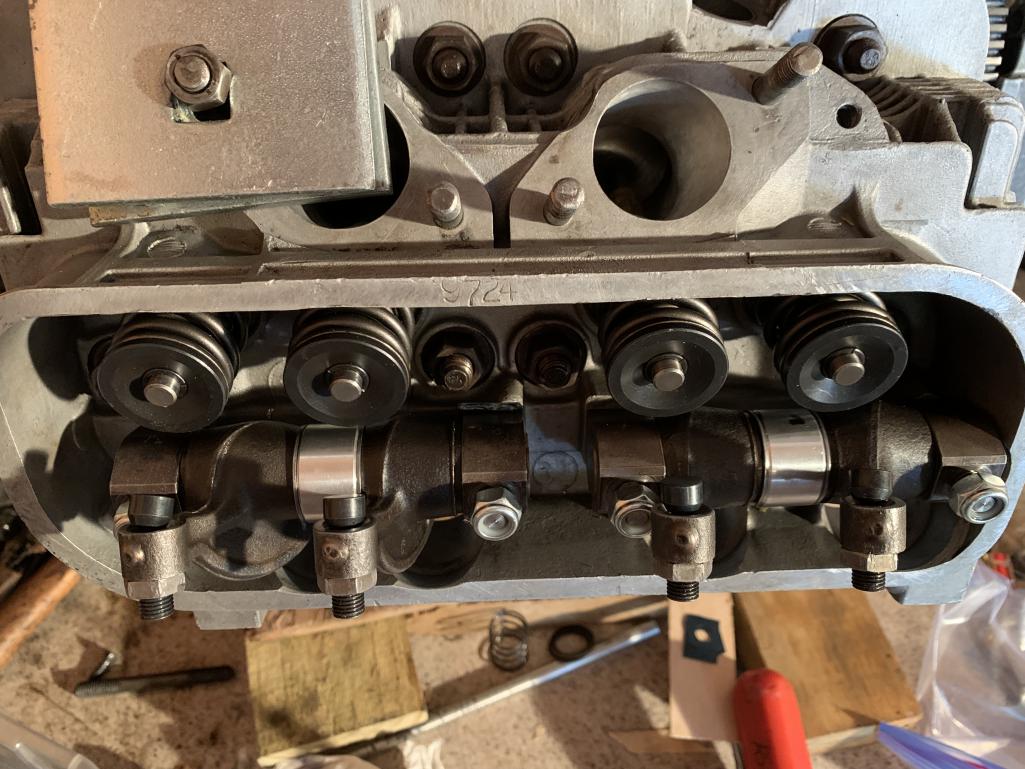

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jun 16 2021, 03:21 PM
Post #110


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Tonight I received my replacement pushrod from EMW and will walk us through how I cut the pushrods and assembled the ends for a final length.


calculations and cutting push rods

https://www.youtube.com/watch?v=TNfHK3SpwbQ




Final cut and assemble tips for completed push rod

https://www.youtube.com/watch?v=kteDX9ZgNZw
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jun 27 2021, 08:09 AM
Post #111


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
installation and torque heads


https://www.youtube.com/watch?v=05f0xu0mPRQ
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jun 27 2021, 08:21 AM
Post #112


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
installation of push rod tubes


https://www.youtube.com/watch?v=Uh-IR46lVuc
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jun 27 2021, 08:30 AM
Post #113


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

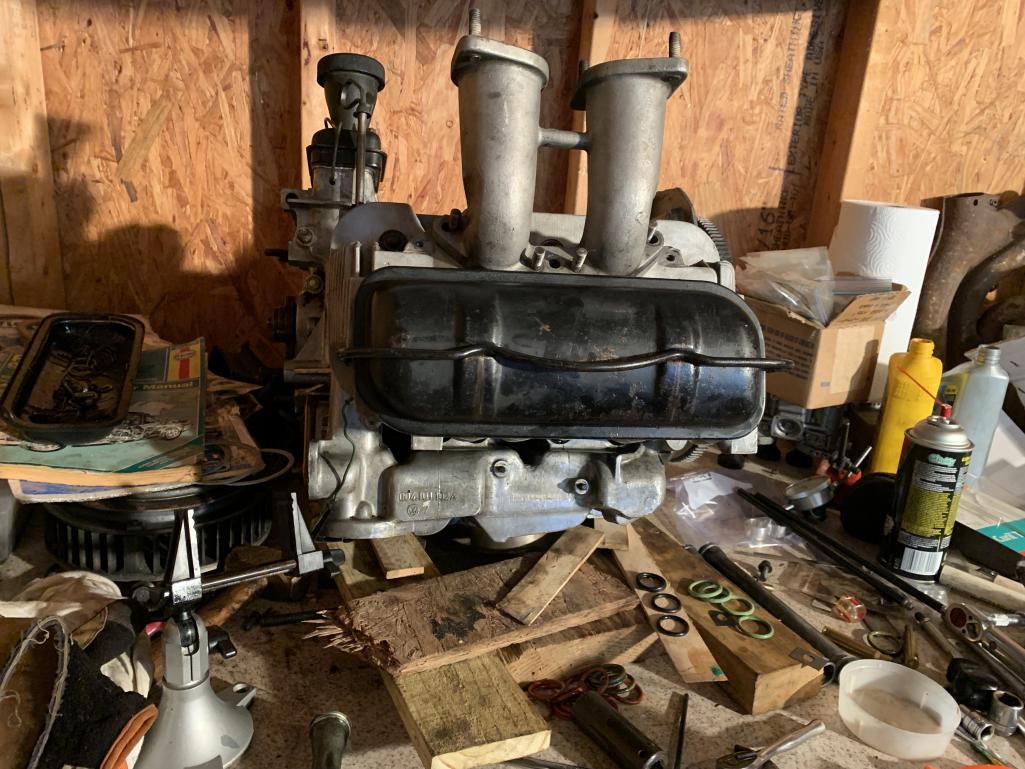

The 2056 is starting to look like and Porsche engine ...Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jul 10 2021, 04:10 PM
Post #114


Advanced Member
****

Group: Members
Posts: 3,803
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
When will this baby sing? Thanks for posting your build
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 10 2021, 08:00 PM
Post #115


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
I think I have the last few bits needed to finish( less a few tunings jets TBD) but I may pop for the Tangerine stub pipes before the test and tune just to make sure she can breathe

-Robert

I Was shooting to finish by independence day...but any day in July will due
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 11 2021, 02:20 PM
Post #116


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Today I am installing the last of the push rod tubes, along with the cool tins for the heads, the solid spacers for the rocker shafts and installing the shafts and setting the lash to zero for start up


https://www.youtube.com/watch?v=MaWDpwd_7dg



https://www.youtube.com/watch?v=5jjCTQBDIUw
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 12 2021, 04:43 AM
Post #117


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
from another Question thread here on the World:
http://www.914world.com/bbs2/index.php?act...=0#entry2930085
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Jul 13 2021, 05:16 PM
Post #118


Village Idiot
*****

Group: Members
Posts: 8,525
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
A well built 2056 is a great power plant for a 914. Driven only a few, both were FI and really impressed me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 17 2021, 02:24 PM
Post #119


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Rebuild the early weber 44 IDF

Initial tune to:
55 idles jets
200 air bleeds
F11 tubes
36 vents
150 main jets


Will add the return springs, arms and Tangerine racing cams and cables on the install day. Also some extended Jet holders (just stacks). Maybe when I order the new jets on tune day

Need some cast 2 bolt air cleaner bases to match the top

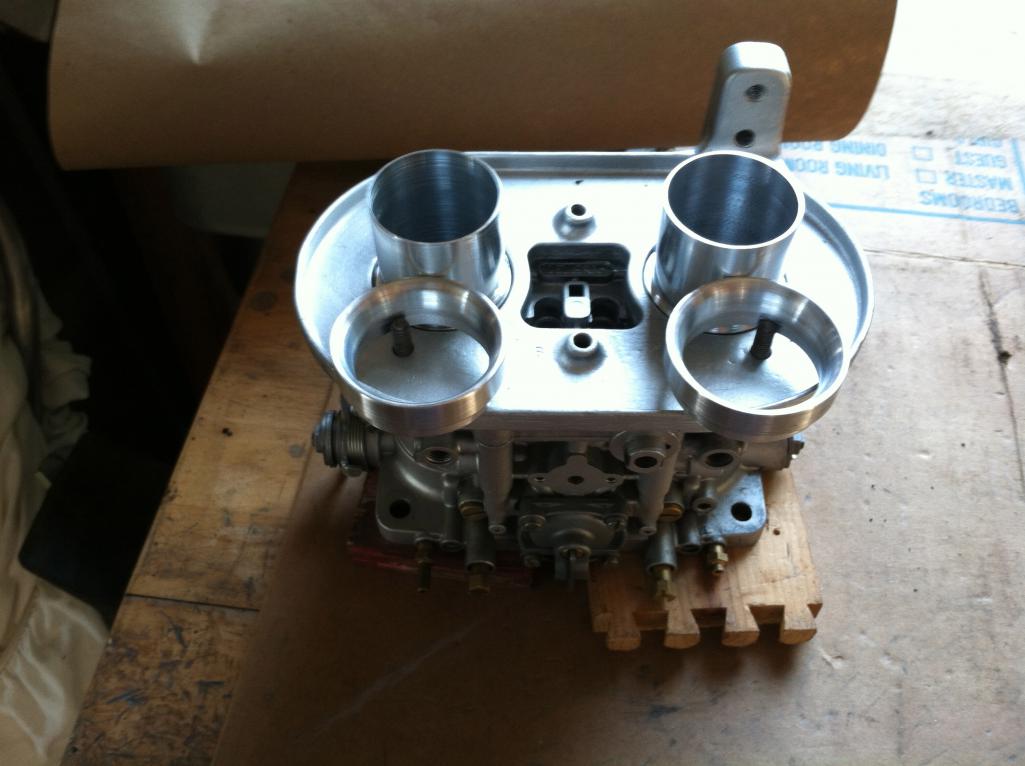

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Jul 17 2021, 04:55 PM
Post #120


Senior Member
***

Group: Members
Posts: 1,335
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
Will add the return springs, arms and Tangerine racing cams and cables on the install day. Also some extended Jet holders (just stacks). Maybe when I order the new jets on tune day

Need some cast 2 bolt air cleaner bases to match the top

Attached Image
[/quote]

Is the ID of those velocity stacks the same as the carb barrel ID's right at the top ?
Don't know what throttle linkage design you're using, but look closely.

My Dell 40's using the cross bar top plates resulted in the ID of the top plates being larger than the carb barrel bores. That resulted in a zero radius for air entering the carb itself. I made my own 2 piece velocity stacks. Had to be 2 piece as the lower part fit UNDER the cross bar top plate. This would not permit a well radiused inlet for the top part as not enough OD .

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
