> Just another home build 2056 upgrade...but this one is mine!, Redux THrē: It's been so FUN lets do it again.....
rfinegan
post Jul 17 2021, 07:17 PM
Post #121


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Yes my stacks (I have 2 sets) are larger then the OD of the top plate of the carbs . Will have todo some thing to make the transition better. Perhaps and insert like the ventures
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 21 2021, 02:33 PM
Post #122


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Today I ordered my Tangerine 1 5/8 stub pipes for my Pete Weber Quiet HP Headers (early super headers). Will be here for fall cruise nights soon enough
http://www.tangerineracing.com/exhaustcomponents.htm
I am so looking forward to these!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 24 2021, 07:44 PM
Post #123


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

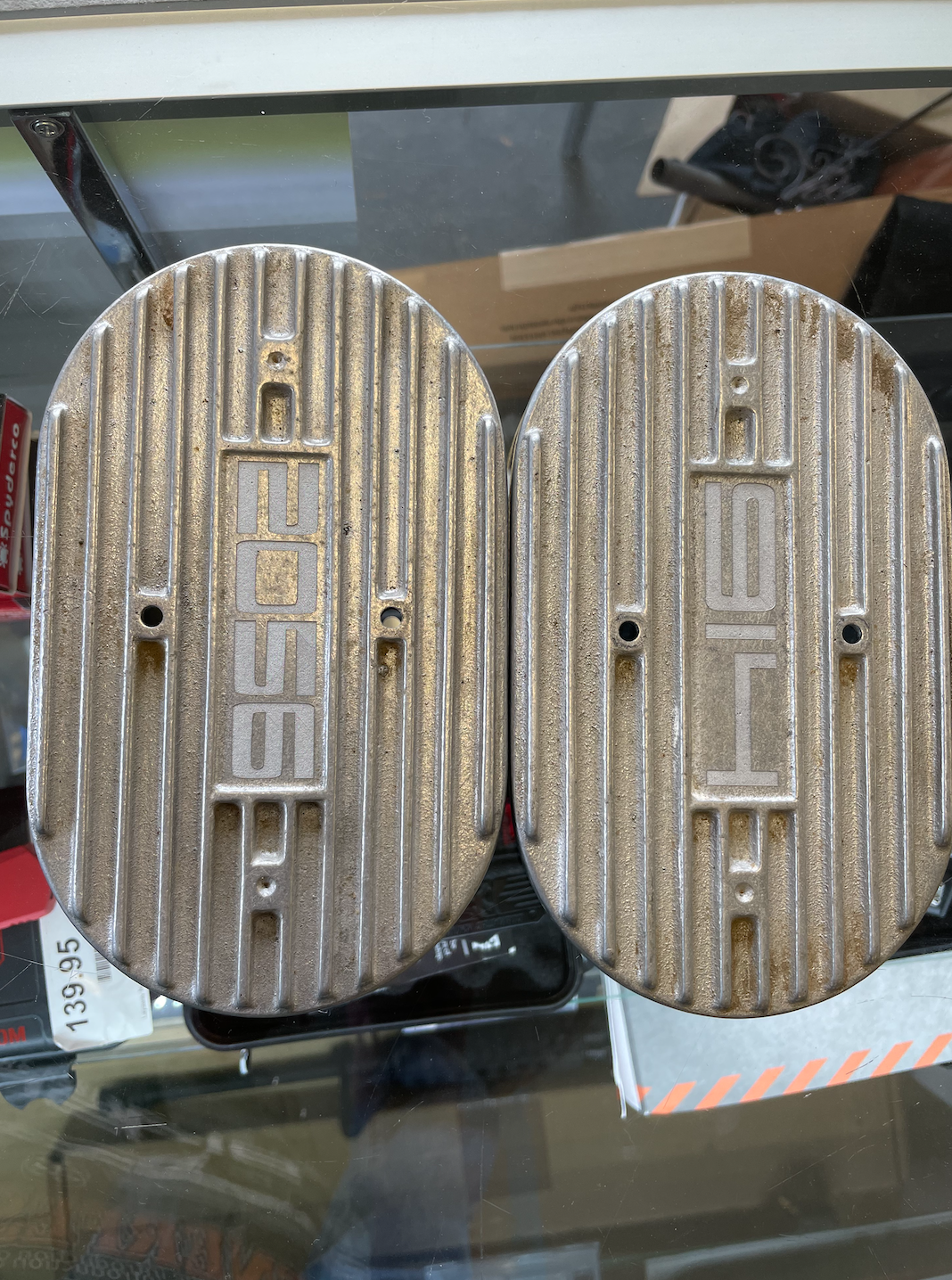

Just added some details to the air cleaners

Thanks @ValcoOscar for the IDF parts


Attached Image


https://www.youtube.com/watch?v=I99l21dABNg


https://www.youtube.com/watch?v=JQrWsvAmdwE
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 26 2021, 06:08 AM
Post #124


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

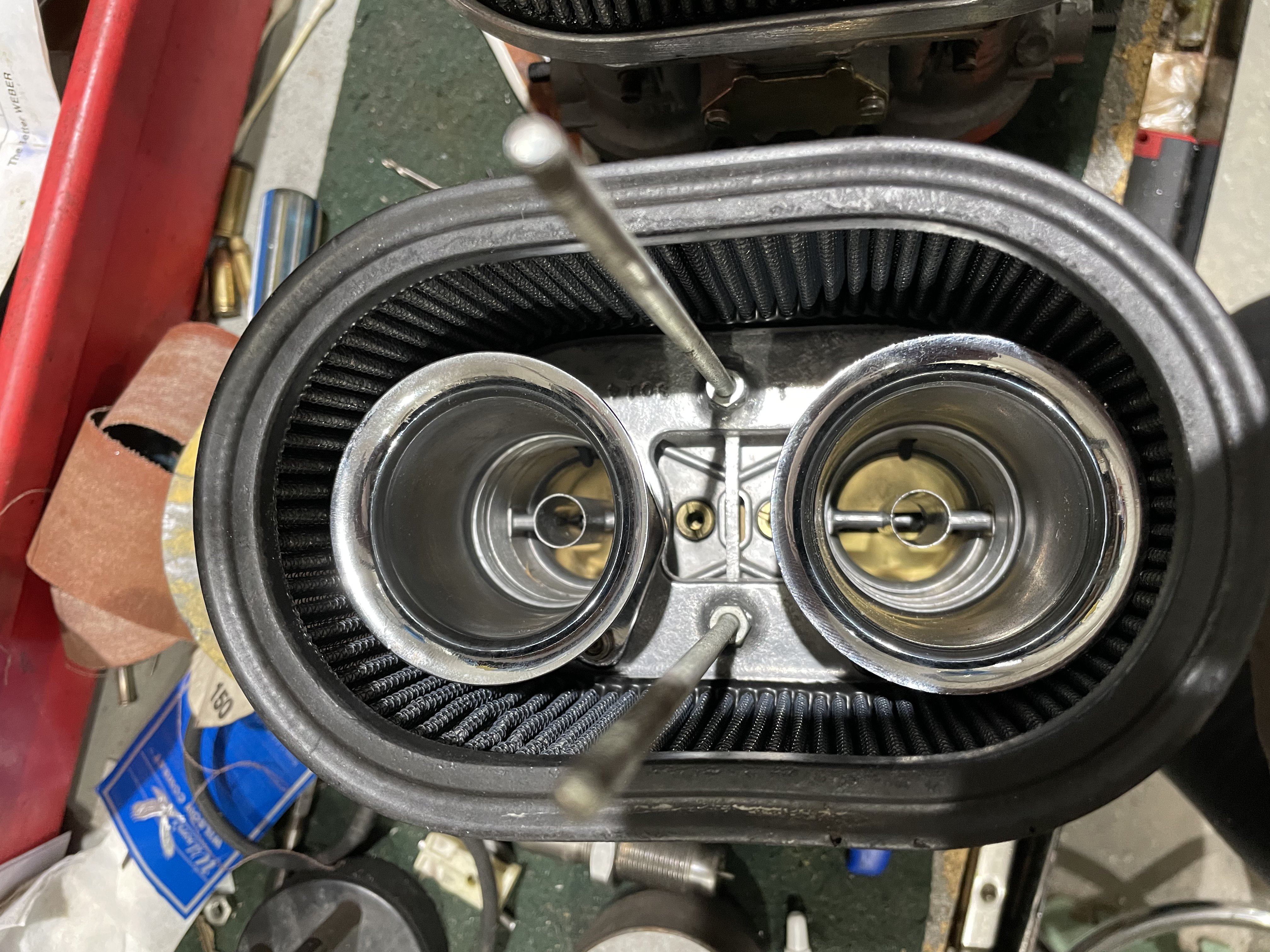

I user a top air cleaner plate from a 40 pdf/ 1/2 stacks built in and matched it to the cast base for the air cleaners to help smooth the transition of the air cleaners and Velocity stacks to the webber 44 bores.

I think this will due till I get to a Dyno one day

Maybe just a little more chamfer on the top before the Chrome stacks? I can do that....



Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 27 2021, 04:24 AM
Post #125


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Getting the blower and impeller installed
http://www.914world.com/bbs2/index.php?showtopic=354769

NOTE: install the tin on the oil cooler FIRST
before the impeller housing
I will place the 1/2 head tin in too by the alternator. Should be Easier that way? Lets find out...

I will record the fix when I redo mine (again)



https://www.youtube.com/watch?v=NElHuL89k_o
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 27 2021, 10:14 AM
Post #126


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
another pic of the head tins

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 27 2021, 01:48 PM
Post #127


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

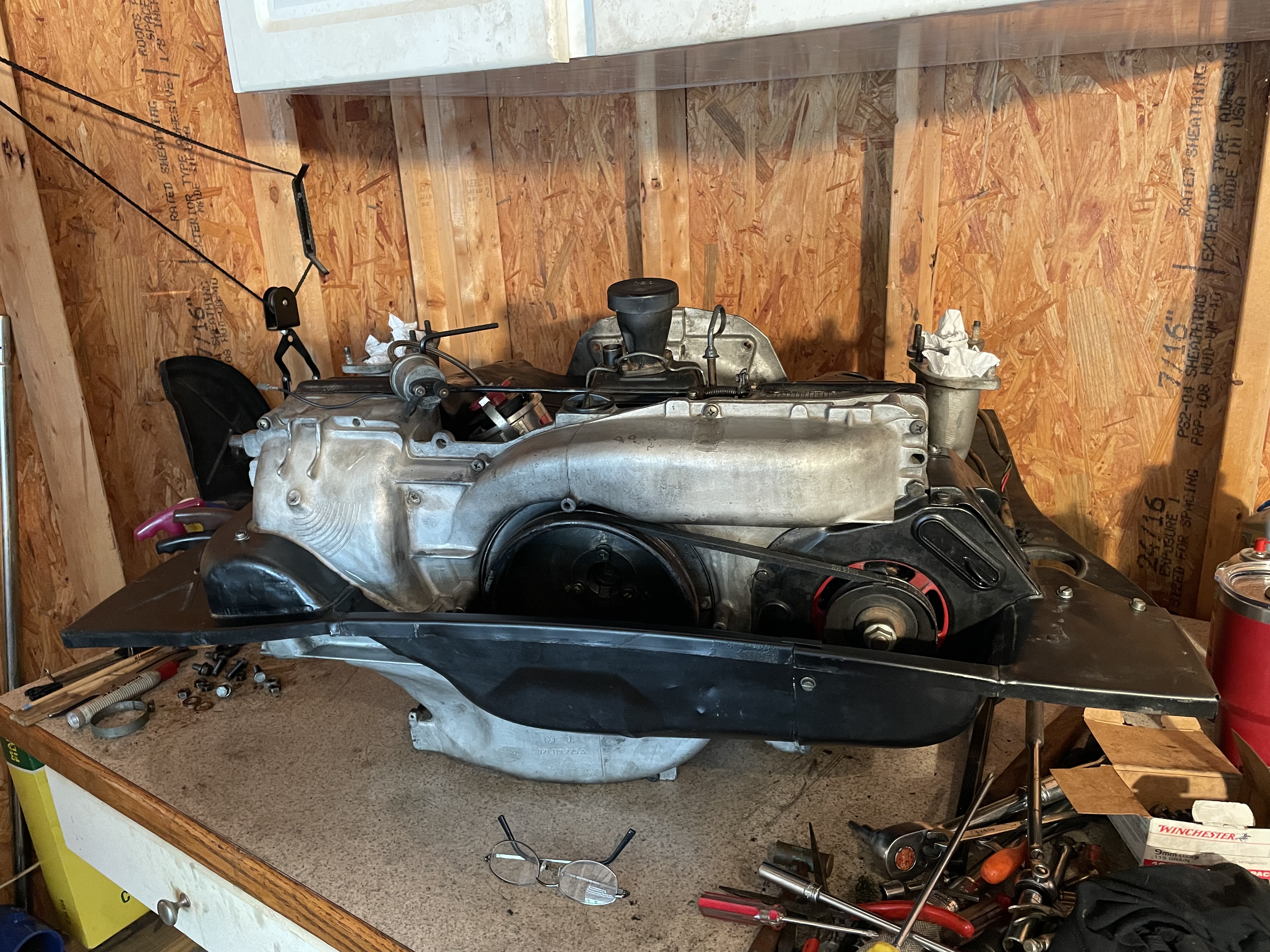

Added the alternator and the tins today
impeller blower torque to 14.5 ftlbs
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 28 2021, 04:47 PM
Post #128


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

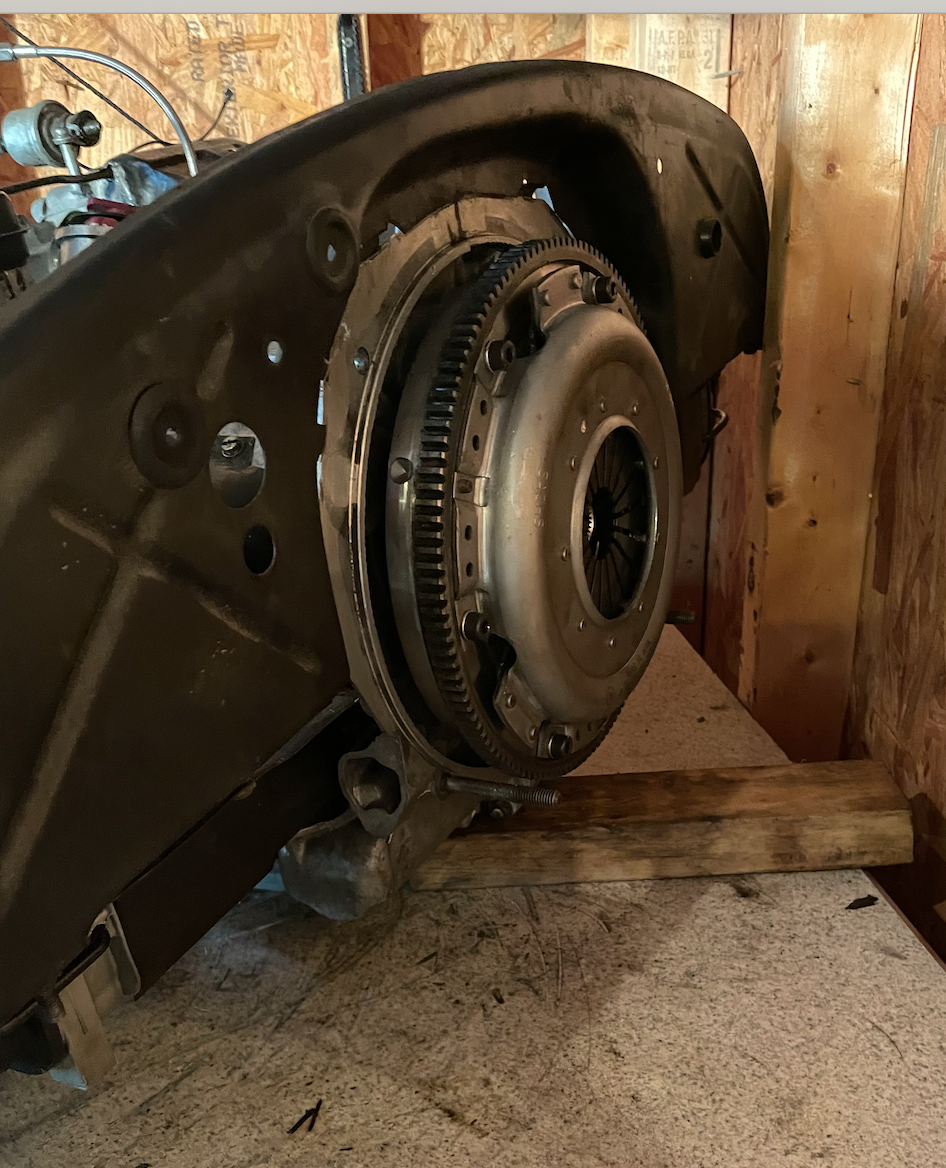

Today I added the Pressure plate/disk and torque the flywheel and lock plate with felt gasket and Flywheel oring and rear seal.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jul 29 2021, 04:59 AM
Post #129


Advanced Member
****

Group: Members
Posts: 3,800
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
Getting very close, what is your ETL?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 29 2021, 05:40 AM
Post #130


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
R&R next: 4 days/2 week ends

This week end I will remove the 2.0 Djet
Swap mounts and trans
Next week end install 2056
Crank and prime oil system
Add Carbs, linkages and exhaust
15 min break in.. VROOOOOM


I have a hand full of Cheese head screens on the way. Needed a few more and some were a little worn looking
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jul 29 2021, 06:22 AM
Post #131


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(rfinegan @ Jul 21 2021, 04:33 PM) *

Today I ordered my Tangerine 1 5/8 stub pipes for my Pete Weber Quiet HP Headers (early super headers). Will be here for fall cruise nights soon enough
http://www.tangerineracing.com/exhaustcomponents.htm
I am so looking forward to these!


Did you buy the header from me? is it a 4-2-1?
I sold a Pete Weber header, that was missing the stubs, to a chap in the USA 10-15 years ago. It should make good power.
Did you get it ceramic coated? Totally worth doing on that header.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 29 2021, 06:42 AM
Post #132


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
I purchased the Pete Weber 4-2-1 Quite horsepower header with no muffler from a guy in OH that was included with a pack deal he got with a race car(you never know )

I have a set a of stubs but they are small and cheep but are working well on the 2.0 Djet right now. I have a set of Tangerine Stubs to match the 1 5/8 Primaries in the works but will not be ready for initial start up
These came wrapped, So I am going to run them as is.

Ceramic may be in the future...we will see how she runs
I talked to Chris at CFR (tangerine racing)a few times about this set up and he says the primaries are a shorter then his street header. I am hoping to make some good mid range and Top HP ( I see a Dyno pulling my future)

Best Regards

-Robert


[

quote name='Mark Henry' date='Jul 29 2021, 04:22 AM' post='2934090']
[quote name='rfinegan' post='2932340' date='Jul 21 2021, 04:33 PM']
Today I ordered my Tangerine 1 5/8 stub pipes for my Pete Weber Quiet HP Headers (early super headers). Will be here for fall cruise nights soon enough
http://www.tangerineracing.com/exhaustcomponents.htm
I am so looking forward to these!
[/quote]

Did you buy the header from me? is it a 4-2-1?
I sold a Pete Weber header, that was missing the stubs, to a chap in the USA 10-15 years ago. It should make good power.
Did you get it ceramic coated? Totally worth doing on that header.
[/quote]
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Jul 29 2021, 06:44 AM
Post #133


Senior Member
***

Group: Members
Posts: 1,335
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
QUOTE(rfinegan @ Jul 29 2021, 07:40 AM) *

R&R next: 4 days/2 week ends

This week end I will remove the 2.0 Djet
Swap mounts and trans
Next week end install 2056
Crank and prime oil system
Add Carbs, linkages and exhaust
15 min break in.. VROOOOOM


I have a hand full of Cheese head screens on the way. Needed a few more and some were a little worn looking


Death to the cheese heads !! replaced all mine with SS socket hd screws, SO much easier to wrench.

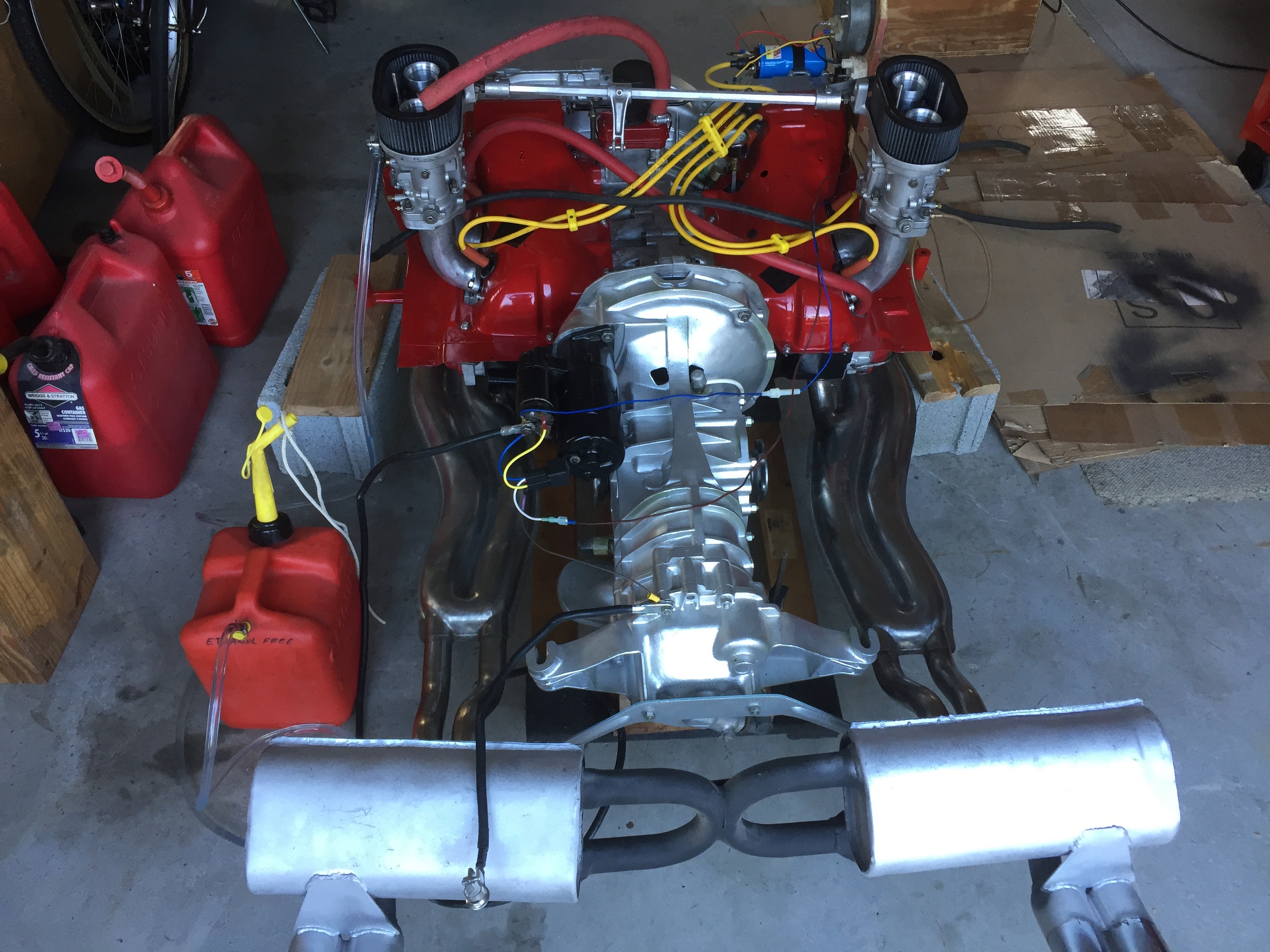

i found it MUCH easier to bench run the motor for access to carb/ timing adjustments for a cam break in cycle. Also mede it easy to re-adjust valves and re-torque heads & exhaust (which needed it)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 29 2021, 06:52 AM
Post #134


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Perhaps I will bench run it too...Good advice

Thanks
-Robert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Jul 29 2021, 09:46 AM
Post #135


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None
QUOTE(Mark Henry @ Jul 29 2021, 04:22 AM) *

Did you buy the header from me? is it a 4-2-1?
I sold a Pete Weber header, that was missing the stubs, to a chap in the USA 10-15 years ago. It should make good power.


Mark, I did a google search for Pete Weber header and your post on the Pelican board from 2002 came up. More like 20 years ago.

Attached is your photo and a link to the post.

http://forums.pelicanparts.com/porsche-914...uiet-power.html



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 29 2021, 02:24 PM
Post #136


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
mine did not have the O2 bung
With this set up the Thermostat MUST be Relocated. Any one have any tips retrofitting or moving the thermostat?

I will post a pic of the pipe location later. But its safe to say the header is right next to the case, where the thermostat mounts
Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 30 2021, 08:25 AM
Post #137


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
This sure does look NICE. Mine is clean, but no so much on the SHOW side

Nice work with the color tins too


QUOTE(barefoot @ Jul 29 2021, 04:44 AM) *

QUOTE(rfinegan @ Jul 29 2021, 07:40 AM) *

R&R next: 4 days/2 week ends

This week end I will remove the 2.0 Djet
Swap mounts and trans
Next week end install 2056
Crank and prime oil system
Add Carbs, linkages and exhaust
15 min break in.. VROOOOOM


I have a hand full of Cheese head screens on the way. Needed a few more and some were a little worn looking


Death to the cheese heads !! replaced all mine with SS socket hd screws, SO much easier to wrench.
i found it MUCH easier to bench run the motor for access to carb/ timing adjustments for a cam break in cycle. Also mede it easy to re-adjust valves and re-torque heads & exhaust (which needed it)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 30 2021, 11:45 AM
Post #138


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
Feeling a little under the weather today, but my cheese screws arrived for the tins, and I have a min or two to install the intakes and Webers 44 IDFs before I start to drop the 2.0 Djet in the AM...


https://www.youtube.com/watch?v=aq9rckBCBGM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 31 2021, 05:39 PM
Post #139


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

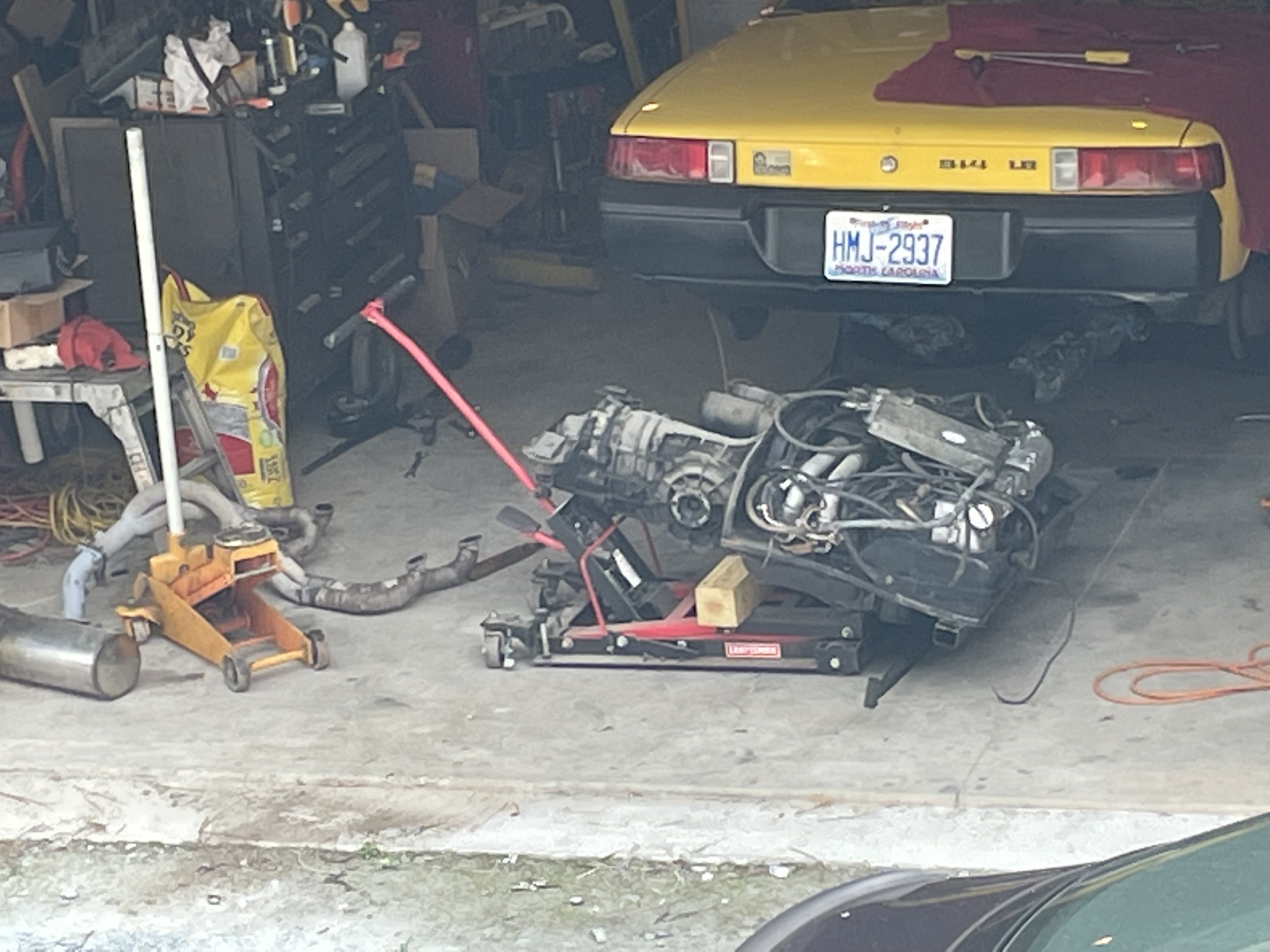

Made some R&R progress today...

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Jul 31 2021, 06:08 PM
Post #140


Senior Member
***

Group: Members
Posts: 1,042
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region

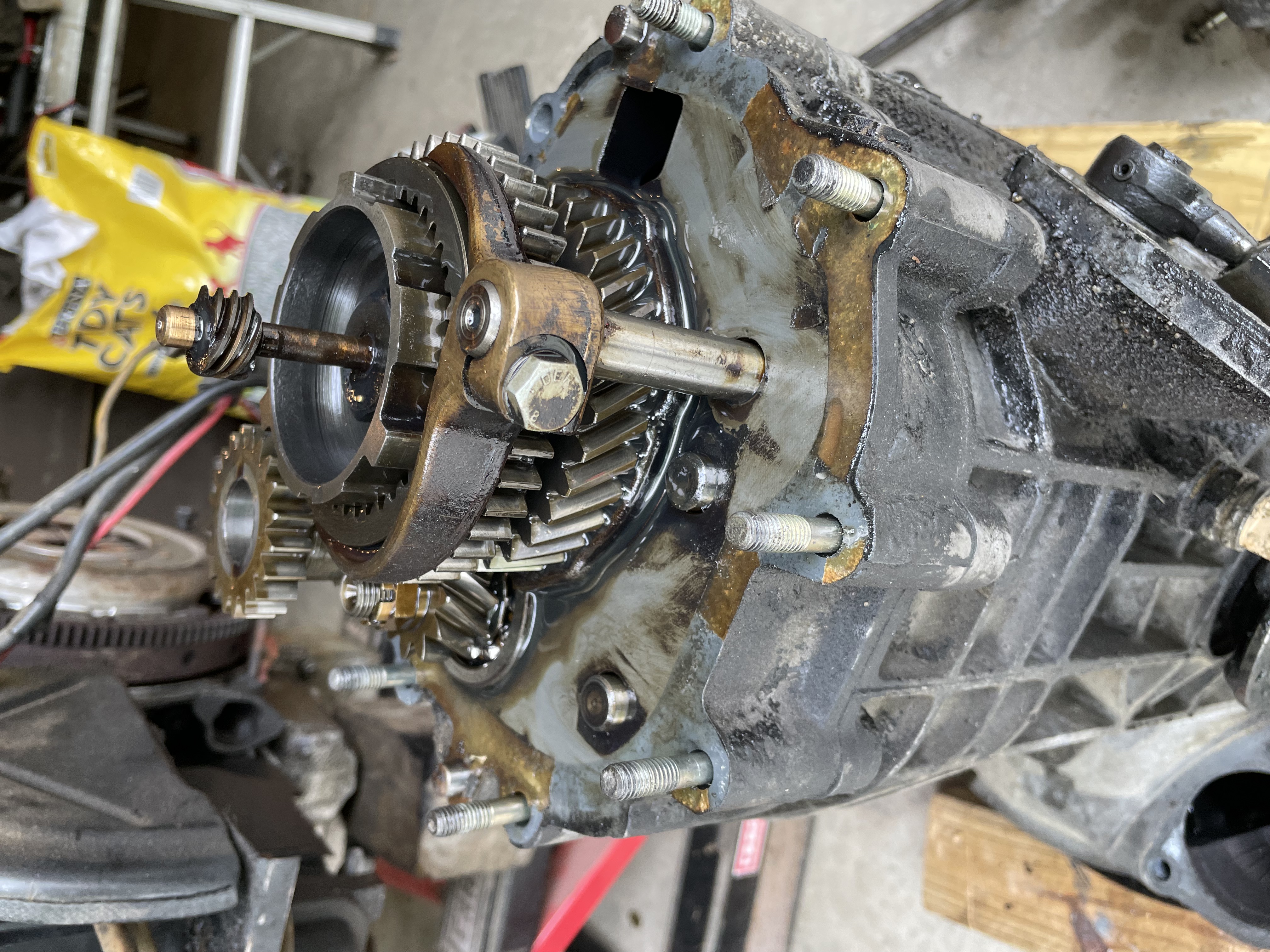

Got to reach out to the Doc for my 901 trans issues


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
