> Headlights in turn buckets, I got my lights and fit them in!
Krieger
post Jul 17 2012, 09:01 PM
Post #21


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

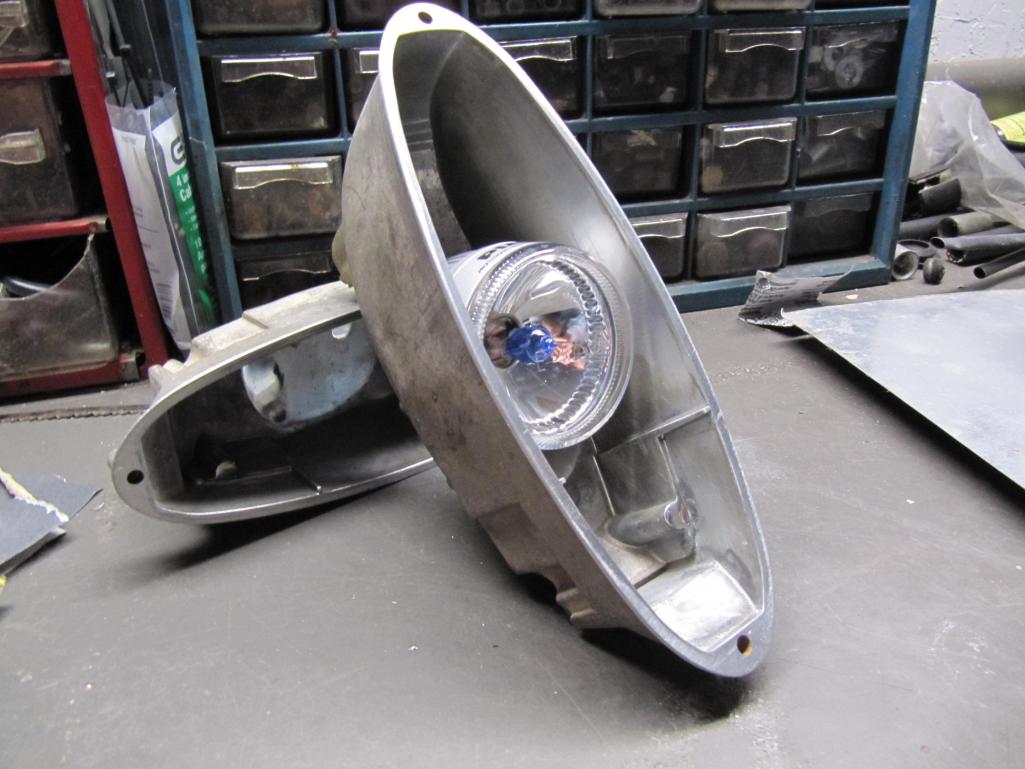

I ground down the back side just enough so that it barely sticks out past the horizontal plane of the outside of the bucket. Yes flat lexan will be coming my way. They are snug in there.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 17 2012, 09:18 PM
Post #22


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

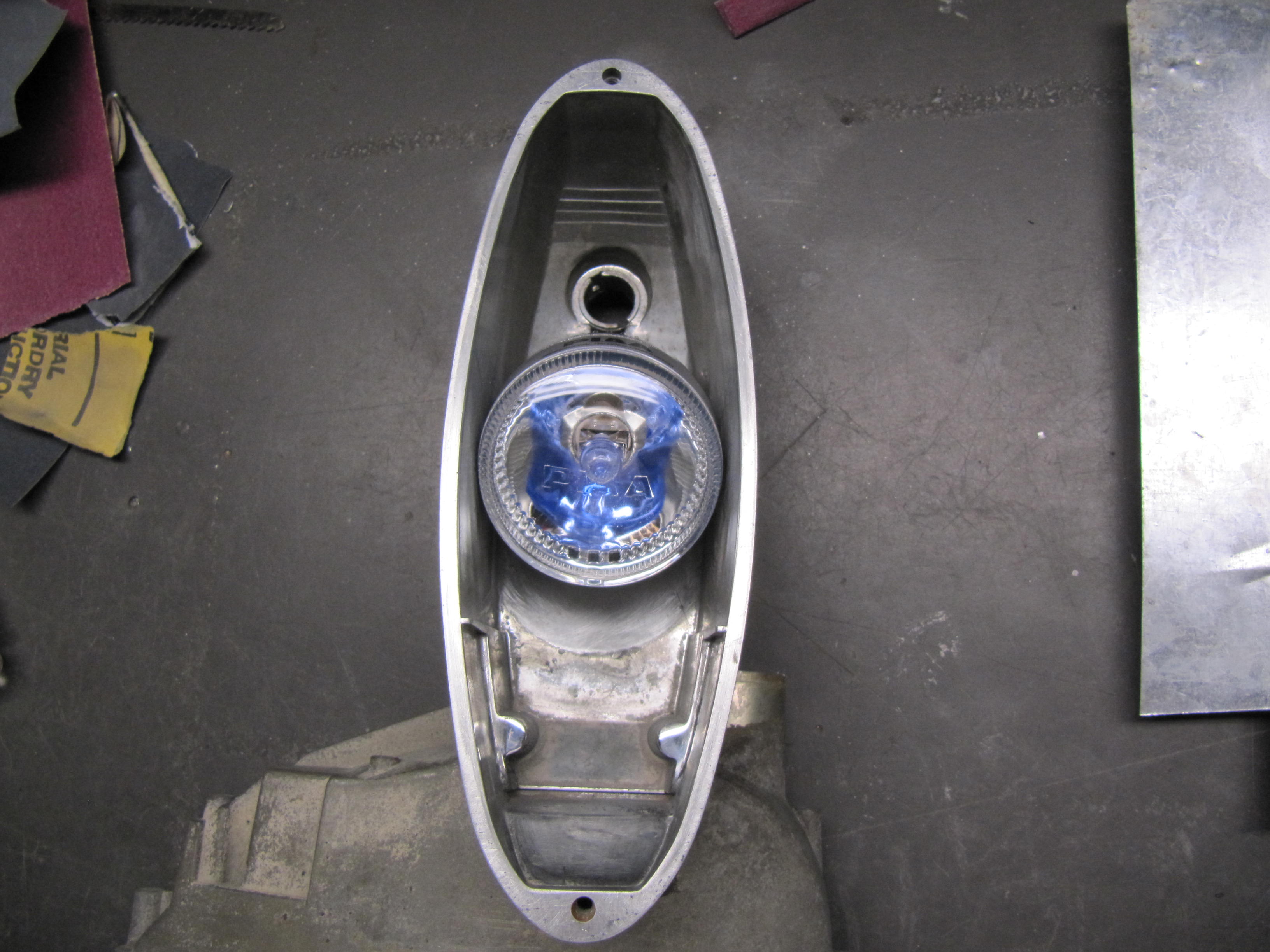

I was planning on running one of those yellow bulbs for a running/turn light. I was thinking for "headlight" adjustment another small hole on the bottom of the bucket directly below the new lights housing. One long screw coming in from outside the bucket housing and a couple of small screws on the "light" housing....or just point them where I want them (by hand with the lexan cover off) and squirt some seam sealer under the light to hold them. Probably good enough for a track car!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
edwin
post Jul 18 2012, 08:31 AM
Post #23


Member
**

Group: Members
Posts: 321
Joined: 20-May 09
From: Australia
Member No.: 10,384
Region Association: Australia and New Zealand
What do you plan to do for indicators? Still as normal?
I wouldn't want to intrude much into the space they occupy on a road car
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 18 2012, 10:38 AM
Post #24


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Cool! Looks like it's coming together.

Before you put a bunch of work into forming Lexan covers, I'd place a piece over the top and leave the light on for an hour or so to confirm that the heat production of the lamp doesn't damage the lexan. You may want to add some 'breather' holes on the top and bottom.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimsfolly
post Jul 18 2012, 12:57 PM
Post #25


Newbie
*

Group: Members
Posts: 17
Joined: 15-June 08
From: Renton, WA
Member No.: 9,174
Region Association: None
QUOTE(Krieger @ Jul 17 2012, 08:18 PM) *

I was planning on running one of those yellow bulbs for a running/turn light. I was thinking for "headlight" adjustment another small hole on the bottom of the bucket directly below the new lights housing. One long screw coming in from outside the bucket housing and a couple of small screws on the "light" housing....or just point them where I want them (by hand with the lexan cover off) and squirt some seam sealer under the light to hold them. Probably good enough for a track car!

http://www.ebay.com/itm/LED-MINI-STALK-MOT...09938%26ps%3D54

how about something like this for the turn signals? maybe remove/modify the housing to allow the lens to be jammed up near the top edge...

how are you going to shape the lexan? I've been looking into using a pair of 60mm Hella Hi/Lo projectors in the buckets, modifying the lift to halfway, but I'd rather go with the turn signal mounting location instead... keep us updated..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 18 2012, 07:01 PM
Post #26


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Thanks Mark. Its good to be almost done. I think I am going to stick with flat pieces of Lexan for now. That is some good advice to see if this stuff melts. I asked the techs at PIAA how hot these lights will be. Of course the bulb burns at something like 4000 kelvin. The best I could get from these guys is under 200* F. Most people mount them 1/2" below a plastic bumper with no issues. I plan on using the stock location for turn indicators, but with yellow bulbs. I was at Napa auto parts and I saw some that looked correct.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Aug 2 2012, 01:00 PM
Post #27


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,858
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Any updates? (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 08:23 PM
Post #28


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

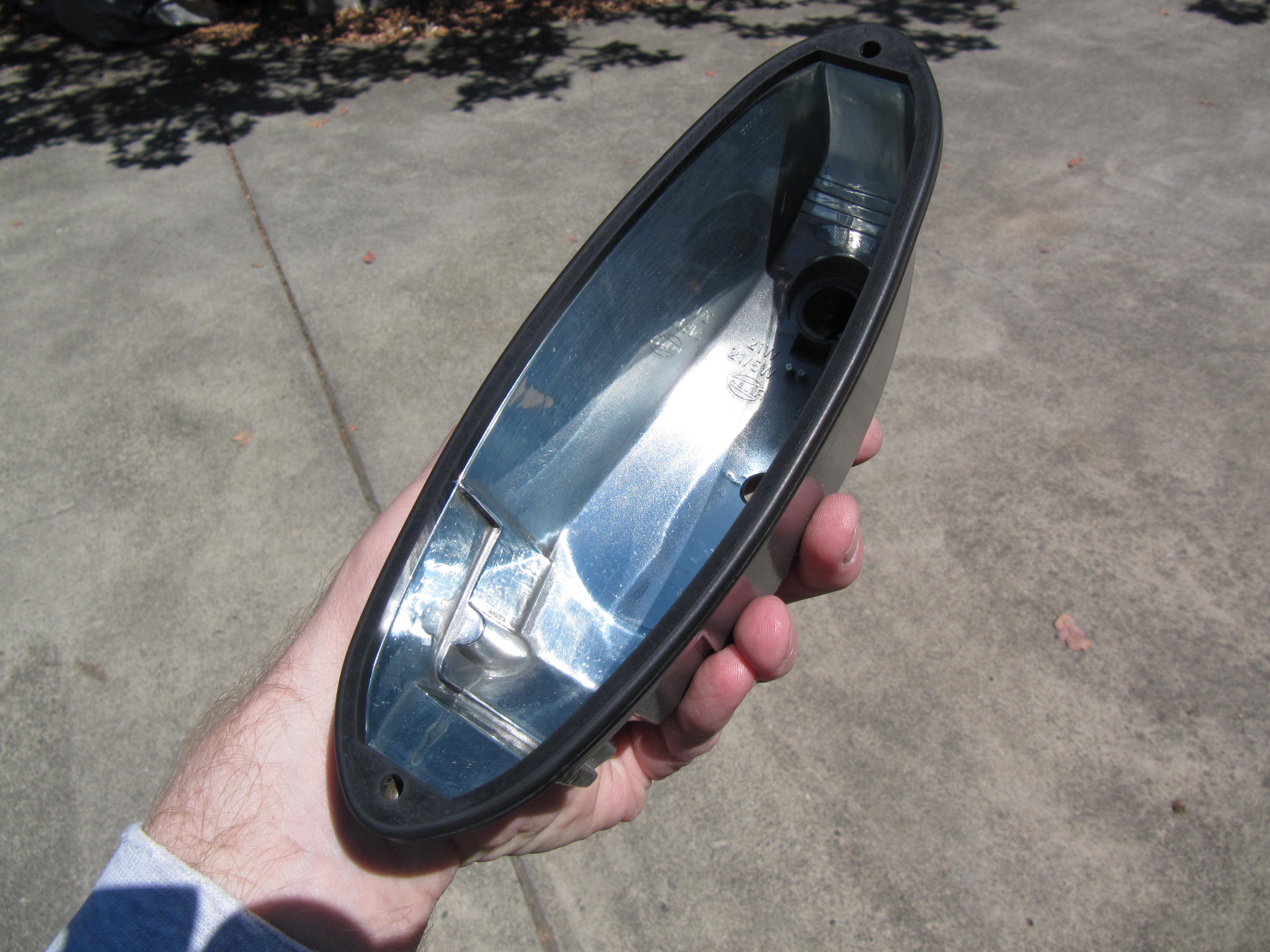

This has been done for a while. Buckets polished out and clear coated with a POR 15 Glisten PC clearcoat.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 08:31 PM
Post #29


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

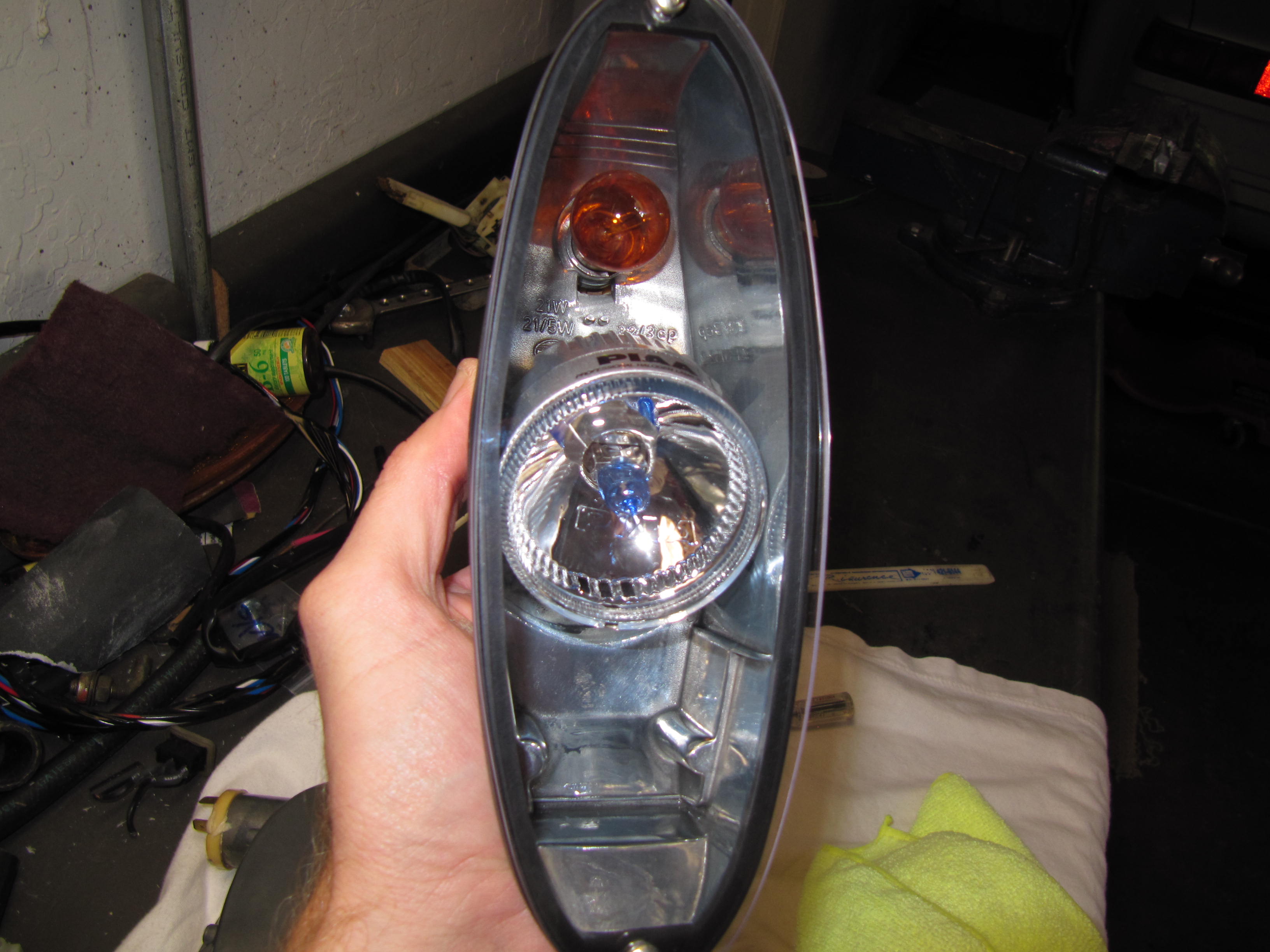

The headlight is snug in there. If I wanted it to adjust I could drill a hole through both housings with a long screw from outside and two nuts on the lens assembly. NAPA autoparts orange bulb.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 08:33 PM
Post #30


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

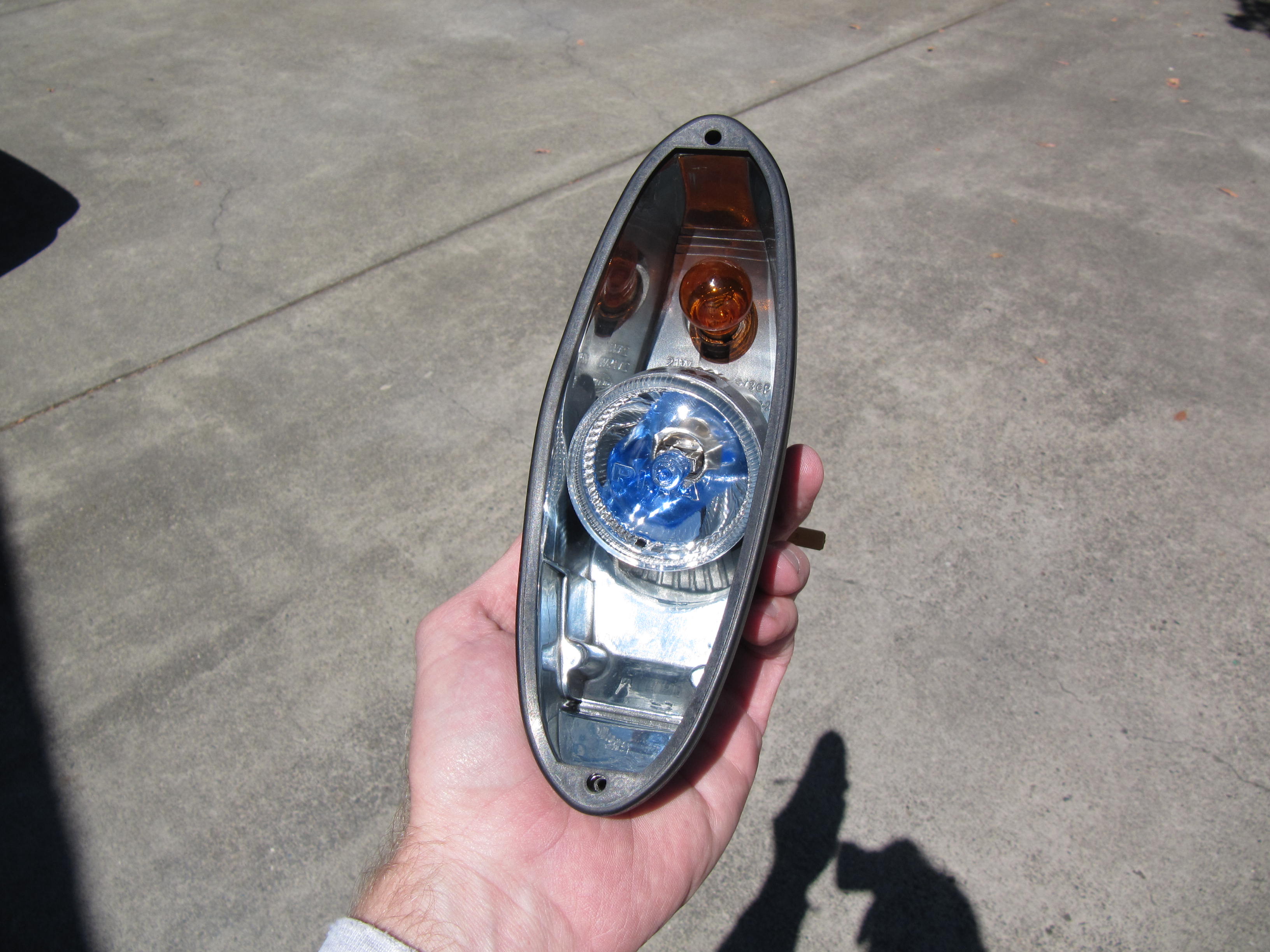

Flat Lexan cover, cut on band saw. Belt and hand sanded for final shape. One of AA repro seal. It's a nice fit and reasonably priced, just like the repro rubber elbo for the backside.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 08:41 PM
Post #31


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Oops double post. (IMG:style_emoticons/default/beer3.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 08:44 PM
Post #32


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

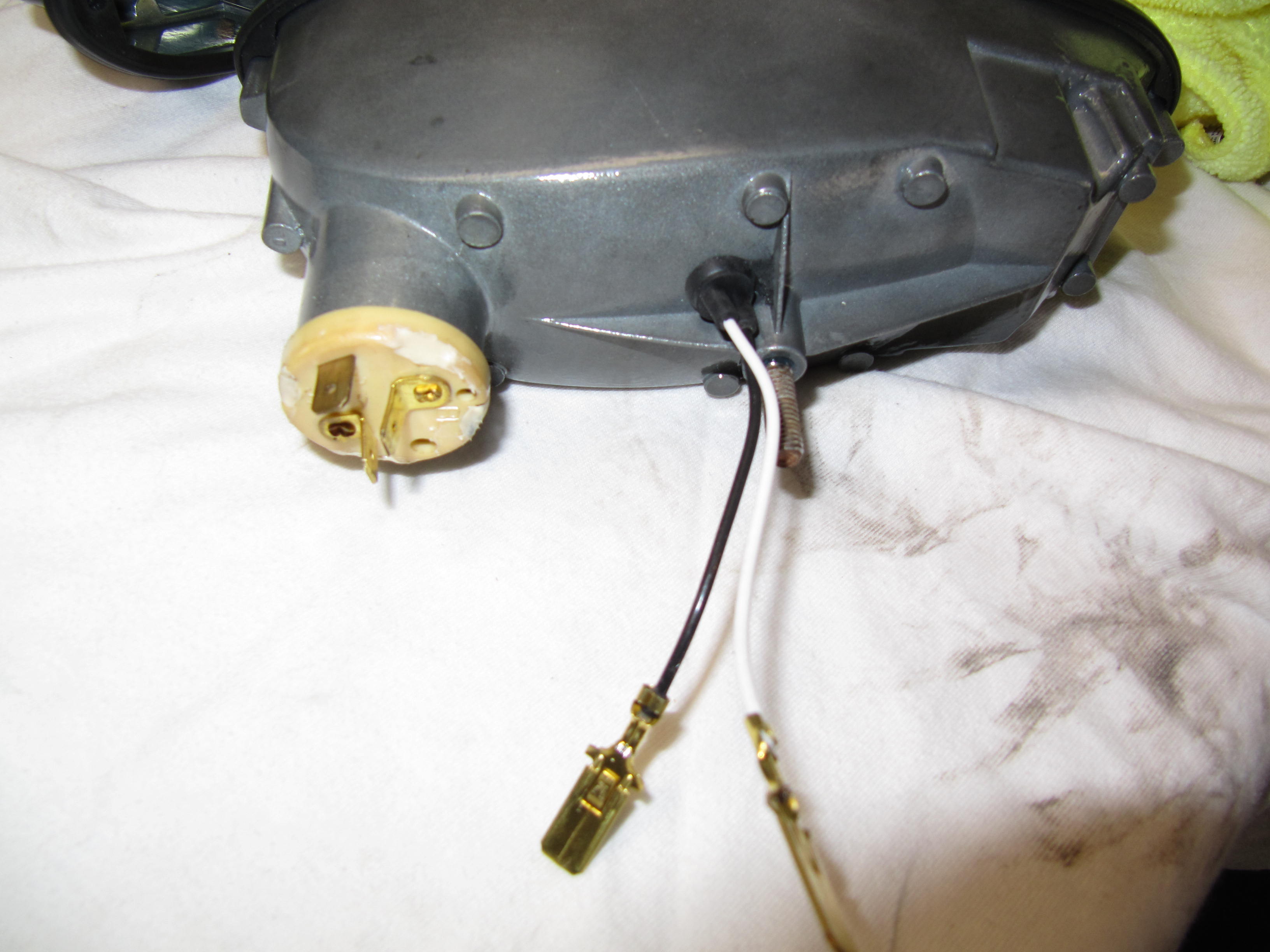

I used the rubber grommet from the PIAA lights on the back of the turn bucket. I glued the electric covers back on with 3M seam sealer.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 08:45 PM
Post #33


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

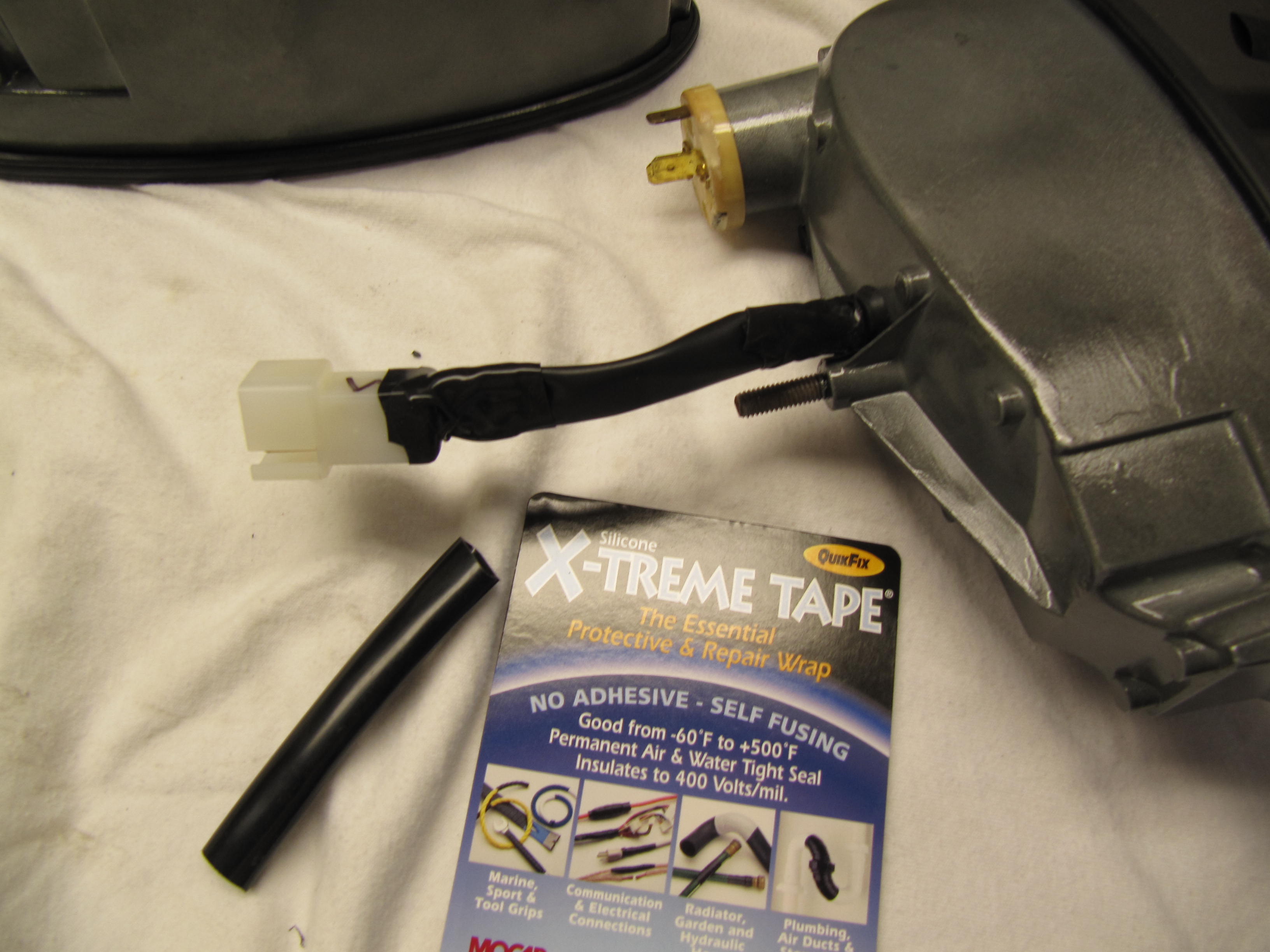

I put some of the original PIAA plastic tubing and plug back on the wire ends and wrapped it with silicon tape.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 09:01 PM
Post #34


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None

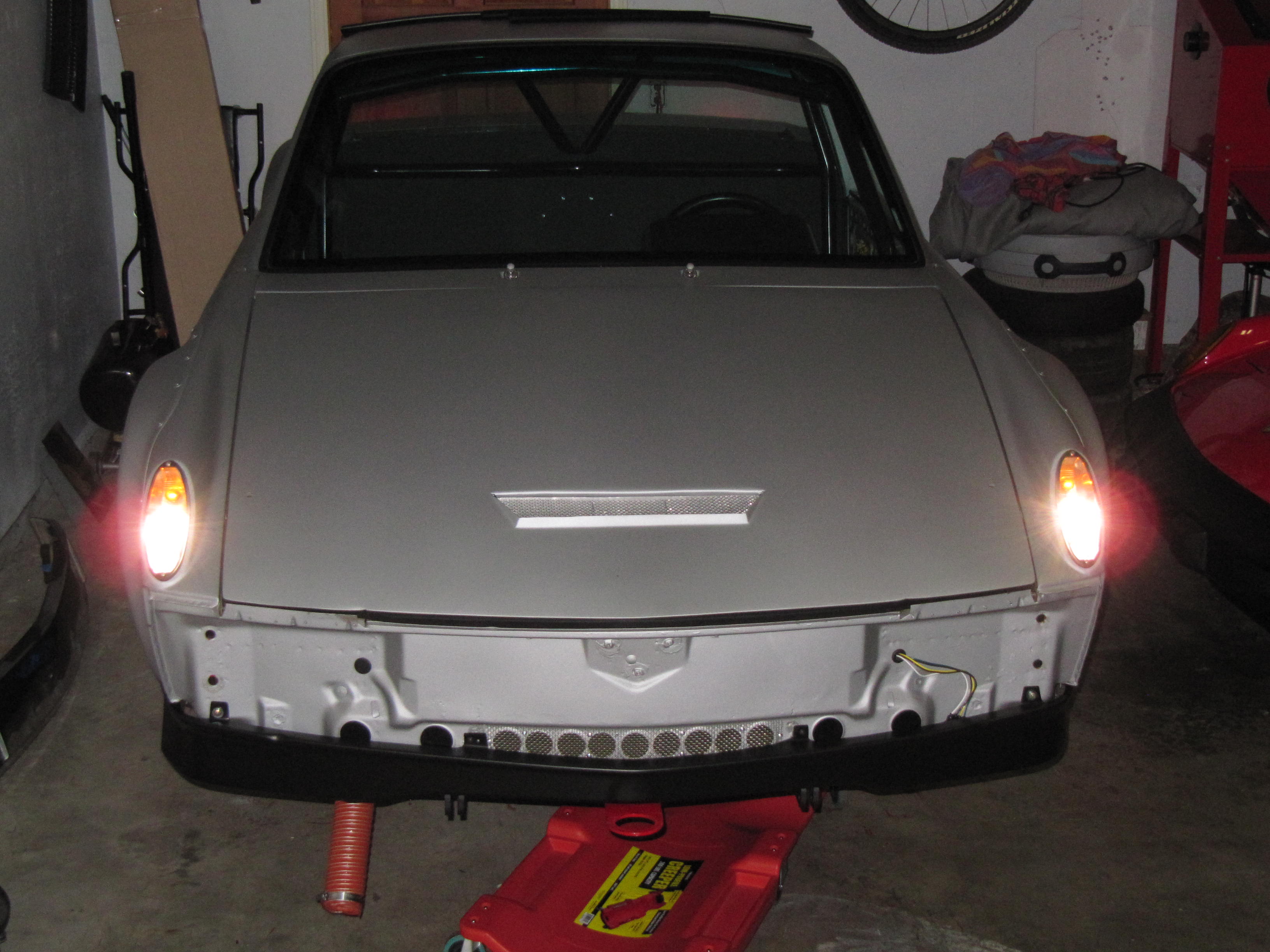

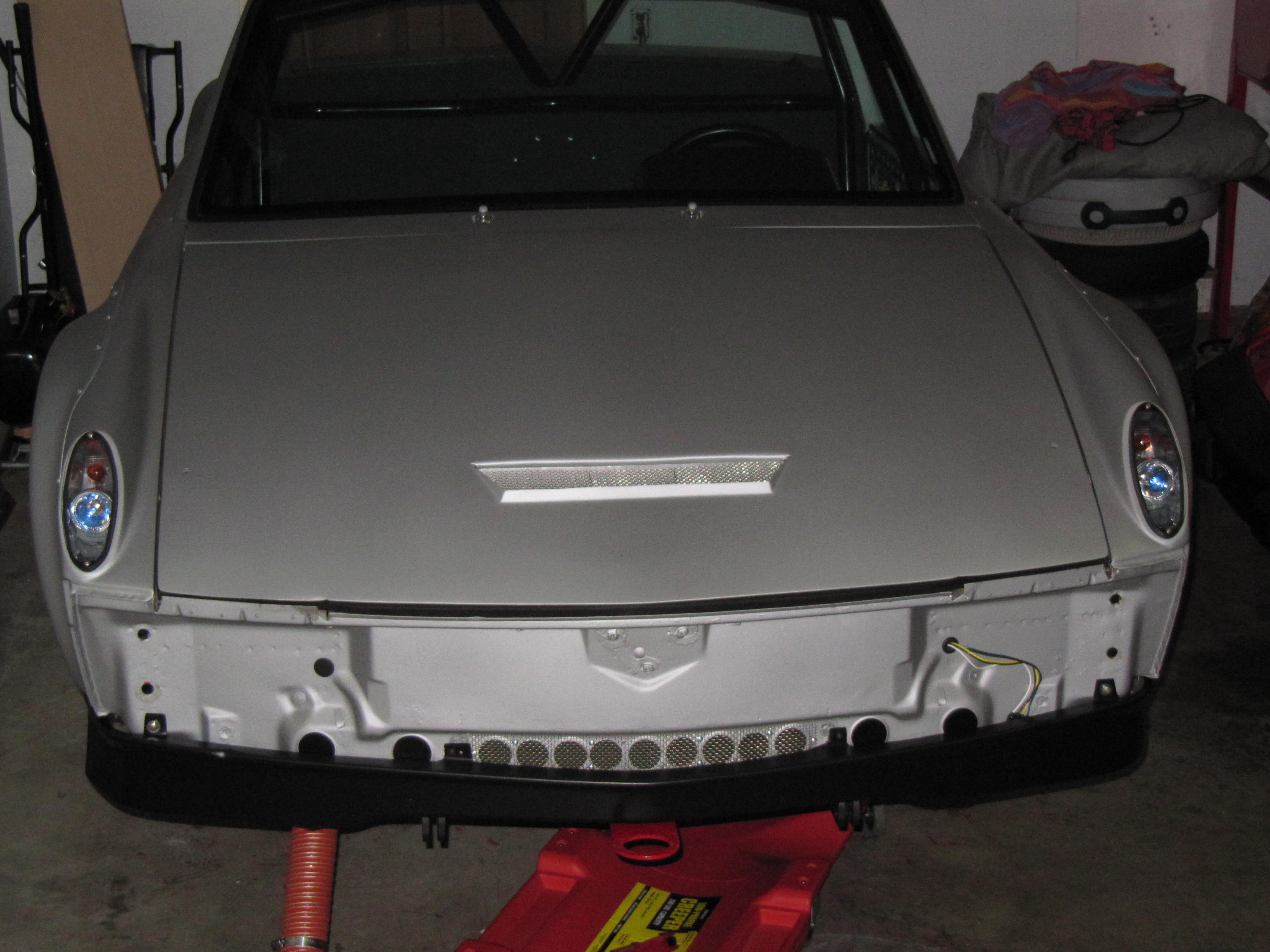

The front!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 09:02 PM
Post #35


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Look out!! (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Nov 29 2012, 09:07 PM
Post #36


Resident Electrician
*****

Group: Members
Posts: 8,346
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Are the lights bolted or just wedged into the housing? A few miles down the road they may be pointing at the sky... (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 09:18 PM
Post #37


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
They couldn't go very far they would hit the outer cover. I do not plan on driving this at night.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Nov 29 2012, 09:24 PM
Post #38


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
Wait, what?
Q. Are they bolted in or just wedged into the housing?
A. They couldn't go very far they would hit the outer cover. I do not plan on driving this at night.

I guess I missed the point. How are they mounted / adjusted?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 29 2012, 09:39 PM
Post #39


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
You need lights to legally drive on the road. I meet that requirement. I mentioned in a previous post that with a little more work they could be made to adjust with a long thin screw through both housings and a nut on either side of the PIAA. I got tired of this project and it is enough for now and can be revisited later.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Nov 30 2012, 02:21 PM
Post #40


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Vent the lamp housing with a 1/16th inch hole at the lower rear of the bucket. It will keep the lexan lense from leaking and heat crazing.
