> Interesting find, Acquired a five lug setup today
rhodyguy
post Feb 15 2009, 04:53 PM
Post #21


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,193
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
nice score.

you should have known better craig. what are ya? NEW!!? i'll be surpised if the other parts will be avail.

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 15 2009, 05:05 PM
Post #22


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Something on those stub axles doesn't look factory. The nubs to be more specific. I could be wrong...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 15 2009, 05:52 PM
Post #23


914 Wizard
**********

Group: Members
Posts: 10,681
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
could they be 108 ?

this more interesting than the Dationa 500
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zig-n-zag
post Feb 15 2009, 06:56 PM
Post #24


Member
**

Group: Members
Posts: 185
Joined: 18-May 06
From: Hawaii
Member No.: 6,024
The mittlemotor stubs I sold, seemed to have a thicker flange where it
mates with the cv joint, that was my impression of them.

They also could be 911 pieces added to the trailing arms, if not real /6.

Well bought!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 15 2009, 09:07 PM
Post #25


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
QUOTE(Eric_Shea @ Feb 15 2009, 03:05 PM) *

Something on those stub axles doesn't look factory. The nubs to be more specific. I could be wrong...


Perhaps this solves one of the greatest Porsche mysteries ever... what really happened to the special pair of prototype stub axles meant for Ferdinand Porsche's 914-8. 38 years later, it is a mystery no more...

There are no markings on them. I haven't yet taken them off the CVs, won't be able to do that until next weekend. I'm using a picture of 914/6 stubs from Pelican parts (attached) for comparison.


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 15 2009, 10:41 PM
Post #26


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains

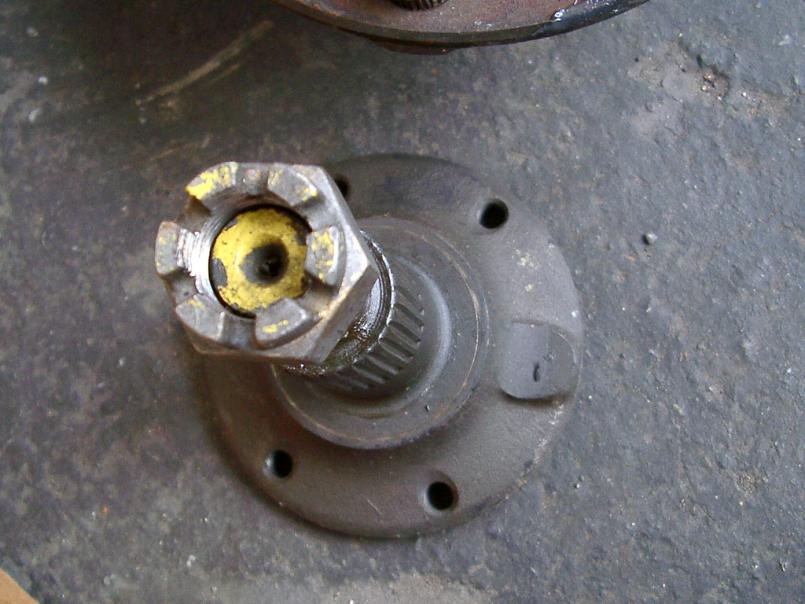

Here's a picture Andy posted in Reid's thread:

(IMG:http://www.914world.com/bbs2/uploads/post-179-1232575175_thumb.jpg)

Looks like they could be the real deal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Feb 16 2009, 12:34 AM
Post #27


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
Excellent! Nice find Bryan (IMG:style_emoticons/default/piratenanner.gif)

I wonder on the set as I bought & sold a 75 I think years ago. It had a complete 5-lug setup on it. I wonder if you could special order one that way. The car was pretty unimpressive besides. I wouldn't have thought someone made the swap (IMG:style_emoticons/default/confused24.gif) . I know the car made the rounds as I sold it to Craig who later sold it to someone up in Portland. Guy told me they were real 6 rears on it? Car was a 75 though? One o fthe cars I sold I should have hung onto (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 16 2009, 09:57 AM
Post #28


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
I wonder if you could special order one that way.


Not that I know of.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lavanaut
post Feb 16 2009, 12:35 PM
Post #29


Hungry Mind : Thirsty Gullet
***

Group: Members
Posts: 916
Joined: 20-June 06
From: Bend, OR
Member No.: 6,265
Region Association: Pacific Northwest
QUOTE(MrKona @ Feb 15 2009, 11:47 AM) *

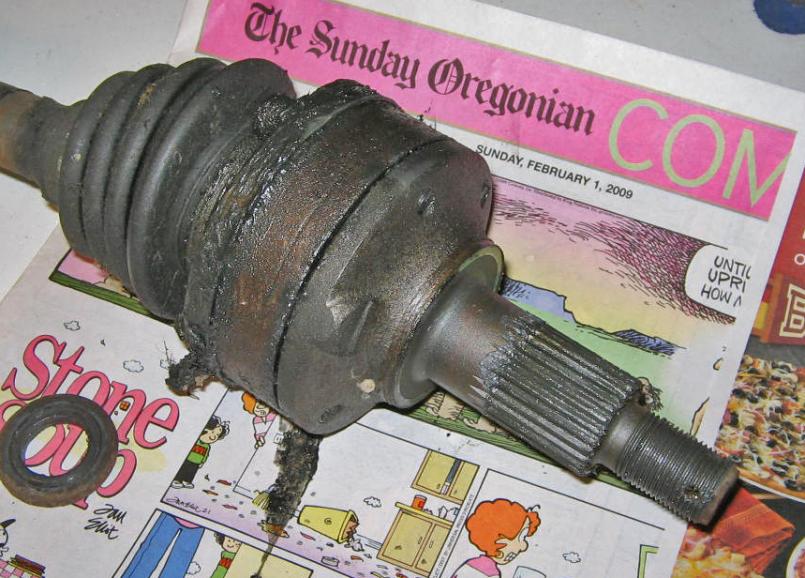

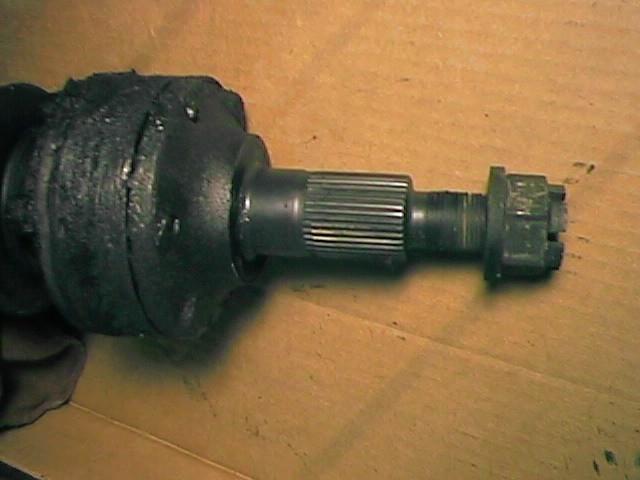

I tapped the stub axle and out came.... what I believe is a 914/6 stub axle! 28 splines, sure looks like one, but I've only seen them in pictures! Can anyone confirm?

28 splines, yep, you're golden! Nice find. Looks like those things have taken some abuse, I wonder if this is cause for concern? "I" wonder, others here will just know. (IMG:style_emoticons/default/biggrin.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:18 AM
Post #30


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
QUOTE(Lavanaut @ Feb 16 2009, 10:35 AM) *

QUOTE(MrKona @ Feb 15 2009, 11:47 AM) *

I tapped the stub axle and out came.... what I believe is a 914/6 stub axle! 28 splines, sure looks like one, but I've only seen them in pictures! Can anyone confirm?

28 splines, yep, you're golden! Nice find. Looks like those things have taken some abuse, I wonder if this is cause for concern? "I" wonder, others here will just know. (IMG:style_emoticons/default/biggrin.gif)

Attached Image


I don't think so... the grooves are equal on both stubs and and look like they're "supposed" to be there. Strange though, as they are absent in the pictures of other 914/6 stubs... I noticed that too... (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:22 AM
Post #31


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

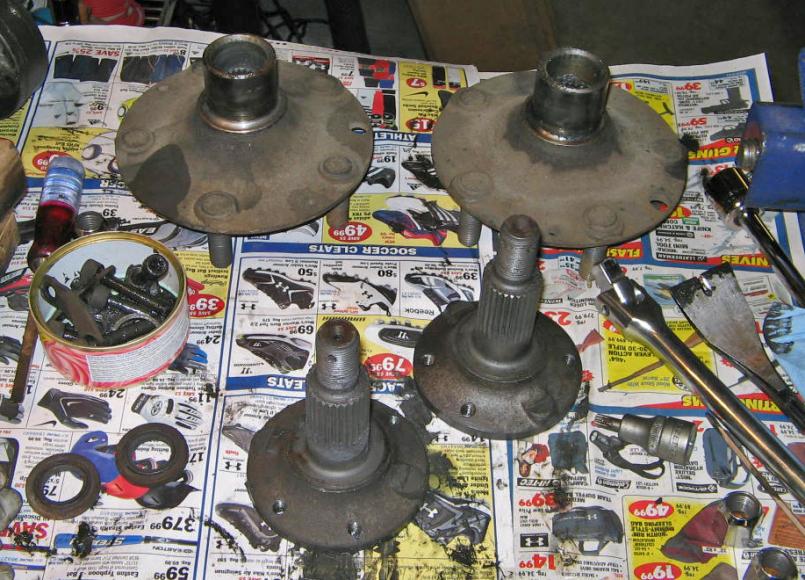

I've begun to disassemble the rear trailing arms. I drove out the hubs with a metal pipe and hammer, and then removed the stubs from the CVs. I had to figure out how to hold the axles to loosen the CV bolts with the axles removed from the car. I ended up bolting the already removed hubs to the disks, then clamping the disks in a vice, then fitting the stub inside the hub, which worked just fine.

All I can say is what a dirty, greasy, disgusting mess this is.



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:24 AM
Post #32


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

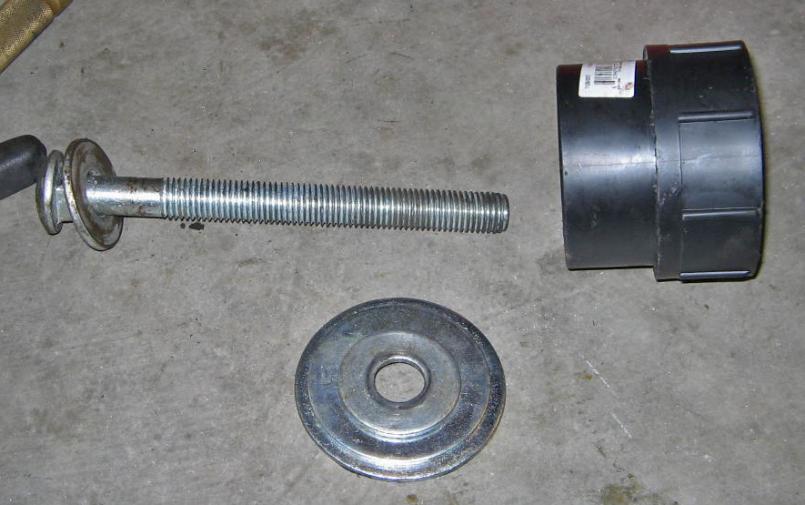

Tonight I removed the bearings from the trailing arms. In order to do this atraumatically, I made a homemade bearing puller for about $10 and a trip to Ace Hardware.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:26 AM
Post #33


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

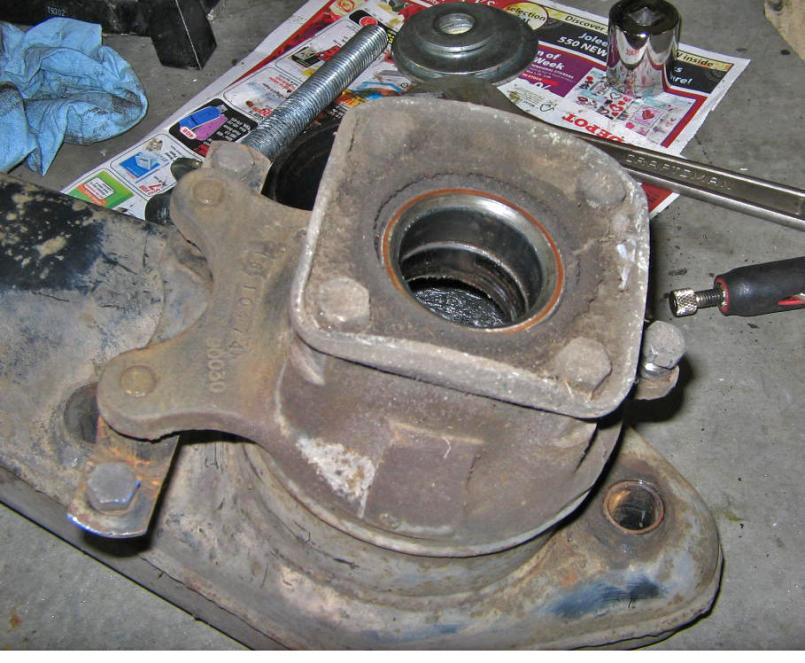

Bearing cap and removal... Did I mention what a dirty mess this is?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:27 AM
Post #34


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

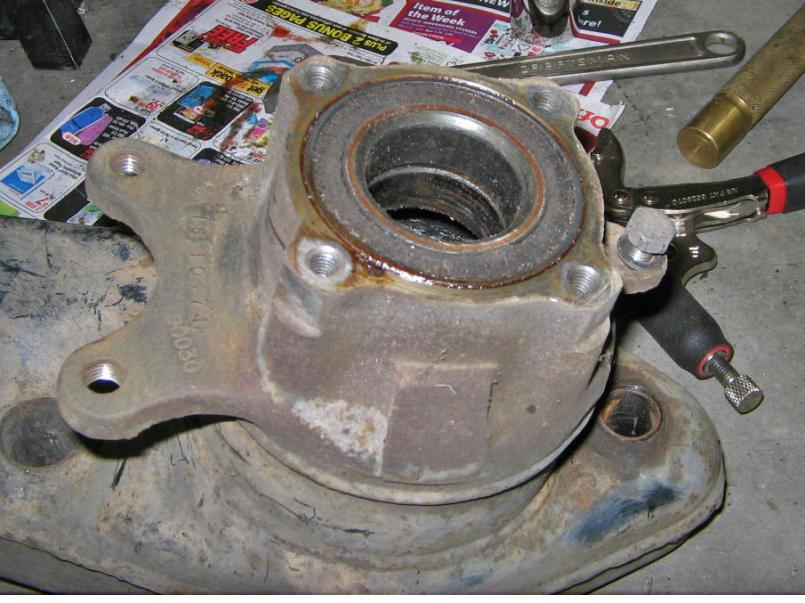

Bearing cap removed..


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:28 AM
Post #35


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

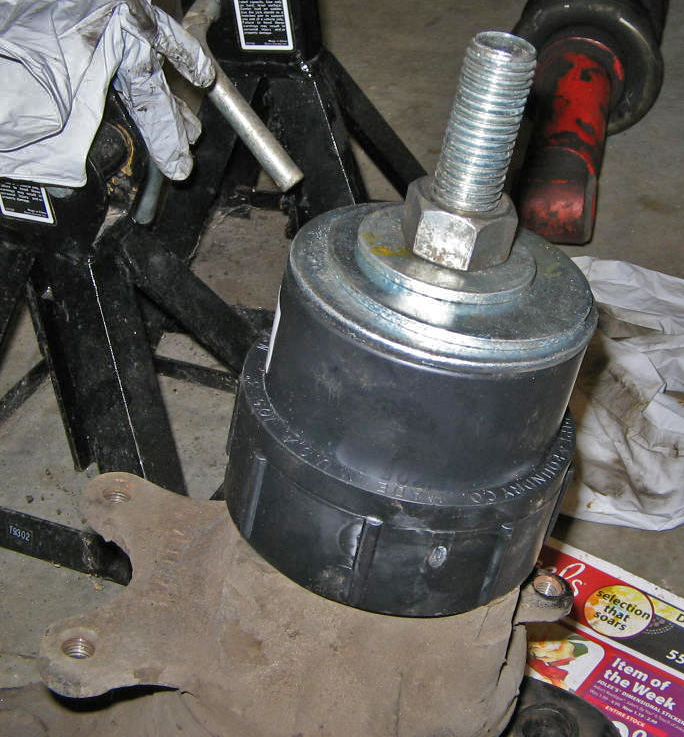

My homemade tool in action!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:30 AM
Post #36


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

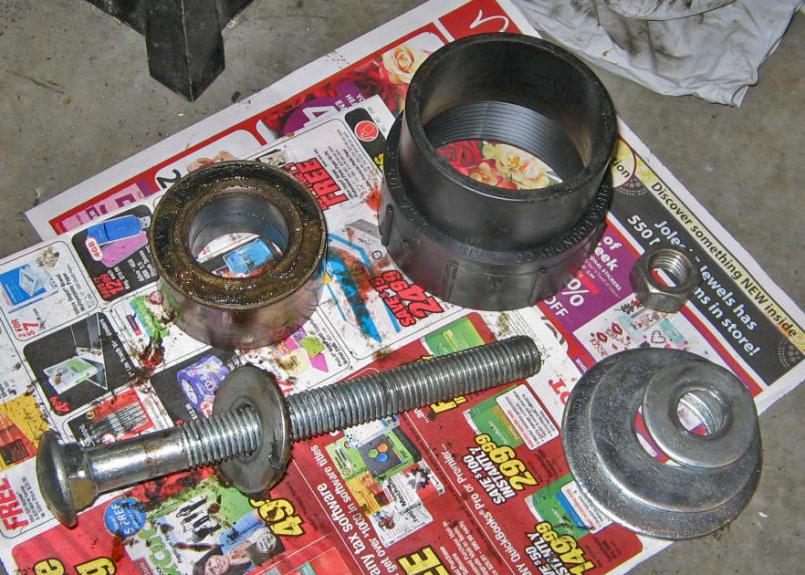

And the result! Held the big bolt with a Vice Grip, turned the nut, and the bearing came out like buttah!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:31 AM
Post #37


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

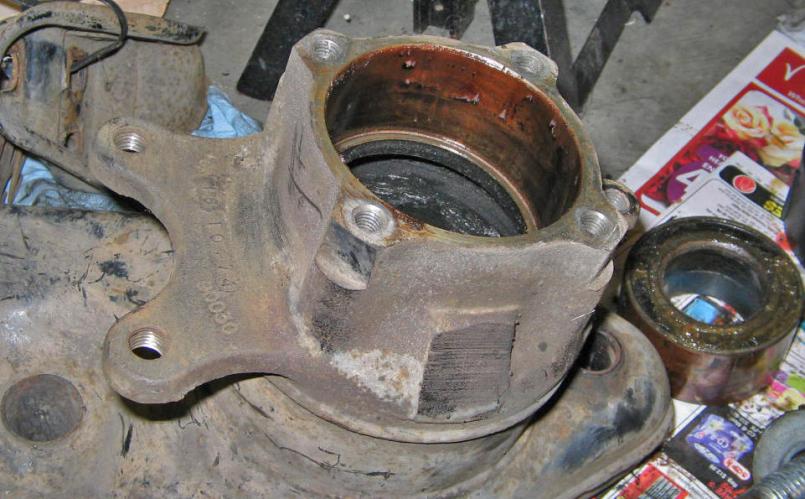

Bearing removed...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 21 2009, 12:36 AM
Post #38


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

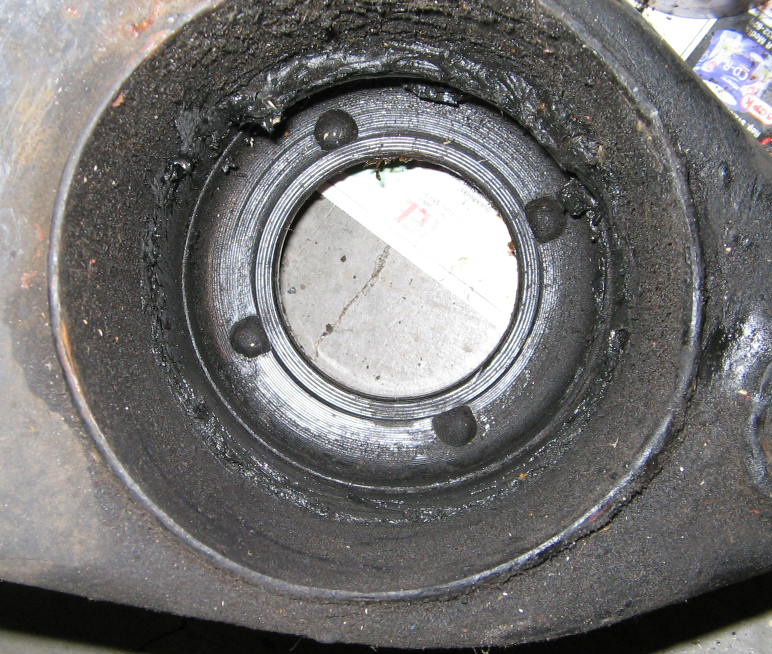

Question... the inside of the trailing arm looks as though it has a plastic sleeve in there... am I seeing this correctly? The reason I ask is that I was planning on bringing both trailing arms to the local metal cleaner and have the grease and grime taken care of before I have them powdercoated. However, if these are dipped, the plastic will melt. Anyone know for sure? There's just too much grease in there still for me to get a good look.

I also need to call my local powdercoater and ask him how dirty a piece he'll accept. I know media blasting can clean parts up, but these are really dirty...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Feb 21 2009, 08:53 AM
Post #39


Mike Ginter
***************

Group: Admin
Posts: 16,095
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
QUOTE(MrKona @ Feb 20 2009, 11:36 PM) *

Question... the inside of the trailing arm looks as though it has a plastic sleeve in there... am I seeing this correctly? The reason I ask is that I was planning on bringing both trailing arms to the local metal cleaner and have the grease and grime taken care of before I have them powdercoated. However, if these are dipped, the plastic will melt. Anyone know for sure? There's just too much grease in there still for me to get a good look.

I also need to call my local powdercoater and ask him how dirty a piece he'll accept. I know media blasting can clean parts up, but these are really dirty...

There is no plastic in there. Just grease... and dirt.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kconway
post Feb 21 2009, 09:07 AM
Post #40


Senior Member
***

Group: Members
Posts: 1,347
Joined: 6-December 04
From: Monrovia, CA
Member No.: 3,231
Region Association: Southern California
Did all of the bearing come out? Isn't there suppose to be a cover over the balls?
