> Nuts and Bolts, Sourcing the right hardware.
mlindner
post Jan 10 2021, 05:52 AM
Post #21


Senior Member
***

Group: Members
Posts: 1,594
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
Yup, Belmetric and also McMaster.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jan 10 2021, 07:24 AM
Post #22


914-6 GT in waiting
***************

Group: Members
Posts: 19,671
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(iankarr @ Jan 10 2021, 12:32 AM) *

Thanks @914e for this great shopping list. Super helpful. I'd add M8 schnorr washers for the CV bolts (16...but since you need to replace at least 8 of them every time you drop the engine, I'd get 50).

I remember also using schnorr washers under the bolts on the strut tower plates.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
iankarr
post Jan 10 2021, 10:55 AM
Post #23


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,526
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
Good call. M10 yellow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post May 3 2022, 02:36 PM
Post #24


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,036
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
resurrection:

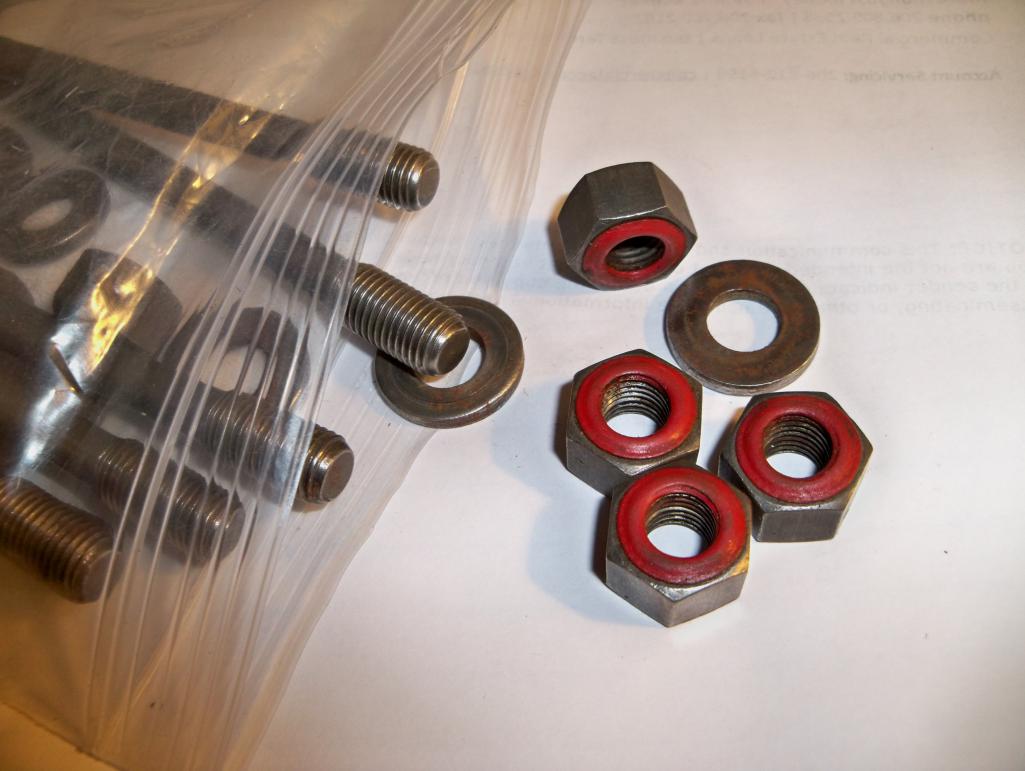

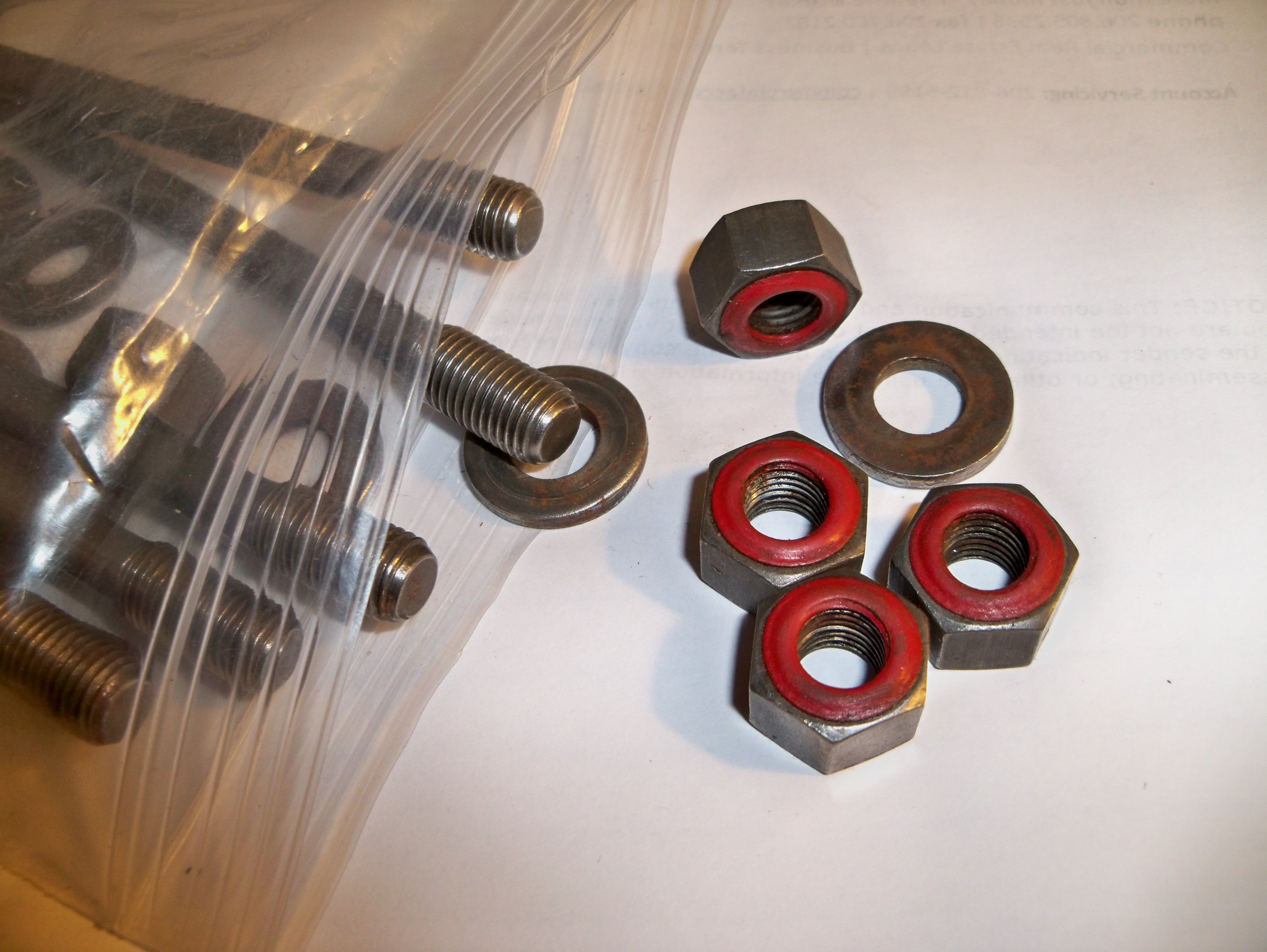

The OE case through bolts used a "nylock" style nut that had a red top sealant on it.
Are those OE fasteners still available? (IMG:style_emoticons/default/idea.gif)
M10x1.25 17mm head 10mm tall part # 021101131E
@CHIZ 914
Porsche classic shows the Bolt & the thick washer but not the Nut?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post May 4 2022, 09:24 AM
Post #25


Village Idiot
*****

Group: Members
Posts: 8,525
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
QUOTE(914e @ Jan 6 2021, 12:32 PM) *

Belmetric is amazing. Fed-ex just dropped a small heavy package. Free two day shipping. My daughters are asking me, dad did you just buy the metric hardware section of Ace?




Bookmarked their site, thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post May 4 2022, 09:34 AM
Post #26


914 Wizard
**********

Group: Members
Posts: 11,826
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(914werke @ May 3 2022, 02:36 PM) *

resurrection:
The OE case through bolts used a "nylock" style nut that had a red top sealant on it.
Are those OE fasteners still available? (IMG:style_emoticons/default/idea.gif)
M10x1.25 17mm head 10mm tall part # 021101131E
@CHIZ 914
Porsche classic shows the Bolt & the thick washer but not the Nut?



Rich,

I recently bought some of those nuts as they are used to seal the oil pump
I went to a VW bug shop on line and bought them

brant
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post May 4 2022, 11:01 AM
Post #27


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,036
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Thanks Brant I see those M8 nuts are still available. Good to know.
Unfortunately not the M10 ones.
Funny I was corresponding with a rep from Belmetric & said they'd never seen anything like that before (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zoomCat
post Jan 19 2023, 01:50 PM
Post #28


Member
**

Group: Members
Posts: 185
Joined: 13-August 04
From: Cincinnati, OH
Member No.: 2,526
Region Association: None
QUOTE(914e @ Jan 4 2021, 02:12 AM) *

QUOTE(Chaznaster @ Jan 3 2021, 05:54 PM) *

Hi All. As we dig deeper into our 914, we are finding a random assortment of nuts and bolts that I expect were incorporated into the car over the years. While I am not trying to source original hardware, I’d like to swap the odd ones out to be at more consistent (and, of course replacing any trashed/ rounded over/ damaged ones). Buying one or two at a time is going to get expensive and I cannot find a good reference for the right grade to use anyway (5.8, 8.8, 10.9, 12.9).
Is there a short list of the most common hardware found on our cars that I could use to start a collection of new ones?
Thank You!

I just happened to place an order with Belmetric, This isn't every nut bolt and screw. It is about every m5, 6, 8,10, and 12 except the engines hardware. I also have 3 German cars so there is few spares. I'm buying steel cabinets with plastic divided boxes from Bolt depot. My attempt to have an ACE hardware in my garage, plus the hardware will be the right color. I hope to cut back on my weekly runs to ACE and returning with a tiny bag of hardware that I spent $20 on.

10 x BR6X8YLW - Hex Bolt 8.8 Yellow Zinc $1.60
25 x BR6X10YLW - Hex Bolt 8.8 Yellow Zinc $4.25
25 x BR6X12YLW - Hex Bolt 8.8 Yellow Zinc $4.50
10 x BR6X14YLW - Hex Bolt 8.8 Yellow Zinc $2.30
25 x BR6X20YLW - Hex Bolt 8.8 Yellow Zinc $5.25
4 x BR6X18YLW - Hex Bolt 8.8 Yellow Zinc $0.96
4 x BR6X16YLW - Hex Bolt 8.8 Yellow Zinc $0.72
10 x BR6X30PYLW - Hex Bolt 8.8 Yellow Zinc Partial $2.30
25 x BR8X10YLW - Hex Bolt 8.8 Yellow Zinc $5.50
5 x BR8X14YLW - Hex Bolt 8.8 Yellow Zinc $1.45
20 x BR8X16YLW - Hex Bolt 8.8 Yellow Zinc $5.60
10 x BR8X20YLW - Hex Bolt 8.8 Yellow Zinc $2.90
10 x BR8X25YLW - Hex Bolt 8.8 Yellow Zinc $3.70
11 x BR8X30PYLW - Hex Bolt 8.8 Yellow Zinc Partial $4.29
10 x BR8X40PYLW - Hex Bolt 8.8 Yellow Zinc Partial $4.10
10 x BR8X45PYLW - Hex Bolt 8.8 Yellow Zinc Partial $4.50
4 x BR10X85YLW - Hex Bolt 8.8 Yellow Zinc $4.68
10 x BR10X18YLW - Hex Bolt 8.8 Yellow Zinc $4.70
10 x BR10X20YLW - Hex Bolt 8.8 Yellow Zinc $4.20
4 x BR10X22YLW - Hex Bolt 8.8 Yellow Zinc $1.88
4 x BR10X16YLW - Hex Bolt 8.8 Yellow Zinc $1.60
4 x BR10X25YLW - Hex Bolt 8.8 Yellow Zinc $1.88
4 x BR10X30YLW - Hex Bolt 8.8 Yellow Zinc $1.96
4 x BR10X35YLW - Hex Bolt 8.8 Yellow Zinc $2.24
10 x BR5X10YLW - Hex Bolt 8.8 Yellow Zinc $2.40
10 x BR5X20YLW - Hex Bolt 8.8 Yellow Zinc $2.40
4 x BR5X12YLW - Hex Bolt 8.8 Yellow Zinc $0.96
4 x BR5X22YLW - Hex Bolt 8.8 Yellow Zinc $0.96
4 x BR12X80PYLW - Hex Bolt 8.8 Yellow Zinc Partial $6.12
10 x BR12X30YLW - Hex Bolt 8.8 Yellow Zinc $7.10
4 x BR12X60PYLW - Hex Bolt 8.8 Yellow Zinc $3.56
50 x WF6YLW - Flat Washer Yellow Zinc $4.50
50 x WF8YLW - Flat Washer Yellow Zinc $6.00
20 x WF6X11YLW - Flat Washer Small OD Yellow Zinc $1.80
10 x WF8X15YLW - Flat Washer Small OD Yellow Zinc $1.20
25 x WFHV6YLW - Hardened Flat Washer Yellow Zinc $3.25
10 x WW6AMECYLW - Wave Washer Mechanical Yellow Zinc $1.20
10 x WW7BYLW - Wave Washer Yellow Zinc $2.10
10 x WSH6YLW - Schnorr Washer Yellow Zinc $1.90
10 x WSH7MECYLW- Schnorr Washer Mechanical Yellow Zinc $2.60
25 x WL5MECYLW - Lock Washer Mechanical Yellow Zinc $2.00
25 x WL6MECYLW - Lock Washer Mechanical Yellow Zinc $2.00
25 x WL8MECYLW - Lock Washer Mechanical Yellow Zinc $3.50
25 x WL10MECYLW - Lock Washer Mechanical Yellow Zinc $3.75
10 x WL12MECYLW - Lock Washer Mechanical Yellow Zinc $1.90
20 x NR6YLW - Hex Nut Yellow Zinc Class 8 $2.00
20 x NR8YLW - Hex Nut Yellow Zinc Class 8 $3.20
10 x NR10YLW - Hex Nut Yellow Zinc Class 8 $2.30
4 x NR12YLW - Hex Nut Yellow Zinc Class 8 $1.00
4 x NNFH6YLW - Nylock Flange Nut Yellow Zinc HARDENED $1.16
4 x NNFH8YLW - Nylock Flange Nut Yellow Zinc HARDENED $1.44
4 x NNFH10YLW - Nylock Flange Nut Yellow Zinc HARDENED $1.96
20 x E302NT - 6.3mm Uninsulated Spade 16-14 Gauge No Tab $7.00
20 x E922TABBRS - 6.3mm Uninsulated Spade 18-16 Gauge With Tab $6.80
4 x E308BRS - 6.3mm Uninsulated Male Spade With Tab 16-14 Gauge $2.04
10 x E922NTTIN - 6.3mm Uninsulated Spade 20-17 Gauge No Tab $4.00
$171.16Sub-Total:
$0.00Free Shipping Options (EXPECT DELAYS - Free Shipping):
$171.16


I put this list into a CSV file, which can be used on Belmetric's Quick Order page. You can edit the file, or it is probably easier to edit after it's been uploaded.
The Belmetric upload function is pretty hapless, if you make changes to the file that don't fit it's narrow requirements it will often just fail without any message.

Attached File  Belmetric_Hardware_Quick_Order__csv_.txt ( 1.02k ) Number of downloads: 85
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chaznaster
post Jan 19 2023, 07:11 PM
Post #29


Member
**

Group: Members
Posts: 325
Joined: 22-November 15
From: Concord, MA
Member No.: 19,389
Region Association: North East States
QUOTE(zoomCat @ Jan 19 2023, 02:50 PM) *

QUOTE(914e @ Jan 4 2021, 02:12 AM) *

QUOTE(Chaznaster @ Jan 3 2021, 05:54 PM) *

Hi All. As we dig deeper into our 914, we are finding a random assortment of nuts and bolts that I expect were incorporated into the car over the years. While I am not trying to source original hardware, I’d like to swap the odd ones out to be at more consistent (and, of course replacing any trashed/ rounded over/ damaged ones). Buying one or two at a time is going to get expensive and I cannot find a good reference for the right grade to use anyway (5.8, 8.8, 10.9, 12.9).
Is there a short list of the most common hardware found on our cars that I could use to start a collection of new ones?
Thank You!

I just happened to place an order with Belmetric, This isn't every nut bolt and screw. It is about every m5, 6, 8,10, and 12 except the engines hardware. I also have 3 German cars so there is few spares. I'm buying steel cabinets with plastic divided boxes from Bolt depot. My attempt to have an ACE hardware in my garage, plus the hardware will be the right color. I hope to cut back on my weekly runs to ACE and returning with a tiny bag of hardware that I spent $20 on.

10 x BR6X8YLW - Hex Bolt 8.8 Yellow Zinc $1.60
25 x BR6X10YLW - Hex Bolt 8.8 Yellow Zinc $4.25
25 x BR6X12YLW - Hex Bolt 8.8 Yellow Zinc $4.50
10 x BR6X14YLW - Hex Bolt 8.8 Yellow Zinc $2.30
25 x BR6X20YLW - Hex Bolt 8.8 Yellow Zinc $5.25
4 x BR6X18YLW - Hex Bolt 8.8 Yellow Zinc $0.96
4 x BR6X16YLW - Hex Bolt 8.8 Yellow Zinc $0.72
10 x BR6X30PYLW - Hex Bolt 8.8 Yellow Zinc Partial $2.30
25 x BR8X10YLW - Hex Bolt 8.8 Yellow Zinc $5.50
5 x BR8X14YLW - Hex Bolt 8.8 Yellow Zinc $1.45
20 x BR8X16YLW - Hex Bolt 8.8 Yellow Zinc $5.60
10 x BR8X20YLW - Hex Bolt 8.8 Yellow Zinc $2.90
10 x BR8X25YLW - Hex Bolt 8.8 Yellow Zinc $3.70
11 x BR8X30PYLW - Hex Bolt 8.8 Yellow Zinc Partial $4.29
10 x BR8X40PYLW - Hex Bolt 8.8 Yellow Zinc Partial $4.10
10 x BR8X45PYLW - Hex Bolt 8.8 Yellow Zinc Partial $4.50
4 x BR10X85YLW - Hex Bolt 8.8 Yellow Zinc $4.68
10 x BR10X18YLW - Hex Bolt 8.8 Yellow Zinc $4.70
10 x BR10X20YLW - Hex Bolt 8.8 Yellow Zinc $4.20
4 x BR10X22YLW - Hex Bolt 8.8 Yellow Zinc $1.88
4 x BR10X16YLW - Hex Bolt 8.8 Yellow Zinc $1.60
4 x BR10X25YLW - Hex Bolt 8.8 Yellow Zinc $1.88
4 x BR10X30YLW - Hex Bolt 8.8 Yellow Zinc $1.96
4 x BR10X35YLW - Hex Bolt 8.8 Yellow Zinc $2.24
10 x BR5X10YLW - Hex Bolt 8.8 Yellow Zinc $2.40
10 x BR5X20YLW - Hex Bolt 8.8 Yellow Zinc $2.40
4 x BR5X12YLW - Hex Bolt 8.8 Yellow Zinc $0.96
4 x BR5X22YLW - Hex Bolt 8.8 Yellow Zinc $0.96
4 x BR12X80PYLW - Hex Bolt 8.8 Yellow Zinc Partial $6.12
10 x BR12X30YLW - Hex Bolt 8.8 Yellow Zinc $7.10
4 x BR12X60PYLW - Hex Bolt 8.8 Yellow Zinc $3.56
50 x WF6YLW - Flat Washer Yellow Zinc $4.50
50 x WF8YLW - Flat Washer Yellow Zinc $6.00
20 x WF6X11YLW - Flat Washer Small OD Yellow Zinc $1.80
10 x WF8X15YLW - Flat Washer Small OD Yellow Zinc $1.20
25 x WFHV6YLW - Hardened Flat Washer Yellow Zinc $3.25
10 x WW6AMECYLW - Wave Washer Mechanical Yellow Zinc $1.20
10 x WW7BYLW - Wave Washer Yellow Zinc $2.10
10 x WSH6YLW - Schnorr Washer Yellow Zinc $1.90
10 x WSH7MECYLW- Schnorr Washer Mechanical Yellow Zinc $2.60
25 x WL5MECYLW - Lock Washer Mechanical Yellow Zinc $2.00
25 x WL6MECYLW - Lock Washer Mechanical Yellow Zinc $2.00
25 x WL8MECYLW - Lock Washer Mechanical Yellow Zinc $3.50
25 x WL10MECYLW - Lock Washer Mechanical Yellow Zinc $3.75
10 x WL12MECYLW - Lock Washer Mechanical Yellow Zinc $1.90
20 x NR6YLW - Hex Nut Yellow Zinc Class 8 $2.00
20 x NR8YLW - Hex Nut Yellow Zinc Class 8 $3.20
10 x NR10YLW - Hex Nut Yellow Zinc Class 8 $2.30
4 x NR12YLW - Hex Nut Yellow Zinc Class 8 $1.00
4 x NNFH6YLW - Nylock Flange Nut Yellow Zinc HARDENED $1.16
4 x NNFH8YLW - Nylock Flange Nut Yellow Zinc HARDENED $1.44
4 x NNFH10YLW - Nylock Flange Nut Yellow Zinc HARDENED $1.96
20 x E302NT - 6.3mm Uninsulated Spade 16-14 Gauge No Tab $7.00
20 x E922TABBRS - 6.3mm Uninsulated Spade 18-16 Gauge With Tab $6.80
4 x E308BRS - 6.3mm Uninsulated Male Spade With Tab 16-14 Gauge $2.04
10 x E922NTTIN - 6.3mm Uninsulated Spade 20-17 Gauge No Tab $4.00
$171.16Sub-Total:
$0.00Free Shipping Options (EXPECT DELAYS - Free Shipping):
$171.16


I put this list into a CSV file, which can be used on Belmetric's Quick Order page. You can edit the file, or it is probably easier to edit after it's been uploaded.
The Belmetric upload function is pretty hapless, if you make changes to the file that don't fit it's narrow requirements it will often just fail without any message.

Attached File  Belmetric_Hardware_Quick_Order__csv_.txt ( 1.02k ) Number of downloads: 85



That's awesome!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V < 1 2
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 2nd January 2025 - 10:11 PM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
