> 914-6 conversion/ rusturation GT style, EFI is done
Gint
post Sep 30 2023, 11:32 AM
Post #1341


Mike Ginter
***************

Group: Admin
Posts: 16,095
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Beautiful build. I'd keep it. I would think this car could pull as much as $50k without too much trouble, even on BAT.

5 years ago I bought a 2000 Boxster S for $13k - Hard to beat it for the money. They are like modern 914s, but with air conditioning and cruise control. They are really good road trip cars.

QUOTE(mb911 @ Jun 15 2022, 09:39 AM) *
QUOTE(ClayPerrine @ Jun 15 2022, 05:32 AM) *
QUOTE(mb911 @ Jun 13 2022, 05:04 PM) *
My sons talked me into putting center caps today. Thoughts?
The point on the bottom of the crest should point to the valve stem.
Oh jeez that completely slipped my mind. I will fix that.

LOL
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 4 2023, 08:14 AM
Post #1342


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

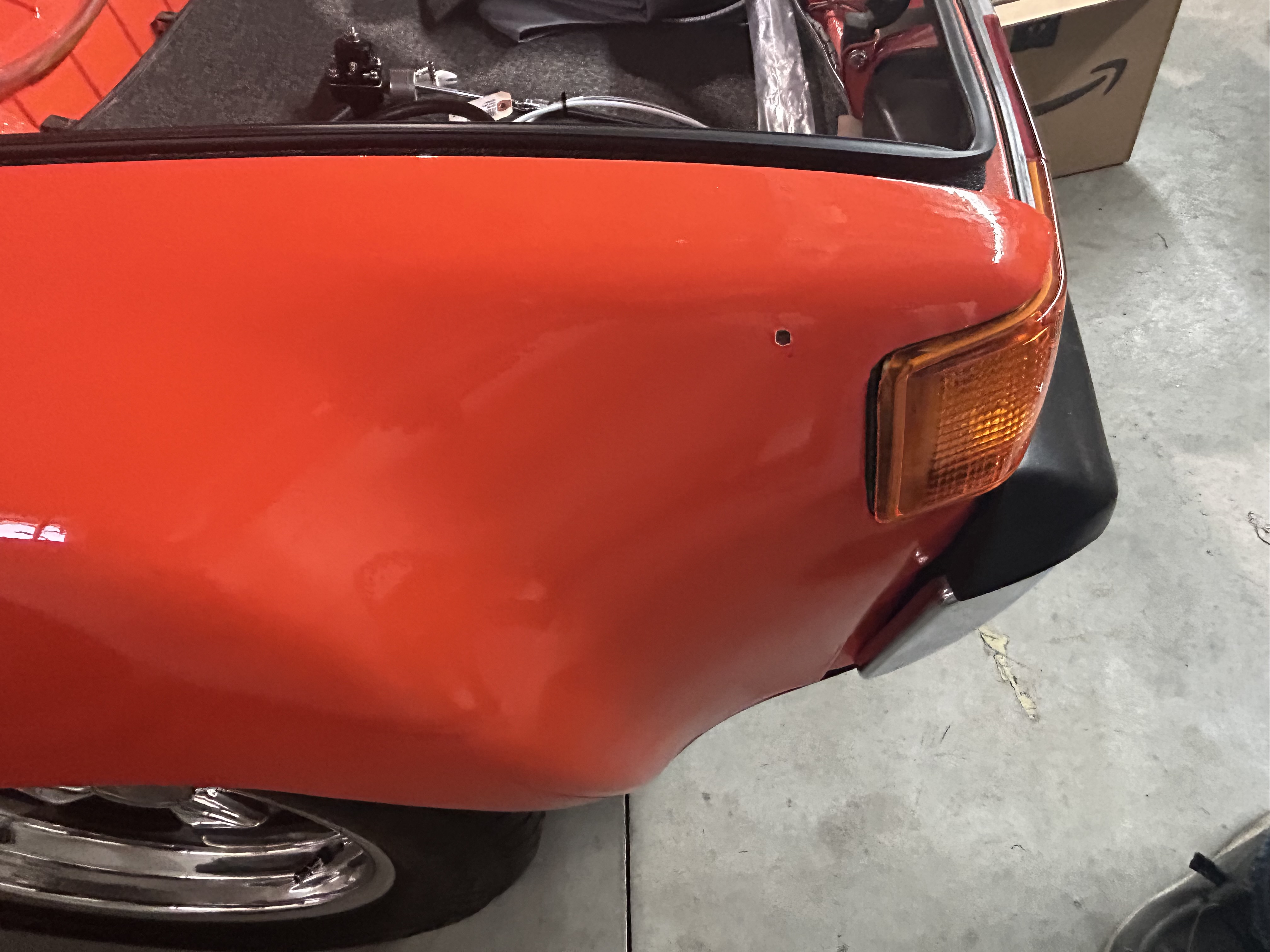

Well to continue on with my EFI project but first to fix the foam rust problem. Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Nov 4 2023, 10:51 AM
Post #1343


914-6 GT in waiting
***************

Group: Members
Posts: 19,746
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I hate that foam. I think I'm going to chem dip my 914 chassis and get rid of every bit of it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 4 2023, 11:29 AM
Post #1344


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(mepstein @ Nov 4 2023, 08:51 AM) *

I hate that foam. I think I'm going to chem dip my 914 chassis and get rid of every bit of it.



I would be on the same page but to far down the rabbit hole on this one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 19 2023, 11:01 AM
Post #1345


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

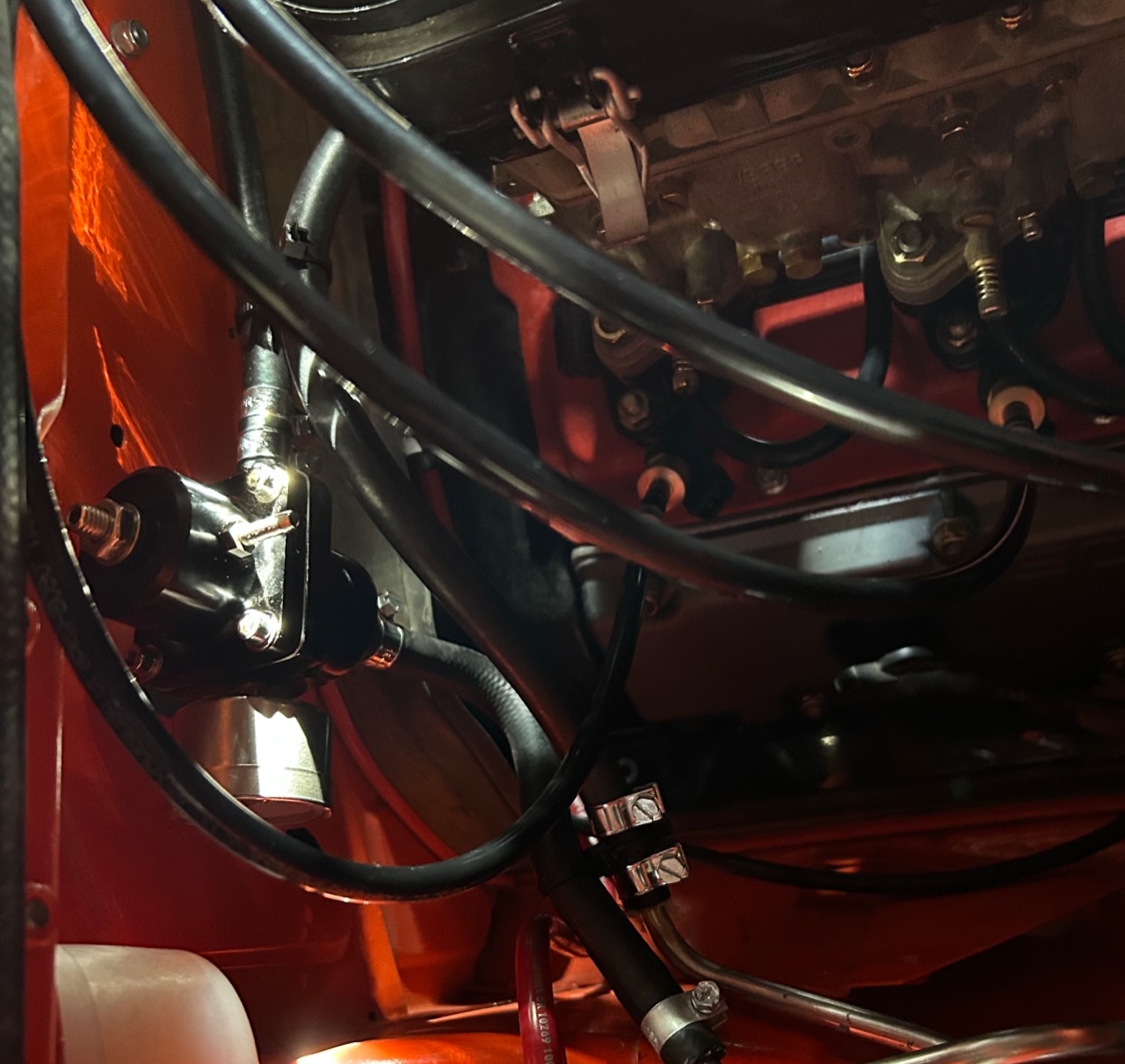

Side tracked again. Wanting to get the EFI plumbing done so I can check if to ensure it’s sealed up before the bitter cold sets in and can’t have the doors open.

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Nov 21 2023, 08:28 PM
Post #1346


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
My conversion car is now owned by a doctor with several newer 911s, and says the conversion -6 is the most fun of all. I miss it daily but couldn’t just let it sit in the garage unused. All depends how much time you have to enjoy yours.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 22 2023, 07:21 AM
Post #1347


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
I really enjoy this car. I absolutely hate carbs and the way the car runs so different with changes in temp and humidity. Fuel injection will be really nice to deal with
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 3 2023, 11:35 AM
Post #1348


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

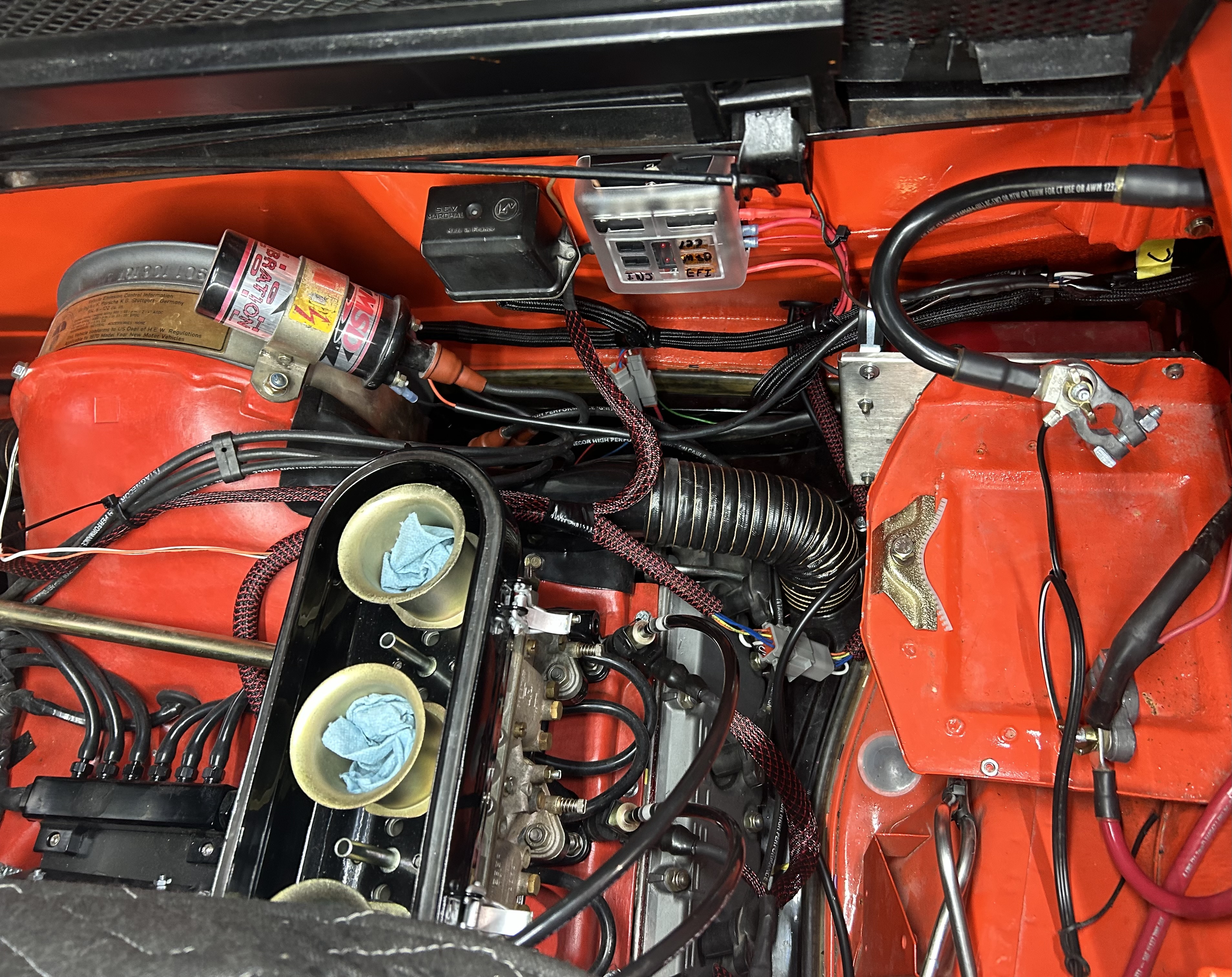

EFI wiring is doneAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 3 2023, 01:54 PM
Post #1349


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Some garage artAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mate914
post Dec 9 2023, 08:50 AM
Post #1350


Matt
***

Group: Members
Posts: 805
Joined: 27-February 09
From: Eagles mere, PA
Member No.: 10,102
Region Association: North East States
QUOTE(mb911 @ Dec 3 2023, 12:35 PM) *

EFI wiring is doneAttached Image

@mb911 Ben, I am inspired by your fuel injection using weber carbs. Could you please share the fuel injection parts list and custom fabricated parts. I have a good set of Zenith and want to do something similar.

Thanks, Matt
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 9 2023, 11:39 AM
Post #1351


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

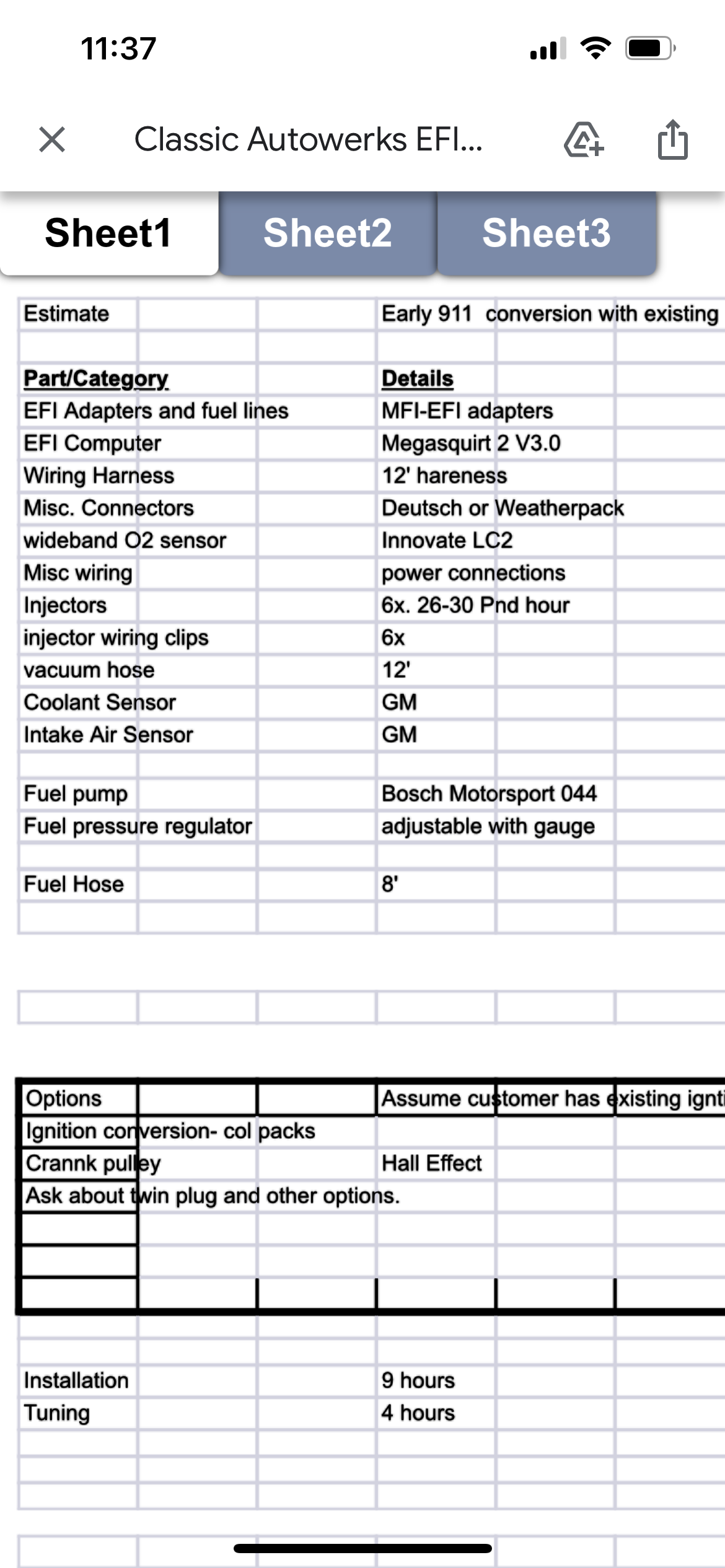

Matt here is a quick spreadsheet . You do need MFI heads for a similar setup to what I have or drill your heads like thisAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 9 2023, 11:55 AM
Post #1352


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
@jpnovak is whom you source most of the parts from over on pelican and I think here as well
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Dec 9 2023, 12:52 PM
Post #1353


914 Guru
*****

Group: Members
Posts: 6,729
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Is there any sort of retention feature to hold the injector into the MFI port adapters?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 9 2023, 03:05 PM
Post #1354


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(Superhawk996 @ Dec 9 2023, 10:52 AM) *

Is there any sort of retention feature to hold the injector into the MFI port adapters?



Just the o rings on the injector . Jamie has assured me that will work just fit. They fit in very snug
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 11 2023, 08:22 AM
Post #1355


Its alive
****

Group: Members
Posts: 4,838
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
That scares me a little. I said that once on a converted bike motor and had an engine fire shorty thereafter. Please keep an eye on them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Dec 11 2023, 10:15 AM
Post #1356


914 Guru
*****

Group: Members
Posts: 6,729
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(jd74914 @ Dec 11 2023, 10:22 AM) *

That scares me a little. I said that once on a converted bike motor and had an engine fire shorty thereafter. Please keep an eye on them.

(IMG:style_emoticons/default/agree.gif) Scares me a lot. Done too many Design Failure Mode Analysis (DFMEA) as my day job.

Although it may be snug now, seals age, shrink, and harden.

Backfire potential can put significant pressure behind them to push them out. Yeah agree that intake vacuum is normally sucking them in. Also agree you shouldn’t get backfire with EFI . . . . But real world is different

Vibration is always a concern - 6000 rpm has a way of doing funky things.

Thermal expansion of the MFI adapters when hot will lessen the snugness as will the seals themselves as they heat up and become more pliable.

I love this EFI concept; gotta be a way to do a positive retention. Maybe off carb manifold or even off valve covers?

Your car is too beautiful to lose it to an engine fire.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 13 2023, 01:47 PM
Post #1357


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(Superhawk996 @ Dec 11 2023, 08:15 AM) *

QUOTE(jd74914 @ Dec 11 2023, 10:22 AM) *

That scares me a little. I said that once on a converted bike motor and had an engine fire shorty thereafter. Please keep an eye on them.

(IMG:style_emoticons/default/agree.gif) Scares me a lot. Done too many Design Failure Mode Analysis (DFMEA) as my day job.

Although it may be snug now, seals age, shrink, and harden.

Backfire potential can put significant pressure behind them to push them out. Yeah agree that intake vacuum is normally sucking them in. Also agree you shouldn’t get backfire with EFI . . . . But real world is different

Vibration is always a concern - 6000 rpm has a way of doing funky things.

Thermal expansion of the MFI adapters when hot will lessen the snugness as will the seals themselves as they heat up and become more pliable.

I love this EFI concept; gotta be a way to do a positive retention. Maybe off carb manifold or even off valve covers?

Your car is too beautiful to lose it to an engine fire.



So remember these are long tip BMW injectors that fit snug into the MFI adapters. The injectors are about 3/4” longer than the o ring interface. Also I ran these in the heads all summer while using carbs as a test if you will for exactly as you suggest.


I can look at something to retain them for sure
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 1 2024, 01:44 PM
Post #1358


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

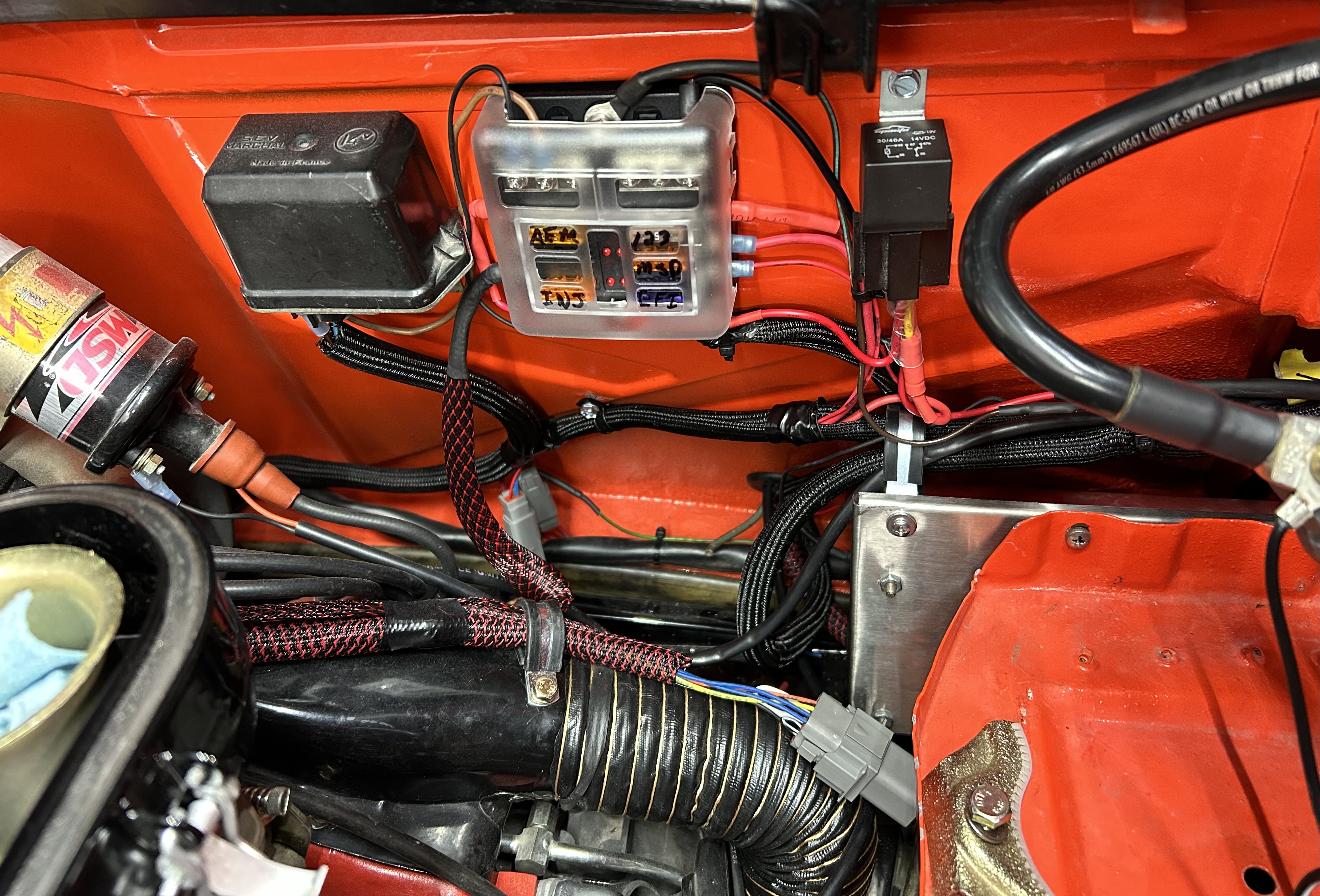

I added a relay to the system. I felt the fuse block was powering to many things to pull off of the ignition switch even though it was all 3 and 5 amp fuses. I did the best I could to keep that area clean with wiring but lots to fit in a small space. Also got a a cool new toy. Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 1 2024, 01:45 PM
Post #1359


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Also had some stickers made for my customers.Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 18 2024, 03:07 PM
Post #1360


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

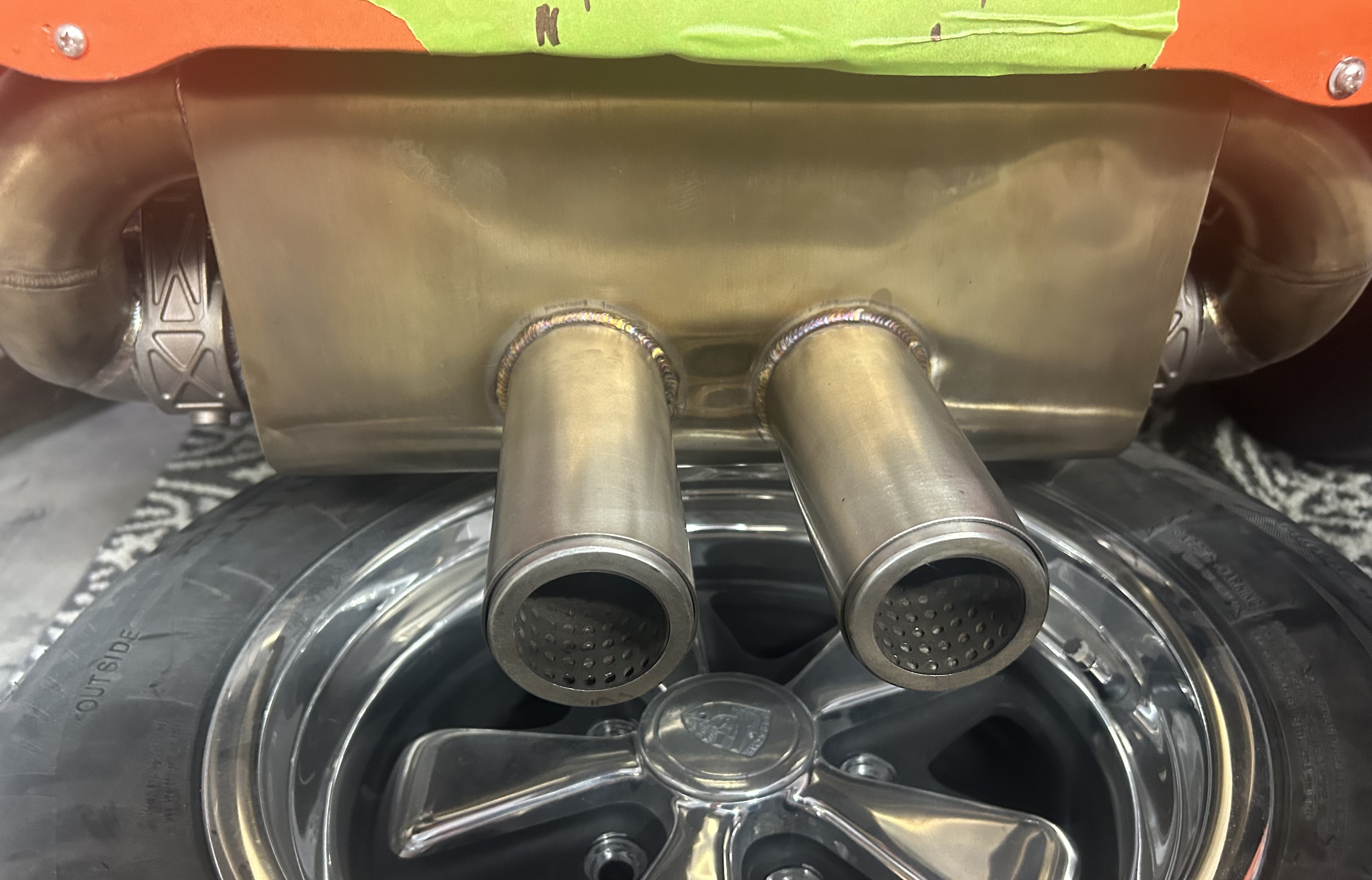

New exhaust very impressed and excited to try it.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
