> 914-6 conversion/ rusturation GT style, EFI is done
mb911
post Nov 11 2017, 04:49 PM
Post #261


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Did deck heights on cylinders 1,2,3 today and put heads on that bank. Waiting on shims for 4,5,6..

So I thought I would post pictures of my last 6. This what drives me to finish this car..Attached Image Attached ImageAttached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 11 2017, 07:34 PM
Post #262


Michael
**********

Group: Members
Posts: 10,206
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
MMMMM nice. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 12 2017, 07:25 AM
Post #263


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Was by far the nicest one I had seen in the Midwest ever..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Nov 12 2017, 10:24 AM
Post #264


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
Great looking car! Converting a ‘73 or ‘74 Car is probably the best way to get a great -6 and it looks like you did it right.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 12 2017, 11:59 AM
Post #265


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
This was a 75 chassis that was a roller from new mexico..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 16 2017, 06:31 AM
Post #266


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

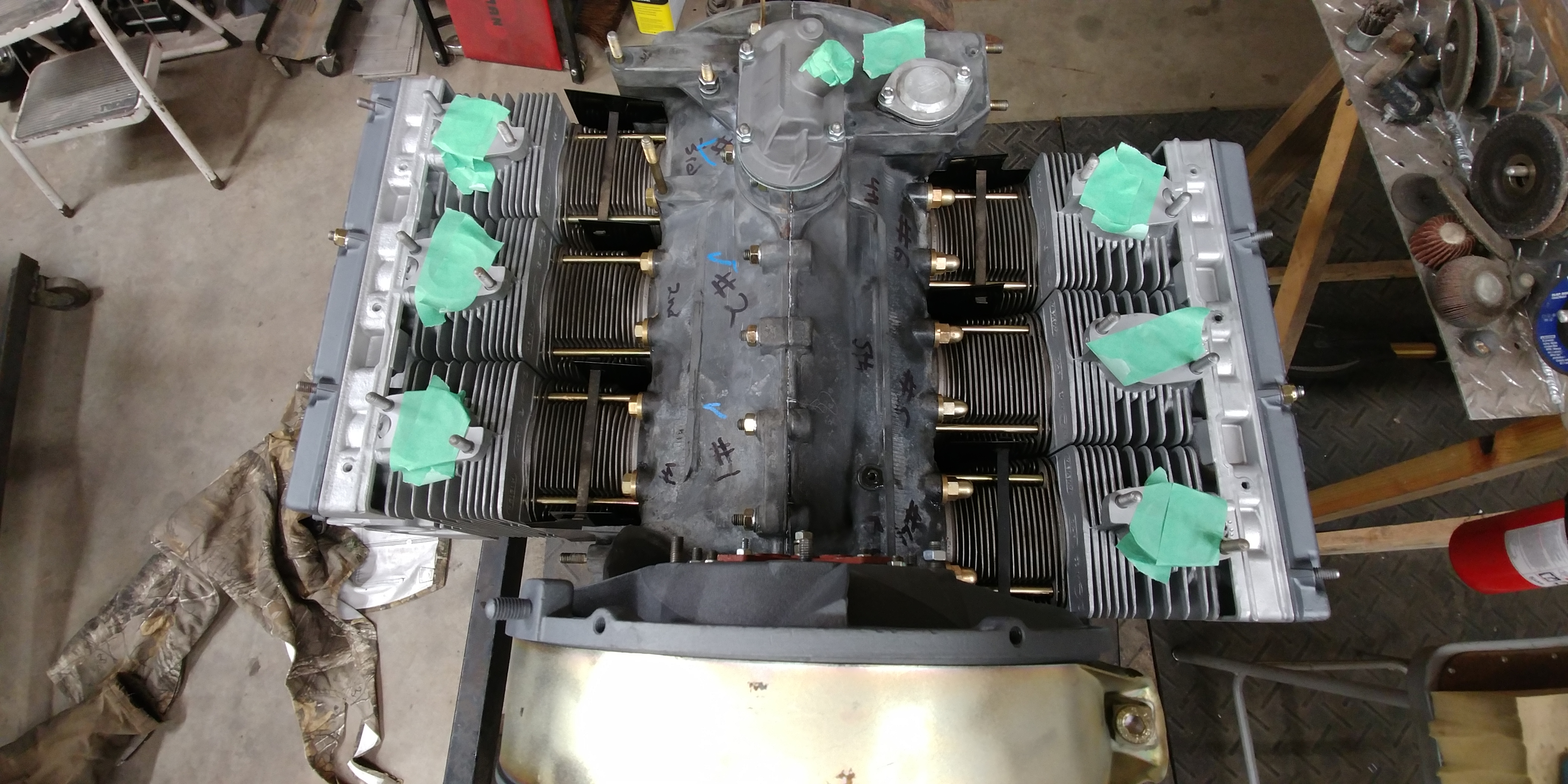

I spent an hour this morning torquing the heads/install 4,5,6 .. Installed the cam plugs(thanks Mark) and now just a few other things to tidy up as I wait for the rockers to be done.. I need to get back to grinding/some welding so that I can get this in primer..Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 16 2017, 09:04 AM
Post #267


914 Guru
*****

Group: Members
Posts: 5,502
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Dang it, that's pretty, Ben.
Every time I see a 6 being built, I question my decision to go with the LS...
Ah well, there's always the next project!
Keep up the great work. (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 16 2017, 09:46 AM
Post #268


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image

Thanks Chris..

I also have notes written on the case as to order of pistons install and then actual cylinder locations and checks for install of circlips. This was done based off of when I have time and when I have to walk away to work on something else/family etc. I don't typically spend more than an hour at a time working on it and its hard to remember if you don't have notes..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Nov 16 2017, 08:21 PM
Post #269


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
I’d need to have a torque marker to remind me where I stopped. It’s looking great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 17 2017, 12:27 PM
Post #270


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(GeorgeRud @ Nov 16 2017, 06:21 PM) *

I’d need to have a torque marker to remind me where I stopped. It’s looking great!



I take notes along with the stuff written on the case.. This weekend grinding will resume.. Probably an hour left on the engine and then bag up until spring..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whitetwinturbo
post Nov 17 2017, 08:04 PM
Post #271


Honey, does this wing make my ass look fat?
***

Group: Members
Posts: 1,391
Joined: 22-October 11
From: Newport Beach/Kalefornya/USA
Member No.: 13,704
Region Association: Southern California
(IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/stirthepot.gif) (IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 19 2017, 06:21 AM
Post #272


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Got a little bit more done. Cams are in but don't have rockers on.. No engine cooler on yet. I need to have the one I have professionally cleaned.. Now done on the engine for a while.. Grinding is now ready to start..Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 29 2017, 02:43 PM
Post #273


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
So a little update but no pictures as of right now.

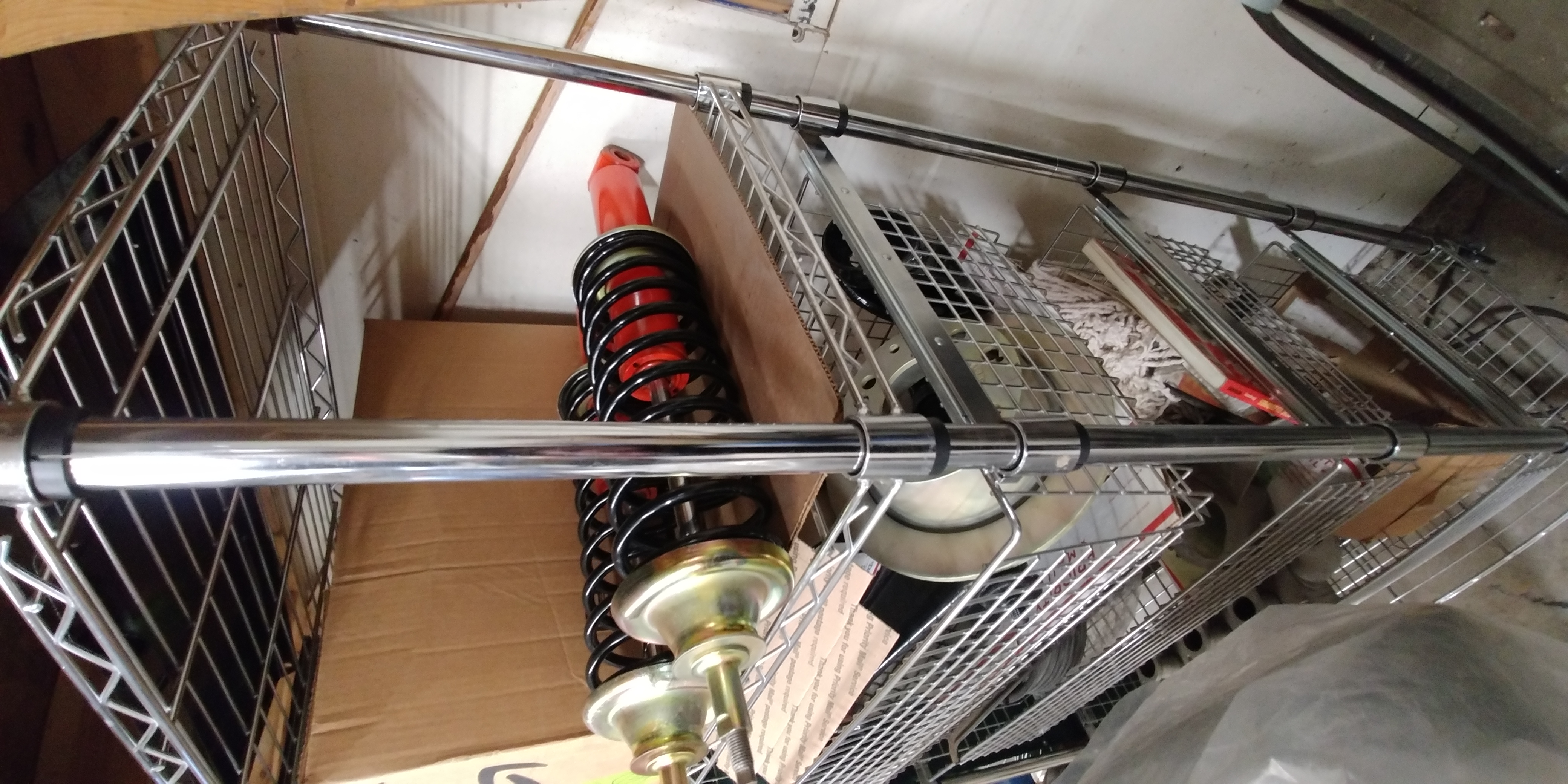

Restored the rear konis I recieved from michael.

Put the powdercoated springs on I got from greg

Shocks are complete with replated and repainted everything

Put the engine in the corner on a different engine stand until I am ready for it..

Welded in patch right by the roll bar above door handle pocket on driver side

Ground all the flare welds down and started hammering out with hammer and dolly. Heated a few areas that were not coming along.

Made reinforcement for rear suspension pick up ears

Now second guessing my rear trunk panel may have to buy a new one after the holidays are done..

Reassembly of replated and powdercoated seat rails..

Took apart the steering rack , cleaned, inspected and ceramic painted. Will reassemble this week with fresh grease

Cleaned the shop.. So making progress
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Nov 29 2017, 04:14 PM
Post #274


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,672
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(mb911 @ Nov 29 2017, 12:43 PM) *

So a little update but no pictures as of right now.

Restored the rear konis I recieved from michael.

Put the powdercoated springs on I got from greg

Shocks are complete with replated and repainted everything

Put the engine in the corner on a different engine stand until I am ready for it..

Welded in patch right by the roll bar above door handle pocket on driver side

Ground all the flare welds down and started hammering out with hammer and dolly. Heated a few areas that were not coming along.

Made reinforcement for rear suspension pick up ears

No second guessing my rear trunk panel may have to buy a new one after the holidays are done..

Reassembly of replated and powdercoated seat rails..

Took apart the steering rack , cleaned, inspected and ceramic painted. Will reassemble this week with fresh grease

Cleaned the shop.. So making progress


So just been sitting around eh? (IMG:style_emoticons/default/av-943.gif) Wow! Great to hear you have done a lot there! Been following your thread keep up the momentum! (IMG:style_emoticons/default/beerchug.gif)
(IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 29 2017, 06:31 PM
Post #275


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(Lucky9146 @ Nov 29 2017, 02:14 PM) *

QUOTE(mb911 @ Nov 29 2017, 12:43 PM) *

So a little update but no pictures as of right now.

Restored the rear konis I recieved from michael.

Put the powdercoated springs on I got from greg

Shocks are complete with replated and repainted everything

Put the engine in the corner on a different engine stand until I am ready for it..

Welded in patch right by the roll bar above door handle pocket on driver side

Ground all the flare welds down and started hammering out with hammer and dolly. Heated a few areas that were not coming along.

Made reinforcement for rear suspension pick up ears

No second guessing my rear trunk panel may have to buy a new one after the holidays are done..

Reassembly of replated and powdercoated seat rails..

Took apart the steering rack , cleaned, inspected and ceramic painted. Will reassemble this week with fresh grease

Cleaned the shop.. So making progress


So just been sitting around eh? (IMG:style_emoticons/default/av-943.gif) Wow! Great to hear you have done a lot there! Been following your thread keep up the momentum! (IMG:style_emoticons/default/beerchug.gif)
(IMG:style_emoticons/default/white914.jpg)


Thanks.. Trying to get the car a roller by spring.. Fingers crossed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 30 2017, 04:42 PM
Post #276


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image

A few little pictures.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 30 2017, 04:43 PM
Post #277


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Nov 30 2017, 08:42 PM
Post #278


Major Member
****

Group: Members
Posts: 2,198
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
Just curious, did you rebuild the Konis when you restored them? I have a set dated 8/70 that I don't want to do anything to until I know the original style decal is still available. I haven't been able to find it anywhere, and I don't want to send these in for a rebuild if the label would be replaced with a newer one. These were made in Holland.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 1 2017, 06:20 AM
Post #279


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
I was unable to find those stickers but the newer version sticker is available..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Dec 1 2017, 07:12 AM
Post #280


Advanced Member
****

Group: Members
Posts: 2,169
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Carbone will replicate those for you if you can give them a good example of image and size.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
