> 914-6 conversion/ rusturation GT style, EFI is done
914Sixer
post Dec 1 2017, 07:46 AM
Post #281


914 Guru
*****

Group: Members
Posts: 9,067
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
I think SMC has the stickers for the Koni's.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 1 2017, 09:35 PM
Post #282


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Good to know..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Dec 1 2017, 09:48 PM
Post #283


Advanced Member
****

Group: Members
Posts: 2,169
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
QUOTE(914Sixer @ Dec 1 2017, 05:46 AM) *

I think SMC has the stickers for the Koni's.


Yep, on Sierra Madre....

http://www.sierramadrecollection.com/Koni-Decal-p16659.html

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 2 2017, 05:29 PM
Post #284


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
My oldest installed the 914 rubber seat adjuster handles onto the seats today. I machined the venturies yesterday and assembled the steering rack which I am not 100% happy with. Not as smooth as I think it should be .. Might come back apart..Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 2 2017, 05:30 PM
Post #285


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
restore2seater
post Dec 2 2017, 09:07 PM
Post #286


Future 914 copilot.
**

Group: Members
Posts: 311
Joined: 30-October 04
From: Dunlap,IL
Member No.: 3,037
Region Association: None
What did you do to the steering rack? Did you use replacement parts from a kit?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 3 2017, 07:21 AM
Post #287


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Followed all the rebuild threads out there. There really isn't much that needs to be rebuilt. There are 2 bearings in there but I didn't replace them as they were smoth. Gonna take it apart again as I don't like it yet.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 7 2017, 02:25 PM
Post #288


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Order some new bearings for the steering rack as I was not happy.

Received my rockers back from c gar on the bird board. Henry at supertec did most of my work but I have known Craig for years and he does great work..

Cut out 2 rust spots on the front driver side fender and welded in patches. Plugging a few more pin holes on driver side. This side is almost done both inside and out.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 9 2017, 08:59 PM
Post #289


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
A little welding, Attached Imagedrilling and grinding with one of my boys..

Front fender almost ready to install.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Dec 10 2017, 08:06 PM
Post #290


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
Start them young,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 10 2017, 08:07 PM
Post #291


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
The plan for the week is ship all the mufflers, oil tanks, and gt rocker flares and Also finish passenger front P.O. shotty repair redo. Some of it is ok but most of it is brazed and that sucks in my opinion.. I ground most of that down and hammered and dollied the dents.. Cleaned and zinc painted the bare metal.. Gotta weld a few areas and then ready for the fender.. This will help get the car closer to becoming a roller.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Dec 10 2017, 08:09 PM
Post #292


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
Double post - sorry.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 11 2017, 02:50 PM
Post #293


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Pmb Christmas delivery..Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 21 2017, 04:08 PM
Post #294


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
So been picking away on things.. Started reworking a p.o. repair in the front passenger side front wheel well. Made some patch panels. Hammered a bunch out.. Now to deal with the brazed area from that previous repair...

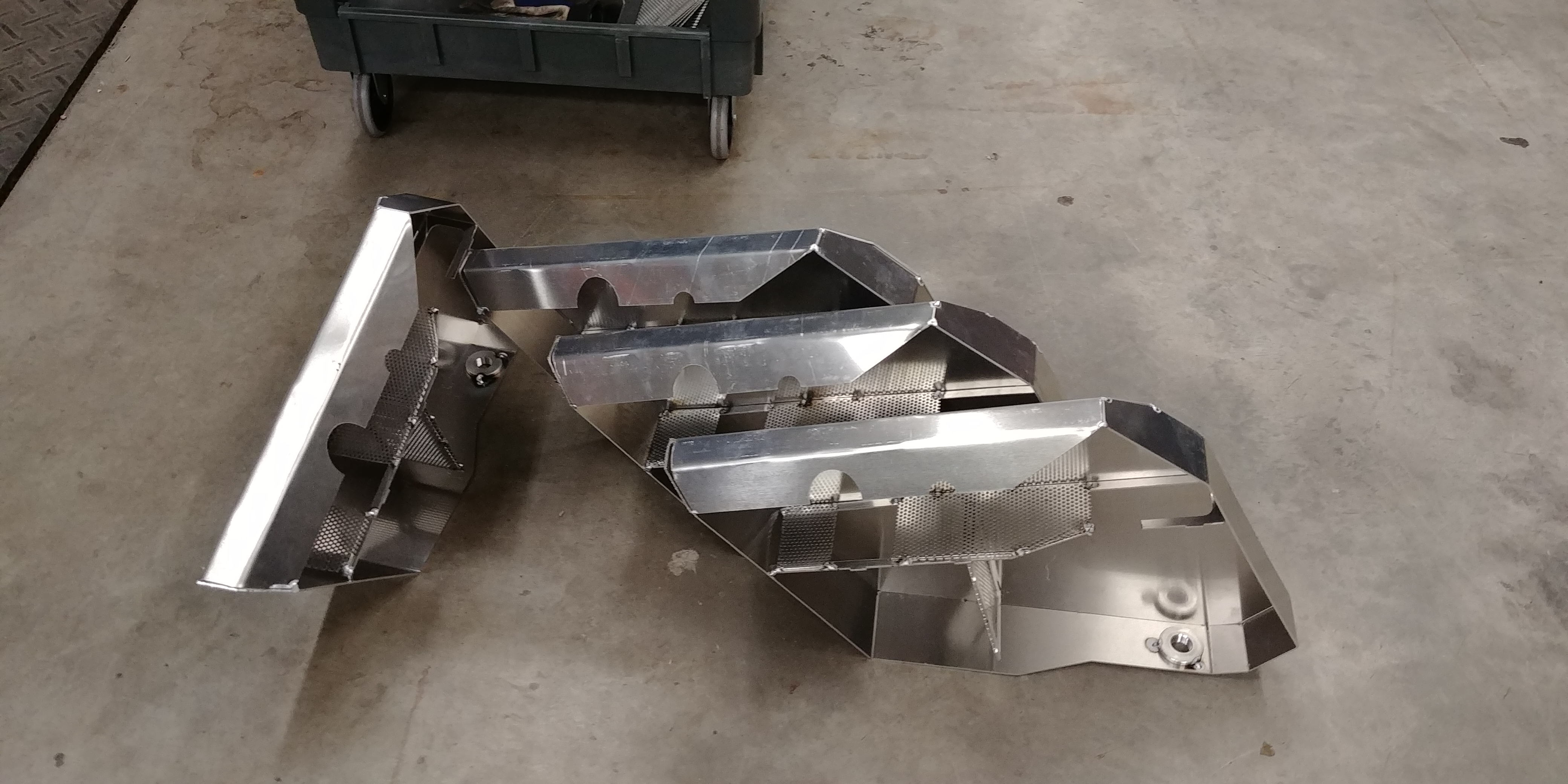

Also a time out to make some tanks.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 21 2017, 06:52 PM
Post #295


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

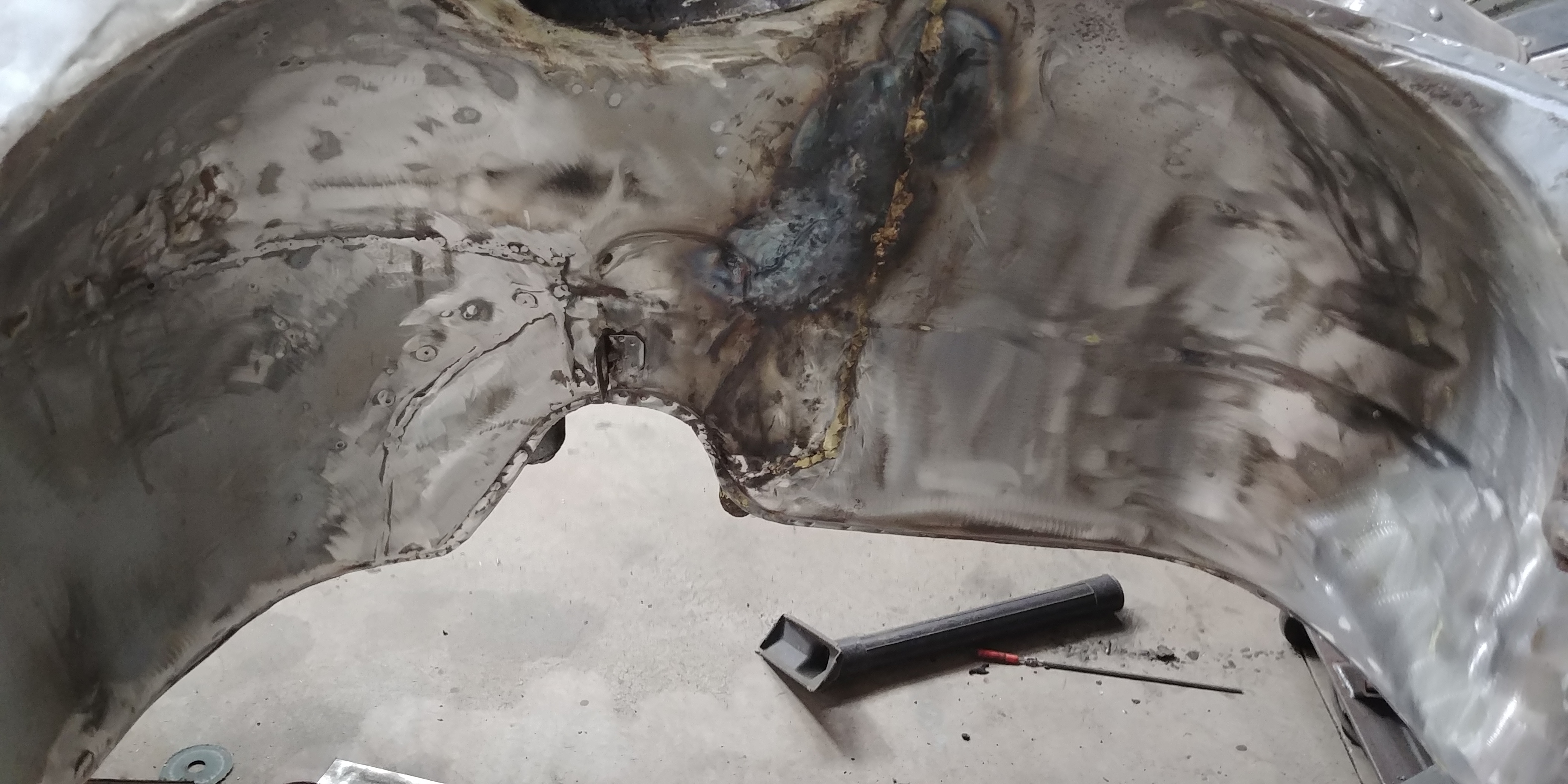

I know this doesn't look pretty yet.. You can see where previous owner repaired bu brazing a new section in.. I tried to make the 2 patches to the left out of 1 piece and to many compound bends.. The patches are blended pretty nice but need a bit more work.. Then hammer and dolly the brazed area.. Thought about cutting that area out and rewelding that but not conviced I can get all the brass out.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 22 2017, 09:56 AM
Post #296


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
After allot of back and forth I have decided to order my last RD part needed for this car.. The rear trunk floor.. You may remember that I put one in out of a donor car but found some pinholes.. I ordered the 200 dollars worth of parts this morning and after the 1st of the year will get that installed.. I will have the front wheel well sorted by then.. Still thinking on the brazed section..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Dec 22 2017, 10:05 AM
Post #297


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
What would have been the reason it was brazed instead of welded by the PO?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 22 2017, 10:58 AM
Post #298


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(GeorgeRud @ Dec 22 2017, 08:05 AM) *

What would have been the reason it was brazed instead of welded by the PO?



My guess is it was a repair in the early 80s and this was still a semi normal repair..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 22 2017, 11:32 AM
Post #299


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
I've got several brazed patches from a PO that I'll be repairing in the near future. Had to have been done in late 70s/early 80s. Your brazes look nice compared with mine. On mine, they just slapped sheet metal over rust holes, brazed them into place, then slathered bondo to hide the lapped edges. Needless to say, they rusted out again.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 22 2017, 11:42 AM
Post #300


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(bbrock @ Dec 22 2017, 09:32 AM) *

I've got several brazed patches from a PO that I'll be repairing in the near future. Had to have been done in late 70s/early 80s. Your brazes look nice compared with mine. On mine, they just slapped sheet metal over rust holes, brazed them into place, then slathered bondo to hide the lapped edges. Needless to say, they rusted out again.



So my thought is to use a cut off wheel to cut the brass out and will create a 1/16" square groove and then weld it up.. What do you think?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
