> 914-6 conversion/ rusturation GT style, EFI is done
mb911
post Jan 4 2018, 05:43 AM
Post #301


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
I was finally able to work on this last night.. I cut a square groove and then ground the brass off.. Welded it up and went well.. The inner wheel well is almost done.. I also welded on one of the 2 rear suspension ear reinforcements.. Went well as well. Plugged amd ground a few more areas.. Almost ready for epoxy..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Jan 4 2018, 08:30 AM
Post #302


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(mb911 @ Jan 4 2018, 04:43 AM) *

I was finally able to work on this last night.. I cut a square groove and then ground the brass off.. Welded it up and went well.. The inner wheel well is almost done.. I also welded on one of the 2 rear suspension ear reinforcements.. Went well as well. Plugged amd ground a few more areas.. Almost ready for epoxy..


Did you happen to snap any pics of this? I'm not sure I have it figured out in my mind, and might want to steal this approach. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 4 2018, 06:04 PM
Post #303


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(bbrock @ Jan 4 2018, 06:30 AM) *

QUOTE(mb911 @ Jan 4 2018, 04:43 AM) *

I was finally able to work on this last night.. I cut a square groove and then ground the brass off.. Welded it up and went well.. The inner wheel well is almost done.. I also welded on one of the 2 rear suspension ear reinforcements.. Went well as well. Plugged amd ground a few more areas.. Almost ready for epoxy..


Did you happen to snap any pics of this? I'm not sure I have it figured out in my mind, and might want to steal this approach. (IMG:style_emoticons/default/beerchug.gif)



I will take a picture this weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 10 2018, 08:00 PM
Post #304


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Sorry haven't had a chance been extremely busy with work vut spent the last 2 mornings @5 am doing some welding and grinding all passenger side.. Went and bought a quart of epoxy primer, a roll of 8o grit for the da, and some kevlar reinforced filler for the weld seams. The stuff comes highly recommended as its 100% waterproof so no rust issues.. Getting very close to removing door braces..

New trunk floor is here and moving that direction next week..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Jan 10 2018, 08:04 PM
Post #305


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
Glad that it’s moving along. Hopefully you have good heat after the weather last week.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Jan 10 2018, 08:32 PM
Post #306


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(mb911 @ Jan 10 2018, 07:00 PM) *

and some kevlar reinforced filler for the weld seams. The stuff comes highly recommended as its 100% waterproof so no rust issues..



Is this the stuff? I'll be watching this closely. Sounds like a good idea.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 11 2018, 05:13 AM
Post #307


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(bbrock @ Jan 10 2018, 06:32 PM) *

QUOTE(mb911 @ Jan 10 2018, 07:00 PM) *

and some kevlar reinforced filler for the weld seams. The stuff comes highly recommended as its 100% waterproof so no rust issues..



Is this the stuff? I'll be watching this closely. Sounds like a good idea.

Attached Image

This stuff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 11 2018, 08:36 AM
Post #308


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Completed one suspension ear reinforcements this morning.. Then off to work..Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 11 2018, 08:38 AM
Post #309


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
This is the p.o. repair area.. I cut the brazing out and welded now have to hammer it flat.. Attached Image

This is front wheel well passenger side..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 15 2018, 05:31 PM
Post #310


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

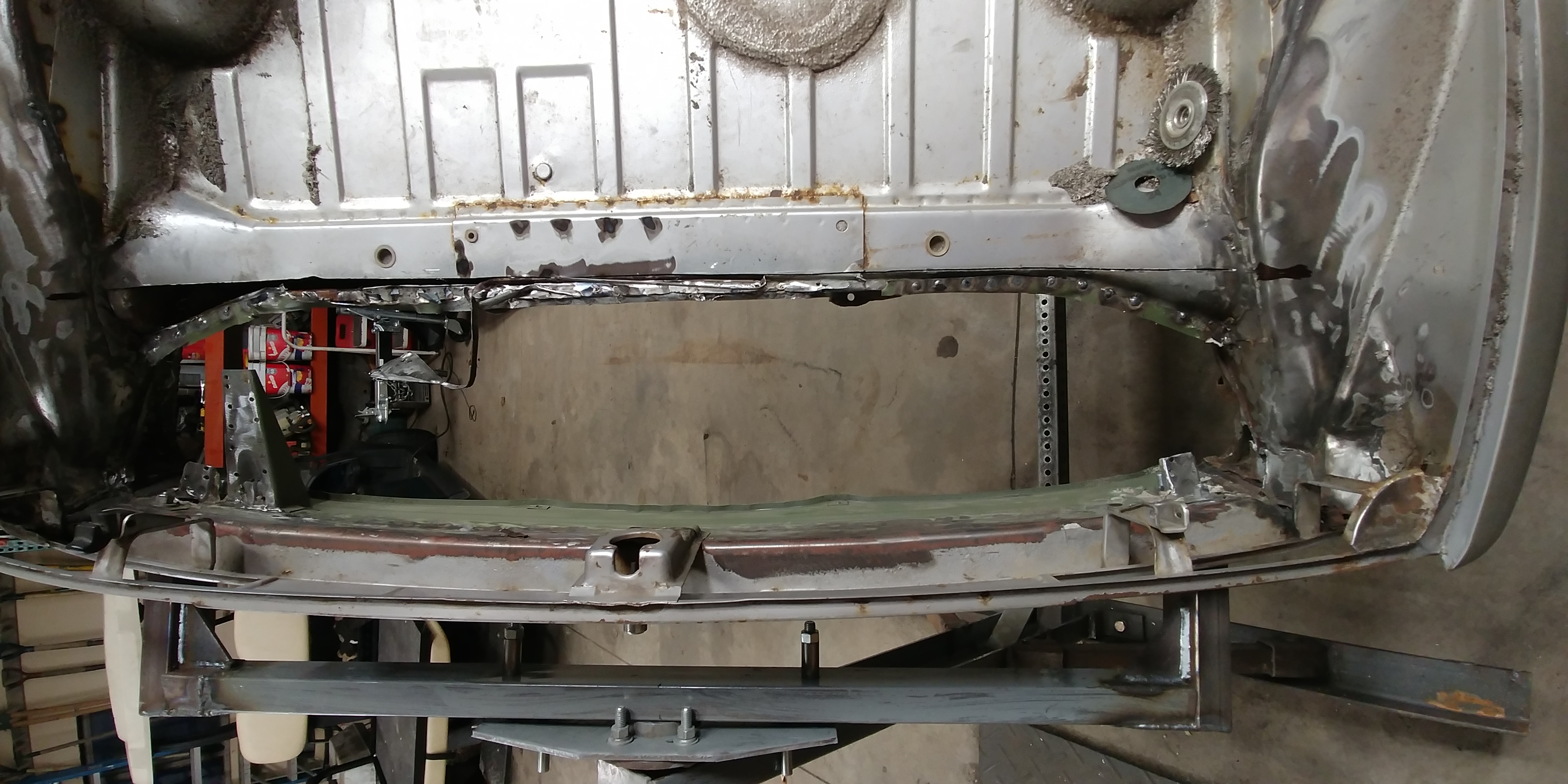

So I feel like I am skipping all over but I try to get the big chunks done.. The passenger side wheel well is almost all hammered out but my shoulder and forearm are pretty sore(getting old))? So I moved to the rear trunk so I could complete 1 area.. I think I am not going use the whole RD piece as it makes for an odd weld joint.. So if you look close you will see where I cut a line.. I chose that as a good area to butt joint because its the edge and will warp less. I going to bring the RD piece to work and use the vertical band saw to cut a nice straight line then put the piece in the trunk anf scribe a line for final cutting..

I plan to get the trunk done this week and then back to the wheel well.. But will feel better once the trunk is done.. Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 15 2018, 05:32 PM
Post #311


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image

Also note this is the second trunk panel I put in.. The 1st one was from a donor car but was not acceptable to me finished
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 16 2018, 02:47 PM
Post #312


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest

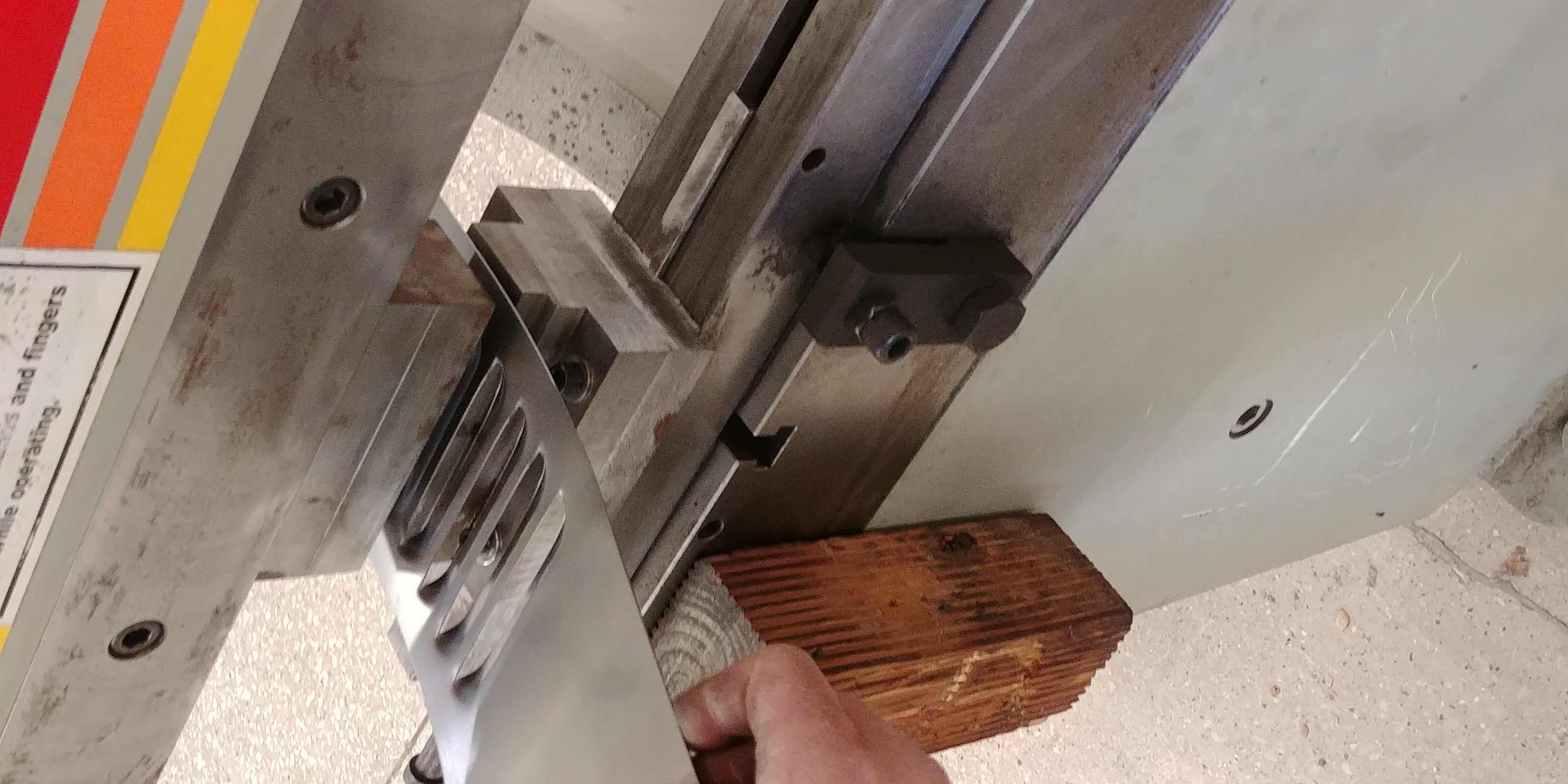

Just a little project that has been a year in the making.. I programmed everything today and thought you all would think its interesting.. This was done on a 130 ton brake press.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Jan 16 2018, 03:12 PM
Post #313


I. I. R. C.
*****

Group: Members
Posts: 6,797
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
QUOTE(GeorgeRud @ Dec 22 2017, 08:05 AM) *

What would have been the reason it was brazed instead of welded by the PO?


Up until MIG welders got affordable it was the fastest and easiest way to go.

There's a few places on the car where the factory used brazed seams. A weld joint will stress crack where a brass will not. Years ago shops would braze a horseshoe shim on a dented panel to pull it out, they brazed it because done right, it won't fail.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jan 16 2018, 03:16 PM
Post #314


914-6 GT in waiting
***************

Group: Members
Posts: 19,732
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(mb911 @ Jan 16 2018, 03:47 PM) *

Just a little project that has been a year in the making.. I programmed everything today and thought you all would think its interesting.. This was done on a 130 ton brake press.Attached Image

I like this.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Jan 16 2018, 03:19 PM
Post #315


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(Perry Kiehl @ Jan 16 2018, 02:12 PM) *

A weld joint will stress crack where a brass will not.


Hmm, this runs a little counter to the logic I used to reinforce the clutch cable tube on my project yesterday. One of the braze joints at the front cracked and I added a series of tack welds to convince everything to stay in its right place. Wondering if I need to rethink that... (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Jan 16 2018, 03:56 PM
Post #316


I. I. R. C.
*****

Group: Members
Posts: 6,797
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
The problem with the clutch cable is age and stress cracks. I make a plate to go over the area, but I do weld it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 16 2018, 04:09 PM
Post #317


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
And now for some reason all my pictures are posting sideways..

Perry.. I still nees to call you.. Been busy..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Jan 16 2018, 08:16 PM
Post #318


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
Looks great! Will you use the louver punch to make a lower panel under the oil cooler?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 17 2018, 05:13 AM
Post #319


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(GeorgeRud @ Jan 16 2018, 06:16 PM) *

Looks great! Will you use the louver punch to make a lower panel under the oil cooler?



That part was actually done about a year ago.. Not sure yet what I will use the die for.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 20 2018, 08:06 PM
Post #320


914 Guru
*****

Group: Members
Posts: 7,473
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Trunk is done.. Well less the 1 overlay.. That will be next week.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
