Yeah, nothing but "genuine styrofoam" for me, no expense spared (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
|
East coaster |
Feb 17 2006, 10:16 PM
Post
#22
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Yeah, I'm going with a space saver. I'm not sure how really useful it is, but I will have it.
Attached image(s) |
Aaron Cox |
Feb 17 2006, 10:16 PM
Post
#23
|
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
copier! im cutting mine around the space saver also!!!! (But mine is a fuch (IMG:http://www.914world.com/bbs2/html/emoticons/tongue.gif))
looks sweet, anyway you can make the exit any bigger? it is the only cooler for a 3.6, might as well make it super efficient.... |
East coaster |
Feb 17 2006, 10:25 PM
Post
#24
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Aaron, I probably could've squeezed a little (very little) more out of the exit area, but the real pinch point is here (red arrows). The exit holes are 4" x 8" and I couldn't get much more area than that in this pinch point. I needed to reserve some space sround this plenum to run my oil lines and still clear the spare.
Attached image(s) |
Trekkor |
Feb 17 2006, 10:34 PM
Post
#25
|
I do things... Group: Members Posts: 7,809 Joined: 2-December 03 From: Napa, Ca Member No.: 1,413 Region Association: Northern California |
I like what you have done. Really nice concept.
KT |
VegasRacer |
Feb 17 2006, 11:37 PM
Post
#26
|
ELVIRA Group: Benefactors Posts: 8,708 Joined: 27-March 03 From: Between Scylla and Charybdis Member No.: 481 Region Association: None |
Very nice. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
I am looking forward to your updates. |
jim_hoyland |
Feb 18 2006, 07:37 AM
Post
#27
|
Get that VIN ? Group: Members Posts: 9,557 Joined: 1-May 03 From: Sunset Beach, CA Member No.: 643 Region Association: Southern California |
Nice !! Keep the pictures coming.
|
seanery |
Feb 18 2006, 07:51 AM
Post
#28
|
waiting to rebuild whitey! Group: Retired Admin Posts: 15,854 Joined: 7-January 03 From: Indy Member No.: 100 Region Association: None |
that's very clean...if it turns out to be effective after testing you should package up your parts for sale. I think I'd be interested, but I can't make schtuff out of FG.
|
ArtechnikA |
Feb 18 2006, 07:52 AM
Post
#29
|
rich herzog Group: Members Posts: 7,390 Joined: 4-April 03 From: Salted Roads, PA Member No.: 513 Region Association: None |
you're using a front-mounted -12 thermostat on a 3,6?
good luck with that... |
East coaster |
Feb 18 2006, 08:44 AM
Post
#30
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Front mounted -12 cooler/thermo, yes, that was the plan.
Enlighten me on why that's a problem? This is going to be a street car if that has any bearing. I do have a -16 line from the oil tank to the engine. I've asked and researched this and have gotten many differing responses, mostly from people who are not running a 3.6 in a street car. So, I've resorted to taking advice from someone who has built a bunch of 3.6 cars, both street and track. I spoke to Jim Patrick (PMS) about my goals for this car and he convinced me -12 is the way to go. I'm not discounting the concern you raise, I just would like to understand it? I've not run or even purchased the lines yet so, fill me in?? |
East coaster |
Feb 18 2006, 09:08 PM
Post
#31
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
OK, it was a day of sniffin' fumes!

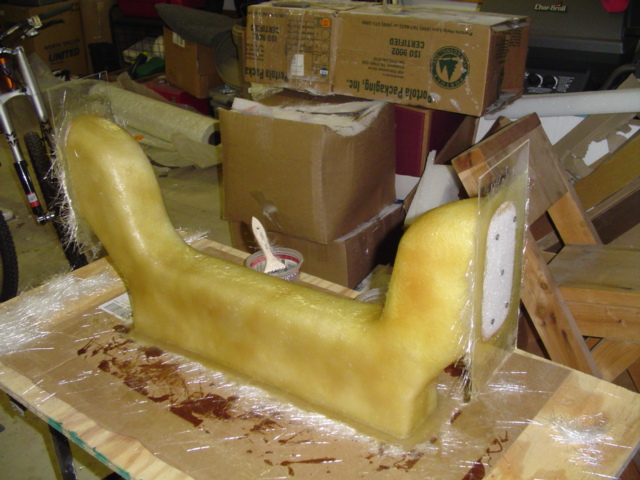

Layed up the main part of the plenum today. Started by adding scab plates to all the mounting surfaces. I used pieces of plexaglass for the flanges. These allow for a perfect flange when doing the layup. A pic........... Attached image(s) |
Aaron Cox |
Feb 18 2006, 09:09 PM
Post
#32
|
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
3.6 likes -16/-20
|
East coaster |
Feb 18 2006, 09:10 PM
Post
#33
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Just used a couple of drywall screws into the foam to hold'em on.........
Attached image(s) |
East coaster |
Feb 18 2006, 09:12 PM
Post
#34
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Did the layup, let it cure, and then shredded the styrofoam plug inside. It looks much less impressive in chunks.........Uh, turn your head and cough..... (IMG:http://www.914world.com/bbs2/html/emoticons/bootyshake.gif)
Attached image(s) |
East coaster |
Feb 18 2006, 09:13 PM
Post
#35
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Here's the plenum after a quickie scrape and trim. Needs a little attention, but it's basically done.
Attached image(s) |
East coaster |
Feb 18 2006, 09:14 PM
Post
#36
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
nuther.......
Attached image(s) |
East coaster |
Feb 18 2006, 09:15 PM
Post
#37
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
test fitting......
Attached image(s) |
East coaster |
Feb 18 2006, 09:16 PM
Post
#38
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
kjhgkjhgk
Attached image(s) |
East coaster |
Feb 18 2006, 09:18 PM
Post
#39
|
Senior Member Group: Members Posts: 1,791 Joined: 28-March 03 From: Millville, NJ Member No.: 487 Region Association: None |
Here's tomorrow's project. It's the front plenum. I've added extensions (blue foam) to the plug to fit the finished part into the front cutouts. Here it sets ready for glass in the morning.
Attached image(s) |
J P Stein |
Feb 18 2006, 09:18 PM
Post
#40
|
Irrelevant old fart Group: Members Posts: 8,797 Joined: 30-December 02 From: Vancouver, WA Member No.: 45 Region Association: None |
Good job.
You've added to my general knowledge of how to do "stuff". With any luck, I'll never have to do much FG work.....but shit happens, so ya never know. Getting the shittage out of the center looks like it's gonna be a messy job. Chemicals maybe?....heat? (edit) I was a bit quick on the trigger, eh. |
