> Cary's 73 1.7 Rustoration Thread
cary
post Jan 28 2014, 09:46 PM
Post #321


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest

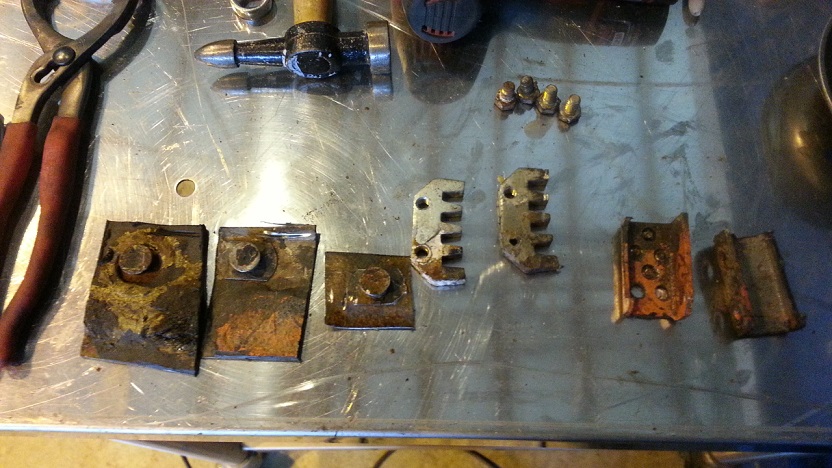

While Super In Law is building our new door braces I decided to do some housekeeping. I needed to cut out a few parts from the sheet metal that will be scraped.

Attached Image

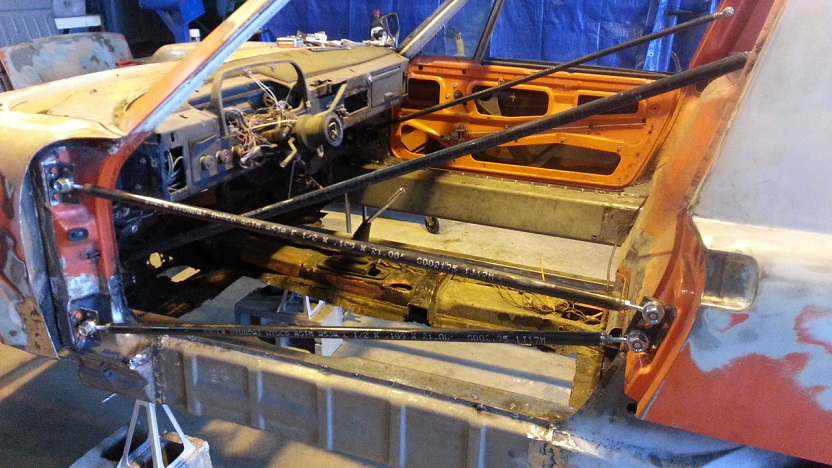

Here's the new door braces. I want to be able to flip it upside down and not have to worry about everything staying in place.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 28 2014, 09:48 PM
Post #322


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest

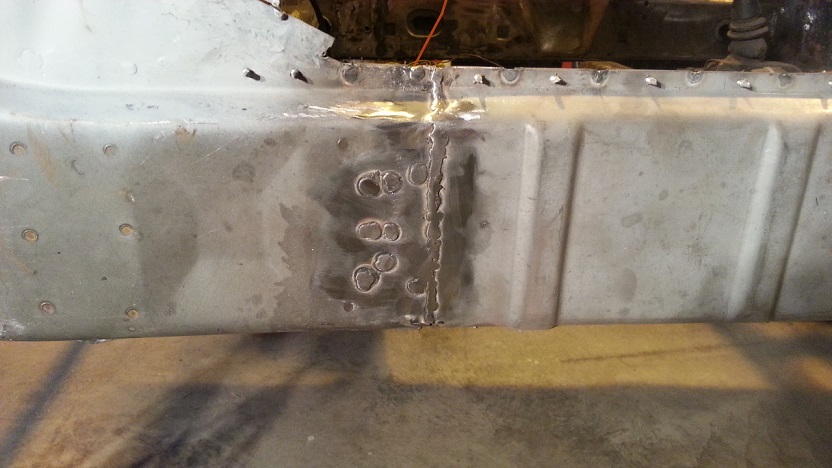

Tried some thing a little different. I pulled the puddle up while I was stitch welding the rocker seam.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 28 2014, 09:49 PM
Post #323


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest

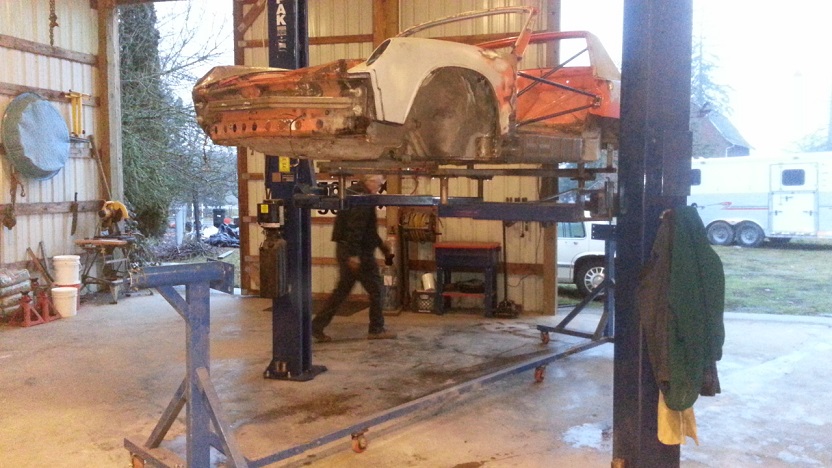

Finally putting her back on the rotisserie.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 28 2014, 09:51 PM
Post #324


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest

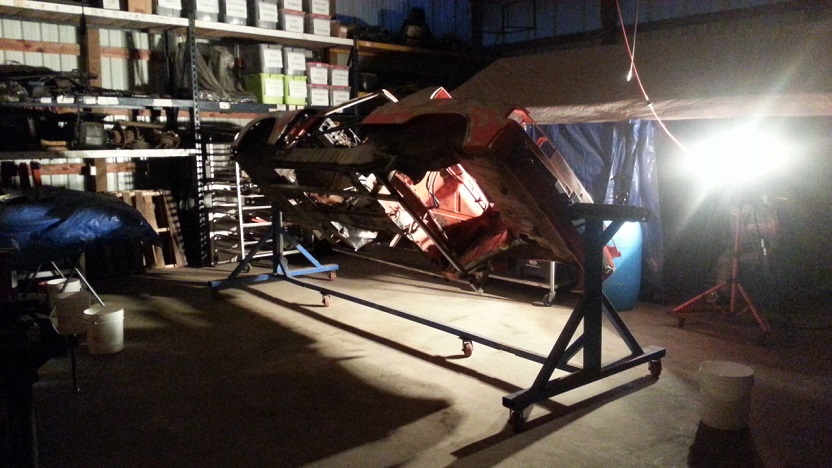

Heading home ....................

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 30 2014, 10:49 PM
Post #325


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest

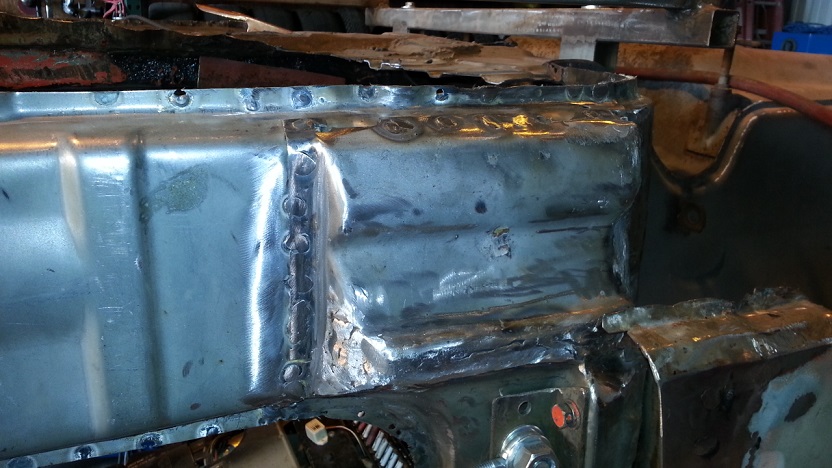

Spent Wednesday finishing up welding in the inner rockers and grinding down the rosettes.

Attached Image

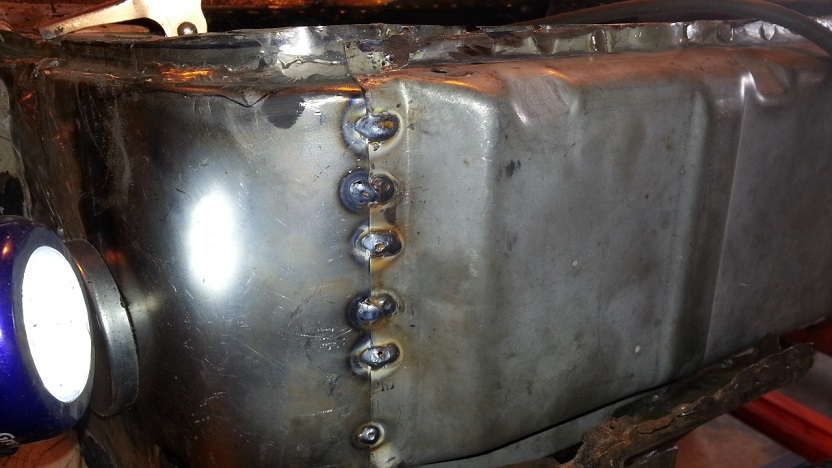

Then I went after the hinge post bases.
Finished up welding in the left side.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 30 2014, 11:01 PM
Post #326


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Then I went after a bad spot on the bottom of the left wheelhouse that I didn't like.
It was just too thin.
So I welded in a patch.

Attached Image

Before grinder .............

Then I attacked cleaning up my crappy overhead welds from being on the 2 post lift. I haven't figured out overhead welding yet ........
Looks like my farmer welds back in Montana.

Attached Image

Tidied up ..........

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 30 2014, 11:14 PM
Post #327


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
While I'm doing that. Super In Law is working on the right hinge post base.
Bought a new one from RD. Came off the stiffener.

Attached Image

Attached Image

Welded in. Before grinder

Attached Image

Finally we're working on two projects at the same time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Jan 30 2014, 11:20 PM
Post #328


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
I ended the day seam sealing the long to inner rocker flanges.

Attached Image

Plus Super in Law fabricated a new fender rocker end cap.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 3 2014, 10:35 PM
Post #329


914 Wizard
**********

Group: Members
Posts: 10,705
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Who is your friend ??? I need everything behind this, I will send you the leftovers....
(IMG:style_emoticons/default/sawzall-smiley.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kraftwerk
post Feb 3 2014, 10:49 PM
Post #330


Member
**

Group: Members
Posts: 195
Joined: 6-September 07
From: Bbbbbrroooklynnn
Member No.: 8,085
Congrats! you saved another one! Whew.. that was a lot of work, just to read the whole 17 pages wore the heck out of me...
Its intimidating and impressive how much work it takes to fix typical rust issues, & how complicated the uni-body design is, doesn't make it easy.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 3 2014, 11:02 PM
Post #331


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
QUOTE(sixnotfour @ Feb 3 2014, 08:35 PM) *

Who is your friend ??? I need everything behind this, I will send you the leftovers....
(IMG:style_emoticons/default/sawzall-smiley.gif)


That would be great ...............
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 20 2014, 10:31 PM
Post #332


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Been a couple weeks.

Installed the motor mount that was given to me by worn.

Attached Image

Having the jig made installing it pretty simple.

Attached Image

Attached Image

Tidied up the inside of the wheelhouse and installed the hinge pivot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saigon71
post Feb 22 2014, 07:11 AM
Post #333


Advanced Member
****

Group: Members
Posts: 2,007
Joined: 1-June 09
From: Dillsburg, PA
Member No.: 10,428
Region Association: MidAtlantic Region
"Then I attacked cleaning up my crappy overhead welds from being on the 2 post lift. I haven't figured out overhead welding yet ........
Looks like my farmer welds back in Montana."

Overhead welding sucks...you figured it out when you put the car on the rotisserie. (IMG:style_emoticons/default/biggrin.gif)

Great work! (IMG:style_emoticons/default/beerchug.gif) Keep the pics coming.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 27 2014, 09:36 PM
Post #334


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Back to it ..............
Had to put brakes on the Fusion last week.

Finished up the welding on the right motor mount.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 27 2014, 09:49 PM
Post #335


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Then I finished welding the upper long to the suspension tower.

Attached Image

Finished welding .........................

Attached Image

Was a good boy and didn't over grind the welds and metal.

Attached Image

Seamed sealed ..............
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 27 2014, 10:01 PM
Post #336


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Then I get to removing whats left of the floor plan.
Finally I get the tunnel opened up .... (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif)

Attached Image

Don't miss the two spot welds under the corner/foot brace.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Feb 27 2014, 10:09 PM
Post #337


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
I finished up welding the long to the front wheel well.
This is some of my best welds. Practice, practice ..........practice.

Attached Image

Now we'll move onto the back of the floor pan. This is going to be tricky.
We really over welded when we built up the car 12 years ago.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post May 26 2014, 08:11 AM
Post #338


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Time fly's. Its been 90 since I've touched the project. (IMG:style_emoticons/default/sad.gif) (IMG:style_emoticons/default/sad.gif)

Changed stores again, so I've been busy bringing it up to my liking.
And I dropped the engine in my 911 to put in aluminum clutch parts.
Used flywheel from Rothsport and a Kennedy pressure plate. (IMG:style_emoticons/default/smile.gif) (IMG:style_emoticons/default/smile.gif)

Hopefully today I'll get to weld up the clutch tube on my 73. Then I can restart the rustoration project.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Sep 13 2014, 09:26 AM
Post #339


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Hope to get back to it on Monday....................... Its been along time.
Been working on my other 914 and my 911. 911 is up and running. My white 914 is coming together. Rear brakes are at Eric's getting platted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Oct 28 2014, 09:31 AM
Post #340


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
I'm finally back. We started working on the clobbered up seam we created years ago on the floor pan to outside firewall. It's going to be a tedious process. I'm going to take it off about an inch at a time. A couple cross cuts got too deep. (IMG:style_emoticons/default/mad.gif) Today I'll set up more light for the delicate surgery. Or maybe the Dremel if I can't get it right.

Attached Image

Attached Image

Attached Image

Sorry for the yellow tint. That's what I get if I don't turn off the halogen lamps before I shoot the pictures.
