> #40, June '24 update
Maltese Falcon
post Apr 10 2020, 07:55 PM
Post #161


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(IronHillRestorations @ Apr 7 2020, 11:17 AM) *

I have a request. I'm doing a GT look resto-mod on a 6, and we are using a GT style fiberglass hood.

I'm working on the hood pins and brackets now. The upper two brackets are pretty straight forward, as the brackets already in place with a hole.

I need a measurement on the front hood pin brackets from the center of the pin to the inside corner of the weatherstrip channel, so I can get the pins in the correct location

Armando has the plates illustrated but no location for the front pins.

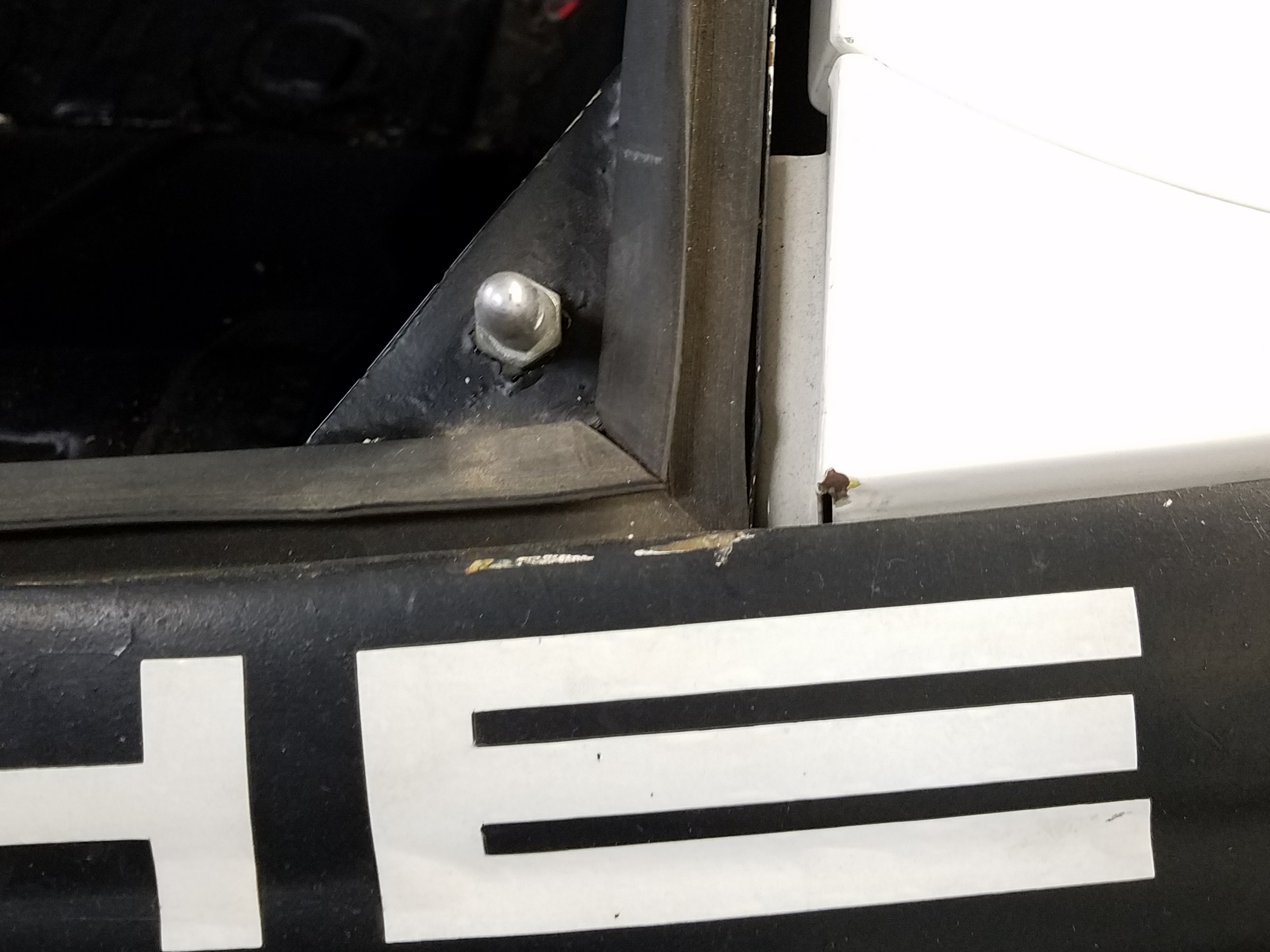

Did a little bit of measuring for you today. These are pics and diagrams of the Driver (L) front corner area of front trunk.
" I " is the inside mounting plate, which is welded to the lower edge of the weather-strip channel. " II " is the outer plate that mounts to the exterior of the trunk (L) corner. Use the center -punch hole that I've indicated , and simply transfer down onto the inside mount plate. For Passenger ( R ) side...simply flip the patterns 180°


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 10 2020, 07:58 PM
Post #162


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

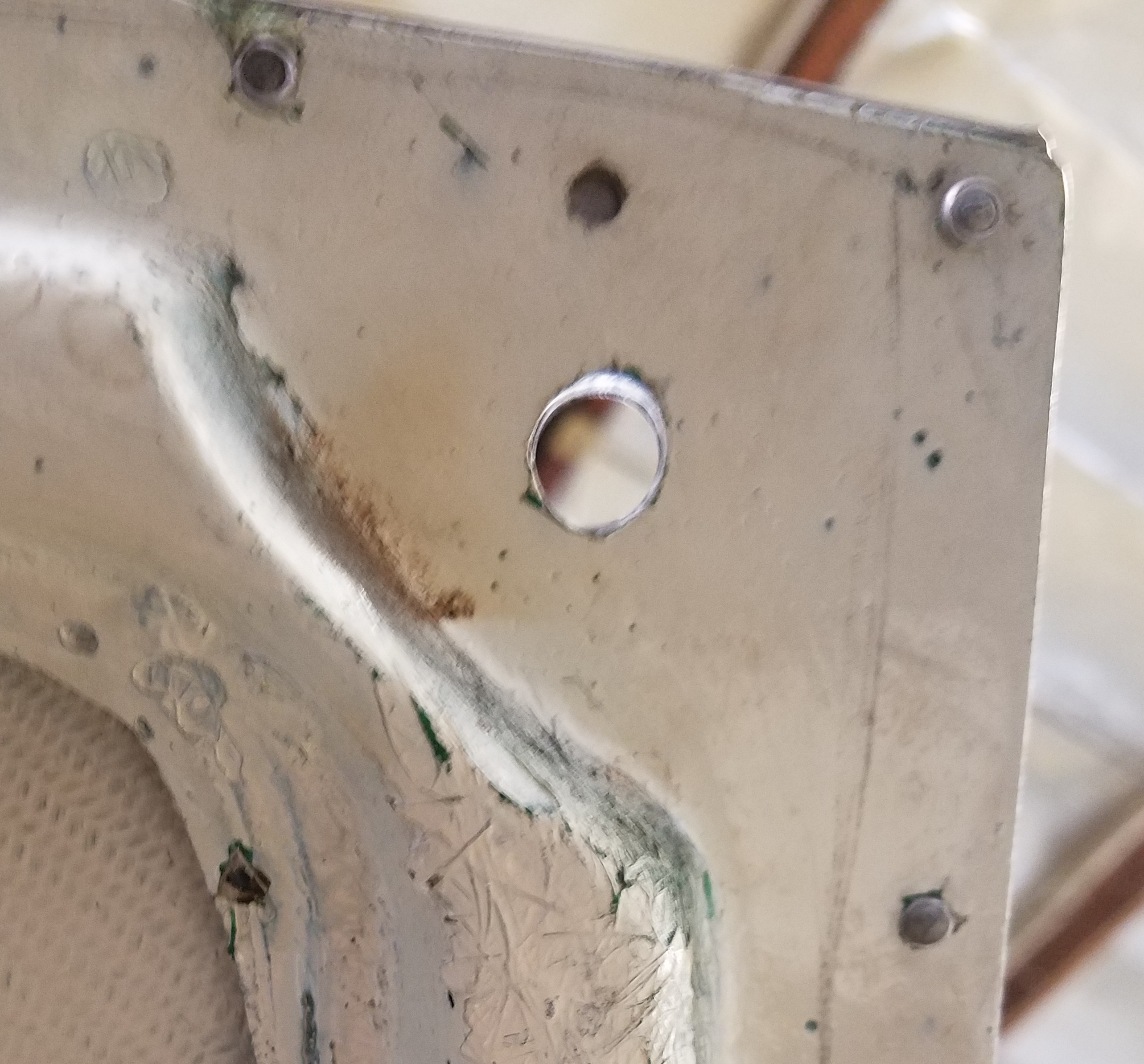

® corner detail, viewing the fasteners holding the plate above, on exterior of the fiberglass hood.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 10 2020, 08:02 PM
Post #163


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

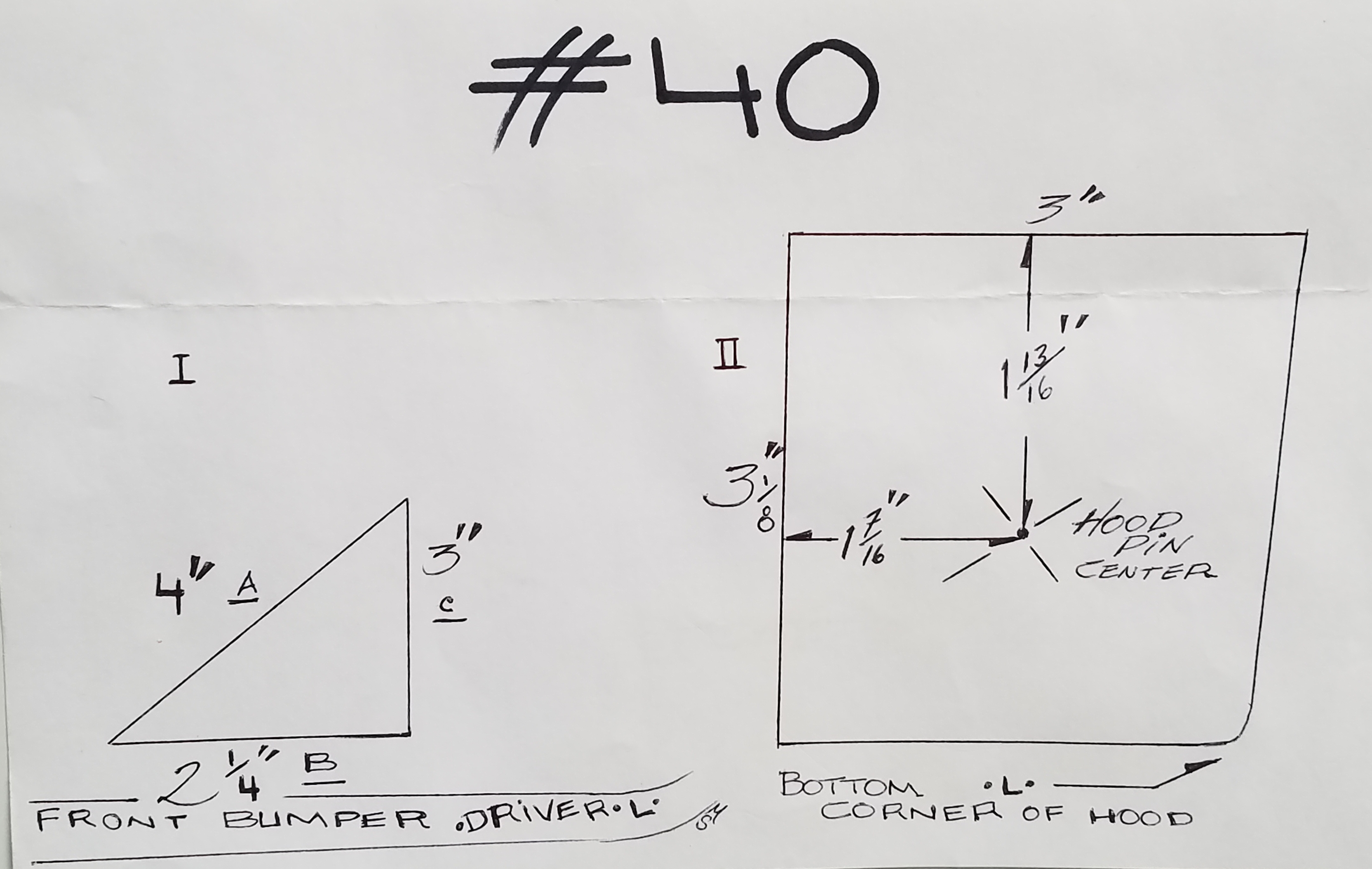

Handy measurements for you. The hood-pin-plate basicially mounts down to the corner of hood= flush to the 2 leading edges.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Apr 10 2020, 11:44 PM
Post #164


I. I. R. C.
*****

Group: Members
Posts: 6,759
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
Very awesome Sir! I really appreciate your help Marty.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 11 2020, 12:38 AM
Post #165


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(IronHillRestorations @ Apr 10 2020, 10:44 PM) *

Very awesome Sir! I really appreciate your help Marty.

(IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 11 2020, 01:29 AM
Post #166


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Lightweight
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Schellmufsky_2
post Apr 11 2020, 02:07 AM
Post #167


Newbie
*

Group: Members
Posts: 3
Joined: 24-February 20
From: Germany
Member No.: 23,963
Region Association: None
QUOTE(Maltese Falcon @ Apr 10 2020, 07:58 PM) *

® corner detail, viewing the fasteners holding the plate above, on exterior of the fiberglass hood.
Attached Image


.. if you are wondering about the green paint residue on the hood, the hood comes from this 914-6 which drove in 1971 in LM. I changed the hood because
the original hood was damaged, a hinge was broken. During this time I was looking for a replacement and found it from this Max Moritz car.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Apr 11 2020, 12:02 PM
Post #168


914 Historian
*****

Group: Benefactors
Posts: 5,195
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
I'm guessing the original fibreglass pieces have been NLA for a long time. I do have a NOS rear bumper though. What are the best replacement parts?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KSCarrera
post Apr 22 2020, 04:44 AM
Post #169


Member
**

Group: Members
Posts: 314
Joined: 31-January 19
From: UK
Member No.: 22,846
Region Association: England
This just came up on Facebook...

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 25 2020, 08:06 PM
Post #170


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

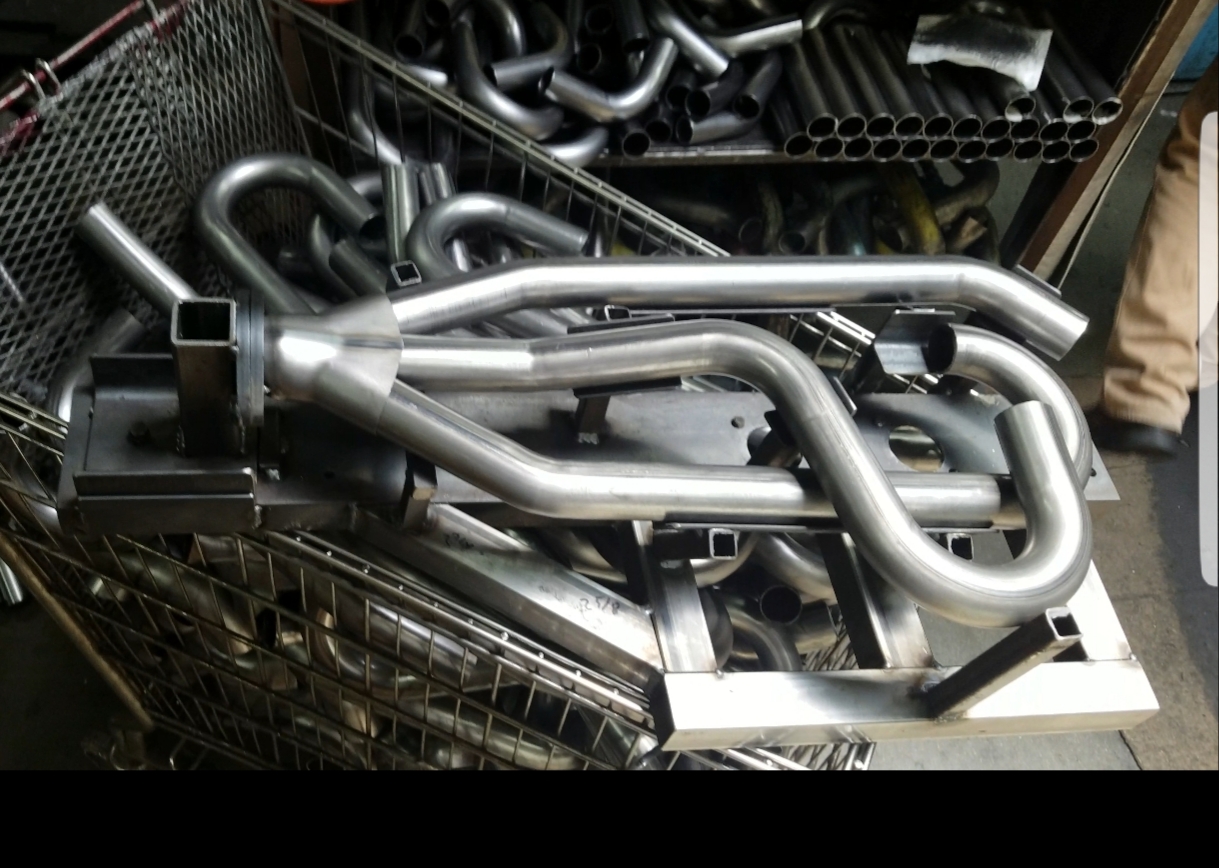

Building the new Left and Right 9146gt header fabrication & mandrel-bending / welding fixtures for an upcoming small production run.
We will also mfg the L + R megaphone " Transitions " into the GT muffler; and also build a Locating Fixture for this style gt muffler (not building mufflers tho). Eventually I'll replicate the tail housing muffler-hanger as well.
The 2 muffler inlets are "Flangeless"...and rely on the Transition megaphones with an id / od slip-fit and gear-clamps to seal.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 25 2020, 08:10 PM
Post #171


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Got the old tattered poster up to snuff and into it's new glass framed home
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 25 2020, 08:13 PM
Post #172


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
New permanent home
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 25 2020, 08:34 PM
Post #173


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

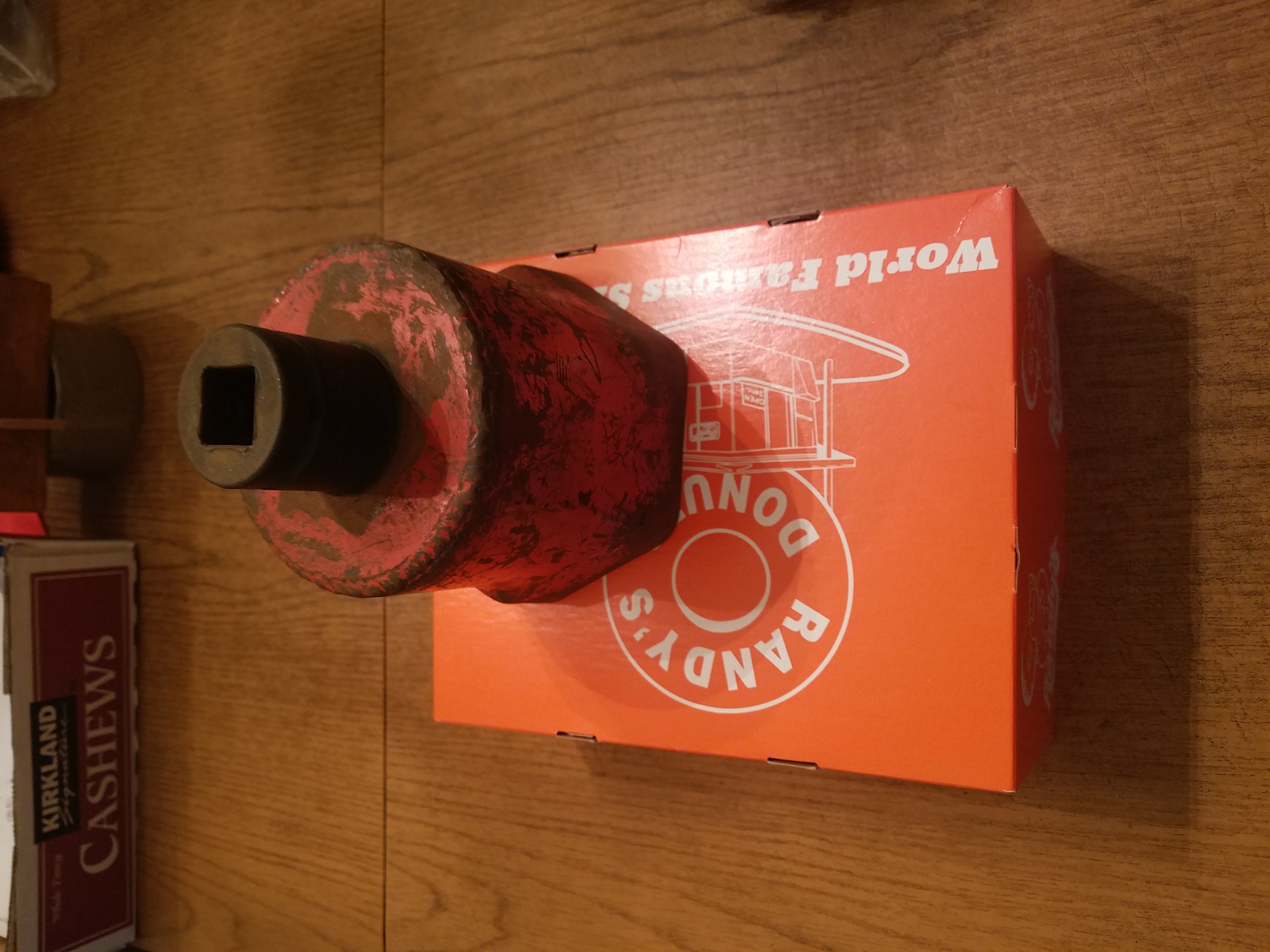

Found a small cardboard box in a corner of the 924gtr interior ( other car in this deal) ... this center-lock lug socket. It does fit the BBS wheels on the car, that's a good thing ! Our bud Mike informs me that the C/L lug socket was part of another car that he acquired with #40...the Kremer 935 K4- 01 (IMG:style_emoticons/default/driving.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Apr 25 2020, 08:50 PM
Post #174


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Mike's 935 Kremer K4, I snapped this pic at the old RIR track.
This appears in Al Holbert's #14 Lowenbrau livery here.
935 K4 also ran in these other liveries; Jagermeister, Fitzpatrick, JDavid. It's currently in different ownership and for sale at Canepa.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post May 2 2020, 07:10 PM
Post #175


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

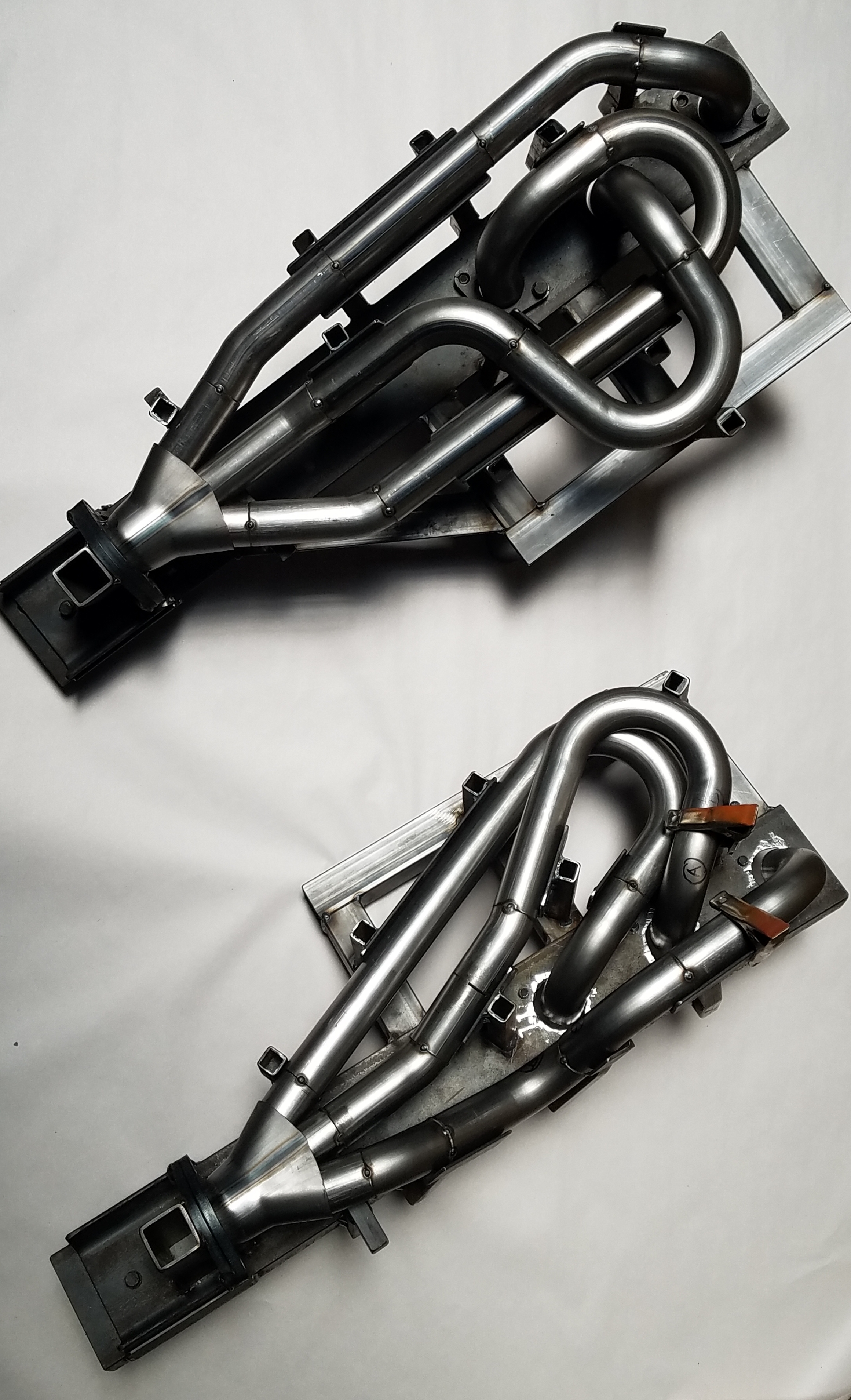

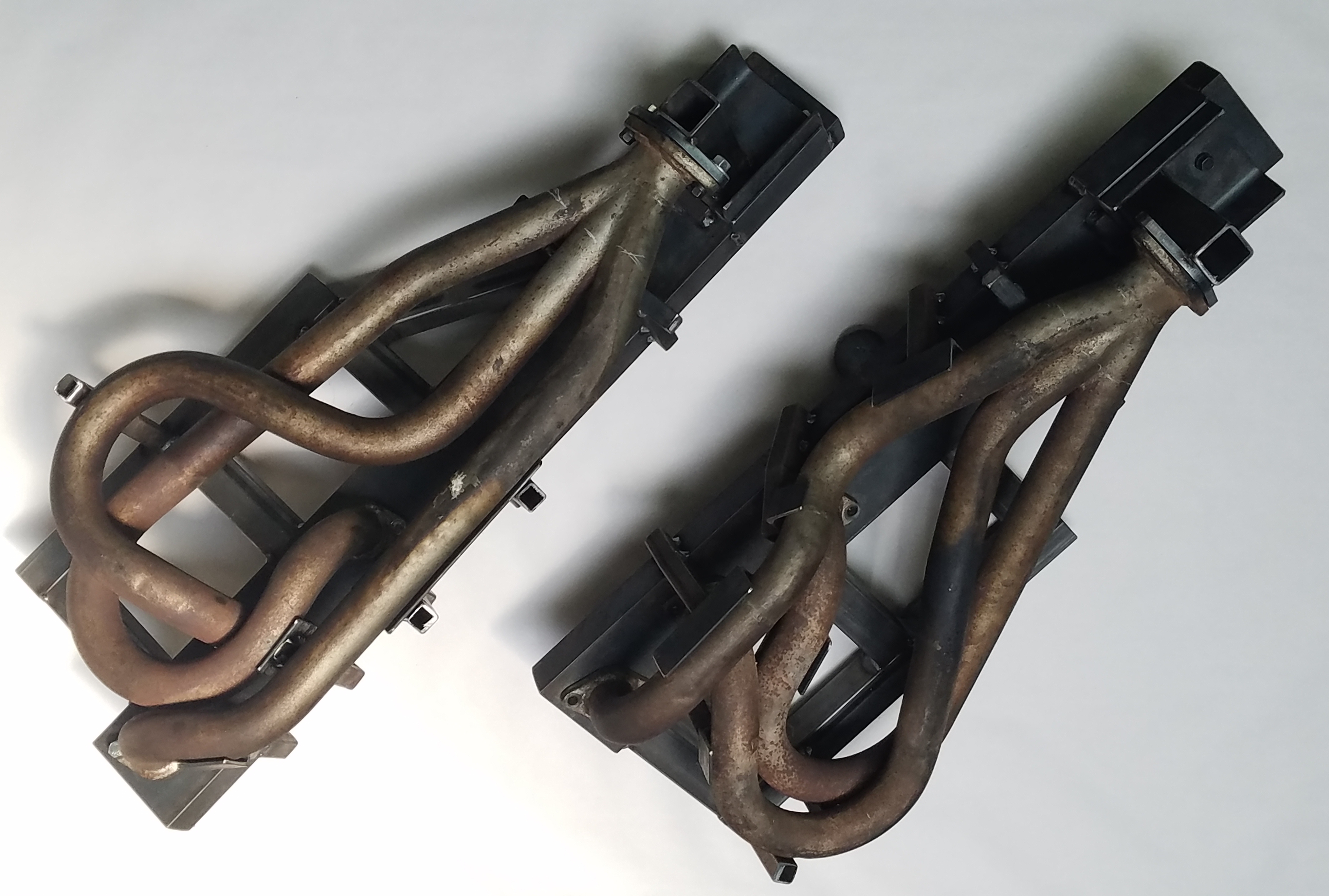

We have completed the mfg fixtures for the Left and Right 914-6gt racing headers, built directly from the originals (which are in xlnt shape), mandrel bending for the first 12 sets starting this week.
Interfacing Left and Right megaphone-extensions coming up next .
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post May 2 2020, 07:32 PM
Post #176


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California
You are an amazing person, Marty....!!!!!

(IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post May 2 2020, 07:42 PM
Post #177


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(Larmo63 @ May 2 2020, 06:32 PM) *

You are an amazing person, Marty....!!!!!

(IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/smilie_pokal.gif)

Lawrence...I must admit my small staff of guys (been with me for decades) are all a talent- extraordinaire; teamwork is dreamwork !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post May 3 2020, 06:52 AM
Post #178


Michael
**********

Group: Members
Posts: 10,005
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Amazing stuff. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post May 10 2020, 06:02 PM
Post #179


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
In the 1980's when #40 was displayed at the Sinsheim Auto + Technik Museum, Deutschland. This was when our friend (and broker) Kerry Morse arranged the sale and transportation to the USA . Some other badA$$ cars in view; MBZ silver gullwing, Lancia (Stratos ¿) WEC car , a white 935'ish car ?
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post May 10 2020, 06:06 PM
Post #180


Advanced Member
****

Group: Members
Posts: 4,818
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
A little time to squeeze in the GT header bending fabrication prototypes. Mandrel bending vid to post soon ¡
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
