> The project has begun!, Replacing Oil Tubes and Trailing Arms
echocanyons
post Feb 13 2004, 01:51 PM
Post #21


Advanced Member
****

Group: Benefactors
Posts: 2,096
Joined: 24-December 02
From: Bay Area, CA
Member No.: 7
Region Association: Central California
So what did it take to pull your hubs, I am quite stuck at this point(but harvesting them from a 911)

Is there a tool
or what?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 02:23 PM
Post #22


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

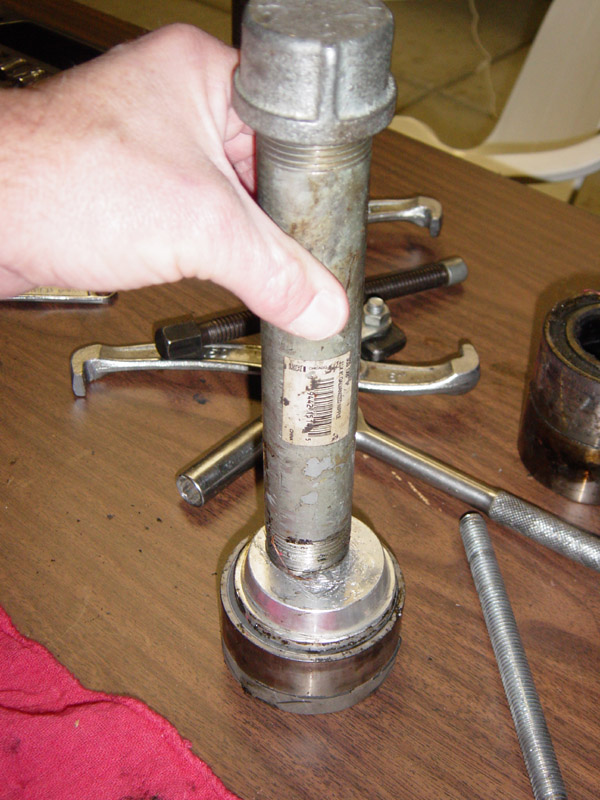

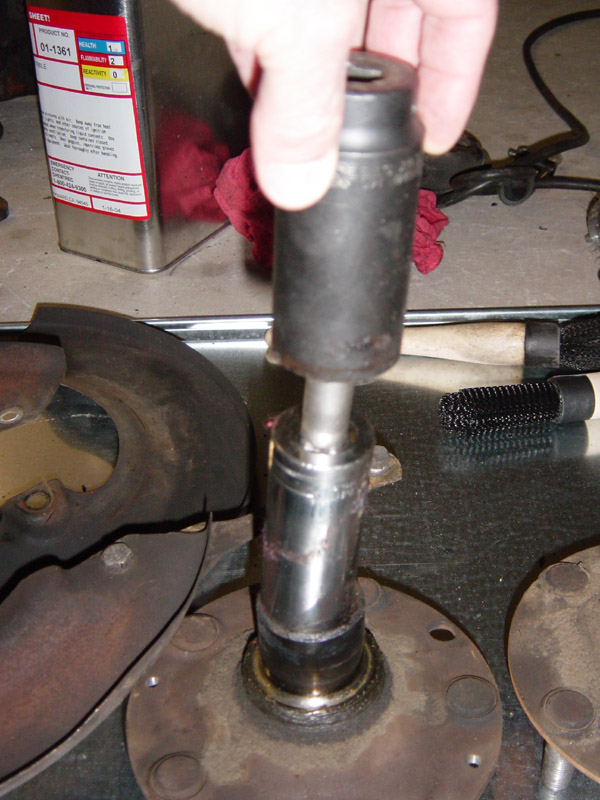

I remove the bearing retainer plate, set the arms on the edge of the table and start pounding with the following tools!!

Jeff


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 02:24 PM
Post #23


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

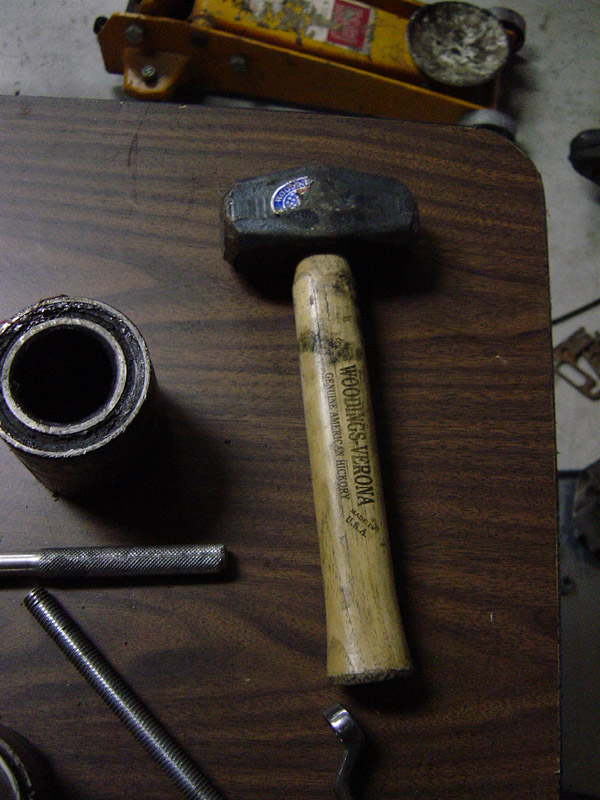

Tool #2


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 02:24 PM
Post #24


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
Tool #3


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 02:27 PM
Post #25


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
I realize this is the Mickey Mouse way to do it but I couldn't find my Bearing tap extension so I had to improvise!! I wouldn't want to use the bearings after removal anyway! (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif)

Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 02:52 PM
Post #26


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

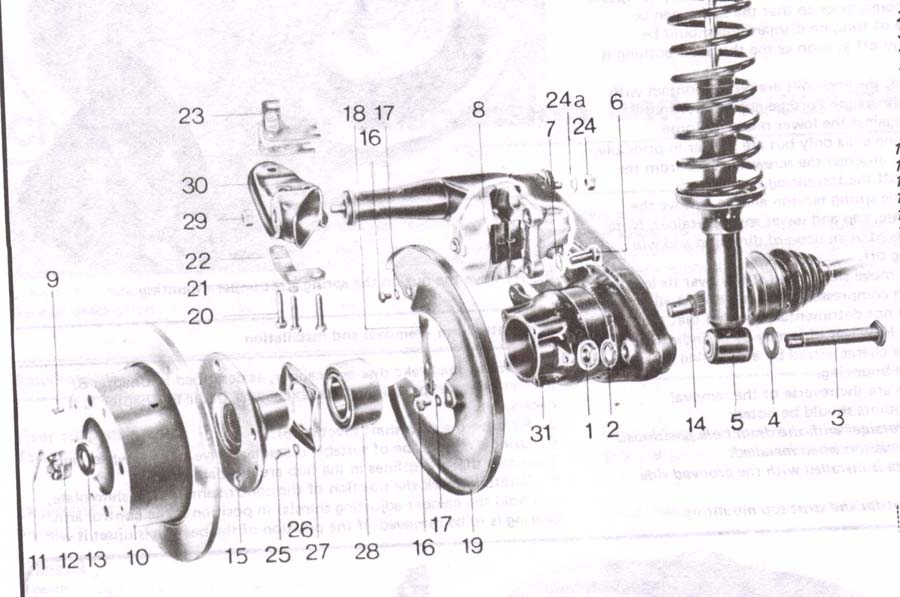

Just in case you are trying to do this while it is still in the car, there is a certain order you need to remove things!

After removing the Wheels, brakes and rotor then:

1. Remove the Axels
2. Tap hub out
3. Remove Bearing retainer plate
4. Tap out bearing out

Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Bonanno
post Feb 13 2004, 02:55 PM
Post #27


il dottore
**

Group: Members
Posts: 421
Joined: 30-April 03
From: San Diego, CA
Member No.: 636
-- tap --

taptaptap

thwap! SMACK! SMA...CLANK - awfuck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 03:02 PM
Post #28


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
awfuck


That comes when it finaly falls out and on your foot!!

Jeff


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Feb 13 2004, 03:32 PM
Post #29


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
QUOTE(Jeff Bonanno @ Feb 13 2004, 12:55 PM)
-- tap --

taptaptap

thwap!  SMACK!  SMA...CLANK - awfuck.

(IMG:style_emoticons/default/chairfall.gif) (IMG:style_emoticons/default/chairfall.gif) (IMG:style_emoticons/default/chairfall.gif) (IMG:style_emoticons/default/lol2.gif) (IMG:style_emoticons/default/lol2.gif)

ROTFLMAO
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
echocanyons
post Feb 13 2004, 03:55 PM
Post #30


Advanced Member
****

Group: Benefactors
Posts: 2,096
Joined: 24-December 02
From: Bay Area, CA
Member No.: 7
Region Association: Central California
(IMG:style_emoticons/default/wacko.gif) I think I need a bigger hammer

Thanks for the tips
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 13 2004, 03:59 PM
Post #31


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
5 lb minimum!!

QUOTE
-- tap --
taptaptap
thwap!  SMACK!  SMA...CLANK - awfuck.


What he means is hit it harddddddddd!! with a 5 pounder!


Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Feb 28 2004, 03:11 PM
Post #32


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

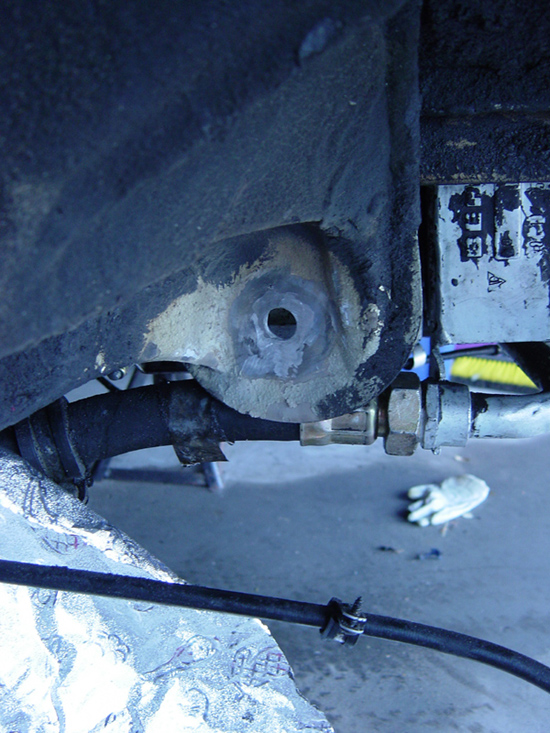

OK, I did it all by my self!!!! Filled the ovaled hole and reamed it! OUCH! (IMG:style_emoticons/default/ohmy.gif)

Jeff


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Mar 24 2004, 05:36 PM
Post #33


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

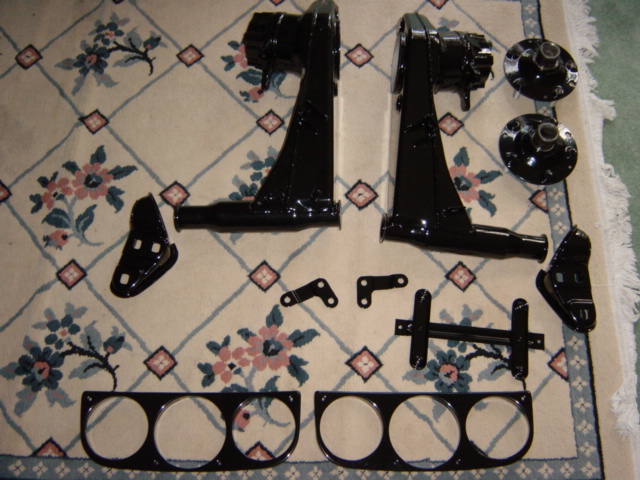

Things are still progressing! I have most of the parts powder coated and ready to reasemble! I am still cleaning the motor and I just found out my alternator was bad so I guess I wont make it for the 27th breakfast!! Oh well, maybe the next one!!

Jeff


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post May 17 2004, 04:32 PM
Post #34


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
OK I am making some progress! I am not going to be able to attend the WCC because I have to get this going and then move to the new home in Discovery Bay!!

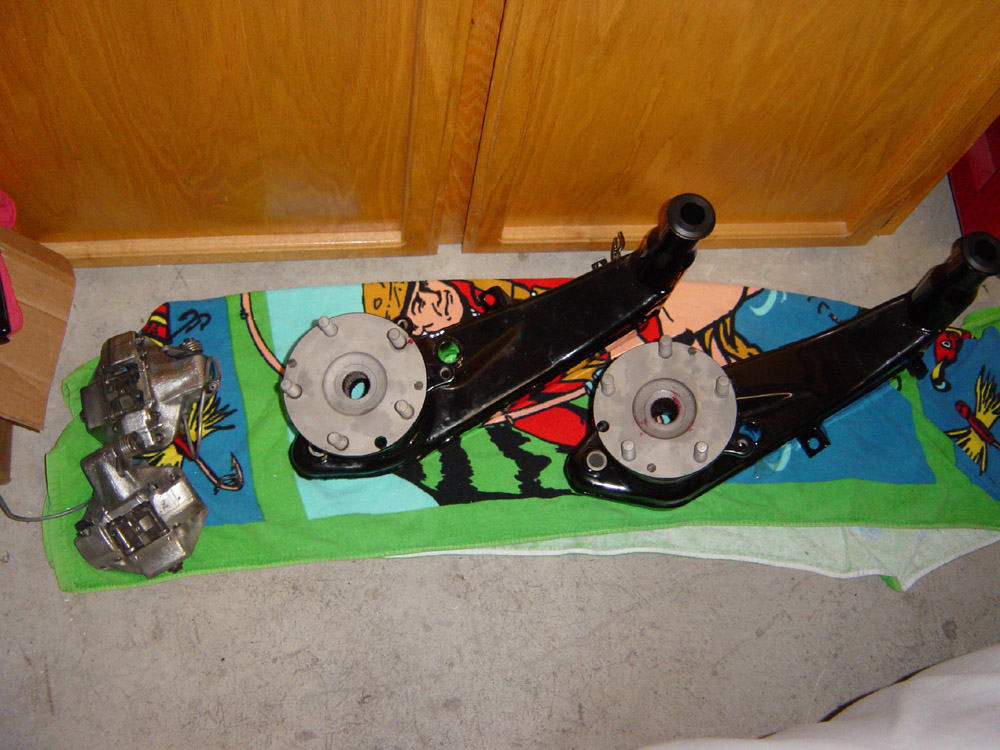

The suspension is done and just needs some detailing and reassembling.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post May 17 2004, 04:34 PM
Post #35


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

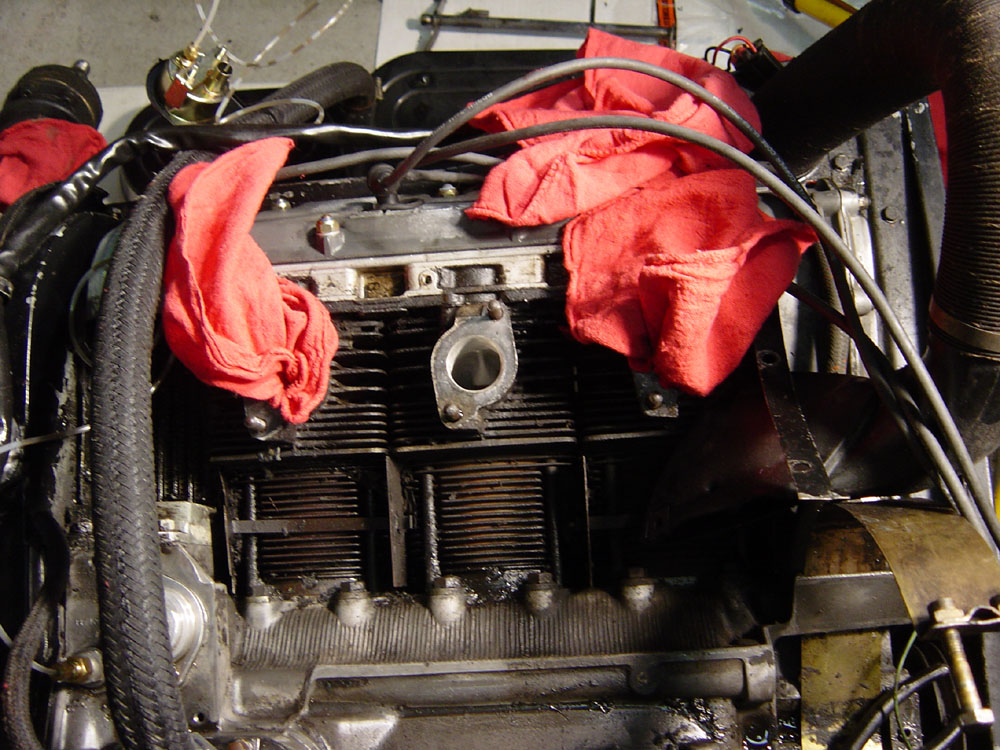

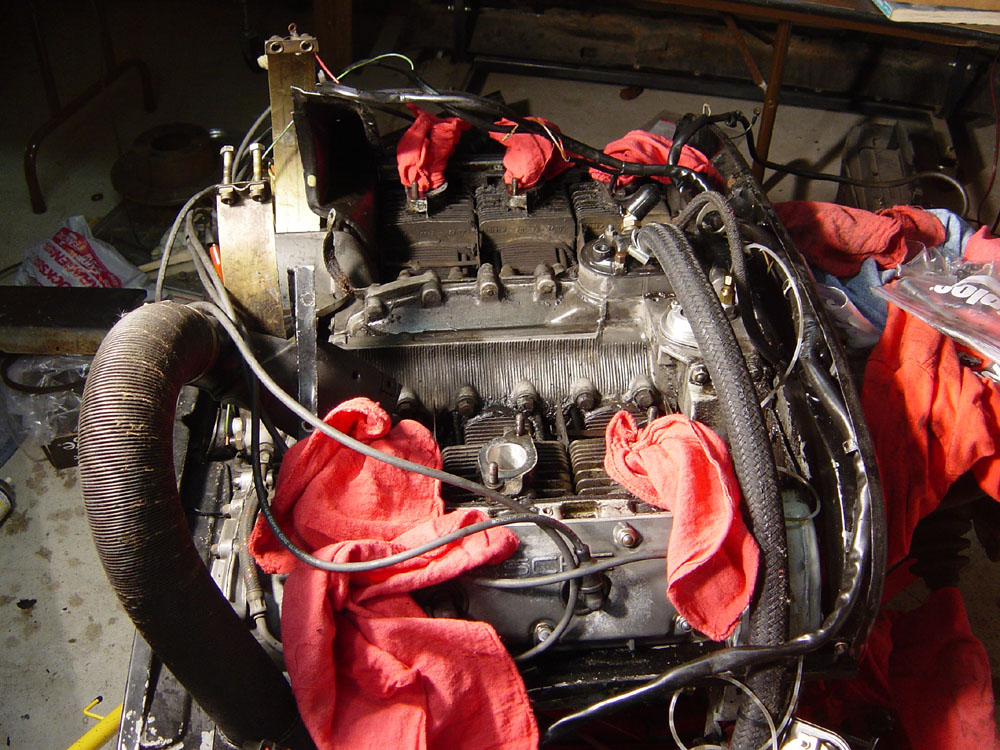

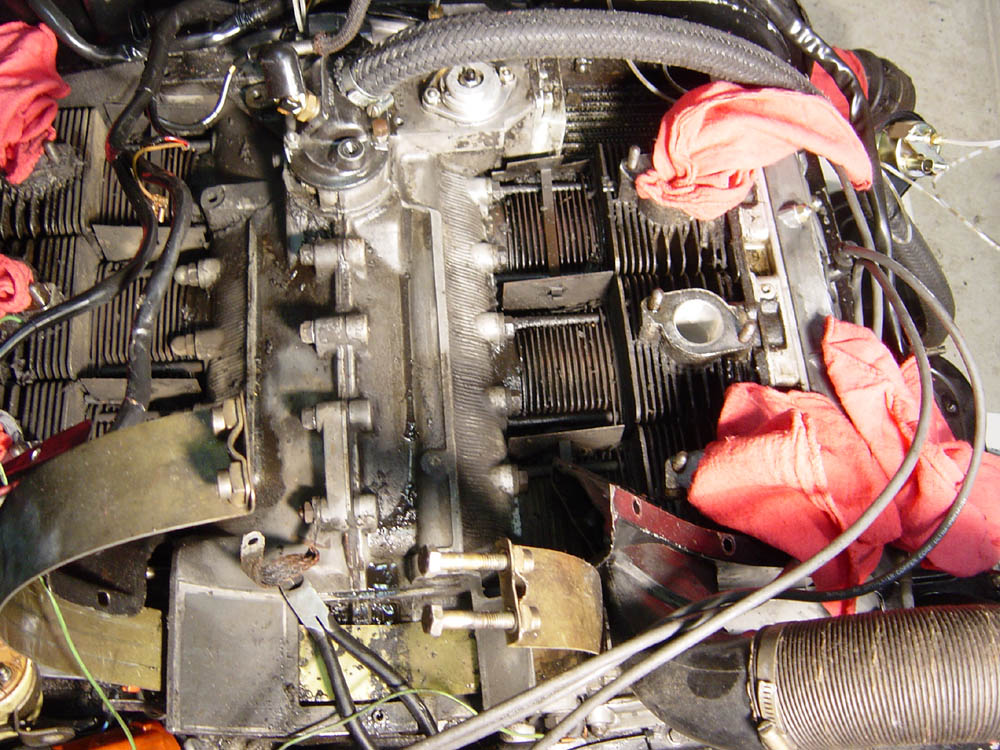

Now the engine just needs to be cleaned and reassembled!! Look at the intake ports!! They look new!!

Jeff


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post May 17 2004, 04:34 PM
Post #36


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
lskj


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post May 17 2004, 04:35 PM
Post #37


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
lskjlk Last one!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 17 2004, 04:38 PM
Post #38


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
looks good Jeff.....are you selling the /6 or keeping it?

not that I have personal experiance......but you might be interested to know that out on Vasco Rd they installed some automatic speed limit signs that tell you what your current speed is......I "heard" that they flip out and flash 0 and 70 when passed while going a little over 130 (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 17 2004, 04:41 PM
Post #39


Resident German
*************************

Group: Admin
Posts: 41,943
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Mueller @ May 17 2004, 03:38 PM)
I "heard" that they flip out and flash 0 and 70 when passed while going a little over 130 (IMG:style_emoticons/default/smile.gif)

the "flash" is the camera taking a picture of your license plate (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post May 17 2004, 04:45 PM
Post #40


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
Yep, I saw those last week when I was doing the inspection on my new place!! I didn't test the 130 mph thing though....every time I go up there I see at least 3 Highway Patrol pulling someone over!! That is one hell of a fun road at top speed though!!
QUOTE
are you selling the /6 or keeping it?


I plan on keeping it unless I find one already done well and I can make a quick buck selling this one! The house is my focus right now!! You'll have to come out and hang on the dock some time Mueller, we are almost neighbors!

Jeff
