> Backpad delete questions
jmargush
post Feb 19 2022, 02:12 PM
Post #1


Member
**

Group: Members
Posts: 465
Joined: 8-June 04
From: Goshen, IN
Member No.: 2,176
Does anyone know if there is a backpad delete process documented in a thread?

For those who have done it did you leave the rubber mat attached tot he inside of the firewall or remove it?

What materials felt/carpet? have been used to cover the firewall?

Sources?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post Feb 19 2022, 02:39 PM
Post #2


Senior Member
***

Group: Members
Posts: 807
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States
Here's one discussion.

https://www.google.com/url?sa=t&source=...-vEQIDG8tOY6vCf
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Feb 20 2022, 12:28 PM
Post #3


Geezer914
***

Group: Members
Posts: 1,789
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: North East States
I covered mine with a piece of Perlon and installed 2 small lights near the top of the center console.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Feb 20 2022, 12:49 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,409
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
I still have one of those eBay kits I never installed...

Instead of bumping that necro-thread...what's the noise difference with a noise mat behind Perlon? I don't really want to increase it much (if at all).

And of course I'd have to dispense with a light.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Feb 20 2022, 12:55 PM
Post #5


914 Guru
*****

Group: Members
Posts: 6,589
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(GregAmy @ Feb 20 2022, 01:49 PM) *

I still have one of those eBay kits I never installed...

...what's the noise difference with a noise mat behind Perlon? I don't really want to increase it much (if at all).



Be forewarned, NVH is going to get worse on it's own with just Perlon. The combination of the OEM asphalt mat (mass damper), the fiberboard backpad backers (noise barrier), the contour foam (noise absorber), and the vinyl (noise barrier) is a pretty effective noise treatment.

I'd consider the addition of at least Dynamat (a highly effective, constrained layer + mass damping) behind the Perlon. Dynamat is going to be more effective than the original asphalt mass damping mat was.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Feb 20 2022, 01:07 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,409
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
Noted, thanks.

Given my backpad is still in excellent shape, and now with confirmation of more noise, I'm having a hard time justifying replacing it (as I did some 2-3 years ago).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Feb 20 2022, 05:24 PM
Post #7


Advanced Member
****

Group: Members
Posts: 3,453
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
QUOTE(Superhawk996 @ Feb 20 2022, 11:55 AM) *


Be forewarned, NVH is going to get worse on it's own with just Perlon. The combination of the OEM asphalt mat (mass damper), the fiberboard backpad backers (noise barrier), the contour foam (noise absorber), and the vinyl (noise barrier) is a pretty effective noise treatment.

I'd consider the addition of at least Dynamat (a highly effective, constrained layer + mass damping) behind the Perlon. Dynamat is going to be more effective than the original asphalt mass damping mat was.


Was hot to move to a carpeted firewall a few years ago—they look great!—but never got around to it. Thanks for a reminder of why I shouldn't. (IMG:style_emoticons/default/beerchug.gif)

I've actually been thinking about adding insulation under the engine lid and a dual-pane rear window. Even with a factory airbox, a 914-4 engine-side mat, the asphalt mat inside, and a full back pad, the Mezger six is a lot to listen to when the top is on. When the top is off, it's pure heaven—which has kept me from making any changes so far…
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Feb 20 2022, 05:27 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,599
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787
I put in a rear view mirror with map lights.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Feb 20 2022, 05:41 PM
Post #9


Advanced Member
****

Group: Members
Posts: 3,453
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
QUOTE(partwerks @ Feb 20 2022, 04:27 PM) *

I put in a rear view mirror with map lights.


^ Good idea.

Was looking at installing one or two very small LEDs into holes in the underside of the targa bar pad, aiming them forward, and then running the existing wiring up to power them. If I ever reupholster my back pad, I may do it anyway as the factory "dome" light has never fit (or worked) all that well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Feb 20 2022, 05:49 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,599
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787
QUOTE(horizontally-opposed @ Feb 20 2022, 03:41 PM) *

QUOTE(partwerks @ Feb 20 2022, 04:27 PM) *

I put in a rear view mirror with map lights.


^ Good idea.

Was looking at installing one or two very small LEDs into holes in the underside of the targa bar pad, aiming them forward, and then running the existing wiring up to power them. If I ever reupholster my back pad, I may do it anyway as the factory "dome" light has never fit (or worked) all that well.


I got tired of twisting my arm around to reach it.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
roblav1
post Feb 20 2022, 06:28 PM
Post #11


Senior Member
***

Group: Members
Posts: 528
Joined: 18-September 12
From: KY
Member No.: 14,943
Region Association: MidAtlantic Region
I did this on my car. Very carefully cut Dynamat directly on the firewall. You'll never get one big piece on at once... I think I did three. Then glued 80% wool felt to that in two pieces sliced vertically down the middle. McMaster Carr had the felt. I used the same felt glued to the bottom of the roof.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roblav1
post Feb 20 2022, 06:35 PM
Post #12


Senior Member
***

Group: Members
Posts: 528
Joined: 18-September 12
From: KY
Member No.: 14,943
Region Association: MidAtlantic Region

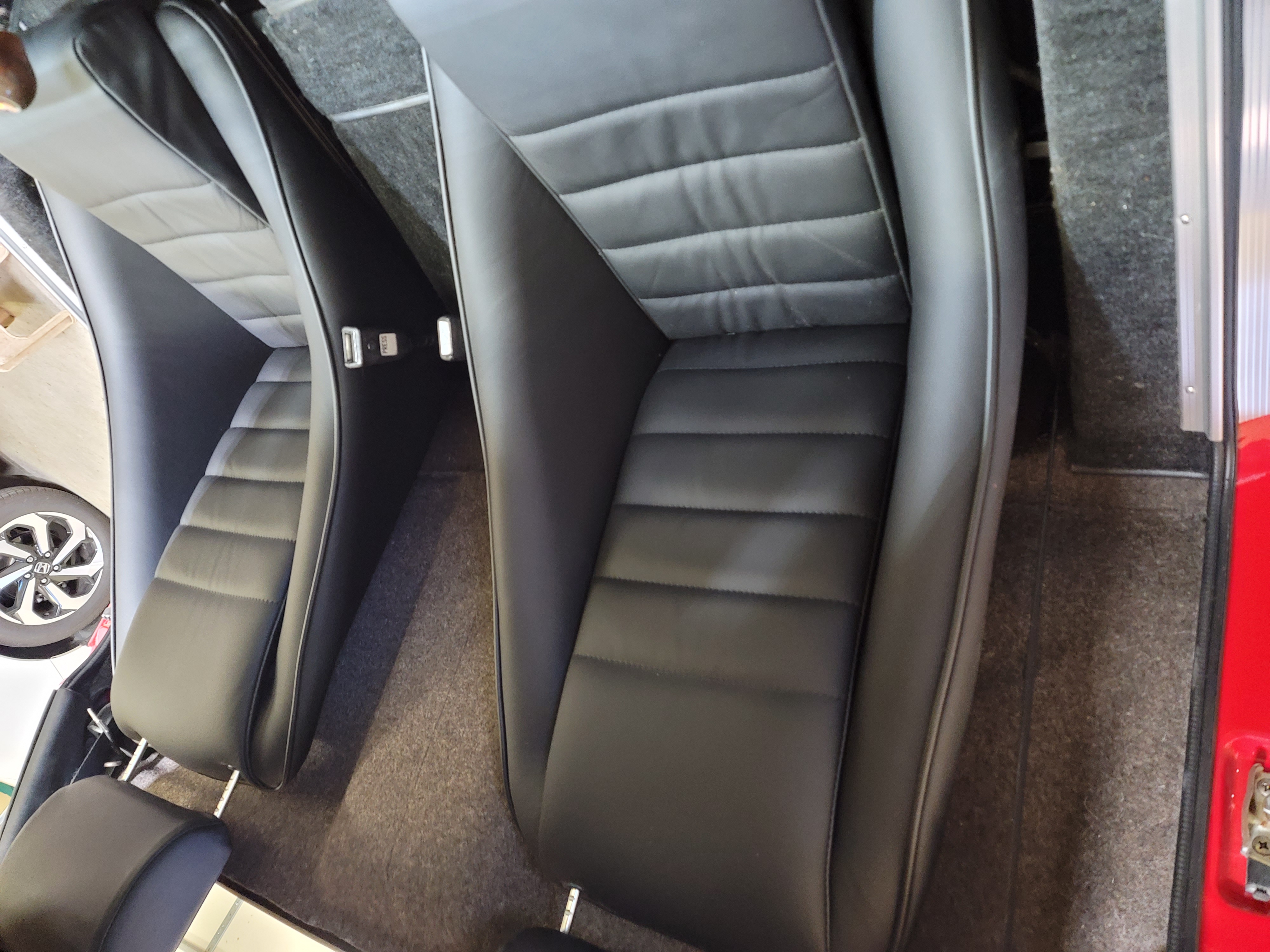

Here... somehow, it went upside down! Hopefully, you'll get the picture, pun intended!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Feb 20 2022, 07:05 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,725
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California
QUOTE(partwerks @ Feb 20 2022, 03:27 PM) *

I put in a rear view mirror with map lights.



@partwerks Interesting idea... (IMG:style_emoticons/default/idea.gif)

Is this a BMW conversion mirror that would mount in the center sun visors bracket location? Can you share picture/car model mirror? (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Feb 20 2022, 07:27 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,599
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787
QUOTE(Montreal914 @ Feb 20 2022, 05:05 PM) *

QUOTE(partwerks @ Feb 20 2022, 03:27 PM) *

I put in a rear view mirror with map lights.



@partwerks Interesting idea... (IMG:style_emoticons/default/idea.gif)

Is this a BMW conversion mirror that would mount in the center sun visors bracket location? Can you share picture/car model mirror? (IMG:style_emoticons/default/beerchug.gif)


I don't happen to have a picture, but I just grabbed something that looked good. Seems like mine is out of a Buick?

At least it's easier to reach.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
partwerks
post Feb 20 2022, 07:38 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,599
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787
https://www.ebay.com/itm/233579578314?hash=...FQAAOSwqF5bkjl-

I'm not sure what they do with the pull knob for the engine lid grille?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Feb 20 2022, 08:08 PM
Post #16


914 Guru
*****

Group: Members
Posts: 8,173
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Check out my build thread. I put a layer of Dynamite high-density on the inside of the firewall, followed by low density, and then a custom-sewn perlon carpet. On the engine side, I installed a layer of reflective heat/noise material.

I am very happy with how it looks, and how it opens up the space around the seats.
