> BUILD-OFF CHALLENGE: Madmax914, '74 914 Subaru Turbo Conversion
madmax914
post Oct 1 2015, 11:36 AM
Post #1


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest

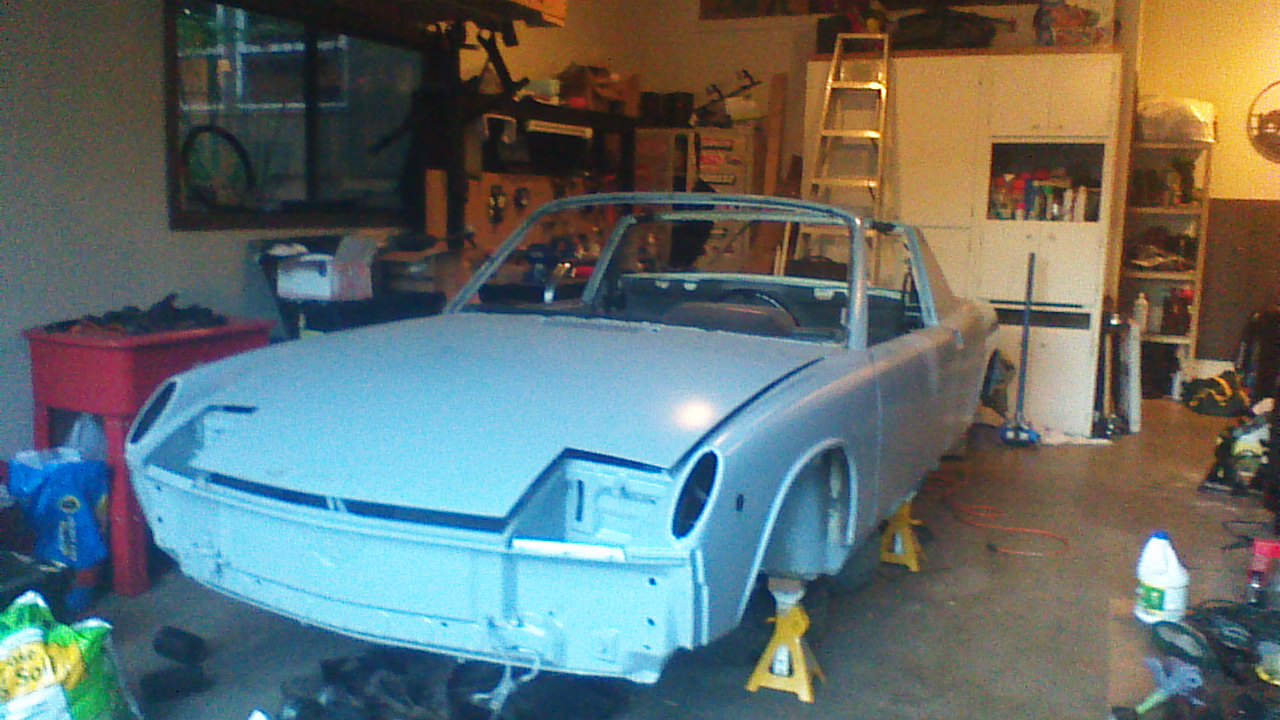

The car is a ’74 1.8L presently on jack stands with both front and rear suspensions removed. Motor and transaxle is removed with plans for a Subaru conversion. Driver side floor pan under the seat has rust which I plan on replacing and of course the battery tray is rusted pretty badly. This was an A/C car so the front trunk had been cutout which I have tacked in a replacement panel from Restoration and Design. The body itself has been blasted and a sealer coat of primer has been applied to protect the metal, by no means is ready for paint by my standards. The underside of the car is as it was from the factory 41 years ago. I have a little surface rust in the trunk area, which is remarkable considering it has spent most of its life in the Pacific Northwest.

My plans are to convert the drive train to a Subaru motor (turbo) & transmission. I will attempt to use the Outfront Motorsport header which relocates the turbo to the front of the motor. I also plan on fabricating a bulkhead type motor mount in the front to give me more room for the exhaust. I have already purchase all the parts for a 911 suspension including Bilstein coil over front struts. Wide body is a must and at this point I am really considering going wider that the GT fender widths. The car will sit as low as possible at a height that will allow it be driven on the streets. Many of the body panels will be replaced for fiberglass to lighten the car. All bodywork and paint(not my first rodeo but not an expert either), will be handled by myself since I’m too cheap to pay someone else to do it. As for the interiors it needs a complete overhaul and I’ll modify with Sparco/Recaro type seats and possibly do Auto Meter type gauges. I would like this car to meet the criteria most would think of when describing it as a true “Outlaw” car.

BTW when you see my picture it will be clear why I call myself madmax914.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 1 2015, 11:43 AM
Post #2


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
This is the motor, 2004 2.0L WRX turbo motor with 55,000 original miles. I picked up this motor from Jrust, Thank you Jamie!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Oct 1 2015, 07:07 PM
Post #3


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Should be fun to watch this one!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Oct 1 2015, 07:14 PM
Post #4


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
QUOTE(madmax914 @ Oct 1 2015, 10:43 AM) *

This is the motor, 2004 2.0L WRX turbo motor with 55,000 original miles. I picked up this motor from Jrust, Thank you Jamie!

I only regret it every other week (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 1 2015, 08:06 PM
Post #5


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Oh wow this will be a fun one to watch, another sub conversion. With a different mount. (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 2 2015, 11:10 AM
Post #6


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
A conversion?...not fair, they get more points...hahaha


Looks like that is going to be a fun car when done....good luck and have blast!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Nutter965
post Oct 2 2015, 01:32 PM
Post #7


Member
**

Group: Members
Posts: 139
Joined: 17-August 14
From: Uk Northern Ireland
Member No.: 17,784
Region Association: None
Mmm this is going to be sweet, nice looking shell to work with
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 2 2015, 06:55 PM
Post #8


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
Here is my Outfront coated header and the stock turbo that Outfront polished for me.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 4 2015, 04:49 PM
Post #9


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
Just finished up making a couple parts for the bulkhead motor mount. These will mount to the bulkhead, the plate that is tacked to the bulkhead is 1/8" and the tubing is all 1/8" walled 1x2 rectangle tubing. The round tubing is 1-5/8" and allows me to use the Energy Suspension bushings. This front motor mount will be very much like a naro914 Porsche six cylinder motor mount. His is what I would consider an upgraded Patrick mount, both are very good quality strong motor mounts.

I still have to clean up the grinds a weld but you get the idea.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dangerranger01
post Oct 4 2015, 08:06 PM
Post #10


Member
**

Group: Members
Posts: 145
Joined: 12-August 05
From: Boring, Oregon U.S.A.
Member No.: 4,578
Region Association: None
Right on! Another oregon build....i'm excited to see this subie conversion finished....i just might want to do that on mine....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 4 2015, 08:31 PM
Post #11


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(dangerranger01 @ Oct 4 2015, 07:06 PM) *

Right on! Another oregon build....i'm excited to see this subie conversion finished....i just might want to do that on mine....

Let me get it in and see if it'll work. On paper it should. If you decide to let me know I'll walk you through it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 5 2015, 07:16 AM
Post #12


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Nice looking engine mount. Should work fine, lots of 914-6 running around with similar mounts from Patrick Motorsports.

Maybe I should change my mount. (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Oct 5 2015, 01:42 PM
Post #13


Senior Member
****

Group: Members
Posts: 4,048
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
I'm thinking the same thing... (IMG:style_emoticons/default/idea.gif) I like that idea.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 6 2015, 07:15 PM
Post #14


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
Taking the night off from working on the car, local Tap House has Widmer Brothers Brewing there giving away goodies. I'm a sucker for beer goodies!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Oct 6 2015, 09:35 PM
Post #15


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Widmer's got some good stuff!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Garland
post Oct 9 2015, 06:13 PM
Post #16


Restoration Fanatic
***

Group: Members
Posts: 1,393
Joined: 8-January 04
From: ......Michigan......
Member No.: 1,535
Region Association: Upper MidWest
QUOTE(madmax914 @ Oct 9 2015, 05:13 PM) *

I'm sure this has been discussed several times on this forum but I'm just not finding it in a search. I would like to know how much wider are the GT fenders front and rear than stock fenders? I know they allow you to put a 7" wheel/tire combo in the front and 8" in the rear but I'm looking for an actual measument. If I hold a new GT fender up to a stock fender what is the measurement from lip to lip?

Any help would be very much appreciated.

Thanks!


Michigan Build here,

I'm hanging Fenders in my build, measures at outer lip, to outer lip is 2" front and rear.


Garland
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Oct 10 2015, 12:28 PM
Post #17


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
Hey Brett are you using the stock oil pan? I'm going to be changing mine. Outfront basically cuts the stock one down & welds on a new bottom. A little more to it but it get's closer to like 4 1/4" as opposed to the 6 1/2" or so stock. Only thing I don't like is losing some oil capacity with it. Small car has a nice aluminum one which I think I prefer. Keeps the stock oil capacity. Which has to mean its a litter bigger around. So just not sure if it will fit with my cradle. I think I have a little space to work with there. Anyway feel free to buy the small car mount for yours. Then I can borrow it to see if it will fit mine (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 10 2015, 12:56 PM
Post #18


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(JRust @ Oct 10 2015, 11:28 AM) *

Hey Brett are you using the stock oil pan? I'm going to be changing mine. Outfront basically cuts the stock one down & welds on a new bottom. A little more to it but it get's closer to like 4 1/4" as opposed to the 6 1/2" or so stock. Only thing I don't like is losing some oil capacity with it. Small car has a nice aluminum one which I think I prefer. Keeps the stock oil capacity. Which has to mean its a litter bigger around. So just not sure if it will fit with my cradle. I think I have a little space to work with there. Anyway feel free to buy the small car mount for yours. Then I can borrow it to see if it will fit mine (IMG:style_emoticons/default/happy11.gif)

The Outfront oil pan and header was the first thing I bought when you sold me the motor. Already mounted and on the motor. Thanks for thinking of me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Oct 10 2015, 02:10 PM
Post #19


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
QUOTE(madmax914 @ Oct 10 2015, 11:56 AM) *

The Outfront oil pan and header was the first thing I bought when you sold me the motor. Already mounted and on the motor. Thanks for thinking of me.

With the header mounted. How much does the header drop below the oil pan?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 10 2015, 02:23 PM
Post #20


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
It doesn't the pans about 1-1/2" below the headers.
