> Front bumper GT cut out/ now offering the service.
mb911
post Sep 13 2018, 05:53 AM
Post #1


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Front GT bumper mod group buy. I will mod you bumper mod for the GT oil cooler cut out for 475. You pay shipping... Check back for updates on this thread.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 13 2018, 06:23 AM
Post #2


914-6 GT in waiting
***************

Group: Members
Posts: 19,843
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
A mirror image of the valance is what I would like. I’ll measure up mine (lower valance) to make sure it’s similar to yours.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Sep 13 2018, 06:37 AM
Post #3


Garage Life
****

Group: Members
Posts: 2,495
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
Here's an option. @Lucky9146

Don't know who did modification but NICE.

Sorry...I didn't measure.

Oscar

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Sep 13 2018, 06:38 AM
Post #4


Garage Life
****

Group: Members
Posts: 2,495
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Sep 13 2018, 07:16 AM
Post #5


Apex killer!
***************

Group: Members
Posts: 23,997
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
@McMark


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
totle
post Sep 13 2018, 07:46 AM
Post #6


Newbie
*

Group: Members
Posts: 43
Joined: 18-October 10
From: Norway
Member No.: 12,280
Region Association: Europe

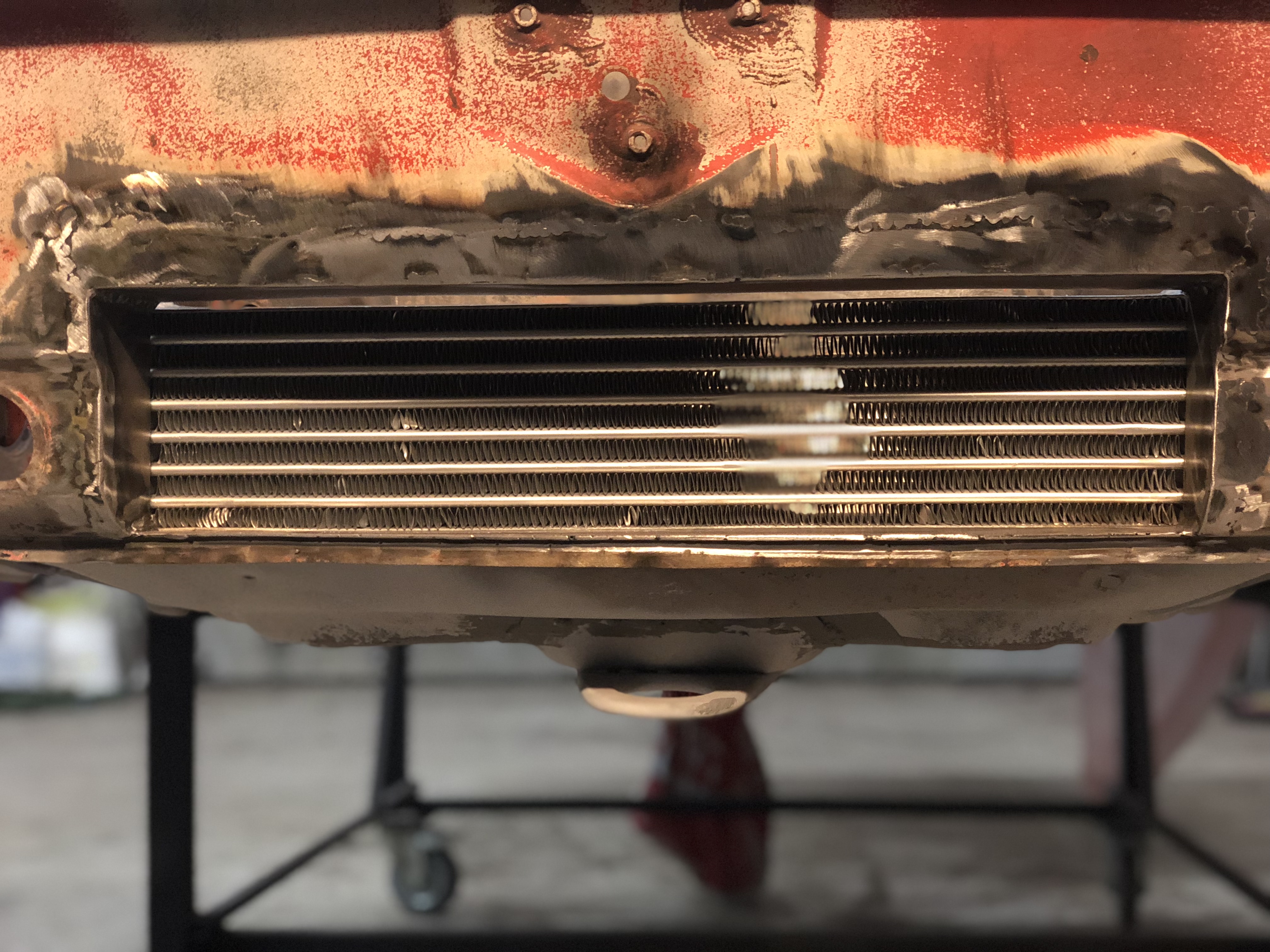

This is my opening for aftermarket RX-7 oil cooler.
I did cut too much so had to add som steel on top to make it fit for the rx cooler


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Sep 13 2018, 01:33 PM
Post #7


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(ValcoOscar @ Sep 13 2018, 04:38 AM) *

Attached Image



That looks mirrored thats what I will do..

Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Sep 13 2018, 01:39 PM
Post #8


Garage Life
****

Group: Members
Posts: 2,495
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
QUOTE(mb911 @ Sep 13 2018, 12:33 PM) *

QUOTE(ValcoOscar @ Sep 13 2018, 04:38 AM) *





That looks mirrored thats what I will do..

Thanks



(IMG:style_emoticons/default/agree.gif) looks factory made!!!

Oscar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Sep 13 2018, 06:10 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,163
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region

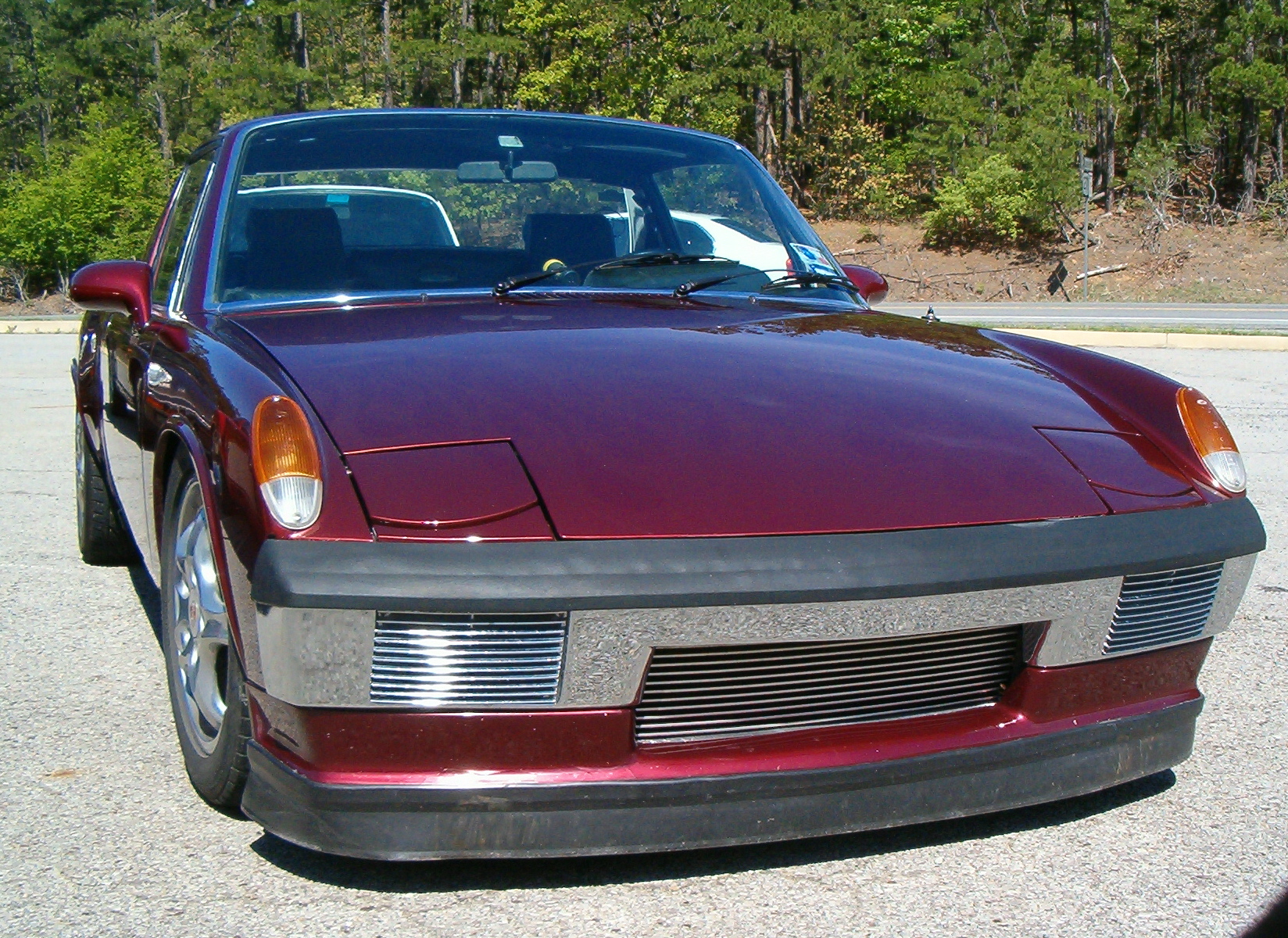

Here are a few more to consider -


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Sep 13 2018, 09:14 PM
Post #10


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
I just matched the width of the notch in the Getty valance and cut the bumper so it opened to the top of the circular cutouts in the front panel.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Sep 14 2018, 06:16 AM
Post #11


Advanced Member
****

Group: Members
Posts: 4,735
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

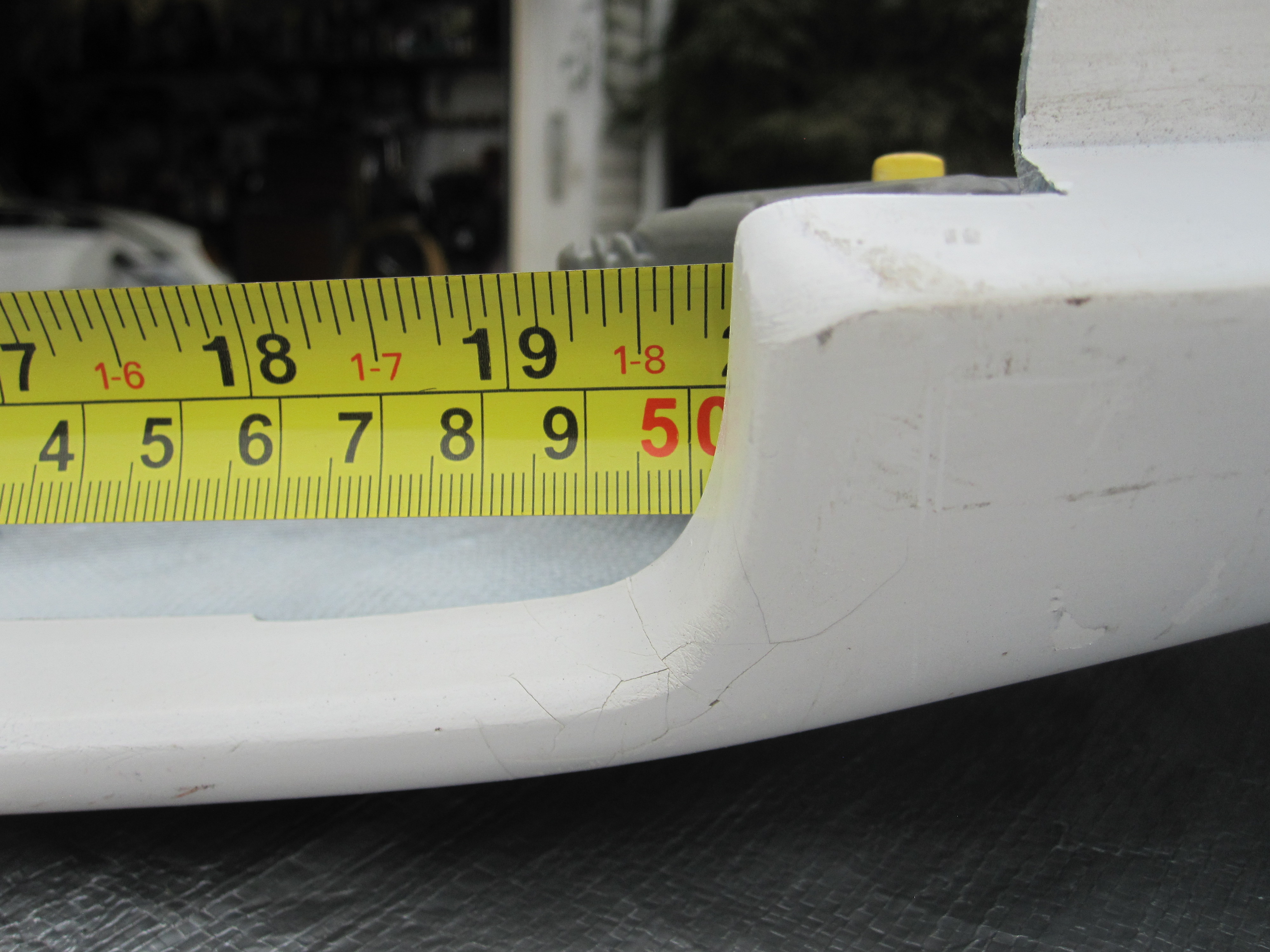

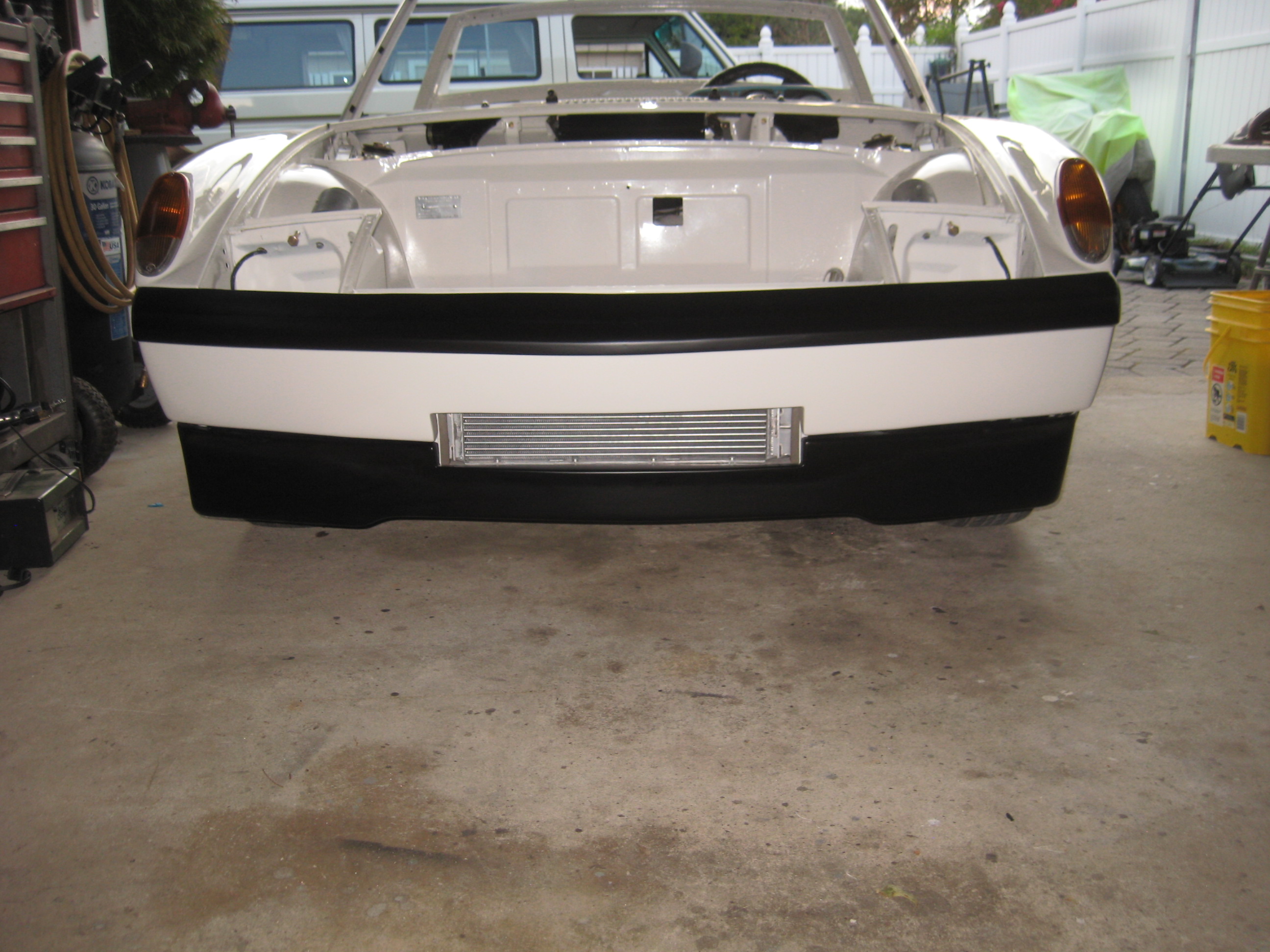

19 3/4" width on the available repro GT valence.
My car is 21" based on the full width (including end tanks) of an exact copy GT cooler


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Sep 14 2018, 07:14 AM
Post #12


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
I still have to mod my valance but my bumper is 19-3/4" x 1-1/2"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Sep 16 2018, 11:53 AM
Post #13


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,676
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(ValcoOscar @ Sep 13 2018, 05:37 AM) *

Here's an option. @Lucky9146

Don't know who did modification but NICE.

Sorry...I didn't measure.

Oscar

Attached Image


Have to say it is pretty cool, and an honor to see your car be posted for a topic along with a couple pictures I didn't know existed. Thanks Oscar (IMG:style_emoticons/default/beerchug.gif)

The bumper is in fact a mirror of the FG lower valance that was performed by an amazing metal worker here locally in the San Diego area. He does it for a living and also works out of his house. Between his own projects and those of others he is always in demand and very hard to get in his queue. I have been fortunate to have him help me with a couple things over the years. A true artist.

I was out of town, so just catching up on things, being away was not able to measure until now. The opening is 20" wide and 4" high.
As an aside the mesh I used is gutter stop available at Home Depot and comes already painted black. (IMG:style_emoticons/default/aktion035.gif)
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Sep 17 2018, 01:34 PM
Post #14


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
I did 1 sample cut out today. Went extremly smooth. Measured center of bumper then 10 inches each direction. Then measured up 1-7\8" from the bottom and made my cuts. With the reinforcement welded in I will be at approximatly 1-3/4"× 19-7/8" which then makes it blend into the bottom valance. There is also decent space between the bumper and valance to give an optical illusion thus the reason I sized it that way.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Sep 18 2018, 10:24 AM
Post #15


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Sep 18 2018, 10:25 AM
Post #16


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Sep 18 2018, 10:40 AM
Post #17


Garage Life
****

Group: Members
Posts: 2,495
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
(IMG:style_emoticons/default/piratenanner.gif)

Ben-

Kool...very appealing GT mod, I think you need to offer this mod as a service.

Are you going to add radius to opening? More pics please.

(IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/popcorn[1].gif)

Oscar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wes
post Sep 18 2018, 10:48 AM
Post #18


wes
***

Group: Members
Posts: 1,591
Joined: 8-December 07
From: Ukiah Ca
Member No.: 8,436
Region Association: Northern California
Looking good!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Sep 18 2018, 11:17 AM
Post #19


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
There is a 3/4" radius in the corners.. And might do a few.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Sep 18 2018, 11:19 AM
Post #20


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
This thread should be in the classics, maybe with some cut dimensions of the cooler opening and exit (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
