Is there somewhere to get a complete wiring diagram for a 1975?
|
   |

|
| Dave_Darling |
Jul 15 2021, 12:03 AM
Post
#2
|
|
914 Idiot Group: Members Posts: 15,063 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
The Haynes manual has the same diagrams that are in the factory workshop manual. It's a good and fairly inexpensive resource.
The diagrams are in B&W with color labels for the wires, like the later editions of the factory manuals. Earlier diagrams in color may be available on-line if you search for a while. --DD |
 |
|
| ClayPerrine |
Jul 15 2021, 06:12 AM
Post
#3
|
|
Life's been good to me so far..... Group: Admin Posts: 15,950 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
I would suggest that you look in the wayback machine, I.E. the internet archive. One of our favorite parts place used to have color wiring diagrams on their site until Porsche made them take them down. The wayback machine will have them. You just have to find them.
Good luck. Clay |
|
|
|
| mepstein |
Jul 15 2021, 06:34 AM
Post
#4
|
|
914-6 GT in waiting Group: Members Posts: 19,649 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region
|
https://colorwiringdiagrams.com/products/po...-fuel-injection
Great diagrams. Easy to read. Inexpensive. Color They are laminated so you can use them with dirty hands and wipe off when done. Attached thumbnail(s)
|
|
|
|
| ClayPerrine |
Jul 15 2021, 06:58 AM
Post
#5
|
|
Life's been good to me so far..... Group: Admin Posts: 15,950 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
I keep the wiring diagrams on the computer. Then I go print off what I need on the color printer. I can take notes on them, and get them all nasty with greasy hands. Then I just toss them.
Easier than keeping track of a laminated diagram. Clay |
|
|
|
| Gatornapper |
Jul 15 2021, 07:50 AM
Post
#6
|
|
Senior Member Group: Members Posts: 1,262 Joined: 22-September 17 From: Woods west of Richmond, VA Member No.: 21,449 Region Association: South East States
|
THANK YOU!
While I'm an electrical engineer and have no problem reading the Haynes Manual schematics, I'd much prefer one on one page and in color - just ordered. Every 014 owner needs one of these...... GN QUOTE(mepstein @ Jul 15 2021, 06:34 AM)  https://colorwiringdiagrams.com/products/po...-fuel-injection Great diagrams. Easy to read. Inexpensive. Color They are laminated so you can use them with dirty hands and wipe off when done. |
|
|
|
| barefoot |
Jul 15 2021, 11:18 AM
Post
#7
|
|
Senior Member Group: Members Posts: 1,334 Joined: 19-March 13 From: Charleston SC Member No.: 15,673 Region Association: South East States
|
|
|
|
|
| 914 Ranch |
Jul 15 2021, 11:13 PM
Post
#8
|
|
Team Sharp where the 914 grow wings Group: Members Posts: 1,466 Joined: 29-January 16 From: TheNorth Shore Retreat. Deland Member No.: 19,611 Region Association: South East States |
Diagrams, we don't need no stinking diagrams.
 |
|
|
|
| 914 Ranch |
Jul 15 2021, 11:28 PM
Post
#9
|
|
Team Sharp where the 914 grow wings Group: Members Posts: 1,466 Joined: 29-January 16 From: TheNorth Shore Retreat. Deland Member No.: 19,611 Region Association: South East States |

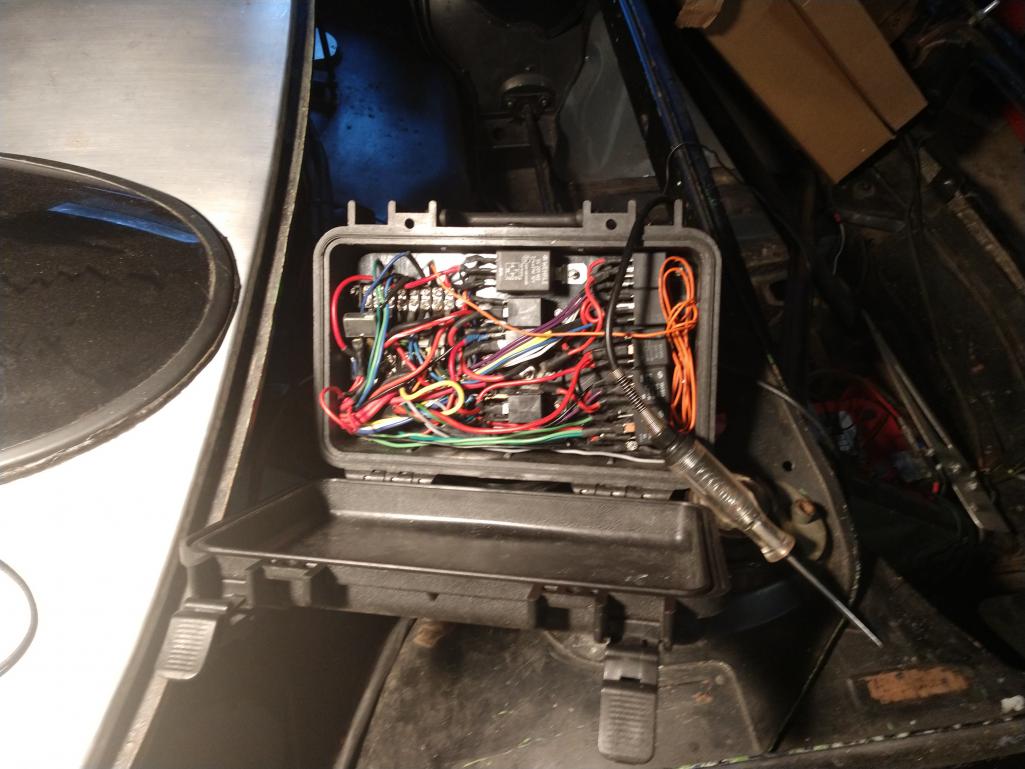

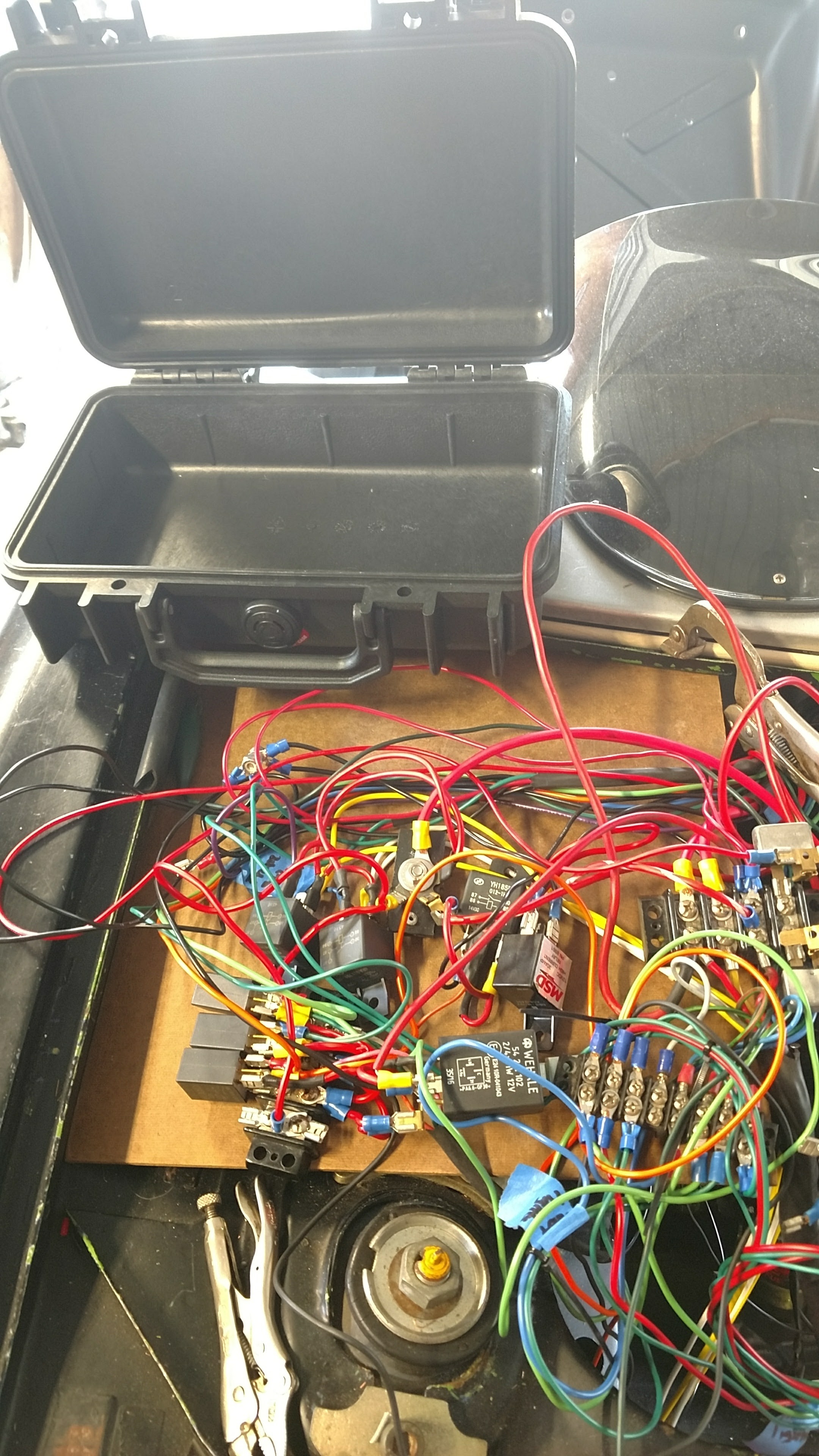

From memory.
 The only thing that I had a problem with was the turn signal. Race car going back to the street. |
|
|
|
|
