Rear-Brakeline Brackets, What am I missing here? Options

[RiqueMar]

Wrapping up a re-check of my rear-brakes, and I can’t seem to make either of these clips ‘fit’ on the suspension arms. Granted, my arms are reinforced, however I feel like I’m missing something. Hoping the world can help, as the search feature brings up photos that I can’t quite see. (IMG:style_emoticons/default/bye1.gif)

[Shivers]

The 'U' shaped one

[SirAndy]

The flexible brake line goes through the hole in the tab on the trailing arm where it connects to the hard line.

The u shaped clip then slides into the groove on the soft line end and because of its bend shape, the clip acts as a spring keeping the assembly tight against the trailing arm tab.
(IMG:style_emoticons/default/smile.gif)

[SirAndy]

Maybe this shows it better. The top clip in the front works the same.

(IMG:http://www.914world.com/bbs2/uploads_offsite/blog.fcpeuro.com-179-1626648471.1.jpg)

[SirAndy]

One more, from a 928, but the same parts:

(IMG:http://www.914world.com/bbs2/uploads_offsite/cimg3.ibsrv.net-179-1626648599.1.jpg)

[RiqueMar]

Thanks everyone! I think these might have been modified in the past, maybe when they were reinforced, because I can’t get the U-shaped clip inside, looks like I have to either cut them to make a bit shorter, or trim off the side.

[SirAndy]

Thanks everyone! I think these might have been modified in the past, maybe when they were reinforced, because I can’t get the U-shaped clip inside, looks like I have to either cut them to make a bit shorter, or trim off the side.

Post a pic of the soft brake line after you have it through the bracket on the trailing arm and attached to the hard line. The groove in the end of the soft line should be just in the right spot for the spring to slide in.

If not, your hard lines might be wrong.
(IMG:style_emoticons/default/popcorn[1].gif)

[RiqueMar]

@SirAndy - Looks like it’s the bracket itself, seems to be short as I can get the clip ‘in’ just not seated all the way…

[Shivers]

Was the bracket cut off, then welded back on? I went out and looked at mine, should fit.

[Shivers]

@SirAndy - Looks like it’s the bracket itself, seems to be short as I can get the clip ‘in’ just not seated all the way…

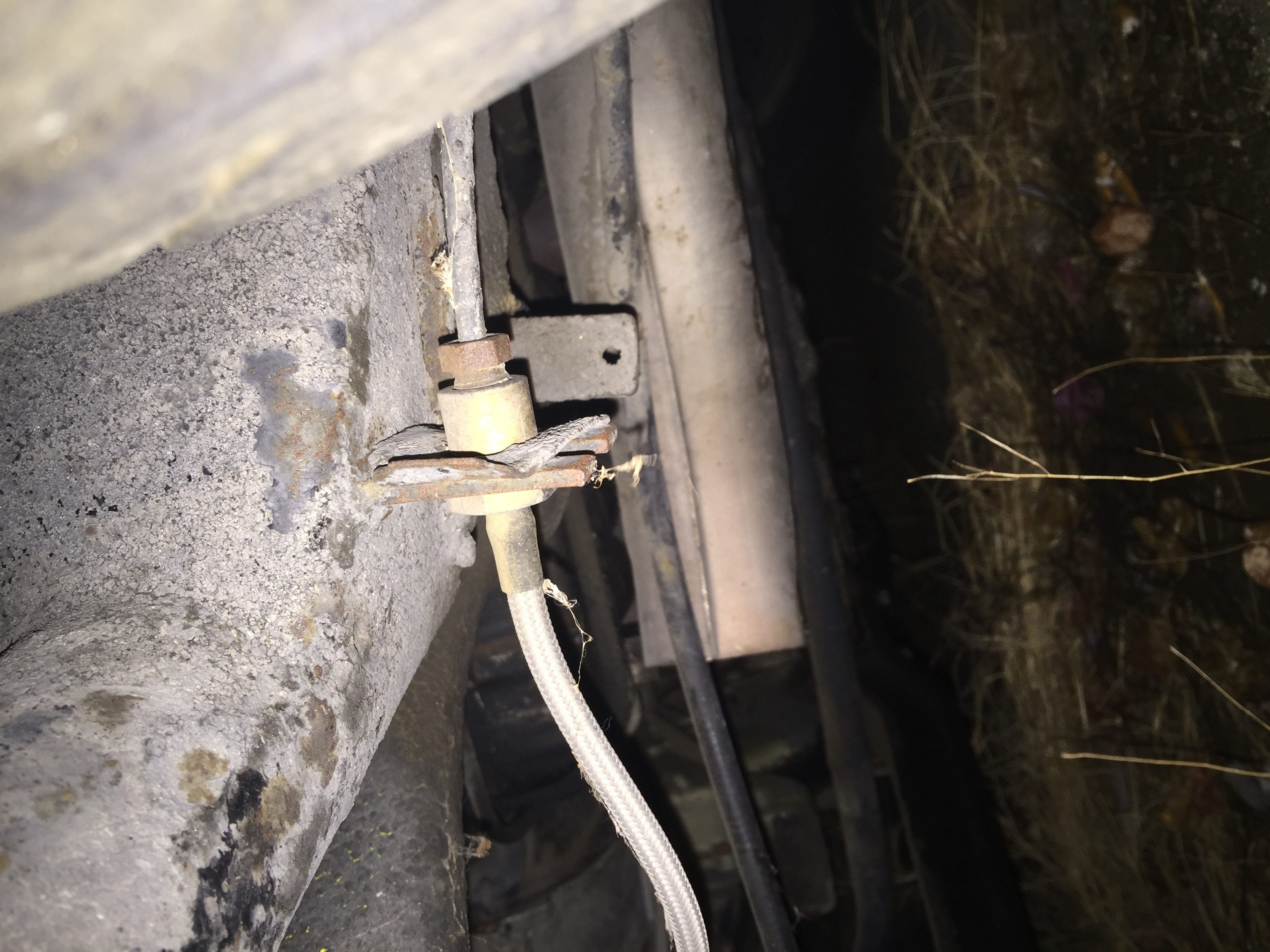

Best pic I could get.

[bdstone914]

Thanks everyone! I think these might have been modified in the past, maybe when they were reinforced, because I can’t get the U-shaped clip inside, looks like I have to either cut them to make a bit shorter, or trim off the side.

@RiqueMar
If you have a 70 as indicated in your avatar you would need the hat shaped clip. SirAndy is correct if you have a later car. The flex line needs to match the clip used. The early trailing arms have a rounds hole in the support bracket and the later cars have a round hole opening to a slot. It is taller. The late clip will not fit on an early car. Cant tell from your picture which you have. I think you picture late flex lines.

Edit: I see you posted a pictures which show you have one early and one late arms. You need the hat shaped clip on the early and the U shape clip on the late and the correct matching lines.

This clip needs to be rotated 90 degrees

[fixer34]

don't want to hijack this thread, but the question is almost the same as mine.

Installed stainless flex lines 25+ years ago. Doing the calipers/rotors and while the lines look OK, the ends are a bit corroded. Thinking about putting rubber lines back on the front. Current connection has the 'hat' type clip, but also an adapter that sits in the mounting tab. I'm thinking this came with the stainless lines and I won't reuse it with the rubber ones. So will I need the 'C' clip also?

[SirAndy]

So will I need the 'C' clip also?

If this worked before for you, then no, you don't need the u/c clip. There's simply two different ways to do the same thing, depending on the tab on your trailing arm.
(IMG:style_emoticons/default/shades.gif)

[RiqueMar]

If you have a 70 as indicated in your avatar you would need the hat shaped clip. SirAndy is correct if you have a later car. The flex line needs to match the clip used. The early trailing arms have a rounds hole in the support bracket and the later cars have a round hole opening to a slot. It is taller. The late clip will not fit on an early car. Cant tell from your picture which you have. I think you picture late flex lines.

Edit: I see you posted a pictures which show you have one early and one late arms. You need the hat shaped clip on the early and the U shape clip on the late and the correct matching lines.

This clip needs to be rotated 90 degrees

Hi @bdstone914 - Pretty sure my arms match, I think you're looking at another photo. I'm headed home now, and I'll try the hat-shaped clip, but this time on the bracket facing the 'front' side of the car.

[bdstone914]

If you have a 70 as indicated in your avatar you would need the hat shaped clip. SirAndy is correct if you have a later car. The flex line needs to match the clip used. The early trailing arms have a rounds hole in the support bracket and the later cars have a round hole opening to a slot. It is taller. The late clip will not fit on an early car. Cant tell from your picture which you have. I think you picture late flex lines.

Edit: I see you posted a pictures which show you have one early and one late arms. You need the hat shaped clip on the early and the U shape clip on the late and the correct matching lines.

This clip needs to be rotated 90 degrees

Hi @bdstone914 - Pretty sure my arms match, I think you're looking at another photo. I'm headed home now, and I'll try the hat-shaped clip, but this time on the bracket facing the 'front' side of the car.

That should work if you have the correct flex lines. SirAndy posted very good pictures of the assemble order.

[bdstone914]

don't want to hijack this thread, but the question is almost the same as mine.

Installed stainless flex lines 25+ years ago. Doing the calipers/rotors and while the lines look OK, the ends are a bit corroded. Thinking about putting rubber lines back on the front. Current connection has the 'hat' type clip, but also an adapter that sits in the mounting tab. I'm thinking this came with the stainless lines and I won't reuse it with the rubber ones. So will I need the 'C' clip also?

@fixer34

Depends of the year of the car. C clips for 73 and later.

[Retroracer]

So reinforcing the rear arms can take a few forms - tricky to see in the photos, but yours seems to have extra metal plating welded on; if this extra plating was "slotted" before welding to fit over the brake pipe mounting tabs then you just have less "depth" on the tab - and the clips won't fit any more. The weld around the base of the tab isn't helping things either.

Options are rethinking brake line securing hardware; or bringing forth the grinding, cutting and welding mayhem....

- Tony

[RiqueMar]

(IMG:style_emoticons/default/biggrin.gif)

[SirAndy]

(IMG:style_emoticons/default/biggrin.gif)

(IMG:style_emoticons/default/smilie_pokal.gif)

[RiqueMar]

(IMG:style_emoticons/default/biggrin.gif)

(IMG:style_emoticons/default/smilie_pokal.gif)

Gracias to all, especially Señor Bruce and Señor Andy!
