Replacement Fuel Injectors, Have an injector leaking |
SteveL |
Aug 12 2021, 02:46 PM
Post
#1
|
Senior Member Group: Members Posts: 663 Joined: 7-August 03 From: Andover, MN Member No.: 991 Region Association: None |
So, I hooked up my brand new HF fuel pressure gauge (thanks for the tip at $19).
Sure enough, starts, runs fine for a minute, starts missing, fuel pressure drops, engine dies as pressure gets under 20lbs. Wait a minute, engine starts back up, repeat cycle. All of a sudden, I see a spray of fuel coming from injector #1. Can't really tell if it is coming from the short hose from fuel rail to injector or the injector seal. I assume that I caused this problem while moving the fuel rail around when hooking up the pressure gauge to the test port. The only way to make it leak is to put everything back, but then there is too much stuff in the way to see where it is leaking. The injectors have been replaced by me in the past, but it has been over 15 years. Should I just bite the bullet and replace all 4? Can I get mine rebuilt (do they replace the hoses?) I found injectors reman'd by Standard Motor Products for $35.79 ea on Rockauto - are these any good, or junk? Thanks |
Craigers17 |
Aug 12 2021, 02:58 PM
Post
#2
|
Senior Member Group: Members Posts: 807 Joined: 5-August 17 From: Rome, GA Member No.: 21,317 Region Association: South East States |
My engine at the time was a 2.0. Here's everything I learned on the subject. Good Luck!
http://www.914world.com/bbs2/index.php?showtopic=343970 |
iankarr |
Aug 12 2021, 04:11 PM
Post
#3
|
The wrencher formerly known as Cuddy_K Group: Members Posts: 2,526 Joined: 22-May 15 From: Heber City, UT Member No.: 18,749 Region Association: Intermountain Region |
Pressure dropping after start and then recovering after a few minutes sounds like a fuel delivery issue. Kink in the fuel line or dirty filter/tank sock. Basically the pump is pumping faster than the gas coming in. Turning off the engine allows it to replenish and pump at pressure until it depletes again.
As for injectors, the oem green tops for 2.0s are getting hard to find or long in the tooth. I had a set of 4 that I sent to mr injector and 2 failed. He recommended the Standard Products FJ67 as a direct fit replacement. I have 4 new ones running in my engine now and they run great |
cary |
Aug 12 2021, 04:18 PM
Post
#4
|
Advanced Member Group: Members Posts: 3,900 Joined: 26-January 04 From: Sherwood Oregon Member No.: 1,608 Region Association: Pacific Northwest |
We're using the FJ67's too.
I have 8 arriving from RockAuto today. |
FlacaProductions |
Aug 12 2021, 04:34 PM
Post
#5
|
Senior Member Group: Members Posts: 1,840 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California |
I'm running the FJ67s as well.
|
SteveL |
Aug 12 2021, 04:56 PM
Post
#6
|
Senior Member Group: Members Posts: 663 Joined: 7-August 03 From: Andover, MN Member No.: 991 Region Association: None |
Mine are green tops, with 0 280 150 112 stamped on the edge. These are in a 1.8 L Jet. Are all green tops for 2.0? Do I have the wrong injectors?
|
SteveL |
Aug 12 2021, 05:29 PM
Post
#7
|
Senior Member Group: Members Posts: 663 Joined: 7-August 03 From: Andover, MN Member No.: 991 Region Association: None |
I checked out Mr. Injector, and they currently have a 2-3 week backlog. I ordered the new SMP remans from RockAuto, and will send in my old ones to Mr. Injector to have a backups.
Now to find the kinked hose.... |
iankarr |
Aug 12 2021, 11:41 PM
Post
#8
|
The wrencher formerly known as Cuddy_K Group: Members Posts: 2,526 Joined: 22-May 15 From: Heber City, UT Member No.: 18,749 Region Association: Intermountain Region |
If you haven’t recently moved the fuel tank (and the hoses underneath) it’s more likely a clogged sock (shine a light down into the tank and see if the screen looks clean) or plugged fuel filter. Easy enough to replace that.
|
wonkipop |
Aug 13 2021, 03:16 AM
Post
#9
|
Advanced Member Group: Members Posts: 4,667 Joined: 6-May 20 From: north antarctica Member No.: 24,231 Region Association: NineFourteenerVille |

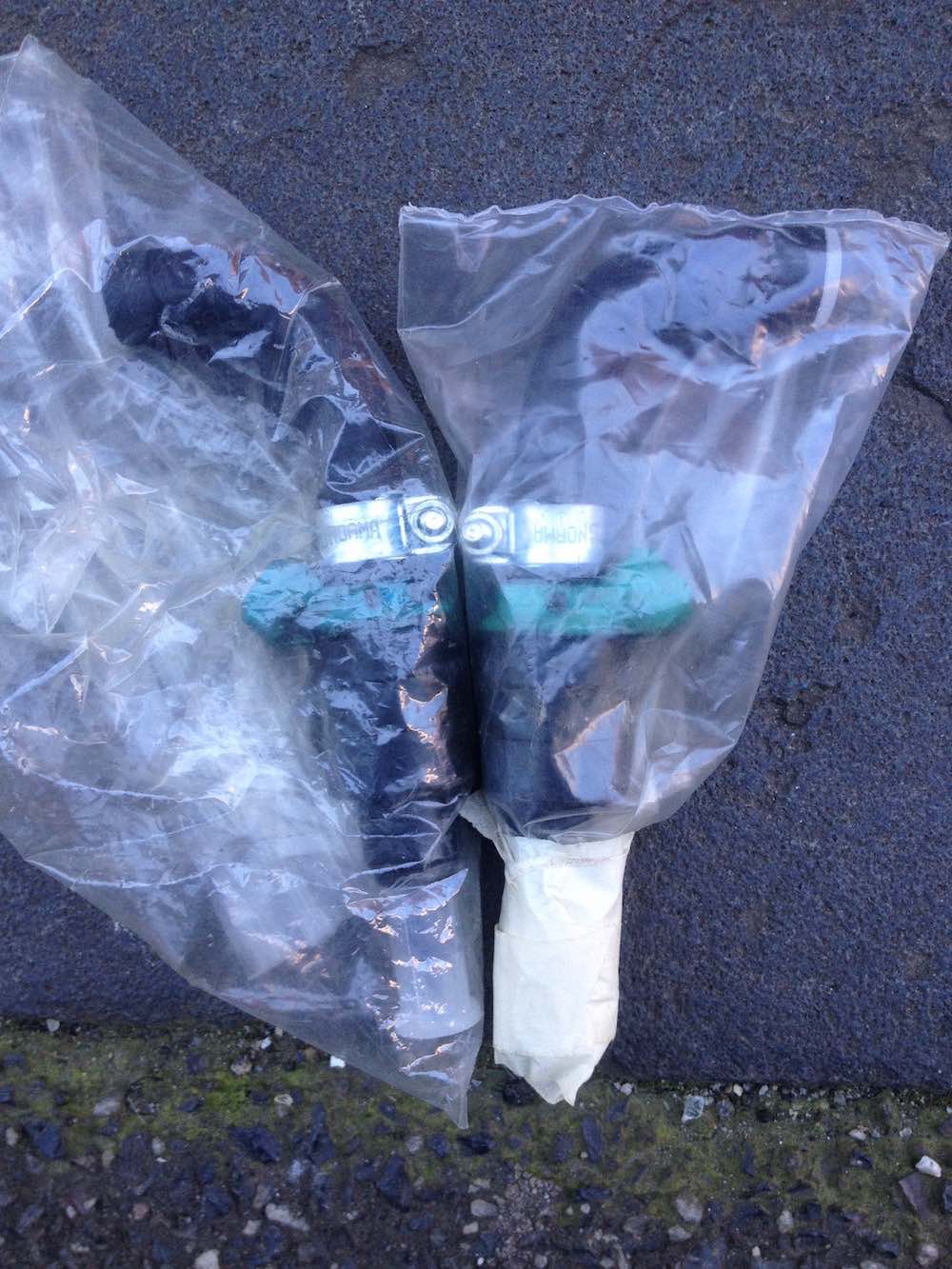

Mine are green tops, with 0 280 150 112 stamped on the edge. These are in a 1.8 L Jet. Are all green tops for 2.0? Do I have the wrong injectors? no - that # is right for a 1.8. you must be color blind (not insulting you (IMG:style_emoticons/default/beerchug.gif) ) - alternately i am color blind? should be a blue color. maybe altered/faded with age? some freshies. you seeing blue or green in this image? i'm seeing blue. |
914sgofast2 |
Aug 13 2021, 08:47 PM
Post
#10
|
Senior Member Group: Members Posts: 654 Joined: 10-May 13 From: El Dorado Hills, CA Member No.: 15,855 Region Association: None |
Mine are green tops, with 0 280 150 112 stamped on the edge. These are in a 1.8 L Jet. Are all green tops for 2.0? Do I have the wrong injectors? no - that # is right for a 1.8. you must be color blind (not insulting you (IMG:style_emoticons/default/beerchug.gif) ) - alternately i am color blind? should be a blue color. maybe altered/faded with age? some freshies. you seeing blue or green in this image? i'm seeing blue. Most men are blue/green color blind. I am not too proud to admit that I am! |
SteveL |
Aug 14 2021, 08:35 PM
Post
#11
|
Senior Member Group: Members Posts: 663 Joined: 7-August 03 From: Andover, MN Member No.: 991 Region Association: None |
To me, those are closer to a green than a blue (IMG:style_emoticons/default/shades.gif)
|
wonkipop |
Aug 14 2021, 08:51 PM
Post
#12
|
Advanced Member Group: Members Posts: 4,667 Joined: 6-May 20 From: north antarctica Member No.: 24,231 Region Association: NineFourteenerVille |

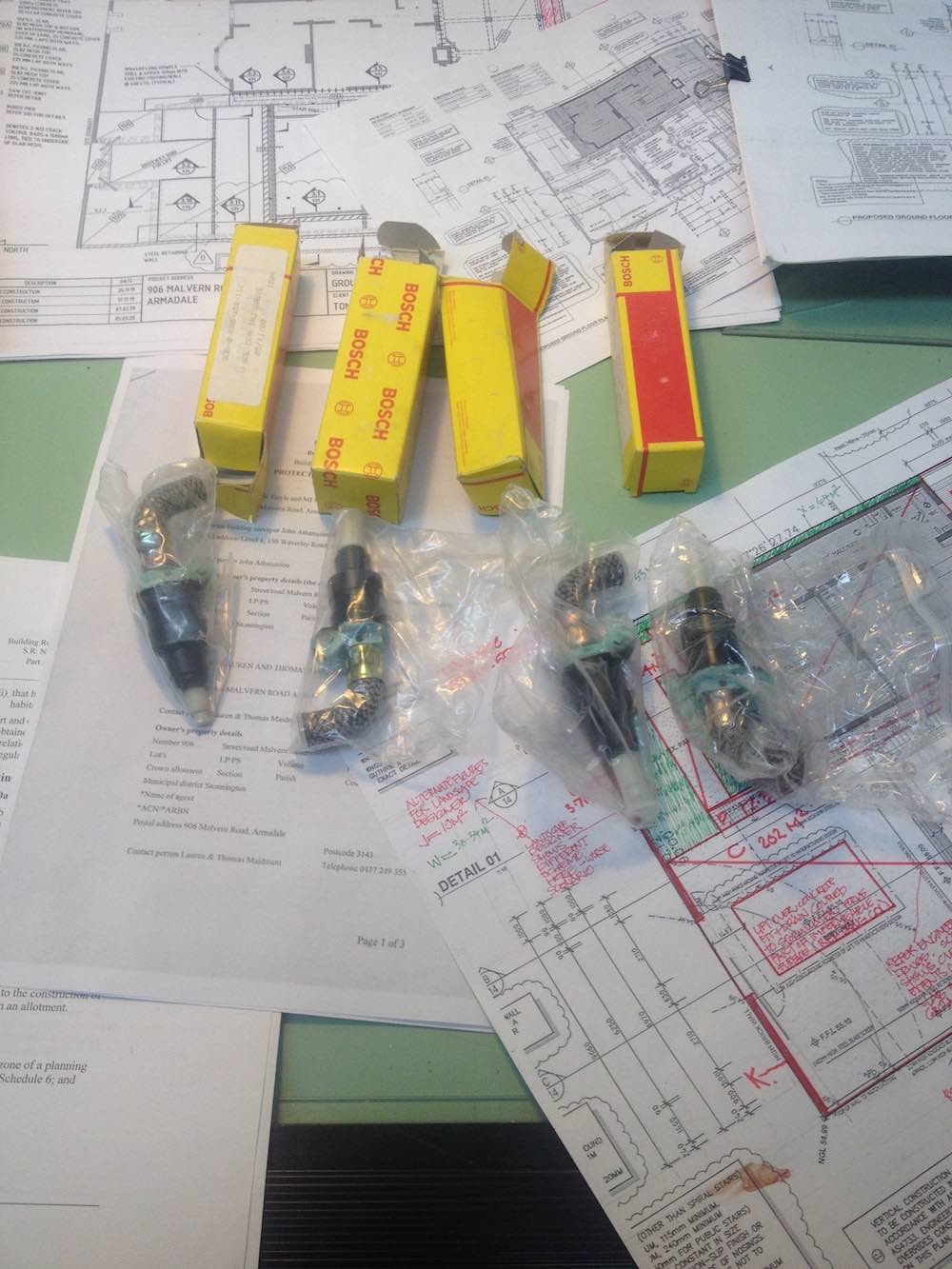

very interesting. (IMG:style_emoticons/default/beerchug.gif) i got the box down with the injectors i removed last year, they date from 89 when i installed them after buying the car. two of them are blue and two are green. i see one on right as a shade of green. the ones now in the car are like the one on left - which i see as a shade of blue. |
bdstone914 |
Aug 15 2021, 07:48 AM
Post
#13
|
bdstone914 Group: Members Posts: 4,733 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
Mine are green tops, with 0 280 150 112 stamped on the edge. These are in a 1.8 L Jet. Are all green tops for 2.0? Do I have the wrong injectors? . L jet and D jet injectors use a different electrical connector plug. L jet are either turquose or grey. I have not ran the number to check if they are correct. You can not rebuild an injector. They are just cleaned and tested. The hoses can be replaced but if the body is leaking they are junk @SteveL |
wonkipop |
Aug 17 2021, 12:00 AM
Post
#14
|
Advanced Member Group: Members Posts: 4,667 Joined: 6-May 20 From: north antarctica Member No.: 24,231 Region Association: NineFourteenerVille |
Mine are green tops, with 0 280 150 112 stamped on the edge. These are in a 1.8 L Jet. Are all green tops for 2.0? Do I have the wrong injectors? . L jet and D jet injectors use a different electrical connector plug. L jet are either turquose or grey. I have not ran the number to check if they are correct. You can not rebuild an injector. They are just cleaned and tested. The hoses can be replaced but if the body is leaking they are junk @SteveL they can also be junk if the pintles suffer micro corrosion. got mine to go again after cleaning. tested - worked fine. but they just wouldn't work once back in car. basically jambed shut again after a short period post cleaning and before i could get them into the engine again. this was after they had sat around dormant in the car for 16 years. when i bought the car back in 89 it was a very similar situation. the car had been dormant then with its first owner for about 5 years. some of the injectors were leaking and one or two were jambed due to internal corrosion. |
Arno914 |
Aug 17 2021, 12:20 AM
Post
#15
|
Member Group: Members Posts: 233 Joined: 13-May 20 From: near Frankfurt, Germany Member No.: 24,260 Region Association: Germany |
This holds true for all sorts of injectors: Use it or loose it. (IMG:style_emoticons/default/biggrin.gif)
|
wonkipop |
Aug 17 2021, 02:29 AM
Post
#16
|
Advanced Member Group: Members Posts: 4,667 Joined: 6-May 20 From: north antarctica Member No.: 24,231 Region Association: NineFourteenerVille |
This holds true for all sorts of injectors: Use it or loose it. (IMG:style_emoticons/default/biggrin.gif) which i am now fargen well doin mate - and grinning doen it - these injectors are gettin a good work out. short delay at present while i fix my clagged front wheel bearings, another use it or lose it moment (IMG:style_emoticons/default/beerchug.gif) |
SteveL |
Aug 19 2021, 03:23 PM
Post
#17
|
Senior Member Group: Members Posts: 663 Joined: 7-August 03 From: Andover, MN Member No.: 991 Region Association: None |
I received the SMP injectors from RockAuto. The body looks like a match, but the "nose" is way shorter and the hose is straight.
Also, I ordered new seals and the larger seal is quite a bit smaller than the original. Will these work??? |
Craigers17 |
Aug 19 2021, 05:06 PM
Post
#18
|
Senior Member Group: Members Posts: 807 Joined: 5-August 17 From: Rome, GA Member No.: 21,317 Region Association: South East States |
Hey Steve,
Just for a reference, because I noticed the "snub-nosed" design of the SMP injectors as well, here is a picture of my original Bosch injectors (2.0). This will give you some idea of how much they differ from the SMP in design. That said, they worked great. The pic is AFTER I sent this one to Mr. Injector. |
SteveL |
Aug 19 2021, 05:09 PM
Post
#19
|
Senior Member Group: Members Posts: 663 Joined: 7-August 03 From: Andover, MN Member No.: 991 Region Association: None |
Hey Steve, Just for a reference, because I noticed the "snub-nosed" design of the SMP injectors as well, here is a picture of my original Bosch injectors (2.0). This will give you some idea of how much they differ from the SMP in design. That said, they worked great. The pic is AFTER I sent this one to Mr. Injector. So you are running the SMP injectors, and sitting on the Bosch injectors that Mr. Injector went through as backups? Thanks! |
Craigers17 |
Aug 19 2021, 05:26 PM
Post
#20
|
Senior Member Group: Members Posts: 807 Joined: 5-August 17 From: Rome, GA Member No.: 21,317 Region Association: South East States |
Actually, I've since sold the car. I've also sold all of my refurbished injectors. I get that some folks want to run the Bosch injectors, but after having seen the data and positive analysis by Mr. Injector, I wouldn't spend the extra money on them....just personal opinion.
|
