> Heaven for the Hell Hole
dr914@autoatlanta.com
post Jan 12 2007, 12:43 PM
Post #1


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
No this is not a piece cut from a rust free California 914 but rather a construction of all of the great aftermarket rust repair panels available for our 914s.
Panels + Pieces consist of:

Upper Longitudinal
Battery Tray
Battery Support
Engine Shelf
Inner Suspension Console
Inner Wheelhouse
Jack Plate
Jack Tube
Outer Firewall
Inner Firewall
Cross Member
Floor Pan Quarter
Door Sill
Door Jamb
Floor Pan Triangle


(IMG:http://www.autoatlanta.com/rustoration/new/four.jpg)
(IMG:http://www.autoatlanta.com/rustoration/new/one.jpg)
(IMG:http://www.autoatlanta.com/rustoration/new/two.jpg)
(IMG:http://www.autoatlanta.com/rustoration/new/six.jpg)
(IMG:http://www.autoatlanta.com/rustoration/new/five.jpg)
(IMG:http://www.autoatlanta.com/rustoration/new/three.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Jan 12 2007, 12:50 PM
Post #2


member? what's a member?
****

Group: Members
Posts: 3,393
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None
Just how much is that collection of parts (ballpark as I can't afford it right now anyway)?

Do you also sell the outer trailing arm support (3 bolt holes) that would mount on the long in the wheelhouse? (also how much)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BKLA
post Jan 12 2007, 12:51 PM
Post #3


Really old member
***

Group: Members
Posts: 1,253
Joined: 14-August 05
From: OR
Member No.: 4,590
Region Association: Pacific Northwest
Are these in your new catalog? Are they shown individual pieces?


WaHoo! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nocones
post Jan 12 2007, 12:55 PM
Post #4


Sportscar lunatic
**

Group: Members
Posts: 428
Joined: 17-June 04
From: Santa Rosa, CA
Member No.: 2,220
Wow. (IMG:style_emoticons/default/drooley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris Pincetich
post Jan 12 2007, 01:04 PM
Post #5


B-)
****

Group: Members
Posts: 2,082
Joined: 3-October 05
From: Point Reyes Station, CA
Member No.: 4,907
Region Association: Northern California
Very nice! (IMG:style_emoticons/default/beerchug.gif)
We're on our way to wleding together a complete 914 with all new metal! Have you ever done the math to figure out how much a 914 built from scratch with all your and Porsche factory "new" parts would cost?? $15-40K? (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
obscurity
post Jan 12 2007, 01:21 PM
Post #6


Member
**

Group: Members
Posts: 411
Joined: 24-February 06
From: Atlanta ,GA
Member No.: 5,628
Region Association: South East States
How much does that cost installed? (IMG:style_emoticons/default/idea.gif) Seriously
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Jan 12 2007, 01:24 PM
Post #7


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Holy Smokes! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 02:10 PM
Post #8


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(ChrisNPDrider @ Jan 12 2007, 11:04 AM) *

Very nice! (IMG:style_emoticons/default/beerchug.gif)
We're on our way to wleding together a complete 914 with all new metal! Have you ever done the math to figure out how much a 914 built from scratch with all your and Porsche factory "new" parts would cost?? $15-40K? (IMG:style_emoticons/default/happy11.gif)


thank you very much! We dream about building a 914 from parts but there are just not enough of the pieces to build a whole 914
At one time our friend Roger Reynolds had almost a complete set to replace his rusty but lost faith when the construction charges were our of sight.
There is however a 914-6 brand new shell in Germany for 16,000, but with that said who would want to build what is now a museum piece that should be displayed in the bare!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 02:13 PM
Post #9


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(obscurity @ Jan 12 2007, 11:21 AM) *

How much does that cost installed? (IMG:style_emoticons/default/idea.gif) Seriously



When we reconstruct a 914 we add each piece at a time to keep alignment and replace only what is needed to do a proper RUSToration. Actually just yesterday our man Garrett suggested that it would be neat to see all of the pieces we make for the "hellhole" (I hate calling anything on a 914 hell!!) and our fabricator Dan enthusiastically volunteered to put it together. You can imagine my glee in seeing for the first time an assembly of all of the pieces for this area that we have made over the years. Just like a slice of heaven for the 914!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 02:14 PM
Post #10


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(BKLA @ Jan 12 2007, 10:51 AM) *

Are these in your new catalog? Are they shown individual pieces?


WaHoo! (IMG:style_emoticons/default/biggrin.gif)


we of course have drawings of the individual pieces but had never assembled it as a whole. I had a good laugh when I first saw it last night!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 02:15 PM
Post #11


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(John @ Jan 12 2007, 10:50 AM) *

Just how much is that collection of parts (ballpark as I can't afford it right now anyway)?

Do you also sell the outer trailing arm support (3 bolt holes) that would mount on the long in the wheelhouse? (also how much)


that darned outer support is next we are getting more calls every day for it! It has to be made. Anyone out there want to make it??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 02:44 PM
Post #12


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
By looking at the picture of the rear assembly, one can see how leaking acid from the battery would run down the slope of the engine shelf/longitudinal, and lo and behold, the frame member and jack tube and support was right there. No wonder the 914s broke in half!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 12 2007, 02:59 PM
Post #13


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

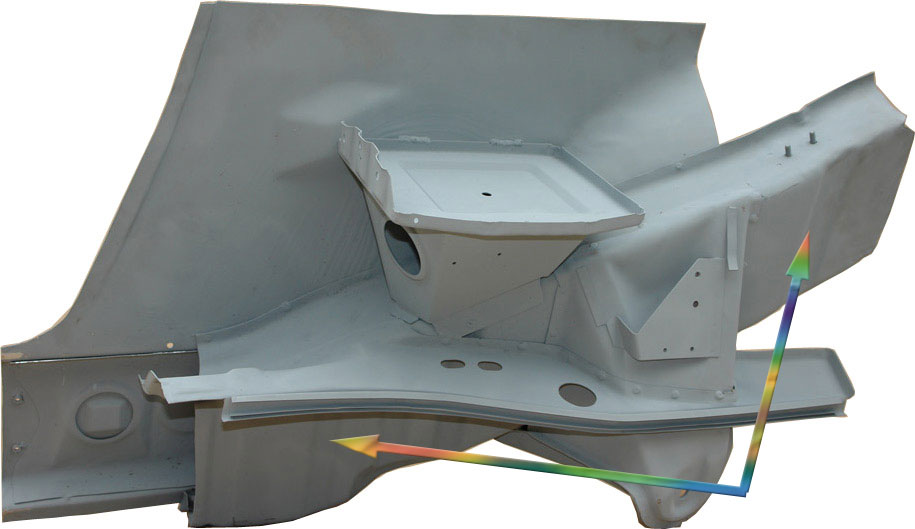

What cool perspective of the hell hole area.

There is one part that is not quite original though. I'm sure it's made that way for ease of manufacturing, but it's worth pointing out for educational purposes.

Attached Image

This portion is double layered in the original pieces. The 'corrugated' metal was a C shape that fit inside the U shaped inner longitudinal.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BIGKAT_83
post Jan 12 2007, 03:00 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,798
Joined: 25-January 03
From: Way down south Bogart,GA
Member No.: 194
Region Association: South East States
Looked at all of these early today. They really look good, but hope like hell I never need any of them.

Bob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 03:12 PM
Post #15


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(BIGKAT_83 @ Jan 12 2007, 01:00 PM) *

Looked at all of these early today. They really look good, but hope like hell I never need any of them.

Bob


it really amazes me how many parts comprise this area and it looks like they all sort of converge at once, right where the strength of the car exists! No wonder they so easily broke in half.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
obscurity
post Jan 12 2007, 04:31 PM
Post #16


Member
**

Group: Members
Posts: 411
Joined: 24-February 06
From: Atlanta ,GA
Member No.: 5,628
Region Association: South East States
QUOTE(McMark @ Jan 12 2007, 03:59 PM) *

What cool perspective of the hell hole area.

There is one part that is not quite original though. I'm sure it's made that way for ease of manufacturing, but it's worth pointing out for educational purposes.

Attached Image

This portion is double layered in the original pieces. The 'corrugated' metal was a C shape that fit inside the U shaped inner longitudinal.

Attached Image



If you are replacinga portion the section you are indicating with the ribs, Does anyone know if it will be as strong as the original? You would have a portion with the ribs and a portion with the inner stiffener. With the inner stiffener only spot welded to the outer skin wouldn't it be difficult to get it integrated with the new ribbed skin? I hope I explained that clearly...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 12 2007, 04:34 PM
Post #17


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Originally, the outer skin is flat, and inner piece has ribs. It sounded like you were a little unclear on that point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 12 2007, 05:45 PM
Post #18


914 Guru
*****

Group: Members
Posts: 8,101
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(McMark @ Jan 12 2007, 12:59 PM) *

What cool perspective of the hell hole area.

There is one part that is not quite original though. I'm sure it's made that way for ease of manufacturing, but it's worth pointing out for educational purposes.

Attached Image

This portion is double layered in the original pieces. The 'corrugated' metal was a C shape that fit inside the U shaped inner longitudinal.

Attached Image



Very very good observation. Yes it does not look original! This part is stamped from a heavier gauge metal and then ribbed for extra strengh, the factory piece being thinner metal and sandwiched with ribs only on the thinner inside piece, and yes ease of manufacturing!!!!!!!! On the money!!!!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 12 2007, 09:36 PM
Post #19


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Thicker metal, good to know and nice solution. (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
obscurity
post Jan 12 2007, 10:18 PM
Post #20


Member
**

Group: Members
Posts: 411
Joined: 24-February 06
From: Atlanta ,GA
Member No.: 5,628
Region Association: South East States
QUOTE(McMark @ Jan 12 2007, 05:34 PM) *

Originally, the outer skin is flat, and inner piece has ribs. It sounded like you were a little unclear on that point.



I get that but I guess I am asking do you need to replace the whole piece or can you just replace a portion and attempt to weld the new thicker, ribbed material to both the outer skin and the remaining inner stiffener?

It just seems that things would be getting pretty cut up within the long and I was concerned with strength.

The reason I ask is I am wrestling with the decision of whether to buy the replacement piece or try to fabricate what I have to cut out due to rust
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
